INTRODUCTION
Congratulations on your purchase of the patented Dock-N-Talk™ universal cell phone
docking station and charger. The Dock-N-Talk™ enables the user to make and receive
cell phone calls using normal home or office corded or cordless telephones. The Dock-
N-Talk™ uses patented technology to provide true land line (wireline) home or
business phone service from wireless cell phone service. Depending on the features
supported by the particular cell phone connected to the Dock-N-Talk™, all wireline
services may be supported in addition to many of the features of your cell phone.
Phone Labs supplies the following components with every Dock-N-Talk™ purchase:
• Dock-N-Talk™ Unit
• 9-Volt Power Supply
• Short and Long Modular Telephone Line Cord
• Quick Start Card and Warranty Mailer
• User’s guide.
Please be sure to verify that all these items are present in your package.
In addition, make sure you have purchased a Phone Labs cell phone cable connector
or Bluetooth Module to connect your cell phone to the Dock-N-Talk™.
The Dock-N-Talk™ will bring a whole new dimension to speaking on your wireless
service by providing better reception, better sound quality, better convenience and
better mobility while still maintaining the advantages of traditional home phone service
and the familiar comfort of wireline telephones.
Tell your friends, "I Dock and Talk!"

UNIVERSAL DOCKING STATION USER’S GUIDE
4

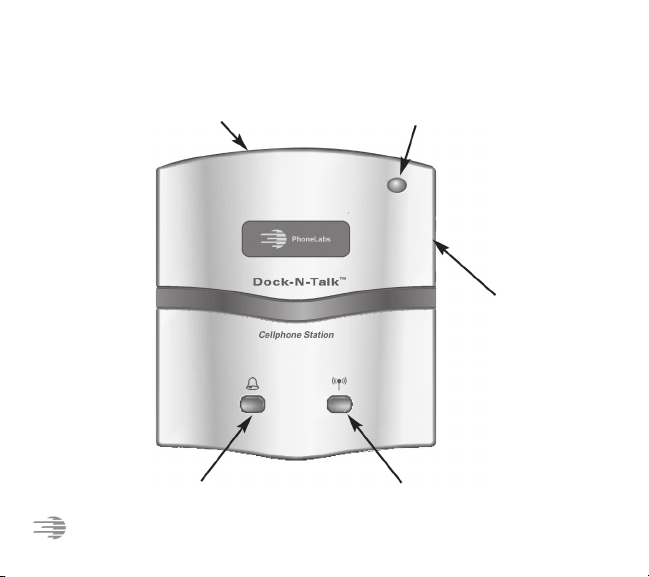

Power Plug, Line
Jacks and Line Pair
Status Indicator
Light
Cell Phone
Connector
Setup Ringing
Key
BlueTooth
Pairing Key

UNIVERSAL DOCKING STATION USER’S GUIDE
5
INSTALLATION
Make the basic connections to Dock-N-Talk™ as shown below.
1. Connect the supplied A/C power adapter cord into the Dock-N-Talk™ round
adapter plug shown above. Then connect the large transformer end into a normal
120-volt power outlet.
2. Connect one of the supplied telephone line cords to one of the two modular
connectors. The middle two connectors accept telephone line cords connecting to
extension telephone set(s) and/or to a modular wall jack.
3. Connect the other end of the line cord into a telephone extension set or a wall
connector (if you want other telephone sets to ring). One line cord (short) of the
Dock-N-Talk™ can be connected to a telephone set while the second line
cord (long) can be connected to a wall jack.
A/C Power
Adapter
Telephone Line
Pair Switch
Modular Connectors
for Extension Sets or House Wiring Jacks

UNIVERSAL DOCKING STATION USER’S GUIDE
6
Line Pair Switch
Once the power adapter is connected, the LED will illuminate indicating the Dock-
N-Talk™ is connected to power. In the back of the unit on the right, there is a slide
switch for selecting a Dock-N-Talk™ connection to either Line Pair 1 (“LP1”) or Line
Pair 2 (“LP2”).
1. If only a local extension telephone set is to be connected, set this switch to LP1.
Verify that the LED is now flashing green. Press the ringing “ ” button to verify
the telephone set rings properly.
2. If you have no wireline telephone service, set this switch initially to LP1. Check
that the LED is flashing green. If the LED is red, this indicates that the wireline
telephone service is still present. Immediately move the switch to LP2 or
disconnect the local telephone service from the network interface box. Verify that
the LED is now flashing green.
3. If you have wireline telephone service, set this switch initially to LP2. Check
that the LED is flashing green. If the LED is red, this indicates that the wireline
telephone service is still present. Disconnect the second wireline telephone line
from the network interface box. Verify that the LED is now flashing green.
4. If the unit is to be connected to the internal wiring in a home, you may choose to
have your Dock-N-Talk™ connected to either LP1 or LP2. If the switch is set to
LP1, the Dock-N-Talk™ is connected to the first pair of wires, which would
generally be used for a single wireline telephone connection in the home. If the
home has no wireline telephone service, the LED should be flashing green.

UNIVERSAL DOCKING STATION USER’S GUIDE
7
If the LED is solid red, LP1 is already in use by wireline telephone service.
Immediately disconnect the wireline telephone service at the network interface box
or move the line switch on back of unit to LP2. If the LED is now flashing green, any
telephones to be used must be connected to the second pair of wires in the home.
5. If the LED is red when the switch is positioned at LP2, then wireline service is
also connected to this pair of wires. You should have a qualified phone service
technician disconnect the wireline telephone service at the network interface box
to use this pair of wires.
*Note: A wireline telephone connection to the local telephone company central
office may be present even if no wireline telephone service is being purchased. If
the LED is red, this indicates that a wireline is still present, whether or not dial
tone is present. The LED must be flashing green in order for the Dock-N-Talk™ to
work prior to the connection of your cell phone. Only connect the cell phone
handset to the Dock-N-Talk™ if the LED is flashing green and note which setting,
LP1 or LP2, has been set. The telephones must be connected to the same set of
wires as the Dock-N-Talk™ setting in order to be able to dial out on the
telephones and have them ring for incoming calls. See LED Status section above.
Extension Telephone Sets
You may have up to five extension telephones connected through your internal wiring to
the same pair of wires connected to the Dock-N-Talk™. This will allow you to place cell
phone calls and receive cell phone calls from those extension telephones. The extension
telephones can be connected using your existing telephone wiring as if you had local
wireline telephone service.

UNIVERSAL DOCKING STATION USER’S GUIDE
8
Do NOT connect a
standard telephone
line on the same
line and pair as
Dock-N-Talk™
Plug telephone line cord into
one or both of Dock-N-Talk’s
modular telephone jacks
Warning: Do not attempt to connect the Dock-N-Talk™ telephone service to
an active land line telephone service.
If you have local wireline telephone service, use a different pair of wires to connect
the Dock-N-Talk™ to the extension telephones. Use the supplied long line cord to
connect to a RJ-11 modular wall jack for local extension telephones by plugging
one end of the line cord into the wall modular connector and connect the other
end into the back of the Dock-N-Talk™. The Dock-N-Talk™ RJ-11 modular jacks
are in parallel and it does not matter which one is used for a local telephone or
for the modular wall jack. Press the ringing “ ” button to verify the telephone sets
connected ring properly.

UNIVERSAL DOCKING STATION USER’S GUIDE
9
Docking the Cell Phone Using a Cable Connector
To connect your cell phone to the Dock-N-Talk™, you will need the proper cable
for your cell phone. Verify that the cable will connect to your model of cell phone by
connecting the larger end of the cable to your cell phone. Be sure to power cycle
your phone by turning it off and on before connecting the cable the first time. Then
connect the small end of the cable to the connector on the right side of the Dock-
N-Talk™. When you plug your cell phone into the Dock-N-Talk™ using the correct
cable for your cell phone model, you will see the LED turn from flashing green to
solid green color. That will confirm that the proper connection has been made.
Cell Phone Cable and
Bluetooth Module Connector

UNIVERSAL DOCKING STATION USER’S GUIDE
10
Docking the Cell Phone Using the Bluetooth Module
If your cell phone is bluetooth enabled, you may connect to the Dock-N-Talk™ using
a Phone Labs Bluetooth Module. To connect your cell phone using the Bluetooth
Module, you will need to turn on the bluetooth feature on your cell phone. Then
connect the Bluetooth Module securely into the connector on the right side of the
Dock-N-Talk™ until the blue LED
flashes. Press and hold the Bluetooth &HOO3KRQH%OXHWRRWK
Pairing key on the right hand side of 0RGXOH&RQQHFWRU
the Dock-N-Talk for at least 3
seconds until both the green and
blue LEDs are flashing quickly.
Using your cell phone’s Bluetooth
menu options, search/add/find/look
for new devices. Select the Phone
Labs device when it is displayed on
your cell phone and then you will
be prompted to enter a password
which is 3774. Some cell phones
may ask you if you want to
connect and select “Yes.” Once
the wireless bluetooth connection
has been properly established,
you will see the LEDs turn from
flashing green and blue to solid colors meaning you are both paired and connected.








UNIVERSAL DOCKING STATION USER’S GUIDE
11
LED STATUS
Solid GREEN
Indicates Dock-N-Talk™ is properly connected to the cell phone (via cable or
Bluetooth Module).
Flashing GREEN
Indicates Dock-N-Talk™ Adjunct is powered and ready to connect but is not yet
properly connected to cell phone or is connected to an unrecognized cell phone.
Solid RED
Indicates one or both scenarios:
(1) Dock-N-Talk™ is plugged into a telephone line that is already in use by a
wireline telephone service. Disconnect the wireline telephone service before
plugging into Dock-N-Talk™ or move the line switch on the back of unit to the
other setting.
(2) Power source to the Dock-N-Talk™ is insufficient. Ensure that only the
supplied Phone Labs power adapter is being used and is properly plugged
into both the Dock-N-Talk™ and the electrical outlet.
KEYS
Setup Ringing “ ” Key
The Setup Ringing key is used to test the Dock-N-Talk™ connection to extension
telephone sets. Pressing this key will ring any extension sets connected to the Dock-
N-Talk™. The function of the Ringing key does not require connection to cell phone.

UNIVERSAL DOCKING STATION USER’S GUIDE
12
The following describes the two different test modes:
(1) Short Ring: Pressing down the key for less than one second will cause a short
ring burst to extension sets.
(2) Long Ring: Pressing and holding down the key for at least one second then
releasing it will provide two long rings to the extensions sets. The long ring is
useful to confirm which telephones are connected to the Dock-N-Talk™. The
software version information is sent via Caller ID to extension telephones
between rings.
%OXHWRRWK3DLULQJ.H\ 
Bluetooth operation requires the connection of the Phone Labs Bluetooth Module
into the connector slot on the top right side of the Dock-N-Talk™. Bluetooth devices
must be paired before they can communicate. Normally, pairing needs to only be
performed once. The Bluetooth Module is capable of pairing with up to 8 cell phones
but only one can be connected at a time. Press and hold the Bluetooth Pairing Key
for at least three seconds until both the green LED on the Dock-N-Talk and the blue
LED on the Bluetooth Module start to flash rapidly. The Dock-N-Talk™ will enter into
discoverable mode where it is expecting to discovered by a bluetooth enabled cellular
handset. You must then initiate bluetooth pairing from the cell phone by having the
cell phone locate the Phone Labs device. Once you select it, the cell phone will
prompt you to enter a password or pass key. 7KHGHIDXOWSDVVZRUGLVOnce
the Dock-N-Talk™ and cell phone are paired, the LEDs will turn solid green and blue
confirming the Bluetooth connection has been established.



UNIVERSAL DOCKING STATION USER’S GUIDE
13
EXTENSION TELEPHONES
Placing a Call
To place a call on an extension phone, pick up your handset and dial your telephone
number normally. You may also dial a “#” at the end of the dialed number to make a
slightly faster connection as you would on a land line call, but it is not required. The
“#” tells the Dock-N-Talk™ that the dialing action is finished and functions similarly
to the Send button on your cell phone. The “#” can also be programmed in the
extension telephone set’s memory dialing keys. If there is an error tone (rapid series
of beeps), this is an indication that there is no cell phone plugged into the Dock-N-
Talk™.
Receiving a Call
When your cell phone rings, all of the extension telephone sets that are connected
to the Dock-N-Talk™ (either through modular wall jacks or by direct connection) will
also ring. Simply answer the call as you would an ordinary wireline call by picking up
the handset or activating the speakerphone or headset.
Caller ID*
If your extension telephone set is Caller ID-capable and you receive Caller ID on
your cell phone, the Caller ID name and number may be able to be displayed on
your extension telephone set. The Caller ID name may not appear on the extension
set, depending on your cell phone’s capability. The Caller ID may not be available
from some models of cell phones, even if it shows up on the cell phone display. In
this case, Caller ID capable extension telephone sets will display “Dock-N-Talk™” as
the Caller ID name, and no number will be displayed.

UNIVERSAL DOCKING STATION USER’S GUIDE
14
*Note: This feature works only with certain models of cellular handsets that support Caller ID and make it
available to connected devices.
Call Waiting Calls
When you hear the call waiting beep, you can use the FLASH (or LINK, CALL WAITING, etc.)
Voice Dial Access*
If you have a corded or cordless phone that makes long continuous touch tones, go off hook
and hold down “#” key, for at least one second, using the handset or speaker phone of any
extension set. If your phone makes short, timed touch tones, go off hook and press "0" followed
by a “#” to enter voice dialing mode. Say the name of any voice dial tags that are programmed
into your cell phone. The call will be connected.
*Note: This feature works only with cellular handsets that support voice dialing and make it available to
connected devices.
Voice Mail Access*
If you have a corded or cordless phone that makes long continuous touch tones, go off hook
button on your extension telephone set to connect to the second caller. Pressing the FLASH
button your extension telephone set may toggle between the two callers if that feature is
supported by your cell phone.
Last Number Redial*
If you have a corded or cordless phone that makes long continuous touch tones, go off hook
and hold down “*” key, for at least one second, using the handset or speaker phone of any
extension set. If your phone makes short, timed touch tones, go off hook and press “**”
(*twice) and the last number dialed through the cell phone will now be redialed.
*Note: This feature works only with cellular handsets that support last number redial and make it
available to connected devices.

UNIVERSAL DOCKING STATION USER’S GUIDE
15
wireless handset. Some cell phones require that the Voicemail number be programmed into
the f rst phonebook location for this feature to work remotely. If this feature is not supported
on your cell phone, enter your voicemail access number as a speed dial on your extension
telephone set. Dialing your own cell phone number from your cell phone is often the
Voicemail access number.
and hold down the "1" key, for at least one second, using the handset or speakerphone of any
extension set. If your phone makes short, timed touch tones, go off hook and press "1" followed
by a "#" to access your voice mail service. You will bec onnected to your voice mail service.
Follow the voice instructions as you normally would when accessing your voice mail from your
i
This feature works only with cellular handsets that support voicemail access. However, going off
hook and holding down the “1” key for at least one second or pressing “1” followed by a “#” “ between the
words will turn off the message light on your extension telephone set.
One Digit Speed Dialing*
If you have a corded or cordless phone that makes long continuous touch tones, go off
hook and hold down any key “2” through “9”, for at least one second, using the handset
or speakerphone of any extension set. If your phone makes short, timed touch tones, go
off hook and press any key “2” through “9” to use the one digit speed dialing feature.
The phone number associated with that speed dial key will be dialed.
This feature works only with certain models of cellular handsets that make speed dial keys
available to connected devices.
If you are on a call with your cell phone, you can transfer the call to the Dock-N-Talk™.
Connect the cell phone to the Dock-N-Talk™ during the call and you can continue the call
on an extension set. Depending on the cell phone model, a user may need to press “# #”
on the extension set to properly route the cell phone call to that extension. You may also
*Note:
*Note:
Live Call Transfer*

UNIVERSAL DOCKING STATION USER’S GUIDE
16
detach your cell phone from the Dock-N-Talk™ during a call and continue the call on your
cell phone if your cell phone supports that feature.
*Note: This feature works only with certain models of cellular handsets that
allow the live call transfer feature to be used by connected devices.
HANDSET CHARGING
While your cell phone is connected by a cable to the Dock-N-Talk™, your cell phone
should be charging. You may see the charging indication displayed on the screen
of your cell phone. However, if your battery is completely dead or extremely low on
power, the charging feature may not be able to be activated. Charge your battery
with your normal charger for at least 15 minutes before docking your cell phone.*
*Note: The Dock-N-Talk’s universal charger will not be able to power your phone
with dead batteries or if no battery is installed. The Dock-N-Talk™ applies a mid-
level charging rate to cell phones.
,NTERCOM3$*,1*
The Dock-N-Talk™ is able to ring all corded or cordless extension telephone sets
connected to it and create a page or intercom call. If you are next to the Dock-N-Talk,
before going off-hook on your extension telephone handset, press the “ ” ringing
button for 2 seconds. Wait until the ringing has stopped and pickup an extension
telephone set and begin speaking to the person who has answered from another
telephone extension set. If you wish to make an intercom call from any extension
telephone set, simply go off-hook and press the "0" key and hang up. You will hear
all the extensions begin to ring. When someone answers the call, the ringing will stop
and you can then go off-hook again and begin speaking.

UNIVERSAL DOCKING STATION USER’S GUIDE
,16758&7,216)2563(&,),&3+21(6
6RQ\(ULFVVRQ3VHULHVDQG3VHULHV
Open Flip of Phone. Jog Dial to Control Panel. Once in Control Panel Select
Connections. Select Cable, Where it says Cable Status, switch phone to Modem
Mode. Select Done after this process is completed and you can now connect to the
Dock-N-Talk™.
0RWRURODDQGRURWKHU)OLS3KRQHV
All Motorola cables connect to the cell phone in two places. The smaller connector
needs to be inserted into the headset jack on the top of the phone, and the larger
one needs to be inserted at the base of the phone. All flip phones must be left in
the open position in order to function properly with the Dock-N-Talk™. With some
models, you may want to turn off the back lighting feature, in order to save the battery.
0RWRUROD9V2SWLPDO6HWWLQJV
Auto Handsfree set to On. Power Off Delay set to Continuous (last option). Charger
Timer set to Off. Status Light set to On.


1

UNIVERSAL DOCKING STATION USER’S GUIDE
18
Nextel Phones
Phone Labs’ Flash-To-Talk™ feature allows the Nextel Push-To-Talk™ service to
be used from any regular corded or cordless telephone through the Dock-N-Talk™.
On an iDEN cell phone, the Push-To-Talk™ (PTT) feature is activated by use of a
special button. When using the Dock-N-Talk™, the FLASH button on your regular
corded or cordless telephone activates the PTT functionality. The main difference is
that, unlike the PTT button, you do not hold down the FLASH button while you are
speaking. You need to press FLASH when you begin speaking, and press FLASH
again when you finish.
To place a PTT call using your regular corded or cordless telephone, go off-hook by
either picking up the receiver or by activating the speakerphone. Once you hear the
dial-tone, dial the iDEN number of the individual or group you are calling and then
press the FLASH button or use your hookswitch to effect a flash. Once you hear
a response, you’ll need to press FLASH to begin speaking, and again when you
finish speaking. Throughout the conversation, each time you begin speaking, press
FLASH. Each time you finish speaking, press FLASH again.
When you receive a PTT call using your regular corded or cordless telephone, you
will hear your telephone ring with a distinctive ringing pattern. Pick up the handset
as you normally would. If the other party is not speaking, you may immediately begin
speaking. If the PTT caller is speaking, when they finish speaking press FLASH,
answer and press FLASH again when you are finished speaking. Throughout the
conversation, each time you begin speaking, press FLASH. Each time you finish
speaking, press FLASH again.

UNIVERSAL DOCKING STATION USER’S GUIDE
19
If you have missed a PTT call, and would like to redial the person who last called
you, simply pick up the handset and when you hear the dial tone press FLASH. Wait
for the other party to reply, then press FLASH again before speaking.
Hints:
1. After you press FLASH to begin speaking, you will know you are in transmit mode
if you hear a short confirmation tone.
2. Before pressing FLASH to end speaking, it is useful to let the other party know
you are done by saying “over” before pressing FLASH. This will make it easier for
both parties to switch between Transmit and Receive modes.
Important Note: Nextel cell phones have powerful radios that can cause noise in
your conversation. To avoid this interference, place your Nextel cell phone as far
as away as practical from both the Dock-N-Talk™ and from the corded or cordless
telephones.

UNIVERSAL DOCKING STATION USER’S GUIDE
20
GLOSSARY
Cell Phone
Used generically to refer to any wireless mobile handset that may be operating on
GSM, CDMA, TDMA, or analog cellular networks. Also called wireless or mobile
phones.
Extension Telephone Set
Any analog corded or cordless telephone set that is plugged into the Dock-N-Talk™
base unit or through house wiring connected to the RJ-11 modular jack.
Local Extension Set
Any analog telephone set that is plugged directly into the RJ-11 jack on the back of
the Dock-N-Talk™ base unit.
SIM Card
Subscriber Information Module, a removable card that enables users to store
personal information such as phone numbers and SMS messages. This card may
be transferred from one cell phone to another. Used with GSM network cell phones.
Wireline Service
Telephone service is provided by wires coming from the central office of a local
telephone company. Also called land line service.
Wireless Service
Telephone service provided by cell phone service providers or carriers.
