IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated
“ dangerous voltage ” within the
product
’ s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is in-
tended to alert the user to the presence of important operat-
ing and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING: To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
CAUTION: Use of controls or adjustments or performance
of procedures other than those specified may result in
hazardous radiation exposure.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases,
shall be placed on the apparatus. The MAINS plug is used as the disconnect device, the disconnect device shall
remain readily operable.
Warning: the user shall not place this apparatus in the confined area during the operation so that the mains switch
can be easily accessible.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

TABLE OF CONTENTS
RoadGear 160/260
Integrated Mobile Sound System
Phonic reserves the right to improve or alter any information supplied within this document without prior notice.
V1.1 10/19. 2005

4RoadGear 160/260

5
RoadGear 160/260

Disassembling The RoadGear
To follow is the most convenient way to open
and close the RoadGear kits. Following these
instructions will ensure trouble-free setup of the
RoadGear.
1. You should fi rst unclip docking locks 1 and
2 (indicated below) on either side of the
RoadGear.
2. After unhooking these docking locks you can
then open the top lock 3 . This ensures the
RoadGear pieces come apart smoothly.
3. Stand the powered mixer upright.
4. To re-assemble the RoadGear pieces, the same
order should be taken (side locks fi rst, followed
by the the top). This way the pieces will be held
securely and fi rmly together.
Initial Setup
Please ensure you take note of all setup instructions
listed in this manual. The RoadGear 160 and 260
are both used as normal PA systems and therefore
all care should be taken in ensuring the correct
setting up of equipment.
1. Disassemble the mobile RoadGear set and
remove the speakers from the top of the kit.
Remove all items you wish to use in your PA
system from the RoadGear’s storage area.
Also, place the mixer and speakers in a suitable
place.
2. Connect the two speakers to the Powered
Mixer, via the supplied speaker cable. An
optional speaker stand may be used to increase
the height of the speakers.
NB. No devices other than speakers should be connected to the
speaker outputs. Doing so will likely cause damage to the device.
Also, guitar cables should not be used to connect amplifi ers to
speakers.
3. Plug all necessary instruments and equipment
into the device’s various inputs as required.
This may include line-signal devices, as well as
microphones and/or guitars, keyboards, etc.
4. Plug any necessary equipment into the device’s
various outputs. This could include monitors,
signal processors, and/or recording devices.
5. Ensure all input and out levels are set to the left-
most position.
6. Plug the supplied AC cable into the AC inlet on
the back of the RoadGear mixer.
NB. Ensure the power cable has no scratches or cuts that may
reveal the wire beneath before plugging into the
provided powered
mixer as constant setting up and disassembling of equipment may cause
insulation to wear.
7. Plug the supplied AC cable into a power outlet
of a suitable voltage.
8. Turn the mixer power switch to the on position
and set all input and output at appropriate levels
to suit your needs.
9.
When the RoadGear is in use, the storage compartment
door must be kept open for better ventilation.
1
Push button in
to release lock
5. When using the RoadGear speakers, ensure
that the docking locks on the rear are locked
back into place, to ensure they don't scratch the
surface on which they sit.
6RoadGear 160/260

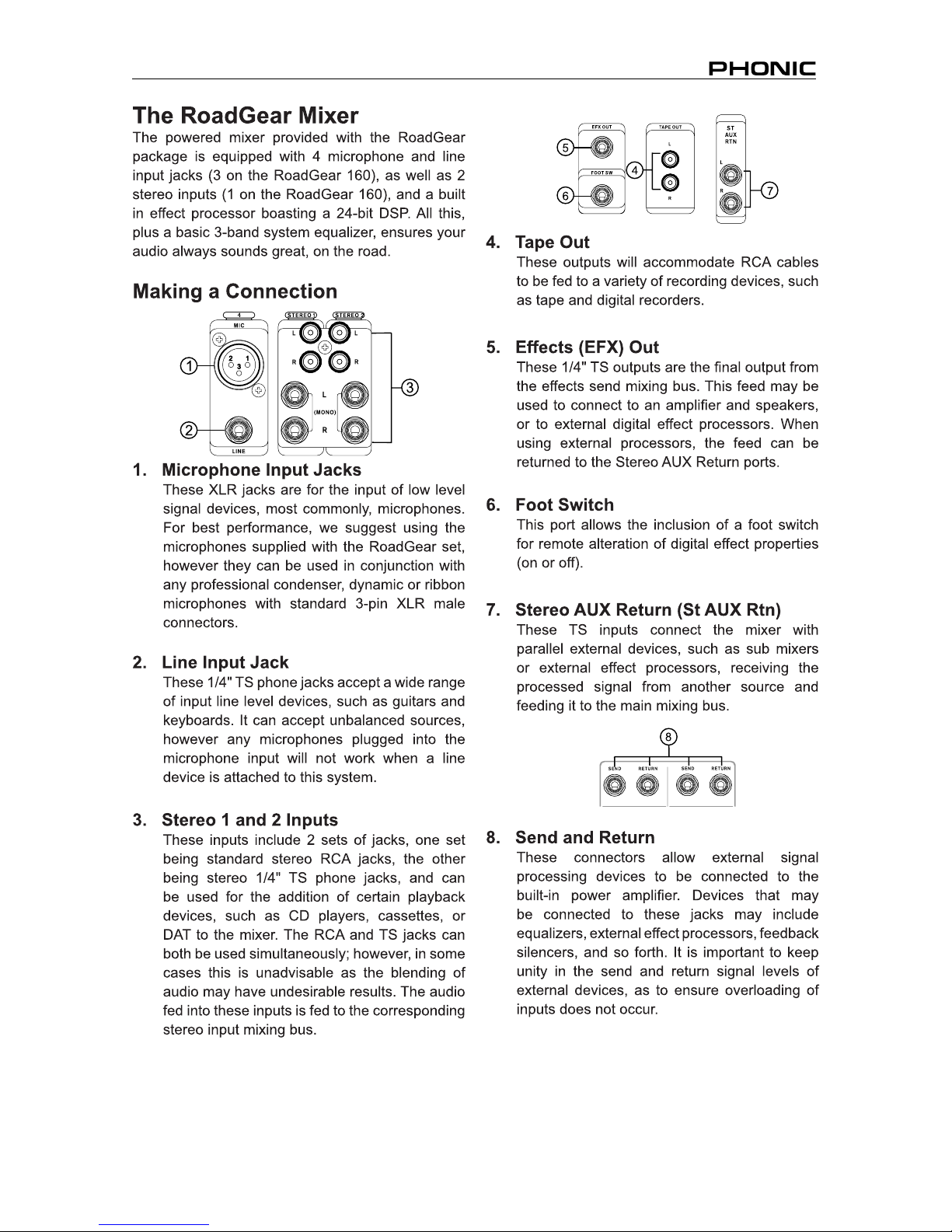

7
RoadGear 160/260

8RoadGear 160/260

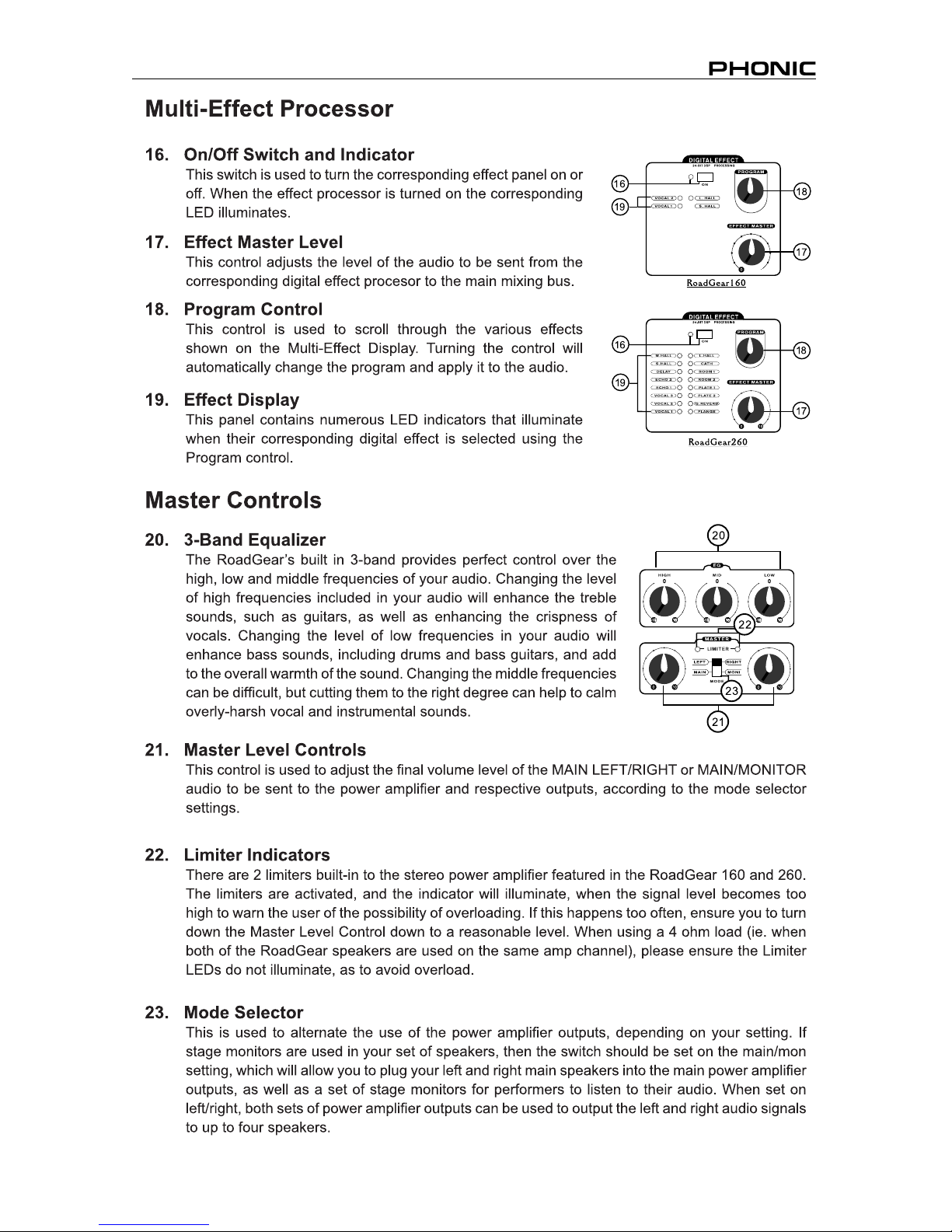

SPEAKER
LEFT
MAIN
SPEAKER
RIGHT
MONITOR

9
RoadGear 160/260

10 RoadGear 160/260

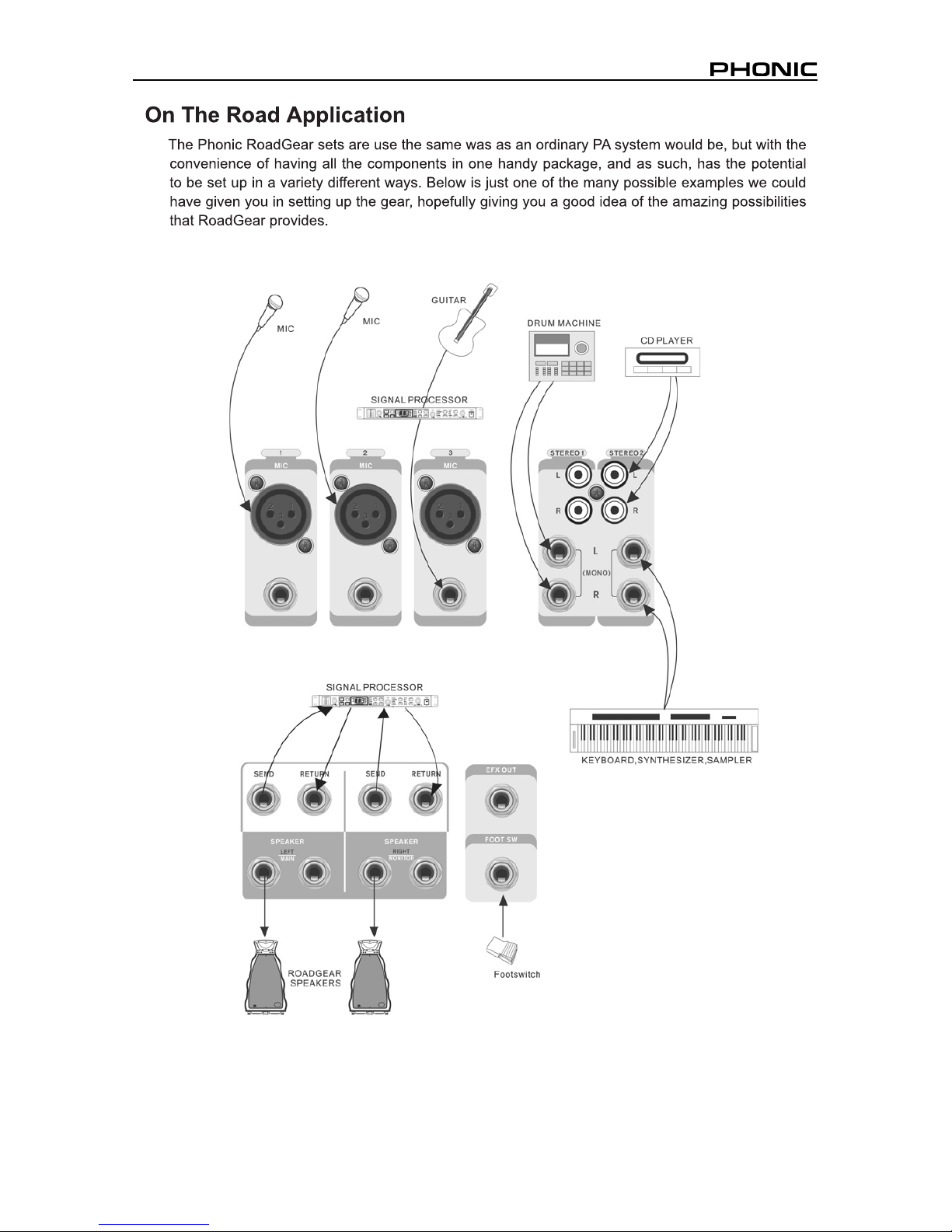

11
RoadGear 160/260

Speci cations
RoadGear 160 RoadGear 260
Speakers
Drivers Compression tweeter & 8” woofer Compression tweeter & 8” woofer
Stand Adapter 35mm 35mm
Output Power 2 x 80W @ 8 ohms 2 x 130W @ 8 ohms
Speaker Impedance 8 ohms 8 ohms
Mid/High Crossover Point 2 kHz 2 kHz
Mixer
Channels 3 mono & 1 stereo CH, Peak indicator,
2-band EQ, Efx send, pan, level
4 mono & 2 stereo CH, Peak indicator,
2-band EQ, Efx send, pan, level
Mono Channel
Connectors
Balanced, XLR & 1/4” TRS Balanced, XLR & 1/4” TRS
Stereo Channel
Connectors
2 x 1/4” TS & 2 x RCA 2 x 1/4” TS & 2 x RCA
Multi-effect Processor 4 programs, 24-bit, 46 kHz sampling
rate
16 programs, 24-bit, 46 kHz sampling
rate
Foot Switch Momentary type, Effect On / Mute Momentary type, Effect On / Mute
System EQ 3-band 3-band
Minimum Impedance of
Power Ampli er
4 ohms 4 ohms
Amp Mode L & R or MAIN & MONITOR,
with limiter indicators
L & R or MAIN & MONITOR,
with limiter indicators
Speaker Out 2 x 1/4” TS per channel with insert
Send and Return
2 x 1/4” TS per channel with insert
Send and Return
Tape Out One Stereo RCA One Stereo RCA
EFX Out & ST Return Yes, 1/4” TS Yes, 1/4” TS
Phantom Power Yes Yes
Wireless Mic Module
Socket
2 (wireless microphones and receiver
modules are optional)
2 (wireless microphones and receiver
modules are optional)
Miscellaneous
Included Accessories 1 x Phonic UM99 microphone with
clip, 20’ cable, and carry pouch
2 x Phonic UM99 microphone with
clip, 20’ cable, and carry pouch
2 x 30’ speaker cables 2 x 30’ speaker cables
1 x detachable power cable 1 x detachable power cable
1 x PVC dust cover 1 x PVC dust cover
Power Requirement Switchable between 115VAC / 60Hz
and 230VAC / 50Hz, or optional
battery power
Switchable between 115VAC / 60Hz
and 230VAC / 50Hz, or optional
battery power
Dimensions (H x W x D) 818 x 635 x 352 mm
(32.2” x 25” x 13.9”)
818 x 635 x 352 mm
(32.2” x 25” x 13.9”)
Net Weight 27 Kg (59.5 lbs) 28 Kg (61.7 lbs)
12 RoadGear 160/260

Some Important Information

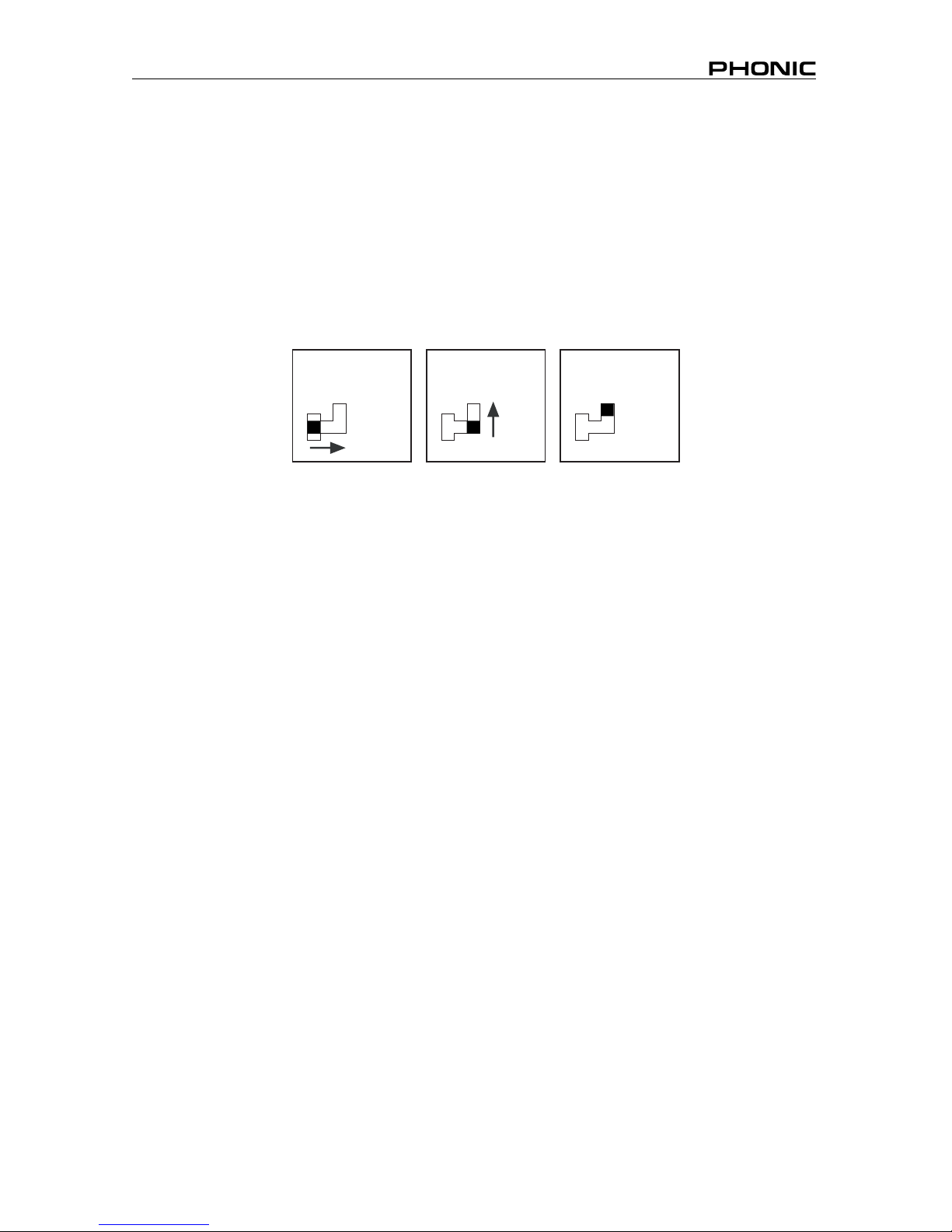

The Combination Docking Lock
The docking locks of the RoadGear are combination locks, which require the user to enter a pre-set
combination to open them. Please observe the following instructions to opening the lock.
1) The default code of the lock is 000. Please enter this code the fi rst time you use the RoadGear.
2) To change the lock’s code, fi rst open the latch and fi nd a small lever on the underneath of the lock.
Pull it towards the centre of the lock and up until it sticks into place.
3) Change the code dials to your desired secret code. Ensure you either remember the code by heart
or write it down somewhere, so as to not have to attempt to break the RoadGear apart in a way that
would not be favorable to your equipment.
4) After entering your desired code, replace the small lever underneath the lock into its original posi-
tion. And Voila! Your new, secret code is set.
Latch Position
Please ensure, after unpacking the RoadGear set, that the docking locks on the speakers are locked
back into place, to ensure the locks do not scratch the surface on which the speaker is standing.
Underneath The RoadGear Combination Lock
13
RoadGear 160/260

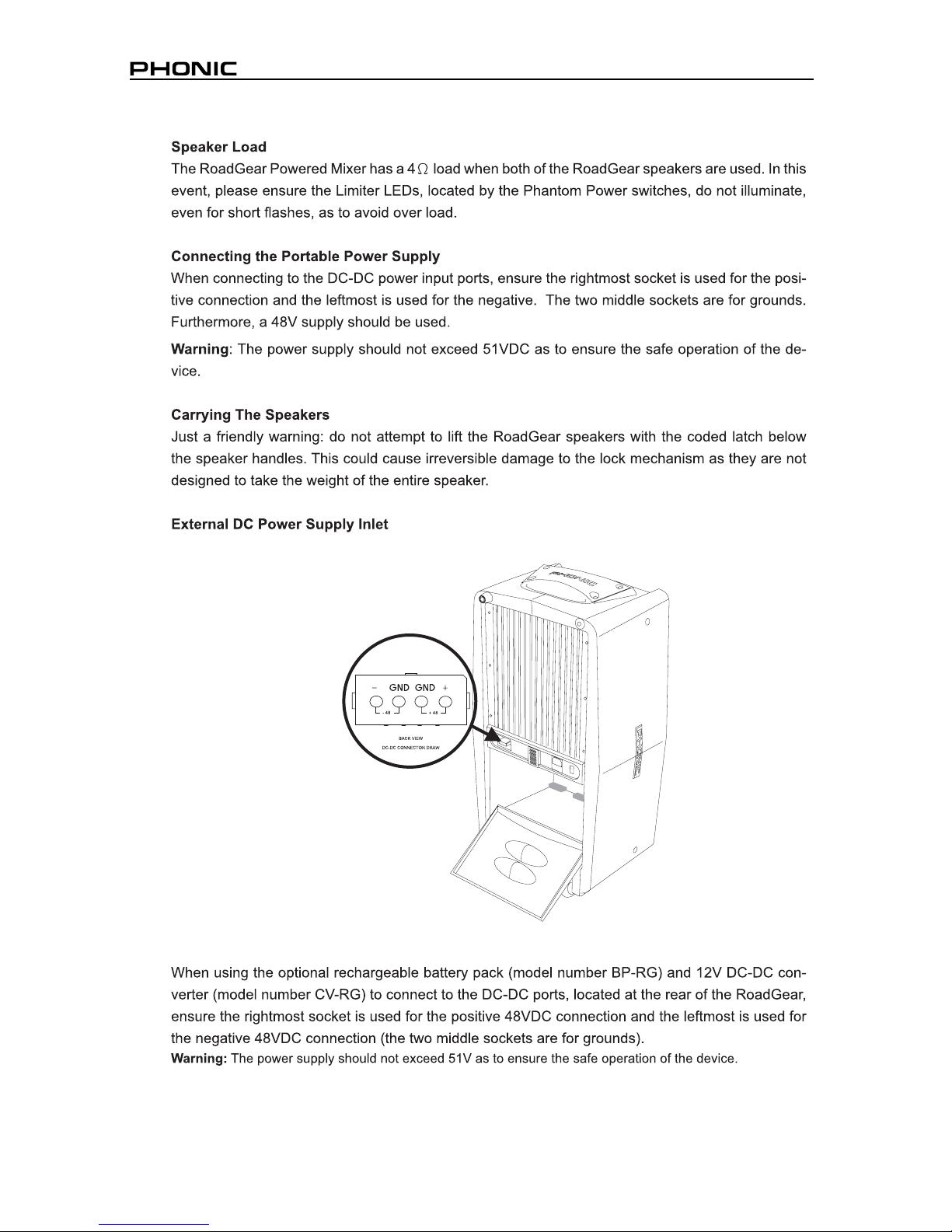

14 RoadGear 160/260
