Photive PH-M90 User manual

USER GUIDE
PH-M90
RUGGED WIRELESS BLUETOOTH SPEAKER

PACKAGE
PH-M90 speaker
USB charging cable
3.5mm audio cable
4
1
2
3
1
3
2

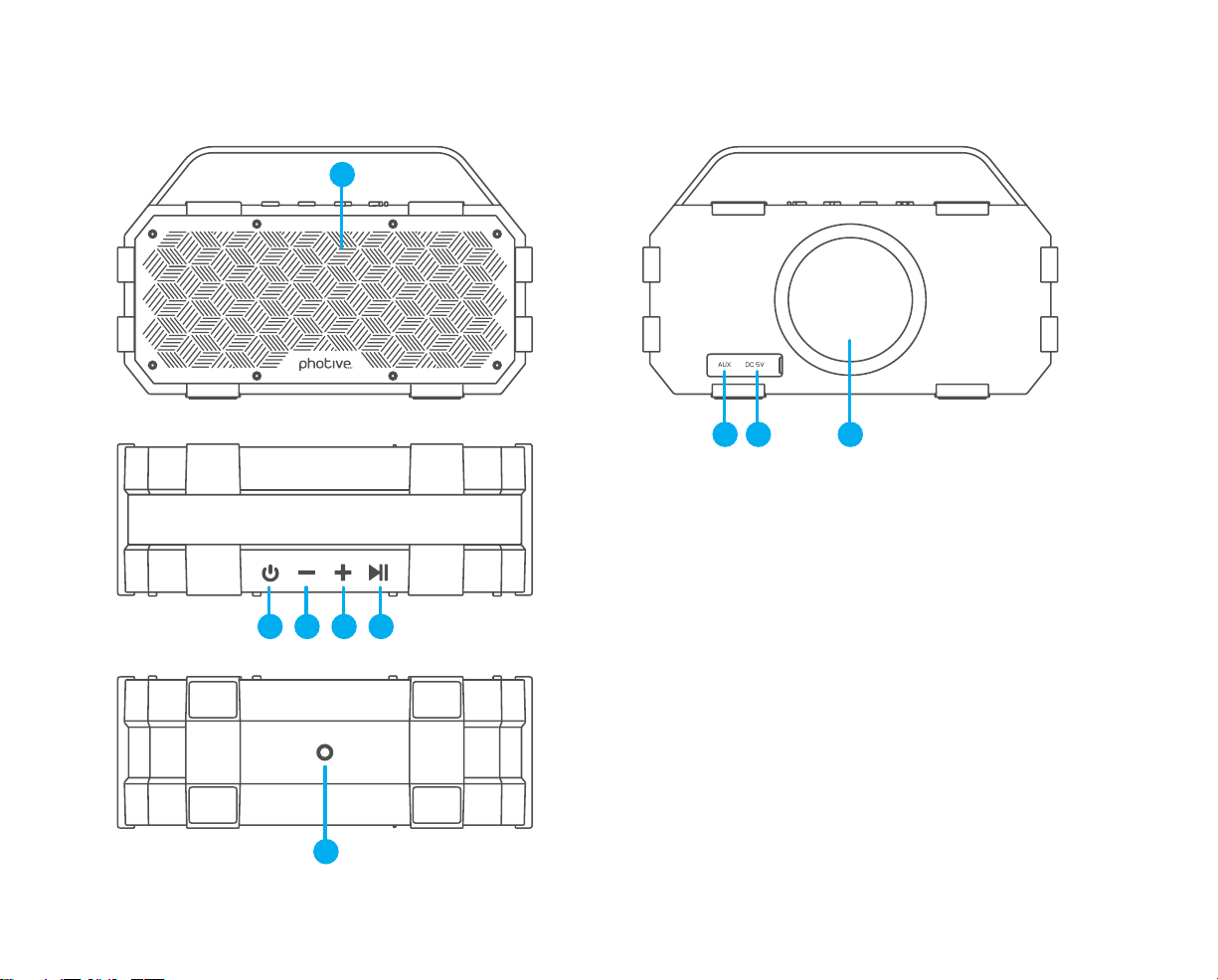

FUNCTIONS
LED light indication
Power button
Volume down/ Previous track
Volume up/ Next track
Play/Pause/Pair/Answer calls
Screw mount
AUX-IN
USB charging port
Subwoofer
1
2
3
4
5
6
7
8
9
5
2345
6
7 8 9
1

Before using your PH-M90, please charge it using the micro USB charging cable included in the
package.
Please note: Most USB chargers are compatible with PH-M90. For optimal AC charging, please use
a 1.0A USB charger.
Plug the small micro USB pin into the charging port on the rear side of the speaker, and the other
end of the cable (the standard USB 2.0 plug) into any standard USB port (such as a computer or
USB charger).
The LED light on the rear side of the speaker will turn red when it is being charged. When it is
fully charged, the LED indicator light will turn o. The speaker can be charged while playing
music.
CHARGING
6

PAIRING
Press and hold to turn your speaker on.
The Bluetooth LED indicator will flash blue.
Enable your Bluetooth device such as cell phones, tablets or other Bluetooth media and make
sure it is in searching mode.
Select “Photive PH-M90 speaker” in the list shown in the Bluetooth device.
Note
1If it prompts, please enter password “0000” for a connection.
2The speaker will automatically reconnect to the last connected Bluetooth enabled audio device.
3 IMPORTANT When you need to connect your speaker with another Bluetooth enabled audio device, hold
the PAIRING button about 4-5 seconds until the Bluetooth LED indicator flashes quickly. This will put the
speaker into pairing mode.
1
2
3
4
7

LINE-IN
HANDS-FREE SPEAKERPHONE
If your device is not Bluetooth enabled you can still enjoy your music simply by using the Line-In
Audio Jack. Connect the speaker with the audio cable that is included in the package to any device
with a 3.5mm standard audio jack. Once connected the speaker can be used as a wired speaker.
Please note: the changing track buttons, and only work when connected wirelessly via Bluetooth.
Volume function will work in Aux-in mode.
You can use PH-M90 as a portable speakerphone for incoming calls when connected wirelessly
and outgoing calls via Bluetooth.
Take your call by pressing the . Press once again when ending the call. Music will resume
automatically.
To make a call, simply dial your cell phone and talk to the speaker. Once your call is connected,
choose PH-M90 in the headset options.
8
1
2
3

9
OPERATION INSTRUCTION
VOLUME ADJUSTMENT
At any time while playing music, the volume can be changed with the or button. To raise the
volume, press the button. To lower volume, press the button. There will be a tone from the
speaker to indicate that the level has reached maximum or minimum volume.
CHANGING TRACKS
Press the or button about 2-3 seconds to change tracks.
PLAY AND PAUSE
Press the on the speaker to play/pause the music.
Please note: If listing to music via the Aux line in the track controls on the speaker will not function. Control the track from the device playing
audio “ie: Smartphone, Tablet.”

No power
Ensure the speaker is charged and with enough power for operation. The speaker can be used
when it is in charging mode.
No sound
Ensure the speaker is on. Ensure your Bluetooth device is on. If the volume of the speaker is too
low, adjust the volume to an appropriate level.
Unable to connect
Press the pairing button until the LED indicator flashes quickly. The Bluetooth speaker will go into
pairing mode. Select PH-M90 on your Bluetooth enable device.
Poor sound quality from the bluetooth device
Ensure placing the speaker and Bluetooth device within 33-ft. (10m) sensing distance and with
no barriers.
Notes Clean the speaker with a soft, lint-free, dry cloth.
Never use detergents or abrasive cleaners for cleaning.
TROUBLESHOOTING
10

Speaker parameters
Output power 8W x 2
Impedance 4Ω
Frequency response: 90hz-20khz
Sensitive 70db+/-2db
S/N 65db
Power Input: DC 5V 2600mA X 2
Playing music time: up to 10 hours
Charging time: 6 hours
Bluetooth parameters
Eective distance 33ft (10m)
Bluetooth: 2.1 + EDR
SPECIFICATION
NOTES
Do not expose the built-in battery to
excessive heat, including direct sunlight
and fire. In addition, do not expose it to rain,
moisture and any kinds of liquid.
This speaker is in compliance with the
specified Bluetooth version. It does not
guarantee compatibility of all functions on
every Bluetooth enabled device. Please check
with your mobile phone’s user manual for
compatibility and functionality.
11

WARNING
Please read these safety warnings and cautions
carefully to ensure your personal safety and prevent
property damage.
Fire and Electric Shock Hazard
• Do not expose your PH-M90 to liquid, moisture,
humidity, or rain. Do not use the PH-M90 near a
bathtub, sink, sauna, pool, or steam room. Exposure
of the PH-M90 to moisture could result in electric
shock.
• Do not drop, disassemble, open, crush, bend,
deform, puncture, shred, microwave, incinerate,
paint, or insert foreign objects in to the PH-M90.
Such actions could result in electric shock.
• Clean the PH-M90 only with a dry cloth.
• Do not expose your PH-M90 to extremely high or
low temperatures.
• Do not leave your PH-M90 in direct sunlight for
extended periods of time.
• Do not leave your PH-M90 near open flames such
as cooking burners, candles, or fireplaces.
• Do not block any ventilation openings.
SAFETY INFORMATION
Battery/Charger Hazard
• Do not dispose of your PH-M90 in a fire. The
battery could explode causing injury or death.
• Only charge the battery in accordance with the user
instructions supplied with the PH-M90.
• Do not attempt to disassemble the PH-M90 charger
or force open the built-in battery because this may
result in electric shock.
• Do not charge the PH-M90 in damp areas or in
extremely high or low temperatures because this
could result in electric shock.
• Do not clean the PH-M90 when it is being charged.
Always unplug the charger first before cleaning the
PH-M90.
Automobile Accident Hazard
• Do not leave or store the PH-M90 or any of its
accessories near or over your automobile’s air bag
because serious injury may result when an air bag
deploys.
• Do not place the PH-M90 on high surfaces such
as shelves. During music playback the PH-M90 may
move which could cause the PH-M90 to shift and
fall o of the edge.
12
