Prodigy (SDHD II) User Guide
Rev K
June 25, 2018
4111 North Freeway Blvd.
Sacramento, CA 95834
www.pianodisc.com
Copyright © 2018
PianoDisc and Burgett Inc.
All Rights Reserved
PianoDisc and Burgett, Inc reserve the right to change product design and
specifications at any time without prior notice.

2
Table of Contents
Table of Contents.............................................................................................................................. 2
Important Safety Instructions............................................................................................................ 4
General operating notes ...........................................................................................................................5
Power ........................................................................................................................................................5
Power source connection .........................................................................................................................5
About Prodigy................................................................................................................................... 6
Wireless playback information .................................................................................................................6
Buttons and Connections .................................................................................................................. 7
Getting Started ................................................................................................................................. 8
Getting Your iPad Ready ...........................................................................................................................8
PianoDisc iQ Player app ............................................................................................................................8
Use the PianoDisc iQ Player App to play music ........................................................................................8
Adjust the volume.....................................................................................................................................8
Audio .........................................................................................................................................................9
MIDI.........................................................................................................................................................10
Standard Mode .......................................................................................................................................10
Professional Mode ..................................................................................................................................10
Connection diagrams ..............................................................................................................................12
Advanced users and Professional Mode........................................................................................... 15
Enable Professional Mode ......................................................................................................................15
Prodigy Calibration..................................................................................................................................
15
Standard Mode, iPod Library, and PianoDisc Radio Calibration.............................................................15
Professional Mode calibration................................................................................................................15
External Audio.....................................................................................................................................16
Playback Volume Range (Level) ..........................................................................................................16
Piano Volume ......................................................................................................................................16
Synchronization...................................................................................................................................16
PianoSync Delay ..................................................................................................................................16
Play and record MIDI files.......................................................................................................................17
Adding music to your system........................................................................................................... 18
Free music download..............................................................................................................................18
Download music to your iOS device automatically from the PianoDisc Music Store.............................18

3
Download purchased music from your email client on your iOS device and save to the iQ Player app 18
Use iTunes File Sharing to add music to the iQ Player app.....................................................................19
Save MIDI files to the iQ Player app from Safari.....................................................................................20
Support .......................................................................................................................................... 23

4
Important Safety Instructions
Warning: When using electrical appliances, these basic precautions should always be followed:
1. Read and understand all instructions before using the product.
2. Do not open the cover under any circumstances.
3. Power is supplied through a three-prong, grounded AC connector. Connect only to a three-
prong, grounded outlet.
4. Keep the power cord away from other objects. Make sure that the cord is not twisted, placed in
any lane of traffic, or trapped under the piano.
5. Locate your PianoDisc unit away from direct sunlight, water or moisture, or hot or cold air
currents.
6. If the PianoDisc unit is to remain unused for an extended period of time, the power supply
should be disconnected.
7. If repair is necessary, refer only to authorized service personnel.
8. This product, either alone or in combination with an amplifier and headphones or speakers, may
be capable of producing sound levels that could cause harm at high volume levels or at a level
that is uncomfortable. If you experience any hearing loss or ringing in the ears, consult your
physician.
9. The product should be located so that its location or position does not interfere with its proper
ventilation.
10. Care should be taken so that objects do not fall onto and liquids are not spilled into the product
through the openings.
11. Care should be taken so that objects do not fall onto and liquids are not spilled into the piano
through the keys or inside the piano cabinet.
12. The products should be unplugged, and serviced by qualified service personnel when:
a. The power supply cord or plug has been damaged.
b. Objects have fallen or liquid has been spilled into the product or piano.
c. The product or piano has been exposed to rain.
d. The product does not appear to operate normally or exhibits a marked change in
performance.
e. The product has been dropped or the enclosure is damaged.
Save These Instructions!

5
General operating notes
Even when not in use, your piano and control box continue to consume a small amount of power.
Disconnecting your piano from the power source completely shuts down the unit.
If your piano or PianoDisc Prodigy control box fails to operate in a manner consistent with the
instructions in this manual, please disconnect it from your power source and contact an authorized
PianoDisc dealer or a certified PianoDisc technician in your area.
Power
Make sure the correct power source is available.
•In the United States, your PianoDisc system uses a standard 120-volt AC household electrical
outlet as a power source.
•In other countries, PianoDisc systems are usually equipped with a power supply and cord that
are compatible with the prevailing voltage standards of that geographic area.
If you have questions concerning compatibility with local electrical standards, please consult your
PianoDisc retailer before connecting your PianoDisc system to a power source.
Power source connection
•For systems installed on vertical (upright) pianos, the electrical cord is usually found extending
from a small hole in the back of the piano. Make sure the cord is securely plugged into the outlet
before moving the piano against the wall. Do not crush the cord or plug under or against the
piano.
•For systems installed on grand pianos, the electrical cord extends from the power supply. The
power supply is usually mounted on a support beam under the piano. Plug the electrical cord
securely into a power source and avoid placing the cord where it becomes a tripping hazard.
•If speakers and/or other peripherals are installed, purchase a surge protector to distribute
power to each device. Mount the surge protector underneath the piano and attach it to the side
of the beam. Plug it into the wall, then plug the speakers, peripherals, and power supply into the
surge protector.

6
About Prodigy
The new PianoDisc Prodigy combines the iQ and SilentDrive HD into one box, resulting in cleaner and
easier installations, and less likelihood of accidental damage. Additionally, it offers far more connection
options, with integrated Bluetooth and USB MIDI, analog, and digital audio.
The new PianoDisc Prodigy is set up entirely via the PianoDisc Calibrate App, and the iQ’s “select wheel”
has been removed. Since the calibration is app-based, it offers improved flexibility and accuracy,
resulting in noticeably better performance and easier adjustment.
Here’s what’s new in Prodigy:
•iQ and SilentDrive are now integrated into one box.
•Setup and calibration via the PianoDisc Calibrate App
•USB MIDI port
•Bluetooth MIDI input and output
•Bluetooth audio input
•TOSLINK digital audio input
Wireless playback information
Please note that Bluetooth wireless playback range and performance is not unlimited and can be
affected by your environment. For best performance, it is recommended that the playback device stay
within 30 feet of your PianoDisc system.

7
Buttons and Connections
A. Analog Audio Input
B. Analog Audio Output (To speakers)
C. Record Output (For optional PianoDisc
analog data recording)
D. iQ Status (Green = decoding active)
E. MIDI In
F. MIDI Out
G. Soft and Sustain Pedal Status
H. Test (Push to play all keys and pedals)
I. Reset (Push to reset CPU)
J. Power Indicator
K. DC 10V Power Input
L. Key Driver Port
M. Record (Connect to ProRecord/ProScan)
N. Option (Reserved for future use)
O. USB MIDI (Connect to computer or mobile
device)
P. Audio Input Selector
Q. Bluetooth Antenna
R. TOSLINK Digital Audio Input

8
Getting Started
Getting Your iPad Ready
Most customer play music using an Apple iPad or iPhone. However, regardless of which device you use,
it’s important to silence system sounds and notifications, as they can disrupt playback.
PianoDisc iQ Player app
The most popular way to use your Prodigy system to connect to it via Bluetooth, and play music with the
PianoDisc iQ Player app.
1. Download the PianoDisc iQ Player app. If your iOS device doesn’t have the PianoDisc iQ Player
app installed, open the App Store, search for “PianoDisc iQ Player”, and download and install it.
2. Turn on Bluetooth. Open the Settings App and tap Bluetooth, then tap the toggle icon so that it
is in the “On” position.
3. Connect to your Prodigy system via Bluetooth. In the Bluetooth menu, wait until “PD
SilentDrive BT Audio” appears in “Other Devices” and select it. When it appears under the “My
Devices” list with the word “Connected” next to it you have successfully connected to your
PianoDisc system.
Use the PianoDisc iQ Player App to play music
1. Make sure your iOS device is connected to your PianoDisc system via Bluetooth.
1. Turn on your device’s Bluetooth radio and connect to the Prodigy system. Note: if you
have connected to the Prodigy system before, your iOS device should automatically
connect to it again once it’s in range, unless your iOS device is already connected to
another Bluetooth device.
2. Open the PianoDisc iQ Player app. If you are connected to your Prodigy system via
Bluetooth, a speaker with a green Bluetooth symbol should appear in the upper right-
hand corner.
2. Select a song. In the PianoDisc iQ Player app, tap on a song and it will begin to play on your
PianoDisc system.
Adjust the volume
You can adjust the volume of your PianoDisc system by using the volume buttons on the side of your iOS
device, or through the PianoDisc iQ Player app.
To adjust the volume in the PianoDisc iQ Player app:

9
1. Tap on the arrow on the bottom left-hand corner to bring up the “Now Playing” screen.
2. On the “Now Playing” screen tap on the speaker icon to reveal a volume slider.
3. Tap and drag the circle in the volume slider to the left or the right to raise or lower the volume.
Connecting to your piano and speakers
PianoDisc Prodigy includes built-in technology that gives you the flexibility to connect to your piano and
speakers in many different ways. How you connect depends on your needs and environment—but don’t
worry. Prodigy makes connection easy, and rarely requires extra adapters or dongles.
Before deciding how to connect, it’s important to have a basic understanding of the options and
technology. Your PianoDisc system communicates with the piano and speakers using two basic signals:
Audio and MIDI.
Audio
The PianoDisc system uses audio for background audio, such as instrumentals or vocals. It also can use
audio to send piano performance data to the piano. If you play a PianoDisc song using a standard audio
player (or listen to it through the speakers on your phone or iPad), you may hear a high-pitched squeal
(like a FAX machine). That’s the data signal used to drive the piano and should not be audible when
everything is connected correctly.

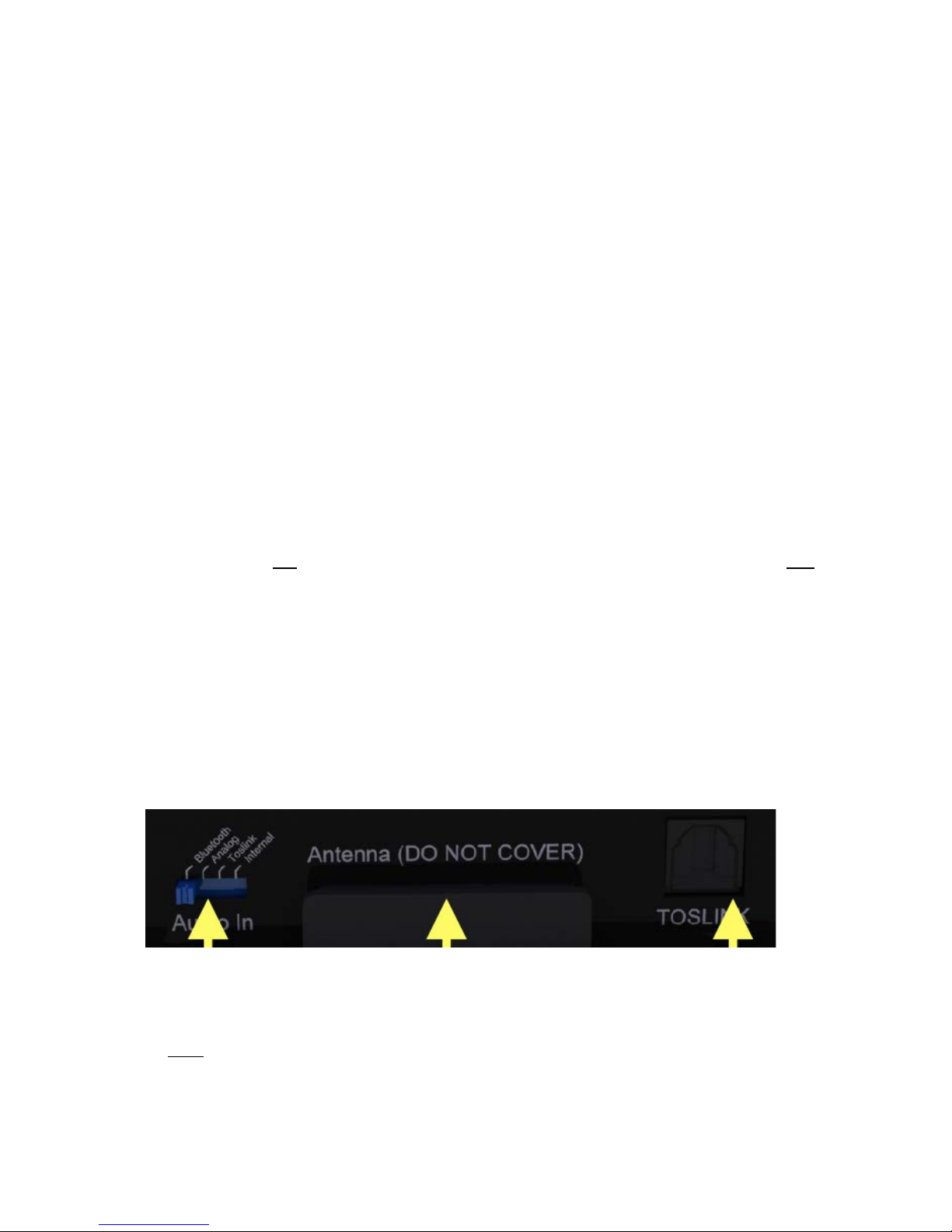

Prodigy includes three standard audio interfaces. The audio input switch on the CPU must be set to

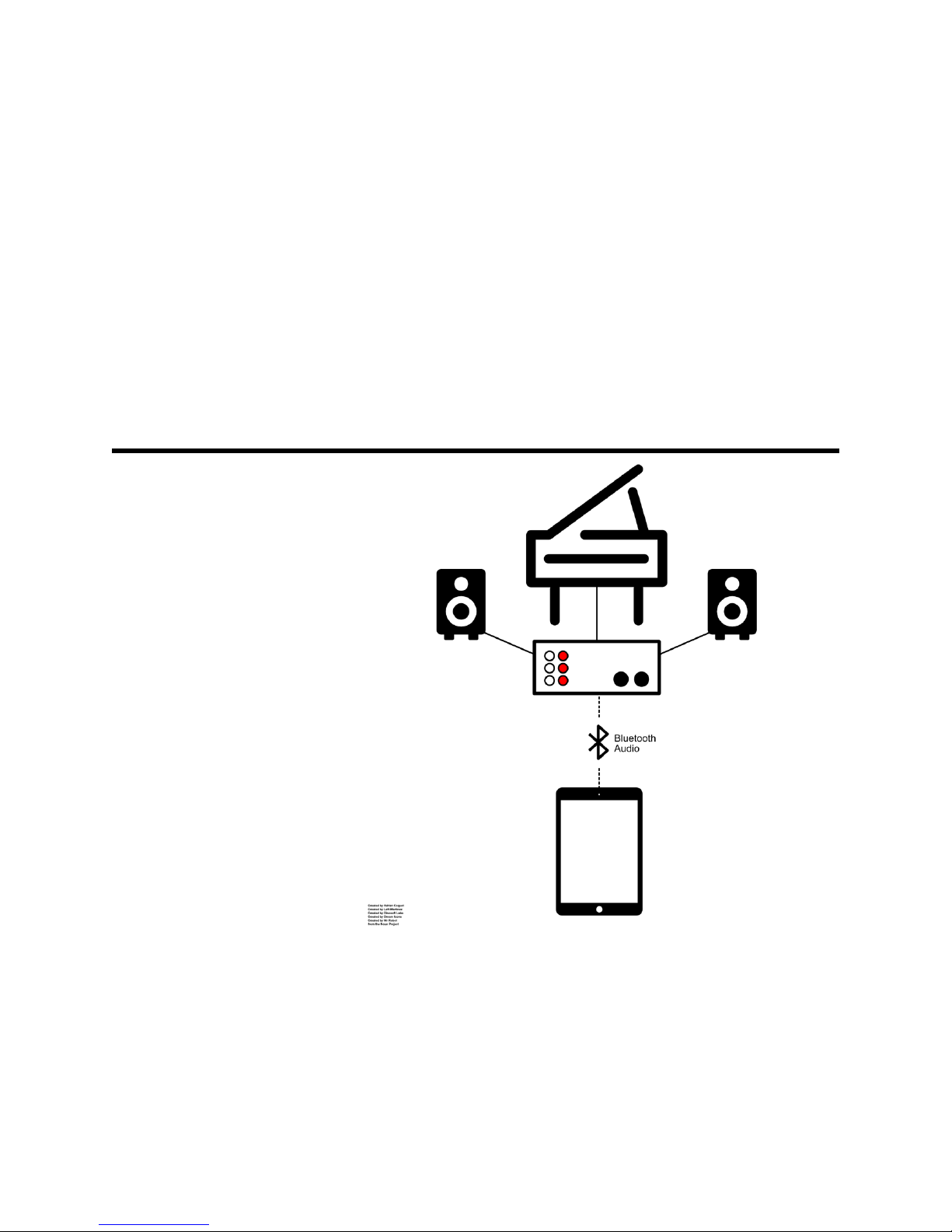

match the audio input method you’re using. (See Ill. 1)
Bluetooth: A Bluetooth audio receiver is built-in to every Prodigy. Devices such as mobile phones and
tablets that support Bluetooth audio (A2DP) can directly connect and play your piano. The range is
highly dependent on wireless interference and environmental conditions, but is typically 30 ft. (Your
experience may vary depending on where you have it installed and what devices are operating nearby).
Bluetooth audio shares its bandwidth with Bluetooth MIDI. For best results, we recommend using either
a Bluetooth audio or MIDI connection, but not both.
Analog: The analog input can be used to connect the Prodigy to the output of your music player device.
A wired connection is always more stable and reliable than wireless. The analog port can also be used to

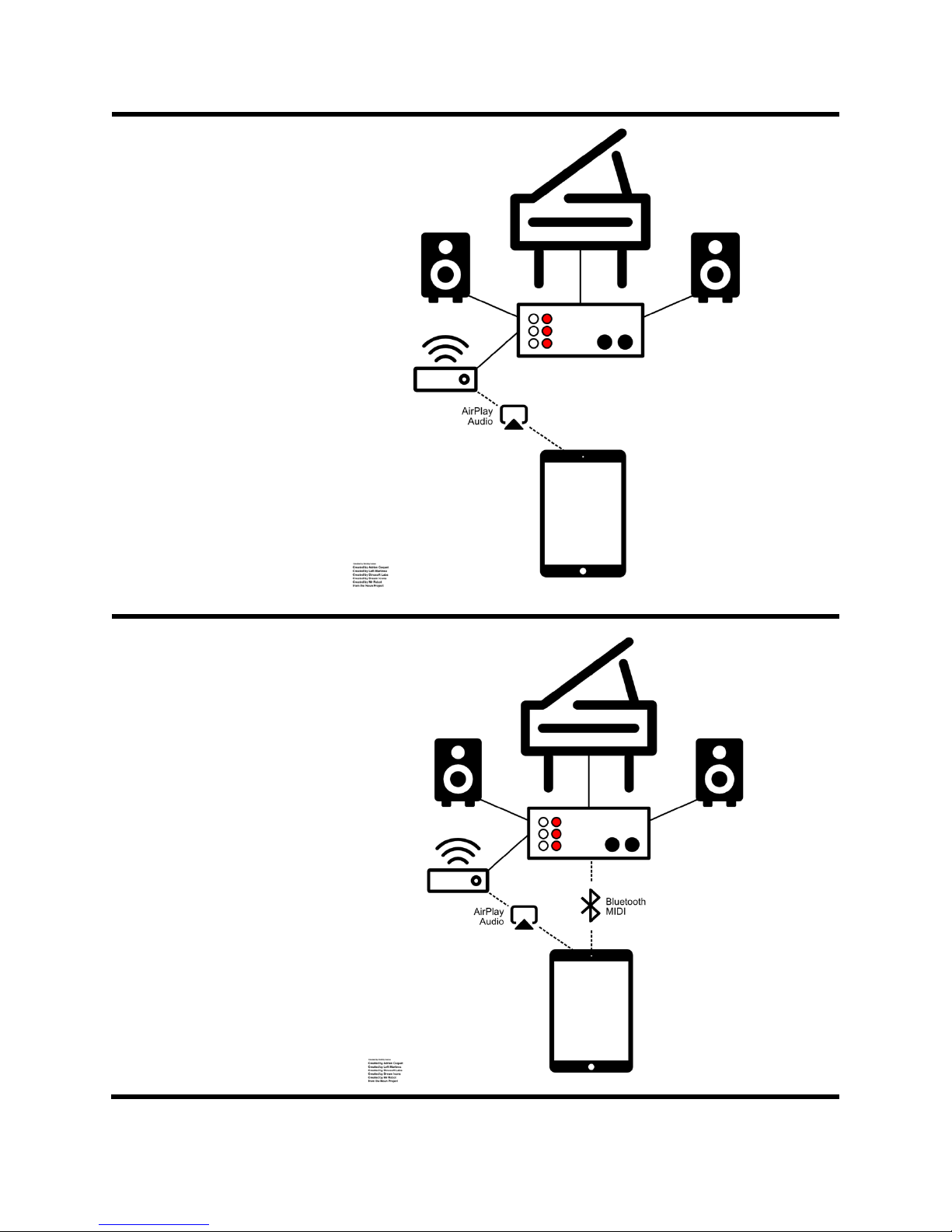

connect an alternative wireless receiver. Bluetooth, AirPlay, and DLNA receivers are widely available,
and generally compatible.
TOSLINK: The TOSLINK input port allows for digital connection to special equipment, such as Blu-ray
players. TOSLINK uses a digital protocol that does not allow for volume adjustment. Volume should be
pre-set to a suitable level using the PianoDisc Calibrate App. When using a TOSLINK connection, the
Automatic Volume setting in the Calibrate App should be disabled.

10
MIDI
MIDI is used to play the piano itself. It is a digital signal that controls what keys play and at what velocity.
While MIDI can be sent over audio, a direct MIDI connection is often more accurate and flexible.
Prodigy includes three methods of connecting MIDI to your piano. While it’s not necessary to select
which MIDI type you’re using, it’s important to only connect one MIDI device using one connection. If
multiple MIDI devices are connected simultaneously, they will interfere with each other.
In addition to using MIDI to play the piano, it can also be used to record a performance. Record
functionality is only available when you’ve installed an optional ProRecord or ProScan sensor system.
When a record system is installed, use the Prodigy’s MIDI interface to connect to external devices, not
the record system’s.
Legacy Interface (5-Pin DIN): Used for decades to connect musical instruments to computers and other
instruments, the legacy interface allows connection flexibility for recording studios and customers with
advanced MIDI equipment.
USB MIDI: For quickly connection to a computer or iPad, a wired USB connection is both convenient and
reliable. iPad connection requires a “Lightning to USB Camera Adapter”, which is sold separately by
Apple.
Bluetooth MIDI: The latest versions of iOS (and many computers) now support sending and receiving
MIDI over a wireless Bluetooth connection. While very reliable, wireless connections may be subject to
interference from other devices, and environmental conditions may further limit range. Typically, you
can expect a range of 30 ft. Bluetooth MIDI shares its bandwidth with Bluetooth audio. For best results,
we recommend using either a Bluetooth audio or MIDI connection, but not both.
Standard Mode
We recommend using the iQ App in standard mode for most users. In standard mode, the app connects
directly to the Prodigy using one of the audio interfaces, and all features work normally.
When using the app in standard mode, it’s still possible to connect to the Prodigy via MIDI for record
and playback functionality. In order to continue using standard mode when connected to a Prodigy using
MIDI, simply turn on the “Disable Professional Mode” switch in Settings.
Professional Mode
The PianoDisc iQ App includes a “Professional Mode” for owners looking for the maximum performance
from their PianoDisc systems. In professional mode, the iPad has a direct MIDI connection to your
PianoDisc system.
Audio for accompaniment can be routed through the Prodigy, or directly to external speakers. When
external speakers are used, PianoDisc music in the iPod Library will not play the piano, nor will the PD
Radio play. That’s because these two music types require an audio connection to the Prodigy in order to
play the piano.
