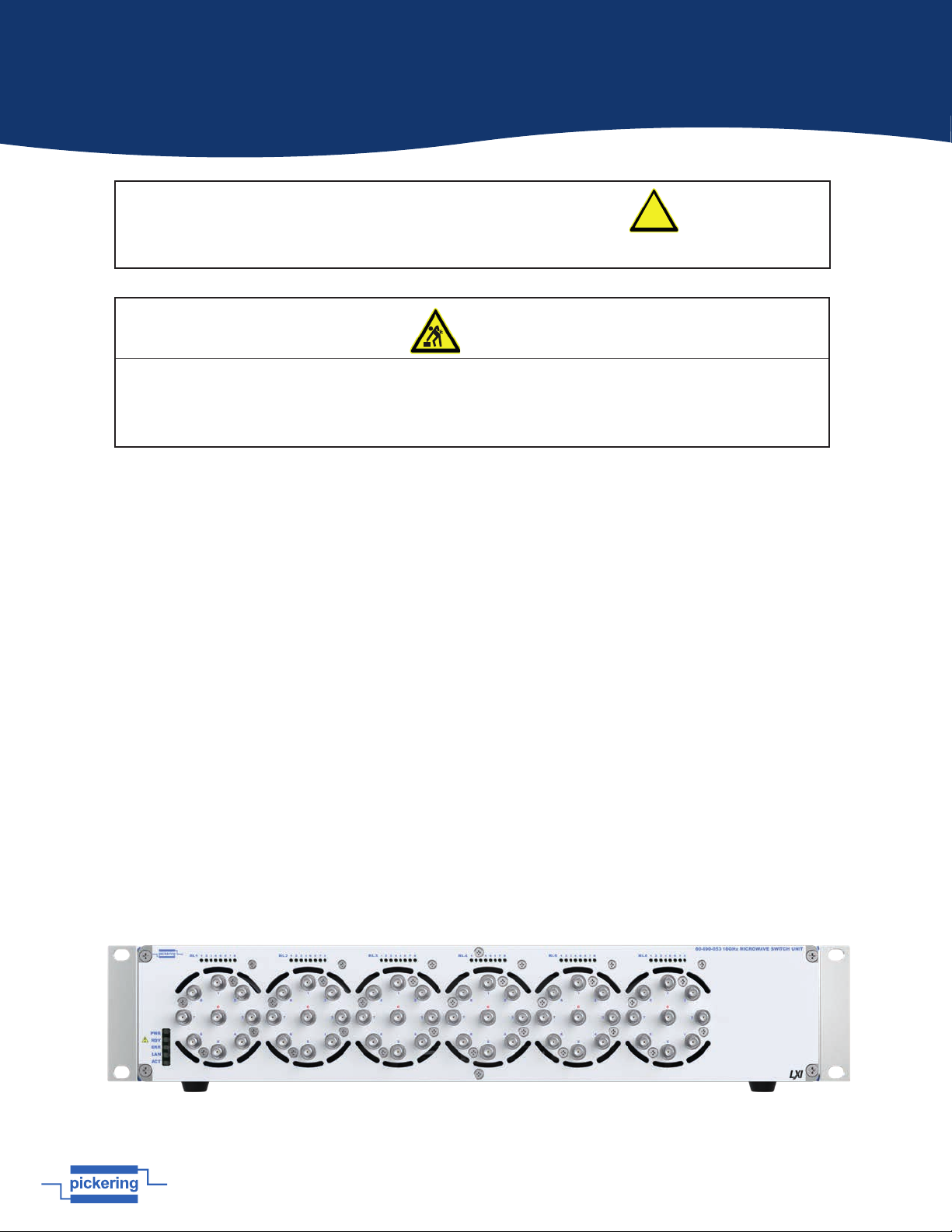

Pickering LXI 60-890-053 User manual

pickeringtest.com Issue 1.1, August 2023
LXI 18GHz Microwave Multiplexer
PRELIMINARYPRELIMINARY
60-890-053 User Manual

Page (ii)
© Copyright (2023) Pickering Interfaces. All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by any
means without the written permission of Pickering Interfaces.
Technical details contained within this publication are subject to change without notice.
FM38792

Page (iii)
Worldwide Technical Support and Product Information
Pickering Interfaces Headquarters
Stephenson Road, Clacton-on-Sea, CO15 4NL United Kingdom
Tel: [phone]
e-mail: [email protected]
USA
Tel: (West) [phone]
Tel: (East) [phone]
e-mail: [e-mail]
France
Tel [phone]
e-mail: [email protected]
Germany
Tel: [phone]
e-mail: [email protected]
Sweden
Tel: [phone]
e-mail: [email protected]
Czech Republic
Tel: [phone]
e-mail: [email protected]
China
Tel: [phone]
e-mail: [email protected]
Technical Support
For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.
Warranty
All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period
of three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product
found to be defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.
Products serviced and repaired outside of the warranty period are warranted for ninety days.
Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.
Environmental Policy
Pickering Interfaces operates under an environmental management system similar to ISO 14001.
Pickering Interfaces strives to fulfil all relevant environmental laws and regulations and reduce wastes and releases to the
environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health
and safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products
that can be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Page (iv)
Meaning/Description Symbol
PROTECTIVE EARTH (GROUND)
To identify any terminal which is intended for connection to an
external conductor for protection against electric shock in case of a
fault, or the terminal of a protective earth (ground) electrode.
DANGEROUS VOLTAGE
To indicate hazards arising from dangerous voltages.
WARNING/CAUTION
An appropriate safety instruction should be followed or caution to a
potential hazard exists.
Refer to the relevant instructions detailed within the product
manual.
HEAVY
If this product is heavy reference should be made to the safety
instructions for provisions of lifting and moving.
STATIC SENSITIVE
To indicate that static sensitive devices are present and handling
precautions should be followed.
!
kg
Safety Symbols
The following safety symbols may be used on the product and throughout the product documentation.
Product Safety

Page (v)
Contents
Copyright Statement........................................................................................................................................................(ii)
Technical Support and Warranty...................................................................................................................................(iii)
Product Safety...................................................................................................................................................................(iv)
Contents (this page).........................................................................................................................................................(v)
Warnings and Cautions...................................................................................................................................................(vi)
Section 1
Technical Specification....................................................................................................................................................1.1
Section 2
Technical Description ......................................................................................................................................................2.1
Functional Description...............................................................................................................................................2.1
Section 3
Installation.........................................................................................................................................................................3.1
Pre Operation Checks ................................................................................................................................................3.1
Hardware Installation................................................................................................................................................3.1
Setting the IP Address...............................................................................................................................................3.2
Installing the Software ..............................................................................................................................................3.3
Soft Front Panel Operation ...........................................................................................................................................3.3
Section 4
Programming Guide.........................................................................................................................................................4.1
Programming Options for Pickering LXI Units......................................................................................................4.1
Programming the Microwave Multiplexer..............................................................................................................4.2
Command Line Control..............................................................................................................................................4.8
Using the Soft Front Panel........................................................................................................................................4.14
Section 5
Connectors.........................................................................................................................................................................5.1
Section 6
Troubleshooting................................................................................................................................................................6.1
LXI Status Indicators..................................................................................................................................................6.1
LAN Reset.....................................................................................................................................................................6.2

Page (vi)
Contents
Section 7
Maintenance Information................................................................................................................................................7.1
Microwave Switch Parts List.........................................................................................................................................7.2
General Maintenance ....................................................................................................................................................7.5
Appendix A
Fitting Rack Mounting Flanges......................................................................................................................................A.1

Page (vii)
WARNING - Hazardous Environments Symbol
This product is not specifically designed for use in hazardous environments, for example in explosive
atmospheres. If the product is to be used in hazardous environments we recommend that the user ensures
suitable protective measures are taken.
!
CAUTION - Handling of Electrostatic-Sensitive Devices Symbol
Certain semiconductor devices used in this equipment are liable to damage due to static voltage. Observe the
following precautions when handling these devices in their unterminated state, or sub-assemblies containing
these devices:
• Persons removing sub-assemblies from equipment using these devices must be earthed by a wrist strap
and a resistor at the point provided on the equipment.
• Soldering irons used during the repair operations must be low voltage types with earthed tips and isolated
from the mains voltage by a double insulated transformer.
• Outer clothing worn must be unable to generate static charges.
• Printed Circuit Boards (PCBs) fitted with these devices must be stored and transported in anti-static bags.
Warnings & Cautions
WARNING - Danger of Electric Shock Symbol
This unit may contain hazardous voltages. Before removing the unit from the rack remove all supplies and
disconnect user I/O signals.
If the unit has removable modules, unused slots in the chassis must be populated with blanking panels to
prevent access to user I/O signals that may be present. Blanking panels are available to order from Pickering.
If the product is not used in this manner for example by using an extender card then additional care must be
taken to avoid contact with exposed signals.
Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.
This unit must not be used for the switching of Mains Circuits. For the switching of voltages up to the unit’s
full specification, Secondary Circuit power supplies and the Device Under Test must be fully isolated from the
Mains Circuit and the safety earth.
The chassis must be correctly installed and be connected to mains or factory safety ground, please refer to the
installation section of this manual.

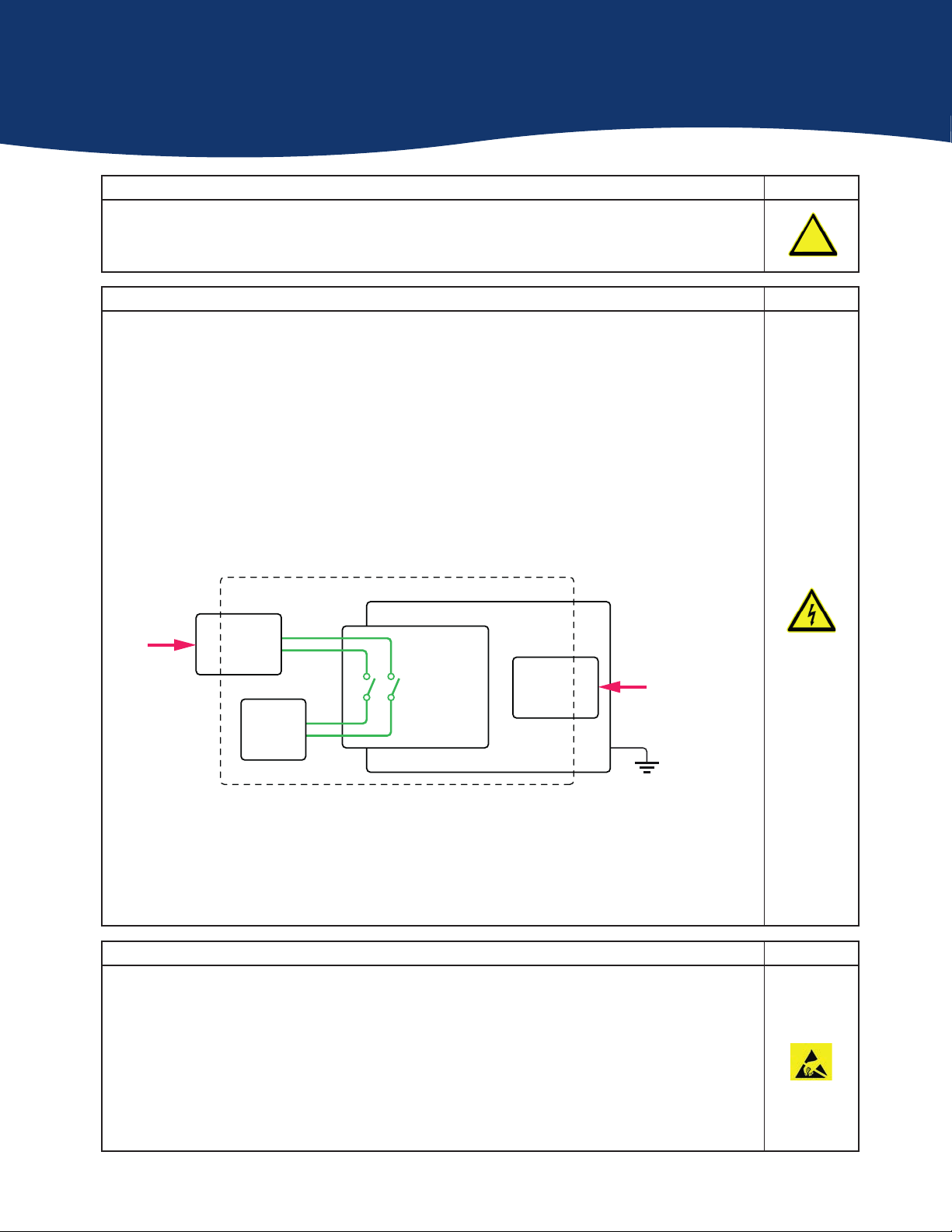

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT
For the purposes of this document, a Mains Circuit is an installation classified as Overvoltage Category II up to
300V. Separation between the Secondary Circuit and Mains Circuit is achieved by a transformer in which the
primary windings are separated from the secondary windings by reinforced insulation, double insulation, or a
screen connected to the protective conductor terminal.
Switching
Module
Device
Under Test
Power
Supply
Power
Supply
Host Chassis
Secondary Circuit
Mains
Circuit
Mains
Circuit
Mains/Factory
Safety Ground

Page (viii)
CAUTION - Product Documentation Symbol
Suitably qualified & trained users should ensure that the accompanying documentation is fully read
and understood before attempting to install or operate the product.
!
Safety Instructions
Safety Instructions
All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O
signals (refer to the Maintenance Section).
• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or the
combined weight of the modules & chassis.
• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the chassis
and the user I/O signals.
• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.
• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on the
front of the unit.
Warnings & Cautions
WARNING - RACK MOUNTING
If it is required to fit this unit into a 19 inch rack, its weight must be supported by side
brackets, runners or a suitable equipment shelf.
The fixing holes in the front panel flanges are designed only for securing the device in the
rack and must NOT be used to support the weight of the whole device.
Please refer to Appendix A for the procedure for fitting the supplied flanges to either side of
the front panel.
!
WARNING
Only the correct connector series should be mated with this unit. SMA connectors are used
and the user should only mate the correct type to the unit, failure to do so may result in
damage to the connector.
Also, it is important that the SMA connector’s nut is properly tightened to the correct torque
with a 5/16 inch wrench. This should be 3-5 in·lbs (0.3 to 0.6 N·m) for brass, and 7-10 in·lbs
(0.8–1.1 N·m) for stainless steel connectors.
!

Page 1.1 pickeringtest.com
Section 1 - Technical Specification
ySix SP8T Microwave Switches
y18 GHz Bandwidth
y50 Ω Characteristic Impedance
yHigh Performance Microwave Switching
yCompact 2 U Form Factor
yLXI Standard 1.4 Compliant
yIVI & Direct I/O Drivers
y3 Year Warranty
The 60-890-053 Microwave Multiplexer is suitable for
switching 50 Ω signals up to 18 GHz. With six SP8T switches
it is ideal for constructing complex microwave switching
systems for many applications. Connection is by SMA
connectors mounted on the front panel.
Controlling the System
The 60-890-053 is controlled through an LXI interface based
on Ethernet 1000Base-T. This provides a quick and easy
method of installing the 60-890-053 and a simple way of
6x SP8T Switches
C
4
5
6
7
2
3
1
8
off
C
4
5
6
7
2
3
1
8
off
C
4
5
6
7
2
3
1
8
off
C
4
5
6
7
2
3
1
8
off
C
4
5
6
7
2
3
1
8
off
C
4
5
6
7
2
3
1
8
off

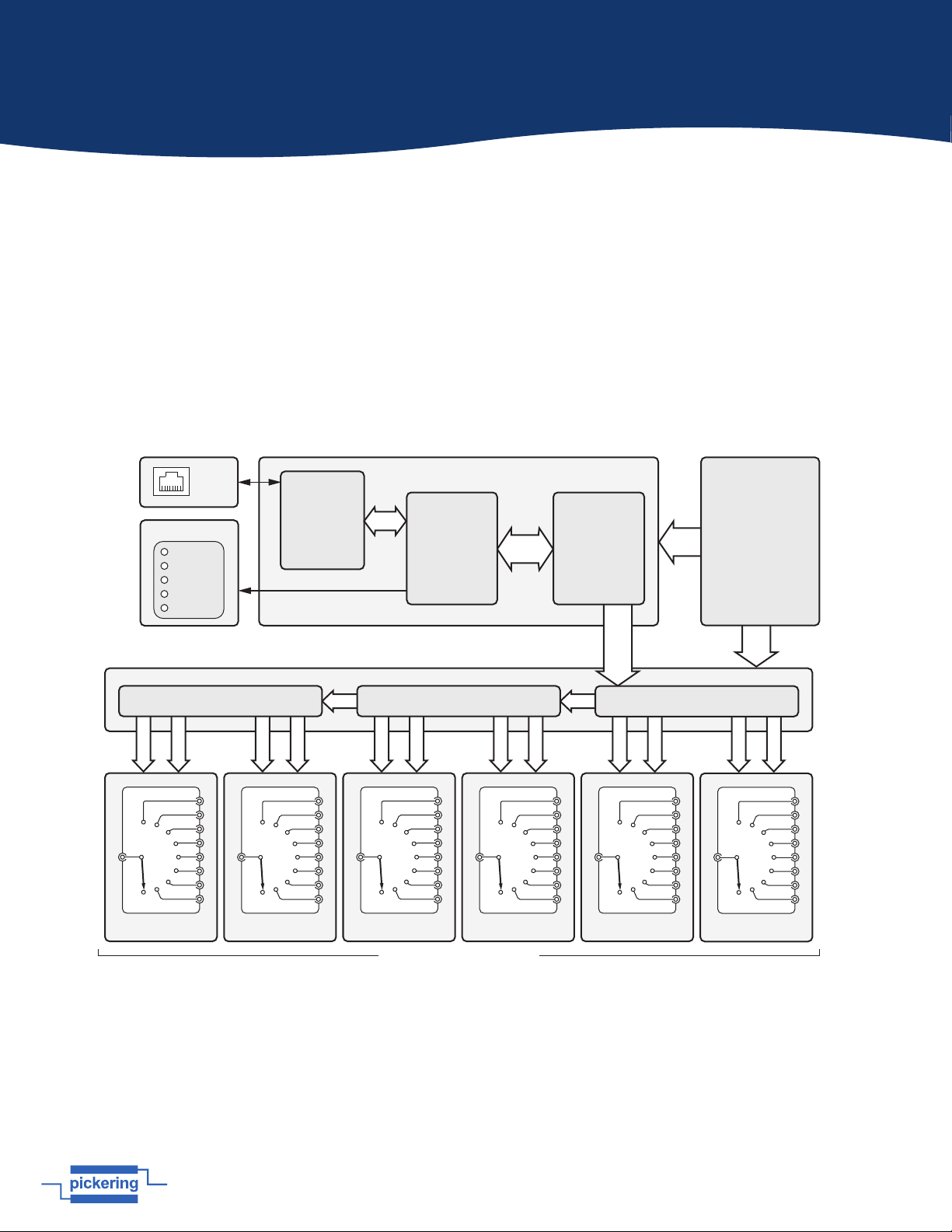

Switching Diagram for the 60-890-053 Microwave Multiplexer
controlling the unit from a remote location through its API or
built in custom soft front panel. The ability to control the unit
at a distance allows the testing of systems without the need
for a physical presence.
Other Microwave Switching Configurations
We are able to offer other microwave switching solutions, if
you have a custom requirement for switching please contact
your local Pickering Interfaces sales representative.
pickeringtest.com
60-890-053
LXI 18 GHz Microwave Multiplexer
Issue 1.1 August 2023

Page 1.2 pickeringtest.com
Section 1 - Technical Specification
Specifications – 18 GHz SP8T Switch
Operating Frequency: 0 - 18 GHz
Characteristic Impedance: 50 Ω
Connector Type: SMA
Insertion Loss: <0.2 dB to 3 GHz
<0.3 dB to 8 GHz
<0.4 dB to 12.4 GHz
<0.55 dB to 16 GHz
<0.6 dB to 18 GHz
Isolation: >80 dB to 3 GHz
>70 dB to 8 GHz
>60 dB to 12.4 GHz
>60 dB to 16 GHz
>60 dB to 18 GHz
VSWR: <1.2:1 0 to 3 GHz
<1.3:1 to 8 GHz
<1.4:1 to 12.4 GHz
<1.5:1 to 16 GHz
<1.6:1 to 18 GHz
Maximum RF Carry Power: 240 W to 3 GHz
150 W to 8 GHz
120 W to 12.4 GHz
110 W to 16 GHz
100 W to 18 GHz
Expected Life (Low Power): >2 million operations per
position
General Unit Information
Configuration: Six SP8T microwave
switches
Operate Time: 15 ms
Maximum Voltage 100 VDC
Maximum Switch Current: 1 A
Operating/Storage Conditions
Operating Temperature:
Humidity:
Altitude:
0 °C to +55 °C
Up to 90 % non-condensing
5000 m
Storage Temperature:
Humidity:
Altitude:
-20 °C to +75 °C
Up to 90 % non-condensing
15000 m
Safety & CE Compliance
All modules are fully CE compliant and meet applicable
EU directives:
Low-voltage safety EN61010-1:2010,
EMC Immunity EN61326-1:2013,
Emissions EN55011:2009+A1:2010.
Power Source
Universal AC mains supply, 90-120/200-240 V 50-60 Hz
Power Inlet: Male IEC connector
Power Rating: 100 VA maximum
Fuse Rating: 5 A, 250 V
LAN Interface
Compliant to LXI Standard 1.4, the 60-890-053 has a
1000Base-T Ethernet Interface via a standard RJ-45
connector mounted on the rear panel with an LCD display
showing the unit’s IP address.
Cooling
Fan assisted cooling, front air intakes and rear exhaust.
LXI Status Indicators
Front panel mounted LEDs:
• Power
• Ready
• Error
• LAN
• Active
Mechanical Characteristics
2 U high, full 19” rack width, 500mm deep.
Supplied with front panel ears to enable rack mounting on a
shelf or other rear support mechanism.
3D models for all versions in a variety of popular file formats
are available on request.
60-890-053
pickeringtest.com Page 2
Specifications

Page 1.3 pickeringtest.com
Section 1 - Technical Specification
Support Products
Mating Connectors & Cabling
For connection accessories for the 60-890-053 multiplexer
please refer to the 90-011D RF Cable Assemblies data sheet
where a complete list and documentation can be found for
accessories, or refer to the Connection Solutions catalog.
Product Order Codes
LXI 18 GHz Microwave Multiplexer,
6x SP8T Switches: 60-890-053
Product Customization
Pickering LXI units are designed and manufactured on our
own flexible manufacturing lines, giving complete product
control and enabling simple customization to meet very
specific requirements.
Customization can include:
• Alternative relay types
• Mixture of relay types
• Alternative number of relays
• Different performance specifications
All customized products are given a unique part number, fully
documented and may be ordered at any time in the future.
Please contact your local sales office to discuss.
Further LXI RF Switching Solutions from
Pickering Interfaces
60-891-001 LXI 36:1 Microwave Multiplexer.
Available With SMA Connectors (18 GHz) or BNC
Connectors (4 GHz).
60-721A LXI 72-Channel High Performance Video
Multiplexer with a 1 GHz bandwidth.
60-750/751 LXI Microwave Matrix. Bandwidth up to
20 GHz and is available in sizes from Single 3x3 up to
Dual 4x4 with Loop-Thru and termination options.
60-801/802 LXI Microwave Multiplexer, up to 40 GHz
bandwidth and support for up to 16 banks of 6 or 4
way multiplexers.
60-800/803 LXI Microwave Multiplexer. Unterminated
versions to 67 GHz with up to 16 banks. Terminated
versions to 50 GHz with up to 14 banks.
6 or 4 way multiplexers supported.
60-890-053
pickeringtest.com Page 3
Ordering Information

Page 2.1 pickeringtest.com
Section 2 - Technical Description
Functional Description
Figure 2-1. Block Diagram for the 60-890-053 Microwave Multiplexer
The 60-890-053 is a microwave multiplexer with 6 banks of 8 channel multiplexers under control of an LXI interface
designed for the routing of signals with frequencies up to 18GHz. User connections are via SMA connectors on the front
panel. A block diagram for the unit is shown in Figure 2-1.
Switch setting information for the unit is sent from the Embedded Processor to the Relay Driver PCBs via a Bridge circuit.
The Relay Driver board’s data ports are interconnected in a daisy chain and are controlled with a serial data stream from
the Bridge board. Programming information for the processor is sent to the unit via the LAN interface from a remote
computer using the unit’s unique Ethernet address. Programming documentation for the unit as well as data for Pickering’s
other LXI compatible switching products is stored in the embedded processor and can be downloaded over the LAN
interface. LXI Status LEDs on the front of the chassis indicate the condition of the unit and the LAN connection
Power
Supplies
LAN
Interface
PWR
RDY
ERR
LAN
ACT
Status LEDs
RJ45
Socket
Embedded
Processor
Logic
Supply
Relay Coil
Supply
8-Channel Microwave Multiplexers
Control Control
Control Control
Bridge
Board
Relay Drivers #1
SP8T (RL1)
off
SP8T (RL2)
off
Control Control
Control Control
Relay Drivers #2
SP8T (RL3)
off
SP8T (RL4)
off
Control Control
Control Control
Relay Drivers #3
SP8T (RL5)
off
SP8T (RL6)
off

Page 3.1 pickeringtest.com
Section 3 - Installation
kg
Pre-operation Checks (Unpacking)
1. Check the module for transport damage and report any damage immediately to Pickering Interfaces.
Do not attempt to install the product if any damage is evident.
2. Ensure that the designated area for the product is of flat and solid construction to support its weight.
!
Refer to the Warnings and Cautions at the front of this manual
The module is designed for indoor use only.
Installing the Microwave Multiplexer
The 60-890-053 may be mounted on a desk top or fitted into a standard 19 inch rack (rack mounting flanges are supplied
with the unit that can be fitted to the sides of the front panel). When fitting into a rack it is important to provide adequate
support using side brackets or runners, the mounting holes in the front panel flanges are designed only for securing the
unit in the rack and must NOT be used to support the weight of the whole unit.
The 60-890-053 relies upon forced air cooling. Internal fans draw air through slots in the front panel and expel air through
two vents in the rear panel. When positioning the chassis, make sure that there is adequate clearance to allow unrestricted
air flow through these vents. The locations of the air intakes and outlets are shown in Figures 3-1 and 3-2.
Power is supplied to the rear of the unit using a standard IEC power lead and the power on/off switch is located next to the
power inlet socket. The unit is supplied with a suitable Earthed mains power lead, If a different lead is used it is important to
ensure that an adequate Earth connection is present. When mounted in a rack, provision should be made to allow access to
the rear of the unit. This is to enable the operation of the power on/off switch and the Reset button. The rear panel layout is
shown in Figure 3-2.
The Microwave Multiplexer is controlled by the host computer via an Ethernet interface. The RJ45 socket on the rear of
the unit can be connected to a hub or switch via an Ethernet cable to allow control over a local area or wide area network.
Alternatively a crossover Ethernet cable can be used to connect the unit to a laptop PC and local control can be carried out
isolated from a network. The IP address of the unit has to be manually or automatically configured before it can be used on
a network, please refer to the following section “Setting the IP Address” and the “LXI Getting Started Guide” document to
carry out this process.
Figure 3-1. Front view of the Microwave Multiplexer
showing user RF connectors & intake slots for cooling air next to the microwave relays

Page 3.2 pickeringtest.com
Section 3 - Installation

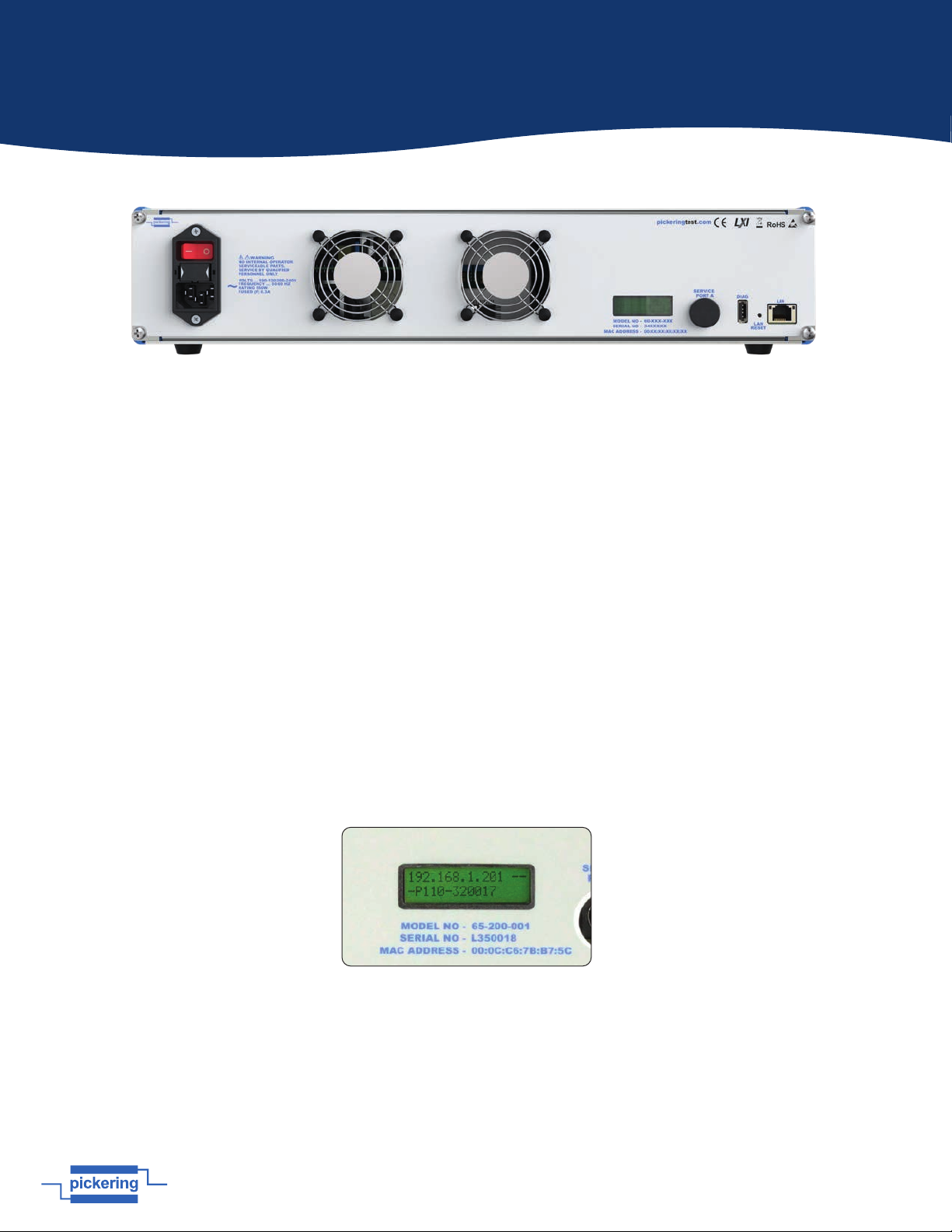

Figure 3-2. Rear view of the Microwave Multiplexer showing the mains supply connection,
LAN socket, IP address display & cooling air outlets
Setting the IP Address
To use the 60-890-053 Microwave Multiplexer over a LAN connection it should be set up and configured as described in the
“LXI Getting Started Guide” document.
If the IP address is to be set manually and before connecting to a network, contact your IT department so they can give you
the correct settings for:
• IP Address
• Subnet Mask
• Default Gateway
• DNS Server(s)
Once you have the required information, the IP configuration window is used to manually set the IP address. This is shown
in Figure 3-4.
The current IP address setting of the 60-890-053 is indicated on an LCD display on the rear panel of the chassis.
Incorrect setting will result in a loss of communication and may also be indicated by a red LAN LED on the front panel. If
this does occur press and hold the LAN Reset button on the back panel of the device for a full factory reset (see Section 6
“Troubleshooting” for details).
Figure 3-3. Display for IP Address on Rear Panel

Page 3.3 pickeringtest.com
Section 3 - Installation
Soft Front Panel Operation
The 60-890-053 Microwave Multiplexer can be programmed using the Soft Front Panel. This can be run as a Java Applet
from the device’s LXI home page. You must have the Java Runtime environment loaded from Sun Microsystems to use this
facility. This application can be downloaded from www.sun.com/java .
To access the Soft Front Panel, first select Instrument Control from the Instrument Home Page, then click the relevant
icon in the displayed window to launch the Java applet.
For a description of the controls, refer to “Using The Soft Front Panel” at the end of Section 4.
Installing the Software
From the device web page, select ‘Driver Download’ from the menu at the left of the page. This will retrieve the driver from
the instrument and install it on your PC.
Alternatively, the driver may be found on the DVD shipped with the product in the ‘Drivers_LXI’ folder:
Series-60-Setup.exe.
This driver may also be found on the Pickering Interfaces web-site at:
http://www.pickeringtest.info/downloads/drivers/Sys60/
or from the Software Downloads section at:
www.pickeringtest.com

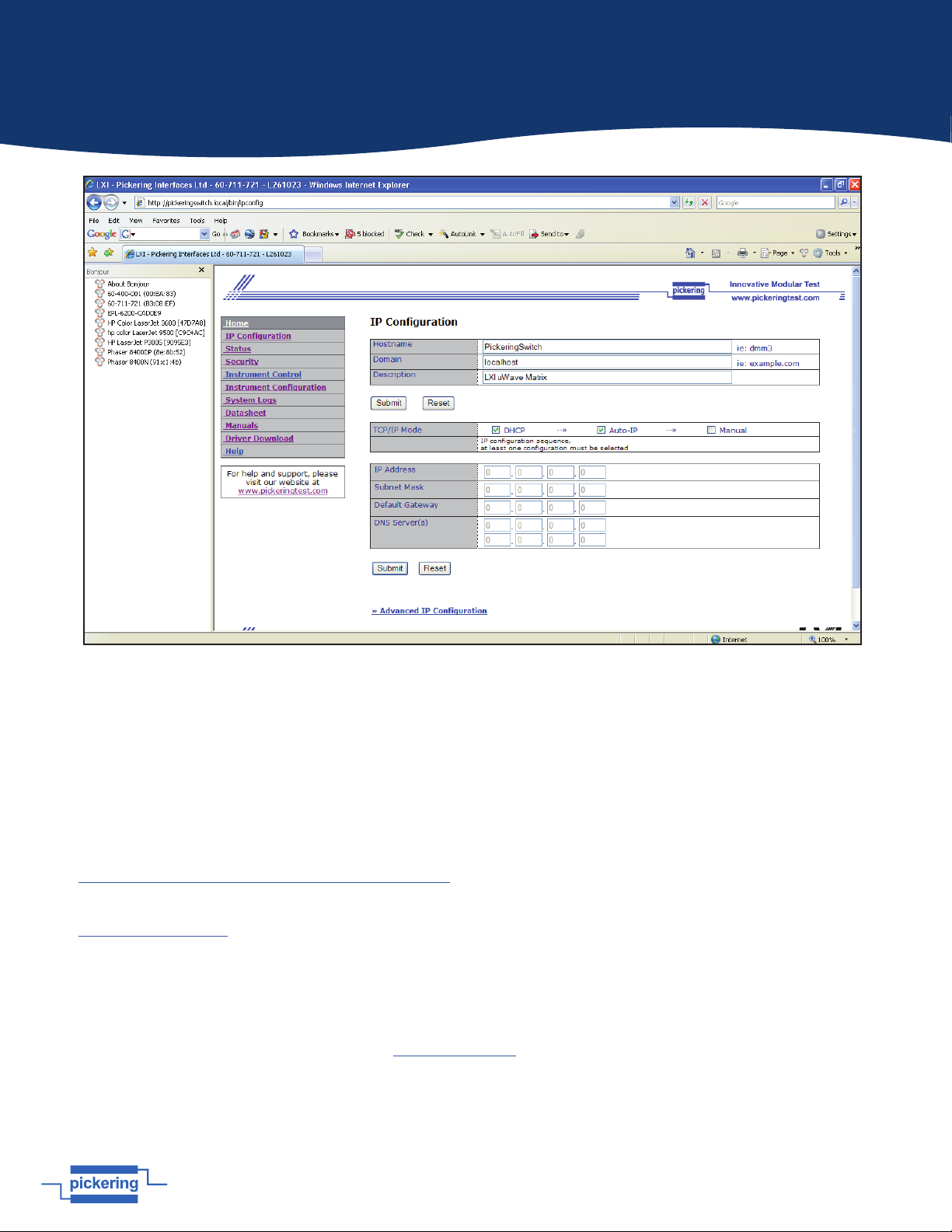

Figure 3-4. Example configuration window used to manually set the IP address of a Pickering LXI device

Page 4.1 pickeringtest.com
Section 4 - Programming
Programming Options for Pickering Interfaces LXI Units
For information on the installation and use of drivers and the programming of Pickering’s products in various software
environments, please refer to the Software User Manual.
This is available as a download from:
pickeringtest.com/support/software-drivers-and-downloads
Also, it can be accessed from the DVD supplied with the product:
<DVD_DRIVE>\downloads\Documentation\Software-Manual.pdf

Page 4.2 pickeringtest.com
Section 4 - Programming
Programming the Microwave Multiplexer
The 60-890-053 is a microwave multiplexer constructed from six 8-channel (SP8T) microwave switches. Signals paths can
be set between the common terminal and any one of the 8 positions or to no connection.
The initial state of the SP8T switches is with the common terminal open circuit and all channels open circuit. This is also
the default (power off) state.
6x SP8T Switches
C
4
5
6
7
2
3
1
8
off
RL1
Sub-unit 1
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
C
4
5
6
7
2
3
1
8
off
RL2
Sub-unit 2
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
C
4
5
6
7
2
3
1
8
off
RL3
Sub-unit 3
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
C
4
5
6
7
2
3
1
8
off
RL4
Sub-unit 4
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
C
4
5
6
7
2
3
1
8
off
RL5
Sub-unit 5
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
C
4
5
6
7
2
3
1
8
off
RL6
Sub-unit 6
bit 1
bit 2
bit 3
bit 4
bit 5
bit 6
bit 7
bit 8
Figure 4-1. 60-890-053 LXI Microwave Multiplexer - Switching Architecture Showing Sub-unit Allocations
(default switch positions shown)

Page 4.3 pickeringtest.com
Section 4 - Programming
Table 4-1. 60-890-053 LXI Microwave Multiplexer - Sub-unit/Bit Allocation
Switch No. Switch
Type Sub-unit Bit Signal Path (relay energized)
Signal Path
(relay de-energized)
RL1 SP8T 1
1 RL1 C to 1 RL1 Open
2 RL1 C to 2 RL1 Open
3 RL1 C to 3 RL1 Open
4 RL1 C to 4 RL1 Open
5 RL1 C to 5 RL1 Open
6 RL1 C to 6 RL1 Open
7 RL1 C to 7 RL1 Open
8 RL1 C to 8 RL1 Open
RL2 SP8T 2
1 RL2 C to 1 RL2 Open
2 RL2 C to 2 RL2 Open
3 RL2 C to 3 RL2 Open
4 RL2 C to 4 RL2 Open
5 RL2 C to 5 RL2 Open
6 RL2 C to 6 RL2 Open
7 RL2 C to 7 RL2 Open
8 RL2 C to 8 RL2 Open
RL3 SP8T 3
1 RL3 C to 1 RL3 Open
2 RL3 C to 2 RL3 Open
3 RL3 C to 3 RL3 Open
4 RL3 C to 4 RL3 Open
5 RL3 C to 5 RL3 Open
6 RL3 C to 6 RL3 Open
7 RL3 C to 7 RL3 Open
8 RL3 C to 8 RL3 Open
RL4 SP8T 4
1 RL4 C to 1 RL4 Open
2 RL4 C to 2 RL4 Open
3 RL4 C to 3 RL4 Open
4 RL4 C to 4 RL4 Open
5 RL4 C to 5 RL4 Open
6 RL4 C to 6 RL4 Open
7 RL4 C to 7 RL4 Open
8 RL4 C to 8 RL4 Open
RL5 SP8T 5
1 RL5 C to 1 RL5 Open
2 RL5 C to 2 RL5 Open
3 RL5 C to 3 RL5 Open
4 RL5 C to 4 RL5 Open
5 RL5 C to 5 RL5 Open
6 RL5 C to 6 RL5 Open
7 RL5 C to 7 RL5 Open
8 RL5 C to 8 RL5 Open
RL6 SP8T 6
1 RL6 C to 1 RL6 Open
2 RL6 C to 2 RL6 Open
3 RL6 C to 3 RL6 Open
4 RL6 C to 4 RL6 Open
5 RL6 C to 5 RL6 Open
6 RL6 C to 6 RL6 Open
7 RL6 C to 7 RL6 Open
8 RL6 C to 8 RL6 Open

Page 4.4 pickeringtest.com
Section 4 - Programming
Direct I/O Driver, piplx
The Direct I/O driver is composed of a suite of separate libraries which interact to provide full control of a Pickering LXI
unit. In the case of a switch card the communications library picmlx, and the switching library piplx, are needed.
Firstly a communication session to the LXI unit is established. This provides a session handle to the remote LXI unit which
must be used in all subsequent communication with the unit.
Then a specified card on the remote LXI unit is opened and a handle to that card obtained, this handle must be used in all
subsequent function calls to that card.
To operate a switch, the PIPLX_OpBit command may be used to select an individual output. The simplest way to clear
a switch is to call PIPLX_ClearSub. Please note that a maximum of one connection may be made on any individual
switch sub-unit, closure of an output of the switch will cause any other previously made connections on that switch to be
released.
After use the card should be closed and the LXI session released to free the card and the LXI unit for other use.
DWORD err;
SESSION lxi_session;
DWORD card_handle;
DWORD sub_unit, bit;
err = PICMLX_Connect(0, “192.168.1.100”, 1024, 2000, &lxi_session);
if (err == 0)
{
 err=PIPLX_OpenSpeciedCard(lxi_session,0,20,&card_handle);
if (err == 0)
{
sub_unit = 1;
bit = 1;
PIPLX_OpBit(lxi_session, card_handle, sub_unit, bit, 1);
  PIPLX_CloseSpeciedCard(lxi_session,card_handle);
}
PICMLX_Disconnect(lxi_session);
}

Page 4.5 pickeringtest.com
Section 4 - Programming
IVI Driver, pi40iv
Using the pi40iv driver, the pi40iv_InitWithOptions function should be used to establish a session on the unit.
Switch closures on the unit are made using the pi40iv_Connect function and released using the pi40iv_Disconnect
function.
The following code snippet demonstrates the minimum steps required to operate a switch on a Pickering LXI unit.
Firstly a device session is opened on the card located at bus 0, device 20 inside the LXI unit located at 192.168.1.100.
Then a switch closure of the first relay is made then disconnected.
Finally the session is closed.
ViSession vi;
ViStatus err;
ViRsrc rsrc_name = “TCPIP::192.168.1.100::0.20::INSTR”;
ViString options = “Simulate=1,RangeCheck=1,QueryInstrStatus=0, \
Cache=1,DriverSetup=Model:60-890-053;”;
err = pi40iv_InitWithOptions(rscr_name, VI_TRUE, VI_TRUE, options, &vi);
if (err == VI_SUCCESS)
{
pi40iv_Connect(vi, “comA1”, “chA1”);
.
.
.
pi40iv_Disconnect(vi, “comA1”, “chA1”);
}
pi40iv_Close(vi);
Notes:
The channel names for the switches will be as follows:
comA – chA1, chA2, chA3, chA4, chA5, chA6, chA7, chA8
comB – chB1, chB2, chB3, chB4, chB5, chB6, chB7, chB8
comC – chC1, chC2, chC3, chC4, chC5, chC6, chC7, chC8
comD – chD1, chD2, chD3, chD4, chD5, chD6, chD7, chD8
comE – chE1, chE2, chE3, chE4, chE5, chE6, chE7, chE8
comF – chF1, chF2, chF3, chF4, chF5, chF6, chF7, chF8
