Piega Connect User manual

PIEGA CONNECT
EXPECT MORE
Premium Wireless by PIEGA
DEUTSCH · ENGLISH · FRANÇAIS
USER
GUIDE

User Manual // 3
CONTENTS
Important Safety Instructions ............................................. 4
Operating elements of the PIEGA connect ........................ 6
Overview ........................................................................... 6
Description of the operating elements of the
PIEGA connect .................................................................... 8
Volume 1....................................................................... 8
Input 2345.................................................... 10
Input source selector switch 5...................................... 11
Group 67................................................................ 13
Wireless 8.................................................................... 13
Output 9...................................................................... 14
Service 10 ..................................................................... 14
Power 11 ....................................................................... 15
Volume control 12 .......................................................... 15
Bluetooth pairing 13 ....................................................... 16
Operating elements of the PIEGA speaker ...................... 17
Overview ......................................................................... 17
Description of the operating elements of
the PIEGA speaker ............................................................ 18
Group 12................................................................ 18
Speaker position 34................................................ 18
Input 5......................................................................... 21
Service 6..................................................................... 21
Supply 78............................................................... 21
Installation instructions...................................................... 22
Wireless........................................................................... 24
1) Connection between playback device
and PIEGA connect ........................................................ 24
2) Operating elements settings............................................. 25
3) Power supply to the PIEGA connect........................... 27
4) Unpack and set up the speaker ................................. 27
5) Power supply to the speaker...................................... 27
6) Speaker settings........................................................ 27
7 ) Connection of Bluetooth devices (optional)................ 27
8) Your system is ready.................................................. 27
Connection of the subwoofer (peripheral equipment)........ 28
1) Introduction................................................................ 28
2) Connecting the PIEGA connect to a subwoofer.......... 28
Using several PIEGA connect systems............................. 29
As active speaker ............................................................ 31
1) Playback device......................................................... 31
2) Unpack and set up the speaker ................................. 31
3) Speaker settings........................................................ 31
4) Connecting the speaker to the playback device ......... 32
5) Power supply to the speaker...................................... 32
Operation ........................................................................... 33
General............................................................................ 33
Bluetooth function and priority .......................................... 33
Overview of the status displays........................................ 35
Technical data.................................................................... 36
PIEGA connect ................................................................ 36
PIEGA wireless speaker ................................................... 37
FAQs (frequently asked questions) ................................... 38
Declaration of Conformity ................................................. 40
OPERATING INSTRUCTIONS
Premium Wireless by PIEGA

User Manual // 54 // User Manual
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Observe all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry soft cloth.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other devices that produce heat.
8. Ensure that the power cable is not stepped on or pinched, particularly at plugs, convenience receptacles, and wherever cables exit apparatuses.
9. Only use attachments/accessories that are approved by the manufacturer.
10. Do nor circumvent the safety purpose of the polarized type plug. If the provided plug does not t into your outlet, consult an electrician for replacement of the
obsolete outlet.
11. Unplug this apparatus during lightning storms or when unused for long periods of time.
12. Only entrust qualied service personnel with servicing activities. Servicing is required when the apparatus has been damaged in any way, for example if the
power-supply cable or plug is damaged, liquid has been spilled, objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
13. The mains plug should be easily accessible to disconnect the equipment.
14. Warning: To reduce the risk of re and electric shock, do not expose this apparatus to rain or moisture.
15. Do not expose the apparatus to dripping or splashing and do not place objects lled with liquids, such as vases, on the apparatus.
16. 150 mm minimum distances around the apparatus for sufcient ventilation.
17. The ventilation should not be impeded by covering the ventilation openings with items. Such as newspapers, table-cooths, curtains, etc.
18. No naked ame source, such as lighted candles, should be placed on the apparatus.
19. The use of apparatus in tropical and moderate climates.
WARNING
PIEGA wireless speakers RISK OF ELECTRIC SHOCK! DO NOT OPEN! If the speakers are connected to the mains voltage, a dangerous electrical voltage is present
inside the speakers
-Use the supplied power cable to connect the speakers to the mains voltage. Make sure that the power supply cable is not damaged; replace it with a new
one if it has been damaged.
- To reduce the risk of electric shock, do not remove the back panel and never open the speaker housing. Do not expose the speakers to rain or moisture. No
inside parts can be serviced by users. Refer servicing to qualied personnel.
- Do not operate defective speakers and disconnect defective speakers from the mains voltage. Please contact your PIEGA distributor if you experience any
problems.
Never place a speaker set in an unstable location. A speaker set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be
avoided by taking simple precautions such as:
- Using cabinets or stands recommended by the manufacturer of the speaker set.
- Only using furniture that can safely support the speaker set.
- Ensuring the speaker set is not overhanging the edge of the supporting furniture.
- Not placing the speaker set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the speaker set to a suitable
support.
- Not placing the speaker set on cloth or other materials that may be located between the speaker set and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the speaker set or its controls.
If your existing speaker set is being retained and relocated, the same considerations as above should be applied.
UNPACKING
After unpacking, make sure the system is complete and check the device and all accessories for transport damage. Transport damage may be expected if the pack-
aging is already showing severe wear. Do not attempt to start up a damaged device. If the contents are incomplete or damaged, please contact your PIEGA distributor.
PACKAGING MATERIAL
The packaging has been designed to be used again, as long as it has not been damaged during transport. Keep the packaging and use the original packaging for all
further transport.
The symbol is intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufcient magnitude to constitute risk of re and
electric shock.
The symbol is intended to alert the user to the presence of important operating and mainte-
nance instructions in the literature accompanying this product.

User Manual // 76 // User Manual
OPERATING ELEMENTS OF THE
PIEGA CONNECT
Overview
coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
1 2 3 4 7 8 9 11
5 6 10
Volume
1 x / var Fixed (maximum) volume
Variable volume. Adjust using buttons +/- 12
Input
2 Analog Input terminal for analog signal sources
3 Optical Optical/digital input
4 Coax Coaxial/digital input
5 Select Input source selector switch (analog/optical/coax)
Group
6 Select Group switch (white 48kHz / blue 48kHz / red 96kHz)
7 LED display Group status display (white/blue/red)
Wireless
8 Select Wireless frequency selector switch (2.4 / 5.2 / 5.8 GHz)
Output
9 Analog Analog regulated output
Service
10 USB Service connection
Power
11 Micro USB Power supply 5 V DC 1A
Top view
12 - / + Volume control / LED display via buttons
13 Bluetooth pairing
Volume
14 LED display Display of connection status and group allocation
12
13
14

User Manual // 98 // User Manual
DESCRIPTION OF THE OPERATING
ELEMENTS OF THE PIEGA CONNECT

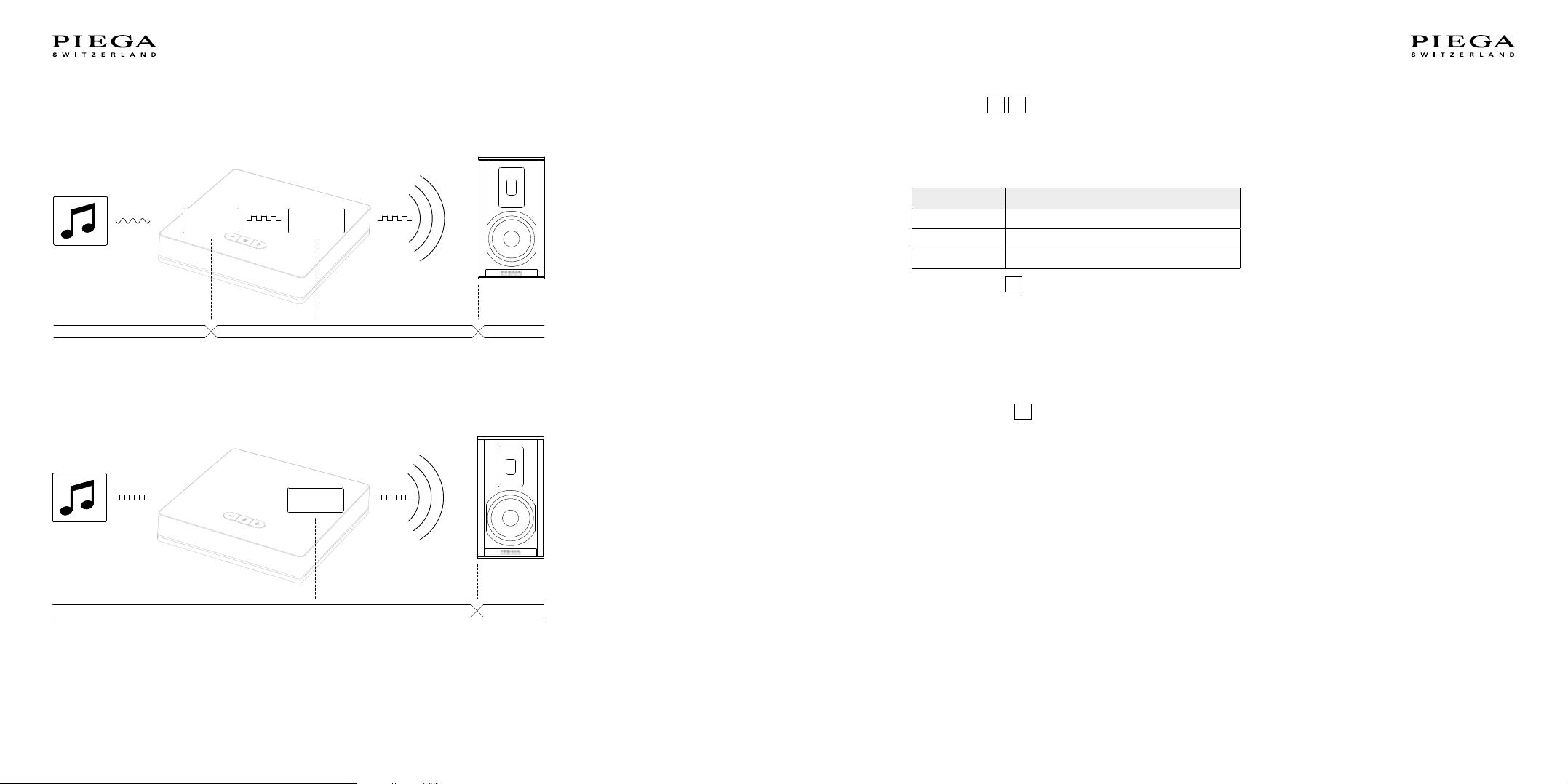

Volume 1
The “Volume” setting is used to activate or deactivate the volume control 12
x = volume control deactivated. PIEGA connect uses the maximum volume.
This setting is suitable for use with playback devices with integrated volume control.
The following are examples of possible regulated sources:
- Multiroom systems – the volume is controlled via the respective app.
- Connection via Bluetooth – the volume is controlled by the corresponding Bluetooth device.
- Network player with integrated volume control
- Television
var = volume control activated
This setting is suitable for use with unregulated playback devices.
Unregulated playback devices do not offer an option to adjust the volume using the
playback device (signal output with maximum volume).
A few examples of possible unregulated sources are:
- CD player
- Record player (please note that depending on the model of the record player,
an additional phono preamp may be required.)
NOTE: Some playback devices can activate and deactivate the volume control independently.
Volume
fix
var
Music Source
Digital
PIEGA connect
Wireless
Module
Bluetooth
Device
OR
fix: Bypasses Volume Setting
var: passes Volume Setting
min max
12
1

User Manual // 1110 // User Manual
Input 2 3 4 5
Connecting your music source / your playback device – PIEGA connect offers three different connection options for external
playback devices.
Input Terminal Signal Description
2Analog RCA Analog Possible analog input sources / devices:
- Record player
- Headphone output / TV
- CD player
- Multiroom system
- Network player
3Optical Toslink S/PDIF Possible optical input sources / devices:
- Multiroom systems often offer optical outputs
Digital - TV
- Network player
4Coax RCA S/PDIF Possible coaxial input sources / devices:
- Multiroom systems often offer coaxial outputs
Digital - Network player
Input source selector switch 5
PIEGA connect processes one input at the time. The connected input must therefore be activated using the input source
selector switch “Input”.
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
2
5
5
Multiroom System
4
5
3
CD Player
TV
OR
OR
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
2
5
5
Multiroom System
4
5
3
CD Player
TV
OR
OR
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
coax
Vol ume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker /S ubwoofer / Amp
Wireless
frequency
DC 5V =
1A
2
5
5
Multiroom System
4
5
3
CD Player
TV
OR
OR
Analog Optical Coax
ON OFF OFF
OFF ON OFF
OFF OFF ON
coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
2 34
5
PIEGA recommends using a digital input wherever possible ( 3or 4).
Using a digital input eliminates the need for a conversion (analog to digital) in the signal chain, leading to a better sound result.

User Manual // 1312 // User Manual
ANALOG SOURCE
If the music is in digital form (CD, streaming, etc.), it is converted into an analog signal by the playback device. However, PIEGA
connect only processes digital signals internally. As a result, the analog signal must be re-converted into a digital signal.
Group 6 7
The “Group” function is only required when using several PIEGA wireless systems (more than one PIEGA connect). The music
signal is only sent to speakers within the same group. This ensures the smooth operation of up to three independent PIEGA
wireless systems in one room/at/house.
The group display 7shows the selected group colour and the connection status. This must correspond to the speaker in
order to operate.
NOTE: We deliver our speakers and PIEGA connect with the group setting “white”. When using a PIEGA wireless system, we
recommend leaving the group setting as “white”.
Wireless 8
The “Wireless” function is only required to eliminate any possible disturbances. This may include no connection or a lapse/
stuttering of the music playback. The PIEGA wireless system sets up an independent wireless network to transfer data from the
PIEGA connect to PIEGA speakers. This means that the system is not reliant on your home WLAN. This ensures a continuous
transfer of data.
Should the transmission be impaired by a neighbouring wireless network, the carrier frequency of the wireless signal can be
adjusted.
Such an impairment can be determined as follows:
Your system is running smoothly, provided no clearly audible faults (interruptions, stuttering, etc.) can be made out in the music
playback, or your speakers are unable to connect to the PIEGA connect.
The following carrier frequencies are supported:
A: 5.2 GHz PIEGA recommends using this frequency whenever possible.
B: 5.8 GHz
C: 2.4 GHz (also used by Bluetooth, which may cause faults when it is combined with the wireless system)
DIGITAL SOURCE
Continuous digital signal processing
NOTE: In some playback devices such as televisions, the volume control of the playback device only functions via the analog
connection. In this case, please observe the operating instructions for your playback device.
Wireless
Module
ADC
Analog - Digital
Digital Digital
Music Source
Analog
Analog
Analog Digital Analog
Wireless
Module
Digital
Digital Analog
Music Source
Digital
Digital
Wireless
Module
ADC
Analog - Digital
Digital Digital
Music Source
Analog
Analog
Analog Digital Analog
Wireless
Module
Digital
Digital Analog
Music Source
Digital
Digital
GROUP WIRELESS DATA TRANSMISSION
white 24 Bit / 48 kHz
blue 24 Bit / 48 kHz
red 24 Bit / 96 kHz

User Manual // 1514 // User Manual
Vol ume
fix
var
Music Source
Digital
PIEGA connect
Wireles s
Module
Bluetooth
Device
OR
fix: Bypasses Volume Setting
var: passes Volume Setting
min max
12
1

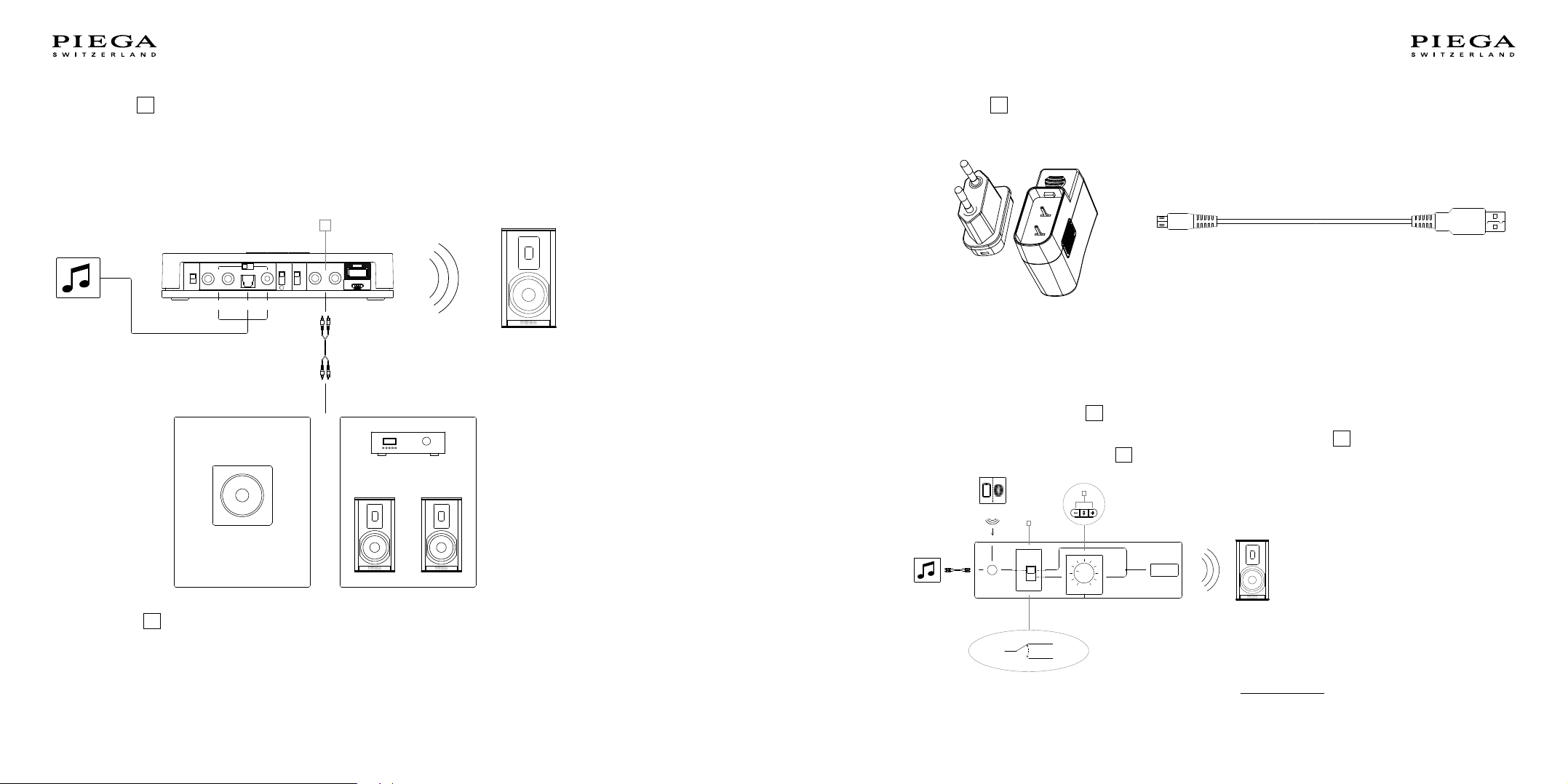

Output 9
A subwoofer or an additional active speaker can be added using the Analog output.
PIEGA connect offers an analog output in addition to the wireless music transfer.
The analog signal corresponds to the wireless signal, i.e. any volume regulation is also applied to the analog output.
Possible setup with subwoofer OR active speakers OR existing stereo system.
Service 10
Any required software updates can be loaded via the USB service connection.
You can nd the operating software on our website www.piega.ch.
Power 11
Please use the adapter and micro USB cable included in the delivery.
Alternatively, you can use a standard commercial USB adapter which meets the following specications:
- 5 V DC
- 1 A
Volume control 12
Setting the volume on the PIEGA connect (top side of the device) – the volume control 12 affects the wireless
music signal as well as the analog output 9.
NOTE: For more information regarding volume, please go to point ”Volume”, page 8.
coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Sour ce
OUTPUT
Speaker / Sub woofer / Amp
Wireless
frequency
DC 5V =
1A
Music Source
OR OR OR
Amplifier
Subwoofer
OR
9
GOLDEN PROFIT
ELECTRONICS LTD.
外壳
材料
A4
图寸
型号
mm
批准
设计
校对
设计日期
单位 比例
尺寸公差
产品名称
图号
陈健生
版本号
正
极
负
极
GOLDEN PROFIT
ELECTRONICS LTD.
外壳
材料
A4
图寸
型号
mm
批准
设计
校对
设计日期
单位 比例
尺寸公差
产品名称
图号
陈健生
版本号
变更时间变更人变更内容版本
李增灿 余明昭

User Manual // 1716 // User Manual

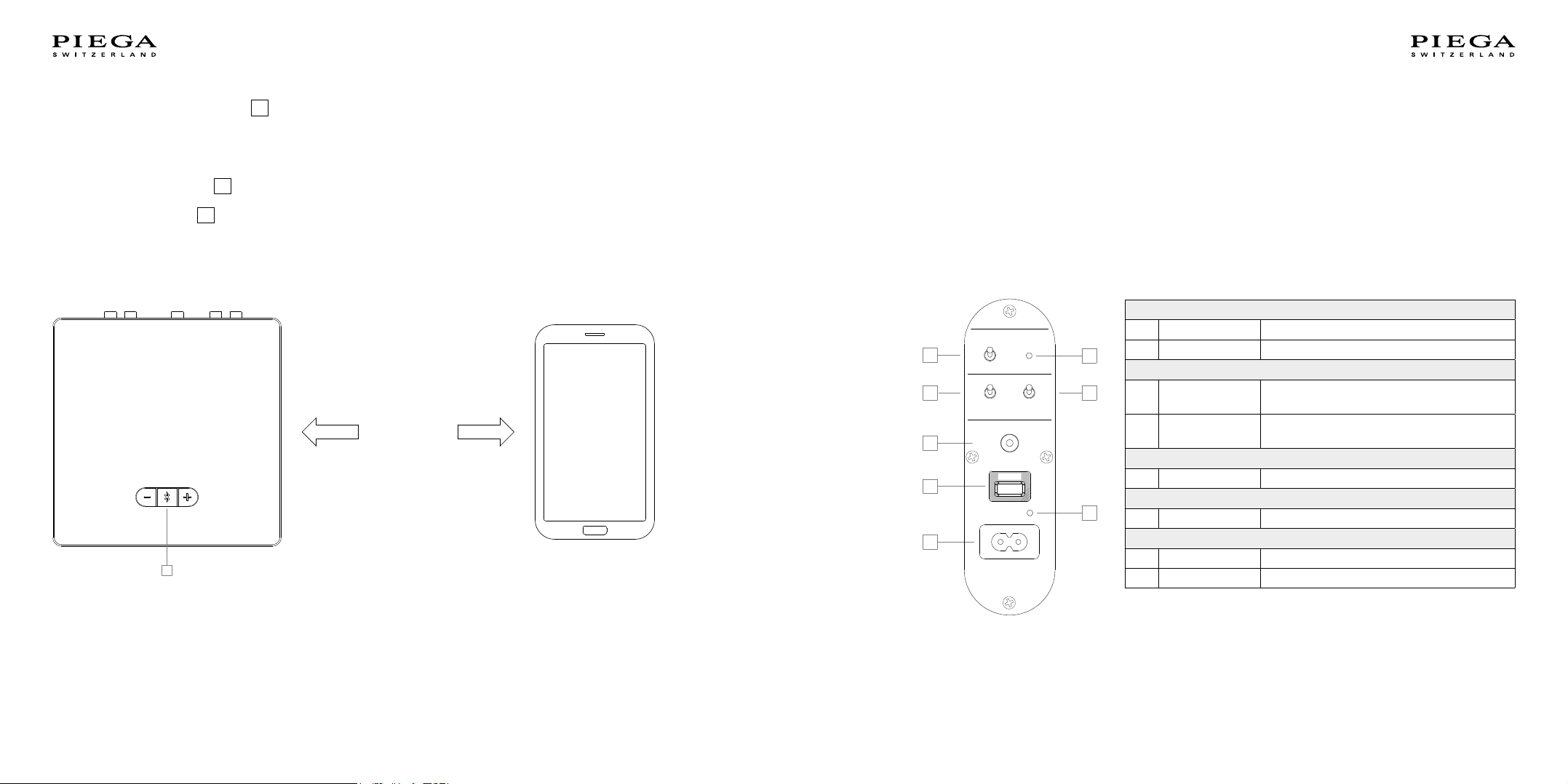

Bluetooth pairing 13
The Bluetooth pairing establishes the connection between the PIEGA speaker system and your smartphone, tablet, etc. and
enables the radio link. You must carry out the pairing process between a device and the PIEGA connect in order to establish
a BLUETOOTH connection for the rst time.
Upon pressing the pairing button 13 , the PIEGA connect will be recognised by your BLUETOOTH device, allowing a connec-
tion to be established.
Flashing of the pairing button 13 signals pairing mode.
NOTE: The PIEGA connect supports a simultaneous connection of up to two Bluetooth devices.
WARNING: If two Bluetooth devices are already connected to the PIEGA connect, the pairing function can no longer be
carried out. In order to enable pairing, the Bluetooth connection with one of the two devices must be disconnected.
OPERATING ELEMENTS OF THE
PIEGA SPEAKER
Overview
13
Mobile
Bluetooth
Settings
PAIR
Group
1 Select Group switch
2 Display Group status display (white/blue/red)
Speaker position
3Setup Adjusting the speaker with regard to the setup
location (neutral/wall/corner)
4Channel
selection switch
Allocating the position of the speaker
(left/mono/right)
Input
5 Analog input Analog input
Service
6 USB Service connection
Power
7 LED display Operating status display
8 Power socket Supply AC 100 – 120 / 220 – 240 V. 50 / 60 Hz.
Group
white
blue
red
Speaker Position
service
INPUT
analog
neutral
wall
corner
POWER
AC 100-120/220-240V 50/60Hz 250W
left
mono
right
1
3
5
6
8
2
4
7

User Manual // 1918 // User Manual
DESCRIPTION OF THE OPERATING
ELEMENTS OF THE PIEGA SPEAKER
Group 12
This function is only required when using several PIEGA wireless systems (more than one PIEGA connect).
Ensure that the same group is selected as with your PIEGA connect.
The music signal is only sent to speakers within the same group. This ensures the smooth operation of up to three independent
PIEGA wireless systems in one room/at/house.
The group display 2shows the selected group colour and the connection status. This must correspond to the respective
PIEGA connect.
You can nd additional information about the connection status in overview of the status displays.
NOTE: More than two speakers can be operated simultaneously in the same group. Our speakers and the PIEGA connect
are delivered with the “white” group setting as standard.

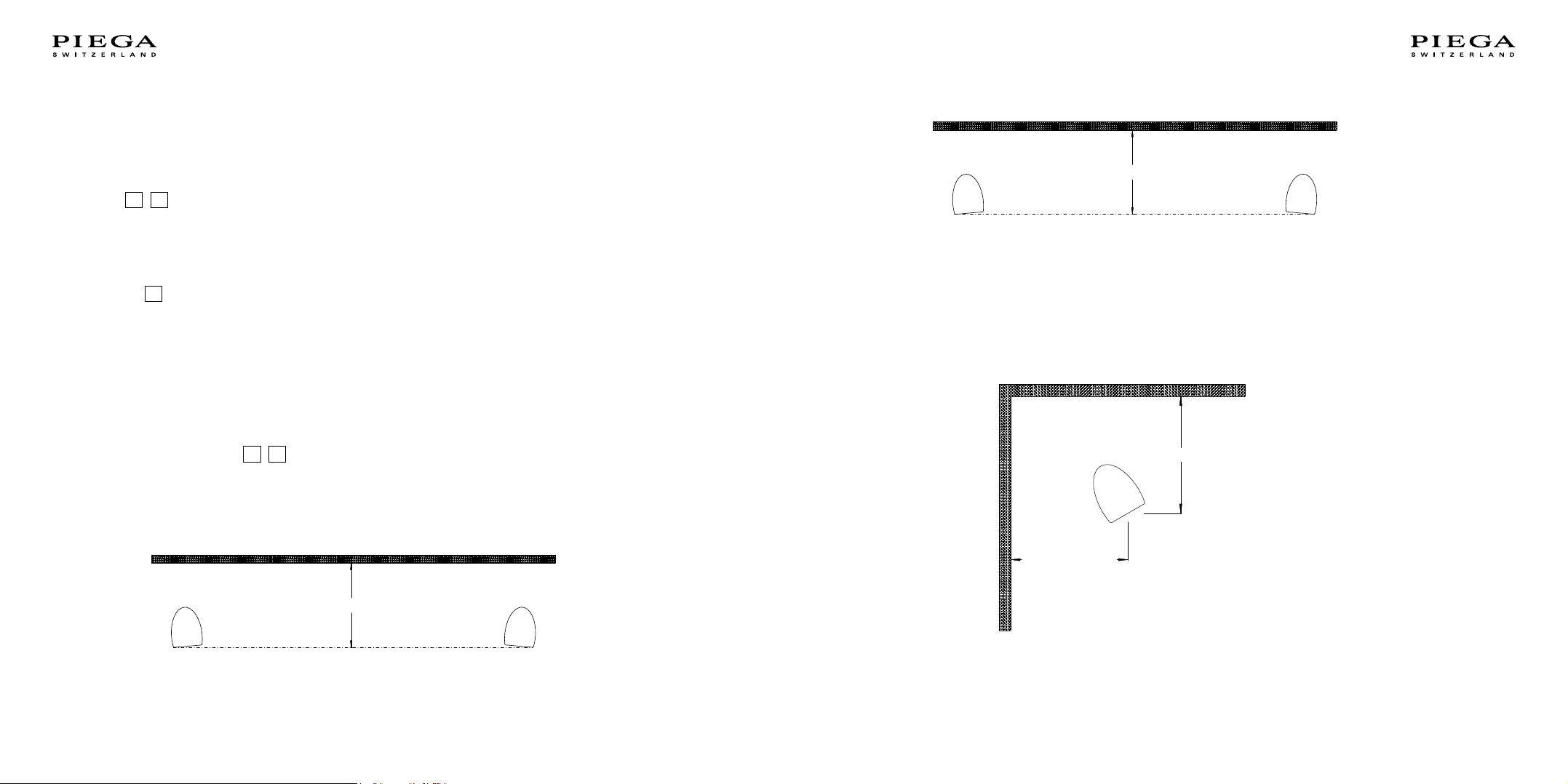

Speaker position 34
Various speaker setups and the position in the room can be determined using the “Speaker position” function.
SETUP 3
The speaker’s position in the room has an impact on the music playback. This is why we offer three different speaker setups.
NEUTRAL:
- Speaker located 0.5 m or farther from the rear wall
- Neutral frequency response
WALL:
- Speaker located 0.5 m or closer from the rear wall
- Frequency response with a slight drop in the bass range to counteract the excessive bass aused by the setup.
CORNER:
- Speaker located in the corner of a room
- Frequency response with a signicantly reduced bass range to counteract the excessive bass
caused by the setup
- Also suitable in combination with a subwoofer
Speaker Speaker
0.5 m and more
Wall
Speaker Speaker
below 0.5 m
Wall
Speaker
Wall
below 0.5 m
below 0.5 m

User Manual // 2120 // User Manual
SETUP POSITIONS 4
Determining the speaker position (left/right).
In wireless operation, both audio tracks (left and right channel) reach the speaker. This is why the respective position in the
stereo setup must be assigned to the speaker.
You can also select the “Mono” setting. We recommend this setting only if one speaker is being used in the room (for example
in the kitchen, bathroom, etc.).
In the “Mono” setting, both the left AND right channels are played.

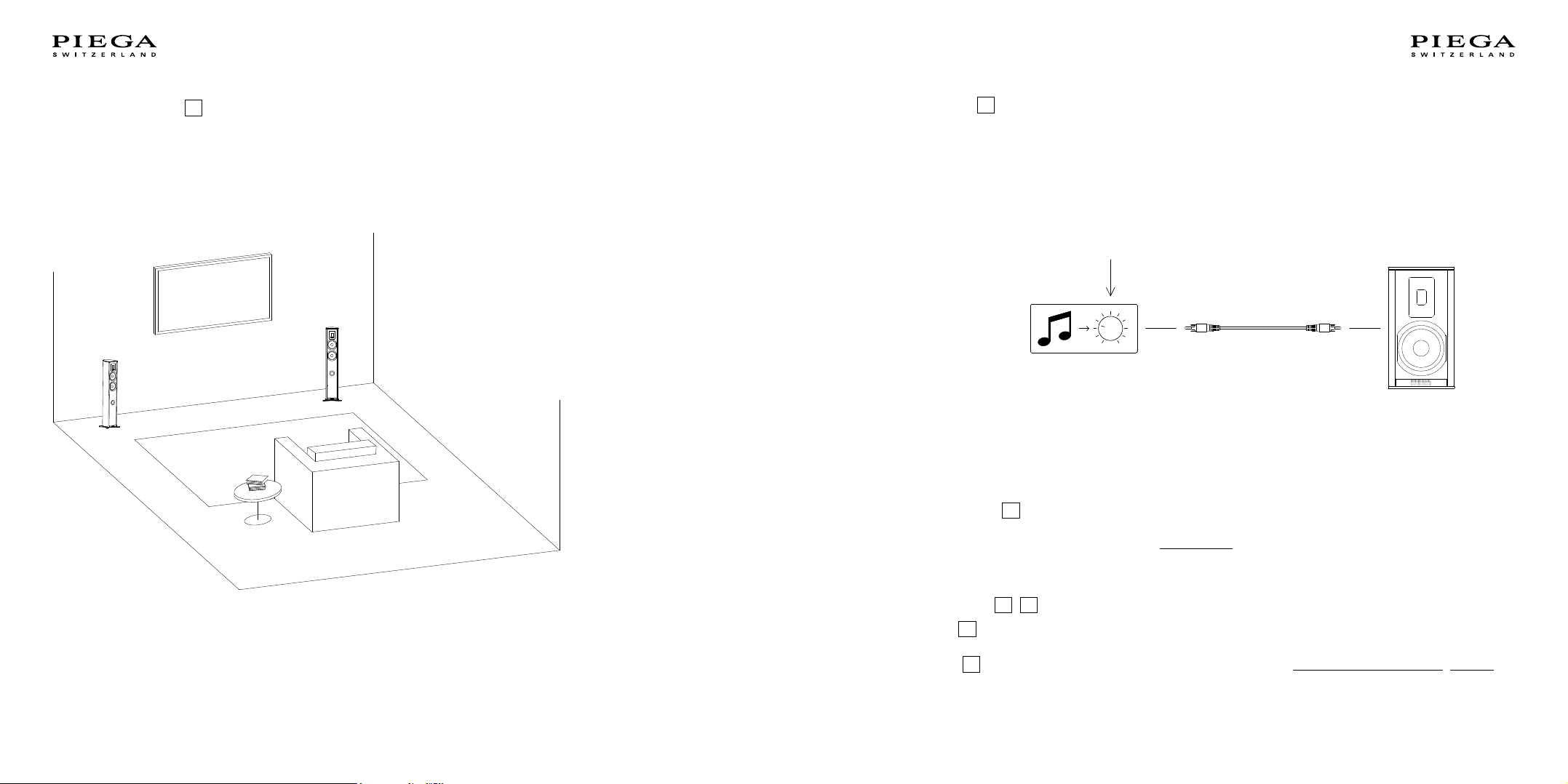

Input 5
“Input” refers to an analog music signal / analog input.
The speakers from the PIEGA wireless series can also be used solely as active speakers, i.e. instead of using wireless signal
transmission, the speaker can also be connected using an RCA (cinch) cable.
WARNING: Only use sources with integrated volume control for this conguration.
In this conguration, the wireless unit in the speaker is disabled and thus no longer sends or receives data.
NOTE: Only plug in or unplug the cable when the device is switched off.
Service 6
Any required software updates can be loaded via the USB service connection.
You can nd the operating software on our website www.piega.ch.
Supply 78
Connect 8the speaker using the power cable included.
AC 100 – 120 / 220 – 240 V. 50 / 60 Hz.
Operating 7status display. You can nd additional information in the section “Overview of the status displays”, page 35.
Music Source
min max
Volume Setting
Required !!!

User Manual // 2322 // User Manual
Music Source
Amplifier
Subwoofer
OR
Music Source
Bluetooth Device
Music Source
min max
Volume Setting
Required !!!
Music Source
Music Source
Music Source

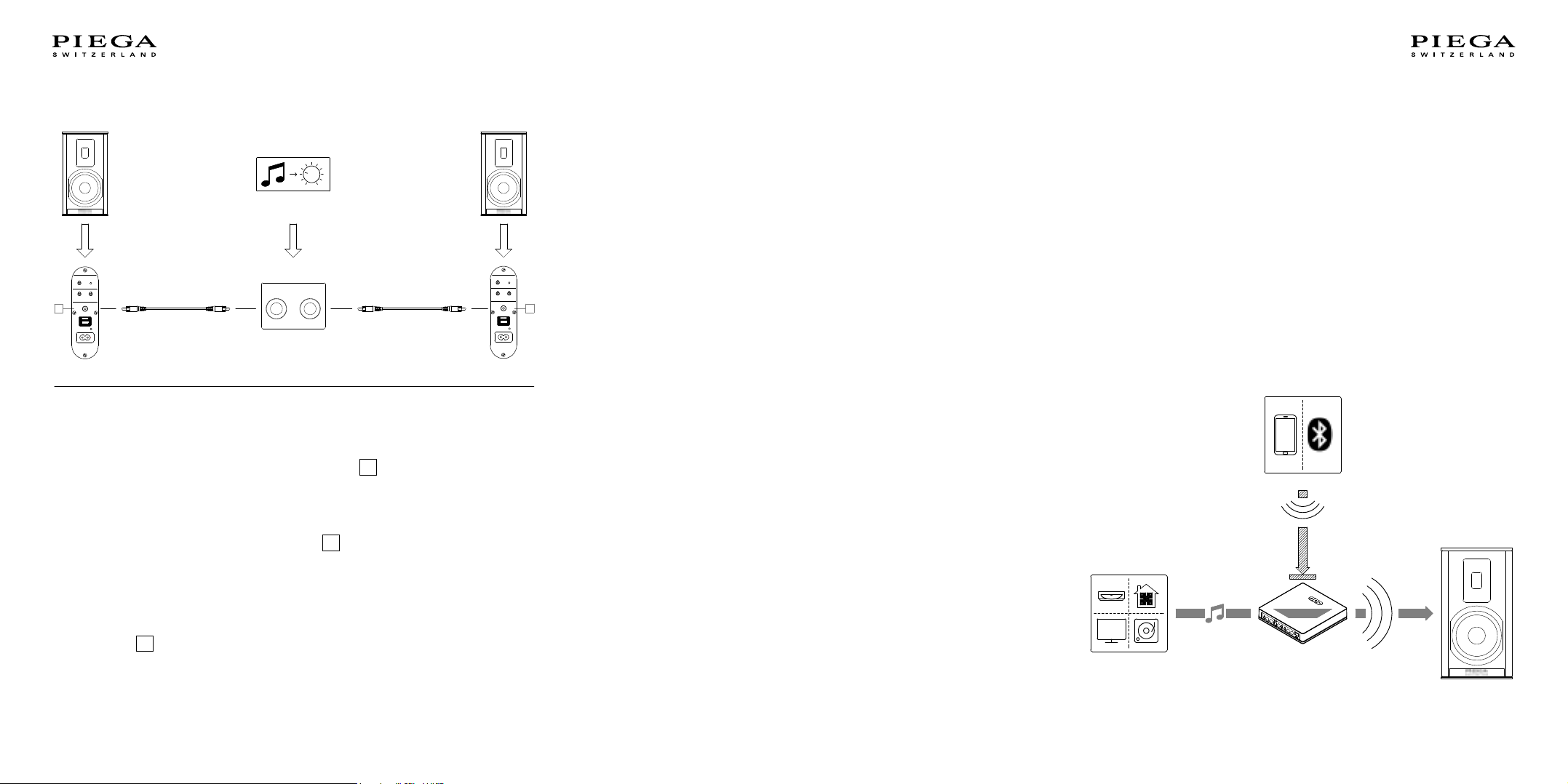

INSTALLATION INSTRUCTIONS
Overview
CONNECTION OF THE SUBWOOFER
(PERIPHERAL EQUIPMENT)
for more details go to page 28
Wireless connection to the speaker
and Bluetooth access
System comprising:
- Playback device (music source)*
- PIEGA connect for wireless signal transmission
- Connection of Bluetooth devices
- PIEGA wireless speaker
Extension of your wireless system
with a subwoofer
System comprising:
- Playback device (music source)*
- PIEGA connect for wireless signal transmission
- Connection of Bluetooth devices
- PIEGA wireless speaker
- Subwoofer / amplier / …
USING SEVERAL PIEGA CONNECT SYSTEMS
AS ACTIVE SPEAKER
for more details go to page 31
Installation of several PIEGA connect
systems in the same room / home
System comprising:
- Playback devices (music source)*
- More than one PIEGA connect for wireless
signal transmission
- PIEGA wireless speaker
Wired connection to the speaker
(without Bluetooth access)
System comprising:
- Playback device (music source)*
- PIEGA wireless speaker
- Connection cable (RCA)
*Some examples of playback devices:
- Interface to your existing multiroom system, often called “connect”
- TV
- Music streamer
WIRELESS SYSTEM
for more details go to page 24
for more details go to page 29

User Manual // 2524 // User Manual
coaxanalog
optical
RL
INPUT
Music Source
coax
coaxanalog
optical
RL
INPUT
Music Source
optical
coaxanalog
optical
RL
INPUT
Music Source
analogRL
Coax
Coaxial
S/PDIF
Optical
Analog
Output
Playback Device Cable Input PIEGA connect
DIGITAL OUT
ANALOG OUT
DIGITAL OUT
Wireless
System comprising:
- Playback device (music source)
- PIEGA connect for wireless signal transmission
- Connection of Bluetooth devices
- PIEGA wireless speakers
1) CONNECTION BETWEEN PLAYBACK DEVICE AND PIEGA CONNECT
We recommend selecting a digital connection whenever possible:
- Coax / coaxial (S/PDIF)
- Optical
IMPORTANT: Ensure that the position of the input source selection switch 5corresponds to the selected input.
You can nd additional information under point 2345“Input”, page 10.
2) OPERATING ELEMENTS SETTINGS
Volume
This setting is used to activate or deactivate the volume control 12 .
x Generally to be used in combination with:
- Multiroom systems – the volume is normally controlled via the respective app.
- Connection via Bluetooth – the volume is normally controlled via the corresponding Bluetooth device.
- Network player with integrated volume control
- Television
var Generally to be used in combination with:
- CD player
- Record player (please note that depending on the model of the record player, an additional phono
preamp may be required.)
You can nd additional information under point 1“Volume”, page 8.
NOTE: Some playback devices can activate and deactivate the volume control.
coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
1
12

User Manual // 2726 // User Manual

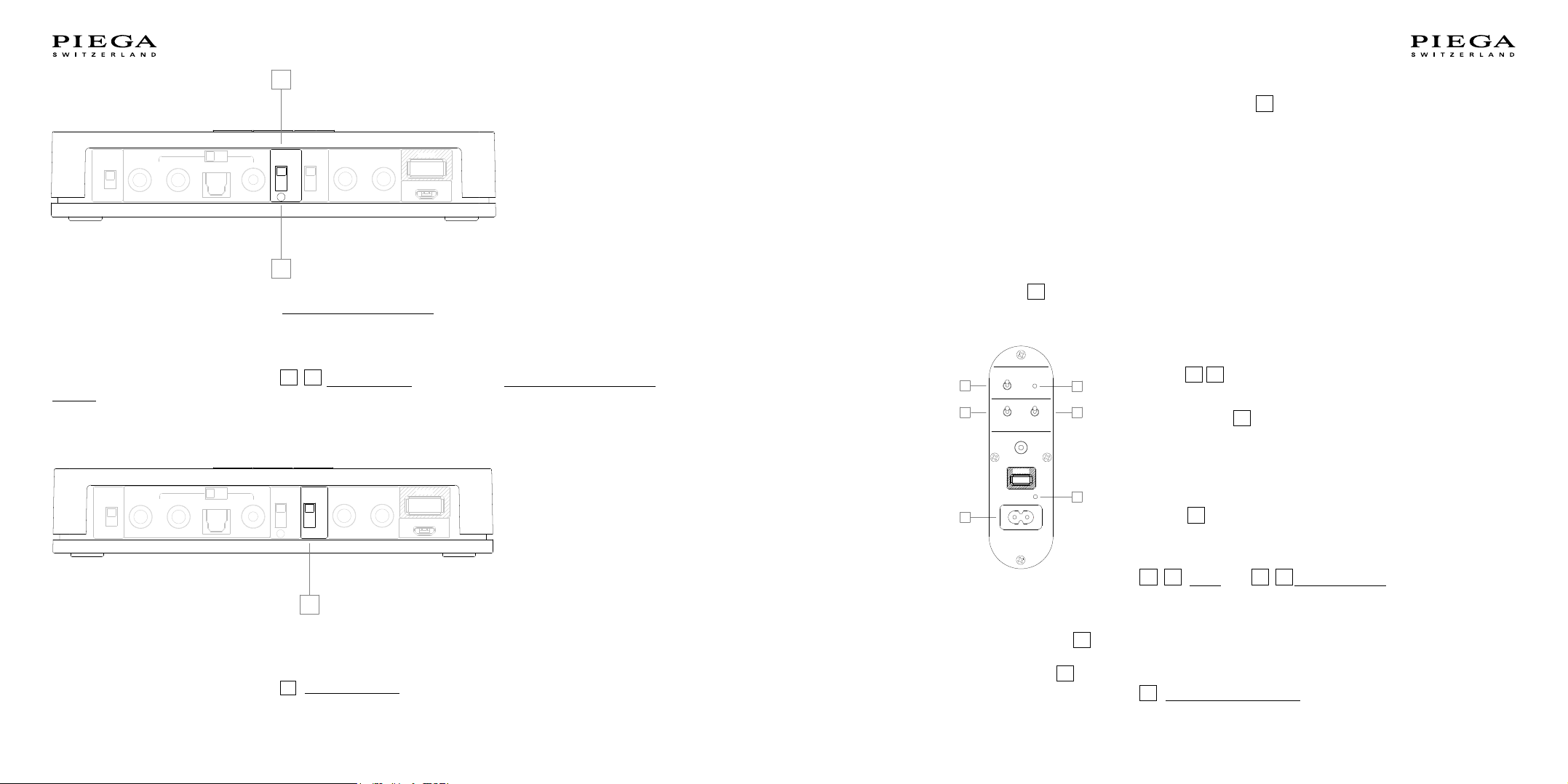

3) POWER SUPPLY TO THE PIEGA CONNECT
Connect the included power supply unit to the power supply socket 11 . A successful supply is indicated when the LED
status display ashes.
4) UNPACK AND SET UP THE SPEAKER
Please observe the operating instructions and warranty information included with the speakers.
Place the speakers in the desired setup location. You can also nd hints and tips in the included operating instructions and
warranty information.
5) POWER SUPPLY TO THE SPEAKER
Connect the speaker to an outlet using the power cable provided.
The LED status display 7will indicate a successful power supply.
6) SPEAKER SETTINGS
Group 1 2 :
Ensure that the group setting corresponds to that of your PIEGA co nect.
Sound tuning 3 :
Three different setups are available.
- Neutral
- Wall (setup near a wall)
- Corner (speaker in a room corner)
Stereo 4:
Adjust the position of the speaker from the point of view of the
listening location.
You can nd additional information under Point 12“Group” and 34“Speaker position”.
7) CONNECTION OF BLUETOOTH DEVICES (OPTIONAL)
Upon pressing the pairing button 13 , the PIEGA connect will be recognised by your BLUETOOTH device, allowing a connec-
tion to be established.
Flashing of the pairing button 13 signals pairing mode.
You can nd additional information under point 13 “Bluetooth pairing”, page 16.
8) YOUR SYSTEM IS READY
coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
7
6
coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
8
Group
This function is only required when using several PIEGA wireless systems (more than one PIEGA connect). You can nd addi-
tional information about this topic in the section “Using several PIEGA connect”.
The group setting must correspond to the speakers used. We recommend the “white” group setting
(default selection).
You can nd additional information under point 67“Group”, page 13 and in the section “Using several PIEGA connect”,
page 29.
Wireless
This function is only required to eliminate any possible disturbances.
This may include no connection or a lapse/stuttering of the music playback.
We recommend the setting “a” (default selection).
You can nd additional information under point 8“Wireless”, page 13.
Group
white
blue
red
Speaker Position
service
INPUT
analog
neutral
wall
corner
POWER
AC 100-120/220-240V 5 0/60Hz 250W
left
mono
right
1
3
8
2
4
7

User Manual // 2928 // User Manual
Connection of the Subwoofer (peripheral equipment)
System comprising:
- Playback device (music source)*
- PIEGA connect for wireless signal transmission
- Connection of Bluetooth devices
- PIEGA wireless speaker
1) INTRODUCTION
You can extend your existing PIEGA wireless system with a subwoofer or peripheral equipment of your choice.
PIEGA connect offers an analog output including volume control. You can nd additional information under
point 9“Output”, page 14”.
2) CONNECTING THE PIEGA CONNECT TO A SUBWOOFER
Use a standard commercial RCA (cinch) cable to connect a subwoofer.
Using several PIEGA connect systems
System comprising:
- Playback devices (music source)
- More than one PIEGA connect for wireless signal transmission
- PIEGA wireless speaker
When using several PIEGA connect systems in one room/home, please follow the installation instructions found
in the “Wireless” section.
Except under point 2“Operating element settings”, page 25, the following settings in the “Group” section must be observed.
GROUP
If there are several PIEGA connect in wireless range, the group function ensures a smooth operation.
A maximum of three PIEGA connect systems can be operated in the same room (wireless range).
You can nd additional information under Point 67“Group”, page 13.
coax
Volu me
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
analogRL
INPUT Subwoof er
Subwoofer
9
coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
7
6

User Manual // 3130 // User Manual

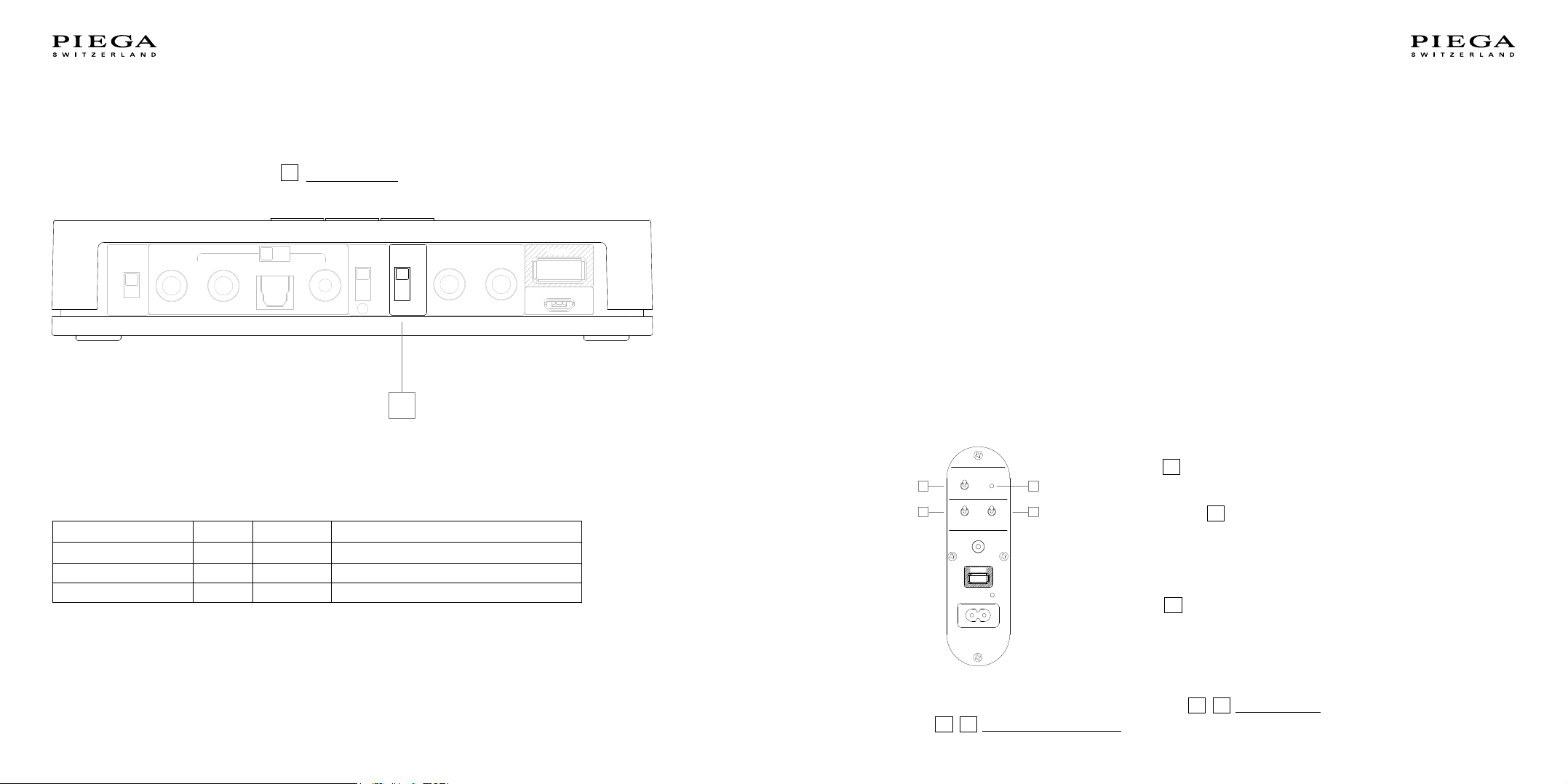

coax
Volume
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
8
Group
white
blue
red
Speaker Position
service
INPUT
analog
neutral
wall
corner
POWER
AC 100-120/220-240V 5 0/60Hz 250W
left
mono
right
1
3
2
4
WIRELESS
Using several PIEGA connect could lead to transmission problems. For this reason, we recommend using different
frequencies whenever possible.
You can nd additional information under Point 8“Wireless”, page 13.
Example for setup:
PIEGA connect Group Wireless Example, possible room
PIEGA connect 1 White a Living room
PIEGA connect 2 Blue a Bedroom
PIEGA connect 3 Red b Kitchen
As active speaker
System comprising:
- Playback device (music source)*
- PIEGA connect for wireless signal transmission
- Connection of Bluetooth devices
- PIEGA wireless speaker
1) PLAYBACK DEVICE
In this conguration, the volume must be controllable via the connected playback device.
2) UNPACK AND SET UP THE SPEAKER
Please observe the operating instructions and warranty information included with the speakers.
Place the speakers in the desired setup location. You can also nd hints and tips in the included operating instructions
and warranty information.
WARNING: Only power the speaker after you have nished conguring the settings and establishing the connection
with the playback device.
3) SPEAKER SETTINGS
Group
2
Not required for this application.
Sound tuning
3
Three different setups are available.
- Neutral
- Wall (setup near a wall)
- Corner (speaker in a room corner)
Stereo
4
Not required for this application.
NOTE: You can nd additional information under point 12“Group”, page 13,
and 34“Speaker position”, page 16.

User Manual // 3332 // User Manual
4) CONNECTING THE SPEAKER TO THE PLAYBACK DEVICE
Connect the analog output of your playback device to the input 5on the speaker terminal. Use a standard commercial RCA
(cinch) cable to do this.
Make sure the cabling of the speaker is correct (left and right channel).
WARNING: Any manipulations of the input terminal 5of the speaker must be carried out when the device is switched
off (disconnect power supply).
5) POWER SUPPLY TO THE SPEAKER
Connect the speaker to an outlet using the power cable provided.
The LED display 7will indicate a successful power supply.
OPERATION
General
Thanks to the automatic standby function, the PIEGA wireless system operates without an on/off switch. As soon as a music
signal appears, the system starts with minimal delay. If there is no music signal, the PIEGA wireless speakers switch to standby
mode after approximately 10 minutes.
Bluetooth function and priority
Priority is always given to Bluetooth playback, i.e. as soon as music is played via Bluetooth, the playback device connected via
cable is disconnected and the Bluetooth signal is transmitted via the speaker.
Example:
1. Music is played by an external playback device (music source):
a. CD player
b. Multiroom system
c. TV
d. Record player
e. …
2. A Bluetooth device is connected
to the PIEGA connect.
The music playback stops /
does not start.
Music Source
Bluetooth Device
Music Source
Bluetooth Device
analogLR
OUTPUT
Speaker / Subwoofer / Amp
Group
white
blue
red
Speaker Position
service
INPUT
analog
neutral
wall
corner
POWER
AC100-120/220-240V50/60Hz 250W
Group
white
blue
red
Speaker Position
service
INPUT
analog
neutral
wall
corner
POWER
AC100-120/220-240V50/60Hz 250W
left
mono
right
left
mono
right
Speaker
Left-Channel Music Source Speaker
Right-Channel
Music Source
min max
55

User Manual // 3534 // User Manual
Music Source
Bluetooth Device
Music Source
Bluetooth Device
3. Music playback starts on your Bluetooth device
4. The music playback of the external playback device is interrupted
5. Music from your Bluetooth device is played
6. As soon as the music playback on your Bluetooth device stops, the PIEGA connect switches back to the external
playback device. The switchover speed is signicantly dependent on the Bluetooth device used.
OVERVIEW OF THE STATUS DISPLAYS
coax
Volu me
fix
var
analog
optical
Group
white
blue
a
b
analog
red c*
service
POWER
* c no BT
RLRL
INPUT
Music Source
OUTPUT
Speaker / Subwoofer / Amp
Wireless
frequency
DC 5V =
1A
Group
white
blue
red
Speaker Position
service
INPUT
analog
neutral
wall
corner
POWER
AC 100-120/220-240V 50/60Hz 250W
left
mono
right
7
Rear Indicator
14
Front Indicator
2
Group Indicator
7
Power Indicator
12
Volume Indicator
13
Pairing Indicator
PIEGA connect PIEGA Speaker
PIEGA connect PIEGA Speaker
Setup Status
"7
Rear
Indicator”
"14
Front
Indicator”
"12
Volume
Indicator”
"13
Pairing
Indicator”
"2
Group
Indicator”
"7
Power
Indicator”
Wireless
Standby ON ON OFF OFF ON ON red
Normal operation ON ON OFF OFF ON ON white
Connection error, no
speaker connected Flashing Flashing OFF OFF Flashing ON white
Connection error, at least
1 speaker connected
to PIEGA connect
ON ON OFF OFF Flashing ON white
Bluetooth Pairing ON ON OFF Flashing ON ON white
Volume setting ON ON
ON
while buttom
pushed
OFF ON ON white
Active
Speaker
Standby - - - - OFF ON red
Normal operation - - - - OFF ON white

User Manual // 3736 // User Manual
TECHNICAL DATA
PIEGA connect PIEGA wireless speaker
Model PIEGA connect
Analog input Line in (RCA)
Digital inputs Optical / coax (S/PDIF)
Analog output Line out (RCA)
Analog input resolution 24 Bit / 96 kHz
Analog output resolution 24 Bit / 96 kHz
Bluetooth aptX, A2DP, AVRCP
Wireless frequencies A: 5.2 GHz, B: 5.8 GHz, C: 2.4 GHz
Wireless data transmission Group White/Blue: 24Bit / 48kHz
Group Red: 24Bit / 96kHz
Dimensions (H x W x D) 33 x 162 x 167 mm
Weight 650 g
Power supply 5 V DC / 1 A
Model 301 501 701
Frequency response 39 Hz – 35 kHz 36 Hz – 35 kHz 34 Hz – 35 kHz
Amplier power 100 W 180 W 200 W
Dimensions (H x W x D) 34 x 18 x 23 cm 101 x 16 x 21 cm 106 x 18 x 23 cm
Weight 9 kg 21 kg 28 kg
Design 2-way system shelf
speaker
2 ½-way system column
speaker
2 ½-way system
column speaker
Assembly 1 x LDR 2642 MKII ribbon
1 x 140 mm MDS
1 x LDR 2642 MKII ribbon
2 x 120 mm MDS
1 x LDR 3056 ribbon
2 x 140 mm MDS
Analog input resolution 24 Bit / 192 kHz 24 Bit / 192 kHz 24 Bit / 192 kHz
Standby power consump-
tion RCA / wireless 500 mW / 1W 500 mW / 1W 500 mW / 1W
Supply voltage AC100-120/
220-240V~50/60Hz
AC100-120/
220-240V~50/60Hz
AC100-120/
220-240V~50/60Hz
Maximum ambient
temperature 45° C 45° C 45° C

User Manual // 3938 // User Manual
FAQS
(frequently asked questions)
Problem
The LED displays of the PIEGA
connect do not light up
The LED display
7
of the PIEGA
wireless speaker does not light up
The LED displays
7
+
14
of the
PIEGA connect are ashing
The LED display
2
of the PIEGA
wireless speaker is ashing
Possible solution
Check if the device is properly connected to the
mains. Please use the provided adapter for this
purpose.
Check if the device is properly connected to the
mains.
No speaker is connected to the PIEGA connect.
Check the group setting.
The PIEGA connect and speakers must use the
same group (Group
6
; white / blue / red).
The distance between the speaker and the PIEGA
connect may be too far.
Operating the PIEGA connect in a metal cabinet
may signicantly restrict the maximum wireless
range.
There is no connection to the PIEGA connect.
Check the group setting.
The PIEGA connect and speakers must use the
same group (Group
6
; white / blue / red).
The distance between the speaker and the PIEGA
connect may be too far.
Operating the PIEGA connect in a metal cabinet
may signicantly restrict the maximum wireless
range.
Additional information
Power
11
Supply
7 8
Group
6 7
Group
1 2
Group
1 2
Problem
Although the LED displays on the
speakers and PIEGA connect light up
without interruption, there is no music.
Music playback stops, with
interruptions
Connection via Bluetooth not possible
Possible solution
Ensure that your playback device is playing music.
Check if the playback device is connected to
PIEGA connect.
Playback device
Use the output to connect to the PIEGA connect.
PIEGA connect
Does the switch position (select 5) correspond to
the selected input?
Check the volume setting (volume
1
) on your PIEGA
connect.
If the “var” setting is selected, the volume may need
to be increased using the button
12
.
Wireless connection is not stable.
The wireless selection switch (select
8
) can be
used to select alternative frequencies which may
result in an improvement.
A pairing process must be carried out during the
rst connection via Bluetooth.
PIEGA connect can connect to a maximum of two
devices via Bluetooth simultaneously. If two de-
vices are already connected, an additional device
cannot be connected. The pairing function is also
disabled in this conguration.
Additional information
Input
2 3 4 5
Volume
1
Wireless
8
Bluetooth pairing
13
FAQS
(frequently asked questions)
