Introduction
With the Piezo telephone liteFon 1030 you have chosen a telephone that is free from magnetic
fields.
No other electric device is used so close to the head as the telephone. It is therefore important to
minimize or to avoid electric magnetic fields. Through the Piezo receiver there is no magnetic field,
and the electric field is low. This has no negative effect on the acoustic, and therefore there is no
difference between traditional dynamic receivers and the piezo receivers.
liteFon 1030 userʻs manual
Page 3

Whether using the LiteFon 1030 for business or in your private life, it has all the features you need
in a modern telephone. The most important feature are:
- Piezo-receiver without magnetic field
- Adjustable receiver volume
- Extensive phonebook
- One touch memory
- CLIP function
- Bilingual navigation
- Hands-free mode
- Adjustable ringer
- DTMF/ pulse tone compatible
- Power saving power supply unit
- Optional use of batteries
Safety instructions:
For your safety, do not use the telephone in near running water. The telephone is not splashproof.
In case of giving the telephone to third parties, make sure that you also include the user manual.
Contents of the package
The packaging of the LiteFon 1030 includes:
-Telephone
- Piezo handset
- Handset Cord
- Connection cable RJ11/RJ11
- Energy saving power supply unit
- Printed user manual in German
Default setting
Please adjust the setting of the LiteFon 1030 according to your needs.
The default settings are:
Language: English
Dialing procedure: DTMF
Signal: Flash 600ms
Ringer adjustment: loud
liteFon 1030 userʻs manual
Page 4

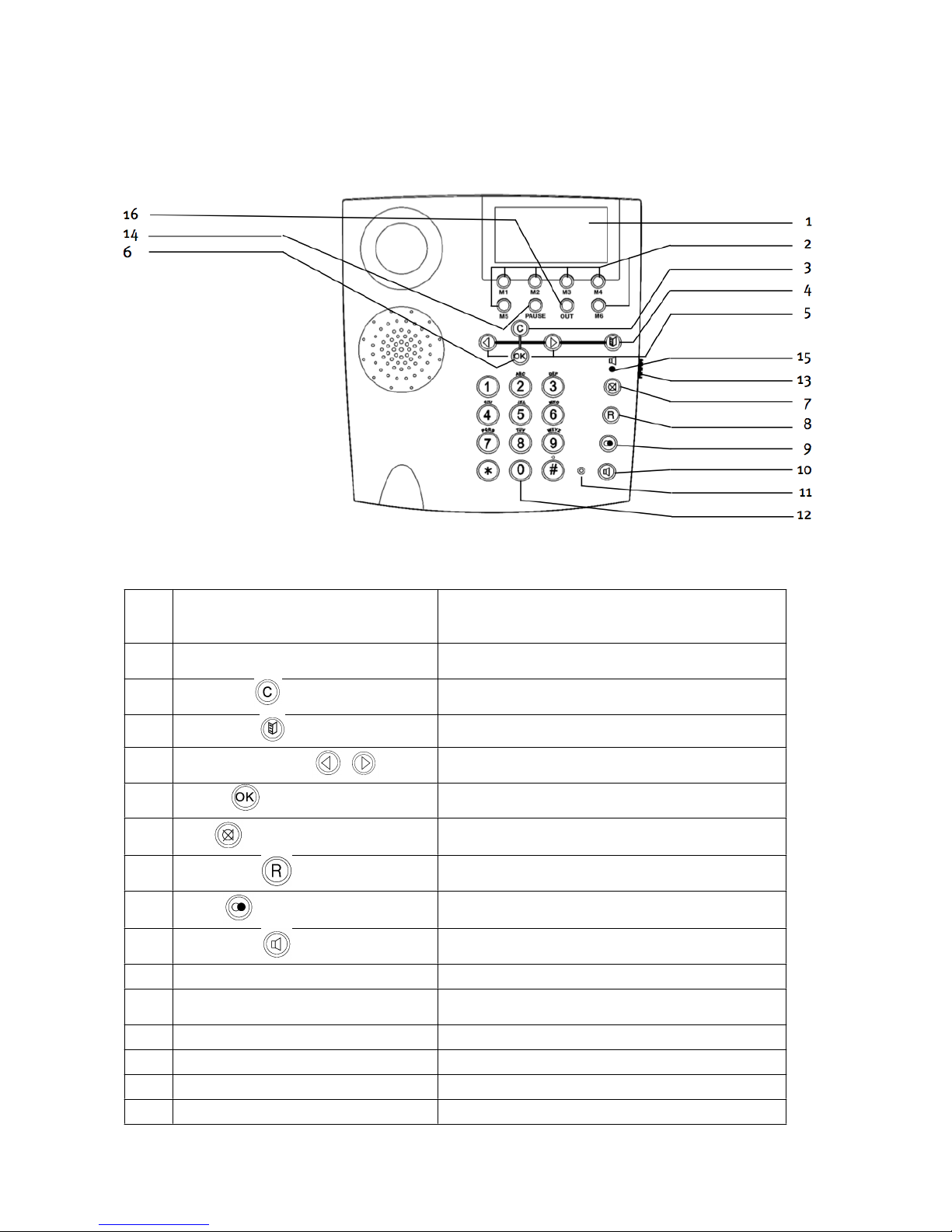

1. Overview of the device
1.1. Overview of the device
Nr. description function
1
Display
the display shows the chosen function, names,
numbers, date, time and the duration of the
conversation
2
Direct dial
with these direct dial memory keys M1-M6 you
can save the numbers of contacts
3
Delete key
Delete entries in the directory and the direct dial,
or you can cancel settings
4
Phonebook
Open the phonebook
5
Forward/Backward
Browse in the entries
6
OK key
Confirm entries or carry out functions
7
Mute
Turn off the microphone and the receiver
8
Enquiry key
Press key – to activate some network functions
9
Redial
Open redial list
10
Hands-free
Switch to hands-free
11
Microphone
Microphone for hands-free
12
Alphanumerical keypad
For dialing telephone numbers. Letters printed
on housing.
13
Ringtone volume adjustment
Slide switch for adjusting the ringtone volume
14
Pause
Pause time of 3.6 s
15
LED
Lights when hands-free is turned on
16
OUT
List of outgoing conversations
liteFon 1030 userʻs manual
Page 5

Backside of the device
17
Ringer adjustment
Adjust the volume of the ringer: loud,
intermediate, silent
18
Receiver adjustment
Adjust the volume of the receiver: loud, quiet
19
Connection
Connection point for the power supply unit
Setting up the telephone
Your device is ready for operation after a few simple procedures.
Plug and battery box cover have to click into place.
In order to use your telephone you need to perform a few simple procedures.
liteFon 1030 userʻs manual
Page 6

Line cord
The connector cable has two identical plugs RJ11. Insert one in the socket marked with the
telephone symbol on the backside of the device. Insert the other plug in your telephone connection
socket.
Handset cord
The receiver cable also has two identical lugs. Insert one into the socket at the receiver and the
other one in the marked socket on the device.
Use of the power supply unit
Connect the power supply unit with the telephone and the electricity supply system.
Use of the batteries
1. Open the battery compartment
2. Insert three AA-batteries or rechargeable batteries (note the polarity!)
3. Close the battery box. The cover has to click into place
You have the possibility to use the telephone either with the power supply unit or with batteries.
If you have no power supply or batteries for the telephone, you can still use the telephone to
make and receive calls, but you will not be able to use other functions on the telephone, e.g.
the directory, direct dial, redial, or CLIP.
Recommendations for the location of the telephone
Your telephone has been manufactured for normal conditions of use. Nowadays furniture is treated
with a large variety of gloss paint and synthetic material. There may be a possibility that some of
these materials affect the plastic feet of the telephone, or that these plastic can leave traces on the
furniture. For understandable reasons, we cannot be made liable for these damages. We
recommend the use of a non-slip pad.
liteFon 1030 userʻs manual
Page 7

2. Display
2.1 Display
MON
12:34 28/10
2011
ALL002 NEU001
2.2 Symbols
Abbreviations on the display
In the second line:
IN number of incoming calls
REP repeated incoming call
NEW new incoming call
OUT number of outgoing calls
In the third line:
USING - telephone is in use
In the fourth line:
ALL number of all incoming calls
NEW number of new incoming calls
Putting the telephone into operation
MON
12:34 28/10
VIEW MENU
liteFon 1030 userʻs manual
The first line on the display shows the weekday, the second line
shows the date and the time, as well as the place in the directory
and the number of incoming and outgoing calls. In the third line you
can see the year and the telephone number. The fourth line shows
the active function, the number of calls and the name of the contact
in the phone book.
After connecting the telephone, change the default settings of language, time, date etc. to your preferred
settings:
Press the key to enter the menu. To
navigate use the keys
Page 8

3.1 Adjusting the Language
SELECT LANGUAGE
3.2 Adjusting time and date
MON
12:34 28/10
2011
DATE/TIME
3.5 Adjusting the display contrast
MON
12:34 28/10
CONTRAST ADJUST
3.6 Babycall
MON
12:34 28/10
BABYCALL
liteFon 1030 userʻs manual
1. Choose “Select language” through pressing the
key once
2. Confirm with
3. Chose a language by pressing
4. Confirm with
1. Press the four times and chose the “Date/
Time”. Confirm with
2. You can adjust the date (year/day/month) and the
time (hours/minutes) by using
3. Confirm your choice with
1. Choose “Contrast adjust” by pressing five
times and confirm with
2. Choose a setting using the keys (e.g. 1 =
light, 5 = dark)
3. Confirm with
1. Press four times and choose “Babycall” with
2. You can activate or deactivate the function by pressing
3. If you activate the function you will be asked to enter a
telephone number. This number will automatically be
called no matter which key you press.
4. Confirm with
Page 9

3.7 Phonebook Input
MON
0123456789
INPUT NUMBER
MON
0123456789
TOM MILLER
3.8 Edit phonebook (change saved numbers)
MON
12:34 28/10
PHONEBOOK EDIT
MON
0123456789
TOM MILLER
3.9 Flashtime
MON
FLASH TIME 300MS
liteFon 1030 userʻs manual
1. Choose “Phonebook input” by pressing three times
and confirm with
2. Enter a telephone number
3. Confirm with
4. Enter the name
5. Confirm with
1. Press two times and chose “phonebook edit”
2. You can browse the entries with
3. Press if you want to change a number
4. Press to delete one by one
5. Enter new number
6. Confirm with
1. Press once and chose “Flashtime”. Confirm with
2. Chose a predefined value with the keys: 100 ms –
600 ms (1000 ms only for specific use).
When connecting to private telephone system you might
have to change the flashtime. Check manual of telephone
system. In most European countries the default value is
100 ms (Flash) and 300 ms (Hook Flash).
3. Confirm with
Page 10

3.10 Leaving the menu
You can leave the menu at any time by pressing or by picking up the handset or by
activating the hands-free mode with .
Now you are ready to use the telephone.
4. Telephoning
You can enter a number either with the receiver lying on the phone or after picking it up.
If you have picked up the receiver, enter the number directly or chose a number from the
phonebook. Since you cannot change the number at this point, we recommend dialing with
prepared dialing. With prepared dialing, you first enter the number and with the handset off,
and then press or and pick up the receiver.
4.1 Using the handset mode
Pick up the receiver and enter the number.
4.2 Hands-free mode
You can dial without picking up the handset
1. Press
2. Enter number
4.3 Using the phonebook
MON
12:34 28/10
PREFIX INPUT
MON
0123456789
TOM MILLER
liteFon 1030 userʻs manual
1. Press . The display will now say “Input Prefix”
2. Press to browser the directory. You can also
enter the first letter of the name you are looking for to
jump directly to name beginning with that letter - you can
also browser with .
3. Press or pick up the handset to dial the number
Page 11

4.4 Redial
The last number is automatically save (up to 32 digits)
MON
0123456789
TOM MILLER
4.5 Dialing through direct call
MON
0123456789
M1
4.6 Displaying the duration of the conversation
MON
12:34 28/10
01:23
USING...
4.7 Hands-free operation
After activating the loudspeakers the display will show and the LED will light. The
receiver is still activated, and can additionally be used.
Hands-free mode
When this mode is activated, the handset is off. You can hear your conversation partner
through the loudspeakers of the telephone and you speak to the integrated microphone.
-If the telephone is ringing: press while the handset if off to answer the call. To end the
call, press again.
-During the conversation: if you want to switch to the hands-free mode, press and put
down the handset.

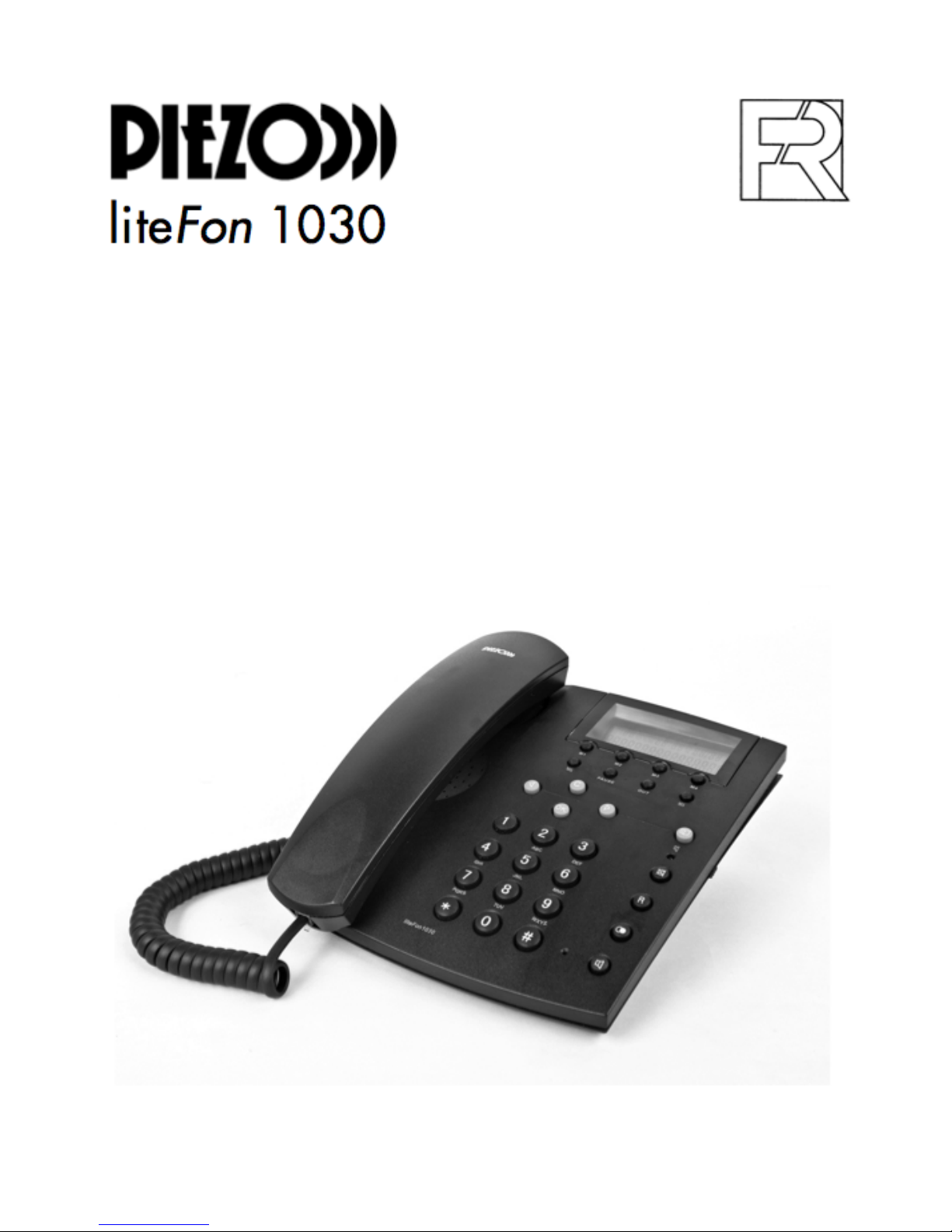

liteFon 1030 userʻs manual
Pick up the handset or activate the hands-free mode and
then press .
1. Press M1 (up to M6) – the saved number will be shown
on the display
2. Press or pick up the handset to dial number
3. … or pick up the receiver first and then press direct call
During incoming and outgoing calls the duration of the
conversation is shown on the display. The internal clock is
not gauged. Deviations are possible
Page 12

- When using the hands-free mode with maximum volume, there might be distortions or
changes in volume. Reduce volume to avoid this.
Open listening
If you would like to allow other people to listen to your conversation while you are using the
telephone, you can use the open listening function.
Press the key while holding the handset. The symbol will appear on the
display, and the LED will light. You can now put the receiver on the telephone. If you
would like to turn off the open listening, pick up the handset.
5. CLIP (Caller Identity Presentation) services
If CLIP is activated, your telephone will automatically save the numbers of the incoming
callers (your provider will give you more information about this service). When the
telephone rings, the number, and if applicable the name of the caller will appear on the
display.
5.1 Accepting a call
The caller’s number or name (if already saved in the directory) is displayed only if your
network operator supports the CLIP function. To accept the call, you can either
o Pick up the handset
oPress the hands-free key
To adjust the volume, use the slide switch (number 13 on the telephone overview).
The volume increases by sliding the switch upwards.
5.2 Saving the displayed number into the phonebook
If the number is displayed, you can easily save it into the directory by pressing . The
number is now saved. Edit the name as in the point “Edit phonebook”. If the name is
already in the directory, the display will say “error” and the number will not be saved.
5.3 CLIP memory
Your telephone saves all incoming calls (number, date, time of the call).
Press to browse.
liteFon 1030 userʻs manual
Page 13

5.4 Dialing the displayed number
Pick up the handset or press while number is displayed – the number will now be
dialed.
5.5 Deleting a number
MON
12:34 28/10
0123456789
DELETE?
MON
12:34 28/10
0123456789
DELETE ALL?
5.6 Muting the microphone
If you would like to talk to a person next to you while using the telephone and wouldn’t
like your conversation partner on the telephone to hear what you are saying, you can
mute the microphone.
-Press the key to turn off the microphone
-By pressing again, the microphone will be turned on again
liteFon 1030 userʻs manual
While then number is displayed, press . The display
will now say “delete”. Press again to confirm.
To delete all numbers, press for 3 seconds. The
telephone will now ask whether you would like to delete all
numbers, press to confirm. The display will say now
“all numbers deleted”.
Page 14

6. Phonebook
6.1 Adding a new entry
MON
12:34 28/10
0123456789
STORE
MON
12:34 28/10
0123456789
TOM MILLER
6.2 Editing an entry
See 3.8 in the manual
6.3 Deleting an entry
MON
12:34 28/10
PREFIX INPUT
MON
12:34 28/10
0123456789
DELETE?
7. One touch memory M1-M6
The following functions are carried out with the handset on the telephone. There are six
one touch memory keys, you can activate them by pressing M1, M2, M3, M4, M5 or M6.
liteFon 1030 userʻs manual
1. Enter new number and press
2. Press to add the number to the phonebook
3. Press to confirm
4. Add name with keypad. Press to select the
letters.
5. Confirm with
1. Press to open the phonebook
2. Browse by pressing
3. Press to delete
4. Confirm with
Page 15

7.1 Adding a new number
MON
12:34 28/10
0123456789
STORE
7.2 Saving telephone numbers of incoming calls into one touch memory
1. Browse with
2. Chose a telephone number by pressing and then press one touch memory key
M1, M2, M3, M4, M5, or M6. The previous number will be overwritten.
7.3 Dialing from one touch memory
1. Pick up the receiver or press for hands-free mode
2. Press the appropriate one touch memory key, e.g. M1
You can also press the one touch memory key first and then use the phone.
7.4 Edit/overwrite/delete entry
If you would like to change an entry, enter a new telephone number and the previous
number will be overwritten.
8. Saving numbers from calling list
Saving a number from the calling list directly into the phonebook.
1. Browse telephone numbers with
2. Press to select a number
3. Press to open the phonebook
4. The cursor is on the right side of the number. Confirm with
5. The curse is at the left bottom side.
6. Enter name on the keypad and confirm with
liteFon 1030 userʻs manual
1. Enter number and press
2. Press one touch memory key, e.g. M1
3. If you now press M1, the new number will
appear on the display
Page 16

9. Returning calls from calling list
1. Browse the calling list by using till you find the desired number.
2. Pick up receiver or activate hands-free mode with
10. General information
Clean telephone with damp cloth. You may also use plastic cleanser. Avoid sprays and
too much moisture because these may damage the product.
Do not use cleansers that contain scouring agents, alcohol, spirit or solvent (e.g.
turpentine). These could damage the casing of the telephone.
Battery disposal / recycling
If you do not use the batteries over a longer period of time, we recommend that you
take them out of the telephone. Dispose of these batteries properly (no domestic
refuse).
Disposal of the telephone
The symbol on the packaging indicates that you should not dispose of the product
as domestic refusflex Lieferschein Nr. e. Instead, recycle the telephone at a
collection point for electric devices.
11. Troubleshooting
Not every problem indicates a defective device. See chapter “What if…” to try and solve
the problem. This may save you time and money. But remember not to carry out repairs
on the telephone yourself.
Check if all cables have clicked into place and whether they show any damages.
If you continue having problems, turn to your specialist supplier.
If a repair is necessary, please describe the problem as accurately as possible.
liteFon 1030 userʻs manual
Page 17

12. What if….
Problem
Possible solution
--- key has no function
in Private Branch
Exchange
The telephone supports Flash/Hook Flash and 600 ms.
Your Private Branch Exchange does not support these
settings
Defective redial and
telephone register dial
in Private Branch
Exchange
Press Pause key (14) after dialing exchange code, then
dial telephone number.
Device does not
connect to Private
Branch Exchange
The telephone only supports tone dialing
Telephone does not
ring
Check filter function and turn off if necessary. Check
volume side switch.
13. Warranty conditions
This device was produced and checked with special diligence. We offer a guarantee of
24 months. For stressed wear parts (e.g. keypad, cable) we offer a guarantee of 6
months from the date of purchase (purchase receipt serves as proof).
In case of complaint we may repair or exchange the defective parts or the device.
The warranty does not cover expendable materials (battery cells), defects which affect
the value or use of the equipment only insignificantly, and damage caused by incorrect
use, ordinary ware and tear, or manipulation by third parties.
To claim under this warranty, please contact the retailer where you purchased your
telephone.
This manual serves your information. The content is not object of contract. All given
data are of nominal value. We reserve the right to change content and technical
information.
This telephone fulfills the requirement of the EU Directive 1999/5/EG of the European Parliament
and the European Council for telecommunication equipment and the mutual recognition of its
conformity. This conformity is confirmed with the CE sign on the device.
liteFon 1030 userʻs manual
Page 18
