Safety instructions
Connection plan PMCtendo SZ – HIPERFACE DSL
1004737-en-US-03
3
1 Safety instructions
1.1 General safety instructions
WARNING!
Injury due to moving or rotating parts!
Burns due to contact with hot surfaces!
▪ Only connect the motor while observing the following safety
instructions, the associated operating manual and any applicable
national, local or system-specific regulations.
1.2 Safety with electrical connections
DANGER!
Electric shock!
Serious injuries due to contact with live parts!
▪ Carry out all work on a de-energized motor!
▪ Make sure that the motor shaft is stationary during all work. A rotating
rotor can cause high voltages at the connections.
▪ Disconnect the supply voltage. Be aware that there may still be
dangerously high voltages at the servo amplifier, even 10minutes after
switching off the supply voltage, due to the residual charge of the link
capacitors.
▪ Cover all open electrical connections, e.g. using protective caps.
▪ Secure the installation location as per regulations, e.g. using locks or
warning signs.
1.3 Preventing connection errors
ATTENTION!
Damage to the motor or motor components due to electrical
connection errors!
▪ Observe the motor nameplate and this connection plan. Contact
Technical Support in case of questions.

Safety instructions
Connection plan PMCtendo SZ – HIPERFACE DSL
1004737-en-US-03
4
1.4 Safe functions and EMC of the drive system
ATTENTION!
Damage to the motor or impairment of motor function!
Violation of EMC requirements mandated by law!
While commissioning the motor, the motor may be damaged or compliance
with legal EMC requirements may no longer be possible if you use
connection cables or servo amplifiers that are not suitable for the motor.
Any warranty claims shall be void under these circumstances.
▪ Use connection cables or servo amplifiers from Pilz GmbH & Co. that
are appropriate for the motor.

Connection – Motor housing to grounding conductor system
Connection plan PMCtendo SZ – HIPERFACE DSL
1004737-en-US-03
5
2 Connection – Motor housing to grounding conductor
system
Connect the motor housing to the grounding conductor system of the machine in order to
prevent personal injury and faulty triggering of residual current protective devices.
All attachment parts required for the connection of the grounding conductor to the motor
housing are delivered with the motor. The grounding screw of the motor is identified with
the symbol as per IEC 60417-DB. The cross-section of the grounding conductor has to
be at least as large as the cross-section of the lines in the power connection.

HIPERFACE DSL power and feedback plug connectors
Connection plan PMCtendo SZ – HIPERFACE DSL
1004737-en-US-03
6
3 HIPERFACE DSL power and feedback plug
connectors
Single-cable HIPERFACE DSL technology combines the power and feedback connections
into one common plug connector.
In motors with forced ventilation, avoid collisions between the motor connection cables and
the plug connector of the forced ventilation unit. In the event of a collision, turn the motor
plug connectors accordingly.
The following images show the position of the plug connector upon delivery.
PMCtendo SZ.3x...K – Turning range of the plug connector
Fig.1: PMCtendo SZ.3x...K – Turning range of the plug connector
A Attachment or output side of the motor B Rear side of the motor
PMCtendo SZ.4x...K – SZ.7x...K – Turning range of the plug connector
Fig.2: PMCtendo SZ.4x...K – SZ.7x...K – Turning range of the plug connector
A Attachment or output side of the motor B Rear side of the motor

HIPERFACE DSL power and feedback plug connectors
Connection plan PMCtendo SZ – HIPERFACE DSL
1004737-en-US-03
7
Features – Plug connectors
Type Size Connection Turning range
α β
SZ.3x...K,
SZ.4x...K,
SZ.5x...K,
SZ.71...K,
SZ.73...K
con.23 Quick lock 180° 135°
SZ.75...K con.40 Quick lock 180° 135°
Note
The number after "con." indicates the approximate external thread diameter of the plug
connector in mm (for example, con.23 designates a plug connector with an external thread
diameter of about 23 mm).
3.1 Terminal assignment – HIPERFACE DSL plug connectors
The following HIPERFACE DSL plug connectors are available for PMCtendo SZ motors
(the color information relates to the connecting wires and is only relevant for internal motor
wiring).
The temperature sensor of the motor is connected to the feedback system internally. The
measured values from the temperature sensor are transmitted via the HIPERFACE DSL log
of the feedback system.
The size of the plug connector depends on the size of the motor; the terminal assignment
changes depending on the connector size.

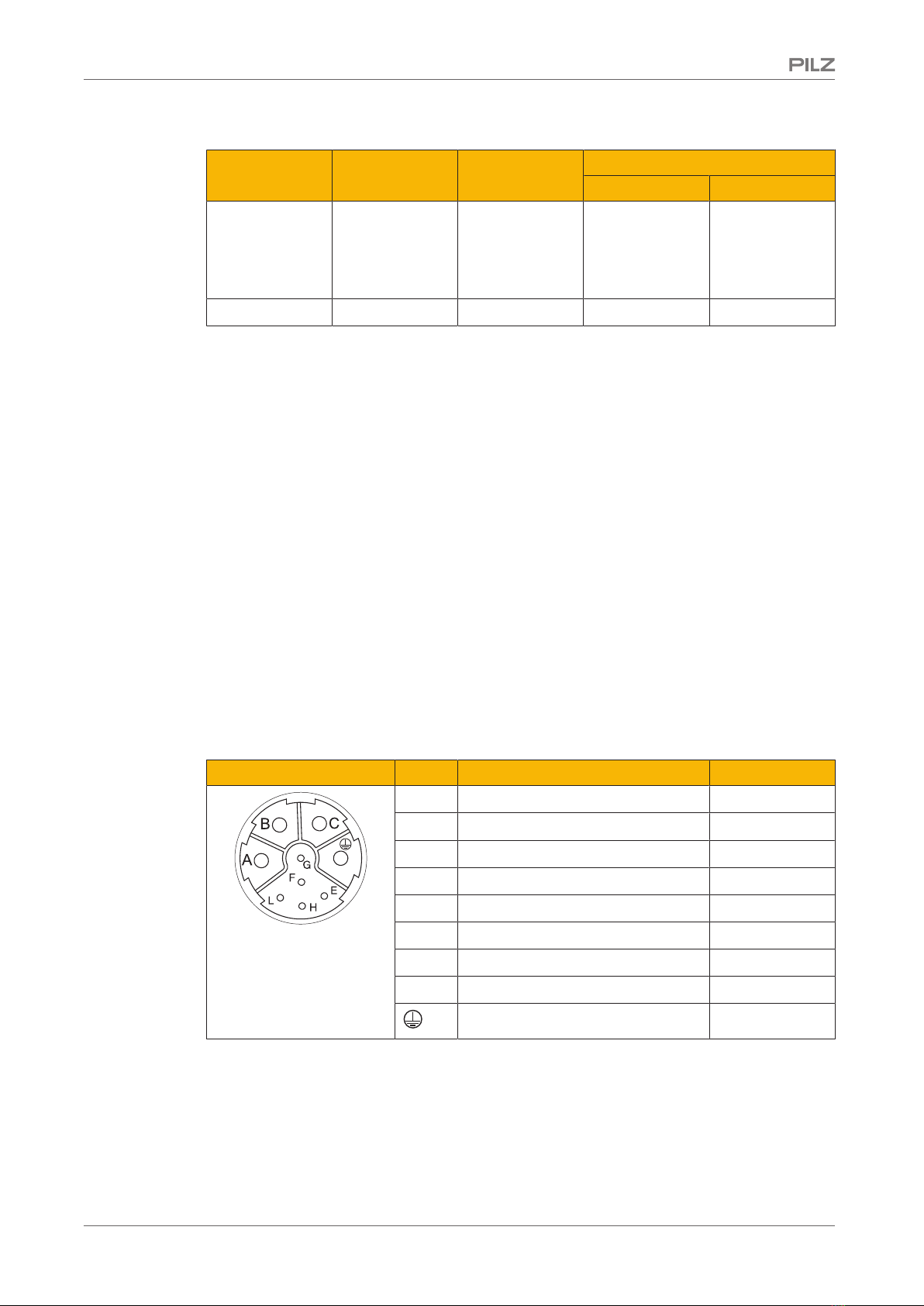

HIPERFACE DSL – con.23 plug connectors
Connection diagram Pin Connection Color
A 1U1 black
B 1V1 blue
C 1W1 red
E DSL− (L) green
F DSL shield
G 1BR+ (brake + DC 24 V) red
H DSL+ (H) grey
L 1BR− (brake 0 V) black
PE green-yellow

HIPERFACE DSL power and feedback plug connectors
Connection plan PMCtendo SZ – HIPERFACE DSL
1004737-en-US-03
8

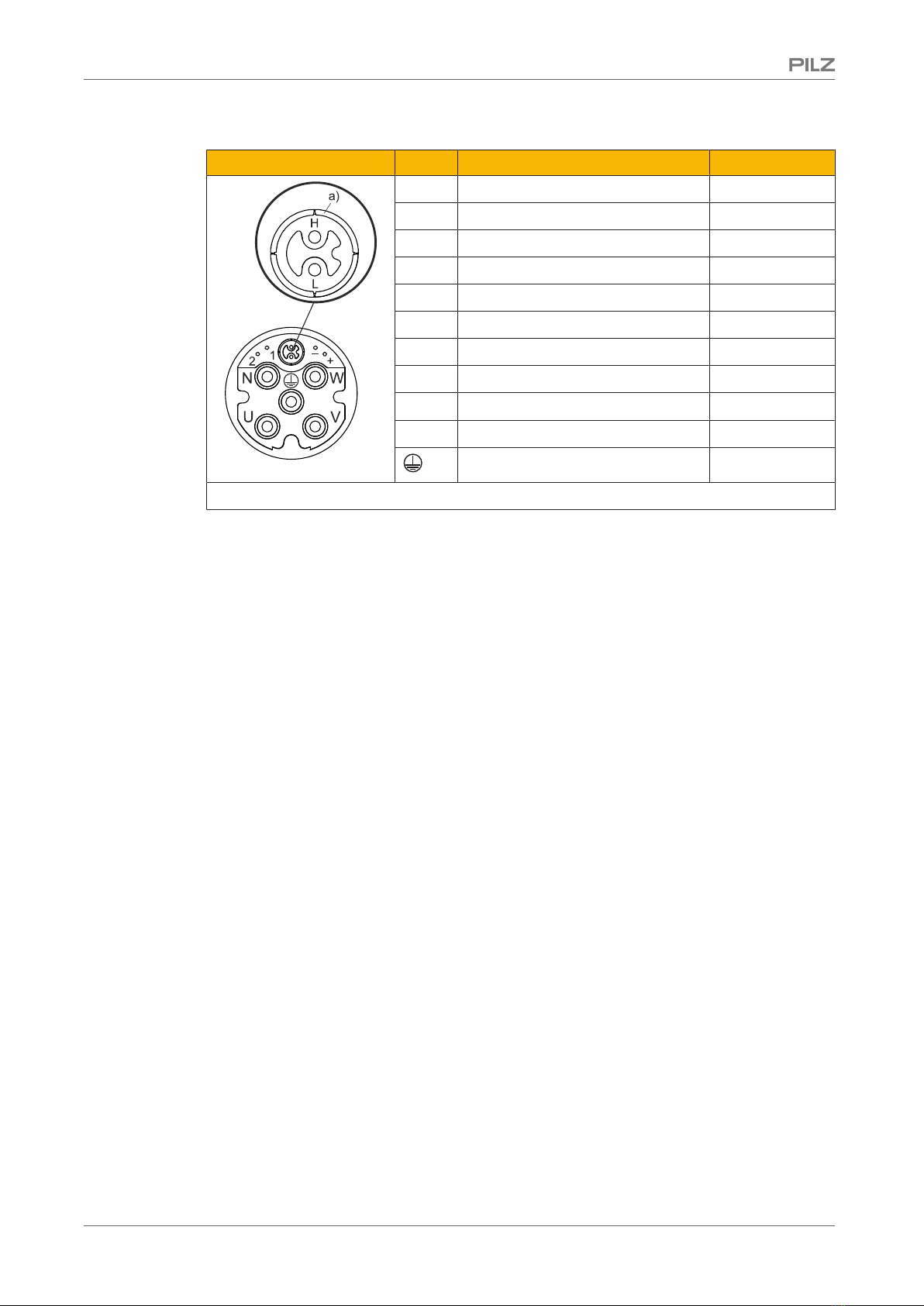

HIPERFACE DSL – con.40 plug connectors
Connection diagram Pin Connection Color
U 1U1 black
V 1V1 blue
W 1W1 red
N
+ 1BR+ (brake + DC 24 V) red
− 1BR− (brake 0 V) black
1
2
H DSL+ (H) grey
L DSL− (L) green
PE green-yellow
a) Coaxial shield to which the DSL shield is connected

Appendix
Connection plan PMCtendo SZ – HIPERFACE DSL
1004737-en-US-03
9
4 Appendix
4.1 Trademarks
The following names used in connection with the device, its optional equipment and its
accessories are trademarks or registered trademarks of other companies:
HIPERFACE®HIPERFACE® and the HIPERFACE DSL® logo are registered
trademarks of SICK STEGMANN GmbH, Donaueschingen,
Germany.
All other trademarks not listed here are the property of their respective owners.
Products that are registered as trademarks are not specially indicated in this
documentation. Existing property rights (patents, trademarks, protection of utility models)
are to be observed.
