Pinetron DVR-SRX-m5016 User manual

DIGITAL VIDEO RECORDER
USER GUIDE
8/16 CHANNELS
VER M5-3.02
•Thank you for purchasing this Digital Video Recorder.
•Before using the Digital Video Recorder, please ensure that you read and
understand the User Guide.
•Please store the User Guide at an easily accessible location.
•Before connecting and installing any third party cameras, monitors, alarms and
computers, please refer to the appropriate instruction manual for proper operation.
1 DIGITAL VIDEO RECORDER
SAFETY PRECAUTIONS
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of un insulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

2 DIGITAL VIDEO RECORDER
Contents
■Safety Precautions ……………………………………………………………………………………… 1
■Contents ………………………………………………………………………………………………… 2
■Disclaimer ……………………………………………………………………………………………… 4
■Warning ………………………………………………………………………………………………… 4
■Caution ………………………………………………………………………………………………… 6
■Preventing Malfunction………………………………………………………………………………… 6
■Package Contents……………………………………………………………………………………… 7
■Controls
Front Panel ……………………………………………………………………………………… 8
Buttons …………………………………………………………………………………………… 8
Rear Panel Connectors ………………………………………………………………………… 10
Remote Controller ……………………………………………………………………………… 11
■Installation & Connections …………………………………………………………………………… 12
Camera, Monitor, Microphone, Alarm sensor and Power cord
Alarm inputs and Alarm outs
Pan/Tilt/Zoom Connections
PC system requirement for NETWORK Connection
■Quick Start ………………………………………………………………………………………………… 17
■Live Viewing
Display Overview ………………………………………………………………………………… 19
Multiscreen Display and Sequencing…………………………………………………………… 20
Zooming ……………………………………………………………………………… 22
■Operation
Main Menu Overview ……………………………………………………………………………… 23
Display Option ………………………………………………………………………………… 24
Camera Setup …………………………………………………………………………………… 26
Motion Recording ………………………………………………………………………………… 28
Normal Recording ………………………………………………………………………………… 30
Alarm Recording ………………………………………………………………………………… 32
Schedule Recording ……………………………………………………………………………… 36
Network Setup ……………………………………………………………………………… 39
System Setup ……………………………………………………………………………… 42
■Pan/Tilt Zoom Control …………………………………………………………………………… 47
3 DIGITAL VIDEO RECORDER
■Search/Playback …………………………………………………………………………… 51
Time Search ………………………………………………………………………………… 51
Log List Search ……………………………………………………………………………… 52
■External Search …………………………………………………………………………… 53
■Back up …………………………………………………………………………… 54
Built-in CD RW ……………………………………………………………………………… 54
External USB HDD …………………………………………………………………………… 57
FTP Server ……… ………………………………………………………………………… 59
USB Flash Memory(Snap shot) ………………………………………………………………… 60
Backup Range Setup … ………………………………………………………………… 61
■Client Program …………………………………………………………………………… 63
Install ………………………………………………………………………………… 64
Features ……………………………………………………………………………… 67
DVR Control ……………………………………………………………………………… 78
Virtual DVR ……………………………………………………………………………… 102
■Appendix
PSTN Modem ……………………………………………………………………………… 106
Web CMS … … … ……………………………………………………………………………… 113
View Only …… ……………………………………………………………………………… 116
AVI Converting …… ……………………………………………………………………………… 117
■Specification ……………………………………………………………………………………… 119

4 DIGITAL VIDEO RECORDER
Disclaimer
zThe information in this manual is believed to be accurate and reliable as of the date of
publication. The information contained herein is subject to change without notice. Revisions
or New editions to this publication may be issued to incorporate such change
zWe makes no warranties for damages resulting from corrupted or lost data due to a mistaken
operation or malfunction of the Digital Video Recorder, the software, the hard drives, personal
computers, peripheral devices, or unapproved/unsupported devices.
Warning
zDo not cover the ventilation opening or slots on the outer casing. To prevent the appliance
from overheating, provide at least two inches of air space around the vent and the slots.
zDo not drop metallic parts through slots. This could permanently damage the Digital Video
Recorder. Immediately turn the DVR’s power off or unplug the power cord from the power
outlet. Contact a qualified service personnel authorized by your equipment distributor
zDo not attempt to disassemble or alter any part of the equipment that is not expressly
described in this guide. Disassembly or alteration may result in high voltage electrical shock.
Qualified service personnel authorized by your equipment distributor should conduct internal
inspections, alterations and repairs.
zStop operating the equipment immediately if it emits smoke or noxious fumes. Failure to do
so may result in fire or electrical shock. Immediately turn the DVR’s power off, remove the
power cable from the power outlet. Confirm that smoke and fume emissions have ceased.
Please consult your DVR distributor.
zStop operating the equipment if a heavy object is dropped or the casing is damaged. Do not
strike or shake. Failure to do so may result in fire or electrical shock. Immediately turn the
DVR’s power off or unplug the power cord from the power outlet. Please consult your DVR
distributor.
zDo not allow the equipment come into contact with, or become immersed in, water or other
liquids. Do not allow liquids to enter the interior. The DVR has not been waterproofed. If
the exterior comes into contact with liquids or salt air, wipe it dry with a soft, absorbent cloth.
In the event that the water or other foreign substances enter the interior, immediately turn the
DVR’s Power off or unplug the power cord from the power outlet. Continued use of the
equipment may result in fire or electrical shock. Please consult your DVR distributor.
5 DIGITAL VIDEO RECORDER
zDo not use substances containing alcohol, benzene, thinners or other flammable substances
to clean or maintain the equipment. The use of these substances may lead to fire. Use a
dry cloth on a regular periodic basis and wipe away the dust and dirt that collects on the
device. In dusty, humid or greasy environments, the dust that collects around the ventilation
or the slots on the outer casing over long periods of time may become saturated with
humidity and short-circuit, leading to fire.
zDo not cut, damage, alter or place heavy items on the power cord. Any of these actions
may cause an electrical short circuit, which may lead to fire or electrical shock.
zDo not handle the device or power cord if your hands are wet. Handling it with wet hands
may lead to electrical shock. When unplugging the cord, ensure that you hold the solid
portion of the plug. Pulling on the flexible portion of the cord may damage or expose the
wire and insulation, creating the potential for fires or electrical shocks.
zUse only the recommended power accessories. Use of power sources not expressly
recommended for this equipment may lead to overheating, distortion of the equipment, fire,
electrical shock or other hazards.
zDo not place the batteries near a heat source or expose them to direct flame or heat.
Neither should you immerse them in water. Such exposure may damage the batteries and
lead to the leakage of corrosive liquids, fire, electrical shock, explosion or serious injury.
zDo not attempt to disassemble, alter or apply heat to the batteries. There is serious risk of
injury due to an explosion. Immediately flush with water any area of the body, including the
eyes and mouth, or clothing that comes into contact with the inner contents of the battery. If
the eyes or mouth contact these substances, immediately flush with water and seek medical
assistance from a medical professional.
zAvoid dropping or subjecting the batteries to severe impacts that could damage the casings.
It could lead to leakage and injury.
zDo not short-circuit the battery terminals with metallic objects, such as key holders. It could
lead to overheating, burns and other injuries.
zThe supplied power supply and power cord are designed for exclusive use with the Digital
Video Recorder. Do not use it with other products or batteries. There is a risk of fire and
other hazards.

6 DIGITAL VIDEO RECORDER
Caution
zDo not operate the appliance beyond its specified temperature, humidity or power source
ratings. Do not use the appliance in an extreme environment where there is high
temperature or high humidity. Use the device at temperatures within +0°C - +40°C (32°F -
104°F) and humidity below 90 %. The normal operating power source for this device is
100V-240V AC 50/60Hz.
Preventing Malfunction
zAvoid Strong Magnetic Fields. Never place the DVR in close Proximity to electric motors or
other equipment generating strong electromagnetic fields. Exposures to strong magnetic
fields may cause malfunctions or corrupt image data.
zAvoid Condensation Related Problems. Moving the equipment rapidly between hot and cold
temperatures may cause condensation (water droplets) to form on its external and internal
surfaces. You can avoid this by placing the equipment in an airtight, resalable plastic bag and
letting it adjust to temperature changes slowly before removing it from the bag.
zIf Condensation forms inside the Digital Video Recorder. Stop using the equipment
immediately if you detect condensation. Continued use may damage the equipment. Remove
the power cord from the power outlet and wait until the moisture evaporates completely
before resuming use.
CAUTION “Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used
Batteries According to the Instructions.
7 DIGITAL VIDEO RECORDER
PACKAGE CONTENTS
Please check the package and contents for visible damage. If any components are damaged or
missing, do not attempt to use the unit, contact the supplier immediately. If the unit must be
returned, it must be shipped in the original packing box.
CONTENTS QUANTITY REMARK
DIGITAL VIDEO RECORDER 1 UNIT
CLIENT SOFTWARE CD 1
REMOTE CONTROLLER 1
Audio In Cable Connector 1 (8ch) or 2(16ch)
RS-422 Connector * 1
BATTERY (AAAsize) 2
POWER CORD 1
USER GUIDE 1
* This RS-422 is not a converter and it can be only used in this DVR.

8 DIGITAL VIDEO RECORDER

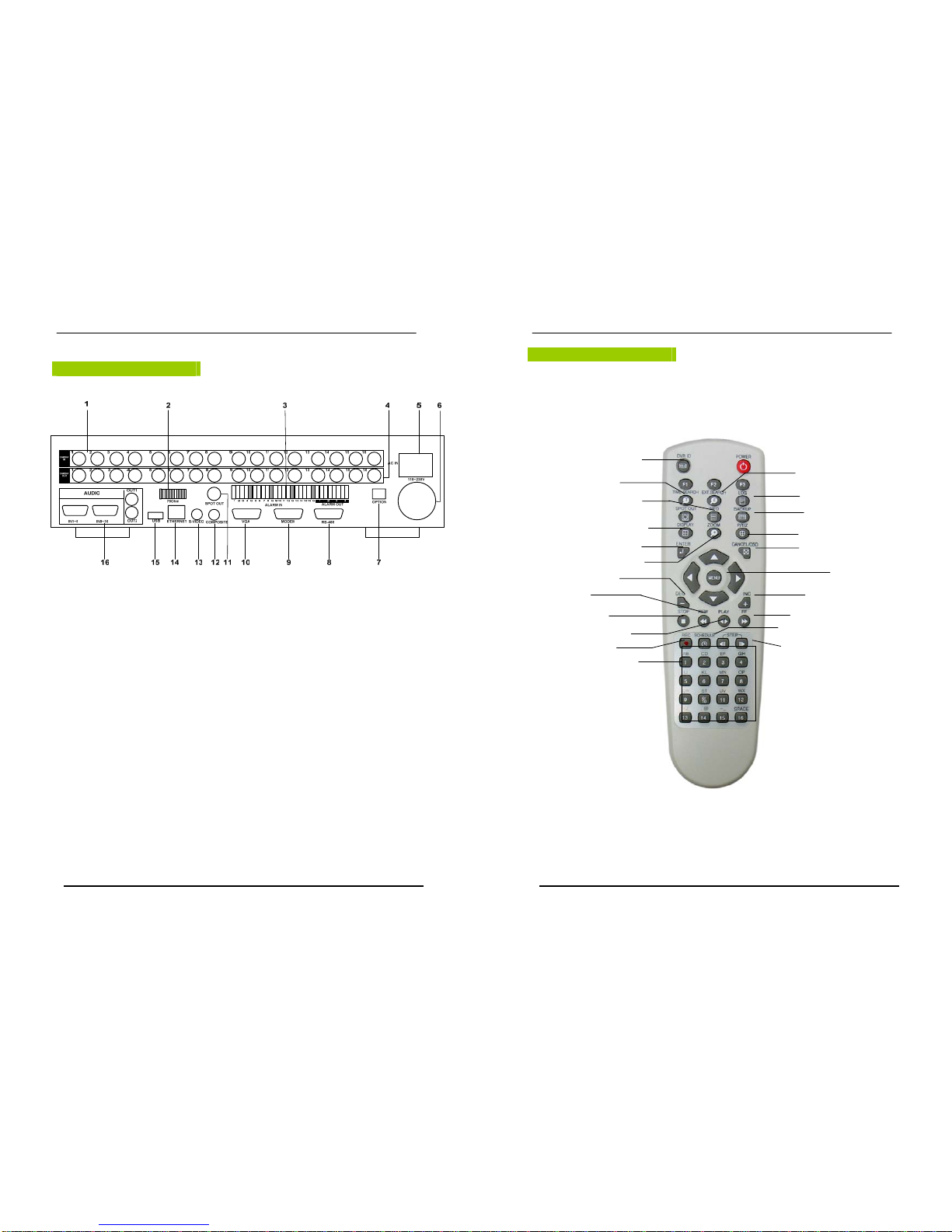

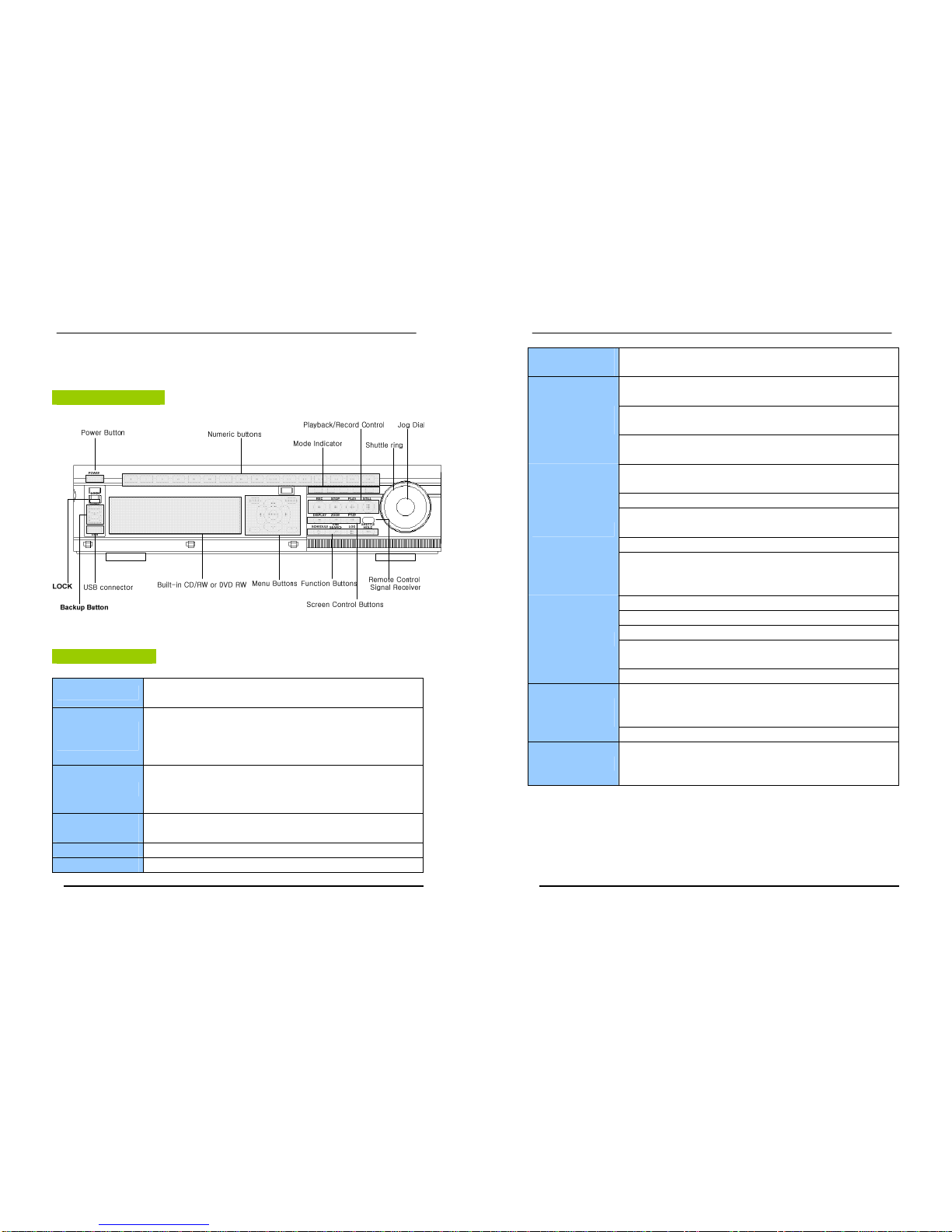

CONTROLS
Front Panel
Buttons
POWER button
yPress this button to turn the power on; press again to turn the power off.
The POWER LED (red) lights/goes off when the power is on/off.
Numeric Buttons
(1~16)
yThese buttons have a number of functions to enter data and to make
selections. They are used to enter numerical data when prompted for the
password, to make channel/camera selection, to choose the day in
schedule option, and to enter alphabets to label each channel.
Mode Indicator
yFive LEDs display the status of the Digital Video Recorder. From the left,
Power (red), Recording (red), Scheduled Recording (green), Lock (green)
and Network (green).
Playback / Record
Control
yUsed to Start and Stop Recording or Playback.
Shuttle Ring yUsed to control the playback speed, and to rewind or forward the image.
JOG Dial yUsed to forward or reverse the image during playback (field-by-field).
9 DIGITAL VIDEO RECORDER
Remote control
signal receiver.
yDo not block the receiver as the remote controller needs the line of sight to
the receiver.
y[DISPLAY] : Press this button to display the cameras in multi-screen mode
or to switch sequence function.
y[ZOOM]: Press this button to display zoom area box; press [ENTER]
to enlarge the image. Pressing cursors can move this zoom area.
Screen Control
Buttons
y[P/T/Z/FOCUS]: Press this button to control a PAN/TILT/ZOOM camera
via RS-485 connection.
y[SCHEDULE]: Press this button to make scheduled recording standby.
The SCHEDULE LED (green) lights/goes off when the schedule is on/off.
y[TIME SEARCH]: Press this button to display the Time Search menu.
y[LOG] : Press this button to display log list.
Press this button to display the Alarm Search menu.
y[REC] : Press this button to start recording.
Function Buttons
y[SHUTTLE HOLD]: This button retains the selected playback or reverse
playback speed.
It is also used for controlling Spot out while it’s Live viewing.
y[ENTER]: Press this button to save menu settings
y[CANCEL]: Press this button to exit menu without saving.
y[-, +] : To Decrease settings , To Increase settings
y[Direction STWX]: In Menu setup mode, used to move the cursor.
In Zoom mode, used to move the zoom area.
MENU Button
y[MENU]: Press this button to display the MAIN MENU screen.
y[BACKUP]: Press this button to begin making a backup copy of the hard
drive. If there is no peripheral recording device connected, this button cannot
be used.
Backup Button
y[EXT. SEARCH]: Press this button to start external HDD search.
LOCK Button
yPress this button to lock all units’ key buttons including the remote
controller. The LOCK LED (green) lights/goes off when the lock is on/off. To
release press it again and enter the administer password.

10 DIGITAL VIDEO RECORDER
Rear Panel Connectors
1) Camera Inputs: BNC input connectors,
2) 75 Ohm Termination
3) ALARM IN/OUT: For connecting alarm inputs (1~16) and alarm out relays (1~4).
4) Camera Outputs: BNC output (looping) connectors.
5) AC power socket
6) Power Fan
7) Option: Not supported
8) RS-485 [D-SUB 9PIN] Connector: For connecting to PTZ camera.
9) RS-232C [D-SUB 9PIN] : For connecting to External Modem.
10) VGA out connector
11)Spot out connector
12) Composite Monitor Output: BNC standard composite video output connector.
13) S-VHS Output: An S-VHS connector for separate luminance and chrominance (Y/C)
signals
14) RJ-45 Ethernet Port: For connecting to remote PC via Ethernet network.
15) USB 2.0 connector: For connecting USB compatible devices.
16) AUDIO Input (1~8, 9~16)/Output (2) connectors: RCA
11 DIGITAL VIDEO RECORDER
Remote Controller
STOP
PLAY
BACK UP
DVR ID
MENU
LOG
FAST FORWARD
DISPLAY MODE
SCHEDULE REC ON/OFF
ENTER
INFORMATION
CANCEL
/OSDOFF
EXT. SEARCH
REWIND
NUMBERS & ALPHABET
TIME SEARCH
ZOOM
STEP
RECORD
- BUTTON
+ BUTTON
PAN
/
TILT/ZOOM

12 DIGITAL VIDEO RECORDER

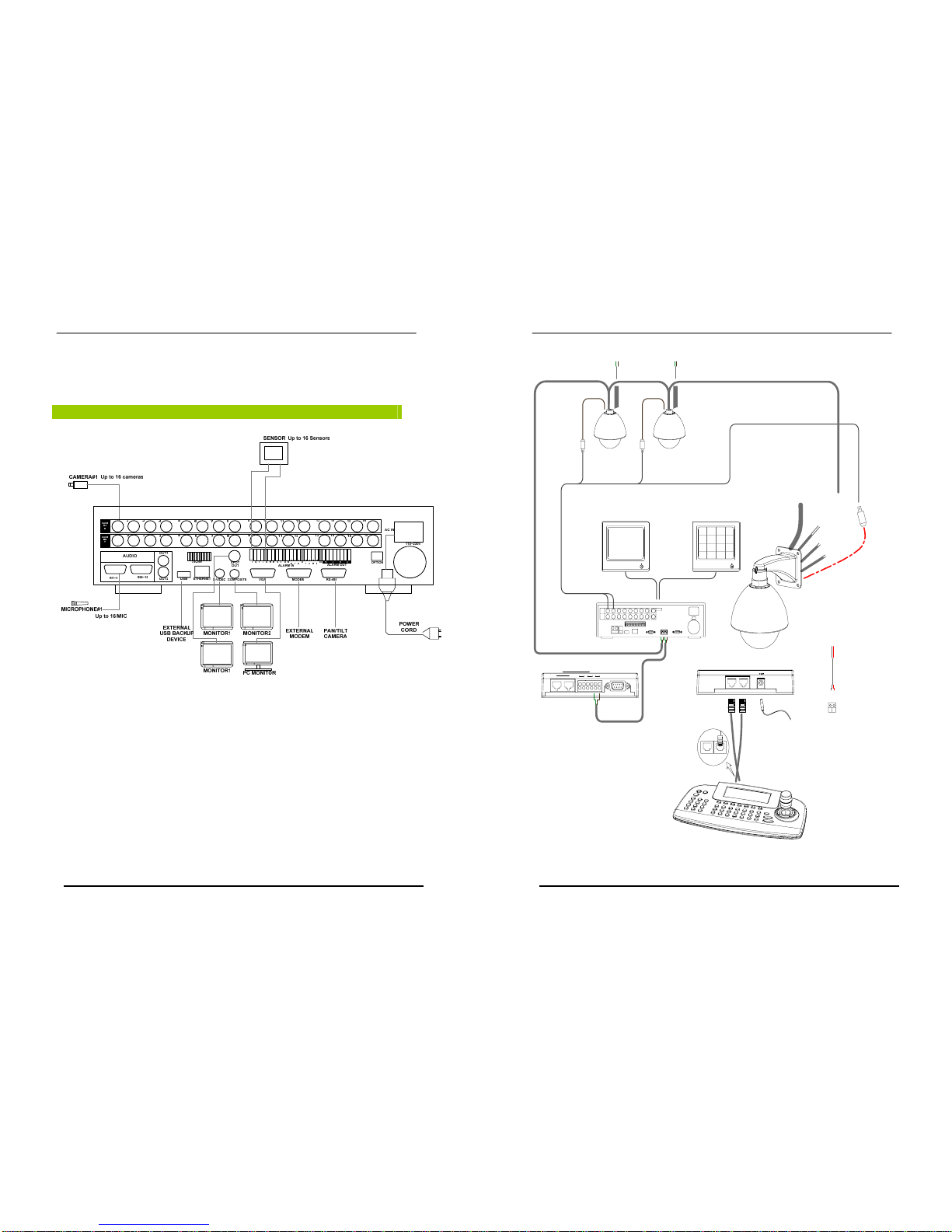

INSTALLATION & CONNECTIONS.
Camera, Monitor, Microphone, Alarm sensor and Power cord.
< Example of 16 ch DVR >
13 DIGITAL VIDEO RECORDER
RXA
RXB
RS-485
SLAVE
IN OUT ALARM / DVR
-
DVR
++-
RS-232C
-
1 DOME 2
+
DATA2DATA1
J-BOX FRONT
DATA1
DATA2 DC 12V
Rx+Rx-Tx+Tx-
4ALARMINPUT
1 AUX OUTPUT
HEATER
AC24V
AC24V
POWER
COMM.(TX+/TX-)
VIDEO
Tx+(DOME1 +)
Tx-(DOME1 -)
DOME
CONTROLLER
TXB(TX-)
TXA(TX+)
RS-485
HALF DUPLEX MODE
J-BOX REAR
REAR
AWG # 24
BNC
BNC
MAIN MONITORSPOT MONITOR
KEYBOARD CONTROLLER
BNC
AC 24V
POWER POWER
AC 24V
<SingleDVRConfiguration>

14 DIGITAL VIDEO RECORDER
+
1 DOME 2
-
RS-232C
-++
DVR
-ALARM / DVR
OUTIN
SLAVE
RS-485
Rx+Rx-Tx+Tx- Tx+Tx- Rx+Rx-
Camera 17~12( 15)
Camera 1~16
J-BOX REAR
<Single User with 2 DVR Configurations>
15 DIGITAL VIDEO RECORDER
RS-485
SLAVE
IN OUT ALARM / DVR
-
DVR
++-
J-BOX FRONT
DATA1
RS-232C DATA2
-
1 DOME 2
+
DC 12V
DATA2DATA1
SW1
FGND AC- AC+
TXB TXA RXB RX A
RXA
RXB
TXA
AC+
AC-
TXB
DATA1 DATA2
DC 12V
+
1 DOME 2
-DATA2
RS-232C DATA1
J-BOX FRONT
-++
DVR
- ALARM/ DVR
OUTIN
SLAVE
RS-485
Tx+Tx- R x+Rx-Rx+Rx-Tx+Tx-
TO THE SLAVE CONTROLLER TO THE NEXT SLAVE CONTROLLER
J-BOX REAR
REAR
SLAVE KEYBOARD CONTROLLER
SPOT MONITOR 2ND MAIN MONITOR
1ST MAIN MONITOR
POWER
AC 24VAC 24V
POWERPOWER
AC 24V
MASTER KEYBOARD CONTROLLER
BNC
AWG # 24
1 AUX OUTPUT
4ALARMINPUT
VIDEO
Tx+(DOME1+)
Tx-(DOME1 -)
4ALARMINPUT
1 AUX OUTPUT
REAR
Camera 1~16 Camera 17~12( 15)
J-BOX REAR
<Multiple Controller Keyboard Configuration>

16 DIGITAL VIDEO RECORDER
PTZ connections.
PC system requirement for Network connection.
(a) 500MHz CPU
(b) 128MB RAM
(c) 4MB Video Card
(d) Windows 98SE, 2000, ME
(e) Spare 10/100-BaseT Ethernet Port
(f) RJ-45 Network Cable
(g) CAT-5 UTP Cable for LAN (Crossover cable for direct connect to PC)
<Disclaimer>
The connection and remote viewing of the DVR may not be successful
on all PC’s due to the variety of PC’s internet connection settings.
Please contact the technical support for further assistance.
17 DIGITAL VIDEO RECORDER
QUICK START PAGE

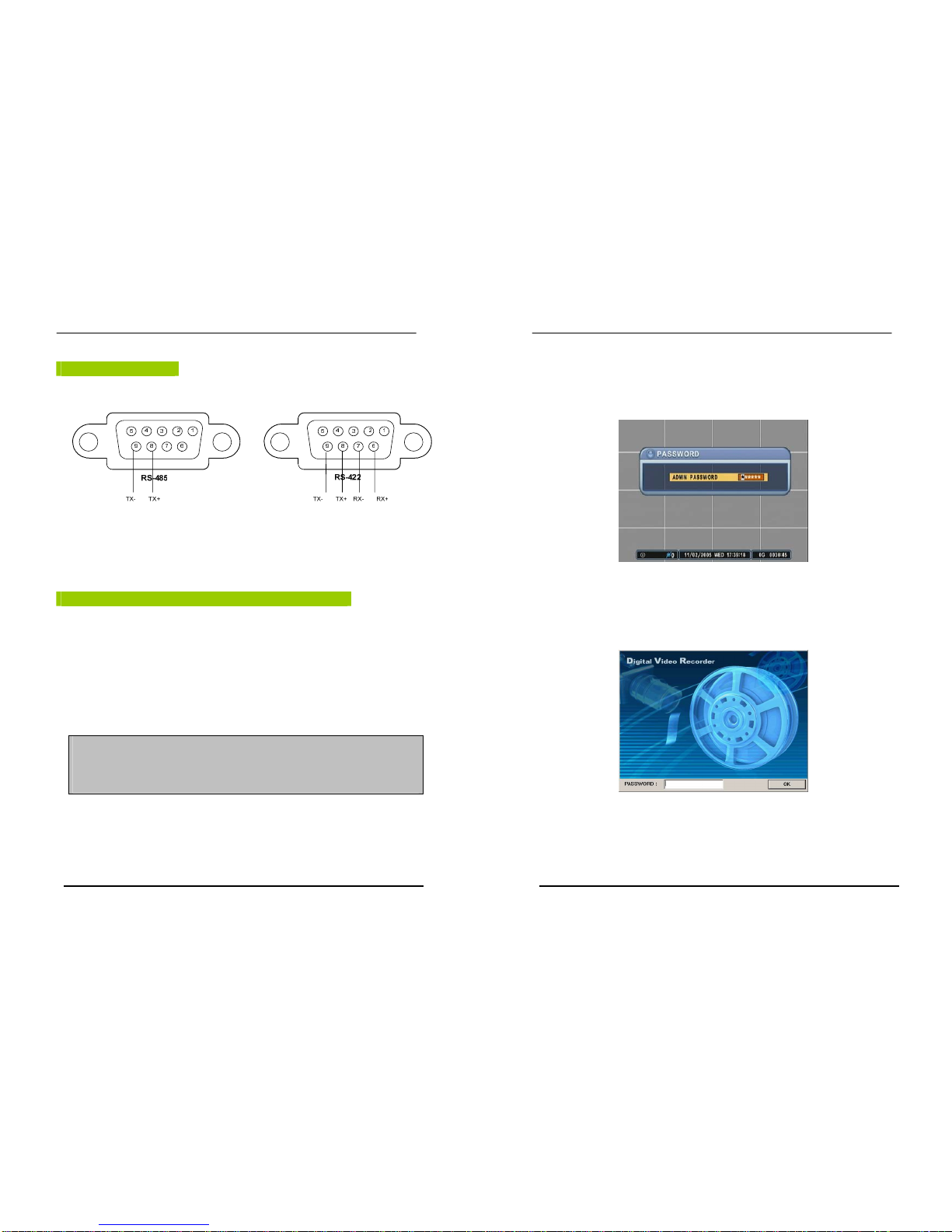

The Factory Default password for the unit is “000000”
The Default password to run the CMS software is “0”

18 DIGITAL VIDEO RECORDER
Time & Date Setting
When the DVR is powered on for the very first time, the time and date are set as default to January 1,
2006 Sunday 01:00:00. Before any other operation of the Digital Video Recorder, it is important to
setup the time and the date. Please refer to page 37 for setting the time and the date on the DVR.
Screen Position Adjustment
The screen position is adjustable during live view or playback. Use the directional buttons
to adjust the screen position to best fit the monitor.
19 DIGITAL VIDEO RECORDER

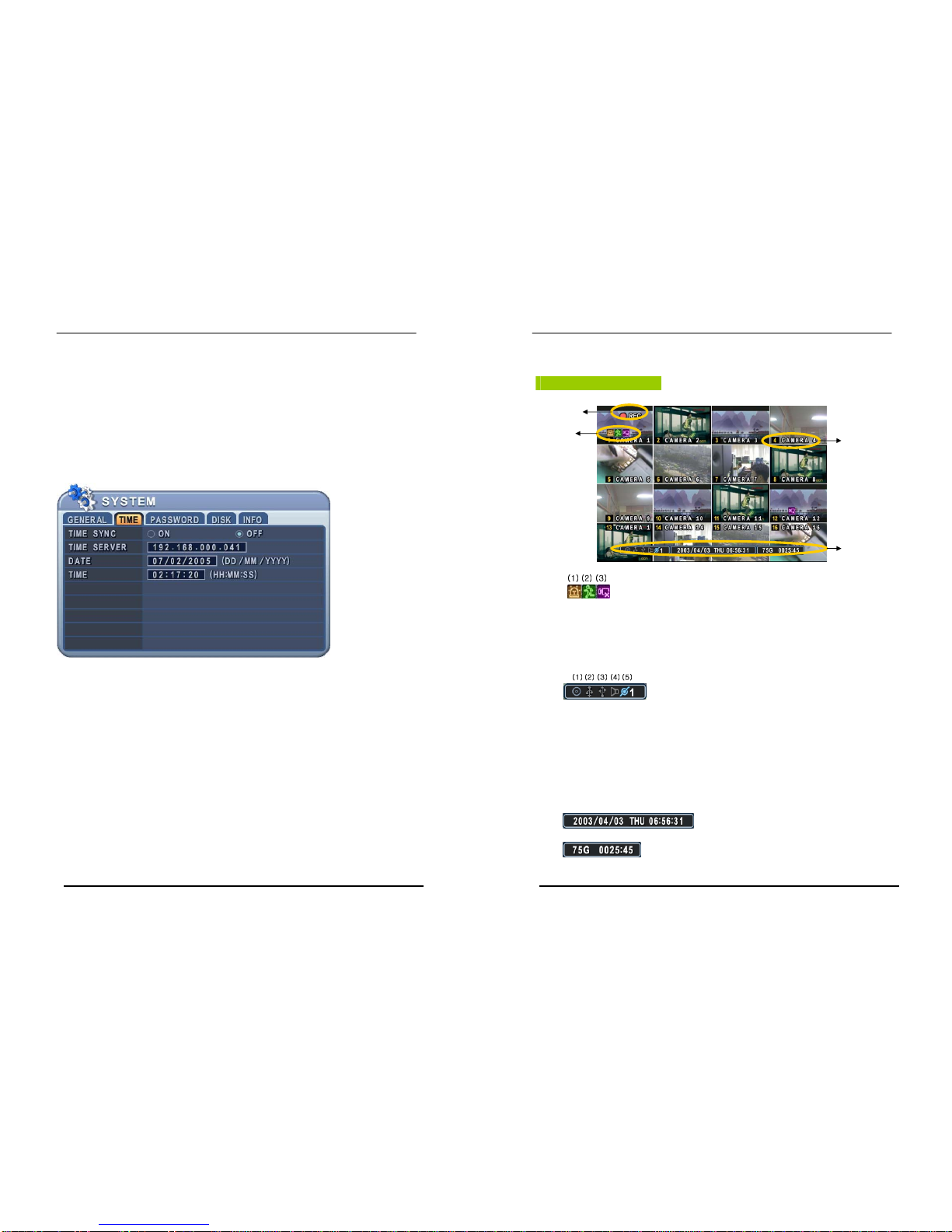

LIVE VIEWING
Display Overview
1.
(1) Indicate Alarm In terminal is triggered by an alarm sensor. To disappear, press
[CANCEL] button.
(2) Indicate Motion detected. To disappear, press [CANCEL] button.
(3) Indicate Video Loss during Recording. To disappear, press [CANCEL] button.
2.
(1) Indicate Built-in CD R/W is connected. It’s changed to blue color while it’s doing backup.
(2) Indicate an USB Device is connected on Front panel. It’s changed to blue color while
it’s doing backup.
(3) Indicate an USB Device is connected on Rear panel. It’s changed to blue color while
it’s doing backup.
(4) Indicate Audio Data is stored the selected time during playback and turn to blue color.
(5) It shows Number of Client, which is connected to Network.(MAX:10)
3. : Displays Month, Year, Time and Date.
4. : Displays available HDD space and estimated remaining recording
time.
Recording Mode
Event Indicator
Status
Camera No and Title

20 DIGITAL VIDEO RECORDER
Multiscreen Display and Sequencing
1. Full Screen Display.
Select any camera for Full screen display by pressing the Number button of the
desired camera.
2. Multiscreen Display and Sequencing Display.
Press [DISPLAY] buttons to activate the multiscreen display. It is changed the order
as shown below among your choice of SPLIT MODE. While in 16-way screen display,
press [DISPLAY] buttons for 1second to begin full screen sequencing. The sequence
mode and dwell times are programmable. For detailed information about configuring
those, see “Sequence Setup”. If the sequence mode is not activated, it moves to
Quad mode instead of Sequencing.
21 DIGITAL VIDEO RECORDER
3. Quick button for multi screen Display.
1) Press F1 button on the remote controller + <Number>
For example, press F1 button then number 8.
The eight channel view mode will be displayed.
<Note> 6,4,8,10,13 split mode must be checked on <Spit mode> to use this
function.
2) Repositioning
It is possible to reposition the camera from the bigger window with the one from a
smaller one. It is used on 6,7,8,9,10, 13,16 split mode
① Press F2 button on the remote controller. Mark will be displayed.
② Press Numeric button you wish to switching display.
③Press [Enter] button to exit here with saving changes.
Press[Cancel] to exit without change.
Press [Menu] button to rearrange.
<Note> How to control on KEYPAD
1. Muliti Screen (F1 function) = 16+ Display , 4+ Display button, and so on..
2. Repositioning (F2 function) = 99+ Display button
3. Auto Sequence Start = Shift & Display(at the same time)

22 DIGITAL VIDEO RECORDER
Zooming
During live view mode or playback, it is possible to zoom into a section of the screen to get a
close-up view of the screen.
1. To activate the digital zoom, select the full screen display of the camera you wish to
zoom.
2. Then press the [ZOOM] button. Zoom area box pops up, as shown below.
3. Move the box to the desired position using Direction [ ] buttons.
4. Press [+] button to enlarge the image. Press [ - ] button to zoom out the image.
5. Press [CANCEL] button to return normal mode.
<Note>
If the Zoom button is pressed while in a multiscreen display, zoom operation is not
activated.
Spot Monitor
In addition to the Main Monitor, attaching a Spot Monitor enables user to monitor specific
channels independently form the main monitor
yPress [Spot] button on the remote controller or Shuttle hold button on front, then press
number button you wish watch as full screen.
yPress [Spot] button twice to auto switch cameras. Sequence interval can be set from the
Sequential Setup.
yWhen an alarm has been triggered, that specific channel will go into Full Screen.
x 2 x 8
23 DIGITAL VIDEO RECORDER
OPERATION
Main Menu Overview
When the DVR is powered on, Live Viewing screen will appear after initialization about 30sec.
Press [MENU] button to access the main menu. An Admin Password Box will appear. Enter
the password using Numeric buttons. Default password is ‘000000’. Main Menu appears after
proper password entered, shown as below.
<Note> Factory default Admin/user password is [000000]. It is recommended to change the
“PASSWORD” when you install the DVR. Refer to [System Setup].
１. Use Direction buttons [ ] to select the desired menu. Items selected in the menu are
represented in color.
２. Press [ENTER] button to select the menu and display Sub-Menu. Use Left/ Right buttons [ ] to
select on TAP menu. Selected items changed into [ORANGE] color.
* It is automatically saved changes when you move between TAP menus.
3. Press [CANCEL] to exit a menu without changes.
Press [ENTER] button to exit a menu with saving changes.
Selected Not selected

24 DIGITAL VIDEO RECORDER
Display Option

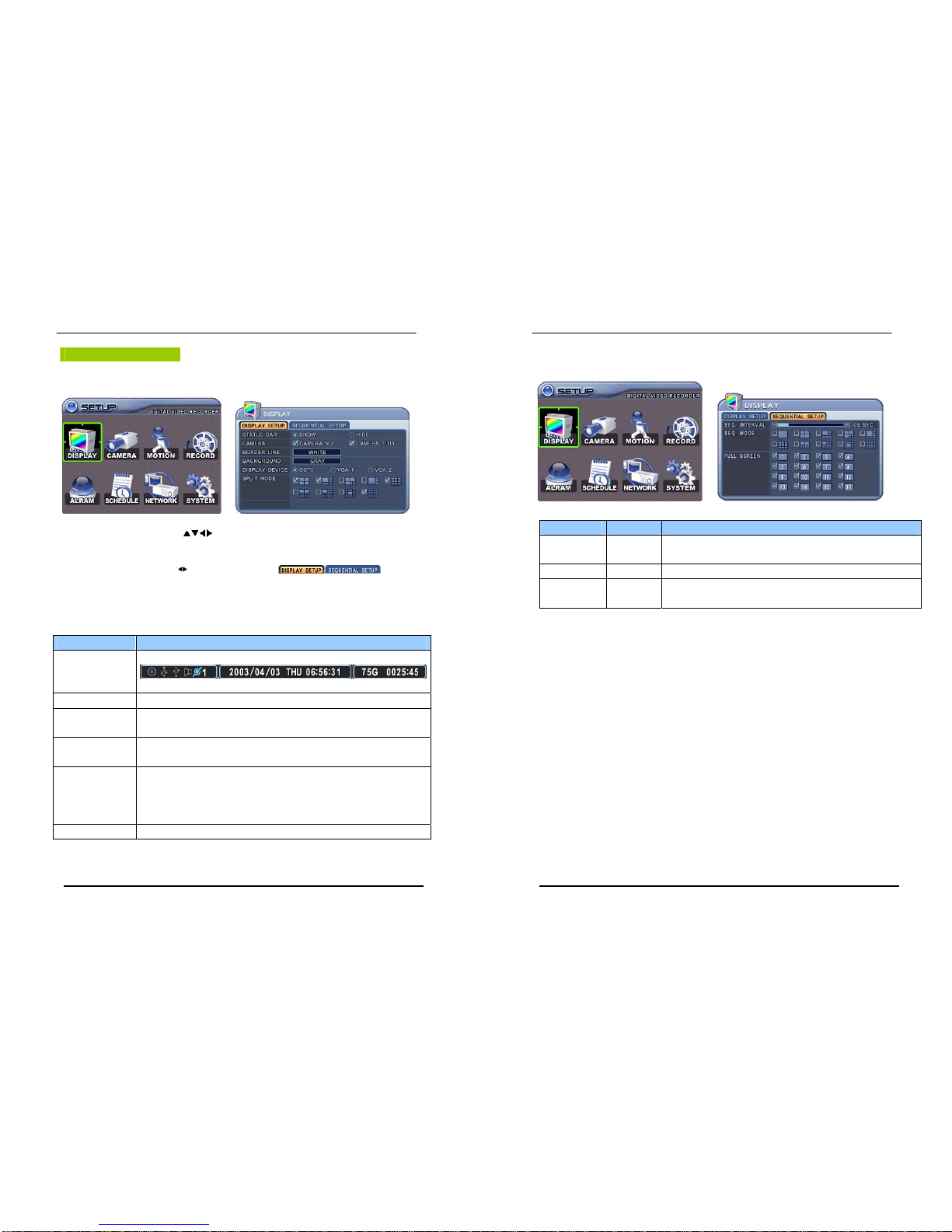

1. DISPLAY SETUP
1. Use Direction buttons [ ] to select “DISPLAY” menu. Then, press [ENTER] button
to display “DISPLAY SETUP”.
2. Use Left/Right buttons [ ] to select on TAP menu ( ). Selected
items changed [ORANGE] color..
3. Use Down [T] button to specify.
4. Use [-, +] button to change the values
ITEM ADJUSTMENT
STATUS BAR
ySelect “Show” or “Hide” below status bar on Main Monitor.
CAMERA ySelect On-Screen-Display information for Camera Number and Title.
BORDER LINE
ySelect Board Line between cameras.
[WHITE ÆGRAY ÆDARK GRAY ÆBLACK]
BACKGROUND
ySelect Background color on NO VIDEO status.
[GRAY ÆDARK GRAY ÆBLACK ÆBLUE ÆWHITE]
DISPLAY DEVICE
ySelect On-Screen-Display coordinates on Monitor.
- CCTV Monitor: Video out through Composite and VGA
- VGA 1 Monitor: Video out through VGA only. Specific resolution for this DVR.
- VGA 2 Monitor: Video out through VGA only. 800*600 resolutions.
SPLIT MODE ySelect Split mode while for manual switching
5. Save changes and exit the menu, press [ENTER] button.
Exit the menu without making changes, press [CANCEL] button.
25 DIGITAL VIDEO RECORDER
2. SEQUENTIAL SETUP (Auto Sequence)
ITEM DEFAULT ADJUSTMENT
SEQ.
INTERVAL
5 Sec ySpecify the dwell time of each camera or Muliscreen mode is
displayed. Use [-, +] button : [1 second ~ 30 second]
SEQ. MODE None ySelect desired sequence mode to switching.
FULL SCREEN ALL ySelect the cameras to be included or excluded from the automatic
sequencing.

26 DIGITAL VIDEO RECORDER
Camera Setup
1.Use Direction buttons [ ] to select “CAMERA” menu. Then, press [ENTER] button to
display “CAMERA”.
2.Use Left/Right buttons [ ] or Number button to select the Camera you wish to configure.
3. Use Down [T] button to move specified menu and use Left/Right buttons [WX] to
select other item.
4.Use [-, +] button to change the value.
ITEM DEFAULT ADJUSTMENT
COVERT
No yIf the Covert Mode is “YES”. Selected camera is invisible from
all live displays, playback and Network while continuing to record.
Covert cameras are viewable after change into “NO” .
BRIGHTNESS 50% yThe brightness of each camera can be adjusted by pressing [-,+]
buttons.
CONTRAST 50% yThe contrast of each camera can be adjusted by pressing [-,+]
buttons.
COLOR 50% yThe color of each camera can be adjusted by pressing [-,+]
buttons.
CAMERA TITLE
Camera # yA combination of 12 digits and alphabets can be entered to label
each camera. Press appropriate Numeric button to type camera
title. It’s up to 12 characters. See Next chart.
P/T/Z MODEL None ySelect P/TZ camera model to control.
P/T/Z ID Camera No ySelect appropriated channel for the PTZ camera. Camera ID
means Camera address.
5. Save changes and exit the menu, press [ENTER] button.
Exit the menu without making changes, press [CANCEL] button.
27 DIGITAL VIDEO RECORDER
No 1st Press 2nd Press 3rd Press No 1st 2nd 3rd
1 A B 1 9 Q R 9
2 C D 2 10/0 S T 10
3 E F 3 11 U V 11
4 G H 4 12 W X
5 I J 5 13 Y Z
6 K L 6 14 . @
7 M N 7 15 - _
8 O P 8 16 SPACE
<Number button to insert characters >

28 DIGITAL VIDEO RECORDER

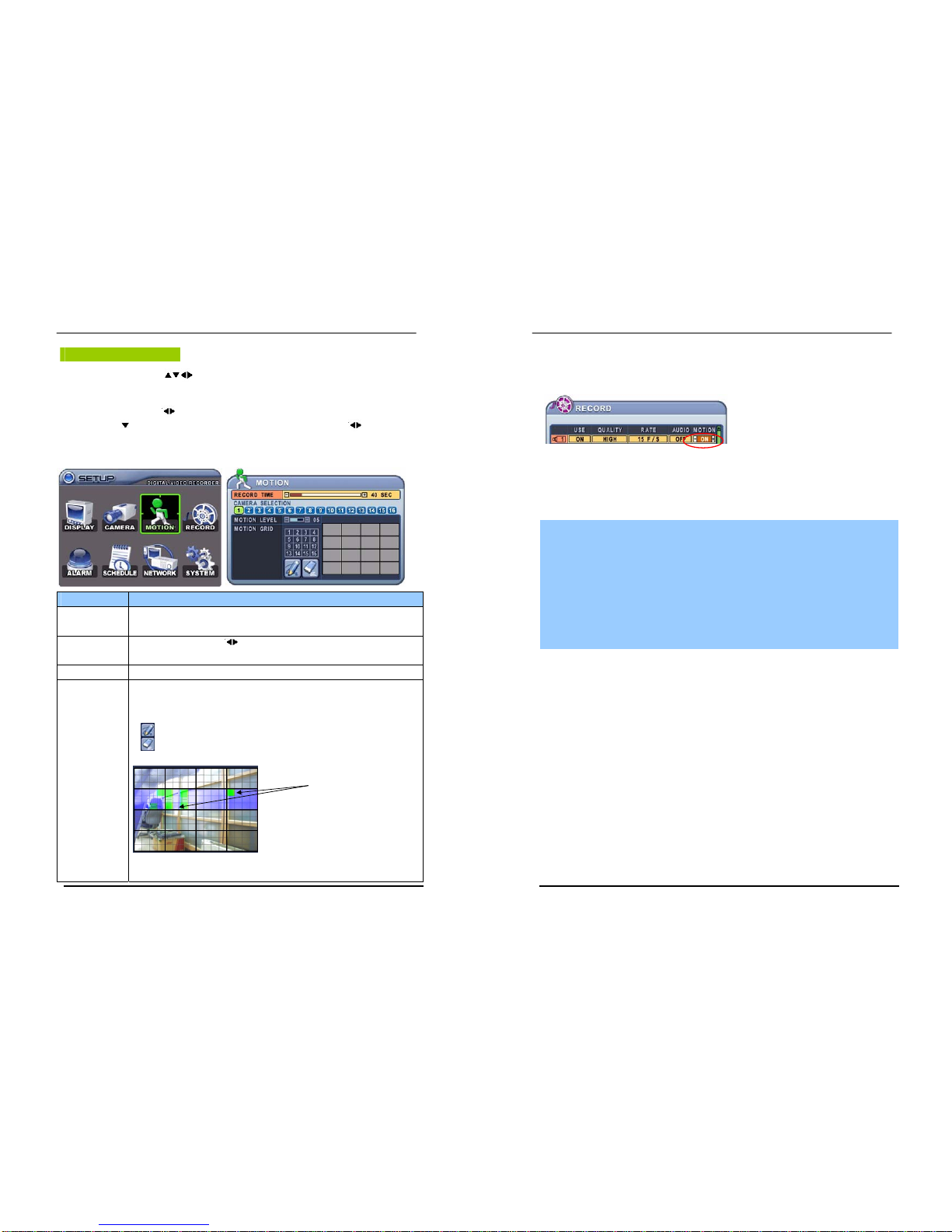

Motion Recording
1. Use Direction buttons [ ] to select “MOTION” menu. Then, press [ENTER] button to
display “MOTION”.
2. Use Left/Right buttons [ ] or Number button to select the Camera you wish to configure.
3. Use Down [ ] button to move specified menu and use Left/Right buttons [ ] to select other
item.
4. Use [-, +] button to change the value.
ITEM ADJUSTMENT
RECORD TIME
yDetermines the duration of recording when motion is detected.
[20SEC ~ 240SEC]
CAMERA
SECTION
yUse Left/Right buttons [ ] or Number button to select the Camera you wish
to configure.
MOTION LEVEL yLevel 1: Low sensitivity~ Level 20: High sensitivity.
MOTION GRID
yUse this menu to setup Zones for the motion detection The screen shown
below will overlay the current video image.
yIt is divided into 16 Grid and selected by Number button.
y:SelectAll.
y: :ClearAll.
yMotion detected zones will be changed to GREEN Color.
yIt is also possible to select smaller motion grids for more precise motion
detection by using CMS.
Motion Detected zones
29 DIGITAL VIDEO RECORDER
5. Save changes and exit the menu, press [ENTER] button. Then go “RECORD” Menu.
6. Select “ON” or “OFF” to Enable or Disable motion detection on a per camera, as
shown below.
7. Press the REC button, then Motion recording starts according to configured Recording
Quality, Frame Rate when Motion detected. It will be back to stand-by mode after
motion recording time is end. Camera does not record under normal conditions.
<Note> Motion Duration will be extended if there is another motion detection while
motion recording.
<Note> There may be cases when the recorder’s built-in motion detection function
does not operate properly due to the condition of the input video signal or
other factors.
<Note>It is recommended selection of at least 3 motion blocks to get more accurate
motion recording.

30 DIGITAL VIDEO RECORDER

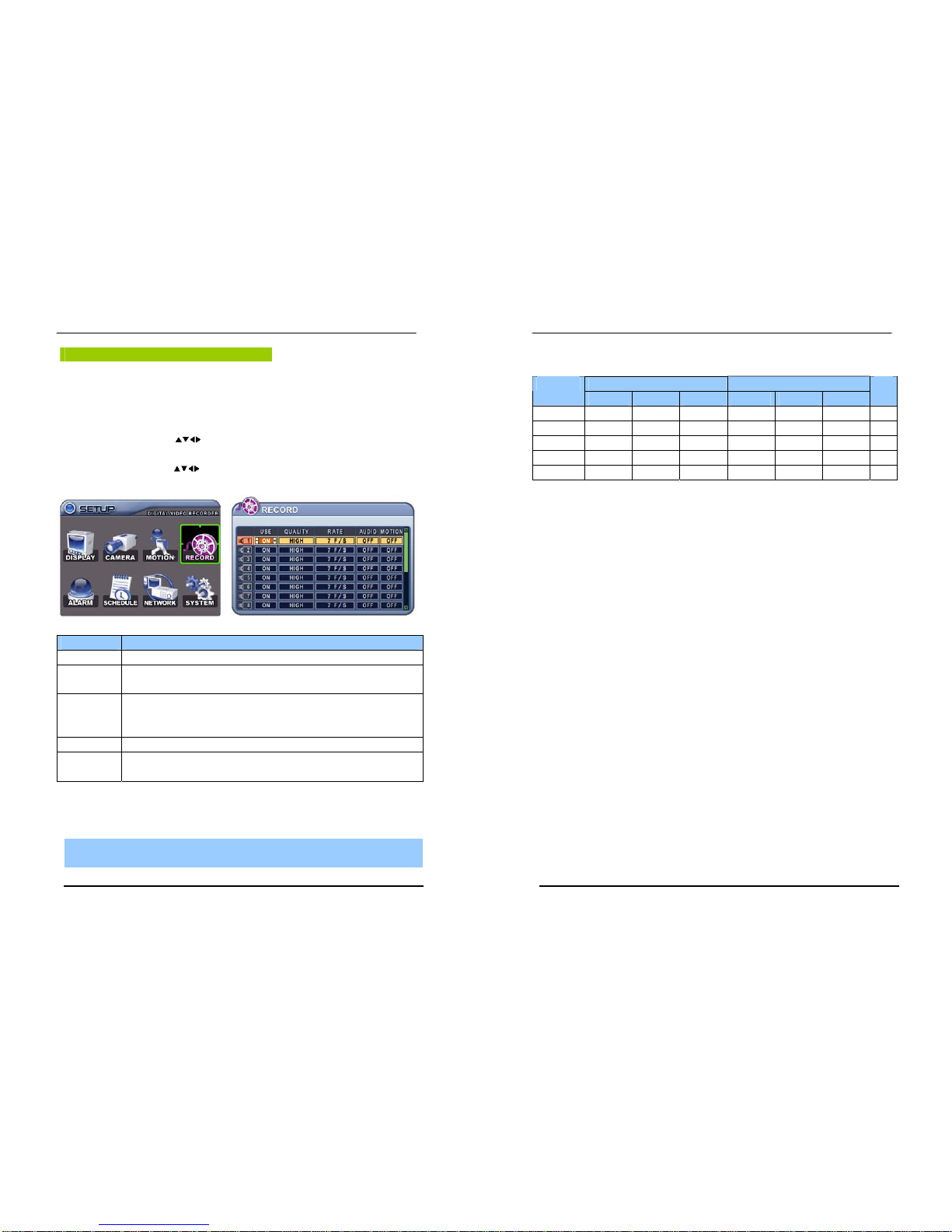

Basic Recording ( Normal Recording)
The DVR comes with a certain preset settings from the factory. Therefore once the
DVR is installed, immediate recording is possible after pressing the record buttons. By
default , audio alarm, motion recording are off.
１. Use Direction buttons [ ] to select “RECORD” menu. Then, press [ENTER] button to
display “RECORD”.
２. Use Direction buttons [ ] to select the Camera you wish to configure.
３. Use [-, +] button to change the value.
ITEM ADJUSTMENT
USE yEnable or Disable Recording on a per camera.
QUALITY
ySpecify the record picture quality for each camera.
ULTRA ÆSUPER ÆHIGH ÆMIDDLE ÆLOW
RATE
ySelect recording speed for each camera.
:Recording resolutions is changed to Frame, Field and CIF mode.
<Refer to System >
AUDIO ySelect audio recording: ON or OFF.
MOTION
ySelect Motion Recording ON or OFF. Camera does not record under normal
conditions. It is discussed on Motion Recording Section.
<Note> Press [MENU] button on each Item at first line to apply all setting for the rest channel.
5. Save changes and exit the menu, press [ENTER] button.
6. Press [REC] button. Then, the red REC LED lights on the front panel and recording starts.
7. To Record stop, press the “ STOP” button.
<Note> Estimated Recording Time varies due to picture quality and capture rate and is updated
every 10 seconds due to variation of picture size.
31 DIGITAL VIDEO RECORDER
< Approximate File Size>
NTSC PALQuality
720*480 720*240 360*240 720*576 720*288 360*288
UNIT
LOW 6.5 4 2.5 8 4.8 3 KB
MIDDLE 9 5.5 3.5 10.8 6.6 4.2 KB
HIGH 13 8 5 15.6 9.6 6 KB
SUPER 19 12 7.5 22.8 14.4 9 KB
ULTRA 30 19 12 37 22.8 14.4 KB
* It is calculated by theoretical, therefore it may be different depends on Video Signals or other
conditions in actual.

32 DIGITAL VIDEO RECORDER

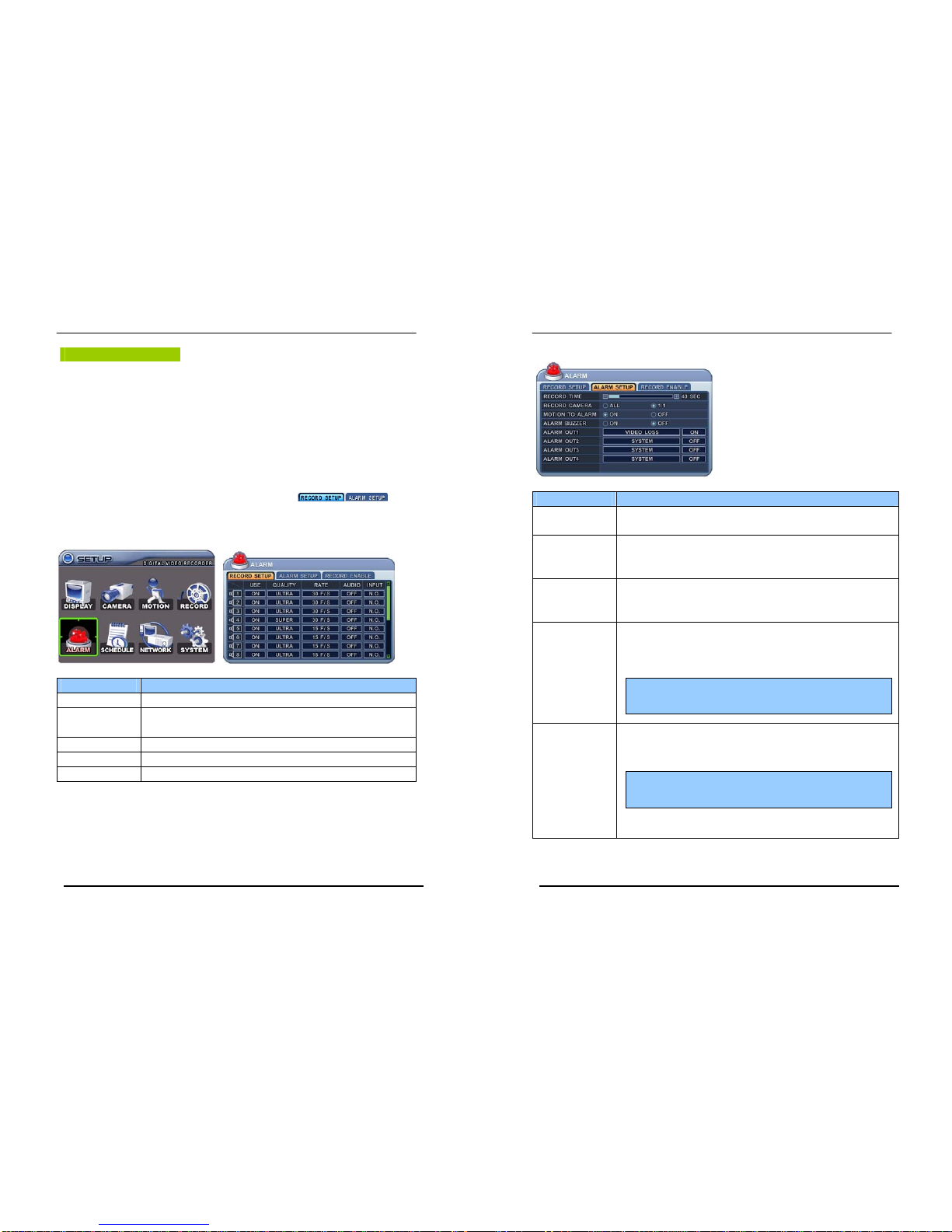

Alarm Recording
Please verify the alarm record settings prior to starting alarm recording. Please note that
alarm recording is independent of any recording modes. Alarm record starts after Alarm
Record Enable.
1. RECORD SETUP
1. Use Direction buttons [STWX] to select “ALARM” menu. Then, press [ENTER]
button to display “Alarm Record Setup”.
2. Use Left/Right buttons [WX] to select on TAP menu ( ).
3. Use Direction buttons [STWX] to select the Camera you wish to configure.
4. Use [-, +] button to change the value.
ITEM ADJUSTMENT
USE yEnable or Disable Alarm Recording on a per camera.
QUALITY
ySpecify the record picture quality for each camera on Alarm Recording.
ULTRA ÆSUPER ÆHIGH ÆMIDDLE ÆLOW
RATE ySelect recording rate of each camera when Alarm is triggered
AUDIO ySelect audio recording: ON or OFF.
INPUT ySpecify the type of Alarm input Device.
<Note> Press [MENU] button on each Item at first line to apply all setting for the rest channel.
5. Save changes and exit the menu, press [ENTER] button.
Exit the menu without making changes, press [CANCEL] button.
33 DIGITAL VIDEO RECORDER
2. ALARM SETUP
ITEM ADJUSTMENT
RECORD TIME
yDetermines the duration of recording after the alarm signal has been
activated. [10SEC ~ 240SEC]
RECORD CAMERA
yALL: Start to record All Alarm “ON” channel if there is any Alarm signal is
triggered.
y1:1: Start to record the channel, which Alarm is triggered.
MOTION TO ALARM
ySelect “ON” to use Motion detection like Alarm triggered
- From the LOG, it will be listed as Motion.
- The unit will not send E-mail
ALARM BUZZER
yON: The buzzer Sounds if an alarm is triggered. The buzzer will sound for
the duration of the RECORD TIME. This buzzer related with Alarm
Out. Please configure Alarm Out “ON” for Alarm buzzer.
yOFF: Disables the ALARM BUZZER function.
ALARM OUT1~4
yConfigure which relay will be triggered when an alarm is activated per
camera. Select from four available options:
Video Loss, Motion, Alarm ALL, Each Alarm, System.
yPress [Cancel] button to stop Alarm Out.
It will be cleared by an order: Alarm>Motion> Video Loss
6. Save changes and exit the menu, press [ENTER] button.
7. Press [REC] button after setting RECORD ENABLE. Then, the red REC LED lights on
the front panel and recording starts.
<Note> If “System” is selected, the relay will be triggered when System
has problems such as HDD FAIL,FAN LOCK etc.
<Note> Press [-] button to stop the buzzer immediately. Stopping the
buzzer does not stop the alarm recording.

34 DIGITAL VIDEO RECORDER
3. ALARM REORD ENABLE
Select the usage of the Alarm Record. Mode 1~4 means for Schedule recording Mode 1~4
<Example 1>
RECORD Alarm
Normal Motion USE Normal Resulting Actions
OFF OFF ON ON Press the REC button, then Alarm recording starts according to
configured Recording Quality (Super), Frame Rate (15F/S) and
Audio when Alarm is triggered. It will be back to stand-by mode
after Alarm recording duration time is end. Camera does not
record under normal conditions.
Schedule
35 DIGITAL VIDEO RECORDER
<Example 2>
RECORD Alarm
Normal Motion USE Normal Resulting Actions
ON OFF ON ON Press the REC button, then Normal recording starts with
High picture quality at 3F/S without Audio. When Alarm is
triggered on this channel, it changed to record with Super
picture quality at 15F/S with Audio. It will be back to Normal
Recording after Alarm recording duration time is end.
<Example 3>
RECORD Alarm
Normal Motion USE Normal Resulting Actions
ON ON ON ON Press the REC button, then Motion recording starts with
High picture quality at 3F/S without Audio when Motion
detected. When Alarm is triggered on this channel, it
changed to record with Super picture quality at 15F/S with
Audio. It will be back to stand-by for Alarm or Motion after
Alarm recording duration time is end. Camera does not
record under normal conditions.

36 DIGITAL VIDEO RECORDER
Schedule Recording
The schedule chart shows a graphical representation of the defined record mode: Mode1~4.
However, the schedules are only displayed if a corresponding schedule has been
configured in the schedule menu.
１. Use Direction buttons [STWX] to select “SCHEDULE” menu. Then, press
[ENTER] button to display “Schedule Chart”.
２. Use Left/Right buttons [WX] to select on TAP menu
().
３. Use Down button [T] to select any Day you wish to configure.
It breaks down the days of the week in eight different categories: ALL, SUN, MON,
TUE, WED, THU, FRI and SAT. ALL is for everyday of the week. Daily schedule has
priority to ALL.
４. Press [Enter] button you wish to configure. The detailed menu pops up for selected
Day, as shown below.
37 DIGITAL VIDEO RECORDER
５. Enter the beginning and end time, then select Record mode to record.
(1) BEGIN: The time of recording start.
(2) END: The time of recording end. The ending time must not be before the starting
time or the same as the starting time. It must be any time over the starting time.
(3) MODE: Up to 4 different recording modes can be pre-determined for schedule
recording. (MODE1 ~ MODE4)
６. Define modes below.
* Refer to Basic Recording for set up
<Note>
yThe recording time is set by 24H(00:00 - 23:59). You need to set 2 days if the setting is over
one day.
D/W BEGIN END MODE
Monday 18:00 23:59 MODE 1
Tuesday 00:00 08:59 MODE 1
yThe recording would not start when Ending time is ahead of Start time.
EX)
D/W BEGIN END MODE
Monday 18:00 08:59 MODE 1
７. To activate the schedule recording after setting, press the SCHEDULE button. The
SCHEDULE indicator illuminates. When a program covers the current time, the
REC indicator illuminates and the unit begins recording. Please note that if there
are no schedules configured, then the DVR will not record.
８. When the scheduled recording time is over, the REC indicator goes off and
recording stops.
９. If you wish to stop recording while scheduled recording, press the SCHDULE
button, then the SCHEDULE indicator goes off and the Schedule Recording Mode
is released.

38 DIGITAL VIDEO RECORDER
Summary of combination
SCHEDULE
CAMERA USE MOTION USE Normal Mode1~4 MODE 1~4 CAMERA USE
Normal RECORD ON OFF OFF OFF OFF OFF
Motion RECORD ON ON OFF OFF OFF OFF
Alarm ALARM OFF OFF ON ON OFF OFF
Schedule SCHEDULE OFF OFF OFF OFF OFF ON
Schedule Motion SCHEDULE OFF ON OFF OFF OFF ON
Normal and Alarm RECORD & ALARM ON OFF ON ON OFF OFF
Motion and Alarm RECORD & ALARM ON ON ON ON OFF OFF
Schedule and Alarm
ALARM & SCHEDULE
OFF OFF ON OFF ON ON
RECORD ALARM
RECORD MODE MENU
39 DIGITAL VIDEO RECORDER
Network Setup
The static service consists of an IP address that remains constant for the duration of the
contract of the internet service, whereas the dynamic service consists of an IP address that
frequently changes every time a new connection is made through the provided modem, or
recurrently in a given period of time. Though most internet service providers offer both
solutions, this manual will distinguish the two solutions according to the commonly available
service type to configure the DVR for the networking purposes.
1. GENERAL
１. Use Direction buttons [ ] to select “NETWORK” menu. Then, press [ENTER] button to
display “Network”.
２. Use Down button [ ] to specify the detail.
３. Use [-, +] button to change the value.
４. Save changes and exit the menu, press [ENTER] button.
Exit the menu without making changes, press [CANCEL] button.
ITEM ADJUSTMENT
CONFIG
ySTATIC IP: Edit IP address, Gateway and Netmask.
yDHCP: Dynamic Host Configuration Protocol. It is automatically set on
from Local DHCP if there is Local DHCP server. It will not be selected if the
DVR is not connected WAN.
The host name will be unique to the DVR, and will be displayed something
similar to M10020E.
IP SETUP yEdit “IP ADDRESS, GATEWAY, NETMASK”
PORT
ySelect “0000 ~ 9999”
The DVR’s connection port can be adjusted in case the default port 7000
is blocked. The DVR’s service port may be modified to allow the
connection from CMS.
BANDWIDTH yUnlimited is set by default. Select “64 KBPS~ 8MBPS”
