Pinnacle EPL7SAM+C Series User manual

Please see reverse for Technical Specifications
EPL7SAM+(x)C 9.15
INSTALLATION:
1) Detemine a clean, flat location
(typically the roof) on the vehicle to
mount the PINNACLE Mini Lightbar.
The PINNACLE Mini Lightbar comes
equipped with four magnetic feet. It
is the responsibility of the installer
and end user to determine whether
it is safe to use magnetic mounting
hardware for your application.
A Permanent Mount version
(EPL7PD(x)C) is available.
Note: The magnetic character of roof
steel varies from vehicle to vehicle.
Be sure that your vehicle is capable
of providing enough magnetic force
to safely secure the PINNACLE Mini
Lightbar to the roof.
2) A Protective Film has been provided
with the PINNACLE Mini Lightbar kit
that can be applied to the bottom of
each magnet. This film will protect
the paint of the vehicle. Apply one
donut shaped decal to the bottom of
each magnetic foot. Be sure to cover
the magnet entirely for maximum
protection to the paint finish.
Note: Protective film can reduce the
magnetic force by as much as 10%.
EPL7000 PINNACLE MINI
LIGHTBAR MAGNET MOUNT
EPL7SAM+(x)C
OPERATION:
Electrical Connections
& Flash Pattern Selection:

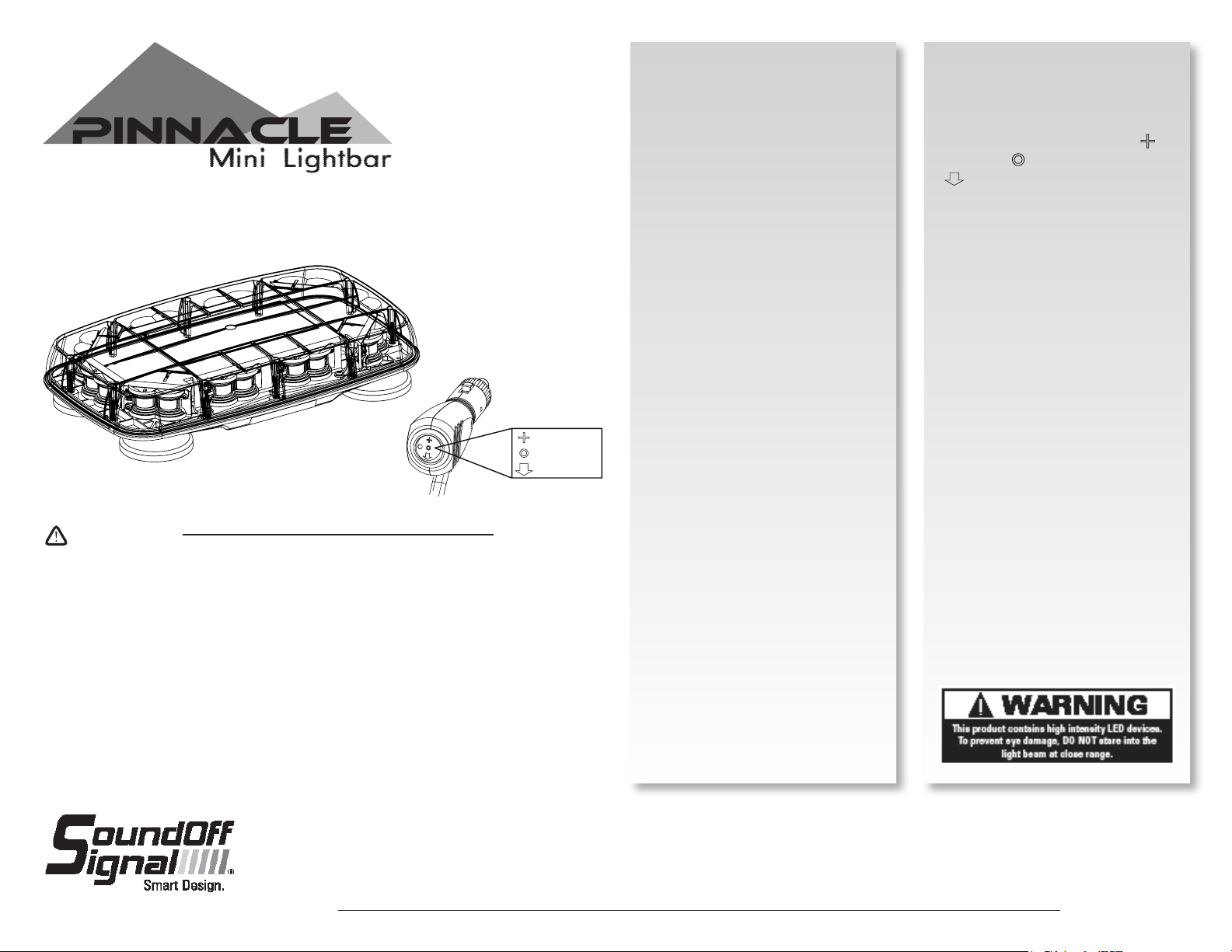

See diagram at left for Power ON ( ),
Power OFF ( ) and Pattern SELECT
( ) switch positions. Turn the light
on by pressing the Power ON button. To
change the flash pattern press and hold
the PATTERN SELECT button for one
to two (1-2) seconds. The PINNACLE
Mini Lightbar will advance one (1) flash
pattern and flash the new pattern each
time this is done. The PINNACLE Mini
Lightbar features non-volatile memory
and will recall last pattern used.
Selected pattern will remain the default
once turned off and can be changed
by changing the flash pattern before
powering off.
Power ON
Power OFF
Pattern SELECT
EPL7SAM+(x)A
1.800.338.7337 / www.soundoffsignal.com
NOTICE:
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. EST
at 1.800338.7337 (press #4 to skip the automated message). Questions or comments that do not require immediate attention may be emailed to [email protected].
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner’s Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
WARNING

PMB3BMG: Replacement Magnetic Foot (each)
PMB3MGKT: Replacement Magnetic Mount (kit)
PMB3TDC: Replacement Clear Dome
Replacement Parts & Accessories:
EPL7SAM+(x)C 9.15
EPL7000 PINNACLE MINI
LIGHTBAR MAGNET MOUNT
EPL7SAM+(x)C
Flash Patterns
Alternating
Patterns
FPM
(Flashes per Minute)
SAE
Compliant
1. Warp Alternating NO
2. Quad “ YES
3. Quad2 “ YES
4. Quint “ YES
5. Double2 “ YES
6. Warp 1, 2, 3 “ NO
7. Progressive “ NO
8. Q-Switch™ “ NO
9. Intercycle “ NO
10. Warp Whole Bar NO
11. Quad “ YES
12. Quad2 “ YES
13. Quint “ YES
14. Double2 “ YES
15. Warp 1, 2, 3 “ NO
16. Progressive “ NO
17. Warp Diagonal NO
18. Quad “ YES
19. Quad2 “ YES
20. Quint “ YES
21. Double2 “ YES
22. Warp 1, 2, 3 “ NO
23. Progressive “ NO
24. Q-Switch “ NO
25. Intercycle “ NO
26. Rotator “ NO
27. Cycle 1 Random NO
28. Cycle 2 “ NO
TECHNICAL SPECIFICATIONS
Overall Dimensions: 14.25”L x 8.27”W x 2.93”H
Flash Patterns: 28 flash patterns
Input Voltage Range: 10 - 30 Vdc
Current Consumption: 2 Amps (Avg) - 4 Amps (Max)
# of LEDs: 20 Generation 3 LEDs
Operating Temperature: -40º to +65º C
Cord Length: 125.75”
EPL7SAM+(x)A
