Pinnacle Fowl House Series User manual

FOWLHOUSE
1.51W x 1.39D x 1.99Hm
Tools required: Drill, measuring tape, Phillips-head screw driver, rivet gun, rubber mallet, sturdy ladder, shifting spanner, 2 saw horses, 3mm
steel drill bit, 4mm steel drill bit and a 10mm masonry drill bit.
Assembly instructions
Fowl House Series
Congratulations on purchasing your new Pinnacle fowl house. Before assembling, we recommend
you read the instructions thoroughly. Your new fowl house comes with pre-drilled holes to make
assembly quicker. We recommend you assemble it using a trestle table or sawhorses and planks.
This will ensure that you are working o the ground and make it easier for you.
Assembly of this fowl house is a two-person job and should not be attempted in windy conditions.
Check out our
shed building
tips on Youtube!
AU: 1800 349 776
NZ: 09 276 4071
www.pinnacle.net.au

FOWLHOUSE1.51W x 1.39D x 1.99Hm
2
Dimension overview:
Outer base dimensions 1515 x 1395 mm
Inner base dimensions 1470 x 1350 mm
Wall height 1800 mm
Peak height 1995 mm
Roof width 1615 mm
Door opening dimensions 1740 x 746 mm

Build your fowl house in 7 easy steps!
Step 1: Check all parts against the component list
Step 2: Assemble the rear wall panels
Step 3: Assemble the side wall panels
Step 4: Assemble the roof panels
Step 5: Assemble the front wall panel
Step 6: Assemble the front door
Step 7: Fit the panels together
Warning: Do not assemble this fowl house on a windy day.
Warning: This fowl house must be fully assembled and anchored to a concrete slab using the supplied bolt down kit in one
session/day. This fowl house must not be left partly assembled.
Assembly recommendations: We recommend a minimum of two people are needed to assemble this fowl house.
Concrete slab: Please ensure that your site is level. It is recommended that your slab is
100mm thick and you use builder’s plastic and F52 reinforcing mesh. We recommend that
you make your slab 100mm bigger than the base dimensions of your fowl house. This will
allow for a 50mm edge around your fowl house. We recommend that you slope the 50mm
edges downward by 10mm so that rainwater can drain away from your fowl house.
1495mm
CONCRETE SLAB: 1615mm

FOWLHOUSE1.51W x 1.39D x 1.99Hm
4
Picture Description Component Location Part
No. QTY Check
Sheet Sheet 1800x770mm Rear wall S75 2
Sheet Sheet 1800x708mm Side wall S77 1
Sheet Sheet 1800x708mm Side wall S78 1
Side Wall
Sheet Sheet 1800x708mm Side wall S79L 1
Side Wall
Sheet Sheet 1800x708mm Side wall S79R 1
Front wall
sheet Sheet 1800x708mm Front S80 1
Door Door 1745x770mm Door D33 1
Sheet Sheet 810x708mm Roof S81 2
Sheet Sheet 810x708mm Roof S82 2
Step 1: Check all parts against the component list
Lay out all parts with number facing outwards and check o against parts list.

5
Picture Description Component Location Part
No. QTY Check
Channel Channel 1508mm Rear wall 20C 1
Channel Channel 1508mm Rear wall 20V 1
Channel Channel 1508mm Front 20T 1
Channel Channel 1508mm Front 20U 1
Channel Channel 1391mm Roof side
wall 36A 4
Channel Channel 1391mm Roof 36C 2
Channel Channel 1391mm Side wall 36E 1
Channel Channel 1391mm Side wall 36F 1
Channel Channel 652mm Side wall
front C121 3
Channel Channel 775mm Front 23 1
Jamb Jamb 1798mm Front J36 1
Jamb Jamb 775mm Front 42 1
Jamb Jamb 1798mm Corner Z34 2
Jamb Jamb 1898mm Corner Z35 1
Jamb Jamb 1898mm Corner Z36 1
Lip Lip 812mm Roof SL08 4
Connector Gable cap connector
1393mm Roof 92 1

FOWLHOUSE1.51W x 1.39D x 1.99Hm
6
Ridge Beam Ridge beam 1393mm Roof 93 1
Gable R/H Gable 734mm Roof SG27 2
Gable L/H Gable 734mm Roof SG28 2
Logo Cap Logo cap Roof E1 2
Roof Brace Roof brace Roof 65 2
Picture Component QTY Picture Component QTY
Self-tapping screws (10mm) 140 Self-tapping screws (16mm) 50
4.0 x 10mm Rivet 6 3.0 x 10mm Rivet 35
Pad bolt (Part 70) 1 Keeper (Part 71) 1
Qty checking date: ____ / ____ / _____
Qty checking personal badge number: _______________
Signature: _________________________________________
In the unlikely event that you nd you are missing a part, Australian customers please contact Pinnacle on 1800 349 776. New Zealand customers
please contact Harco (Harkness & Young Ltd) on: 09 276 4071. A copy of proof of purchase may be requested.
Fittings part list:
CAUTION: Birds can be susceptible to heavy metal poisoning from zinc/galvanised coatings. Please check that our metal fowl
houses are suitable for your pet. Refer to your local vet for further information.
IMPORTANT: Scrub the mesh with a mild solution of vinegar (2 cups in a bucket of water) and then rinse with clean water. This will
remove excess zinc that could potentially cause harm to pets.

7
Fowl house overview:

FOWLHOUSE1.51W x 1.39D x 1.99Hm
8
Step 2: Assemble the rear wall panels
For easier assembly of your fowl house use sawhorses with timber studs as per diagram below (timber needs to be the same length
as the fowl house (1.5 M)) or alternatively, a trestle table.
Place 2 x part S75 (sheets) on your worktable and join together with the self-tapping screws as per the diagram below.
Now t part 20V (top channel) and 20C (bottom channel) to the sheeting by tapping it in (diagram A) or sliding it in (diagram B). Make
sure the small lip of the channel is always facing out. This ensures rainwater cannot build up inside your fowl house.
A

9
Step 2: Assemble the rear wall panels (continued)
NOTE: All screws marked with a cross should not be xed at this stage.
B

FOWLHOUSE1.51W x 1.39D x 1.99Hm
10
Step 3: Assemble the side wall panels
Place parts S77 & S79L (sheets) on your worktable and tap or slide on part 36F (top channel) and part 36A (bottom channel). Make
sure the small lip of the channels is always facing out. This ensures rainwater cannot build up inside your fowl house. Once the top
and bottom channels have been xed, attach the channel (C121) above the mesh on part S79L (sheet) with the provided 3 x 10mm
rivets. NOTE: All screws marked with a cross should not be xed at this stage.
FIX WITH
16MM SCREWS
FIX WITH 3 X 10MM RIVET
BACK

11
Step 3: Assemble the side wall panels (continued)
Now repeat for other side wall.
FIX WITH
16MM SCREWS
FIX WITH 3 X 10MM RIVET

FOWLHOUSE1.51W x 1.39D x 1.99Hm
12
Step 4: Assemble the roof panel
Place 1 x part S81 (sheet) and 1 x part S82 (sheet) on your worktable and join together with the self-tapping screws as per
the diagram below.
Now tap or slide 1 x part 36C and 1 x part 36A (channels) onto the sheeting and x them to the top and bottom with
self-tapping screws. Make sure the small lip on both channels is facing out. This ensures rainwater cannot build up inside
your fowl house. NOTE: All screws marked with a cross should not be xed at this stage.
2 pre-punched holes to
this end of each sheet
with part 36A (channel)

13
Step 5: Assemble the front wall panels
Place part S80 (front wall sheet) on the worktable then t parts 20T (top channel) and 20U (bottom channel) to the front wall sheeting
and x with self-tapping screws. Secure the iron mesh by riveting part C121 (channel) onto part 20T (top channel). It’s recommended
you x the back part rst, then the front. Make sure the small lip on both channels is facing out. This ensures rainwater cannot build
up inside your fowl house. NOTE: All screws marked with a cross should not be xed at this stage.
FIX WITH 3 X 10MM RIVET

FOWLHOUSE1.51W x 1.39D x 1.99Hm
14
Step 5: Assemble the front wall panels (continued)

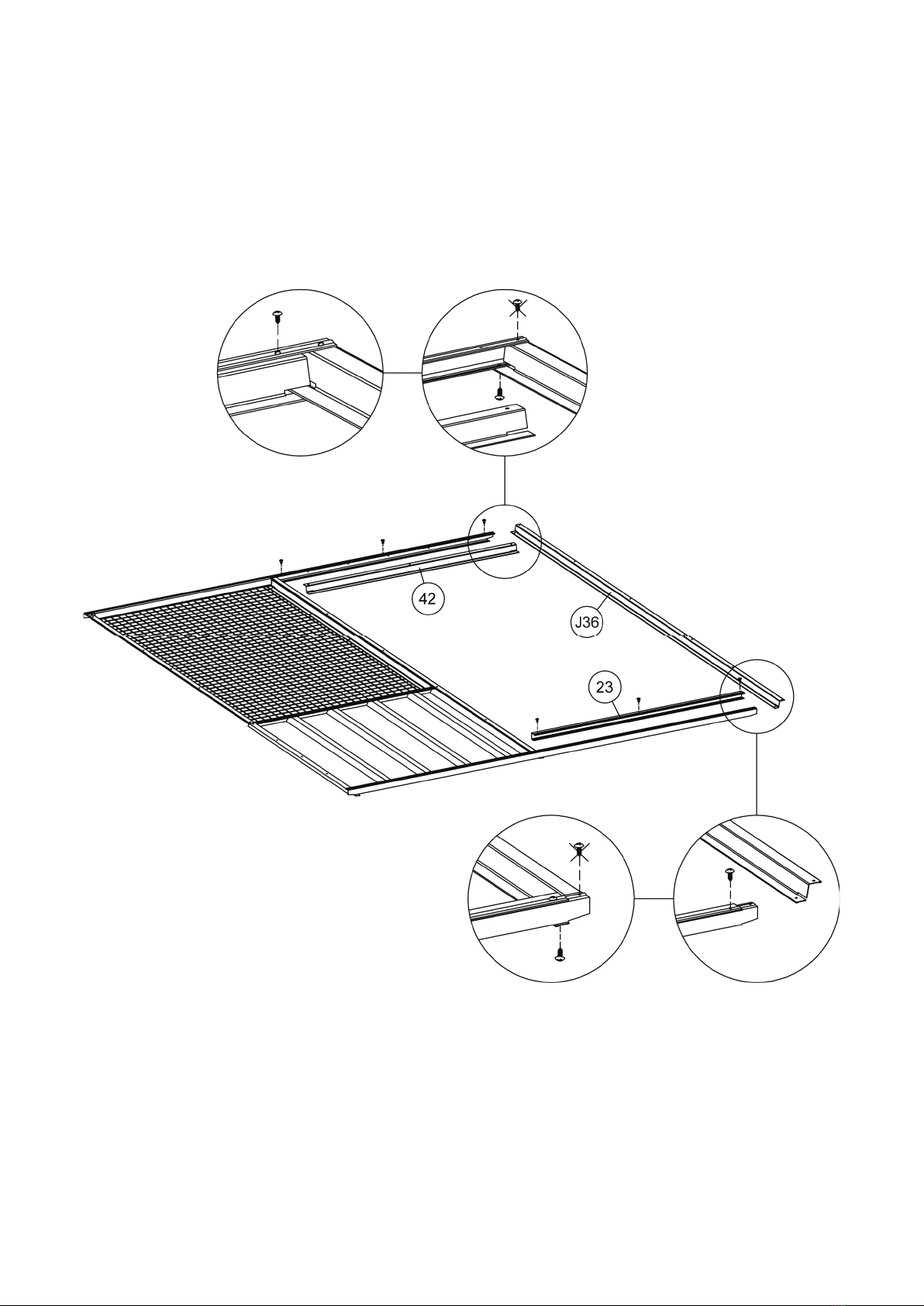

Fit parts 42 (jamb), J36 (jamb) and part 23 (bottom channel) to the front wall and x with self-tapping screws. Make sure the joints are
xed as per the below diagrams. NOTE: All screws marked with a cross should not be xed at this stage.

15
Step 6: Assemble the front door
Fix part D33 (pre-assembled door) to the front wall panel using a rivet gun and the provided 4.0 x 10mm rivets.
FIX WITH 4 X 10MM RIVET

FOWLHOUSE1.51W x 1.39D x 1.99Hm
16
Step 6: Assemble the front door (continued)
Now x part 70 (pad bolt) using the pre-drilled holes with the 10mm self-tapping screws or 3 x 10mm rivets provided.
FIX WITH 3 X 10MM RIVETFIX WITH 10MM SCREWS

17
Step 7: Fit the panels together
Attach the two side walls to the back wall, then t the front wall by xing 2 x parts Z34, 1 x part Z35 and 1 x part Z36 (corner bracing)
Fix all of these components together using the provided self-tapping screws as per the diagram below.

FOWLHOUSE1.51W x 1.39D x 1.99Hm
18
Step 7: Fit the panels together (continued)
Once all 4 panels are xed together attach 2 x part SG28 (Gable L/H) and 2 x part SG27 (Gable R/H) to the front and back panels
with the provided self tapping screws as per diagram below. NOTE: Fix the pad bolt keeper with the provided 16mm self-tapping
screws or 3 x 10mm rivets at this stage as well.
FIX PADBOLT KEEPER
WITH 16MM SCREWS
FIX PADBOLT KEEPER
WITH 3 X 10MM RIVET

19
Step 7: Fit the panels together (continued)

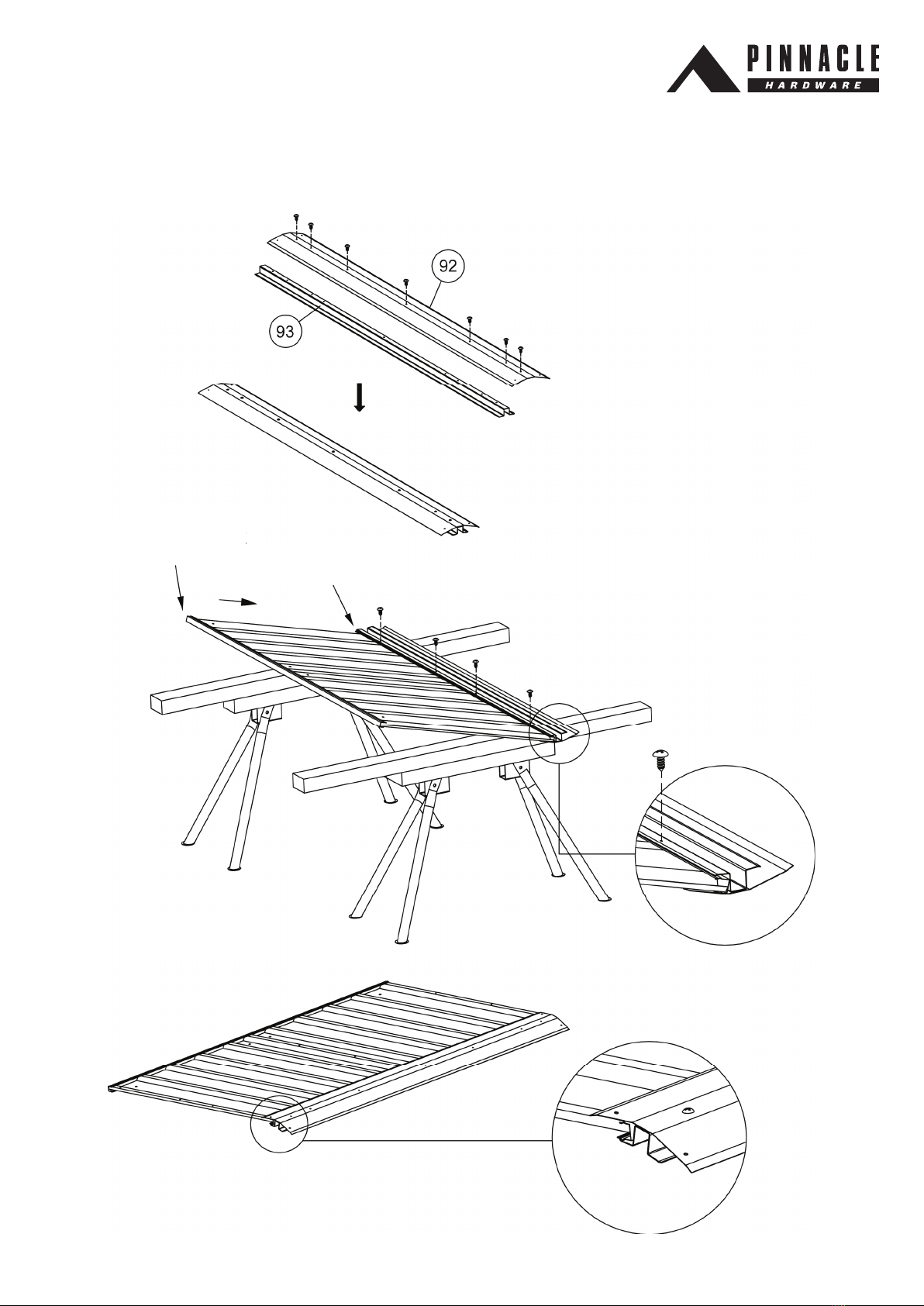

Start assembling the roof by xing part 93 (ridge beam) to part 92 (gable cap connector) and then x to one of the assembled roof
panels from step 4.
CHANNEL TYPE
36A THIS END CHANNEL TYPE
36C THIS END

FOWLHOUSE1.51W x 1.39D x 1.99Hm
20
Step 7: Fit the panels together (continued)
Once half the roof is xed together, place on top of fowl house and slide the other assembled roof panel from step 4 into place and x
from underneath. Now attach 4 x part SL08 (lips) to the front and back ends of the roof panels as per diagram below.
To support the gable’s pitch attach part 65 (roof brace) to the front and back wall as per diagram below.
After attaching both the roof panels to the
walls as shown below, drill holes using a
3mm drill bit for the roof brace and fix it to
the ridge beam and front wall as shown.
Repeat the same step for the roof side.
Then repeat this procedure for the rear wall
roof brace.
