Before Using This Product
Thank you for purchasing this PIONEER
product.
It is designed to give you many
years
of enjoyment.
PIONEER SUGGESTS USING APRO-
FESSIONAL INSTALLER DUE TO THE
COMPLEXITY OF THIS PRODUCT.
Please read all instructions and WARN-
INGS in this manual before attempting
operation. Should you have any questions,
contact your nearest Pioneer authorized
dealer or installation specialist.
Information to User
Alteration or modifications carried out
without appropriate authorization may
invalidate the user's right to operate the
equipment.
Important
The serial number of this amplifier is writ-
ten on the bottom
of the unit. For your
own security and convenience, write it
down on the enclosed warranty card. Keep
the card handy for future reference.
After-sales service for Pioneer
products
Please contact the dealer or distributor from where
you purchased the product for its after-sales ser-
vice (including warranty conditions) or any other
information.
In case the necessary information is
not available, please contact the companies listed
below:
Please do not ship your product to the companies
at the addresses listed below for repair without
advance contact.
• U.S.A.
Pioneer Electronics (USA) Inc.
CUSTOMER SUPPORT DIVISION
P.O. Box 1760
Long Beach, CA 90801-1760
800-421-1404
• CANADA
Pioneer Electronics of Canada, Inc.
CUSTOMER SATISFACTION
DEPARTMENT
300 Allstate Parkway
Markham, Ontario L3R OP2
1-877-283-5901

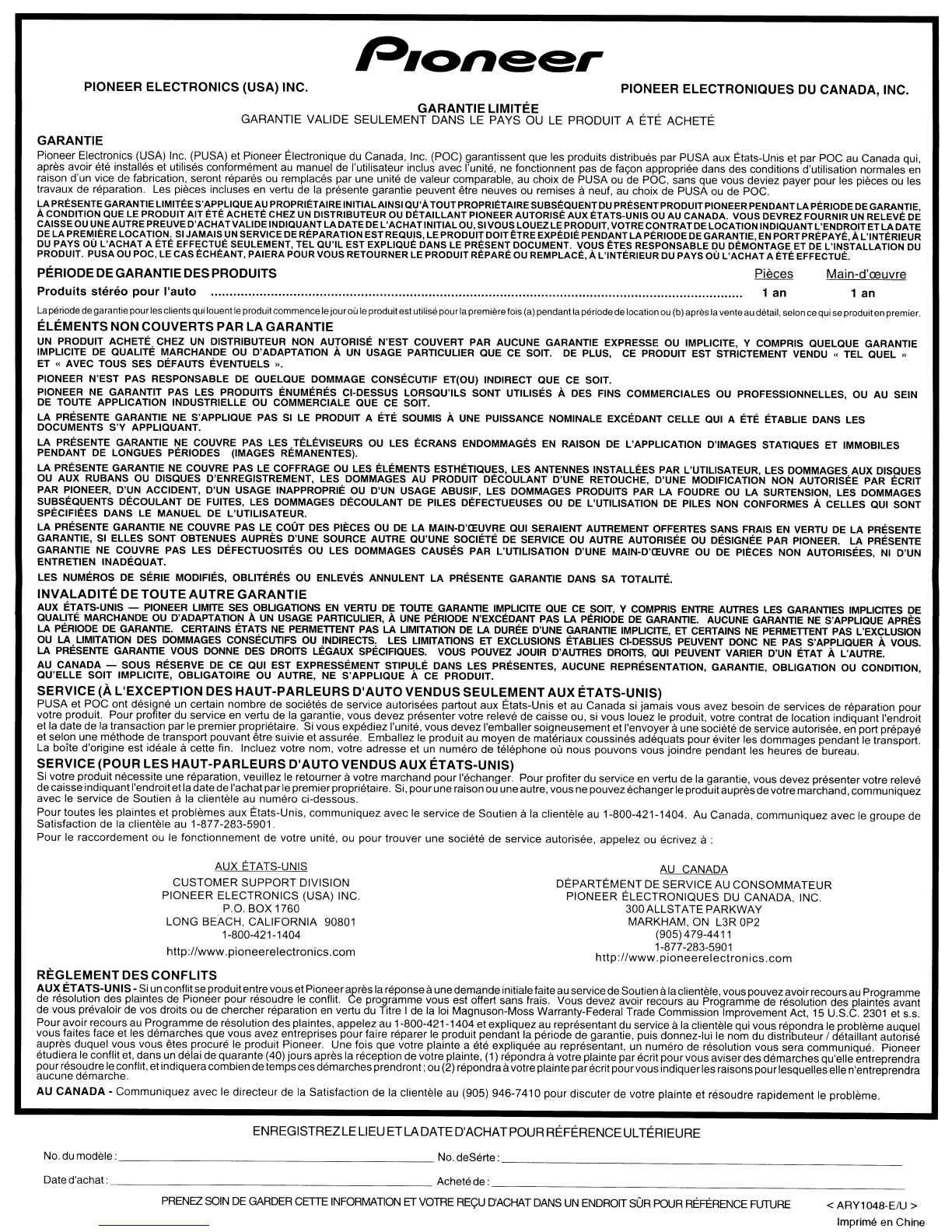

For warranty information please see the Limited
Warranty sheet included with your product.

Product registration
Visit us at the following site:
~
http://www.pioneerelectronics.com
~
Register your product. We will keep the details of
your purchase on file to help you refer to this
information in the event of an insurance claim
such
as loss or theft.
2Receive updates on the latest products and tech-
nologies.
3Download owner's manuals, order product cata-
logues, research new products, and much more.
About This Product
This product is an amplifier for the sub-
woofer.
If both L(left) and R(right) chan-
nels are connected to the
RCA input of this
product, output is mixed because this prod-
uct
is amono amplifier.
A CAUTION
Never replace the fuse with one of greater
value
or rating than the original fuse. Use
of an improper fuse could result in over-
heating and smoke and could cause dam-
age to the product and injury including
burns.
ENGLISH
WARNING
•Handling the cord on this product or cords associ-
ated with accessories sold with the product will
expose you to lead, achemical known to the State
of California and other governmental entities to
cause cancer and birth defects or other reproduc-
tive harm. Wash hands after handling.
•Always use the special red battery and ground
wire [RD-223], which
is sold separately. Connect
the battery wire directly to the car battery positive
terminal (+) and the ground wire to the car body.
•Do not touch the amplifier with wet hands.
Otherwise you may get an electric shock. Also, do
not touch the amplifier when it is wet.
•For traffic safety and
to maintain safe driving
conditions, keep the volume low enough so that
you can still hear normal traffic sound.
•Check the connections
of the power supply and
subwoofer if the fuse
of the separately sold bat-
tery wire or the amplifier fuse blows. Detect the
cause and solve the problem, then replace the fuse
with another one
of the same size and rating.
•To prevent malfunction of the amplifier and sub-
woofer, the protective circuit will cut the power
supply to the amplifier (sound will stop) when an
abnormal condition occurs. In such acase, switch
the power to the system OFF and check the
connection
of the power supply and subwoofer.
Detect the cause and solve the problem.
•Contact the dealer if you cannot detect the cause.
•To prevent an electric shock or short-circuit
during connection and installation, be sure
to
disconnect the negative (-) terminal of the battery
beforehand.
•Confirm that no parts are behind the panel when
drilling ahole for installation
of the amplifier. Be
sure to protect all cables and important equipment
such as fuel lines, brake lines and the electrical
wiring from damage.
•DO NOT allow amplifier to
come into contact
with liquids due to, for example, the location
where the amplifier is installed. Electrical shock
could result. Also, amplifier and speaker damage,
smoke, and overheating could result from contact
with liquids. In addition, the amplifier surface and
the surface
of any attached speakers could become
hot to the touch and minor burns could result.

Setting the Unit ENGLISH
lPF (low-Pass-Filter) Cut Off
Frequency Control
You can select acut off frequency
from
40 Hz to 240 Hz.
BFC (Beat Frequency Control)
Switch
Gain Control
If the sound level is too low, even
when the volume
of the car stereo
used along with this power
amplifier
is turned up, turn gain
control on the front
of the power
amplifier clockwise.
If the sound
distorts when the volume is turned
up, turn the gain control counter-
clockwise.
•When using with an RCA equipped
car stereo (standard output
of 500
mY), set
to the NORMAL position.
When using with an RCA equipped
Pioneer car stereo with max. output
of
4 Y or more, adjust level to match the
car stereo output level.
• If you hear too much noise when
using the speaker input terminals, tum
the gain control counter-clockwise.
Bass Boost Control Switch
You can select abass boost level
from 0dB, 6
dB and 12 dB.
If you hear abeat while
listening to an AM broadcast
with your car stereo, change
the BFC switch using asmall
standard tip screwdriver.
Power Indicator
The power indicator lights when the
power is switched on.

Connecting the Unit
6 CAUTION
•Disconnect the negative (-) terminal of the battery
to avoid the risk of short-circuit and damage to
the unit.
•Secure the wiring with cable clamps or adhesive
tape.
To protect the wiring, wrap adhesive tape
around it where they lie against metal parts.
•Do not route wires where they will get hot, for
example where the heater will blow over them.
If
the insulation heats up, it may become damaged,
resulting in ashort-circuit through the vehicle
body.
6 CAUTION:
To prevent damage and/or injury
•Do not ground the speaker wire directly or con-
nect anegative (-) lead wire for several speakers.
•This unit is for vehicles with a12-volt battery and
negative grounding. Before installing it in arecre-
ational vehicle, truck or bus, check the battery
voltage.
•If the car stereo is kept on for along time while
the engine is at rest or idling, the battery may go
dead. Turn the car stereo
off when the engine is at
rest or idling.
• If the system remote control wire of the amplifier
is connected to the power terminal through the
ignition switch (12 VDC), the amplifier will
always be on when the ignition
is on- regardless
of whether the car stereo is on or off. Because of
this, the battery could go dead if the engine is at
rest or idling.
•Make sure that wires will not interfere with mov-
ing parts of the vehicle, such as the gearshift,
handbrake or seat sliding mechanism.
•Do not shorten any wires. Otherwise the protec-
tion circuit may fail
to work when it should.
•Never feed power to other equipment by cutting
the insulation
of the power supply wire to tap
from the wire. The current capacity
of the wire
will be exceeded, causing overheating.
•Never replace the fuse with one
of greater value
or rating than the original fuse. Use of an improp-
er fuse could result in overheating and smoke and
could cause damage
to the product and injury
including burns.
•Connect asubwoofer with a290 Wor larger nom-
inal input and an impedance between 2Qand 8Q
to the amplifier. If the nominal input and imped-
ance are out of the above ranges, the subwoofer
may catch fire, emit smoke or become damaged.
•Install and route the separately sold battery wire
as far away
as possible from the speaker wires.
Install and route the separately sold battery wire,
ground wire, speaker wires and the amplifier as
far away as possible from the antenna, antenna
cable and tuner.
•Cords for this product and those for other prod-
ucts may be different colors even
if they have the
same function. When connecting this product to
another product, refer to the supplied manuals
of
both products and connect cords that have the
same function.

Connection Diagram
Fuse (30 A)
Special red battery wire [RD-223] (sold separately)
After making all other connections at the amplifier,
connect the battery wire terminal
of the amplifier to
the positive (+) terminal of the battery.
Ground wire (black) [RD-223] (sold separately)
Connect to metal body or chassis.
Car stereo with
RCA output jacks
Connecting wire with RCA
pin plugs (sold separately).
\~
External Output
(Subwoofer output)
~ ....
=
'r,
Front side 1
~~.---"""'-
~;l~'\
om
RO
lI::::::iL-.J------=====~ ---""'---l....--JI
RCA input jack Speaker input terminal
See the "Using the
Speaker Input" section.
Back side
Speaker terminal
See the "Connecting the
Speaker Wires" section
for speaker connection
instructions.
System remote control wire (sold separately)
Connect the male terminal
of this wire to the system remote control
terminal
of the car stereo (SYSTEM REMOTE CONTROL). The
female terminal can be connected to the auto-antenna relay control
terminal.
If the car stereo does not have asystem remote control ter-
minal, connect the male terminal to the power terminal through the
ignition switch.

o
Connecting the Power Terminal
•Always use the special red battery and ground
wire [RD-223], which
is sold separately. Connect
the battery wire directly to the car battery positive
terminal (+) and the ground wire to the car body.
1. Pass the battery wire from the
engine compartment
to the interior
of the vehicle.
•After making al1 other connections to the
amplifier, connect the battery wire terminal
of
the amplifier to the positive (+) terminal of
the battery. Engine
Fuse (30 A) compart-
ment
o /
'\ Fuse (30 A) Drill a 14 mm
Positive terminal
~1/2 in.) hol~
Insert the O-ring rubber mto the vehIcle
grommet into the vehicle body.
body.
2. Twist the battery wire, ground wire
and system remote control wire.
3. Attach lugs
to wire ends. Lugs not
supplied.
•Use pliers, etc., to crimp lugs to wires.
4. Connect the wires to the terminal.
•Fix the wires securely with the terminal
screws.
GND terminal
Power
terminal/System remote
\_ ~k-~~.. control terminal
~. ~'" ':'.M!
I~ I~ • ~~~
.)~ System remote
___ \ ';"~~ control wire
\Ground wire
ENGLISH
A WARNING
Failure to securely fasten the battery wire to the ter-
minal using the terminal screws could cause the ter-
minal area to overheat and could result in damage
and injury including minor bums.
Connecting the Speaker Terminals
1. Expose the end of the speaker wires
using nippers or acutter by about
10 mm (3/8 in.) and twist.
2. Attach lugs to speaker wire ends.
Lugs not supplied.
•Use pliers, etc., to crimp lugs to wires.
3. Connect the speaker wires to the
speaker terminals.
•Fix the speaker wires securely with the termi-
nal screws.
Speaker terminal
Speaker wire

Connecting the Unit ENGLISH
Using the Speaker Input
Connect the car stereo speaker output
wires to the amplifier using the supplied
speaker input connector.
•Do not connect both the RCA input and the
speaker input at the same time.
• Connections when using the speaker
input
Car Stereo
r--- Speaker outpu
Connecting the Speaker Wires
Connect the speaker leads according to the
figures shown below.
~ ~
~L_~;;:\ ====0:] Subwoofer
Whitelblack:
Left 8
White:
Left
c±>
Graylblack:
Right 8
Gray:
Right
c±>
Speaker input connector
To speaker input terminal of
this unit.

Installation ENGLISH
Example of installation on the floor
mat or on the chassis
•Do not install the amplifier on unstable places
such as the spare tire board.
•The best location for installation differs with the
car model and installation location. Secure the
amplifier at asufficiently rigid location.
•Make temporary connections first and check that
the amplifier and the system operate properly.
•After installing the amplifier, confirm that the
spare tire, jack and tools can be easily removed.
1. Place the amplifier where it is to be
installed. Insert the supplied tapping
screws (4 x
18 mm) into the screw
holes. Push on the screws with a
screwdriver so they make marks
where the installation holes are to be
located.
-Floor mat
or chassis
Drill a
2.5 mm (l/8 in.)
diameter hole
2. Drill 2.5 mm (1/8 in.) diameter holes
at the point marked, and install the
amplifier, either on the carpet or
directly to the chassis.
Tapping-screws
/(4 x 18 mm)
i
A CAUTION
A CAUTION:
To prevent malfunction and/or injury
• To ensure proper heat dissipation of the amplifier,
be sure
of the following during installation.
-Allow adequate space above the amplifier for
proper ventilation.
-Do not cover the amplifier with afloor mat or
carpet.
•DO NOT allow amplifier to come into contact
with liquids due to, for example, the location
where the amplifier
is installed. Electrical shock
could result. Also, amplifier and speaker damage,
smoke, and overheating could result from contact
with liquids. In addition, the amplifier surface and
the surface
of any attached speakers could become
hot to the touch and minor burns could result.
•Do not install in:
-Places where it could injure the driver or pas-
sengers if the vehicle stops suddenly.
-Places where it may interfere with the driver,
such as on the floor in front
of the driver's
seat.
•Make sure that wires are not caught
in the sliding
mechanism
of the seats, resulting in ashort-cir-
cuit.
•Confirm that no parts are behind the panel when
drilling ahole for installation of the amplifier.
Protect all cables and important equipment such
as fuel lines, brake lines and electrical wiring
from damage.
•Install tapping screws in such away that the
screw tip does not touch any wire. This
is impor-
tant to prevent wires from being cut by vibration
of the car, which can result
in fire.
•DO NOT allow amplifier to come into contact
with liquids due to, for example, the location
where the amplifier
is installed. Electrical shock
could result. Also, amplifier and speaker damage,
smoke, and overheating could result from contact
with liquids. In addition, the amplifier surface and
the surface
of any attached speakers could become
hot to the touch and minor burns could result.
•
To ensure proper installation, use the supplied
parts
in the manner specified. If any parts other
than the supplied ones are used, they may damage
internal parts
of the amplifier, or they may
become loose causing the amplifier to shut down.
•Never replace the fuse with one
of greater value
or rating than the original fuse. Use
of an improp-
er fuse could result in overheating and smoke and
could cause damage to the product and injury
including burns.

Spec{fications ElVGLISll
Power source 14.4 V DC (10.8 V to 15.1 V allowable)
Grounding system Negative type
Current consumption 33.0 A (at continuous power, 4 Q)
Average current drawn* 9.0 A (4 Q for one channel)
16.0 A (2 Q for one channel)
Fuse 30A x 2
Dimensions 300 mm (W) x 60 mm (H) x 334 mm (D)
[12 in. (W) x 2-3/8 in. (H) x 1 ft. 1 in. (D)]
Weight 4.1 kg (9 Ibs.) (Leads for wiring not included)
Maximum power output 500 W xl (4 Q) / 800 W xl (2 Q)
Continuous power output 250 Wx 1 (at 14.4 V, 4 Q, 20 Hz to 240 Hz 0.5% THD)
360 Wx 1 (at 14.4 V, 2 Q, 20 Hz to 240 Hz 0.8% THD)
Load impedance 4 Q (2 Q to 8 Q allowable)
Frequency response 10 Hz to 240 Hz (+0 dB, -3 dB)
Signal-to-noise ratio 100 dB (IHF-A network)
Distortion 0.03 % (10 W, 120 Hz)
Low pass filter Cut off frequency: 40 Hz to 240 Hz
Cut off slope: -12 dB/oct
Bass boost Frequency: 50 Hz
Level: 0 dB/6 dBIl2 dB
Gain control RCA: 400 mY to 6.5 V
Speaker: 1.6 V to 26 V
Maximum input level/impedance RCA: 6.5 V/ 22 kQ
Speaker: 26 V/ 40 kQ
Power output 250 W RMS x 1 channel
(4 Qand:;; 1% THD+N)
360 W RMS x I channel
(2 Qand:;; 1% THD+N, 100 Hz)
Signal-to-noise ratio 80 dBA (Reference: 1W into 4 Q)
Note:
•Specifications and the design are subject to possible modification without notice
due
to improvements.
*Average current drawn
•The average current drawn is nearly the maximum current drawn by this unit
when
an audio signal is input. Use this value when working out total current
drawn by multiple power amplifiers.

Additional information English
Fig. 2Relationship between the gain of the amplifier and
the output power of the head unit
Head unit volume steps Head unit volume steps
Amplifier gain
~ Amplifier gain
(normal) (maximum)
If you raise the gain of the amplifier to an improper level, only
distortion
is increased and the power increases only slightly.
IMaximum gain
Power _
IMaximum gain
Power
Ir----
INormal gain
•This unit is equipped with aprotective function to prevent
malfunction of the unit itself and speakers from too much
output, improper use or improper connection.
•When outputting sound at high volume etc., this function
will cut off the sound output in afew seconds. But this is
not amalfunction. When you turn down the volume of the
head unit the sound output will
be restored.
•If sound output
is cut, the gain control of this unit may be
improperly set. To ensure continuous sound output at
increased volume of the head unit, set the gain control of
the amplifier to aproper position according to the preout
maximum output level of the head unit (Fig. 1). There is no
need to decrease the volume of the head unit and too
much output is controlled (Fig.
2, Fig. 3).
•If you decrease the volume of the head unit and set the
gain control of the amplifier to the proper position but still
the sound cuts out from time to time, contact the nearest
authorized PIONEER Service Station.
GAIN
~--
Amplifier gain ~ Amplifier gain
(normal) (maximum)
With high output the signal waveform is distorted, if
you raise the
gain of the amplifier the power changes only slightly.
Fig. 3Signal waveform when outputting at high volume
by the gain control of the amplifier
Preout level: 6.5 V ~((e). .. Preout level: 4 V
f(!Jjj;. Preout level: 2 V
~ NORMAL (Standard: 500 mV)
6.5V O.4V
Fig. 1Gain control of this unit
Signal
waveform Signal
waveform
<KMINX> <YRP5004-A/U>

PIONEER ELECTRONICS (USA) INC. PIONEER ELECTRONIQUES DU CANADA, INC.
GARANTIE L1MITI~E . . .
GARANTIE VALIDE SEULEMENT DANS LE PAYS OU LE PRODUIT AETE ACHETE
GARANTIE
Pioneer Electronics (USA) Inc. (PUSA) et Pioneer Electronique du Canada, Inc. (POC) garantissent que les produits distribues par PUSA aux Etats-Unis et par POC au Canada qui,
apres avoir ete installes et utilises conformement
au manuel de I'utilisateur inclus avec I'unite, ne fonctionnent pas de fa<;:on appropriee dans des conditions d'utilisation normales en
raison d'un vice de fabrication, seront repares ou remplaces par une unite de valeur comparable, au choix de PUSA ou de POC, sans que vous deviez payer pour les pieces ou les
travaux de reparation. Les pieces incluses en vertu de
la presente garantie peuvent etre neuves ou remises aneuf, au choix de PUSA ou de POCo
LAPRESENTE GARANTIELIMITEE S'APPLIQUE AU PROPRIETAIREINITIALAINSI Qu'A TOUTPROPRIETAIRE SUBSEQUENTDU PRESENTPRODUIT PIONEER PENDANTLAPERIODE DE GARANTIE,
ACONDITION QUE LE PRODUIT AIT ETE ACHETE CHEZ
UN DISTRIBUTEUR OU DETAILLANT PIONEER AUTORISE AUX ETATS-UNIS OU AU CANADA. VOUS DEVREZ FOURNIR UN RELEVE DE
CAISSE OU UNE AUTRE PREUVE D' ACHATVALIDEINDIQUANTLADATE DE L'ACHATINITIAL OU, SIVOUS LOUEZLE PRODUIT,VOTRE CONTRAT DE LOCATION INDIQUANTL'ENDROIT ET LADATE
DE LAPREMIERE LOCATION. SI JAMAIS UN SERVICE DE REPARATION EST REQUIS, LE PRODUITDOlTETRE EXPEDIE PENDANT LAPERIODE DE GARANTIE, EN PORT PREPAYE, AL'INTERIEUR
DU PAYS OU L'ACHAT AETE EFFECTUE SEULEMENT, TEL QU'IL EST EXPLIQUE DANS LE PRESENT DOCUMENT. VOUS ETES RESPONSABLE DU DEMONTAGE ET DE L'INSTALLATION DU
PRODUIT. PUSA OU POC, LE CAS ECHEANT, PAIERA POUR VOUS RETOURNER LE PRODUIT REPARE OU REMPLACE, AL'INTERIEUR DU PAYS OU L'ACHAT AETE EFFECTUE.
PERIODEDE GARANTIE DESPRODUITS Pieces Main-d'csuvre
Produits stereo pour I'auto 1an 1an
Laperiode de garantiepourlesclientsquilauent Ie produitcommence IejourauIe produitestutilise pour la premierefois(a) pendant laperiode de locationau (b)apresla vente au detail, selonce qui sa produiten premier.
ELEMENTS NON COUVERTS PAR LA GARANTIE
UN PRODUIT ACHETE CHEZ UN DISTRIBUTEUR NON AUTORISE N'EST COUVERT PAR AUCUNE GARANTIE EXPRESSE OU IMPLICITE, YCOMPRIS QUELQUE GARANTIE
IMPLICITE DE QUALITE MARCHANDE OU D'ADAPTATION AUN USAGE PARTICULIER QUE CE SOIT. DE PLUS, CE PRODUIT EST STRICTEMENT VENDU "TEL QUEL »
ET "AVEC TOUS SES DEFAUTS EVENTUELS ».
PIONEER N'EST PAS RESPONSABLE DE QUELQUE DOMMAGE CONSECUTIF ET(OU) INDIRECT QUE CE SOIT.
PIONEER
NE GARANTIT PAS LES PRODUITS ENUMERES CI-DESSUS LORSQU'ILS SONT UTILISES ADES FINS COMMERCIALES OU PROFESSIONNELLES, OU AU SEIN
DE TOUTE APPLICATION INDUSTRIELLE OU COMMERCIALE QUE CE SOIT.
LA PRESENTE GARANTIE NE S'APPLIQUE PAS SI LE PRODUIT AETE SOUMIS AUNE PUISSANCE NOMINALE EXCEDANT CELLE QUI AETE ETABLIE DANS LES
DOCUMENTS
S'Y APPLIQUANT.
LA PRESENTE GARANTIE NE COUVRE PAS LES TELEVISEURS OU LES ECRANS ENDOMMAGES EN RAISON DE L'APPLICATION D'IMAGES STATIQUES ET IMMOBILES
PENDANT DE LONGUES PERIODES (IMAGES REMANENTES).
LA PRESENTE GARANTIE NE COUVRE PAS LE COFFRAGE OU LES ELEMENTS ESTHETIQUES, LES ANTENNES INSTALLEES PAR L'UTILISATEUR, LES DOMMAGES AUX DISQUES
OU
AUX RUBANS OU DISQUES D'ENREGISTREMENT, LES DOMMAGES AU PRODUIT DECOULANT D'UNE RETOUCHE, D'UNE MODIFICATION NON AUTORISEE PAR ECRIT
PAR PIONEER, D'UN ACCIDENT, D'UN USAGE INAPPROPRIE
ou D'UN USAGE ABUSIF, LES DOMMAGES PRODUITS PAR LA FOUDRE OU LA SURTENSION, LES DOMMAGES
SUBSEQUENTS DECOULANT DE FUITES, LES DOMMAGES DECOULANT DE PILES DEFECTUEUSES OU DE L'UTILISATION DE PILES NON CONFORMES ACELLES QUI SONT
SPECIFIEES DANS LE MANUEL DE L'UTILISATEUR.
LA PRESENTE GARANTIE NE COUVRE PAS LE COOT DES PIECES OU DE LA MAIN-D'CEUVRE QUI SERAIENT AUTREMENT OFFERTES SANS FRAIS EN VERTU DE LA PRESENTE
GARANTIE, SI ELLES SONT OBTENUES AUPRES D'UNE SOURCE AUTRE QU'UNE SOCIETE DE SERVICE OU AUTRE AUTORISEE
OU DESIGNEE PAR PIONEER. LA PRESENTE
GARANTIE NE COUVRE PAS LES DEFECTUOSITES OU LES DOMMAGES
CAUSES PAR L'UTILISATION D'UNE MAIN-D'CEUVRE OU DE PIECES NON AUTORISEES, NI D'UN
ENTRETIEN
INADEQUAT.
LES NUMEROS DE SERlE MODIFIES, OBLITERES OU ENLEVES ANNULENT LA PRESENTE GARANTIE DANS SA TOTALITE.
INVALADITE DE TOUTEAUTRE GARANTIE
AUX ETATS-UNIS -PIONEER LIMITE SES OBUGATIONS EN VERTU DE TOUTE GARANTIE IMPLICITE QUE CE SOIT, YCOMPRIS ENTRE AUTRES LES GARANTIES IMPLlCITES DE
QUAUTE MARCHANDE
OU D'ADAPTATION A UN USAGE PARTICULIER, AUNE PERIODE N'EXCEDANT PAS LA PERIODE DE GARANTIE. AUCUNE GARANTIE NE S'APPUQUE APRES
LA PERIODE DE GARANTIE. CERTAINS frATS NE PERMETTENT PAS LA LIMITATION DE LA DUREE D'UNE GARANTIE IMPUCITE, ET CERTAINS NE PERMETTENT PAS L'EXCLUSION
OU LA LIMITATION DES DOMMAGES CONSECUTIFS OU INDtRECTS. LES LIMITATIONS ET EXCLUSIONS frABLIES CI-DESSUS PEUVENT DONC NE PAS S'APPUQUER A vous.
LA PRESENTE GARANTIE VOUS DONNE DES DROITS LEGAUX SPECIFIQUES. VOUS POUVEZ JOUIR D'AUTRES DROITS, QUI PEUVENT VARIER D'UN ETAT AL'AUTRE.
AU
CANADA -SOUS RESERVE DE CE QUI EST EXPRESSEMENT STIPl!LE DANS LES PRESENTES, AUCUNE REPRESENTATION, GARANTIE, OBLIGATION OU CONDITION,
QU'ELLE SOIT IMPLICITE, OBLIGATOIRE OU AUTRE, NE S'APPLIQUE ACE PRODUIT.
SERVICE (.6. L'EXCEPTION DES HAUT-PARLEURS D'AUTO VENOUS SEULEMENT AUX ETATS-UNIS)
PUSA et POC ont designe un certain nombre de societes de service autorisees partout aux Etats-Unis et au Canada si jamais vous avez besoin de services de reparation pour
votre produit. Pour profiter
du service en vertu de la garantie, vous devez presenter votre releve de caisse ou, si vous louez Ie produit, votre contrat de location indiquant I'endroit
et
la date de la transaction par Ie premier proprietaire. Si vous expediez I'unite, vous devez I'emballersoigneusement et I'envoyer aune societe de service autorisee, en port prepaye
et selon une methode de transport pouvant etre suivie et assuree. Emballez
Ie produit au moyen de materiaux coussines adequats pour eviter les dommages pendant Ie transport.
La boile d'origine est ideale acette fin. Incluez votre nom, votre adresse et un numero de telephone ou nous pouvons vous joindre pendant les heures de bureau.
SERVICE (POUR LES HAUT-PARLEURS D'AUTO VENOUS AUX ETATS-UNIS)
Si votre produit necessite une reparation, veuillez Ie retourner avotre marchand pour I'echanger. Pour profiter du service en vertu de la garantie, vous devez presenter votre releve
decaisse indiquantI'endroitet
la datede I'achat par Ie premierproprietaire. Si, pourune raison ou uneautre, vous ne pouvezechangerleproduitaupresdevotre marchand, communiquez
avec
Ie service de Soutien a la clientele au numero ci-dessous.
Pour toutes les plaintes et problemes aux Etats-Unis, communiquez avec
Ie service de Soutien a la clientele au 1-800-421-1404. Au Canada, communiquez avec Ie groupe de
Satisfaction de
la clientele au 1-877-283-5901.
Pour
Ie raccordement ou Ie fonctionnement de votre unite, ou pour trouver une societe de service autorisee, appelez ou ecrivez a:
AUX ETATS-UNIS
CUSTOMER SUPPORT DIVISION
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1760
LONG BEACH, CALIFORNIA 90801
1-800-421-1404
http://www.pioneerelectronics.com
AU CANADA
DEPARTEMENT DE SERVICE AU CONSOMMATEUR
PIONEER ELECTRONIQUES
DU CANADA, INC.
300 ALLSTATE PARKWAY
MARKHAM, ON L3R
OP2
[phone]
1-877-283-5901
htlp://www.pioneerelectronics.com
< ARY1 048-E/U >
Imprime en Chine
REGLEMENT DES CON FLITS
AUX ETATS-UNIS- Si unconflitse produitentre vous et Pioneerapres la reponse aunedemandeinitialelaite au servicede Soutien a la clientele, vous pouvezavoirrecours au Programme
de resolution des plaintes de Pioneer pour resoudre
Ie confli!. Ce programme vous est offert sans frais. Vous devez avoir recours au Programme de resolution des plaintes avant
de vous prevaloir de vos droits
ou de chercher reparation en vertu du Titre Ide la loi Magnuson-Moss Warranty-Federal Trade Commission Improvement Act, 15 U.S.C. 2301 et S.S.
Pour avoir recours au Programme de resolution des plaintes, appelez au 1-800-421-1404et expliquez au representant du service ala clientele qui vous repondra Ie probleme auquel
vous faites face et les demarches que vous avez entreprises pour faire reparer
Ie produit pendant la periode de garantie, puis donnez-lui Ie nom du distnbuteur /detaillant autorise
aupres duquel vous vous etes procure
Ie produit Pioneer. Une fois que votre plainte aete expliquee au representant, un numero de resolution vous sera communique. Pioneer
etudiera
Ie conflit et, dans un delai dequarante (40) joursapres lareception devotre plainte, (1) repondra avotre plainte par ecrit pourvous aviser des demarches qu'elle entreprendra
pour
reso~dre Ie conflil, etindiqueracombiendetempscesdemarchesprendront; ou (2) repondraavotre plainteparecritpourvousindiquerles raisons pourlesquelleselle n'entreprendra
aucune demarche.
AU
CANADA -Communiquez avec Ie directeur de la Satisfaction de la clientele au [phone] pour discuter de votre plainte et resoudre rapidement Ie probleme.
ENREGISTREZ LE LIEU ET LA DATE D'ACHAT POUR REFERENCE UL TERIEURE
No. du modele : No.deSMe: _
Dated'achat: Achetede: _
PRENEZ SOIN DE GARDER CETTE INFORMATION ET VOTRE RE~U D'ACHAT DANS UN ENDROIT SUR POUR REFERENCE FLlTURE

PIONEER ELECTRONICS (USA) INC.
PIONEER ELECTRONICS OF CANADA, INC.
LIMITEDWARRANTY
WARRANTYVALIDONLY IN COUNTRYOF PRODUCTPURCHASE
WARRANTY
Pioneer Electronics (USA) Inc. (PUSA), and Pioneer Electronics Of Canada, Inc. (POC), warrant that products distributed by PUSA in the U.S.A., and by POC in Canada that fail to function
properlyundernormal usedue
to amanufacturingdefectwhen installed and operatedaccording to theowner'smanualenclosed with theunitwill be repaired orreplacedwith aunitofcomparable
value, at the option of PUSA or POC, without charge
to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA or POCo
THIS LIMITED WARRANTY APPLIES TOTHE ORIGINALOR ANYSUBSEQUENTOWNER OFTHIS PIONEER PRODUCTDURINGTHE WARRANTYPERIODPROVIDEDTHE
PRODUCT
WAS PURCHASED FROM AN AUTHORIZED PIONEER DISTRIBUTOR/DEALER IN THE U.S.A. OR CANADA. YOU WILL BE REQUIRED TO PROVIDE A SALES
RECEIPTOR OTHER VALID PROOFOFPURCHASE SHOWING THE DATE OF ORIGINALPURCHASE OR, IF RENTED, YOUR RENTAL CONTRACTSHOWING THE PLACE
ANDDATEOFFIRSTRENTAL. IN THEEVENTSERVICEISREQUIRED,THEPRODUCTMUSTBE DELIVEREDWITHINTHEWARRANTYPERIOD,TRANSPORTATIONPREPAID,
ONLY FROM WITHIN THE COUNTRY OF PURCHASE AS EXPLAINED IN THIS DOCUMENT. YOU WILL BE RESPONSIBLE FOR REMOVAL AND INSTALLATION OF THE
PRODUCT. PUSA OR POC,
AS APPROPRIATE, WILL PAY TO RETURN THE REPAIRED OR REPLACEMENT PRODUCTTO YOU WITHIN THE COUNTRY OF PURCHASE.
PRODUCTWARRANTY PERIOD Parts Labor
Car Stereo Products 1 Year 1 Year
The warranty period for retail customers who rent the product commences upon the date product is first put into use (a) during the rental period or (b) retail sale, whichever occurs first.
WHAT IS NOT COVERED
IF THIS PRODUCTWAS PURCHASED FROM AN UNAUTHORIZED DISTRIBUTOR, THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTY
OFMERCHANTABILITYAND THE IMPLIEDWARRANTYOFFITNESS
FOR APARTICULARPURPOSE AND THIS PRODUCT ISSOLDSTRICTLY "AS IS"AND"WITH ALL FAULTS".
PIONEERSHALLNOTBE LIABLEFOR ANY CONSEQUENTIALAND/OR INCIDENTALDAMAGES.
PIONEER DOESNOTWARRANTANY PRODUCT LISTED ABOVE WHEN IT
IS USED IN ATRADE OR BUSINESS OR IN ANY INDUSTRIAL OR COMMERCIALAPPLICATION.
THIS WARRANTY DOES NOT APPLYIFTHE PRODUCTHAS BEEN SUBJECTEDTO POWER
IN EXCESS OF ITS PUBLISHEDPOWER RATING.
THISWARRANTY DOES NOTCOVER DISPLAYSCREENSDAMAGEDBYSTATIC, NON-MOVING, IMAGES APPLIED FOR LENGTHYPERIODS(BURN-IN).
THISWARRANTYDOESNOTCOVERTHECABINETORANYAPPEARANCEITEM,USERATTACHEDANTENNA,ANYDAMAGETORECORDSORRECORDINGTAPESORDISCS,ANY
DAMAGETOTHE PRODUCTRESULTING FROM ALTERATIONS, MODIFICATIONS NOTAUTHORIZED
IN WRmNG BYPIONEER, ACCIDENT, MISUSE OR ABUSE, DAMAGEDUETO
UGHTNINGORTOPOWERSURGES,SUBSEQUENTDAMAGEFROMLEAKING,DAMAGEFROMINOPERATIVEBATTERIES,ORTHEUSEOFBATTERIESNOTCONFORMINGTOTHOSE
SPECIAED
IN THE OWNER'S MANUAL.
THISWARRANTY DOESNOTCOVERTHECOSTOFPARTS
OR LABORWHICHWOULDBEOTHERWISE PROVIDEDWITHOUTCHARGEUNDERTHIS WARRANTYOBTAINEDFROM
ANYSOURCEOTHERTHANAPIONEERAUTHORIZEDSERVlCECOMPANYOROTHERDESlGNATEDLOCATlON.THISWARRANTYDOESNOTCOVERDEFECTSORDAMAGECAUSED
BYTHE USE OFUNAUTHORIZED PARTS
OR LABOR OR FROM IMPROPER MAINTENANCE.
ALTERED, DEFACED,
OR REMOVEDSERIALNUMBERSVOIDTHIS ENTIRE WARRANTY
NO OTHER WARRANTIES
IN THE U.S.A. -PIONEER LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE,TOAPERIOD NOTTO EXCEEDTHEWARRANTYPERIOD. NOWARRANTIES SHALLAPPL YAFTERTHE
WARRANTYPERIOD. SOMESTATES
DONOT ALLOW LIMITATIONSONHOWLONG ANIMPLIEDWARRANTYLASTSANDSOMESTATESDONOT ALLOW THEEXCLUSIONS
OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SOTHE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES
YOU SPECIFIC LEGAL RIGHTS AND YOU MAY HAVEOTHER RIGHTSWHICH MAY VARYFROMSTATETOSTATE.
IN
CANADA- EXCEPT AS EXPRESSLYPROVIDEDHEREIN,THERE ARENOREPRESENTATIONS,WARRANTIES,OBLIGATIONSOR CONDITIONS,IMPLIED,STATUTORY
OR OTHERWISE,
APPLICABLE TO THIS PRODUCT.
TO OBTAIN SERVICE (EXCEPT CAR SPEAKERS SOLD IN THE U.S.A. ONLY)
PUSA and POC have appointed anumber of Authorized Service Companies throughoutthe U .SA and Canada should your product require service. To receive warrantyservice
you need to present your sales receipt or, if rented, your rental contract showing place and date of original owner's transaction.
If shipping the unit you will need to package
it carefully and send it, transportation prepaid
by atraceable, insured method, to an Authorized Service Company. Package the product using adequate padding material to
prevent damage in transit. The original container
is ideal for this purpose. Include your name, address and telephone numberwhere you can be reached during business hours.
TO OBTAIN SERVICE ON CAR SPEAKERS SOLD IN THE U.S.A.
Should your car speaker require service please return it to your retail dealer for exchange. To receive warranty service you will need to present your sales receipt showing
place and date
of original owner's retail purchase. If, for any reason, you can not exchange speakers at the selling dealer call Customer Support at the number below.
On all complaints and concerns in the U.S.A. call Customer Support at 1-800-421-1404, or, in Canada, call Customer Satisfaction at [phone].
INTHEU.S.A.
For hook-up and operation of your unit or to locate
an
Authorized Service Company, please call or write:
CUSTOMERSUPPORTDIVISION
PIONEERELECTRONICS(USA)INC.
PO. BOX 1760
LONG BEACH, CALIFORNIA 90801
1-800-421-1404
http://www.pioneerelectronics.com
IN CANADA
For additional information
on this warranty,
please call or write:
CUSTOMERSATISFACTIONGROUP
PIONEERELECTRONICSOFCANADA, INC.
300 ALLSTATE PARKWAY
MARKHAM, ON L3R
OP2
[phone]
1-877-283-5901
http://www.pioneerelectronics.com
DISPUTE RESOLUTION
IN THE U.S.A. -Following our response to any initial request to Customer Support, should adispute arise between you and Pioneer, Pioneer makes available its Complaint
Resolution Program to resolve the dispute. The Complaint Resolution Program is available to you without charge. You are required to use the Complaint Resolution Program
before you exercise any rights under,
or seek any remedies, created by Title Iof the Magnuson-Moss Warranty-Federal Trade Commission Improvement Act, 15 U.S.C. 2301 etseq.
To use the Complaint Resolution Program call 1-800-421-1404 and explain to the customer service representative the problem you are experiencing, steps you have taken
to have the product repaired during the warranty period and the name of the authorized Distributor/Dealerfrom whom the Pioneer product was purchased. After the complaint
has been explained to the representative, aresolution
number will be issued. Within 40 days of receiving your complaint, Pioneer will investigate the dispute and will either:
(1) respond to
your complaint in writing informing you what action Pioneer will take, and in what time period, to resolve the dispute; or (2) respond to your complaint in writing
informing you why it will not take any action.
IN
CANADA -Call the Customer Satisfaction Manager at [phone] to discuss your complaint and to obtain aprompt resolution.
RECORDTHEPLACEAND DATEOFPURCHASE FOR FUTURE REFERENCE
ModelNo. SeriaINo. PurchaseDate _
PurchasedFrom _
KEEP THIS INFORMATION AND YOUR SALES RECEIPT
IN ASAFE PLACE <ARY1048-E/U >
Printed in China
