Important Safety Information
ABOUT THIS MANUAL
This manual explains how to install this navigation system in your vehicle. Operation of this navigation system
is explained in the separate Operation Manual or Hardware Manual for the navigation system. Before operating
this navigation system, be sure to read them.
PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR
NAVIGATION SYSTEM AND RETAIN THEM FOR FUTURE REFERENCE
Do not attempt to install or service your navigation system by yourself. Installation or
servicing of the navigation system by persons without training and experience in elec-
tronic equipment and automotive accessories may be dangerous and could expose you
to the risk of electric shock or other hazards.
1. Read this manual fully and carefully before installing your navigation system.
2. Keep this manual handy for future reference.
3. Pay close attention to all warnings in this manual and follow the instructions carefully.
4. This navigation system may in certain circumstances display erroneous information regarding the
position of your vehicle, the distance of objects shown on the screen, and compass directions. In addi-
tion, the system has certain limitations, including the inability to identify one-way streets, temporary
traffic restrictions and potentially unsafe driving areas. Please exercise your own judgement in the
light of actual driving conditions.
5. As with any accessory in your vehicle’s interior, the navigation system should not divert your atten-
tion from the safe operation of your vehicle. If you experience difficulty in operating the system or
reading the display, please make adjustments while safely parked.
6. Please remember to wear your seat belt at all times while operating your vehicle. If you are ever in an
accident, your injuries can be considerably more severe if your seat belt is not properly fastened.
7. In certain countries, laws may restrict the placement and use of navigation systems in your vehicle.
Please comply with all applicable laws and regulations in the installation and operation of your navi-
gation system.

English Español Deutsch Français Italiano Nederlands
Important Safety Information.................... 1
ABOUT THIS MANUAL.................................. 1
PLEASE READ ALL OF THESE
INSTRUCTIONS REGARDING
YOUR NAVIGATION
SYSTEM AND RETAIN THEM
FOR FUTURE REFERENCE .................... 1
Connecting the System ............................ 3
Before installing this navigation system ............ 4
To prevent damage ............................................ 5
Parts supplied .................................................... 6
Connecting the system ...................................... 7
Connecting the power cord (1) .......................... 9
Connecting the power cord (2) ........................ 11
When connecting to separately sold power
amp .......................................................... 13
When connecting a rear view camera ............ 15
When connecting the external video component
.................................................................. 16
When connecting the external unit featuring video
source ........................................................16
When connecting the rear display ....................17
-When using a rear display connected to rear
video output
Installation ................................................ 18
To guard against electromagnetic
interference .............................................. 19
Before installing .............................................. 19
Installing this navigation system...................... 20
-Installation notes
-Parts supplied
-Before installing this navigation unit
-Installation with the holder and side bracket
-Installation using the screw holes on the side
of the navigation unit
Installing the GPS aerial .................................. 24
-Installation notes
-Parts supplied
-When installing the aerial inside the vehicle
(on the rear shelf)
-When installing the aerial outside the vehicle
(on the body)
Installing the microphone..................................27
-Parts supplied
-Mounting on the sun visor
-Installation on the steering column
Adjusting the microphone angle ......................28
After Installing this Navigation System
.............................................................. 29
2
Contents

Connecting the System
3
Pioneer does not recommend that you install your navigation system yourself. We
recommend that only authorised Pioneer service personnel, who have special training
and experience in mobile electronics, set up and install this navigation system.
NEVER SERVICE THIS NAVIGATION SYSTEM YOURSELF. Installing or ser-
vicing this navigation system and its connecting cables may expose you to the risk of
electric shock or other hazards, and can cause damage to the navigation system that
is not covered by warranty.
• If you decide to perform the installation yourself, and have special training
and experience in the mobile electronics installations, please carefully follow
all of the steps in the Installation Manual.
• Secure all wiring with cable clamps or electrical tape. Do not allow any bare
wiring to remain exposed.
• Do not directly connect the yellow lead of this navigation system to the vehi-
cle battery. If the lead is directly connected to the battery, engine vibration
may eventually cause the insulation to fail at the point where the wire passes
from the passenger compartment into the engine compartment. If the yellow
lead’s insulation tears as a result of contact with metal parts, short-circuiting
can occur, resulting in considerable danger.
• It is extremely dangerous to allow the GPS aerial cable or microphone cable
to become wound around the steering column or gearstick. Be sure to install
this navigation system, its cables, and wiring away in such a way that they
will not obstruct or hinder driving.
• Make sure that the cables and wires are routed and secured so they will not
interfere with or become caught in any of the vehicle’s moving parts, espe-
cially the steering wheel, gearstick, handbrake, sliding seat tracks, doors, or
any of the vehicle’s controls.

English Español Deutsch Français Italiano Nederlands
4
• Do not route wires where they will be exposed to high temperatures. If the
insulation heats up, wires may become damaged, resulting in a short circuit
or malfunction and permanent damage to the navigation system.
• Do not cut the GPS aerial cable to shorten it or use an extension to make it
longer. Altering the aerial cable could result in a short circuit or malfunc-
tion.
• Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse
resister or filter, etc.) may fail to work properly.
• Never feed power to other electronic products by cutting the insulation of the
power supply lead of the navigation system and tapping into the lead. The
current capacity of the lead will be exceeded, causing overheating.
• The black lead is earth. Please earth this lead separately from the earth of
high-current products such as power amps. Do not earth more than one
product together with the earth from another product. For example, you
must separately earth any amplifier unit away from the earth of this naviga-
tion system. Connecting earths together can cause a fire and/or damage the
products if their earths became detached.
Before installing this navigation system
• This navigation system is for vehicles with a 12-volt battery and negative earthing.
Check the battery voltage of your vehicle before installation.
• To avoid shorts in the electrical sys-
tem, be sure to disconnect the (–)
battery cable before beginning
installation.

5
Connecting the System
To prevent damage
• When disconnecting a connector, pull the connector itself. Do not pull the lead, as you
may pull it out of the connector.
• This navigation system cannot be installed in a vehicle that does not have an ACC
(accessory) position on the ignition switch.
• When replacing the fuse, be sure to only use a fuse of the rating prescribed on the fuse
holder.
• To avoid a short-circuit, cover the disconnected lead with insulating tape. Insulate the
unused speaker leads without fail. There is a possibility of a short-circuit if the leads are
not insulated.
• Attach the connectors of the same colour to the corresponding coloured port, i.e., blue
connector to the blue port, black to black, etc.
• Refer to the owner’s manual for details on connecting the power amp and other units,
then make connections accordingly.
• Since a unique BPTL circuit is employed, do not directly earth the ≠side of the speaker
lead or connect the ≠sides of the speaker leads together. Be sure to connect the ≠side
of the speaker lead to the ≠side of the speaker lead on this navigation system.
• If the RCA pin jack on this navigation system will not be used, do not remove the caps
attached to the end of the connector.
• Speakers connected to this navigation unit must be high-power with minimum rating of
50 W and impedance of 4 to 8 ohms. Connecting speakers with output and/or impedance
values other than those noted here may result in the speakers catching fire, emitting
smoke, or becoming damaged.
• When the ignition switch is turned on (ACC ON), a control signal is output through the
blue/white lead. Connect to an external power amp’s system remote control terminal
(max. 300 mA 12 V DC). The control signal is output through the blue/white lead, even
if the audio source is switched off.
• When an external power amp is being used with this system, be sure not to connect the
blue lead to the amp’s power terminal. Likewise, do not connect the blue lead to the
power terminal of the auto aerial. Such connection could cause excessive current drain
and malfunction as well as damage to the auto aerial of the vehicle.
• When the “Auto ANT” mode is set to “Radio”, the vehicle’s aerial can be stowed or
turned off by following the instructions below.
– Change the source from radio (AM or FM) to another source
– Turn the source off
– Turn off the ignition switch (ACC OFF)
• If the “Auto ANT” mode is set to “Power”, the vehicle’s aerial can be stowed or turned
off only when the ignition switch is turned off (ACC OFF).
No ACC positionACC position
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F

English Español Deutsch Français Italiano Nederlands
6
Parts supplied
MicrophoneRCA connector 2
(CONNECTOR 2)
<☞ See Page 7, 12, 15, 17 >
RCA connector 1
(CONNECTOR 1)
<☞See Page 10, 13, 16>
GPS aerialExtension lead
(for speed signal)
Extension lead
(for reverse signal)
ConnectorPower cord
<☞See Page 9, 11, 15>
The navigation unit

7
Connecting the System

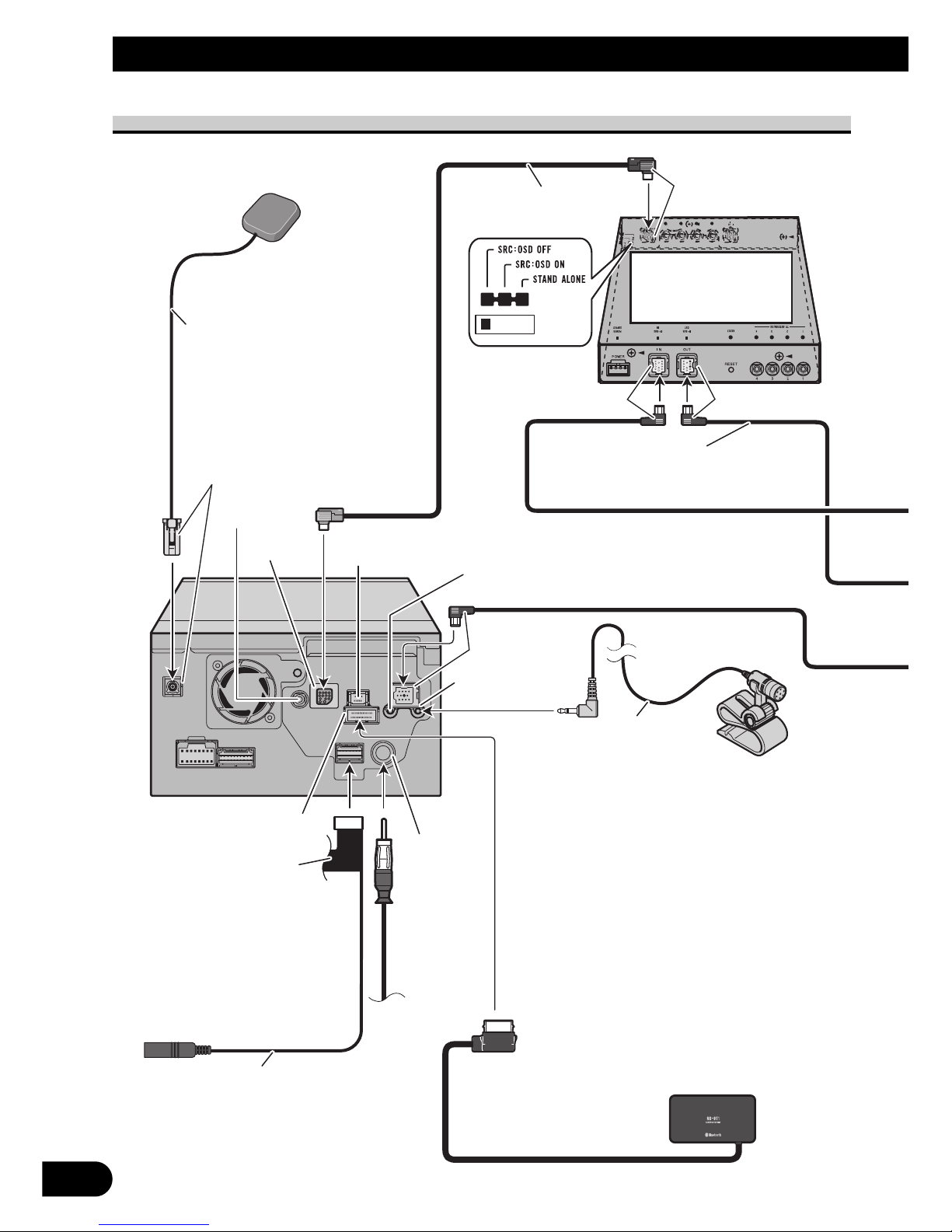

Connecting the system
AV-BUS cable
(supplied with TV tuner)
IP-BUS cable
(supplied with TV tuner)
Black
Black
Bluetooth unit (ND-BT1)
(Sold separately)
Aerial
jack
Vehicle
aerial
The navigation unit
RCA connector 2
20 cm
Red
Hide-away TV tuner
(e.g. GEX-P5700TVP)
(sold separately)
Light grey
5m
GPS aerial
Blue
Blue
Not used.
Microphone input
Microphone
(supplied)
Blue
EXTENSION port
Not used. Not used.
Jack for Wired Remote
Control Adapters
(WIRED REMOTE INPUT)
Please see the Instruction
Manual for the Wired
Remote Control Adapters
(sold separately).
4 m

8
English Español Deutsch Français Italiano Nederlands
Dock connector port
iPod with
Dock Connector
iPod adapter
(e.g. CD-IB100II)
(sold separately)
Black
IP-BUS cable
(supplied with iPod adapter)
Multi-CD player
(sold separately)
Blue
• To avoid the risk of accident and
the potential violation of applicable
laws, this navigation system should
never be used while the vehicle is
being driven except for navigation
purposes. Also Rear Displays should
not be in a location where it is a visi-
ble distraction to the driver.
• In some countries, the viewing of
images on a display inside a vehicle
even by persons other than the dri-
ver may be illegal. Where such reg-
ulations apply they must be obeyed
and this navigation system’s video
source or TV features should not be
used.

9
Connecting the System
Connecting the power cord (1)
Connect leads of the same
colour to each other.
Cap (*1)
When not using this terminal,
do not remove the cap.
ISO connector
Fuse (10 A)
*1
*2
*4
*3
*5
Yellow (*2)
To terminal always supplied
with power regardless of
ignition switch position.
Red (*4)
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Yellow (*3)
Back-up
(or accessory)
Red (*5)
Accessory
(or back-up)
Black (earth)
To vehicle (metal) body.
Orange/white
To lighting switch terminal.
Note:
In some vehicles, the ISO connector
may be divided into two. In this case,
be sure to connect to both connectors.
Note:
Depending on the kind of vehicle, the
function of *3 and *5 may be different.
In this case, be sure to connect *2 to *5
and *4 to *3.
Speaker leads
White: Front left +
White/black: Front left ≠
Grey: Front right +
Grey/black: Front right ≠
Green: Rear left +or Subwoofer +(*9)
Green/black: Rear left ≠or Subwoofer ≠(*9)
Violet: Rear right +or Subwoofer +(*9)
Violet/black: Rear right ≠or Subwoofer ≠(*9)
Yellow/black
If the vehicle can send a mute signal to this terminal,
the mute function can be activated on this navigation
system when the terminal is connected to *8.
Note:
When a subwoofer (*9) is connected to this naviga-
tion system instead of a rear speaker, change the
rear output setting in the Initial Setting. (Refer to
the Operation Manual.) The subwoofer output of
this navigation system is monaural.
When using a subwoofer of 70 W (2 Ω), be sure to
connect with violet and violet/black leads of this
navigation unit. Do not connect anything with green
and green/black leads.

10
English Español Deutsch Français Italiano Nederlands
(*8)
Blue (*6)
RCA connector 1 16 cm
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect *6 and
*7 when Pin 5 is an aerial control type. In
other types of vehicle, never connect *6 and *7.
Blue (*7)
To Auto-aerial relay control terminal.
If the vehicle has a glass aerial, connect to
the aerial booster power control terminal
(max. 300 mA 12 V DC).
Yellow/black (MUTE)
If you use equipment with a mute function, connect that equipment to the
Audio Mute lead. If not, keep the Audio Mute lead free of any connections.
Power cord
Note:
Audio source will be set to mute or attenuate, while the following sounds
will not be muted or attenuated. For details, see the Operation Manual.
- voice guidance of the navigation
- incoming ringtone and incoming voice of the mobile phone that is
connected to this navigation system via Bluetooth wireless technology
The navigation unit
Note:
The aerial will automatically retract or turn off, yet the
timing varies depending on the setting. (Refer to page 5.)
For more detailed information on changing the “Auto
ANT”mode, refer to “Switching the auto aerial setting”
in the Operation Manual.
Note:
Cords for this navigation system and those for other
products may be different colours even if they have
the same function. When connecting this navigation
system to another product, refer to the supplied
manuals of both products and connect cords that
have the same function.

Pink (CAR SPEED SIGNAL INPUT)
The mobile navigation system is connected here to detect the distance
the vehicle travels. Always connect the vehicle’s speed detection
circuit or the ND-PG1 speed pulse generator, sold separately. Failure
to make this connection will increase errors in the location display.
IMPROPER CONNECTION MAY RESULT IN SERIOUS
DAMAGE OR INJURY INCLUDING ELECTRICAL SHOCK,
AND INTERFERENCE WITH THE OPERATION OF THE
VEHICLE’S ANTILOCK BRAKING SYSTEM, AUTOMATIC
GEARBOX AND SPEEDOMETER INDICATION.
LIGHT GREEN LEAD AT POWER
CONNECTOR IS DESIGNED TO DETECT
PARKED STATUS AND MUST BE
CONNECTED TO THE POWER SUPPLY SIDE
OF THE HANDBRAKE SWITCH. IMPROPER
CONNECTION OR USE OF THIS LEAD MAY
VIOLATE APPLICABLE LAW AND MAY
RESULT IN SERIOUS INJURY OR DAMAGE.
Light green
Used to detect the ON/OFF status of the handbrake. This lead must be
connected to the power supply side of the handbrake switch.
If this connection is made incorrectly or omitted, certain
functions of your navigation system will be unusable.
•It is strongly suggested that the speed pulse wire be connected
for accuracy of navigation and better performance of interlock.
•If the speed pulse wire is unavailable for some reason, it is
recommended that the pulse generator (ND-PG1) be used.
Note:
The position of the speed detection circuit and the position of the
parking brake switch vary depending on the vehicle model. For
details, consult your authorised Pioneer dealer or an installation
professional.
11
Connecting the System
Connecting the power cord (2)
Connection method
Clamp the parking brake
switch power supply side lead.
Clamp firmly with
needle-nosed pliers.
Power supply side
Earth side
Handbrake switch
Speed detection circuit lead
Vehicle injection
computer Connector
Pass the extension cord
and the lead for the
speed detection circuit
through this hole.
Clamp firmly
with needle-
nosed pliers.
Close the cover.
Connection method

RCA
connector 2
Power cord
20 cm
Be sure to use only the supplied extension lead. Use of another lead
could cause fire, smoke and/or damage this navigation system.
12
English Español Deutsch Français Italiano Nederlands
Note:
Cords for this navigation system and those for other
products may be different colours even if they have
the same function. When connecting this navigation
system to another product, refer to the supplied
manuals of both products and connect cords that
have the same function.
Violet/white (REVERSEGEAR SIGNAL INPUT)
This is connected so that the navigation system can
detect whether the vehicle is moving forwards or
backwards. Connect the violet/white lead to the
lead whose voltage changes when the reverse gear
is engaged. Unless connected, the sensor may not
detect your vehicle travelling forward/backward
properly, and thus the position of your vehicle
detected by the sensor may be misaligned from the
actual position.
Connection method
Clamp the reversing lamp lead.
Clamp firmly with
needle-nosed pliers.
Reversing
lamp lead
Fuse resistor
Check the position of your vehicle’s
reversing lamp (the one that lights
up when the gearstick is in reverse
[R]) and find the reversing lamp lead
in the boot.
The navigation unit
Extension lead
(for reverse signal)
Extension lead (for speed signal)
5 m
5 m
Note:
When you use the ND-PG1 speed pulse
generator (sold separately), please make sure
to connect this lead.
When you use a rear view camera, please
make sure to connect this lead. Otherwise you
cannot switch to rear view camera picture.
☞ See Page 15.
Yellow/black (GUIDE ON)
When combining this navigation system with
the other Pioneer audio unit for the vehicle, if
the vehicle stereo has yellow/black leads, con-
nect them to those leads. In this way, the vehicle
stereo is automatically muted to reduce the vehi-
cle stereo volume when;
–the guidance audio is output.
–the mobile phone is used via Bluetooth unit.
–you operate the system by voice.

13
Connecting the System
When connecting to separately sold power amp
The navigation unit
Front output
(FRONT OUTPUT)
Subwoofer output
or non-fading output
(SUBWOOFER OUTPUT or
NON-FADING OUTPUT)
Rear output
(REAR OUTPUT)
23 cm
Blue/white
15 cm
To system control terminal of the power amp
(max. 300 mA 12 V DC).
Do not connect this lead to Auto-aerial control
terminal.
15 cm
15 cm
RCA connector 1

14
English Español Deutsch Français Italiano Nederlands
Power amp
(sold separately)
Power amp
(sold separately)
Power amp
(sold separately)
+
≠
+
≠
+
≠
+
≠
+
≠
+
≠
System remote control
RCA cables
(sold separately)
Front speaker
Rear speaker
Subwoofer
Front speaker
Rear speaker
Subwoofer
Left Right
Perform these connections when using
the optional amplifier.
Note:
You can change the RCA output of the subwoofer depending on your subwoofer
system. (Refer to the Operation Manual.)

When connecting a rear view camera
When using this navigation system with a rear view camera, automatic switching to video
from a rear view camera is possible when the gearstick is moved to REVERSE (R) position.
Rear view mode also allows you to check what is behind you while driving.
USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE
MAY RESULT IN INJURY OR DAMAGE.
•The screen image may appear reversed.
•The rear view camera function is to use this navigation system as an aid to keep an eye on trailers,
or backing into a tight parking spot. Do not use this function for entertainment purposes.
•The object in rear view may appear closer or more distant than in reality.
•Please note that the edges of the rear view camera images may differ slightly according to whether
full screen images are displayed when backing, and whether the images are used for checking the
rear when the vehicle is moving forward.
15
Connecting the System
20 cm
Extension lead (for reverse signal)
5 m
Violet/white RCA connector 2
Power cord
Rear view
camera
RCA cable
(sold separately)
To video output
Connect to the rear view camera. Do not connect
to any other equipment.
Note:
The navigation unit
Fuse resistor
Brown
(REAR VIEW CAMERA IN)
Note:
It is necessary to set to “Camera
Input”in “System Settings”when
connecting the rear view camera. (For
details, see the Operation Manual.)
Be sure to use only the supplied extension lead.
Use of another lead could cause fire, smoke
and/or damage this navigation system.
About connection method
☞ See Page 11.

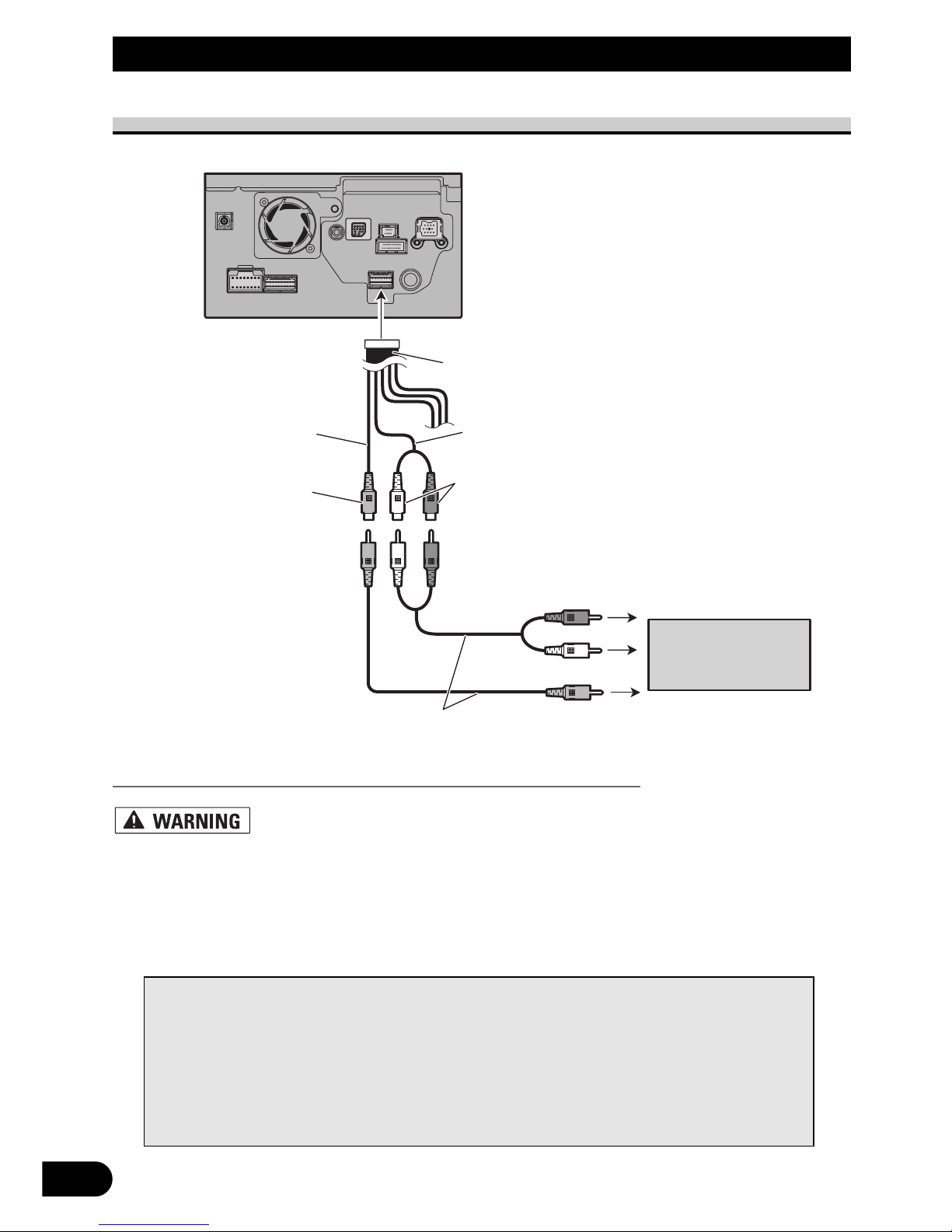

When connecting the external video component
•It is necessary to set “AV Input”in “System Settings”to “Video”when connecting the
external video component. (For details, refer to the Operation Manual.)
When connecting the external unit featuring video source
•It is necessary to set “AV Input”in “System Settings”to “EXT”when connecting the
external video component. (For details, refer to the Operation Manual.)
The navigation unit
RCA
RCA connector 1 cable
(sold separately)
To IP-BUS output
IP-BUS cable (sold separately)
Yellow
(VIDEO INPUT)
Pioneer external unit
(sold separately)
To video output
Black
Blue
20 cm
The navigation unit
RCA
RCA connector 1
cables
(sold separately)
To audio outputs
Yellow
(VIDEO INPUT)
Red, white
(AUDIO INPUT)
External
component
(sold separately)
video
To video output
20 cm
20 cm
16
English Español Deutsch Français Italiano Nederlands

17
Connecting the system
When connecting the rear display
When using a rear display connected to rear video output
NEVER install the rear display in a location that enables the driver to watch the
video source while driving.
This navigation system’s rear video output is for connection of a display to enable passen-
gers in the rear seats to watch the video source. You can switch the rear screen mode in
“AV Source Menu”. (For details, refer to the Operation Manual.)
Notes:
•The map screen navigation images output to the rear display differ from standard NTSC for-
mat images. Therefore, their quality will be inferior to the images that appear on the front dis-
play.
•The navigation system automatically switches the colour system (NTSC, PAL, SECAM) for
each video and outputs the video on the “Rear Display”. To correctly output each type of
video on the “Rear Display”, we recommend using a “Rear Display”with a function to auto-
matically switch the colour system (e.g. AVD-W1100V).
The navigation unit
RCAcables
(sold separately)
To audio inputs
RCA connector 2
15 cm
23 cm
Yellow
(REAR MONITOR OUTPUT) Red, white
(REAR MONITOR OUTPUT)
Rear display with
RCA input jacks
To video input

Installation
Pioneer does not recommend that you install or service your navigation system
yourself. Installing or servicing the navigation system may expose you to risk
of electric shock or other hazards. Refer all installation and servicing of your
navigation system to authorised Pioneer service personnel.
•Never install this navigation system in places where, or in a manner that:
* It could injure the driver or passengers if the vehicle stops suddenly.
* It may interfere with the driver’s operation of the vehicle, such as on the
floor in front of the driver’s seat, or close to the steering wheel or gear-
stick.
•Make sure there is nothing behind the dashboard or panelling when drilling
holes in them. Be careful not to damage fuel lines, brake lines, electronic
components, communication wires or power cables.
•When using screws, do not allow them to come into contact with any electri-
cal lead. Vibration may damage wires or insulation, leading to a short circuit
or other damage to the vehicle.
•To ensure proper installation, use the supplied parts in the manner specified.
If any parts other than the supplied ones are used, they may damage internal
parts of this navigation system or they may work loose and the navigation
system may become detached.
•It is extremely dangerous to allow the GPS aerial lead or microphone lead to
become wound around the steering column or gearstick. Be sure to install
this navigation system in such a way that it will not obstruct driving.
•Make sure that leads cannot get caught in a door or the sliding mechanism of
a seat, resulting in a short circuit.
•Please confirm the proper function of your vehicle’s other equipment follow-
ing installation of the navigation system.
•Certain government laws may prohibit or restrict the placement and use of
this system in your vehicle. Please comply with all applicable laws and regu-
lations regarding the use, installation and operation of your navigation sys-
tem.
•Do not install this navigation system where it may (i) obstruct the driver’s
vision, (ii) impair the performance of any of the vehicle’s operating systems
or safety features, including airbags, hazard lamp buttons or (iii) impair the
driver’s ability to safely operate the vehicle. 18
English Español Deutsch Français Italiano Nederlands

19
Installation
•Install this navigation system between the driver’s seat and front passenger
seat so that it will not be hit by the driver or passenger if the vehicle stops
quickly.
•Never install this navigation system in front of or next to the place in the
dash, door, or pillar from which one of your vehicle’s airbags would deploy.
Please refer to your vehicle’s Owner’s Manual for reference to the deploy-
ment area of the frontal airbags.
•Do not install this navigation system in a place where it will impair the per-
formance of any of the vehicle’s operating systems, including airbags and
headrests.
To guard against electromagnetic interference
•In order to prevent interference, set the following items as far as possible from this navi-
gation system, other cables or leads:
- TV aerial and aerial lead
- FM, MW/LW aerial and its lead
- GPS aerial and its lead
In addition you should lay or route each aerial lead as far as possible from other aerial
leads.
Do not bind them together, lay or route them together, or cross them.
Such electromagnetic noise will increase the potential for errors in the location display.
Before installing
•Consult with your nearest dealer if installation requires the drilling of holes or other mod-
ifications of the vehicle.
•Before making a final installation of this navigation system, temporarily connect the
wiring to confirm that the connections are correct and the system works properly.
•Do not install this navigation system in a position where the opening of the LCD panel is
obstructed by any obstacles, such as the shift lever. Before installing this navigation sys-
tem, be sure to leave sufficient space so that the LCD panel does not obstruct the shift
lever when it is fully opened. This may cause interference with the shift lever, or a mal-
function of the mechanism of this navigation system.
