Pioneer AVIC-Z1000DAB User manual

English
Be sure to read Important Information for the User first!
Important Information for the User includes the important information that you
must understand before using this product.
AVIC-Z1000DAB
NAVIGATION AV SYSTEM
Operation Manual

- 2 -
English
Important
■Precaution ................................................................................... 4
■Parts and controls....................................................................... 5
■Basic operation ........................................................................... 6
■Navigation................................................................................. 13
■Bluetooth®................................................................................. 59
■Wi-Fi® ......................................................................................... 68
■AV source ................................................................................... 70
■Setup for iPhone or smartphone............................................. 73
■Digital Radio.............................................................................. 75
■Radio.......................................................................................... 79
■Compressed files....................................................................... 82
■iPhone........................................................................................ 88
■WebLink™ .................................................................................. 92
■Apple CarPlay............................................................................ 95
■Android Auto™ .......................................................................... 98
■AUX .......................................................................................... 102
■AV input ................................................................................... 104
■Wireless Mirroring .................................................................. 106
■Settings.................................................................................... 108
Contents
Thank you for buying this Pioneer product.
Please read through these instructions so you will know how to operate your model
properly. After you have finished reading the instructions, keep this document in a safe
place for future reference.
The screen shown in the examples may differ from actual screens, which may be
changed without notice for performance and function improvements.

English
- 3 -
Displaying the setting screen ................................................................................................................... 108
System settings.............................................................................................................................................. 108
Theme settings............................................................................................................................................... 117
Audio settings ................................................................................................................................................ 120
Video settings................................................................................................................................................. 124
■Favourite menu....................................................................... 125
■Other functions....................................................................... 126
■Appendix ................................................................................. 130

- 4 -
English
•If the battery is disconnected or discharged, the memory will be erased and must be
reprogrammed.
•The information will be erased by disconnecting the yellow lead from the battery (or
removing the battery itself).
•Some of the settings and recorded contents will not be reset.
•This manual uses diagrams of actual screens to describe operations. However, the
screens on some units may not match those shown in this manual depending on the
model used.
•The screens in this manual are shown in English as an example.
•When an iPhone is connected to the unit, the source name on the unit appears as
[iPod]. Please note that this unit only supports iPhone regardless of the source name.
For details of iPhone compatibility, refer to Compatible iPhone models (page 73).
Precaution
Notes on internal memory
About this manual
Meanings of symbols used in this manual
This indicates to touch the appropriate soft key on the touch screen.
This indicates to touch and hold the appropriate soft key on the touch screen.

English
- 5 -
Parts and controls

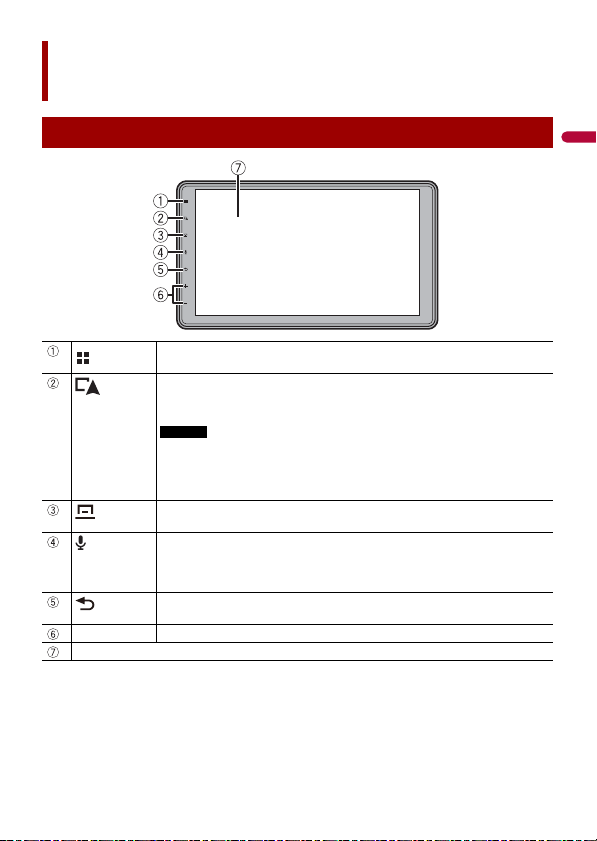

Main unit
Touch to display the top menu screen.
Touch and hold to power off. To power back on, touch any button.
Touch to switch between the Application screen and the Application screen/
AV operation screen and the Map screen.
Touch and hold to switch to the camera view mode.
NOTES
•You may not be able to go back from the map screen displayed on Apple
CarPlay/Android Auto to the AV operation screen.
•To activate the camera view mode with this button, set [Back Camera Input]
to [On] or [AV Input] to [Camera] (page 109).
Touch to display the menu bar (page 9).
Touch and hold to mute or unmute.
Touch to activate the voice recognition mode with a connected iPhone or
smartphone.
Touch and hold to display the connectable device list screen or device search
screen.
Touch to display the top menu screen or back to previous screen.
Touch and hold to turn off the display.
VOL (+/-) Touch to adjust the volume.
LCD screen

- 6 -
English
The remote control CD-R33 is sold separately. For details concerning operations, see the
remote control manual.
1Start the engine to boot up the system.
The [Select Program Language] screen appears.
NOTES
•From the second time on, the screen shown will differ depending on the previous conditions.
•From the second time on, enter the password for the anti-theft function if the password entry
screen appears.
2Touch the language.
3Touch .
The [Speaker Mode Settings] screen appears.
4Touch the speaker modes.
[Standard Mode]
4-speaker system with front and rear speakers, or a 6-speaker system with front and
rear speakers and subwoofers.
[Network Mode]
3-way system with a high range speaker, middle range speaker and subwoofer (low
range speaker) for reproduction of high, middle and low frequencies (bands).
WARNING
Do not use the unit in Standard Mode when a speaker system for 3-way Network Mode is
connected to the unit. This may cause damage to the speakers.
5Touch [OK].
The [DAB ANTENNA POWER SETTING] screen appears.
6Touch [Yes] then [OK] to use the DAB aerial power (page 78).
Initial Legal Disclaimer screen appears.
7Touch [OK].
The top menu screen appears.
Basic operation
Remote control
Starting up the unit

English
- 7 -
NOTE
Once the speaker mode is set, the setting cannot be changed unless this product is restored to the
default settings. Restore the default settings to change the speaker mode setting (page 129).
To change the speaker mode, you need to restore this product to the default settings.
1Restore the default setting (page 112).
When you use the navigation function for the first time, an initial setup process starts
automatically. Follow the steps below.
TIP
You can change the language later using [Regional] in the [Settings] screen. Other settings can be
restarted later using [Start Configuration Wizard] in the [Settings] screen.
1Touch .
2Touch .
3Touch the language that you want to use on the navigation screen, then touch
[Select].
4Read the terms carefully, check the details, and then touch [Accept] if you agree
to the conditions.
5Touch [Next].
6Touch the language that you want to use for voice guidance messages, then
touch [Next].
7If needed, modify the unit settings, then touch [Next].
8If needed, modify the default route planning options, then touch [Next].
Switching the speaker mode
Starting up the navigation system

- 8 -
English
9Touch [Finish].
You can operate this product by touching the keys on the screen directly with your
fingers.
NOTE
To protect the LCD screen from damage, be sure to touch the screen only with your finger gently.
: Returns to the previous screen.
: Close the screen.
Using the touch panel
Common touch panel keys
Operating list screens
Touching an item on the list allows you to narrow down the options and
proceed to the next operation.
Appears when all characters are not displayed on the display area.
If you touch the key, the rests are scrolled for display.
NOTE
This function is available only when you stop your vehicle in a safe place and apply
the handbrake.
Appears when items cannot be displayed on a single page.
Drag the side bar, the initial search bar or the list to view any hidden items.

English
- 9 -
1Touch .
The menu bar pops up on the screen.
NOTE
The menu bar availability may vary depending on the activating source.
1Touch .
Operating the time bar
You can change the playback point by dragging the key.
The playback time corresponding to the position of the key is displayed while
dragging the key.
Operating the menu bar
Switches the dimmer duration by day or night.
Switches between playback and pause.
Skips files forwards or backwards.
Performs fast reverse or fast forwards.
Displays setting menu screen (page 108).
Closes the menu bar.
Switching the operation panel

- 10 -
English
The hidden function keys appear.
NOTE
This key does not appear for some AV sources.
Operating the on-screen keyboard
Displays the characters that are entered.
Moves the cursor to the right or left for a number of characters equivalent to the
number of touches.
Enters the characters in the text box.
Deletes the input text to the left of the cursor one letter at a time.
Touching and holding the key deletes the letters to the left of the cursor in rapid
succession.
Confirms the entry and proceeds to the next step.
Enters a space.
Switches between alphabet and numbers/symbols.
Switches between capital and lower case letters.

English
- 11 -
Top menu screen
Favourite source icons
TIP
If you select [Power OFF], you can turn off almost all functions. The [Power OFF]
mode is released in the following cases.
– An incoming call is received (only for hands-free phoning via Bluetooth).
– A rear view camera image is input when the vehicle is in reverse.
– A button on this unit is touched.
– The ignition switch is turned off (ACC OFF), then turned on (ACC ON).
AV/Device source operation key.
Displays the current source.
TIP
When the last source is displayed behind the key, you can switch the source by
touching the key.
Setting the time and date (page 126)
Settings (page 108) and Favourite menu (page 125)

- 12 -
English

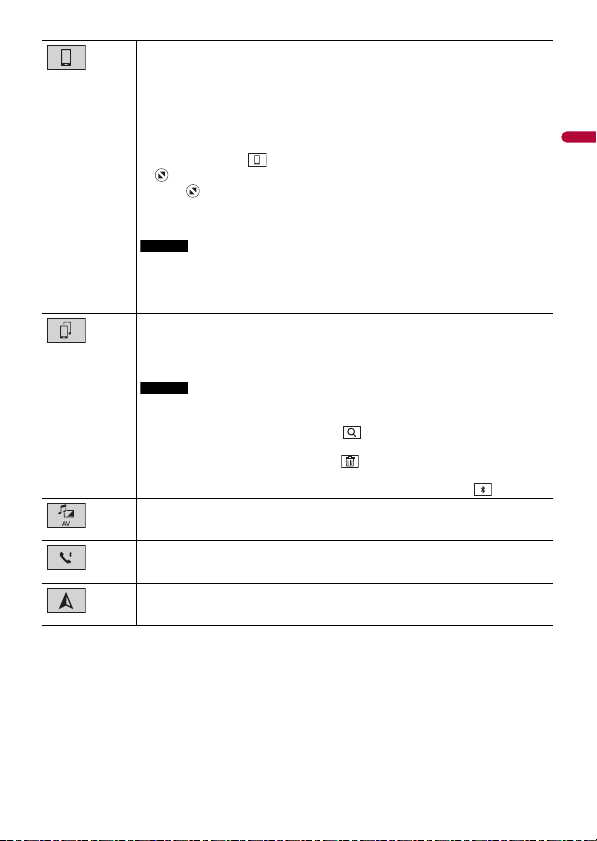

Mode switching key
Switches the source or application with connected devices such as WebLink, Apple
CarPlay, Android Auto.
TIP
When a device with a compatible application is connected, the favourite
application key appears. Once the key appears, you can adjust the range of the
favourite application key area with the following steps.
1Touch and hold .
appears at the top right of the favourite application key.
2Drag to the desired position.
To finish the adjusting, touch any place of the display except for the
favourite application key.
NOTES
•If there is no connected device, a message that prompts you to search the
Bluetooth device will appear. Touch [Yes] to search the device.
•This function is available only when you stop your vehicle in a safe place and
apply the handbrake or the vehicle is completely stopped.
Device switching key
Displays connected device.
Touch the device name to switch the mobile device to be connected with the
source or application.
NOTES
•If there is no connected device, a message that prompts you to search the
Bluetooth device will appear. Touch [Yes] to search the device.
•You can search the device by touching if you cannot find the device you
want to connect.
•You can delete the device by touching if you cannot add the device because
the number of registered devices are full.
•You can connect or disconnect the Bluetooth device by touching .
AV source (page 70)
Hands-free phoning (page 60)
Displays the map screen.

English
- 13 -
1Touch .
2Touch .
The main menu screen appears.

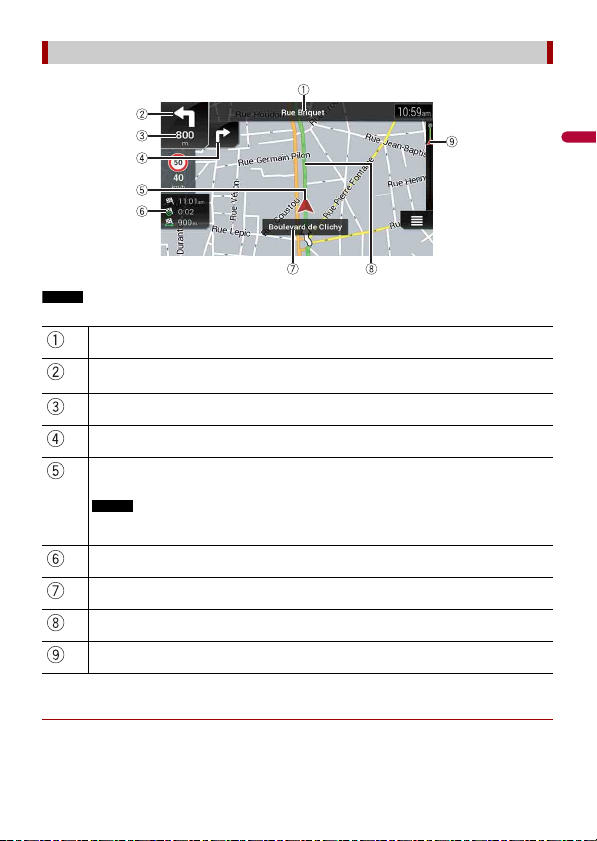

Main screen
Navigation
Menu screen view and operations
Returns to the map screen.
Notifications that contain important information.
Displays the previous or next page of the navigation menu.
The locations that you saved as favourites.
Switches between 2D, 3D, and 2D North up view modes.
The [User Profiles] screen where you can create new profiles or edit the
existing profiles. If multiple drivers are using this product, they can create
their own profiles with their own settings. If you select a new profile, this
product restarts so that the new settings can take effect.

- 14 -
English
Most of the information provided by your navigation system can be seen on the map.
You need to become familiar with how information appears on the map.
Navigation items
Searches for a destination using various methods (page 20).
Builds your route or edits the route currently set (page 29).
Displays the traffic screen (page 38).
Displays the list of the destinations or waypoints that a camper van is
available for (page 26).
•This function may not be able to be available on some models.
Displays useful information to support your driving (page 41).
Configures the navigation-related settings (page 46).
Displays information about your navigation system (e.g. the version
information or licence).
Main menu screen icons with a planned route (only appear when a route
is planned)
Adds a waypoint (page 31).
Displays route alternatives, parts of the route to avoid, or specific
roads in your planned route to avoid.
Displays the route in its full length on the map, and displays route
parameters and route alternatives.
Deletes your route or removes a waypoint.
Suspends and resumes the route guidance.
Map Screen

English
- 15 -
NOTE
Depending on the conditions and settings, some items may not be displayed.
* The information appears only when a route is set.

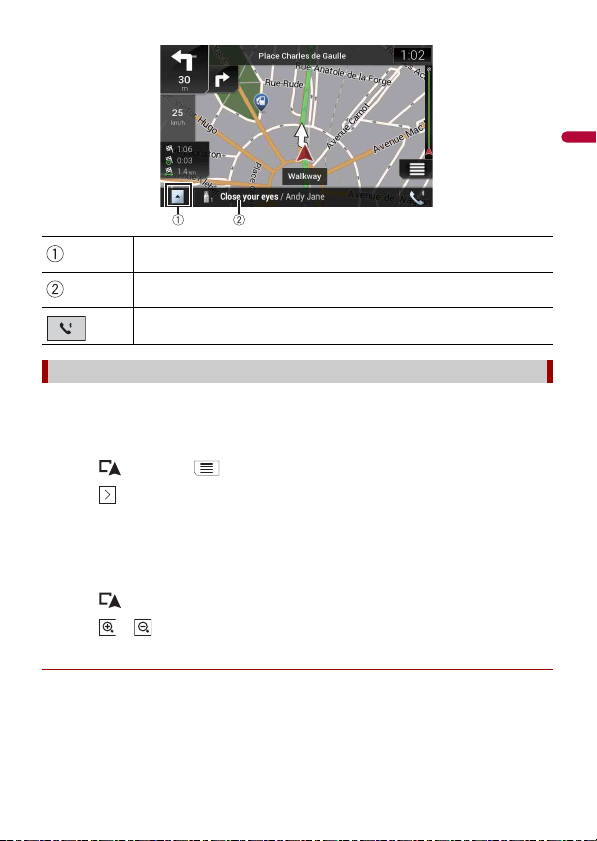

▶AV information bar
AV information is displayed at the bottom of the map screen.
How to read the map screen
*Shows the number and name of the street to be used (or next guidance point).
*Shows the next guidance point (manoeuvre). The type of the event (turn, roundabout,
exiting motorway, etc.) is displayed (page 18).
*Shows the distance to the next guidance point (manoeuvre).
*Shows the manoeuvre after the next manoeuvre.
Indicates the current location of your vehicle. The apex of the triangular mark
indicates your orientation and the display moves automatically as you drive.
NOTE
When there is no GPS position, the triangular mark is transparent. It shows your last known
position.
Displays the data field.
Shows the name of the street (or city) that your vehicle is travelling on (or in).
*Indicates the current route. The route currently set is highlighted in colour on the map.
*Indicates the progress to the final destination.

- 16 -
English
By default, even if the map scale is changed on the scrolled map, it will return to the
preset scale (according to the setting in [Viewpoint] of the [Navigation Map] settings)
when the current position map is displayed. To change the scale of the current position
map, perform the following procedure.
1Touch then touch .
2Touch then [Settings].
3Touch [Navigation Map] then [Map Display].
4Touch [Viewpoint].
5Drag the pop-up window and touch [Manual].
6Touch .
7Touch or .
▶Smart Zoom
Your navigation system features "Smart Zoom" that works in two ways.
•When the route is set:
When approaching a turn, "Smart Zoom" will zoom in and raise the view angle to
enable you to easily recognise your manoeuvre at the next junction. If the next turn is
Touch to display the AV source list.
Shows the current status of AV source briefly.
Touch to display the phone menu screen (page 60).
Changing the scale or the map manually

English
- 17 -
at a distance, it will zoom out and lower the view angle to be flat so you can see the
road in front of you.
•When the route is not set:
"Smart Zoom" will zoom in if you drive slowly and zoom out when you drive at high
speed.
You can switch how the map is displayed. For 2D map view mode, you can select
between “Heading up” and “North up”.
1Touch .
2Touch .
3Touch the following key.
Each time you touch the key, the setting changes.
1Touch .
2Touch anywhere on the map or touch and drag the map in the desired direction to
scroll.
If you place the cursor on the desired location, a brief overview about the location will
appear at the top of the screen, showing the street name and other information for
the location.
Switching between 2D, 3D, and 2D North up views
Heading up The map display always shows the vehicle’s direction as proceeding towards
the top of the screen.
North up The map display always has north at the top of the screen.
NOTE
The map orientation is fixed at “Heading up” when the 3D map screen is displayed.
Indicates 2D Heading up view mode is currently selected.
Indicates 3D Heading up view mode is currently selected.
NOTE
There is a limit to map scaling in 3D map view mode. If the map scale is zoomed
out further, the map is zoomed out in 2D map.
Indicates 2D North up view mode is currently selected.
Scrolling the map to the position you want to see

- 18 -
English
3Touch .
The map returns to the current position.
TIP
If you touch , the map returns to the current position.
▶Control keys on the scrolled map
Map screen (scrolled map)
Once the route guidance begins, the system provides various guides by voice, text
indications and signs.
▶Frequently shown route events
The following are some examples of the manoeuvre that are displayed.
Changes the map view mode.
The current map mode is shown on the control key.
Zooms in or out on the map.
You can also zoom out or in by pinching or expanding the map.
Rotates the map clockwise or anticlockwise.
Cancels map rotation.
Tilts the map angle up or down.
You can change the vertical view angle of the map in 3D mode only.
Route guidance
Turn left, turn right, turn back.
Go left on the roundabout, 3rd exit (next manoeuvre).

English
- 19 -
NOTE
If the data for these items is not contained in the map data, the information is not available even if
there are signs on the actual road.
TIP
When you set [Offer Freeway Services] to on, appears while you are driving on motorways. Touch
the icon to open the details of the next few exits or service stations. In addition, touch an item to show
its location on the map. You can set it as a waypoint easily.
The data fields are different when you are navigating a route and when you have no
specified destination. For example, the data field provides the following information.
Enter roundabout (manoeuvre after the next manoeuvre).
Motorway entrance or motorway exit.
Board ferry or leave ferry.
Approaching the destination or a waypoint.
Lane information
When navigating on multilane roads, you will need to make sure to
take the proper lane for the recommended route.
Signposts
Signs are displayed at the top of the map.
Junction view
If you are approaching a complex junction, the map is replaced
with a 3D view of the junction.
Browsing the data field

- 20 -
English
•When the route is set:
Distance to final destination, time needed to reach the final destination and estimated
arrival time are shown.
•When the route is not set:
Direction or altitude is shown.
NOTES
•Touching and holding the field allows you to display the setting screen for the field. For details, refer
to page 53.
•The estimated time of arrival is an ideal value calculated based on the speed limit value set in [Max.
Speed] of vehicle type setting and the actual driving speed. The estimated time of arrival is only a
reference value, and does not guarantee arrival at that time. For details, refer to page 46.
Search for a destination or waypoint using the address or another method.
You can also set a destination by touching the map on the screen.
Once the destination is set, the system can start the navigation by touching [Start
Navigation] (page 28).
CAUTION
For safety reasons, these route-setting functions are not available while your vehicle is in motion. To
enable these functions, you must stop in a safe place and put on the handbrake.
Searching for a destination
