Pioneer AVH-P6450CD User manual

English Español Português (B)
Operation Manual
AV Receiver / CD Player with 6.5 inch Wide Display
AVH-P6450CD
AV Receiver with 6.5 inch Wide Display
AVH-P6450

Before You Start
IMPORTANT SAFEGUARDS 5
About this manual 5
To ensure safe driving 6
• When Using a Display connected to
Rear Video Output 6
Precautions 6
CD playback (Only AVH-P6450CD) 6
To avoid battery exhaustion 7
To protect the LCD screen of the display 7
When viewing is difficult, use BRIGHT and
DIMMER to adjust 7
Remote control and care 7
•Battery 8
Protecting your unit from theft 8
•Removing the operation panel 8
•Attaching the operation panel 9
Resetting the Microprocessor 9
What’s what 11
Remote control 12
Power ON/OFF
Turning the unit on 13
Closing the Display 13
Screen Angle Adjustment 13
Selecting a source 14
Turning the unit off 14
Common Operations
Source display 15
Displays menus (e.g., Tuner) 15
Display
Changing the wide mode 16
Video Adjust 17
DIMMER Settings 18
Tuner
Listening to the radio 19
Introduction of advanced tuner
operation 20
Storing broadcast frequencies 20
Tuning in strong signals 21
Storing the strongest broadcast
frequencies 21
Built-in CD Player
Playing a CD (Only AVH-P6450CD) 22
Introduction of advanced built-in CD player
operation (Only AVH-P6450CD) 23
Repeating play 23
Playing tracks in a random order 23
Scanning tracks of a CD 24
Playing back from the track list 24
Pausing CD playback 24
Using disc title functions 24
•Entering disc titles 25
•Displaying titles on CD TEXT discs 25
Multi-CD Player
Playing a CD 26
50-disc multi-CD player 26
Introduction of advanced multi-CD player
operation 27
Repeating play 27
Playing tracks in a random order 28
Scanning CDs and tracks 28
Playing back from the track list 28
Pausing CD playback 29
Using compression and bass emphasis 29
Using ITS playlists 29
•Creating a playlist with ITS
programming 29
•Erasing a track from your ITS
playlist 30
•Playback from your ITS playlist 30
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to oper-
ate your model properly. After you have finished reading the instructions, put them
away in a safe place for future reference.
Contents
En
2
00
Section

•Erasing a CD from your ITS playlist 31
Using disc title functions 31
•Entering disc titles 31
•Displaying disc titles 32
Using CD TEXT functions 32
•Displaying titles on CD TEXT discs 32
TV Tuner
Display and indicators 33
Basic operation 33
Storing broadcast stations 33
Recalling broadcast stations 34
Changing a band 34
TV menu 34
BSSM (Best Station Sequential Memory) 34
Selecting the country group 35
Selecting channels from the
preset channel list 35
DVD
Display and indicators 35
Introduction of advanced DVD player
operation 36
About Remote Control Operation mode
switch 37
Information indications are displayed 37
Disc Playback 38
Chapter and Track Advance/Return 38
Returning to the Previous Chapter/Track 38
Specifying Title/Chapter/Track (Direct
Search) 39
•Specifying Title 39
•Specifying Chapter 39
•Specifying Track 39
Disc Fast Forward/Reverse 40
•Fast Forward 40
•Fast Reverse 40
Stopping Playback 41
Still, Frame-by-Frame and Slow Motion
Playback 41
•Still Playback 41
•Frame-by-Frame Playback 41
•Slow Motion Playback 41
Operating using Information Display 1 42
•Specifying time 42
•Switching audio, subtitle and angle 43
Operating with Information Display 2 43
•Switching Repeat play range 43
•Switching audio L/R 43
Audio Adjustments
Introduction of audio adjustments 44
Setting the sound focus equalizer 45
Using balance adjustment 45
Using the equalizer 46
•Recalling equalizer curves 46
•Adjusting equalizer curves 46
Adjusting bass 47
Adjusting treble 47
Adjusting loudness 48
Using subwoofer output 48
Using non fading output 48
Using the high pass filter 49
Adjusting source levels 49
Initial Settings
Adjusting initial settings 50
Setting the FM tuning step 50
Setting the AM tuning step 50
Switching the warning tone 51
Switching the auxiliary setting 51
Setting the rear output and
subwoofer controller 51
Switching the Telephone
Muting/Attenuation 52
Contents
En 3
English Español Deutsch Français Italiano Nederlands
00
Section

Other Functions
Setting remote control code type 52
Using different entertainment audio
displays 52
Using the AUX source 53
•Selecting AUX as the source 53
•Setting the AUX title 53
Introduction of set up 54
Selecting the video 54
Setting the automatic open mode 55
Setting the time 55
Additional Information
CD player and care (Only AVH-P6450CD) 56
CD-R/CD-RW discs 56
Understanding built-in CD player error
messages (Only AVH-P6450CD) 57
Using the Display Correctly 57
•Handling the Display 57
•About the Liquid Crystal Display (LCD)
Screen 58
•Keeping the Display in Good
Condition 58
•About the Small Fluorescent Tube 58
Specifications 59
Contents
En
4
00
Section

Before You Start
En 5
IMPORTANT SAFEGUARDS
Please read all of these instructions regarding
your display and retain them for future refer-
ence
1 Read this manual fully and carefully
before operating your display.
2 Keep this manual handy for future refer-
ence.
3 Pay close attention to all warnings in this
manual and follow the instructions carefully.
4 Do not allow other persons to use this
system until they have read and understood
the operating instructions.
5 Do not install the display where it may (i)
obstruct the driver’s vision, (ii) impair the
performance of any of the vehicle’s operating
systems or safety features, including air bags,
or (iii) impair the driver’s ability to safely
operate the vehicle.
6 As with any accessory in your vehicle’s
interior, the display should not divert your
attention from the safe operation of your vehi-
cle. If you experience difficulty in operating
the system or reading the display, please park
safely before making adjustments.
7 Do not attempt to install or service your
display by yourself. Installation or servicing
of the display by persons without training and
experience in electronic equipment and auto-
motive accessories may be dangerous and
could expose you to the risk of electric shock
or other hazards.
8 Please remember to wear your seat belt at
all times while operating your vehicle. If you
are ever in an accident, your injuries can be
considerably more severe if your seat belt is
not properly buckled.
About this manual
This unit features a number of sophisticated
functions ensuring superior reception and oper-
ation. All the functions have been designed for
the easiest possible use, but many are not self-
explanatory. This operation manual will help you
benefit fully from this product’s potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin using
this product. It is especially important that you
read and observe precautions on this page and
in other sections.
This manual explains head unit operation. You
can perform the same operations with the
remote control.
English Español Deutsch Français Italiano Nederlands
01
Section

Before You Start
En
6
01
Section
To ensure safe driving
WARNING
•To avoid the risk of accident and the potential
violation of applicable laws, this product is
not for use with a video screen that is visible
to the driver.
•In some countries or states the viewing of
images on a display inside a vehicle even by
persons other than the driver may be illegal.
Where such regulations apply, they must be
obeyed.

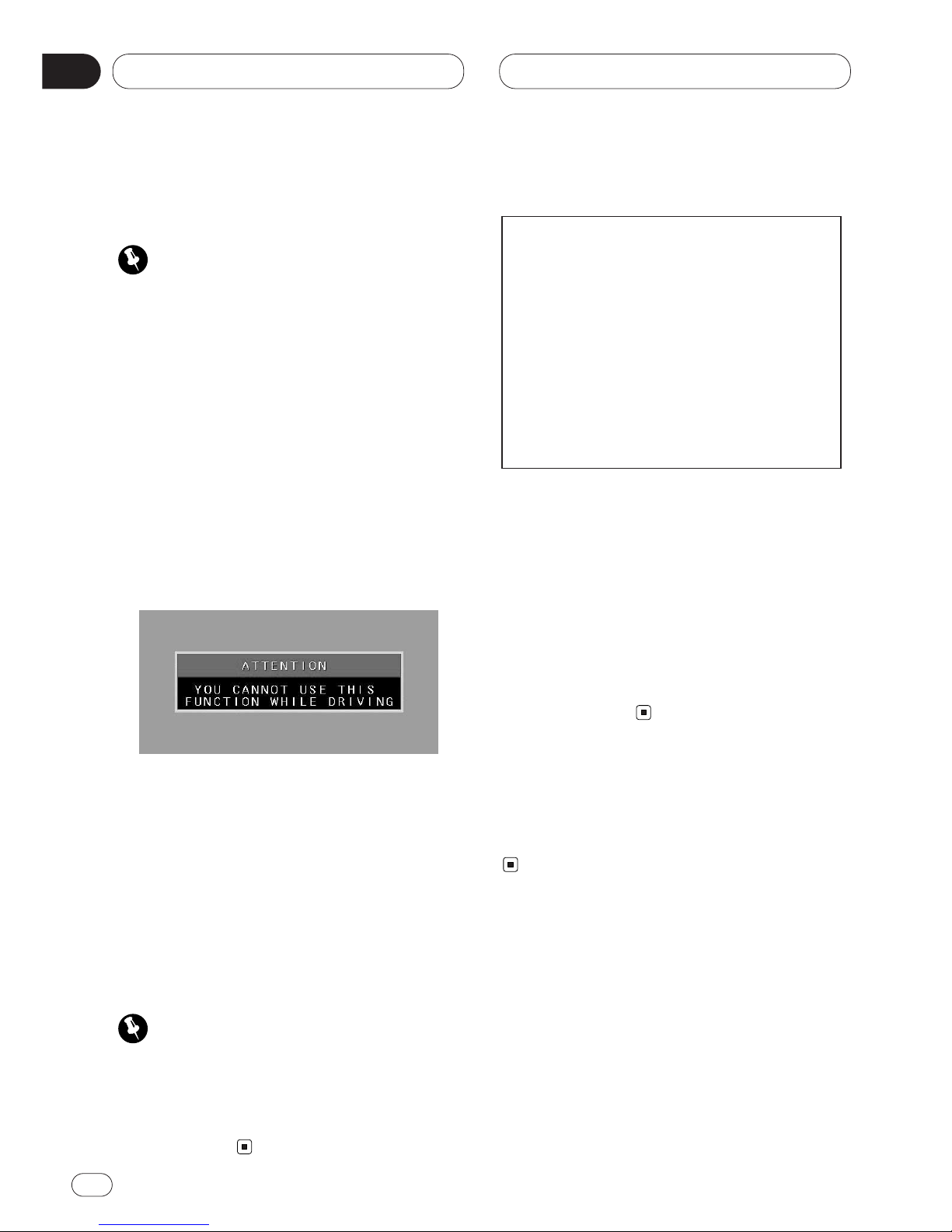

To ensure safe vehicle operation, do not operate
this product during driving. If you try to view
pictures from a TV-tuner and, DVD-Video disc or
other sources etc. on the front display while the
parking brake is not engaged, this warning will
appear:
When you park your car in a safe place and
apply the parking brake, the picture appears on
the screen.
When Using a Display connected to
Rear Video Output
This product’s Rear video output is for connec-
tion of a display to enable passengers in the
Rear seats to watch the DVD, etc.
WARNING
•NEVER install the rear display connected to
this product’s rear video output in a location
that enables the Driver to watch the TV-tuner
and, DVD-Video disc or other sources etc.
while Driving.
Precautions
•Keep this manual handy as a reference for
operating procedures and precautions.
•Always keep the volume low enough so you
can hear sounds outside of the car.
•Protect this product from moisture.
•If the battery is disconnected or discharged,
the preset memory will be erased and must
be reprogrammed.
•If this unit does not operate properly, contact
your dealer or nearest authorized Pioneer
Service Station.
CD playback (Only AVH-P6450CD)
Music CD/CD-R/CD-RW playback is possible.
CAUTION: USE OF CONTROL OR
ADJUSTMENT OR PER-
FORMANCE OF PROCE-
DURES OTHER THAN
THOSE SPECIFIED
HEREIN MAY RESULT IN
HAZARDOUS RADIATION
EXPOSURE.
CAUTION: THE USE OF OPTICAL
INSTRUMENTS WITH
THIS PRODUCT WILL
INCREASE EYE HAZARD.

Before You Start
En 7
To avoid battery exhaustion
Always run the the vehicle engine while using
this unit. Using this unit without running the
engine can result in battery drainage.
To protect the LCD screen of the
display
•Do not allow direct sunlight to fall on the
Display when this unit is not being used.
Extended exposure to direct sunlight can
result in LCD screen malfunction due to the
resulting high temperatures.
•When using a portable phone, keep the
antenna of the portable phone away from the
Display to prevent disruption of the video by
the appearance of spots, colored stripes, etc.
When viewing is difficult, use
BRIGHT and DIMMER to adjust
Due to its construction, the view angle of the
LCD screen is limited. The viewing angle (verti-
cal and horizontal) can be increased, however,
by using BRIGHT to adjust the black density of
the video. When using for the first time, adjust
the black density in accordance with the view-
ing angle (vertical and horizontal) to adjust for
clear viewing.
DIMMER can also be used to adjust the bright-
ness of the LCD screen itself to suit your per-
sonal preference.
Remote control and care
This product is equipped with a remote control
for convenient operation.
•Point the control in the direction of the signal
reception on the color display to operate.
Notes
•Do not store the remote control in high tem-
peratures or direct sunlight.
•The remote control may not function properly
in direct sunlight.
•Do not let the remote control fall onto the
floor, where it may become jammed under the
brake or accelerator pedal.
English Español Deutsch Français Italiano Nederlands
01
Section

En
8
01
Section
Before You Start
Battery
Slide the tray out on the back of the remote

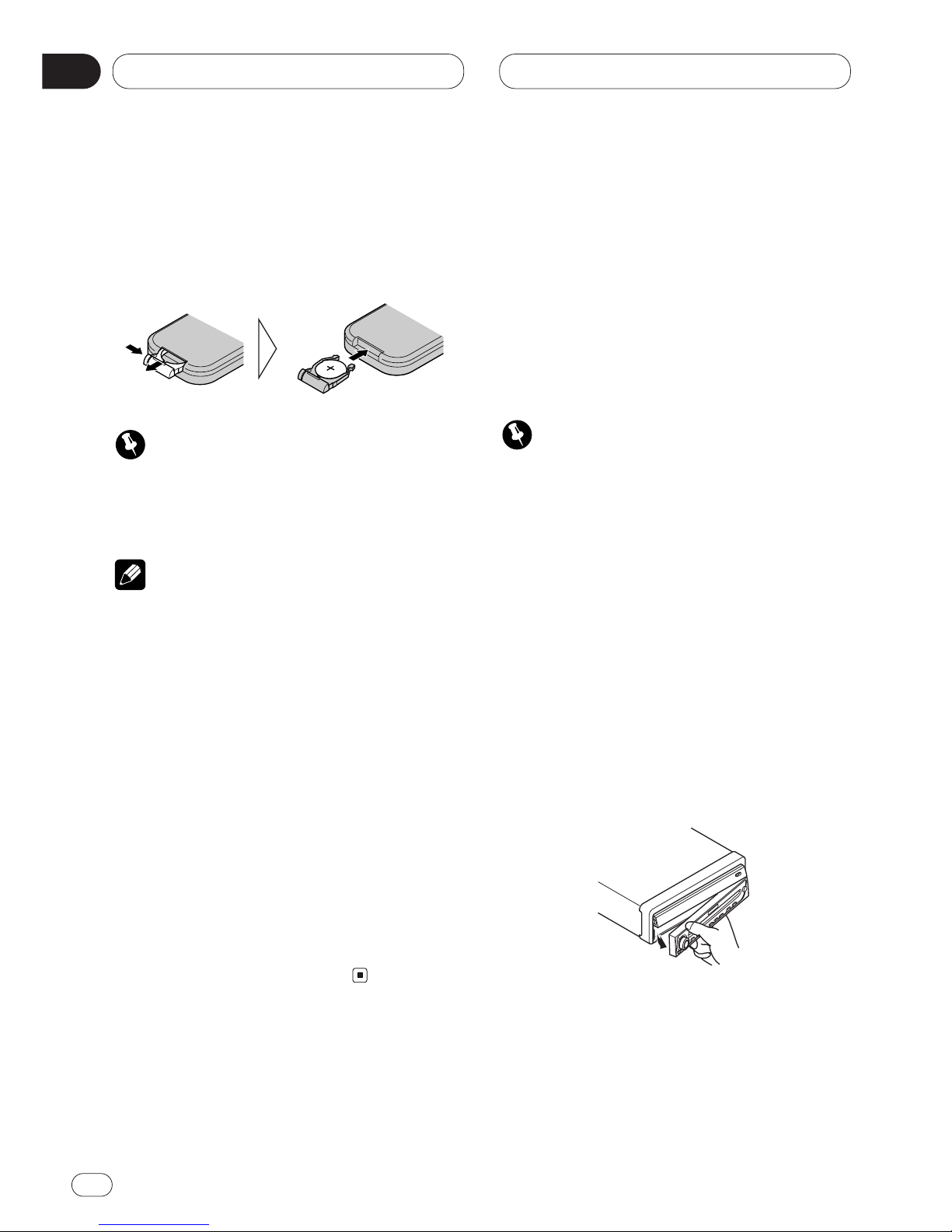

control and insert the battery with the (+) and
(–) poles pointing in the proper direction.
Important
•Keep the lithium battery out of reach of chil-
dren. Should the battery be swallowed, imme-
diately consult a doctor.
Notes
•When using for the first time, pull out the film
protruding from the tray.
•Do not recharge, disassemble, heat or dis-
pose of battery in a fire.
•Use a CR2025 (3 V) lithium battery only. Never
use other types of battery with this unit.
•Do not handle the battery with metallic tools.
•Do not store the lithium battery with metallic
materials.
•When disposing of used batteries, please
comply with governmental regulations or
environmental public institution’s rules that
apply in your country/area.
•Always check carefully that you are loading
the battery with its (+) and (–) poles facing in
the proper directions.
•Remove the battery if remote control is not to
be used for a month or longer.
Protecting your unit from theft
The operation panel can be detached from the
head unit and stored in the protective case pro-
vided to discourage theft.
•If the operation panel is not detached from the
head unit within five seconds of turning off
the ignition, a warning tone will sound.
•You can turn off the warning tone. See
Switching the warning tone on page 51.
Important
•Never use force or grip the display and the
buttons tightly when removing or attaching.
•Avoid subjecting the operation panel to exces-
sive shocks.
•Keep the operation panel out of direct sun-
light and high temperatures.
Removing the operation panel
1 Press DETACH to remove the operation
panel.
2 Grip the left side of the operation panel
and pull it gently outward.
Take care not to grip it tightly or drop it.
3 Put the operation panel into the protective
case provided for safe keeping.

Before You Start
En 9
Important
•Do not drive with the operation panel removed
and the display up as the angle of the display
may change resulting in scratching or dam-
age.
•Be careful of the magnetic part of this prod-
uct. Do not place magnetic products such as
credit cards, cassette tapes and watches near
it. Doing so may result in damage to those
products or the loss of information recorded
on them.

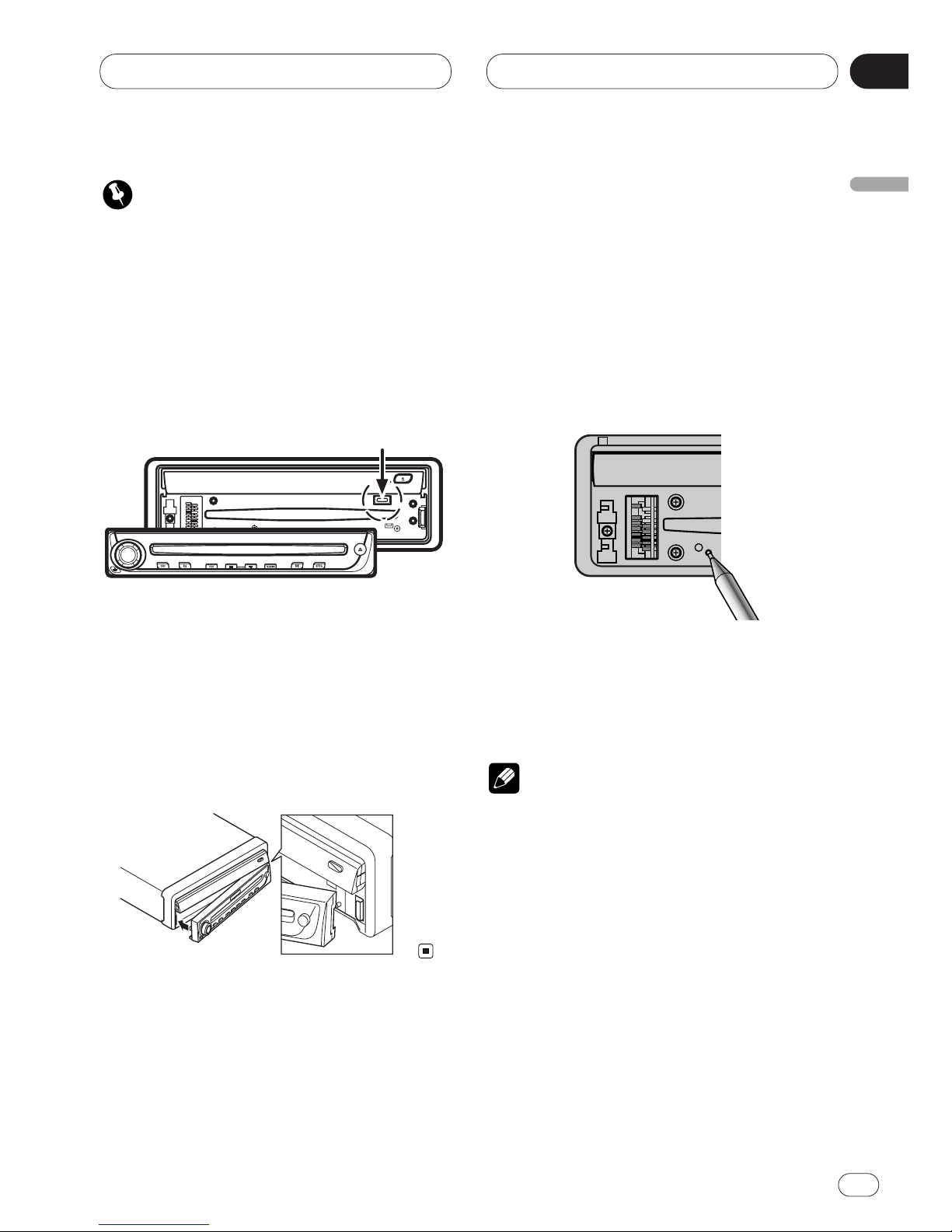

Attaching the operation panel
Replace the operation panel by holding it
upright to this unit and clipping it securely
into the mounting hooks.
Do not use this product when it is just hanging
on hooks.
Resetting the Microprocessor
When the ignition switch is turned OFF, press-
ing RESET lets you reset the microprocessor to
its initial settings without changing SET UP
MENU settings, Condition Memory and other
settings.
Press RESET in the following cases.
•When this unit fails to operate correctly.
•When strange (incorrect) messages appear
on the display.
1 Turn the ignition switch OFF.
2 Press RESET.
Use a pen tip or other pointed instrument.
Notes
•When using with a Pioneer Navigation
System, if you press RESET, be sure the ACC
OFF is selected. If ACC ON is selected, correct
operation may not be possible even if you
press RESET.
•After completing connections or when you
want to erase all memorized settings or return
the unit to its initial (factory) settings, switch
your engine ON or set the ignition switch to
ACC ON before pressing RESET.
English Español Deutsch Français Italiano Nederlands
01
Section

PAUSE ATT
2
5
7
9
1
3
4
6
0-=~!@# 8
PAUSE ATT
2
5
^
%
7
9
1
3
4
6
0-=~!@# 8
$
$
Before You Start
01
Section
AVH-P6450CD
AVH-P6450
En
10

Before You Start
En 11
English Español Deutsch Français Italiano Nederlands
01
Section
What’s what
1VOLUME
Rotate to increase or decrease the volume.
2OPEN/CLOSE button
Press to open or close the display panel.
3Ambient light sensor
Senses ambient light. This system automati-
cally adjusts the brightness of the display to
compensate for ambient light.
4DISPLAY button
Press to select different displays.
5ENTERTAIN button
Switches between still picture and video
entertainment displays.

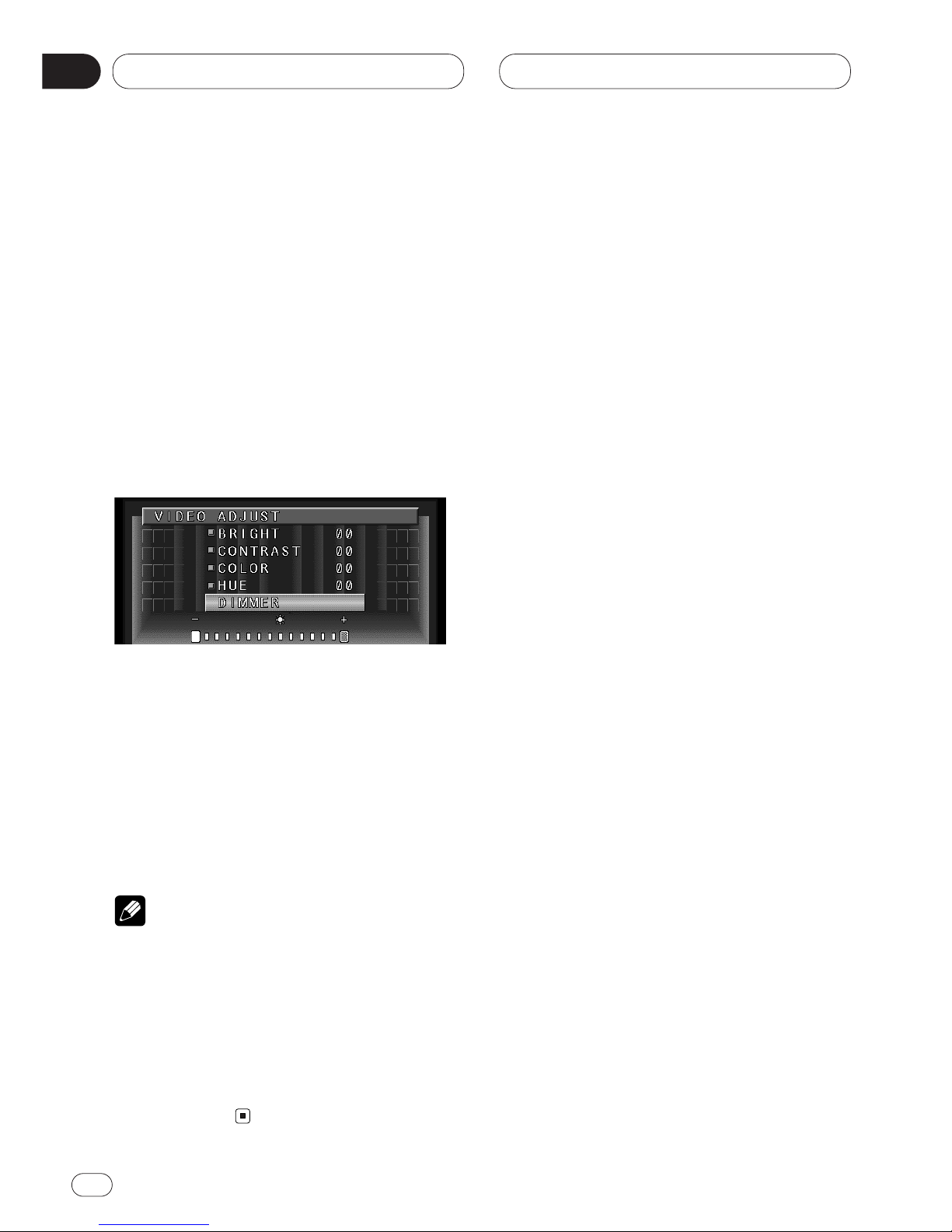

6WIDE/V.ADJ button
Change the method of enlarging 4:3 video to
16:9 video. Pressing this button for 2 sec-
onds, and displayed the Video adjustment.
Once the picture adjustment is displayed, its
adjustment is switched each time the button
is pressed.
Video adjustment cannot be done with the
remote control.
7AUDIO controller/ENTER button
Use to operate AUDIO MENU, select stations
etc.
8Remote control signal receiver
9SFEQ button
Press to select a natural sound with pres-
ence.
0BAND/ESC button
Press to select among three FM or AM bands
and cancel the control mode of functions.
-ATT button
Press to switch traffic announcements func-
tion on or off.
=ANGLE buttons
Adjust the screen to an easily viewable
angle.
~PAUSE button
Press to switch PAUSE function on or off.
!EQ button
Press to select various equalizer curves.
@SOURCE button
This unit is switched on by selecting a
source. Press to cycle through all of the
available sources.
#DETACH button
Detaches the operation panel.
$RESET button
Only AVH-P6450CD
%CD loading slot
Insert a CD.
^CD EJECT button
Press to eject a CD.
Notes
•Pressing WIDE on the head unit returns you to
the previous display.
•Cancel the MENU display with BAND/ESC.

En
12
01
Section
Before You Start

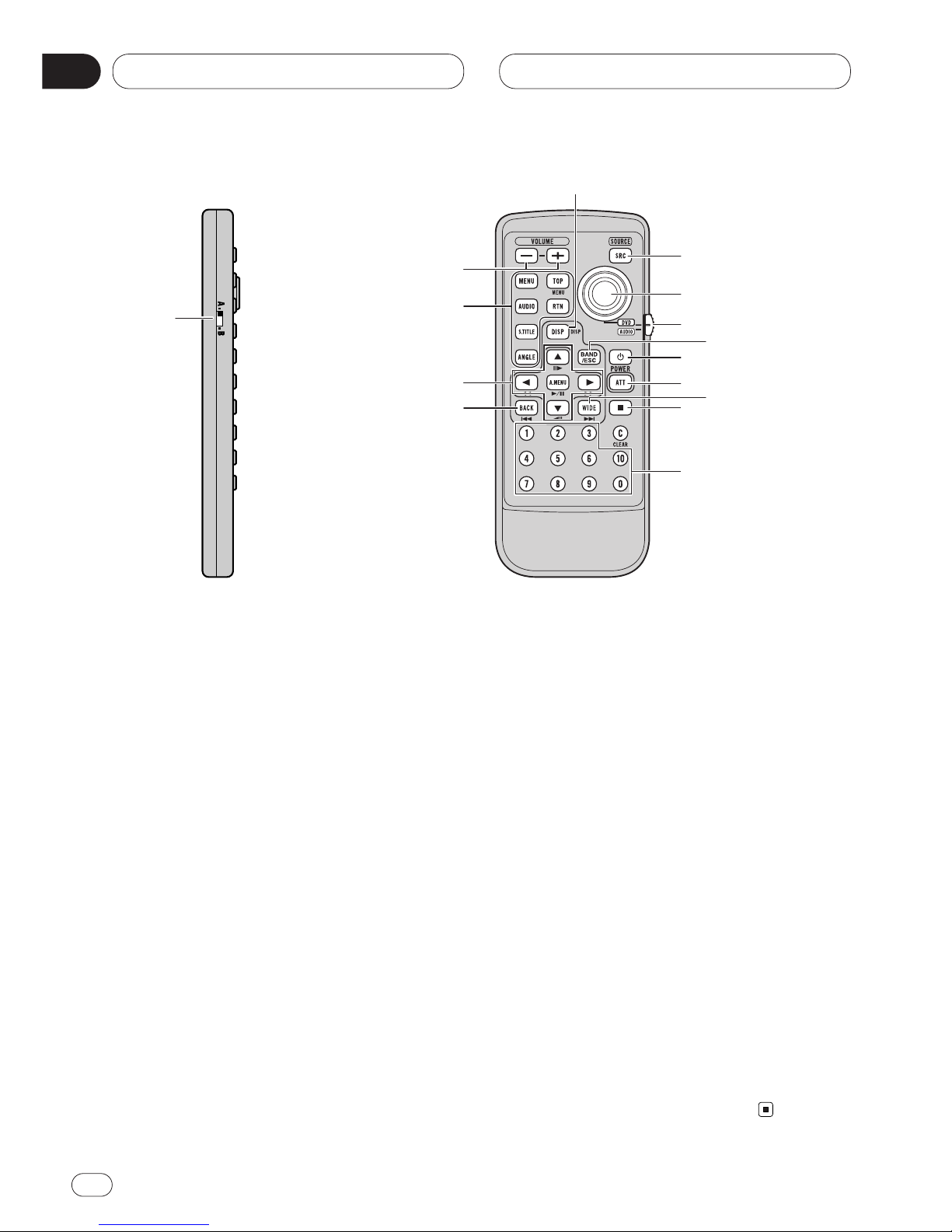

Remote control
&Volume control (–/+) buttons
Press to –or + the volume.
*Joystick
Use when using with a Pioneer DVD compo-
nent. If you set the switch to DVD, you can
perform some Pioneer DVD unit operations.
(Picture source switch
Press to cycle through all of the available
sources. Performs the same operation as @
on the head unit.
)Power button
Use when using with a Pioneer DVD compo-
nent.
_ATT button
Press to quickly lower the volume level, by
about 90%. Press once more to return to the
original volume level.
+STOP button
Use when using with a Pioneer DVD compo-
nent.
¡NUMBER button
Use when using with a Pioneer component
enabling DVD playback.
™BACK button
Returns you to the display before a MENU or
PICTURE ADJUST display.
£MENU, TOP, AUDIO, RTN, S.TITLE,
ANGLE buttons
Use when using with a Pioneer DVD compo-
nent.
¢Audio control buttons and DVD control
buttons
Use to operate AUDIO MENU, select stations
etc. Performs the same operation as 7on
the head unit.
Switch §to the DVD position, and use when
using with a Pioneer component that
enables DVD playback.
∞Remote control selection switch
Switch to change the setting of the remote
control. (Refer to page 50.)
§Remote control operation mode switch
Switch the operation mode between AUDIO
mode (sources can be operated by remote
control) or DVD mode (only DVD player can
be operated by remote control).
(
§
*
)
_
+
¡
™
¢
&
4
0
6
£
∞

En 13
English Español Deutsch Français Italiano Nederlands
02
Section

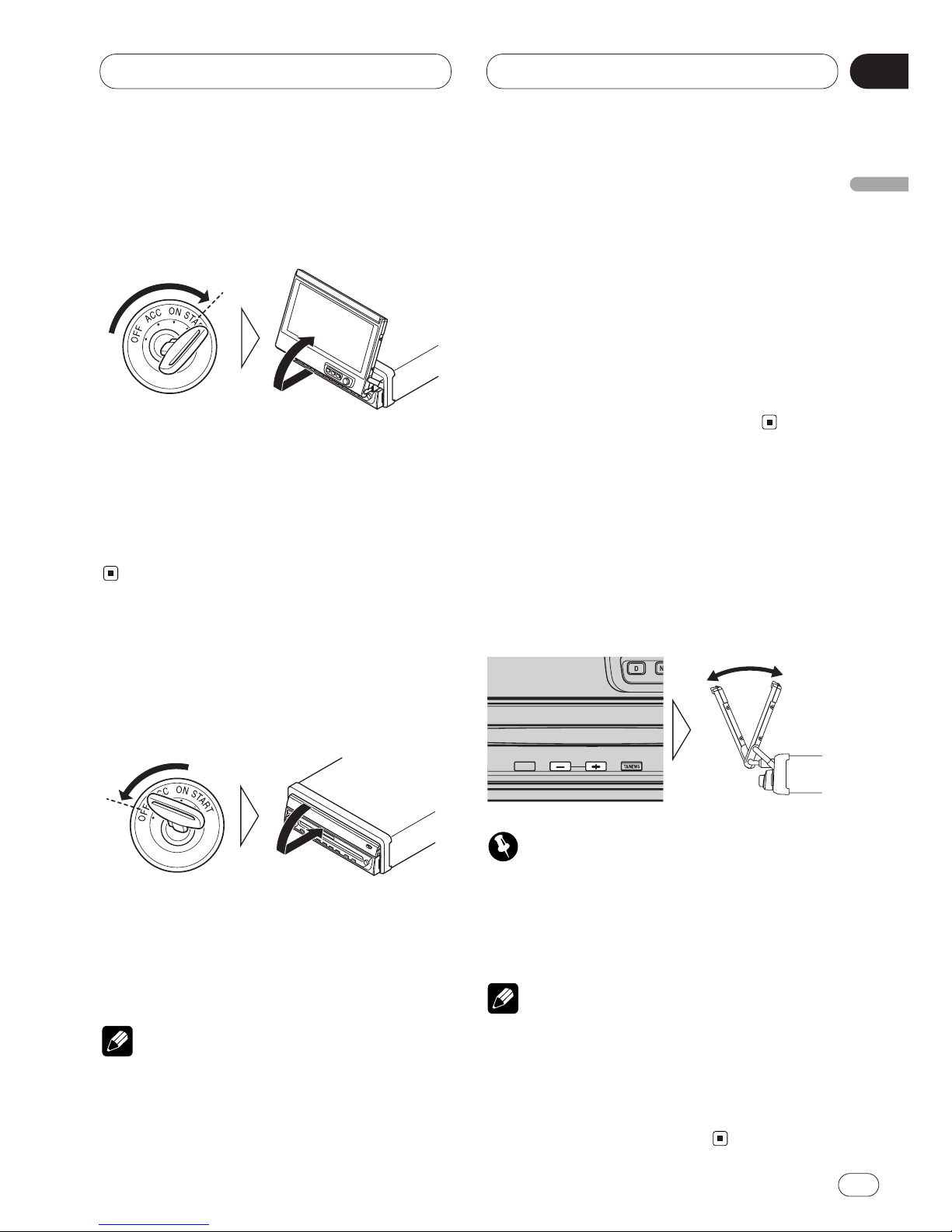

Turning the unit on
1 Turn your vehicle’s engine ON.
The display will be automatically deployed by
the automatic close/open mode.
If the display is not automatically deployed,
press OPEN/CLOSE.
2 Press SOURCE to select the tuner.
Press SOURCE until you see Tuner displayed.
Closing the Display
Turn the vehicle’s engine OFF.
The display will be automatically closed by the
automatic close/open mode. If the display does
not close automatically, turn the ignition switch
ON again (or turning it to ACC) and press
OPEN/CLOSE.
Notes
•The automatic close/open mode will operate
the display as follows.
—When the ignition switch is turned OFF
while the display is deployed, the display
will be closed after approximately 6 sec-
onds.
—When the ignition switch is turned ON
again (or turned to ACC), the display will be
deployed automatically.
—Installing the operation panel will automat-
ically deploy the display. (Refer to page 8.)
•The automatic close/open mode can be
switched ON/OFF. (Refer to page 55.)
•When the ignition switch is turned OFF after
the display has been closed, turning the igni-
tion switch ON again (or turning it to ACC)
will not deploy the display. In this case, press
OPEN/CLOSE to deploy the display.
Screen Angle Adjustment
The angle of this product’s screen continues
changing as long as you keep pressing the
ANGLE button.
Adjust the screen to an easily viewable angle.
Important
•If you can hear the display knocking against
your vehicle’s console or dashboard, press
ANGLE on the (–) side to move the screen a
little forward.
Notes
•When adjusting the angle, be sure to press
ANGLE. Forcible adjusting of the display by
hand may damage it.
•The adjusted angle of the display will be mem-
orized and automatically returned to the next
time the display is deployed.
TEXT
Power ON/OFF
02

En
14
02
Section
Selecting a source
You can select a source you want to listen to. To
switch to the built-in CD player, load a disc in
this product (AVH-P6450CD only) (refer to page
22).
Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Built-in CD player (AVH-P6450CD)—TV—
VIDEO—Tuner—DVD (one disc only/multi-DVD
player)—Multi-CD player—External unit 1—
External unit 2 —AUX
Notes
•In the following cases, the sound source will
not change:
—When a product corresponding to each
source is not connected to this product.
—When no disc is set in this product (AVH-
P6450CD only).
—When no magazine is set in the multi-CD
player.
—When no magazine is set in the multi-DVD
player.
—When the AUX (auxiliary input) is set to off
(refer to page 51).
•External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this product. Two external
units can be controlled by this product. When
two external units are connected, the alloca-
tion of them to external unit 1 or external unit
2 is automatically set by this product.
•When this product’s blue/white lead is con-
nected to the car’s auto-antenna relay control
terminal, the car’s antenna extends when this
product’s source is switched on. To retract the
antenna, switch the source off.
Turning the unit off
Press SOURCE and hold for at least one sec-
ond to turn the unit off.
Power ON/OFF

Common Operations
En 15
English Español Deutsch Français Italiano Nederlands
03
Section
Source display
Information of each source is displayed.
1SOURCE name
Name of the selected source.
2Source status
Status of the selected source.
3Equalizer display
Equalizer setting status.

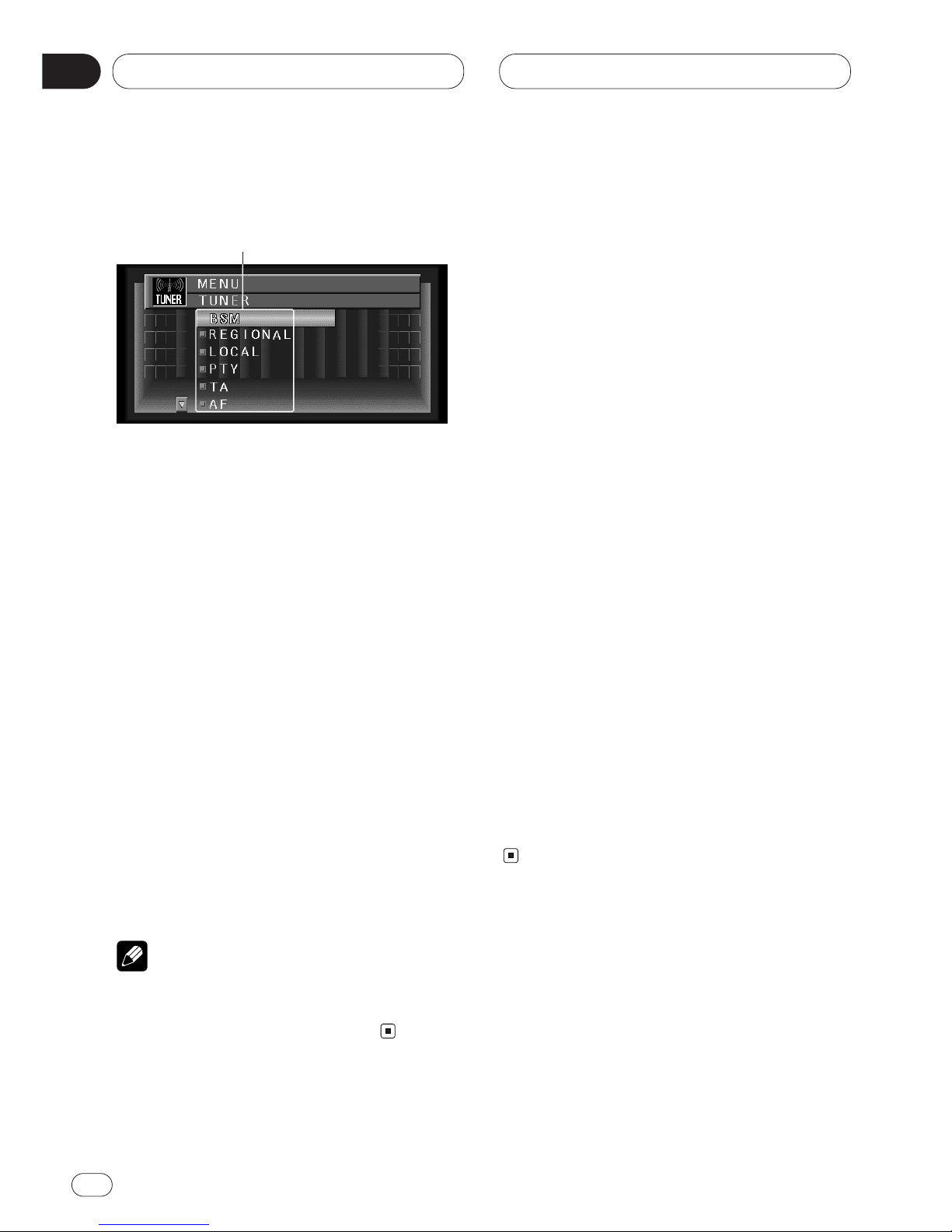

Displays menus (e.g., Tuner)
Displays menus of each source, and enables
adjustments.
1SOURCE menu
You can access MENUS to make various
adjustments for each source. AUDIO and
SET UP settings are the same for each
source.
2Indicates there is more for this item.
Press ∞and the continuation of the item is
displayed. Pressing 5takes you to the previ-
ous item.
1 Press A.MENU in each source display.
The menu for the displayed source is displayed.
e.g., TUNER MENU
2 Press 5or ∞to select a menu item, and
press A.MENU.
Executes the selected item.
Notes
•Select BACK in the MENU display or press
BACK to return to the previous display.
Pressing WIDE on the head unit returns you to
the previous display.
•If you do not operate the audio function within
about 30 seconds, the display is automatically
returned to the source display. The MENU
display is automatically canceled if no opera-
tions are performed for about 30 seconds.
3
1 2 12

Display
En
16
04
Section
Changing the wide mode
You can select a desired mode for enlarging a
4:3 picture to a 16:9 one.
1 When viewing an image, press WIDE.
Wide mode in the following order:
Full (FULL) —Just (JUST) —Cinema (CINEMA)
—Zoom (ZOOM) —Normal (NORMAL)
Full (FULL)
A 4:3 picture is enlarged in the horizontal direction
only, enabling you to enjoy a 4:3 TV picture (normal
picture) without any omissions.
Just (JUST)
The picture is enlarged slightly at the center and
the amount of enlargement increases horizontally
to the ends, enabling you to enjoy a 4:3 picture
without sensing any disparity even on a wide
screen.
Cinema (CINEMA)
A picture is enlarged by the same proportion as
FULL or ZOOM in the horizontal direction and by
an intermediate proportion between FULL and
ZOOM in the vertical direction; ideal for a cinema-
sized picture (wide-screen picture) where captions
lie outside.
Zoom (ZOOM)
A 4:3 picture is enlarged in the same proportion
both vertically and horizontally; ideal for a cinema-
sized picture (wide-screen picture).
Normal (NORMAL)
A 4:3 picture is displayed as it is, giving you no
sense of disparity since its proportions are the
same as that of the normal picture.
Notes
•Different settings can be memorized for the
AV and VIDEO. In addition, different settings
can also be memorized for a component (AV)
connected to the AV-BUS input.
•The Wide Mode used for menu setting is
switched to Full (FULL). The Wide Mode will
return when the menu setting is deleted.
•When video is viewed in a wide mode that
dose not match its original aspect ratio, it may
appear differently.
•Remember that using the wide mode feature
of this system for commercial or public view-
ing purpose may constitute an infringement
on the author’s rights protected by the
Copyright Law.
•Video will appear roughened when viewed in
CINEMA or ZOOM mode.
•The source without video is always FULL.

En 17
English Español Deutsch Français Italiano Nederlands
04
Section
Display
Video Adjust
BRIGHT, CONTRAST, COLOR, and HUE set-
tings are stored for each source .
1 Press WIDE on the head unit for 2 seconds
or more, in the display of the source you want
to adjust.
VIDEO ADJUST is displayed.
2 Press 5or ∞and select an item:
Adjustable parameters:
•BRIGHT (black intensity)
•CONTRAST (contrast)
•COLOR (color intensity)
•HUE (hue)
•DIMMER (brightness)
3 Adjust parameter settings with 2or 3.
4 Press BAND/ESC to cancel the VIDEO
ADJUST.
Notes
•Pressing WIDE on the head unit returns you to
the previous display.
•To return to the frequency display, press
BAND/ESC.
•BRIGHT, CONTRAST, COLOR and HUE can
be adjusted within a range of –24 to +24.
•The settings of BRIGHT and CONTRAST are
stored separately for light ambient (daytime)
and dark ambient (nighttime).
•A yellow mark ( ) or blue mark ( ) is
displayed to the right of BRIGHT and
CONTRAST on the screen, respectively, as the
front-panel ambient light sensor determines
brightness or darkness.
•HUE cannot be adjusted for PAL video.
•You cannot adjust picture COLOR and HUE for
the source without video.
•Different settings can be memorized for the
AV and VTR. In addition, different settings can
also be memorized for a component (AV) con-
nected to the AV-BUS input.

Display
DIMMER settings
Viewing can become difficult after extended
video viewing if the screen is too bright at night
or when ambient light darkens. You can select
the brightness level from three settings; day-
time, evening and nighttime viewing, after
which this product will automatically adjusts
the brightness to an optimum level within the
setting range you selected and in relationship
with the ambient light.
1 Select DIMMER from the PICTURE
SELECT MENU. (Refer to Video adjust.)
External light level
Yellow: bright (daytime)
Red: intermediate brightness (evening)
Blue: dark (nighttime)
2 Adjust brightness. Adjust parameter set-
tings with 2or 3.
Level indicates the brightness of the screen
being adjusted. The farther yellow moves to the
right, the brighter the screen.
Notes
•The optimum light level used as the standard
for adjusting DIMMER is indicated by the
mark shown in step 3 and its position. The
marks indicating the current ambient bright-
ness used for adjusting BRIGHT and
CONTRAST may differ slightly.
•The external light level can be adjusted to
Dark, Intermediate or Bright and the each
setting saved.
En
18
04
Section

Tuner
En 19
Listening to the radio
These are the basic steps necessary to operate
the radio. More advanced tuner operation is
explained starting on page 20.
1BAND indicator
Shows which band the radio is tuned to, AM
or FM.
2FREQUENCY indicator
Shows to which frequency the tuner is
tuned.
3STEREO (ST) indicator
Shows that the frequency selected is being
broadcast in stereo.
4PRESET NUMBER indicator
Shows what preset has been selected.
1 Press SOURCE to select the tuner.
Press SOURCE until you see Tuner displayed.
2UseVOLUME to adjust the sound level.
Rotate to increase or decrease the volume.
3 Press BAND/ESC to select a band.
Press BAND/ESC until the desired band is dis-
played, FM1, FM2, FM3 for FM or AM.
4 To perform manual tuning, press 2or 3
with quick presses.
The frequencies move up or down step by step.
5 To perform seek tuning, press and hold 2
or 3for about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
•You can cancel seek tuning by pressing either
2or 3with a quick press.
•If you press and hold 2or 3you can skip
broadcasting stations. Seek tuning starts as
soon as you release the buttons.
Note
•When the frequency selected is being broad-
cast in stereo the STEREO (ST )indicator will
light.
English Español Deutsch Français Italiano Nederlands
05
Section
1 24
3

En
20
05
Section
Tuner
Introduction of advanced tuner
operation
1FUNCTION display
Shows the function status.
1 Press A.MENU when TUNER source indica-
tions are displayed.
MENU is displayed.
2 Select TUNER and press A.MENU.
TUNER MENU indications are displayed as
follows:
BSM (best stations memory)
LOCAL (local seek tuning)
P.CH MEMORY (preset channel memory)
•Select BACK in the MENU display or press
BACK to return to the previous display.
Pressing WIDE on the head unit returns you to
the previous display.
•To return to the frequency display, press both
BAND/ESC and DISP.
•If AM band is selected, you can only select
BSM,LOCAL and P. CH MEMORY.
Note
•If you do not operate the function within about
30 seconds, the display is automatically
returned to the frequency display.
Storing broadcast frequencies
You can easily store up to six broadcast frequen-
cies for later recall with 5or ∞.
1 Press 5or ∞to select P.CH MEMORY from
the TUNER MENU, and press A.MENU.
P.CH MEMORY adjustment indications are dis-
played.
2 Adjust frequency with 2or 3.
If you continue pressing 2or 3, a strong broad-
cast frequency is automatically searched for,
and search ends when it is found.
3 Select a preset channel number with 5or
∞and press A.MENU to preset that frequency.
4 If you want to preset frequencies one after
another, use 5or ∞to move to the next preset
channel you want to use to store a frequency,
and perform the same operation.
When you have finished, press BAND/ESC to
return to the source display.
The number you have pressed will flash in the
PRESET NUMBER indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
You can use 5and ∞to recall radio station
frequencies assigned to P1-6 (P.CH MEMORY).
