IMPORTANT INFORMATION
ABOUT YOUR NEW NAVIGATION UNIT AND THIS MANUAL
•The navigation features of this unit is intended solely as an aid to you in the oper-
ation of your vehicle. It is not a substitute for your attentiveness, judgment and
care when driving.
•Never use this Navigation System to route to hospitals, police stations, or similar
facilities in an emergency. Please call 911.
•Do not operate this Navigation System if doing so in any way will divert your
attention from the safe operation of your vehicle. Traffic restrictions and advi-
sories currently in force should always take precedence over guidance given by
this product. Always obey current traffic restrictions, even if this product pro-
vides contrary advice.
•Certain government laws may restrict the placement and use of navigation sys-
tems in your vehicle. Please comply with all applicable laws and regulations in
the installation and operation of your navigation system.
•This manual explains how to install this Navigation System in your vehicle.
Operation of this Navigation System is explained in the separate “Operation
Manual” or “Hardware Manual” for Navigation System.
•Do not install the display and the navigation unit where it may (i) obstruct the dri-
ver’s vision, (ii) impair the performance of any of the vehicle’s operating systems
of safety features, including airbags, hazard lamp buttons or (iii) impair the dri-
ver’s ability to safely operate the vehicle. In some cases, it may not be possible to
install this unit because of the vehicle type or the shape of the vehicle interior.
ENG/MASTER 96 2
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 2

3
IMPORTANT INFORMATION......................1
ABOUT YOUR NEW NAVIGATION UNIT
AND THIS MANUAL ................................1
IMPORTANT SAFEGUARDS .................... 3
PLEASE READ ALL OF THESE
INSTRUCTIONS REGARDING YOUR
NAVIGATION UNIT AND RETAIN
THEM FOR FUTURE REFERENCE ...... 3
Connecting the System ............................ 4
WARNING ........................................................ 4
CAUTION ........................................................ 4
-Before installing the unit
-To prevent damage
-Parts supplied
Connecting the system ...................................... 8
-Connecting to the display with 26-pin
input (e. g. AVH-P6600DVD,
AVX-P8DVD, etc.)
Connecting the power cord (1) .......................... 9
Connecting the power cord (2) ........................ 11
Installation ................................................ 12
WARNING ...................................................... 12
CAUTION ...................................................... 12
To guard against electromagnetic
interference ................................................14
Before installing and fixing ............................ 14
Before using the adhesive tape ........................ 14
Installing the main unit .................................... 15
-Installation notes
-Parts supplied
-CAUTION
-If you install with the left and right sides
of the Navigation Unit parallel to your
vehicle’s forward / backward direction
-When installing the main unit inside the
trunk, on the floor under a seat, etc., using
tapping screws
-CAUTION
-DIN Rear-mount: Installation using the
screw holes on the side of the unit
Installing the GPS antenna .............................. 22
-CAUTION
-Installation notes
-Parts supplied
-When installing the antenna inside the
vehicle (on the rear shelf)
-When installing the antenna outside the
vehicle (on the body)
Installing the Steering remote control ............ 25
-Parts supplied
-Loading the battery
-WARNING
-CAUTION
-WARNING
-Remote control handling notes
-Installing the holders and the steering remote
control
Installing the microphone ................................ 27
-Installation notes
-Parts supplied
-When installing the microphone on the
sun visor
-When installing the microphone on the
steering column
-CAUTION
After installing the unit .......................... 30
2
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
Contents
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 3

4
ENG/MASTER 96
IMPORTANT SAFEGUARDS
3
PLEASE READ ALL OF THESE INSTRUCTIONS REGARDING YOUR NAVIGA-
TION SYSTEM AND RETAIN THEM FOR FUTURE REFERENCE
1. Read this manual fully and carefully before installing your Navigation System.
2. Keep this manual handy for future reference.
3. Pay close attention to all warnings in this manual and follow the instructions care-
fully.
4. This Navigation System may in certain circumstances display erroneous informa-
tion regarding the position of your vehicle, the distance of objects shown on the
screen, and compass directions. In addition, the system has certain limitations,
including the inability to identify one-way streets, temporary traffic restrictions
and potentially unsafe driving areas. Please exercise your own judgment in the
light of actual driving conditions.
5. As with any accessory in your vehicle’s interior, the Navigation System should
not divert your attention from the safe operation of your vehicle. If you experi-
ence difficulty in operating the system or reading the display, please make adjust-
ments while safely parked.
6. Please remember to wear your seat belt at all times while operating your vehicle.
If you are ever in an accident, your injuries can be considerably more severe if
your seat belt is not properly buckled.
•Do not attempt to install or service your Navigation System by yourself.
Installation or servicing of the Navigation System by persons without train-
ing and experience in electronic equipment and automotive accessories may
be dangerous and could expose you to the risk of electric shock or other haz-
ards.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 4

5
4
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
Connecting the System
•Pioneer does not recommend that you install your Navigation System your-
self. We recommend that only authorized Pioneer service personnel, who
have special training and experience in mobile electronics, set up and install
the unit. NEVER SERVICE THE UNIT YOURSELF. Installing or servicing
the unit and its connecting cables may expose you to the risk of electric shock
or other hazards, and can cause damage to the Navigation System that is not
covered by warranty.
•If you decide to perform the installation yourself, and have special training
and experience in the mobile electronics installations, please carefully follow
all of the steps in the Installation Manual.
•Secure all wiring with cable clamps or electrical tape. Do not allow any bare
wiring to remain exposed.
•Do not directly connect the yellow lead of the unit to the vehicle battery. If
the lead is directly connected to the battery, engine vibration may eventually
cause the insulation to fail at the point where the wire passes from the pas-
senger compartment into the engine compartment. If the yellow lead’s insu-
lation tears as a result of contact with metal parts, short-circuiting can occur,
resulting in considerable danger.
•It is extremely dangerous to allow the GPS antenna cable or microphone
cable to become wound around the steering column or shift lever. Be sure to
install the unit, its cables, and wiring away in such a way that they will not
obstruct or hinder driving.
•Make sure that the cables and wires are routed and secured so they will not
interfere with or become caught in any of the vehicle’s moving parts, espe-
cially the steering wheel, shift lever, parking brake, sliding seat tracks, doors,
or any of the vehicle’s controls.
•Do not route wires where they will be exposed to high temperatures. If the
insulation heats up, wires may become damaged, resulting in a short circuit
or malfunction and permanent damage to the product.
•Do not cut the GPS antenna cable to shorten it or use an extension to make it
longer. Altering the antenna cable could result in a short circuit or malfunc-
tion.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 5

5
Connecting the System
•Do not shorten any leads. If you do, the protection circuit (fuse holder, fuse
resister or filter, etc.) may fail to work properly.
•Never feed power to other electronic products by cutting the insulation of the
power supply lead of the Navigation System and tapping into the lead. The
current capacity of the lead will be exceeded, causing overheating.
ENG/MASTER 96 6
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 6

7
Connecting the System
6
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96

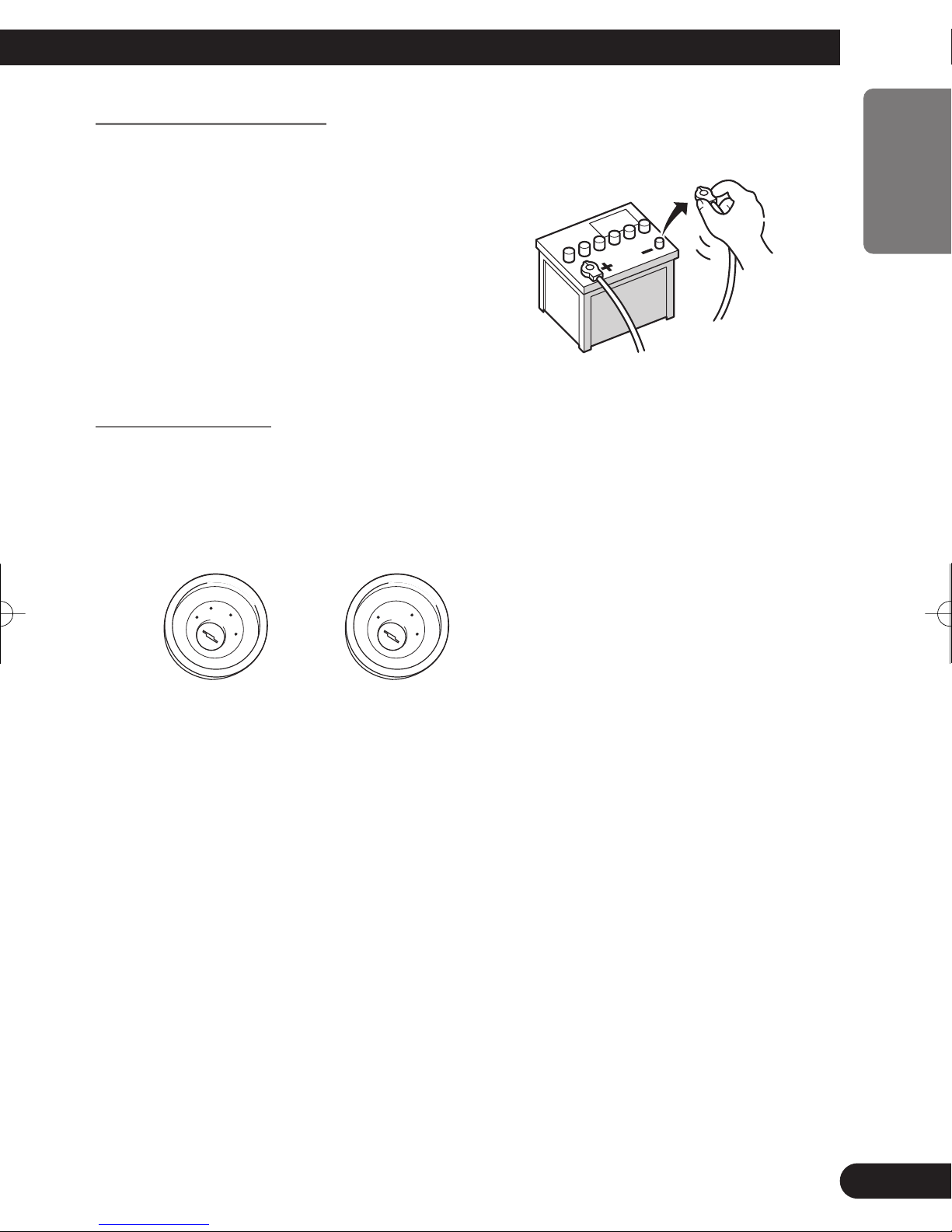

Before installing the unit
•This unit is for vehicles with a 12-volt battery and negative grounding. Check the battery
voltage of your vehicle before installation.
To prevent damage
•When disconnecting a connector, pull the connector itself. Do not pull the lead, as you
may pull it out of the connector.
•If this unit is installed in a vehicle that does not have an ACC (accessory) position on the
ignition switch, the red lead of the unit should be connected to a terminal coupled with
ignition switch ON/OFF operations. If this is not done, the vehicle battery may be
drained when you are away from the vehicle for several hours.
•To avoid short-circuiting, cover the disconnected lead with insulating tape.
•Attach the connectors of the same color to the corresponding colored port, i.e., yellow
connector to the yellow port, black to black, etc.
•The black lead is ground. Please ground this lead separately from the ground of highcur-
rent products such as power amps.
Do not ground more than one product together with the ground from another product.
For example, you must separately ground any amplifier unit away from the ground of
this unit. Connecting grounds together can cause a fire and/or damage the products if
their grounds became detached.
•When replacing the fuse, be sure to use only a fuse of the rating prescribed on the fuse
holder.
No ACC positionACC position
O
N
S
T
A
R
T
O
F
F
A
C
C
O
N
S
T
A
R
T
O
F
F
•To avoid shorts in the electrical sys-
tem, be sure to disconnect the (–) bat-
tery cable before beginning installa-
tion.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 7

7
Connecting the System
Parts supplied
26-pin cableConnectorPower cord
ENG/MASTER 96 8
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 8

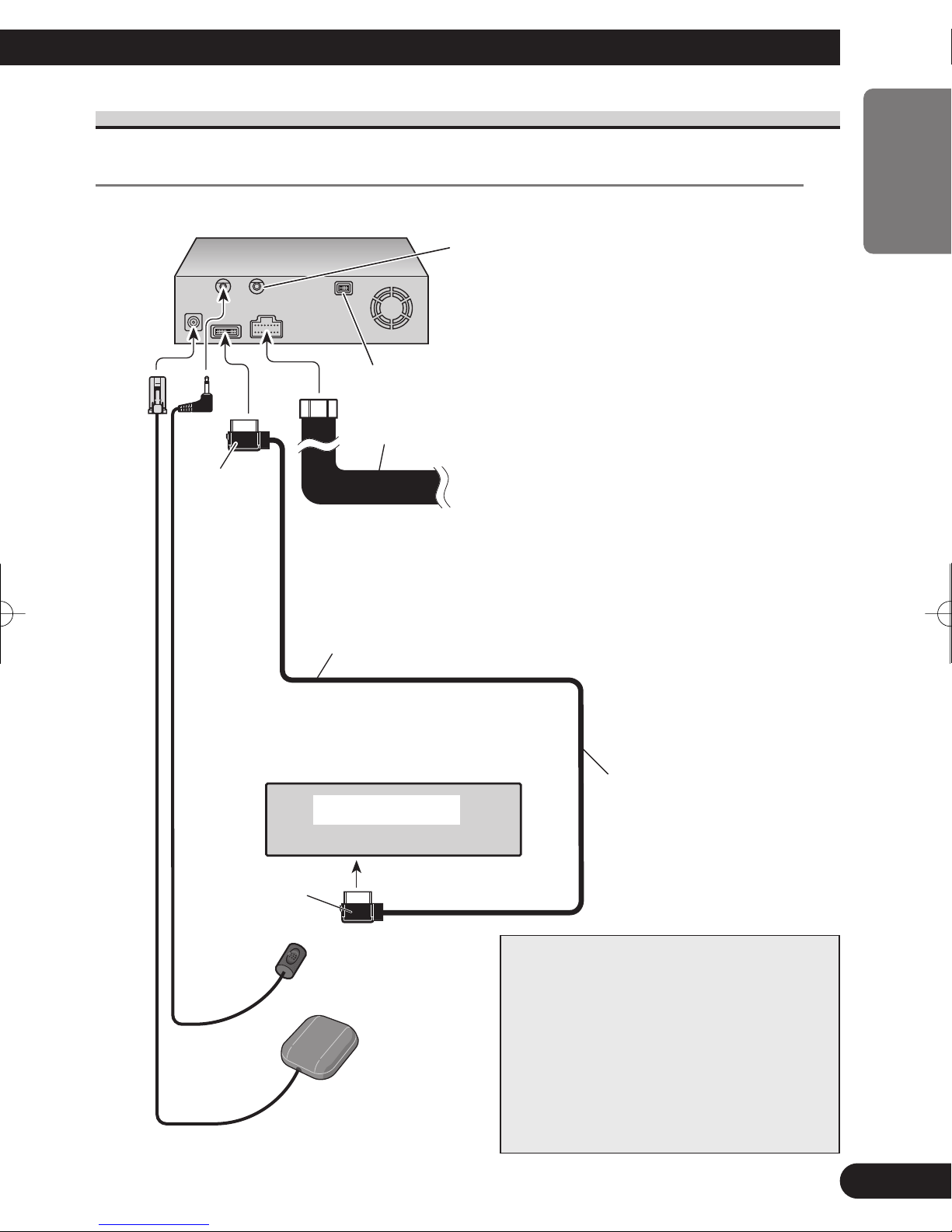

Connecting the system
Connecting to the display with 26-pin input (e. g. AVH-P6600DVD, AVX-P8DVD, etc.)
8
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
9
Power cord
Black
This product
Microphone
Yellow
GPS antenna
☞ See page 22.
☞ See page 27.
(e.g. AVH-P6600DVD, AVH-P7500DVD,
AVH-P6500DVD, AVD-W6210, AVX-P8DVD)
Not used.
26-pin cable (supplied)
6m (19ft 8in.)
☞ See pages 9-11.
When resetting AV Head Unit or AV
system display
When pressing the reset button of AV Head
Unit or AV system display while Navigation
System and AV Head Unit or AV system dis-
play (AVH-P7500DVD, AVH-P6500DVD,
AVH-P6600DVD, AVX-P8DVD) are com-
bined, make sure that ACC is turned OFF. If
the reset button is pressed while ACC is ON,
it may not work properly.
Display Unit
There may be no voice guidance depending on a com-
bined display unit. In that case, an external speaker
(commercially available) must be connected to the SP-
OUT jack (3.5 ø MINI JACK, 1 W max [8 Ω]) on this
unit’s back.
When combining multi-channel processors, Pioneer
external speaker must be connected to the SP-OUT jack
on the navigation’s back. If your display has the GUIDE
SP OUT jack that can output the voice guidance, con-
nect the external speaker to the display.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 9

9
Connecting the System
ENG/MASTER 96 10

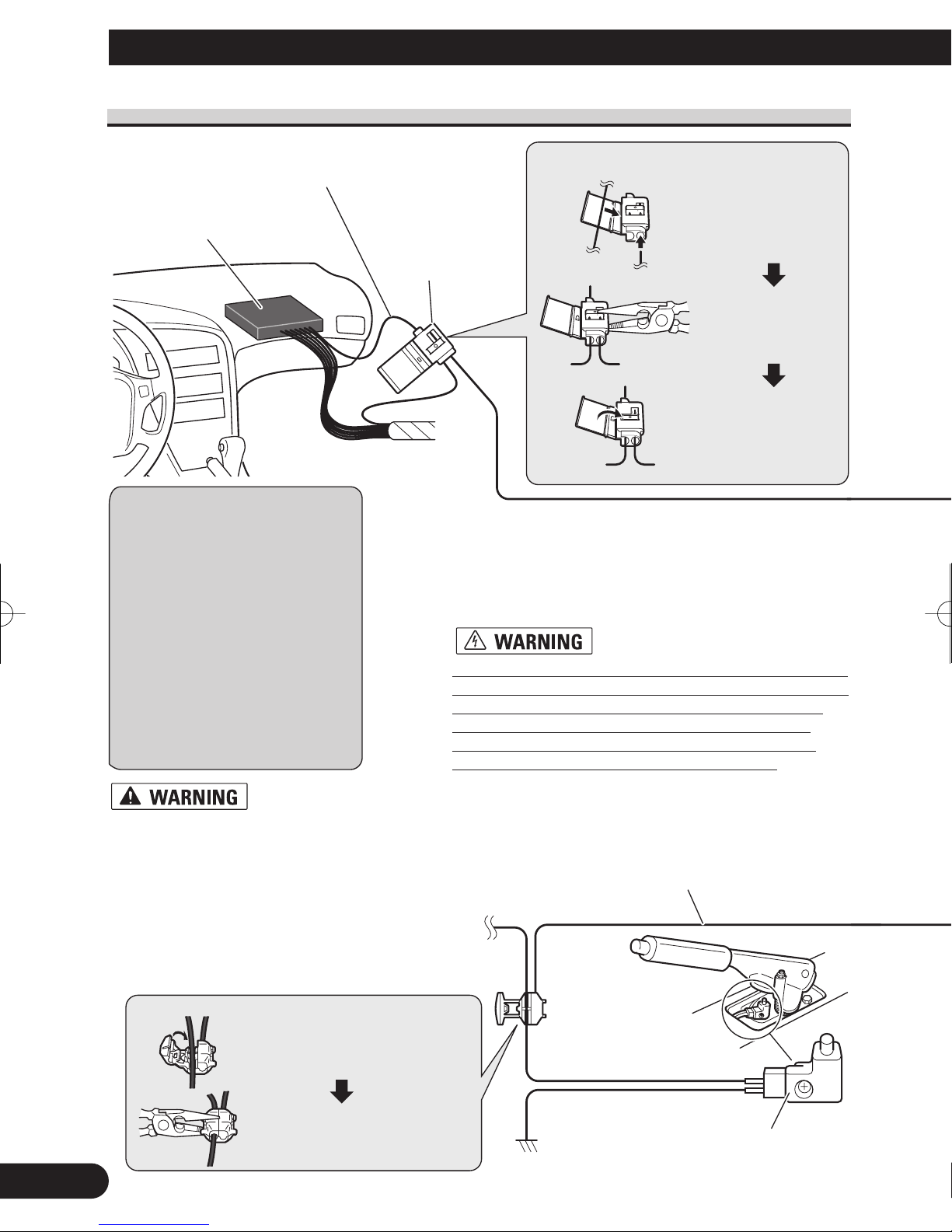

Connecting the power cord (1)
Connector
Speed detection circuit lead
Vehicle injection computer
Connection method
Pass the extension cord
and the lead for the
speed detection circuit
through this hole.
Clamp firmly with
needle-nosed pliers.
Close the cover.
Note: The position of the speed
detection circuit depends on the
vehicle model. For details, consult
your authorized Pioneer dealer or
an installation professional. If con-
nection to the speed detection cir-
cuit is too difficult, connect the
separately sold ND-PG1 speed
pulse generator to the pink lead.
Note: The position of the parking
brake switch depends on the vehi-
cle model. For details, consult the
vehicle owner’s manual or dealer.
Connection method
Clamp the parking brake
switch power supply side lead.
Clamp firmly with
needle-nosed pliers.
Power supply side
Ground side
Parking brake switch
Pink (CAR SPEED SIGNAL INPUT)
The navigation system is connected here to detect the dis-
tance the vehicle travels. Always connect the vehicle’s
speed detection circuit or the ND-PG1 speed pulse genera-
tor, sold separately. Failure to make this connection will
increase in the location display.
IMPROPER CONNECTION MAY RESULT IN SERI-
OUS DAMAGE OR INJURY INCLUDING ELECTRI-
CAL SHOCK, AND INTERFERENCE WITH THE
OPERATION OF THE VEHICLE’S ANTILOCK
BRAKING SYSTEM, AUTOMATIC TRANSMIS-
SION AND SPEEDOMETER INDICATION.
Light green
Used to detect the ON/OFF status of the parking brake.
This lead must be connected to the power supply side of
the parking brake switch. If this connection is made
incorrectly or omitted, certain functions of your naviga-
tion system will be unusable.
LIGHT GREEN LEAD AT POWER CON-
NECTOR IS DESIGNED TO DETECT
PARKED STATUS AND MUST BE CON-
NECTED TO THE POWER SUPPLY
SIDE OF THE PARKING BRAKE
SWITCH. IMPROPER CONNECTION
OR USE OF THIS LEAD MAY VIOLATE
APPLICABLE LAW AND MAY RESULT
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 10

10
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
11
Note:
Cords for this product and those for other
products may be different colors even if they
have the same function. When connecting this
product to another product, refer to the sup-
plied Installation manuals of both products
and connect cords that have the same func-
tion.
This product
Power cord
Black, Orange/white, Red, Yellow
☞ See Page 11.
Yellow/black
When combining this navigation unit with a Pioneer vehicle
stereo, if the vehicle stereo has yellow/black leads, connect them
to those leads*. In this way, when the guidance audio is output
and when you operate the system by voice, the vehicle stereo is
automatically muted to reduce the vehicle stereo volume.
*: If you plan to combine the Pioneer AV Head Unit (e.g. AVH-
P6600DVD, AVH-P7500DVD, AVH-P6500DVD), do not
connect these leads to the AV Head Unit.
Connection method
Clamp the backup lamp
lead.
Clamp firmly with
needle-nosed pliers.
Fuse resistor
Check the position of your vehicle’s
reversing lamp (the one that lights up
when the shift lever is in reverse [R])
and find the reversing lamp lead in the
trunk.
Purple/white (REVERSEGEAR SIGNAL INPUT)
This is connected so that the navigation system can
detect whether the vehicle is moving forwards or
backwards. Connect the purple/white lead to the
lead whose voltage changes when the shift lever is
put in reverse. Unless connected, the sensor may
not detect your vehicle traveling forward/backward
properly, and thus the position of your vehicle
detected by the sensor may be misaligned from the
actual position.
Note: When you use the ND-PG1 speed pulse gen-
erator (sold separately), please make sure to con-
nect it. Reversing lamp lead
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 11

11
Connecting the System
ENG/MASTER 96 12
Connecting the power cord (2)
This product
Yellow
To the terminal always supplied with power regardless o
f
ignition switch position.
Fuse holder (7.5 A)
Red
To the electric terminal controlled by the ignition switch
(12 V DC) ON/OFF.
Do not connect this lead to power source terminals to
which power is continuously supplied. If the lead is
connected to such terminals, the battery may be drained.
Orange/white
To lighting switch terminal.
Black
To vehicle (metal) body. To keep electromagnetic
noise from the vehicle body out of the navigation
system, attach this lead near the main unit.
Fuse resistor
Fuse resistor
Yellow/black, Purple/white, Pink, Lightgreen
Note: When replacing the fuse, be
sure to use only a fuse of the rating
prescribed on the fuse holder.
Power cord
See pages 9-10.
Note: The yellow, red, and orange/white leads should
be connected to the opposite side of the fusebox
terminals from the battery.
☞
Note:
Cords for this product and those for other products
may be different colors even if they have the same
function. When connecting this product to another
product, refer to the supplied Installation manuals
of both products and connect cords that have the
same function.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 12

Installation
12
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
13
•Pioneer does not recommend that you install or service your Navigation
System yourself. Installing or servicing the product may expose you to risk of
electric shock or other hazards. Refer all installation and servicing of your
navigation unit to authorized Pioneer service personnel.
•Never install the unit in places, or in a manner that where:
*It could injure the driver or passengers if the vehicle stops suddenly.
*It may interfere with the driver’s operation of the vehicle, such as on the
floor in front of the driver’s seat, or close to the steering wheel or shift
lever.
•Make sure there is nothing behind the dashboard or paneling when drilling
holes in them. Be careful not to damage fuel lines, brake lines, electronic
components, communication wires or power cables.
•When using screws, do not allow them to come into contact with any electri-
cal lead. Vibration may damage wires or insulation, leading to a short circuit
or other damage to the vehicle.
•To ensure proper installation, use the supplied parts in the manner specified.
If any parts other than the supplied ones are used, they may damage internal
parts of the unit or they may work loose and the unit may become detached.
•It is extremely dangerous to allow the GPS antenna lead or microphone lead
to become wound around the steering column or shift lever. Be sure to install
the unit in such a way that it will not obstruct driving.
•Make sure that leads cannot get caught in a door or the sliding mechanism of
a seat, resulting in a short circuit.
•Please confirm the proper function of your vehicle’s other equipment follow-
ing installation of the Navigation System.
•Certain government laws may prohibit or restrict the placement and use of
this system in your vehicle. Please comply with all applicable laws and regu-
lations regarding the use, installation and operation of your Navigation
System.
•Do not install the display and the navigation unit where it may (i) obstruct
the driver’s vision, (ii) impair the performance of any of the vehicle’s operat-
ing systems or safety features, including airbags, hazard lamp buttons or (iii)
impair the driver’s ability to safely operate the vehicle.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 13

13
Installation
•Install the display between the driver’s seat and front passenger seat so that
it will not be hit by the driver or passenger if the vehicle stops quickly.
•Never install the display and the navigation unit in the place where your
vehicle’s airbag inflation is obstructed. An airbag could be around the dash,
door, or pillar depending on the vehicle. Please refer to your vehicle’s
Owner’s Manual for information on the deployment area of the frontal
airbags.
•Do not install the display and the navigation unit in a place where it will
impair the performance of any of the vehicle’s operating systems, including
airbags and headrests.
ENG/MASTER 96 14
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 14

14
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
15
To guard against electromagnetic interference
•In order to prevent interference, set the following items as far as possible from the main
unit of this Navigation System, other cables or leads:
-TV antenna and antenna lead
-FM, AM antenna and its lead
-GPS antenna and its lead
In addition you should lay or route each antenna lead as far as possible from other antenna
leads.
Do not bind them together, lay or route them together, or cross them.
Such electromagnetic noise will increase the potential for errors in the location display.
Before installing and fixing
•Consult with your nearest dealer if installation requires the drilling of holes or other mod-
ifications of the vehicle.
•Before finally installing the unit, connect the wiring temporarily, making sure it is all
connected up properly, and the unit and the system work properly.
Before using the adhesive tape
•Make sure the surface is free of moisture, dust, grime, oil, etc. before affixing the tape.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 15

15
Installation
ENG/MASTER 96 16
Installing the main unit
Installation notes
•Do not install the main unit in places where it may become subject to high temperatures
or humidity, such as:
*Places close to a heater, vent or air conditioner.
*Places exposed to direct sunlight, such as on top of the dashboard or the rear shelf.
*Places that may be splashed by rain, for example close to the door.
•When installing the unit choose a position that is strong enough to bear the weight of the
unit. Choose positions where the main unit can be firmly installed, and install it secure-
ly. Unless the main unit is securely attached, the current location of the vehicle cannot
be displayed correctly.
•Do not install the main unit on the board covering the spare tire or other places which
are subject to vibration.
•When the main unit is installed under a front seat, ensure that it does not obstruct the
sliding action of the seat.
•When installing the main unit, choose a position that ensures there will be no contact
with luggage. The impact of a heavy weight or sudden shock on the main unit will
adversely affect the accurate display of the current location of the vehicle.
•Avoid installing the main unit in places where it will interfere with loading and unload-
ing of the spare tire, jack, tools, etc.
•Check that a disc or a PC card can be ejected with the main unit installed.

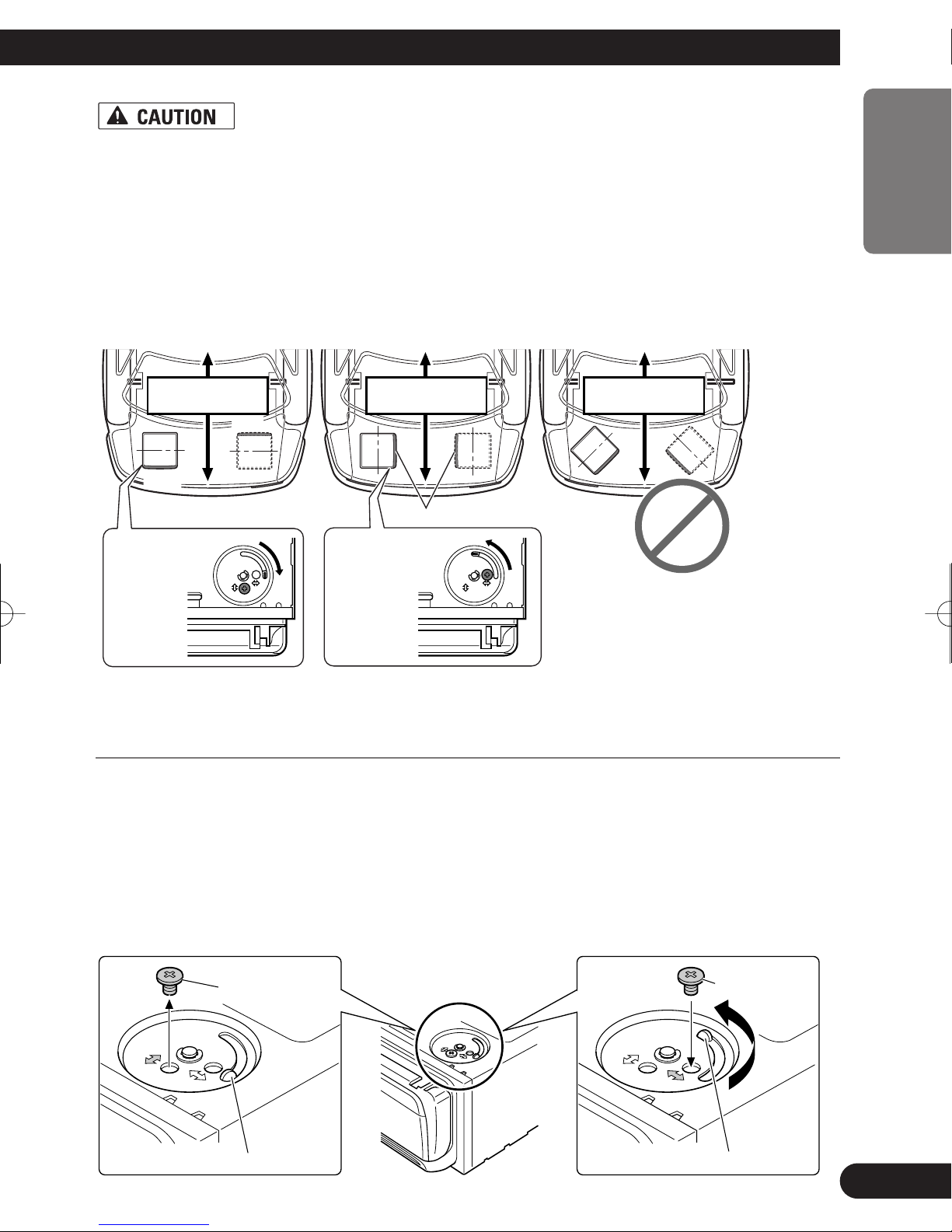

•Install the main unit on a surface within +30 degrees to -15 degrees tolerance (within
five degrees to the left or right of your vehicle’s direction of travel). A surface tilted
more than this would increase the errors in location display.
•Do not install the main unit vertically. Installing it this way can cause it to function
improperly.
5°
5°
30°
15°
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 16

•The cords must not cover up the area shown in the figure below. This is necessary to
allow the amplifiers and navigation mechanism to heat dissipate freely.
•The semiconductor laser will be damaged if it overheats, so don’t install the unit any-
where hot — for instance, near a heater outlet.
16
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
17
Do not cover this area.
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 17

17
Installation
ENG/MASTER 96 18
Parts supplied
Main unit Binding screw
(5 ×6 mm)
(4 pcs.)
Flush surface screw
(5 ×6 mm)
(4 pcs.)
Mounting angle (2 pcs.)Tapping screw
(6 ×16 mm)
(4 pcs.)
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 18

18
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
ENG/MASTER 96
19
•Install with the left and right sides of the Navigation Unit perpendicular or par-
allel to your vehicle’s direction of travel. Do not install diagonally to your vehi-
cle’s direction of travel or the current location will be displayed incorrectly.
•If you install the left and right sides of the Navigation Unit parallel to your
vehicle’s direction of travel, switch the installation direction lever, and attach
the locking screw to the “↔” side, or else the G sensor mounted in the
Navigation Unit will not operate correctly.
If you install with the left and right sides of the Navigation Unit parallel to your
vehicle’s forward / backward direction
If you install with the left and right sides of the Navigation Unit parallel to your vehicle’s
forward / backward direction, remove the mounting screw underneath the Navigation Unit,
and switch the installation direction lever. Then change the screw mounting position from
“↔” side to “↕” side. If the screw is attached to the “↔” side, the G sensor mounted in the
Navigation Unit will not operate correctly.
1. Remove the locking screw attached to the installation direction lever.
2. Switch the lever, and attach the mounting screw to the “↔” side.
Locking screw
Installation direction lever
Underneath the DVD Navigation Unit Locking screw
Installation direction lever
Front
Front Front
Front
Front
(Perpendicular)
Attachment
position of the
locking screw ↕
(Parallel)
Attachment
position of the
locking screw ↔
Forward / Backward
direction of vehicle
Forward / Backward
direction of vehicle
Forward / Backward
direction of vehicle
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 19

19
Installation
ENG/MASTER 96 20
When installing the main unit inside the trunk, on the floor under a seat, etc.,
using tapping screws
1. Fit mounting angles to the sides of the main unit.
Use the following holes on
the mounting angles.
Mounting angle
Binding screw or flush surface screw
CRD3914A_inst_001_030_Eng 5/11/04 4:40 PM Page 20
