Pioneer DEH-3110 User manual

High power CD player with FM/MW/LW tuner
¿àоØгàëÒÐâÕлì коÜßÐкâ дØскоÒ ÒëсокоÙ
ÜоéÝосâØ с УК²/С²/Д² ßàØñÜÝØкоÜ
Operation Manual
DEH-3110
¸ÝсâàукæØï ßо íксßлуÐâÐæØØ
ENGLISH ÀУССК¸¹ DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

1
Contents
Key Finder .................................................... 3
-Head Unit
Before Using This Product ...................... 4
About This Product .......................................... 4
About This Manual ............................................ 4
Precaution .......................................................... 4
In Case of Trouble ............................................ 4
Basic Operation ........................................ 5
To Listen to Music ............................................ 5
Basic Operation of Tuner .................................. 6
-Manual and Seek Tuning
-Preset Tuning
-Band
Basic Operation of Built-in CD Player ............ 7
-Eject
-Disc Loading Slot
-Track Search and Fast Forward/Reverse
Corresponding Display Indications and
Buttons ...................................................... 8
Entering the Function Menu .............................. 9
Function Menu Functions ................................ 10
Tuner Operation ...................................... 11
-Local Seek Tuning (LOCAL)
-Best Stations Memory (BSM)
Using the Built-in CD Player .................. 12
-Repeat Play (REPEAT)
-Random Play (RANDOM)
-Scan Play (T-SCAN)
-Pause (PAUSE)
Audio Adjustment .................................... 14
Selecting the Equalizer Curve ........................ 14
Entering the Audio Menu ................................ 14
Audio Menu Functions .................................... 15
-Balance Adjustment (FADER)
-Equalizer Curve Adjustment
(EQ-LOW/MID/HIGH)
-Equalizer Curve Fine Adjustment
-Loudness Adjustment (LOUD)
-Front Image Enhancer Function (FIE)
-Source Level Adjustment (SLA)

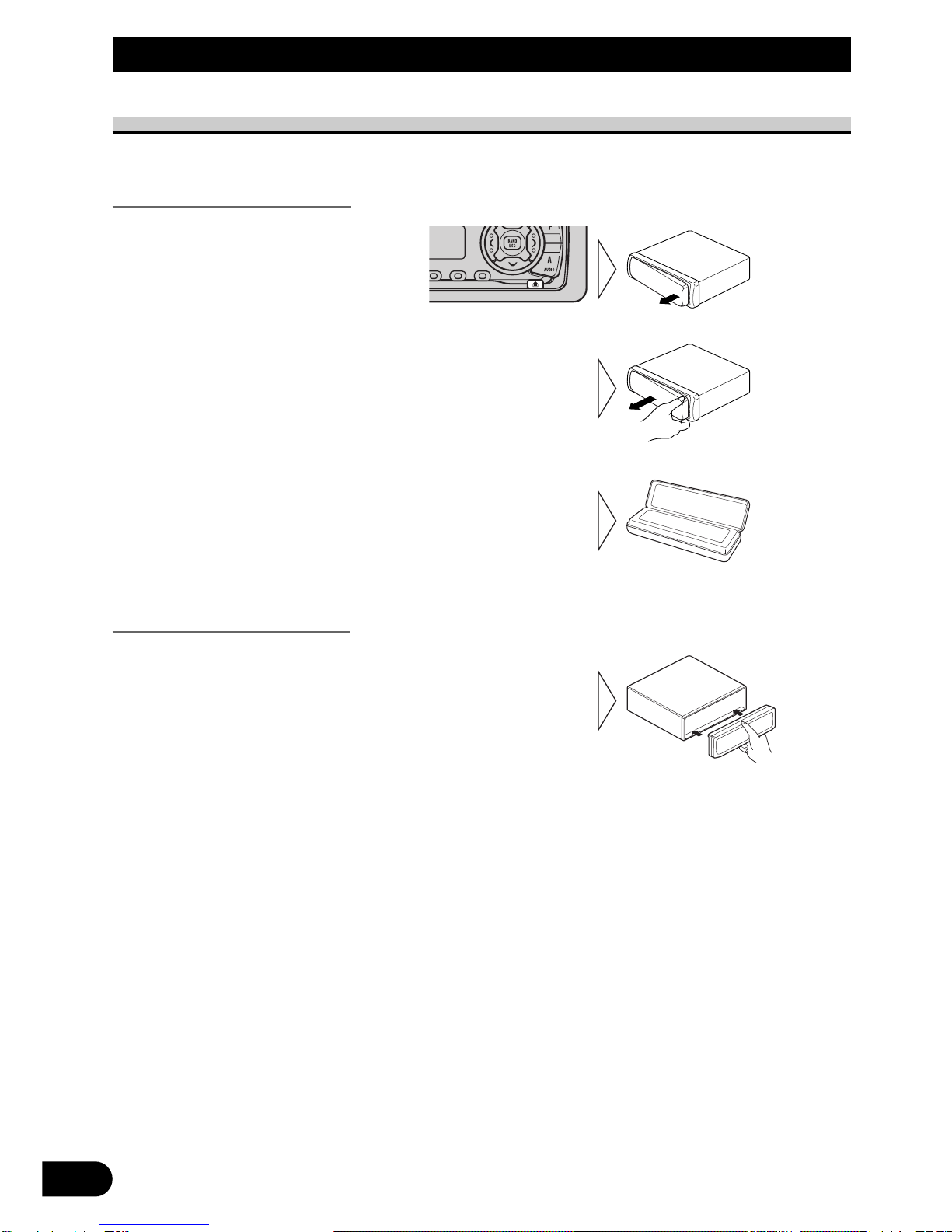

Detaching and Replacing
the Front Panel .................................. 19
Theft Protection .............................................. 19
-Detaching the Front Panel
-Replacing the Front Panel
Other Functions ........................................ 20
Setting the Time .............................................. 20
Time Display .................................................. 21
-Displaying the Time
Using the PROGRAM Button
(PGM-FUNC) .......................................... 21
-Setting the PROGRAM Button
-Using the PROGRAM Button
Cellular Telephone Muting ............................ 22
CD Player and Care .................................. 23
Precaution ........................................................ 23
Built-in CD Player’s Error Message .............. 23
Specifications .......................................... 24
2
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

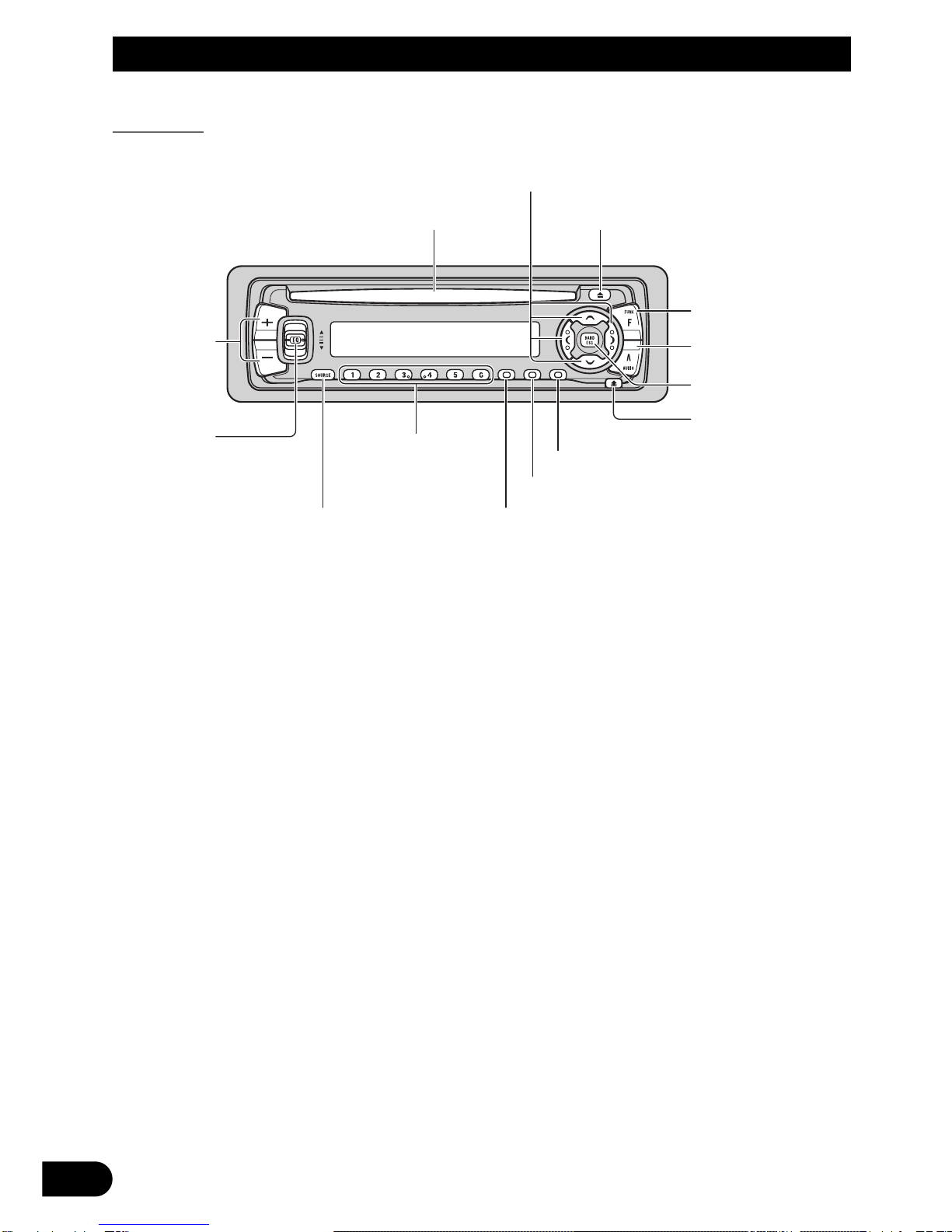

Key Finder
3
Head Unit
CLOCK button
Buttons1–6
PROGRAM button
EJECT button
Disc loading slot
AUDIO button
5/∞/2/3buttons
FUNCTION button
SOURCE button
+/– button
BAND button
LOUD button
DETACH button
EQ button

4
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Before Using This Product
About This Product
The tuner frequencies on this product are allocated for use in Europe, Asia, the Middle
East, Africa and Oceania. Use in other areas may result in improper reception.
About This Manual
This product features a number of sophisticated functions ensuring superior reception and
operation. All are designed for the easiest possible use, but many are not self-explanatory.
This operation manual is intended to help you benefit fully from their potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself with the functions and their operation by
reading through the manual before you begin using this product. It is especially important
that you read and observe the “Precaution” on this page and in other sections.
Precaution
• Keep this manual handy as a reference for operating procedures and precautions.
• Always keep the volume low enough for outside sounds to be audible.
• Protect the product from moisture.
• If the battery is disconnected, the preset memory will be erased and must be repro-
grammed.
In Case of Trouble
Should this product fail to operate properly, contact your dealer or nearest authorized
Pioneer Service Station.
CAUTION: USE OF CONTROL OR ADJUSTMENT OR PERFOR-
MANCE OF PROCEDURES OTHER THAN THOSE SPEC-
IFIED HEREIN MAY RESULT IN HAZARDOUS RADIA-
TION EXPOSURE.
CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS
PRODUCT WILL INCREASE EYE HAZARD.

5
Basic Operation

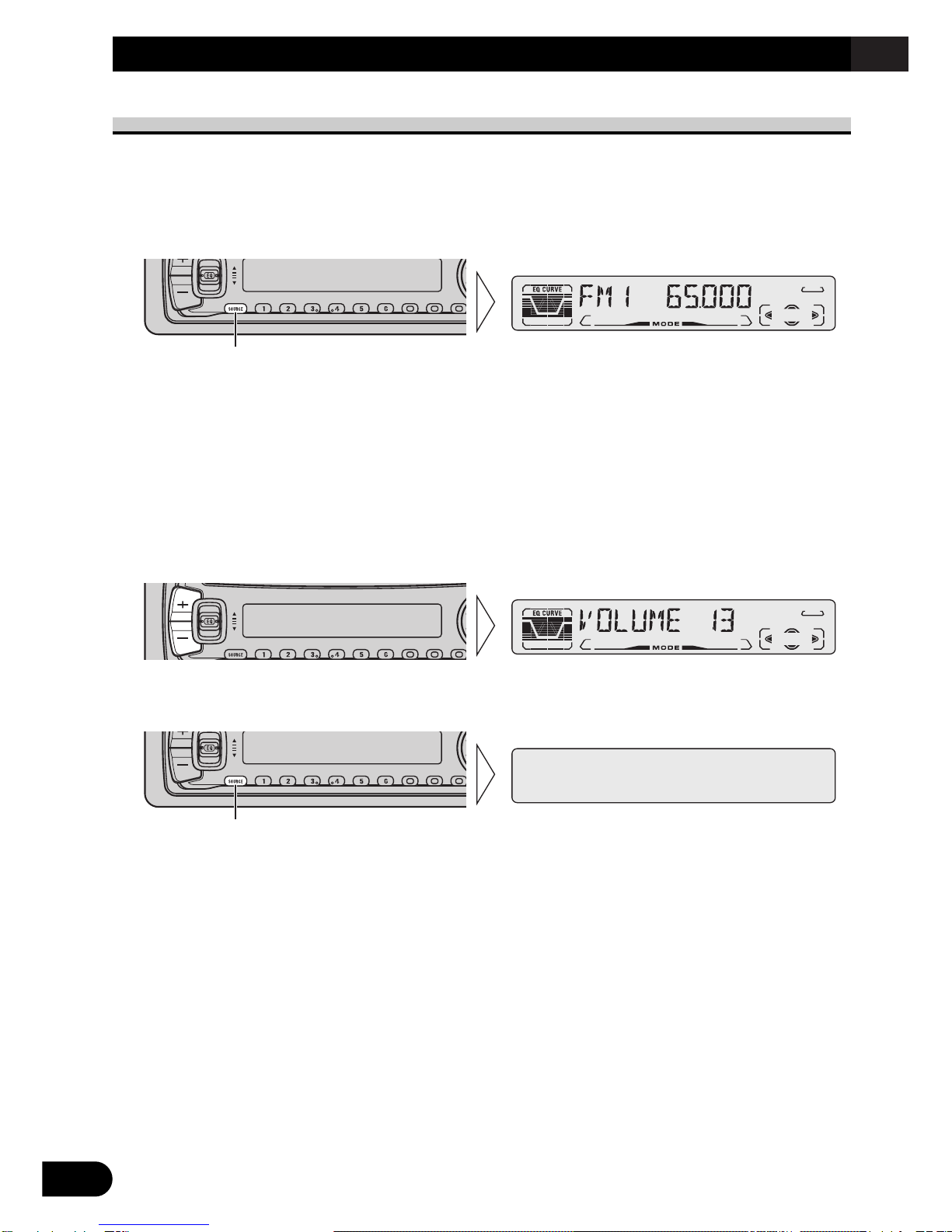

To Listen to Music
The following explains the initial operations required before you can listen to music.
Note:
• Loading a disc in this product. (Refer to page 7.)
1. Select the desired source (e.g. Tuner).
Each press of the SOURCE button selects the desired source in the following order:
Built-in CD player =Tuner
Note:
• The sound source will not change if no disc is set in this product.
• When this product’s blue/white lead is connected to the car’s Auto-antenna relay control terminal,
the car’s Auto-antenna extends when this product’s source is switched ON. To retract the antenna,
switch the source OFF.
2. Raise or lower the volume.
3. Turn the source OFF.
Hold for 1 second
Each press changes the Source ...

6
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Basic Operation of Tuner
Band
FM1 =FM2 =FM3
=MW/LW
Note:
• The FM bands cover
different frequency ranges
as below;
FM1:
65 —74 MHz
FM2, FM3:
87.5 — 108 MHz
Preset Tuning
• You can memorize broadcast stations in buttons
1 through 6 for easy, one-touch station recall.
Preset station recall 2 seconds or less
Broadcast station preset memory 2 seconds or more
Note:
• Up to 18 FM stations (6 in FM1, FM2 and FM3) and 6
MW/LW stations can be stored in memory.
• You can also use the 5or ∞buttons to recall broadcast
stations memorized in buttons 1 through 6.
Preset Number Indicator
Frequency Indicator
Band Indicator
Manual and Seek Tuning
• You can select the tuning method by changing the length of
time you press the 2/3button.
Manual Tuning (step by step) 0.5 seconds or less
Seek Tuning 0.5 seconds or more
Note:
• If you continue pressing the button for longer than 0.5 seconds, you can skip
broadcast stations. Seek Tuning starts as soon as you release the button.
• Stereo indicator “” lights when a stereo station is selected.

7
Basic Operation
Basic Operation of Built-in CD Player
Track Search and Fast Forward/Reverse
• You can select between Track Search or Fast Forward/Reverse by pressing
the 2/3button for a different length of time.
Track Search 0.5 seconds or less
Fast Forward/Reverse Continue pressing
Note:
• If a disc cannot be inserted fully or playback fails, make sure the recorded side is down. Press the
EJECT button and check the disc for damage before reinserting it.
• If a CD is inserted with the recorded side up, it will be ejected automatically after a few moments.
• If the Built-in CD player cannot operate properly, an error message (such as “ERROR-14”)
appears on the display. Refer to “Built-in CD Player’s Error Message” on page 23.
Disc Loading Slot
Note:
• The Built-in CD player plays one standard 12 cm or 8 cm (single) CD
at a time. Do not use an adapter when playing 8 cm CD.
Eject
Note:
• The CD function can be turned
ON/OFF with the disc remaining in
this product. (Refer to page 5.)
• A disc left partially inserted after
ejection may incur damage or fall out.
Play Time IndicatorTrack Number Indicator

8
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Corresponding Display Indications and Buttons
This product’s display features Key Guidance Indicators. These light to indicate which of
the 5/∞/2/3, FUNCTION and AUDIO buttons you can use. When you’re in the
Function Menu (refer to next section) or Audio Menu (refer to page 14), they also make it
easy to see which 5/∞/2/3buttons you can use to switch functions ON/OFF, switch
repeat selections and perform other operations.
Indicator and corresponding buttons are shown below.
7Head Unit 7Display
When 1is lit in the display, perform appropriate operations with the zbuttons.
When 2is lit in the display, it indicates that you are in the Function Menu, Time setting
mode (refer to page 20) or PROGRAM button’s setting mode (refer to page 21). You can
switch between each of these menus and between different modes in the menus using but-
ton xon the head unit.
When 3is lit in the display, it indicates you are in the Audio Menu. You can switch
between modes in the Audio Menu using button con the head unit.
1z 2 3c
x

Entering the Function Menu
The Function Menu lets you operate simple functions for each source.
Note:
• After entering the Function Menu, if you do not perform an operation within about 30 seconds, the
Function Menu is automatically canceled.
1. Select the desired mode in the Function Menu. (Refer to next section,
“Function Menu functions”.)
2. Operate a mode. (e.g. Repeat Play)
3. Cancel the Function Menu.
The button used and the operation it performs are
indicated by the key guidance indicator. Press the
5button to switch the key guidance indicator ON,
and the ∞button to switch it OFF.
Each press changes the Mode ...
9
Basic Operation

Function Menu Functions
The following chart shows functions for each source in the Function Menu.
The chart also shows indications for each function, operations and buttons used to perform
operations. For more details, or when you want to know about an operation, refer to the
page number indicated in the chart.
7Tuner
Function name (Display) Button : Operation Page
Best Stations Memory (BSM) 5:ON 11
∞:OFF
Local Seek Tuning (LOCAL) 1 5:ON 11
3 ∞:OFF
2 2or 3:Select (Sensitivity)
7Built-in CD Player
Function name (Display) Button : Operation Page
Repeat Play (REPEAT) 5:ON 12
∞:OFF
Random Play (RANDOM) 5:ON 12
∞:OFF
Scan Play (T-SCAN) 5:ON 13
∞:OFF
Pause (PAUSE) 5:ON 13
∞:OFF
10
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

11
Tuner Operation
Local Seek Tuning (LOCAL)
When Local mode is ON, you can only select broadcast stations providing strong recep-
tion.
FM : LOCAL 1 ÔLOCAL 2 ÔLOCAL 3 ÔLOCAL 4
MW/LW: LOCAL 1 ÔLOCAL 2
Note:
• The LOCAL 4 setting allows reception of only the strongest stations, while lower settings let you
receive progressively weaker stations.
Best Stations Memory (BSM)
The BSM function stores stations in memory automatically.
• To cancel the process, press the
∞ button in the Function
Menu before memorization is
complete.
2. Switch the BSM ON with the
5button.
The stations with the strongest sig-
nals will be stored under buttons 1–6
and in order of their signal strength.
1. Press the FUNCTION button and select the BSM mode (BSM) in the
Function Menu.
3. Select the desired Local Seek
sensitivity with the 2/3but-
tons.
“LOC”
2. Switch the Local ON/OFF with
the 5/∞buttons.
1. Press the FUNCTION button and select the Local mode (LOCAL) in the
Function Menu.

Using the Built-in CD Player
Repeat Play (REPEAT)
Repeat Play plays the same track repeatedly.
Note:
• If you perform Track Search or Fast Forward/Reverse, Repeat Play is automatically canceled.
Random Play (RANDOM)
Random Play plays the tracks on a CD in random order for variety.
2. Switch the Random Play
ON/OFF with the 5/∞but-
tons.
1. Press the FUNCTION button and select the Random mode (RANDOM) in
the Function Menu.
”“RPT
2. Switch the Repeat Play
ON/OFF with the 5/∞but-
tons.
1. Press the FUNCTION button and select the Repeat mode (REPEAT) in
the Function Menu.
12
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

13
Using the Built-in CD Player
Scan Play (T-SCAN)
Scan Play plays the first 10 seconds or so of each track on a CD in succession.
Note:
• Scan Play is canceled automatically after all the tracks on a disc have been scanned.
Pause (PAUSE)
Pause pauses the currently playing track.
2. Switch the Pause ON/OFF with
the 5/∞buttons.
1. Press the FUNCTION button and select the Pause mode (PAUSE) in the
Function Menu.
3. When you find the desired
track, cancel the Scan Play
with the ∞button.
If the Function Menu is automatical-
ly canceled at this time, select the
Scan mode in the Function Menu
once more.
2. Switch the Scan Play ON with
the 5button.
1. Press the FUNCTION button and select the Scan mode (T-SCAN) in the
Function Menu.

14
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS
Selecting the Equalizer Curve
You can switch between Equalizer curves.
•Move the EQ button up or down to select the desired Equalizer curve.
POWERFUL += NATURAL += VOCAL += CUSTOM += EQ FLAT += SUPER BASS
Note:
• “CUSTOM” stores an equalizer curve you have made adjustments to. (Refer to “Equalizer Curve
Adjustment” on page 15 and “Equalizer Curve Fine Adjustment” on page 16.)
• You can create different “CUSTOM” curves for different sources.
Entering the Audio Menu
With this Menu, you can adjust the sound quality.
Note:
• After entering the Audio Menu, if you do not perform an operation within about 30 seconds, the
Audio Menu is automatically canceled.
1. Select the desired mode in the Audio Menu.
2. Operate a mode.
3. Cancel the Audio Menu.
Each press changes the Mode ...
Equalizer curve
Audio Adjustment

15
Audio AdjustmentEa
Audio Menu Functions
The Audio Menu features the following functions.
Balance Adjustment (FADER)
This function allows you to select a Fader/Balance setting that provides ideal listening con-
ditions in all occupied seats.
1. Press the AUDIO button and select Fader/Balance mode (FADER) in the
Audio Menu.
Note:
• “FADER : 0” is the proper setting when 2 speakers are in use.
Equalizer Curve Adjustment (EQ-LOW/MID/HIGH)
You can adjust the currently selected equalizer curve settings as desired. Adjusted equaliz-
er curve settings are memorized in “CUSTOM”.
1. Press the AUDIO button and select the Equalizer mode
(EQ-LOW/MID/HIGH) in the Audio Menu.
Note:
• If you make adjustments when a curve other than “CUSTOM” is selected, the newly adjusted curve
will replace the previous adjusted curve. Then a new curve with “CUSTOM” appears on the display
while selecting the equalizer curve. (Refer to page 14.)
3. Boost or attenuate the selected
band with the 5/∞buttons.
The display shows “+6” – “–6”.
2. Select the band you want to
adjust with the 2/3buttons.
EQ-LOW += EQ-MID += EQ-HIGH
3. Adjust left/right speaker bal-
ance with the 2/3buttons.
“BAL :L 9” – “BAL :R 9” is dis-
played as it moves from left to right.
2. Adjust front/rear speaker bal-
ance with the 5/∞buttons.
“FADER :F15” – “FADER :R15” is
displayed as it moves from front to
rear.

Equalizer Curve Fine Adjustment
You can adjust the center frequency and the Q factor (curve characteristics) of each
currently selected curve band (EQ-LOW/MID/HIGH). Adjusted equalizer curve settings
are memorized in “CUSTOM”.
1. Press the AUDIO button for 2 or more seconds to select Equalizer Curve
Fine Adjustment.
Note:
• If you make adjustments when a curve other than “CUSTOM” is selected, the newly adjusted curve
will replace the previous adjusted curve. Then a new curve with “CUSTOM” appears on the display
while selecting the equalizer curve. (Refer to page 14.)
4. Select the desired Q factor with
the 5/∞buttons.
2N += 1N += 1W += 2W
3. Select the desired frequency
with the 2/3buttons.
LOW: 40 += 80 += 100 += 160 (Hz)
MID: 200 += 500 += 1K += 2K (Hz)
HIGH: 3K += 8K += 10K += 12K
(Hz)
2. Press the AUDIO button to
select the desired band for
adjustment.
Level (dB)
Q=2W
Q=2N
Center frequency Frequency (Hz)
16
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

17
Audio Adjustment

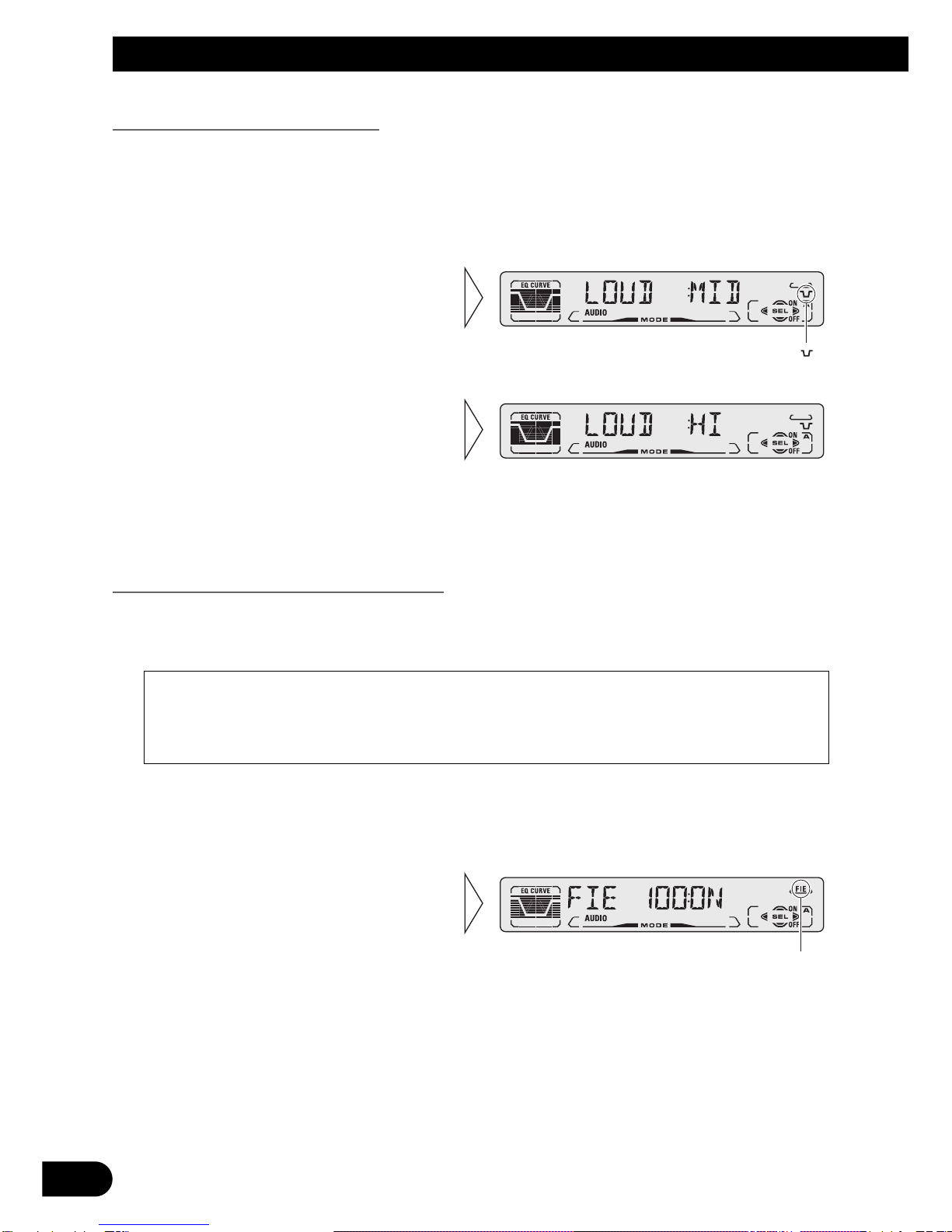

Loudness Adjustment (LOUD)
The Loudness function compensates for deficiencies in the low and high sound ranges at
low volume. You can select a desired Loudness level.
1. Press the AUDIO button and select the Loudness mode (LOUD) in the Audio
Menu.
Note:
• You can also switch the Loudness function ON/OFF by pressing the LOUD button. However,
you cannot change the level.
Front Image Enhancer Function (FIE)
The F.I.E. (Front Image Enhancer) function is a simple method of enhancing front imaging
by cutting mid- and high-range frequency output from the rear speakers, limiting their out-
put to low-range frequencies. You can select the frequency you want to cut.
1. Press the AUDIO button and select the F.I.E. mode (FIE) in the Audio
Menu.
“FIE”
2. Switch the F.I.E. function
ON/OFF with the 5/∞buttons.
Precaution:
• When the F.I.E. function is deactivated, the rear speakers output sound of all frequencies, not just
bass sounds. Reduce the volume before disengaging F.I.E. to prevent a sudden increase in vol-
ume.
3. Select the desired level with the
2/3buttons.
LOW += MID += HI
”“
2. Switch the Loudness function
ON/OFF with the 5/∞buttons.

Note:
• After switching the F.I.E. function ON, select the Fader/Balance mode in the Audio Menu, and
adjust front and rear speaker volume levels until they are balanced.
• Switch the F.I.E. function OFF when using a 2-speaker system.
Source Level Adjustment (SLA)
The SLA (Source Level Adjustment) function prevents radical leaps in volume when
switching between sources. Settings are based on the FM volume, which remains
unchanged. (Since the FM volume is the control, SLA is not possible in the FM modes.)
The MW/LW and CD levels can all be adjusted.
1. Compare the FM volume with the volume of the other source.
(e.g. Built-in CD player)
2. Press the AUDIO button and select the SLA mode (SLA) in the Audio Menu.
3. Increase or decrease the level
with the 5/∞buttons.
The display shows “+4” – “–4”.
3. Select the desired frequency
with the 2/3buttons.
100 += 160 += 250 (Hz)
18
ENGLISH ESPAÑOL DEUTSCH FRANÇAIS ITALIANO NEDERLANDS

19
Detaching and Replacing the Front Panel
Theft Protection
The front panel of the head unit is detachable to discourage theft.
Detaching the Front Panel
Replacing the Front Panel
Precaution:
• Never use force or grip the display tightly when removing or replacing the front panel.
• Avoid subjecting the front panel to excessive shocks.
• Keep the front panel out of direct sunlight and high temperatures.
• Replace the front panel by
clipping it into place.
3. Use the protective case pro-
vided to store/carry the
detached front panel.
2. To remove the front panel,
pull its right-hand side
toward you.
Take care not to grip it tightly or
drop it.
1. Eject the front panel.
