Pioneer Super Tuner III D User manual

Operation Manual
Mode demploi
Multi-CD control High power CD/MP3/WMA player
with FM/AM tuner
Syntoniseur FM/AM et lecteur de CD/MP3/WMA,
Puissance éle ée, a ec contrôleur pour lecteur de
CD à chargeur
DEH-P4600MP
English EspañolFrançais
All manuals and user guides at all-guides.com
all-guides.com

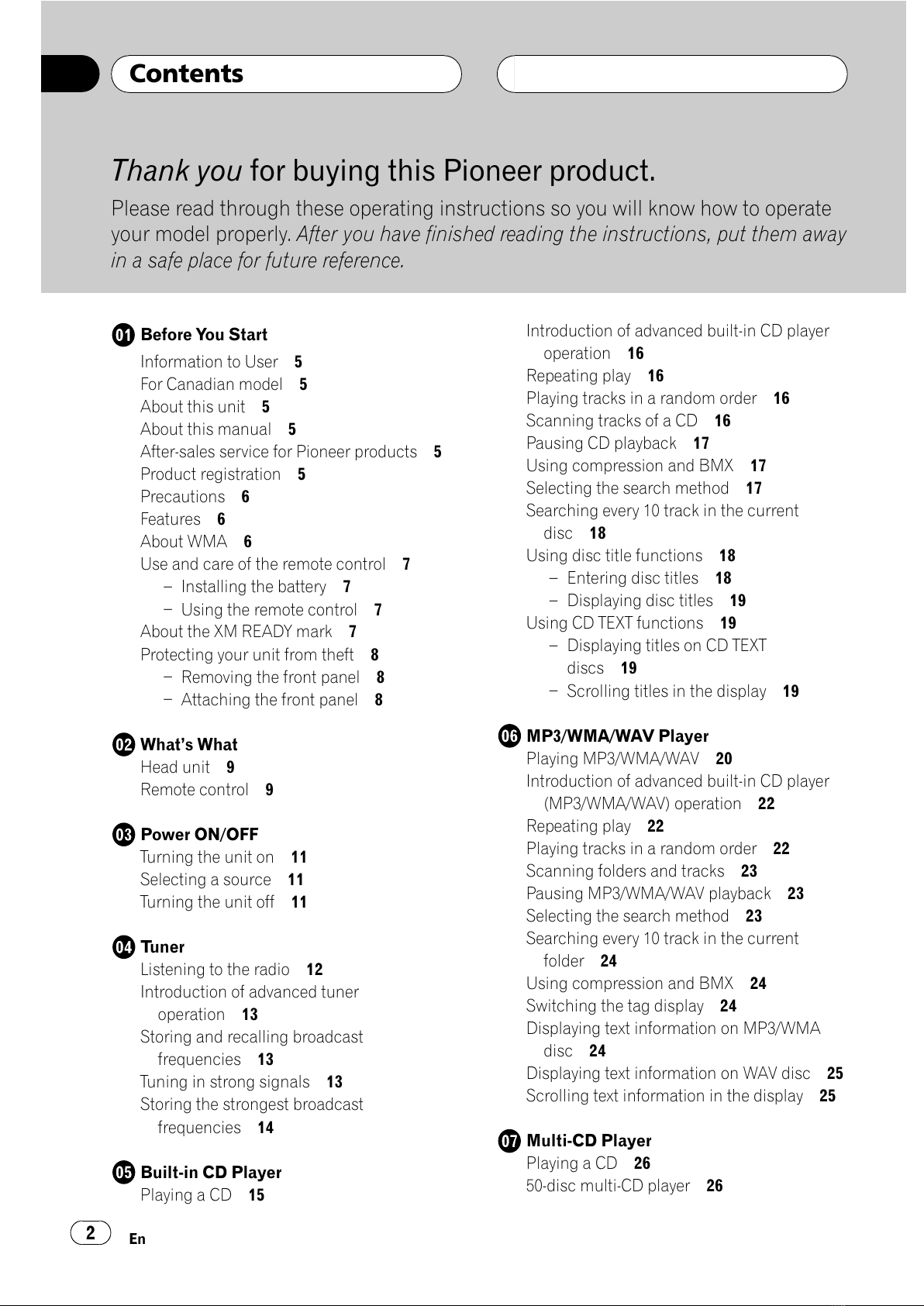

Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, put them away
in a safe place for future reference.
Before You Start
Information to User 5
For Canadian model 5
About this unit 5
About this manual 5
After-sales service for Pioneer products 5
Product registration 5
Precautions 6
Features 6
About W A 6
Use and care of the remote control 7
Installing the battery 7
Using the remote control 7
About the X READY mark 7

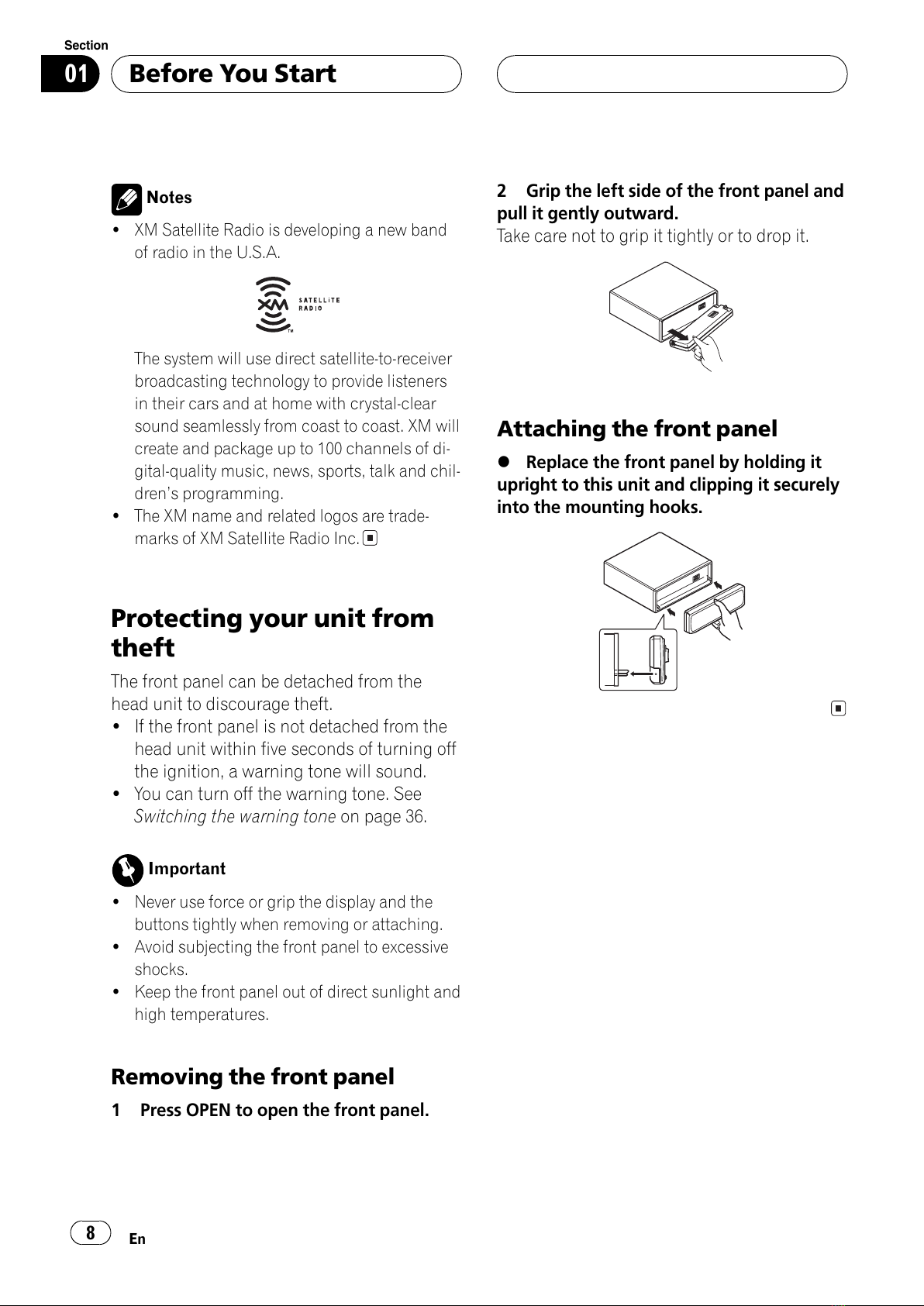

Protecting your unit from theft 8
Removing the front panel 8
Attaching the front panel 8
Whats What
Head unit 9

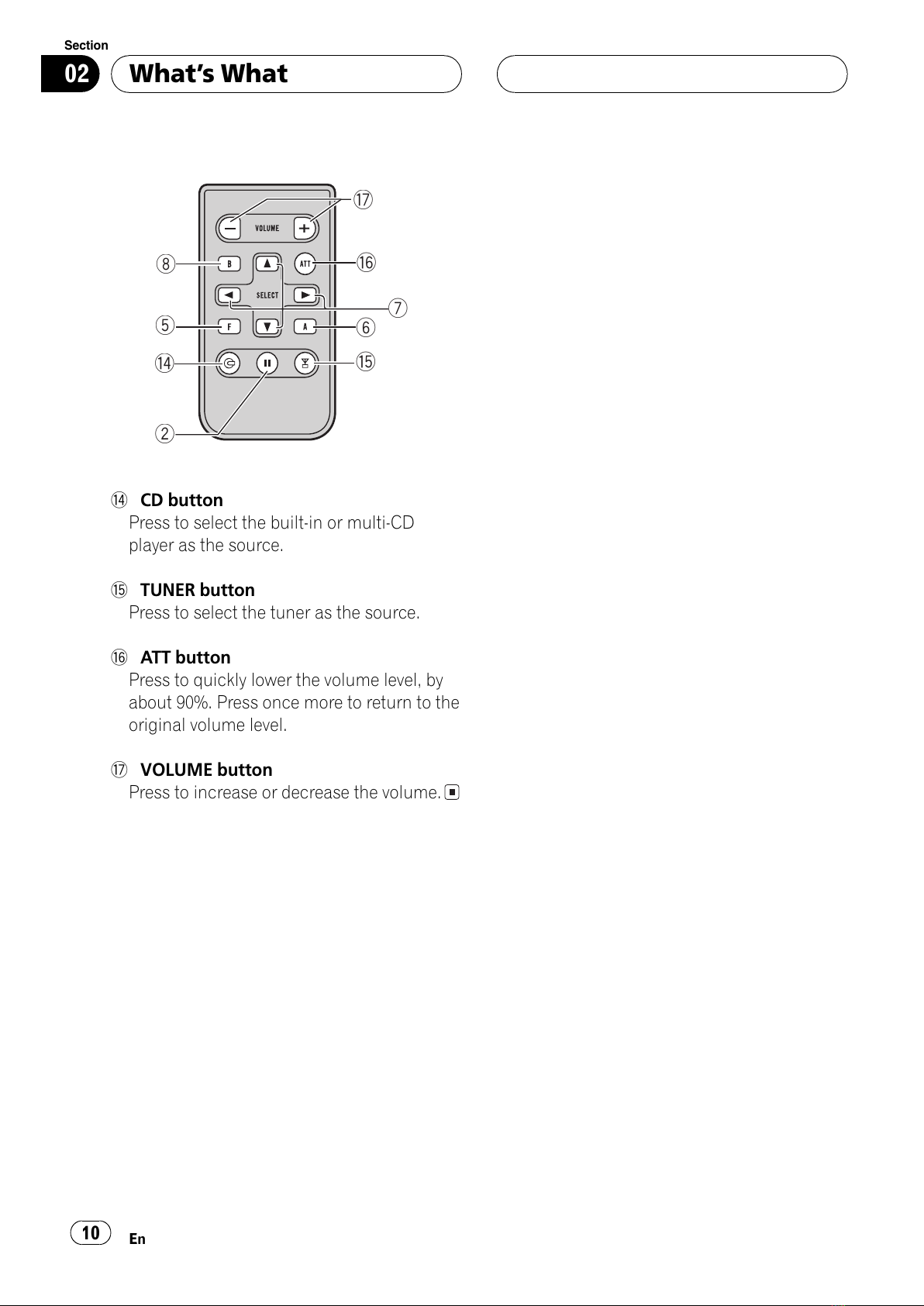

Remote control 9

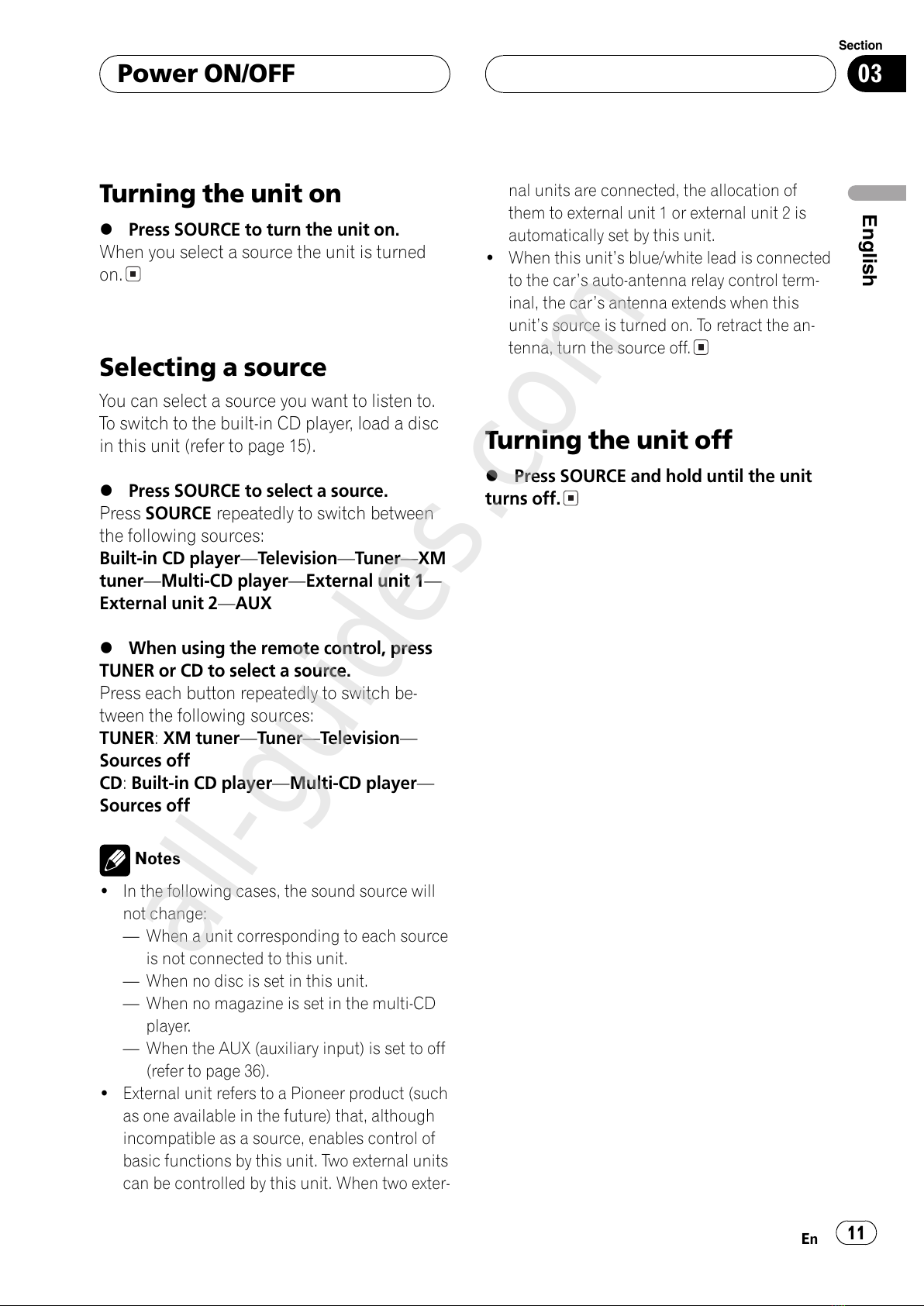

Power ON/OFF
Turning the unit on 11
Selecting a source 11
Turning the unit off 11
Tuner
Listening to the radio 12

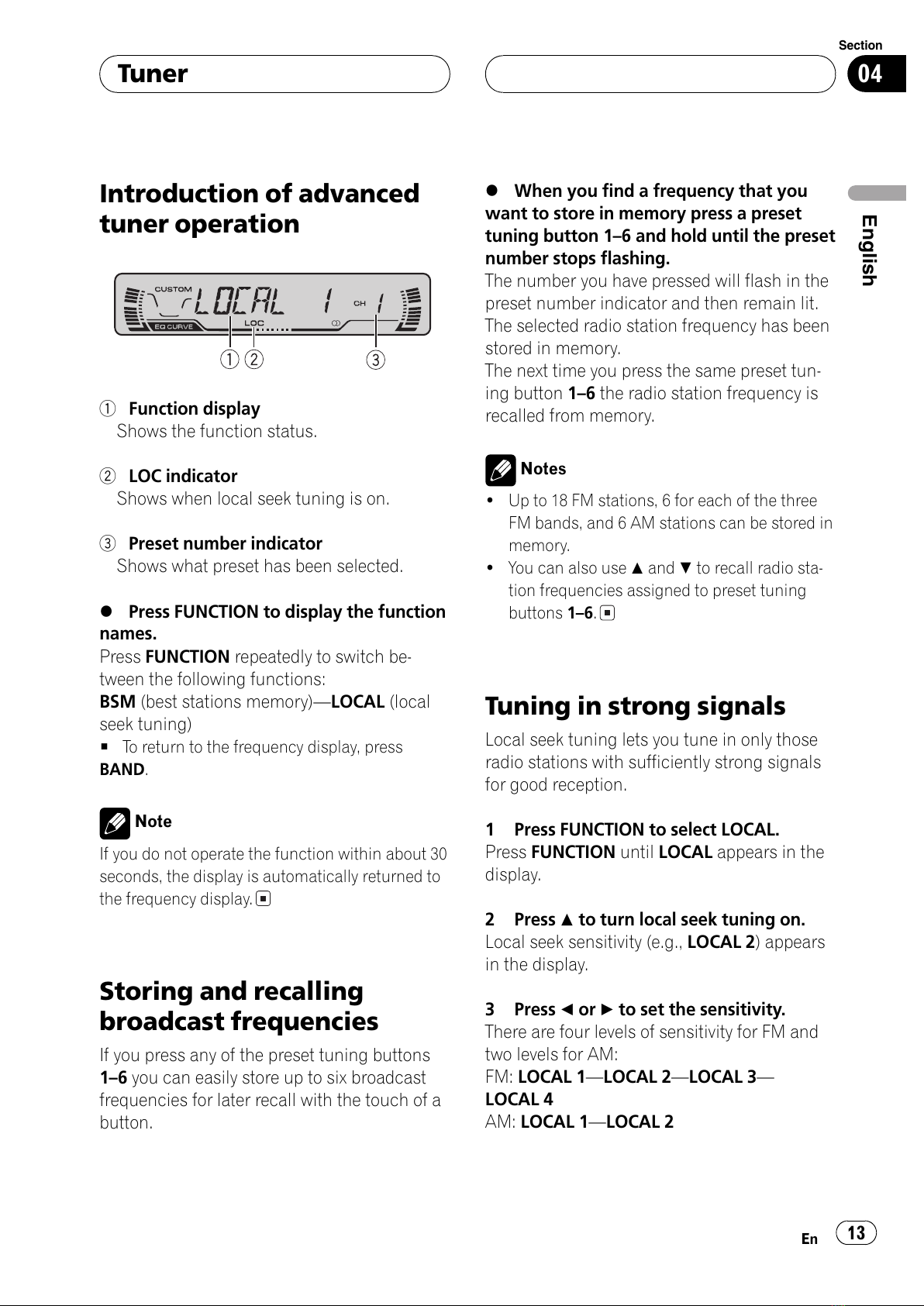

Introduction of advanced tuner
operation 13
Storing and recalling broadcast
frequencies 13
Tuning in strong signals 13

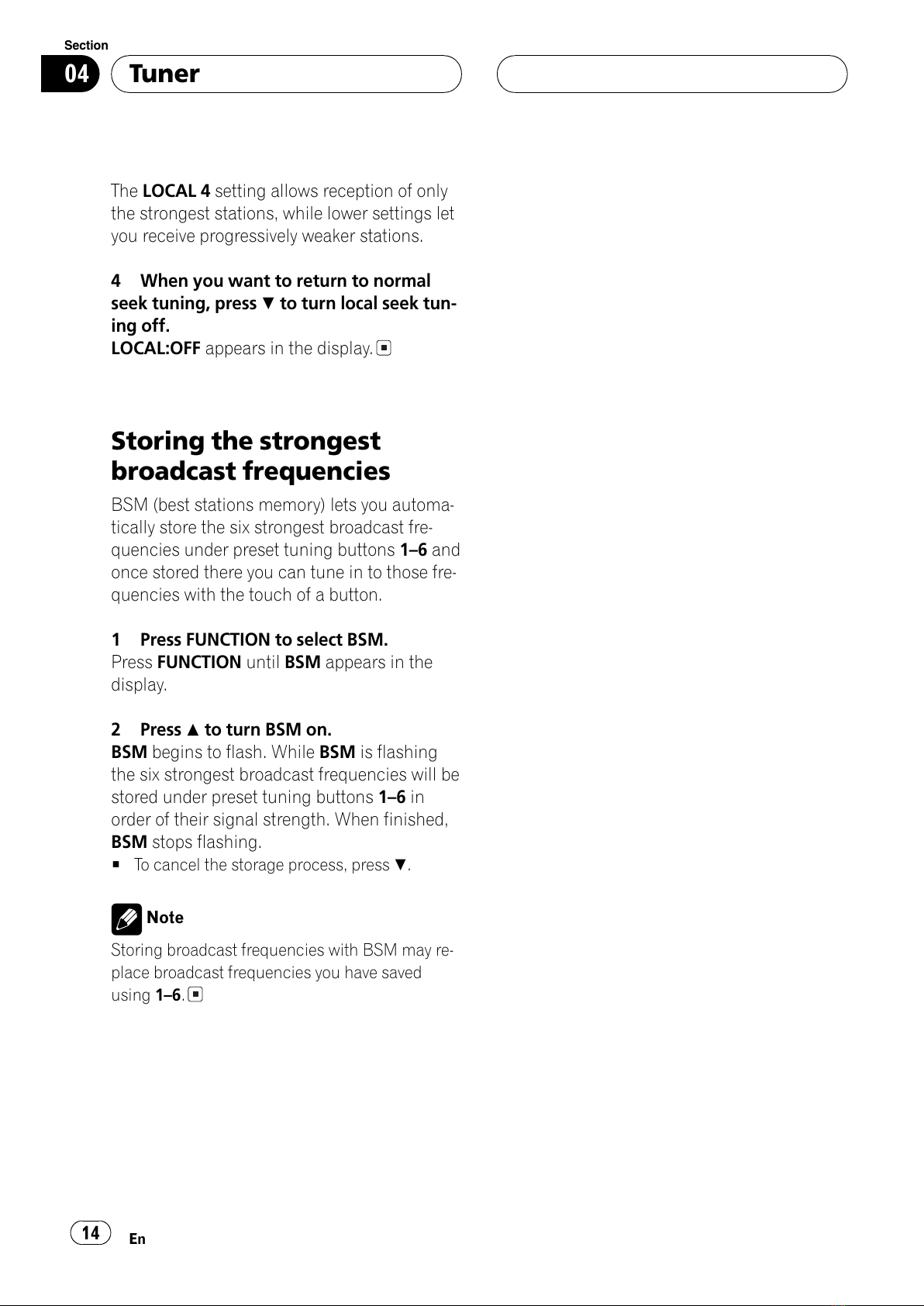

Storing the strongest broadcast
frequencies 14
Bui t-in CD P ayer

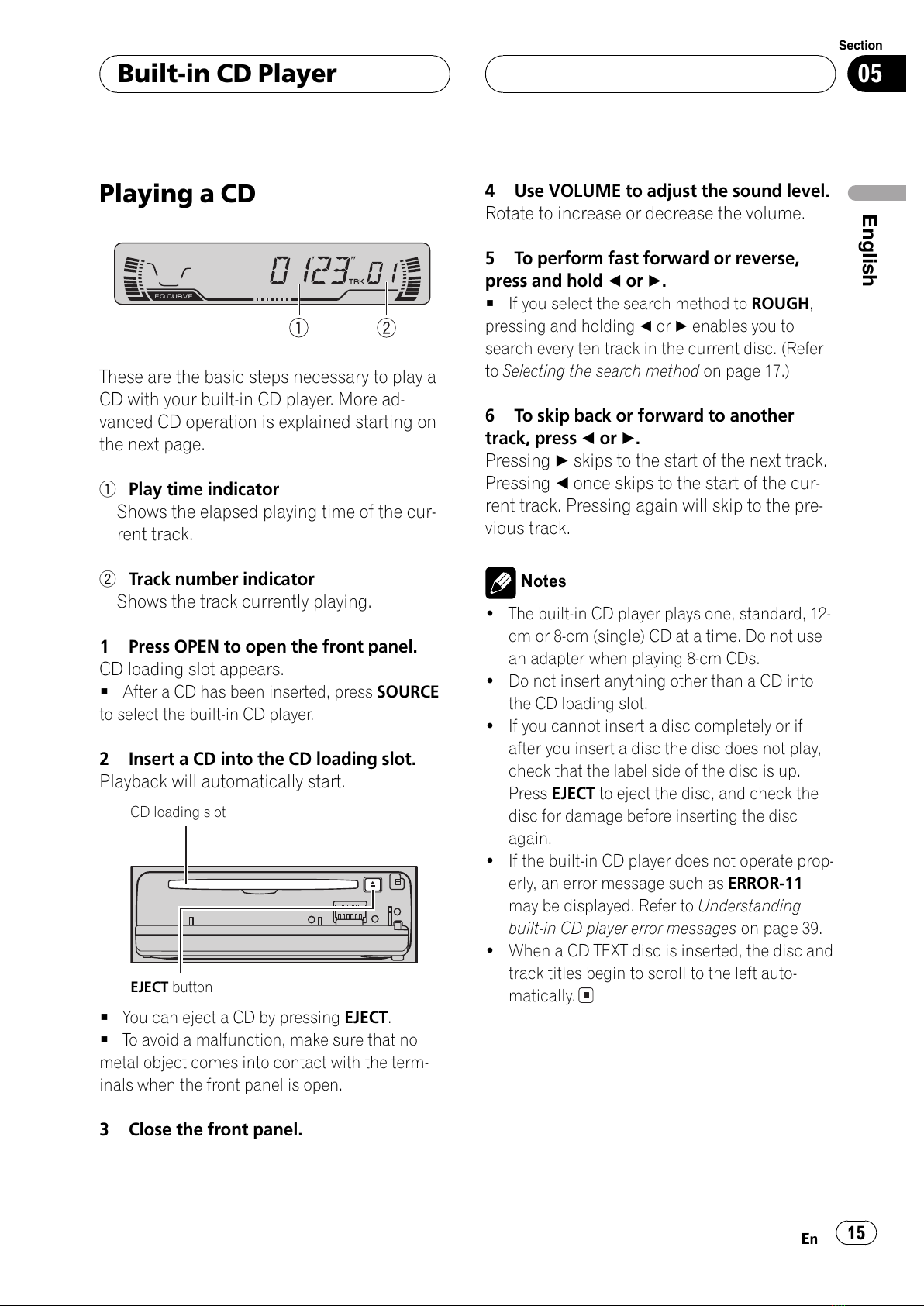

Playing a CD 15

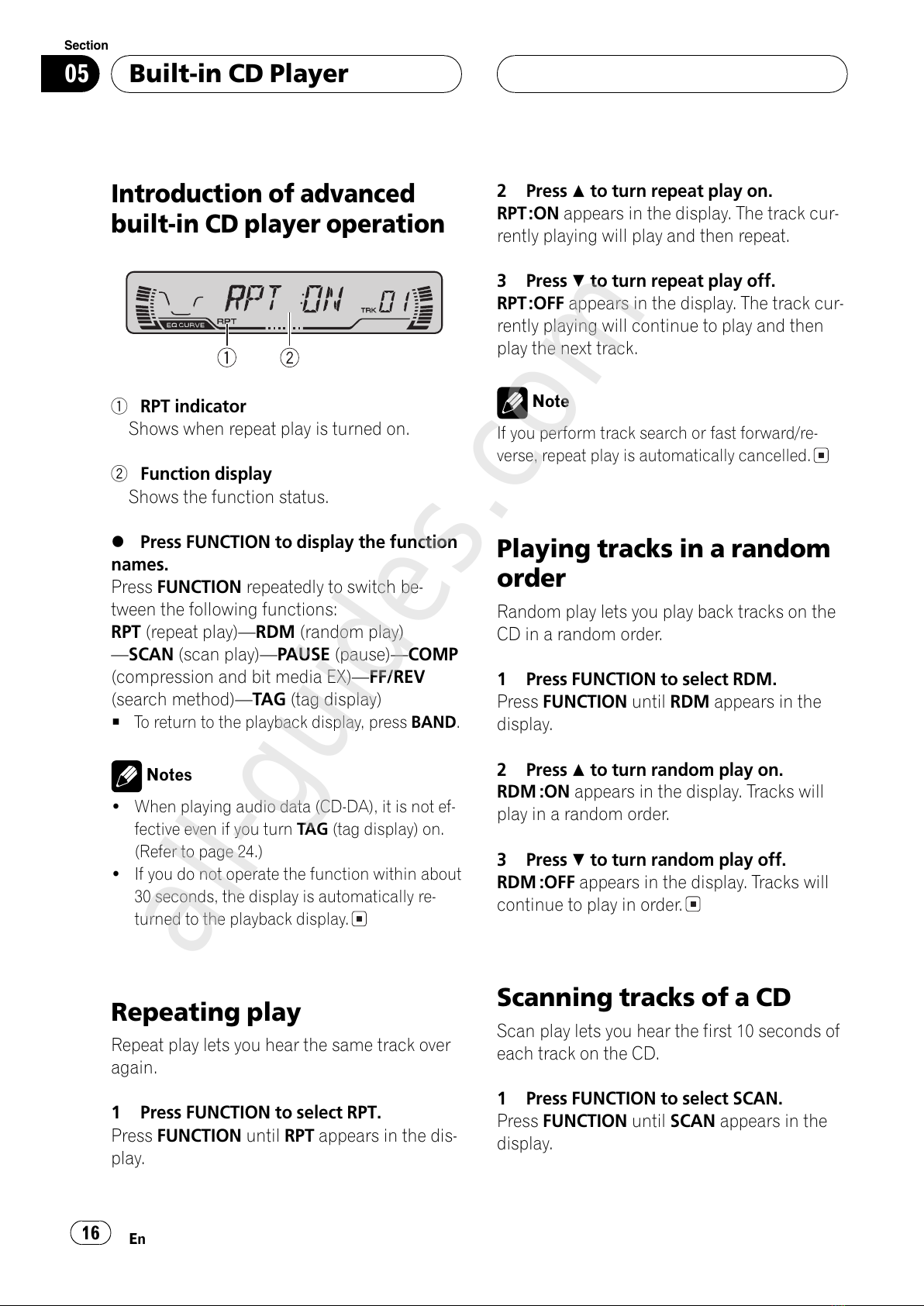

Introduction of advanced built-in CD player
operation 16
Repeating play 16
Playing tracks in a random order 16
Scanning tracks of a CD 16

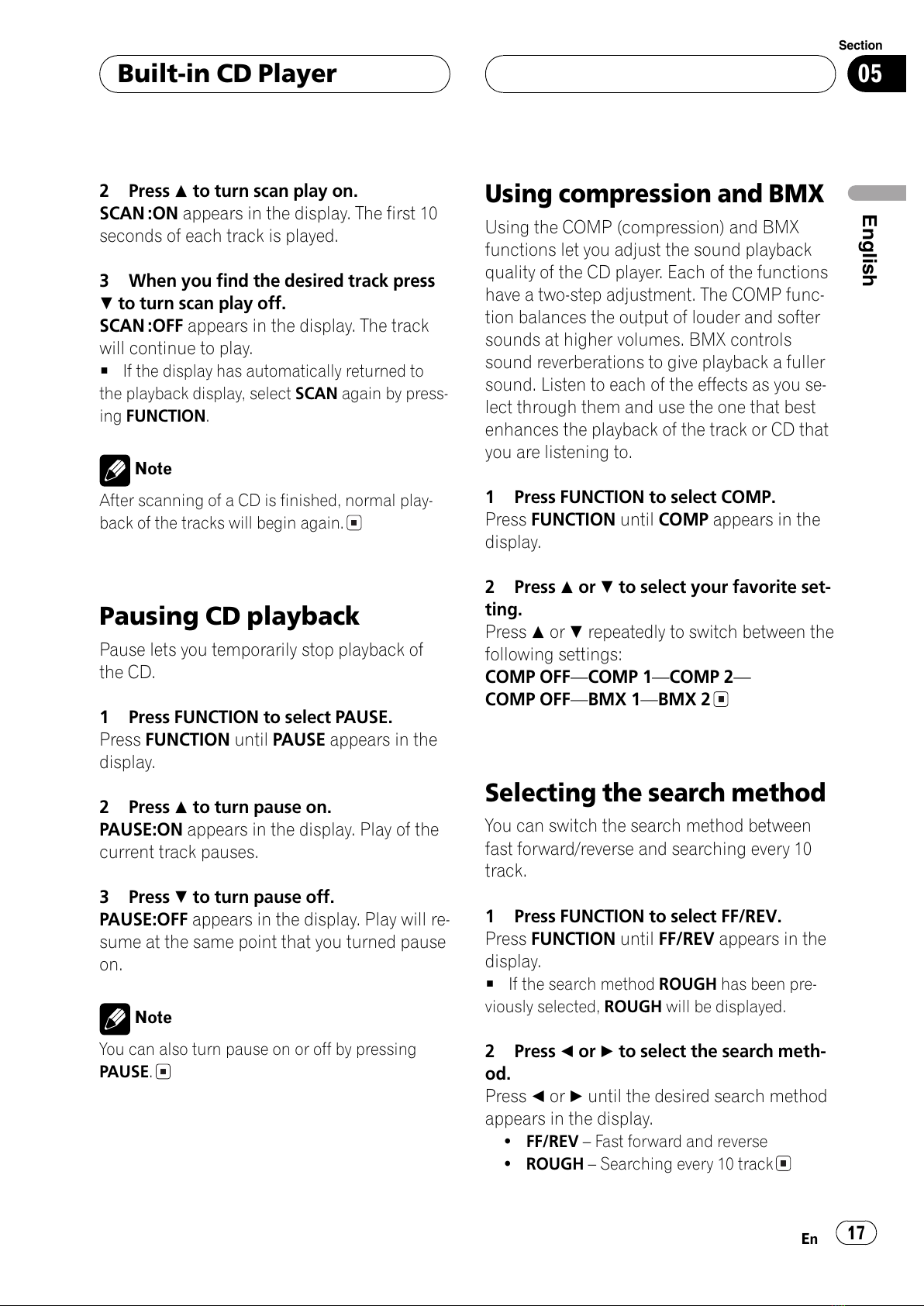

Pausing CD playback 17
Using compression and B X 17
Selecting the search method 17
Searching every 10 track in the current
disc 18
Using disc title functions 18
Entering disc titles 18

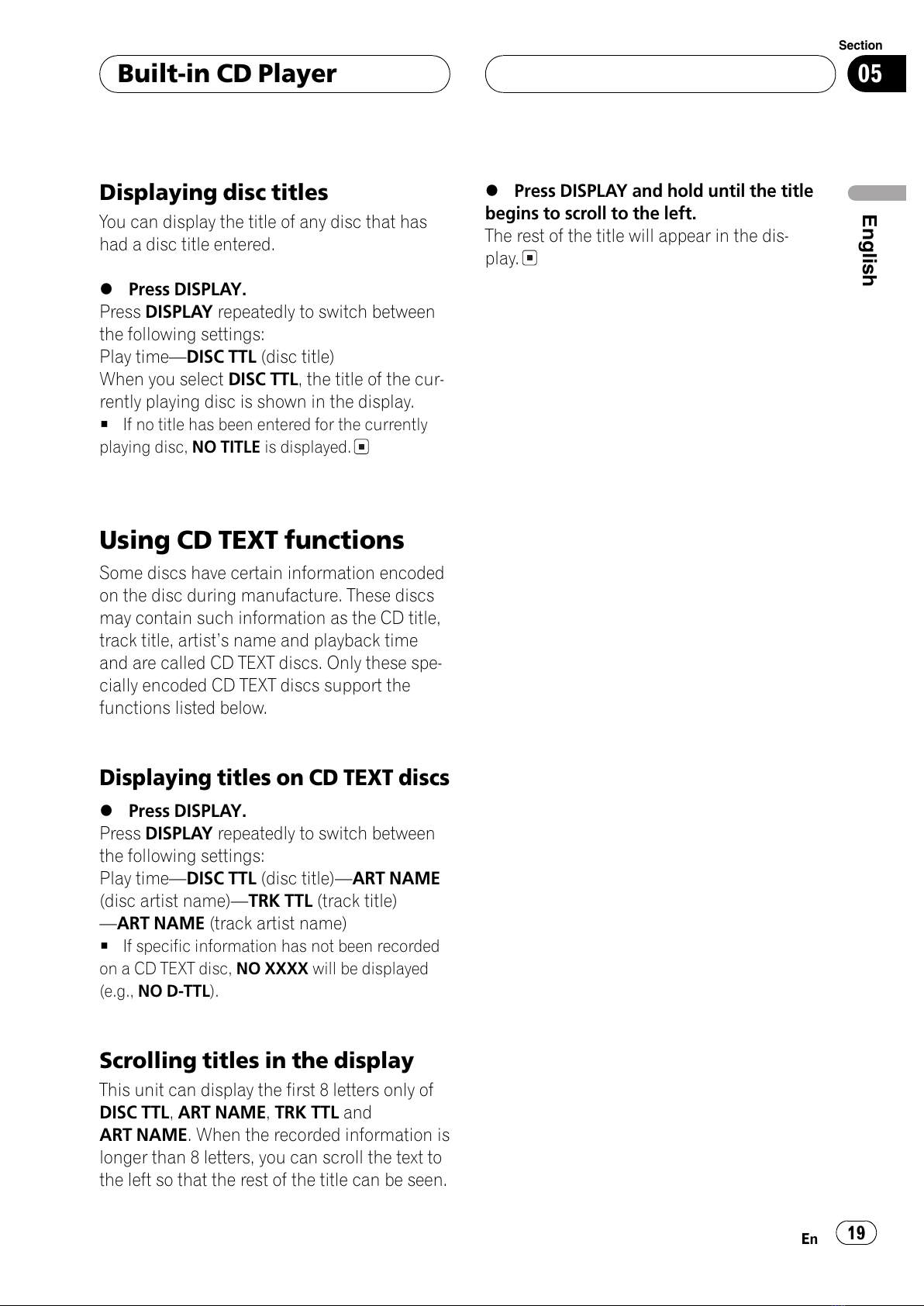

Displaying disc titles 19
Using CD TEXT functions 19
Displaying titles on CD TEXT
discs 19
Scrolling titles in the display 19
MP3/WMA/WAV P ayer

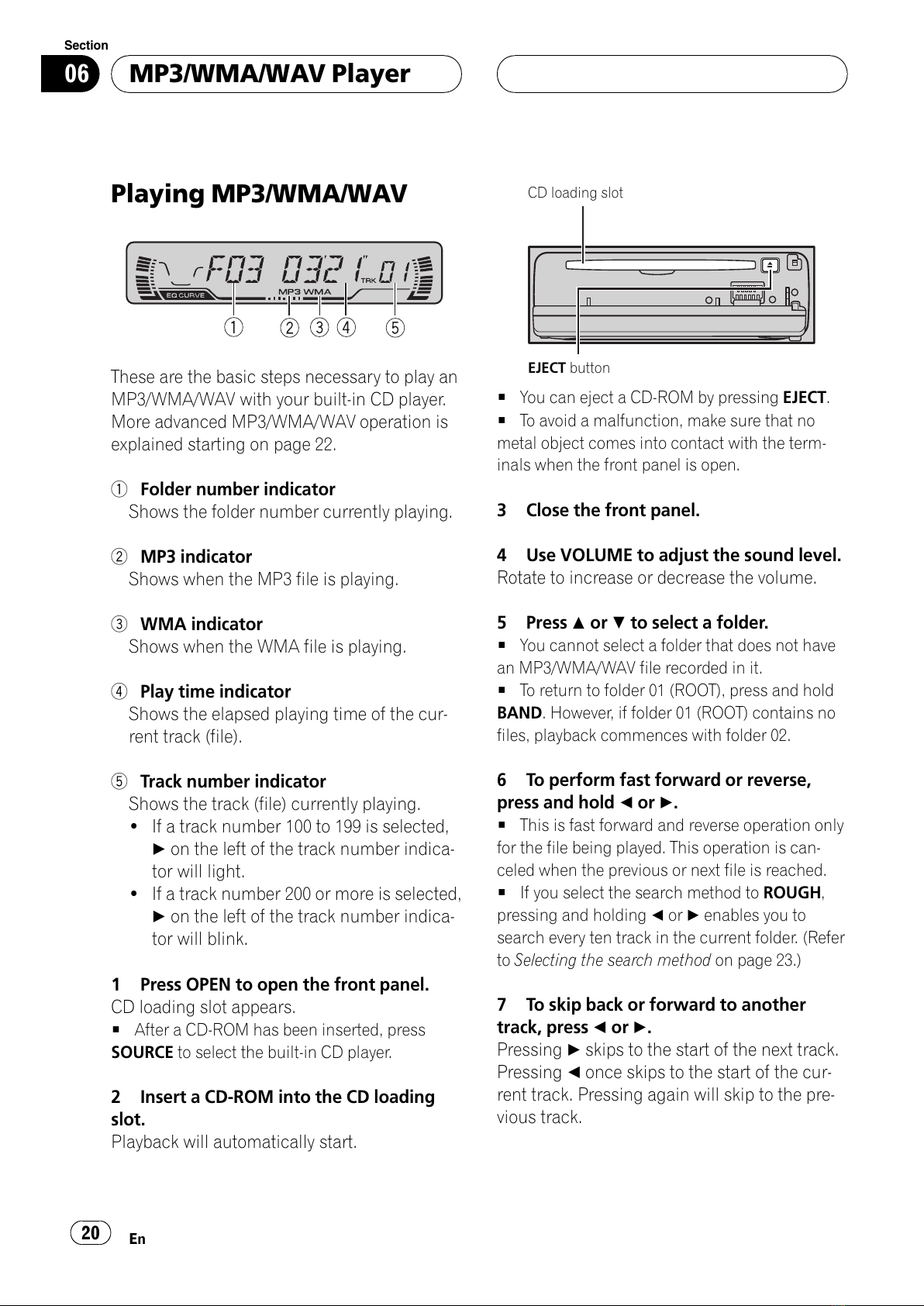

Playing P3/W A/WAV 20
Introduction of advanced built-in CD player
( P3/W A/WAV) operation 22
Repeating play 22
Playing tracks in a random order 22
Scanning folders and tracks 23
Pausing P3/W A/WAV playback 23
Selecting the search method 23
Searching every 10 track in the current
folder 24
Using compression and B X 24
Switching the tag display 24
Displaying text information on P3/W A
disc 24
Displaying text information on WAV disc 25
Scrolling text information in the display 25
Mu ti-CD P ayer
Playing a CD 26
50-disc multi-CD player 26
Contents
En
2
All manuals and user guides at all-guides.com

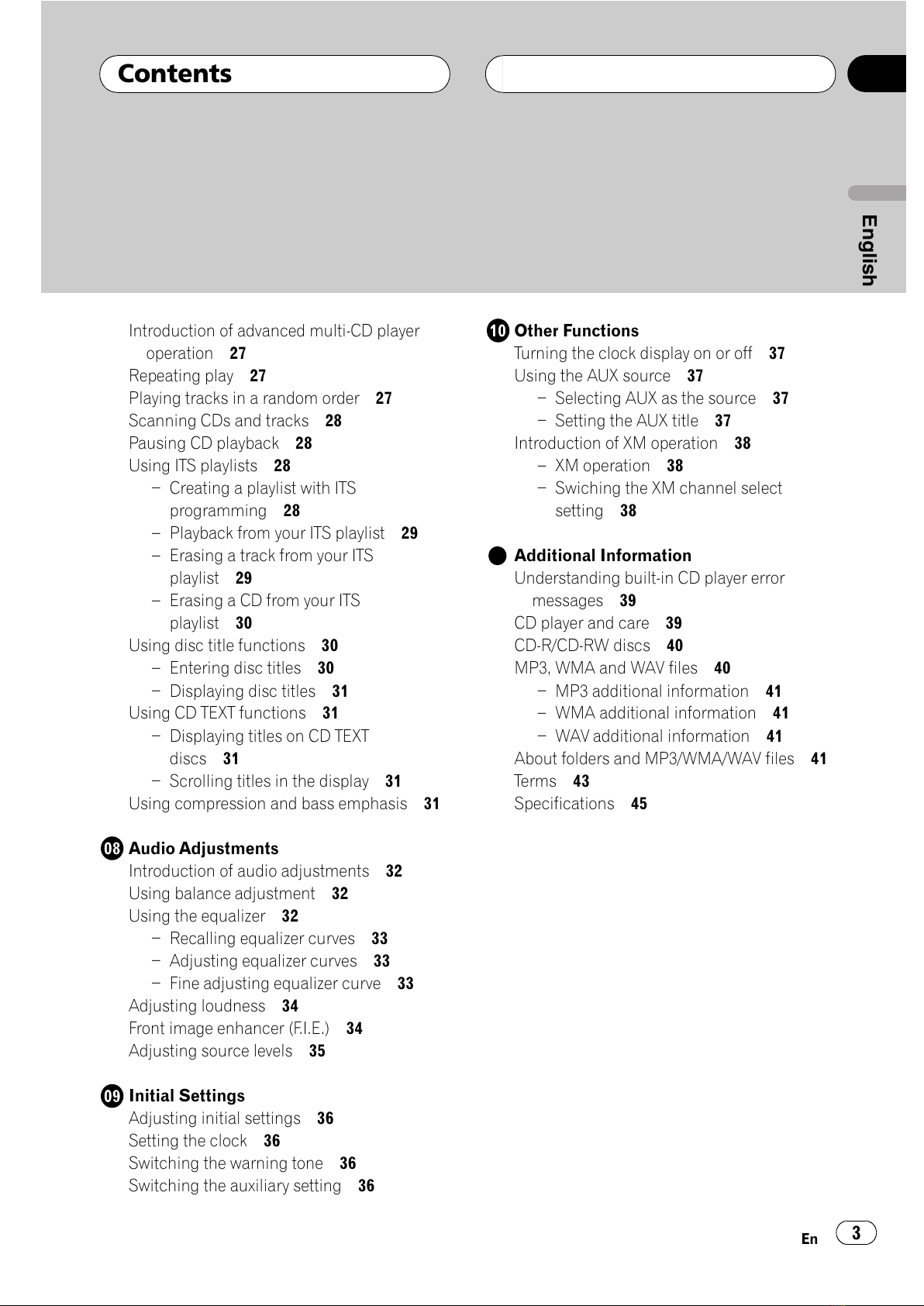

Introduction of advanced multi-CD player
operation 27
Repeating play 27
Playing tracks in a random order 27
Scanning CDs and tracks 28
Pausing CD playback 28
Using ITS playlists 28
Creating a playlist with ITS
programming 28
Playback from your ITS playlist 29
Erasing a track from your ITS
playlist 29
Erasing a CD from your ITS
playlist 30
Using disc title functions 30
Entering disc titles 30
Displaying disc titles 31
Using CD TEXT functions 31
Displaying titles on CD TEXT
discs 31
Scrolling titles in the display 31
Using compression and bass emphasis 31
Audio Adjustments
Introduction of audio adjustments 32
Using balance adjustment 32
Using the equalizer 32
Recalling equalizer curves 33
Adjusting equalizer curves 33
Fine adjusting equalizer curve 33
Adjusting loudness 34
Front image enhancer (F.I.E.) 34
Adjusting source levels 35
Initia Settings
Adjusting initial settings 36
Setting the clock 36
Switching the warning tone 36
Switching the auxiliary setting 36
Other Functions
Turning the clock display on or off 37
Using the AUX source 37
Selecting AUX as the source 37
Setting the AUX title 37
Introduction of X operation 38
X operation 38
Swiching the X channel select
setting 38
Additiona Information
Understanding built-in CD player error
messages 39
CD player and care 39
CD-R/CD-RW discs 40
P3, W A and WAV files 40
P3 additional information 41
W A additional information 41
WAV additional information 41
About folders and P3/W A/WAV files 41
Terms 43
Specifications 45
En 3
English
Contents
All manuals and user guides at all-guides.com

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your
musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your
equipment offers. This manufacturer and the Electronic Industries Association’s Consumer
Electronics Group want you to get the most out of your equipment by playing it at a safe level. One
that lets the sound come through loud and clear without annoying blaring or distortion—and, most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of
sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against
this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
•Start your volume control at a low setting.
•Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
•Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After
all, we want you listening for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since
hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the
Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged
ex
p
osure to excessive noise. This
l
ist of sound
l
eve
l
s is inc
l
uded for
y
our
p
rotection
.
D
ec
i
bel
Leve
l Exampl
e
30
Quiet
l
i
b
rar
y
, soft whis
p
er
s
4
0
L
ivin
g
room, refri
g
erator,
b
edroom awa
y
from traffi
c
50
L
i
g
ht traffic, norma
l
conversation,
q
uiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet
THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.
En
4
All manuals and user guides at all-guides.com

Information to User
Alteration or modifications carried out without
appropriate authorization may invalidate the
users right to operate the equipment.
For Canadian model
This Class B digital apparatus complies with
Canadian ICES-003.
About this unit
The tuner frequencies on this unit are allo-
cated for use in North America. Use in other
areas may result in improper reception.
Important (Seria number)
The serial number is located on the bottom of
this unit. For your own security and convenience,
be sure to record this number on the enclosed
warranty card.
About this manual
This unit features a number of sophisticated
functions ensuring superior reception and op-
eration. All the functions have been designed
for the easiest possible use, but many are not
self-explanatory. This operation manual will
help you benefit fully from this units potential
and to maximize your listening enjoyment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin
using this unit. It is especially important that
you read and observe precautions on the next
page and in other sections.
After-sales service for
Pioneer products
Please contact the dealer or distributor from
where you purchased this unit for after-sales
service (including warranty conditions) or any
other information. In case the necessary infor-
mation is not available, please contact the
companies listed below:
Please do not ship your unit to the companies
at the addresses listed below for repair without
advance contact.
U.S.A.
Pioneer Electronics (USA) Inc.
CUSTO ER SUPPORT DIVISION
P.O. Box 1760
Long Beach, CA 90801-1760
800-421-1404
CANADA
Pioneer Electronics of Canada, Inc.
CUSTO ER SATISFACTION DEPART ENT
300 Allstate Parkway
arkham, Ontario L3R OP2
[phone]
1-877-283-5901
For warranty information please see the Lim-
ited Warranty sheet included with this unit.
Product registration
Visit us at the following site:
1 Register your product. We will keep the details
of your purchase on file to help you refer to
this information in the event of an insurance
claim such as loss or theft.
Before You Start
En 5
English
Section
01
All manuals and user guides at all-guides.com

2 Receive updates on the latest products and
technologies.
3 Download owners manuals, order product
catalogues, research new products, and
much more.
Precautions
WARNING:
Handling the cord on this product or cords asso-
ciated with accessories sold with the product will
expose you to lead, a chemical known to the
State of California and other governmental enti-
ties to cause cancer and birth defects or other re-
productive harm. Wash hands after handling.
C UTION:
USE OF CONTROL OR DJUSTMENT OR
PERFORM NCE OF PROCEDURES
OTHER TH N THOSE SPECIFIED HEREIN
M Y RESULT IN H Z RDOUS R DI TION
EXPOSURE.
C UTION:
THE USE OF OPTIC L INSTRUMENTS
WITH THIS PRODUCT WILL INCRE SE
EYE H Z RD.
!Keep this manual handy as a reference for
operating procedures and precautions.
!Always keep the volume low enough so you
can hear sounds outside of the car.
!Protect this unit from moisture.
!If the battery is disconnected or dis-
charged, the preset memory will be erased
and must be reprogrammed.
Features
CD playbac
usic CD/CD-R/CD-RW playback is possible.
MP3 file playbac
You can play back P3 files recorded on CD-
RO /CD-R/CD-RW (ISO9660 Level 1/Level 2
standard recordings).
!Supply of this product only conveys a li-
cense for private, non-commercial use and
does not convey a license nor imply any
right to use this product in any commercial
(i.e. revenue-generating) real time broad-
casting (terrestrial, satellite, cable and/or
any other media), broadcasting/streaming
via internet, intranets and/or other net-
works or in other electronic content distri-
bution systems, such as pay-audio or
audio-on-demand applications. An inde-
pendent license for such use is required.
For details, please visit
http://www.mp3licensing.com.
WMA file playbac
You can play back W A files recorded on CD-
RO /CD-R/CD-RW (ISO9660 Level 1/Level 2
standard recordings).
WAV file playbac
You can play back WAV files recorded on CD-
RO /CD-R/CD-RW (Linear PC (LPC )/ S
ADPC recordings).
About WMA
The Windows edia"logo printed on the box
indicates that this unit can playback the W A
data.
W A is short for Windows edia Audio and
refers to an audio compression technology
Before You Start
En
6
Section
01
All manuals and user guides at all-guides.com
all-guides.com

that is developed by icrosoft Corporation.
W A data can be encoded by using Windows
edia Player version 7 or later.
icrosoft, Windows edia, and the Windows
logo are trademarks, or registered trademarks
of icrosoft Corporation in the United States
and/or other countries.
Notes
!With some applications used to encode W A
files, this unit may not operate correctly.
!With some applications used to encode W A
files, album names and other text information
may not be correctly displayed.
Use and care of the remote
control
Installing the battery
Slide the tray out on the back of the remote
control and insert the battery with the plus (+)
and minus () poles pointing in the proper di-
rection.
WARNING
Keep the battery out of the reach of children.
Should the battery be swallowed, immediately
consult a doctor.
CAUTION
!Use only one CR2025 (3 V) lithium battery.
!Remove the battery if the remote control is not
used for a month or longer.
!Do not recharge, disassemble, heat or dispose
of the battery in fire.
!Do not handle the battery with metallic tools.
!Do not store the battery with metallic materi-
als.
!In the event of battery leakage, wipe the re-
mote control completely clean and install a
new battery.
!When disposing of used batteries, please
comply with governmental regulations or en-
vironmental public institutions rules that
apply in your country/area.
Using the remote control
Point the remote control in the direction of the
front panel to operate.
Important
!Do not store the remote control in high tem-
peratures or direct sunlight.
!The remote control may not function properly
in direct sunlight.
!Do not let the remote control fall onto the
floor, where it may become jammed under the
brake or accelerator pedal.
About the XM READY mar
The X READY mark printed on the front
panel indicates that the Pioneer X tuner
(sold separately) can be controlled by this unit.
Please inquire to your dealer or nearest
authorized Pioneer service station regarding
the X tuner that can be connected to this
unit. For X tuner operation, please refer to
the X tuner owners manual.
Before You Start
En 7
English
Section
01
All manuals and user guides at all-guides.com

Notes
!X Satellite Radio is developing a new band
of radio in the U.S.A.
The system will use direct satellite-to-receiver
broadcasting technology to provide listeners
in their cars and at home with crystal-clear
sound seamlessly from coast to coast. X will
create and package up to 100 channels of di-
gital-quality music, news, sports, talk and chil-
drens programming.
!The X name and related logos are trade-
marks of X Satellite Radio Inc.
Protecting your unit from
theft
The front panel can be detached from the
head unit to discourage theft.
!If the front panel is not detached from the
head unit within five seconds of turning off
the ignition, a warning tone will sound.
!You can turn off the warning tone. See
Switching the warning tone on page 36.
Important
!Never use force or grip the display and the
buttons tightly when removing or attaching.
!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press OPEN to open the front panel.
2 Grip the left side of the front panel and
pull it gently outward.
Take care not to grip it tightly or to drop it.
Attaching the front panel
%Replace the front panel by holding it
upright to this unit and clipping it securely
into the mounting hooks.
Before You Start
En
8
Section
01
All manuals and user guides at all-guides.com

Head unit
1C OCK button
Press to change to the clock display.
2PAUSE button
Press to turn pause on or off.
3OUDNESS button
Press to turn loudness on or off.
4OPEN button
Press to open the front panel.
5FUNCTION button
Press to select functions.
6AUDIO button
Press to select various sound quality con-
trols.
7a/b/c/dbuttons
Press to do manual seek tuning, fast for-
ward, reverse and track search controls.
Also used for controlling functions.
8BAND button
Press to select among three F and one
A bands and cancel the control mode of
functions.
916 buttons
Press for preset tuning and disc number
search when using a multi-CD player.
aEQ button
Press to select various equalizer curves.
bVO UME
When you press VO UME, it extends out-
ward so that it becomes easier to turn. To re-
tract VO UME, press it again. Rotate to
increase or decrease the volume.
cSOURCE button
This unit is turned on by selecting a source.
Press to cycle through all of the available
sources.
dDISP AY button
Press to select different displays.
Remote control
Operation is the same as when using the but-
ton on the head unit. See the explanation of
the head unit about the operation of each but-
ton with the exception of ATT, which is ex-
plained below.
Whats What
En 9
English
Section
02
All manuals and user guides at all-guides.com

eCD button
Press to select the built-in or multi-CD
player as the source.
fTUNER button
Press to select the tuner as the source.
gATT button
Press to quickly lower the volume level, by
about 90%. Press once more to return to the
original volume level.
hVO UME button
Press to increase or decrease the volume.
g
7
6
e
5
2
f
8
h
Whats What
En
10
Section
02
All manuals and user guides at all-guides.com

Turning the unit on
%Press SOURCE to turn the unit on.
When you select a source the unit is turned
on.
Selecting a source
You can select a source you want to listen to.
To switch to the built-in CD player, load a disc
in this unit (refer to page 15).
%Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
Built-in CD playerTelevisionTunerXM
tunerMulti-CD playerExternal unit 1
External unit 2AUX
%When using the remote control, press
TUNER or CD to select a source.
Press each button repeatedly to switch be-
tween the following sources:
TUNER:XM tunerTunerTelevision
Sources off
CD:Built-in CD playerMulti-CD player
Sources off
Notes
!In the following cases, the sound source will
not change:
When a unit corresponding to each source
is not connected to this unit.
When no disc is set in this unit.
When no magazine is set in the multi-CD
player.
When the AUX (auxiliary input) is set to off
(refer to page 36).
!External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this unit. Two external units
can be controlled by this unit. When two exter-
nal units are connected, the allocation of
them to external unit 1 or external unit 2 is
automatically set by this unit.
!When this units blue/white lead is connected
to the cars auto-antenna relay control term-
inal, the cars antenna extends when this
units source is turned on. To retract the an-
tenna, turn the source off.
Turning the unit off
%Press SOURCE and hold until the unit
turns off.
Power ON/OFF
En 11
English
Section
03
All manuals and user guides at all-guides.com
all-guides.com

Listening to the radio
These are the basic steps necessary to operate
the radio. ore advanced tuner operation is
explained starting on the next page.
1Band indicator
Shows which band the radio is tuned to, A
or F .
2Frequency indicator
Shows to which frequency the tuner is
tuned.
3Stereo (5) indicator
Shows that the frequency selected is being
broadcast in stereo.
4Preset number indicator
Shows what preset has been selected.
1 Press SOURCE to select the tuner.
Press SOURCE until tuner is selected as the
source.
2 Use VO UME to adjust the sound level.
Rotate to increase or decrease the volume.
3 Press BAND to select a band.
Press BAND until the desired band is dis-
played, F1,F2,F3 for F or AM.
4 To perform manual tuning, press cor
dwith quick presses.
The frequencies move up or down step by
step.
5 To perform seek tuning, press and hold
cor dfor about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by pressing either
cor dwith a quick press.
#If you press and hold cor dyou can skip
broadcasting stations. Seek tuning starts as soon
as you release the buttons.
Note
When the frequency selected is being broadcast
in stereo the stereo (5) indicator will light.
Tuner
En
12
Section
04
All manuals and user guides at all-guides.com

Introduction of advanced
tuner operation
1Function display
Shows the function status.
2OC indicator
Shows when local seek tuning is on.
3Preset number indicator
Shows what preset has been selected.
%Press FUNCTION to display the function
names.
Press FUNCTION repeatedly to switch be-
tween the following functions:
BSM (best stations memory)OCA (local
seek tuning)
#To return to the frequency display, press
BAND.
Note
If you do not operate the function within about 30
seconds, the display is automatically returned to
the frequency display.
Storing and recalling
broadcast frequencies
If you press any of the preset tuning buttons
16you can easily store up to six broadcast
frequencies for later recall with the touch of a
button.
%When you find a frequency that you
want to store in memory press a preset
tuning button 16 and hold until the preset
number stops flashing.
The number you have pressed will flash in the
preset number indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same preset tun-
ing button 16the radio station frequency is
recalled from memory.
Notes
!Up to 18 F stations, 6 for each of the three
F bands, and 6 A stations can be stored in
memory.
!You can also use aand bto recall radio sta-
tion frequencies assigned to preset tuning
buttons 16.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Press FUNCTION to select OCA .
Press FUNCTION until OCA appears in the
display.
2 Press ato turn local seek tuning on.
Local seek sensitivity (e.g., OCA 2) appears
in the display.
3 Press cor dto set the sensitivity.
There are four levels of sensitivity for F and
two levels for A :
F : OCA 1OCA 2OCA 3
OCA 4
A : OCA 1OCA 2
Tuner
En 13
English
Section
04
All manuals and user guides at all-guides.com

The OCA 4 setting allows reception of only
the strongest stations, while lower settings let
you receive progressively weaker stations.
4 When you want to return to normal
seek tuning, press bto turn local seek tun-
ing off.
OCA :OFF appears in the display.
Storing the strongest
broadcast frequencies
BS (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under preset tuning buttons 16and
once stored there you can tune in to those fre-
quencies with the touch of a button.
1 Press FUNCTION to select BSM.
Press FUNCTION until BSM appears in the
display.
2 Press ato turn BSM on.
BSM begins to flash. While BSM is flashing
the six strongest broadcast frequencies will be
stored under preset tuning buttons 16in
order of their signal strength. When finished,
BSM stops flashing.
#To cancel the storage process, press b.
Note
Storing broadcast frequencies with BS may re-
place broadcast frequencies you have saved
using 16.
Tuner
En
14
Section
04
All manuals and user guides at all-guides.com

Playing a CD
These are the basic steps necessary to play a
CD with your built-in CD player. ore ad-
vanced CD operation is explained starting on
the next page.
1Play time indicator
Shows the elapsed playing time of the cur-
rent track.
2Track number indicator
Shows the track currently playing.
1 Press OPEN to open the front panel.
CD loading slot appears.
#After a CD has been inserted, press SOURCE
to select the built-in CD player.
2 Insert a CD into the CD loading slot.
Playback will automatically start.
CD loading slot
EJECT button
#You can eject a CD by pressing EJECT.
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
3 Close the front panel.
4 Use VO UME to adjust the sound level.
Rotate to increase or decrease the volume.
5 To perform fast forward or reverse,
press and hold cor d.
#If you select the search method to ROUGH,
pressing and holding cor denables you to
search every ten track in the current disc. (Refer
to Selecting the search method on page 17.)
6 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
Notes
!The built-in CD player plays one, standard, 12-
cm or 8-cm (single) CD at a time. Do not use
an adapter when playing 8-cm CDs.
!Do not insert anything other than a CD into
the CD loading slot.
!If you cannot insert a disc completely or if
after you insert a disc the disc does not play,
check that the label side of the disc is up.
Press EJECT to eject the disc, and check the
disc for damage before inserting the disc
again.
!If the built-in CD player does not operate prop-
erly, an error message such as ERROR-11
may be displayed. Refer to Understanding
built-in CD player error messages on page 39.
!When a CD TEXT disc is inserted, the disc and
track titles begin to scroll to the left auto-
matically.
Built-in CD Player
En 15
English
Section
05
All manuals and user guides at all-guides.com

Introduction of advanced
built-in CD player operation
1RPT indicator
Shows when repeat play is turned on.
2Function display
Shows the function status.
%Press FUNCTION to display the function
names.
Press FUNCTION repeatedly to switch be-
tween the following functions:
RPT (repeat play)RDM (random play)
SCAN (scan play)PAUSE (pause)COMP
(compression and bit media EX)FF/REV
(search method)TAG (tag display)
#To return to the playback display, press BAND.
Notes
!When playing audio data (CD-DA), it is not ef-
fective even if you turn TAG (tag display) on.
(Refer to page 24.)
!If you do not operate the function within about
30 seconds, the display is automatically re-
turned to the playback display.
Repeating play
Repeat play lets you hear the same track over
again.
1 Press FUNCTION to select RPT.
Press FUNCTION until RPT appears in the dis-
play.
2 Press ato turn repeat play on.
RPT:ON appears in the display. The track cur-
rently playing will play and then repeat.
3 Press bto turn repeat play off.
RPT:OFF appears in the display. The track cur-
rently playing will continue to play and then
play the next track.
Note
If you perform track search or fast forward/re-
verse, repeat play is automatically cancelled.
Playing trac s in a random
order
Random play lets you play back tracks on the
CD in a random order.
1 Press FUNCTION to select RDM.
Press FUNCTION until RDM appears in the
display.
2 Press ato turn random play on.
RDM :ON appears in the display. Tracks will
play in a random order.
3 Press bto turn random play off.
RDM :OFF appears in the display. Tracks will
continue to play in order.
Scanning trac s of a CD
Scan play lets you hear the first 10 seconds of
each track on the CD.
1 Press FUNCTION to select SCAN.
Press FUNCTION until SCAN appears in the
display.
Built-in CD Player
En
16
Section
05
All manuals and user guides at all-guides.com
all-guides.com

2 Press ato turn scan play on.
SCAN :ON appears in the display. The first 10
seconds of each track is played.
3 When you find the desired track press
bto turn scan play off.
SCAN :OFF appears in the display. The track
will continue to play.
#If the display has automatically returned to
the playback display, select SCAN again by press-
ing FUNCTION.
Note
After scanning of a CD is finished, normal play-
back of the tracks will begin again.
Pausing CD playbac
Pause lets you temporarily stop playback of
the CD.
1 Press FUNCTION to select PAUSE.
Press FUNCTION until PAUSE appears in the
display.
2 Press ato turn pause on.
PAUSE:ON appears in the display. Play of the
current track pauses.
3 Press bto turn pause off.
PAUSE:OFF appears in the display. Play will re-
sume at the same point that you turned pause
on.
Note
You can also turn pause on or off by pressing
PAUSE.
Using compression and BMX
Using the CO P (compression) and B X
functions let you adjust the sound playback
quality of the CD player. Each of the functions
have a two-step adjustment. The CO P func-
tion balances the output of louder and softer
sounds at higher volumes. B X controls
sound reverberations to give playback a fuller
sound. Listen to each of the effects as you se-
lect through them and use the one that best
enhances the playback of the track or CD that
you are listening to.
1 Press FUNCTION to select COMP.
Press FUNCTION until COMP appears in the
display.
2 Press aor bto select your favorite set-
ting.
Press aor brepeatedly to switch between the
following settings:
COMP OFFCOMP 1COMP 2
COMP OFFBMX 1BMX 2
Selecting the search method
You can switch the search method between
fast forward/reverse and searching every 10
track.
1 Press FUNCTION to select FF/REV.
Press FUNCTION until FF/REV appears in the
display.
#If the search method ROUGH has been pre-
viously selected, ROUGH will be displayed.
2 Press cor dto select the search meth-
od.
Press cor duntil the desired search method
appears in the display.
!FF/REV Fast forward and reverse
!ROUGH Searching every 10 track
Built-in CD Player
En 17
English
Section
05
All manuals and user guides at all-guides.com

Searching every 10 trac in
the current disc
If a disc contains over 10 tracks, you can
search every 10 track. When a disc contains a
lot of tracks, you can roughly search the track
you want to play.
1 Select the search method ROUGH.
Refer to Selecting the search method on the
previous page.
2 Press and hold cor dto search every
10 track in a disc.
#If a disc contains less than 10 tracks, pressing
and holding drecalls the last track of a disc.
Also, if the remaining number of tracks after
searching every 10 tracks are less than 10, press-
ing and holding drecalls the last track of a disc.
#If a disc contains less than 10 tracks, pressing
and holding crecalls the first track of a disc.
Also, if the remaining number of tracks after
searching every 10 tracks are less than 10, press-
ing and holding crecalls the first track of a
disc.
Using disc title functions
You can input CD titles and display the title.
The next time you insert a CD for which you
have entered a title, the title of that CD will be
displayed.
Entering disc titles
Disc title input lets you input CD titles up to 8
letters long and up to 48 disc titles into this
unit.
1 Play a CD that you want to enter the
title.
2 Press FUNCTION and hold until TIT E IN
appears in the display.
#When playing a CD TEXT disc, you cannot
switch to TIT E IN. The disc title will have already
been recorded on a CD TEXT disc.
3 Press aor bto select a letter of the al-
phabet.
Each press of awill display a letter of the al-
phabet in A B C ... X Y Z, numbers and sym-
bols in 1 2 3 ... > [ ] order. Each press of bwill
display a letter in the reverse order, such as Z
Y X ... C B A order.
4 Press dto move the cursor to the next
character position.
When the letter you want is displayed, press d
to move the cursor to the next position and
then select the next letter. Press cto move
backwards in the display.
5 Move the cursor to the last position by
pressing dafter entering the title.
When you press done more time, the entered
title is stored in memory.
6 Press BAND to return to the playback
display.
Notes
!Titles remain in memory, even after the disc
has been removed from this unit, and are re-
called when the disc is reinserted.
!After data for 48 discs has been stored in
memory, data for a new disc will overwrite the
oldest one.
!If you connect a multi-CD player, you can
input disc titles for up to 100 discs.
Built-in CD Player
En
18
Section
05
All manuals and user guides at all-guides.com

Displaying disc titles
You can display the title of any disc that has
had a disc title entered.
%Press DISP AY.
Press DISP AY repeatedly to switch between
the following settings:
Play timeDISC TT (disc title)
When you select DISC TT , the title of the cur-
rently playing disc is shown in the display.
#If no title has been entered for the currently
playing disc, NO TIT E is displayed.
Using CD TEXT functions
Some discs have certain information encoded
on the disc during manufacture. These discs
may contain such information as the CD title,
track title, artists name and playback time
and are called CD TEXT discs. Only these spe-
cially encoded CD TEXT discs support the
functions listed below.
Displaying titles on CD TEXT discs
%Press DISP AY.
Press DISP AY repeatedly to switch between
the following settings:
Play timeDISC TT (disc title)ART NAME
(disc artist name)TRK TT (track title)
ART NAME (track artist name)
#If specific information has not been recorded
on a CD TEXT disc, NO XXXX will be displayed
(e.g., NO D-TT ).
Scrolling titles in the display
This unit can display the first 8 letters only of
DISC TT ,ART NAME,TRK TT and
ART NAME. When the recorded information is
longer than 8 letters, you can scroll the text to
the left so that the rest of the title can be seen.
%Press DISP AY and hold until the title
begins to scroll to the left.
The rest of the title will appear in the dis-
play.
Built-in CD Player
En 19
English
Section
05
All manuals and user guides at all-guides.com

Playing MP3/WMA/WAV
These are the basic steps necessary to play an
P3/W A/WAV with your built-in CD player.
ore advanced P3/W A/WAV operation is
explained starting on page 22.
1Folder number indicator
Shows the folder number currently playing.
2MP3 indicator
Shows when the P3 file is playing.
3WMA indicator
Shows when the W A file is playing.
4Play time indicator
Shows the elapsed playing time of the cur-
rent track (file).
5Track number indicator
Shows the track (file) currently playing.
!If a track number 100 to 199 is selected,
don the left of the track number indica-
tor will light.
!If a track number 200 or more is selected,
don the left of the track number indica-
tor will blink.
1 Press OPEN to open the front panel.
CD loading slot appears.
#After a CD-RO has been inserted, press
SOURCE to select the built-in CD player.
2 Insert a CD-ROM into the CD loading
slot.
Playback will automatically start.
CD loading slot
EJECT button
#You can eject a CD-RO by pressing EJECT.
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
3 Close the front panel.
4 Use VO UME to adjust the sound level.
Rotate to increase or decrease the volume.
5 Press aor bto select a folder.
#You cannot select a folder that does not have
an P3/W A/WAV file recorded in it.
#To return to folder 01 (ROOT), press and hold
BAND. However, if folder 01 (ROOT) contains no
files, playback commences with folder 02.
6 To perform fast forward or reverse,
press and hold cor d.
#This is fast forward and reverse operation only
for the file being played. This operation is can-
celed when the previous or next file is reached.
#If you select the search method to ROUGH,
pressing and holding cor denables you to
search every ten track in the current folder. (Refer
to Selecting the search method on page 23.)
7 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
MP3/WMA/WAV Player
En
20
Section
06
All manuals and user guides at all-guides.com
