Pioneer Super Tuner IIID DVH-P5000MP User manual

Operation Manual
Manual de instrucciones
Multi-CD/DAB control High power DVD/VCD/CD/MP3
player with RDS tuner
Reproductor de DVD/VCD/CD/MP3 de alta potencia
con sintonizador RDS y control de CD últiple/DAB
DVH-P5000MP
English Español
All manuals and user guides at all-guides.com
all-guides.com

Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, put them away
in a safe place for future reference.
Be sure to read this
!Playable discs 6
!DVD video disc region numbers 6
!When an operation is prohibited 9
Precautions
To ensure safe driving 5
Before You Start
About this unit 6
About this manual 6
Precautions 7
In case of trouble 7
Features 7
Condition memory 8
What the marks on D Ds indicate 8
Use and care of the remote control 9
Whats What
Head unit 10
Remote control 11
Basic Operations
Switching the remote control operation mode
switch 13
Turning the unit on 13
Selecting a source 13
Loading a disc 14
Adjusting the volume 14
Turning the unit off 14
Protecting your unit from theft 15
Tuner
Listening to the radio 16
Introduction of advanced tuner
operation 17
Storing and recalling broadcast
frequencies 17
Tuning in strong signals 17
Storing the strongest broadcast
frequencies 18
R S
Introduction of RDS operation 19
Switching the RDS display 19
Selecting alternative frequencies 20
Receiving traffic announcements 21
Using PTY functions 21
Using radio text 22
PTY list 24
Playing V video discs
Watching a D D video 25
Basic operation of D D video 25
Specifying title 26
Specifying chapter 26
Frame-by-frame playback 26
Pausing D D video playback 26
Slow motion playback 27
Changing audio language during playback
(Multi-audio) 27
Changing the subtitle language during
playback (Multi-subtitle) 27
Changing the viewing angle during playback
(Multi-angle) 28
Operating from the information displays 29
Operating from the function display 31
Playing Video C s
Watching a ideo CD 33
Basic operation of ideo CD 33
Specifying track 34
Pausing ideo CD playback 34
Slow motion playback 34
Operating from the information display 35

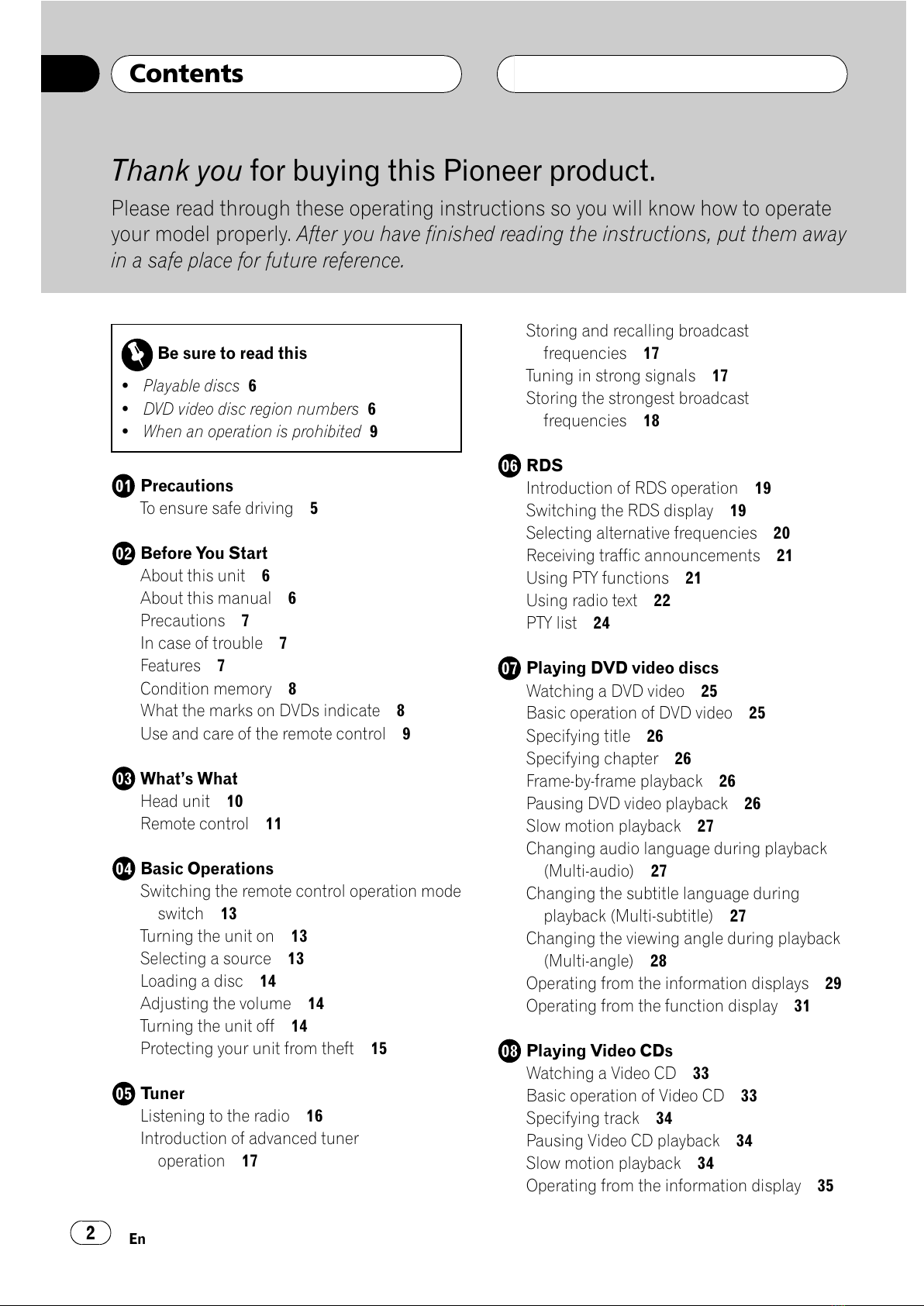

Contents
En
2
All manuals and user guides at all-guides.com

Operating from the function display 36
Playing C s
Listening a CD 38
Basic operation of CD 38
Operating from the information display 39
Operating from the function display 41
Playing MP3
Listening MP3 44
Basic operation of MP3 44
Operating from the information display 45
Operating from the function display 47
Multi-C Player
Playing a CD 50
50-disc multi-CD player 50
Introduction of advanced multi-CD player
operation 51
Repeating play 51
Playing tracks in a random order 51
Scanning CDs and tracks 52
Pausing CD playback 52
Using ITS playlists 52
Using disc title functions 54
Using CD TEXT functions 55
Using compression and bass emphasis 55
Audio Adjustments
Introduction of audio adjustments 56
Compensating for equalizer curves (EQ-
EX) 57
Setting the sound focus equalizer
(SFEQ) 57
Using balance adjustment 57
Using the equalizer 58
Adjusting bass and treble 59
Adjusting loudness 60
Using subwoofer output 60
Using non fading output 61
Using the high pass filter 61
Adjusting source levels 62
igital Signal Processor
Introduction of DSP adjustments 63
Using the sound field control 64
Using the position selector 64
Using balance adjustment 65
Adjusting source levels 65
Using the dynamic range control 65
Using the dual mono mode 66
Using the direct control 66
Using the Dolby Pro Logic 66
Setting the speaker setting 67
Selecting a cut-off frequency 68
Adjusting the speaker output levels 68
Adjusting the speaker output levels using a
test tone 68
Adjusting the time alignment 69
Using the equalizer 70
Setting up the V player
Introduction of D D setup adjustments 72
Returning to the previous display 72
Setting the subtitle language 72
Setting the audio language 73
Setting the menu language 73
Setting assist subtitles on or off 74
Setting angle icon display 74
Setting the aspect ratio 74
Setting the parental lock 75
Setting remote control code type 76
Initial Settings
Adjusting initial settings 77
Setting the FM tuning step 77
Switching Auto PI Seek 77
Switching the warning tone 77
En 3
English
Contents
All manuals and user guides at all-guides.com

Switching the auxiliary setting 78
Switching the dimmer setting 78
Setting the rear output and subwoofer
controller 78
Switching the telephone muting/
attenuation 79
Switching the automatic disc playback 79
Correcting distorted sound 79
Other Functions
Setting the level indicator 80
Using the AUX source 80
Introduction of DAB operation 81
Introduction of D D operation 83
Additional Information
Troubleshooting 84
Error messages 86
D D player and care 87
D D discs 87
CD-R/CD-RW discs 87
MP3 files 88
About folders and MP3 files 89
Language code chart for D D 90
Terms 91
Specifications 94
Contents
En
4
All manuals and user guides at all-guides.com

To ensure safe driving
WARNING
!To avoid the risk of accident and the potential
violation of applicable laws, this unit is not for
use with a video screen that is visible to the
driver.
!In some countries or states the viewing of
images on a display inside a vehicle even by
persons other than the driver may be illegal.
Where such regulations apply, they must be
obeyed.
This unit detects whether your cars parking
brake is engaged or not, and prevents you
from watching a D D or ideo CD on the dis-
play connected to FRONT VIDEO OUTPUT
while driving. When you attempt to watch a
D D/ ideo CD, the screen will turn black.
When you park your car in a safe place and
apply the parking brake, the picture appears
on the screen.
When using a display connected
to DVD REAR MONITOR OUTPUT
This unitsDVD REAR MONITOR OUTPUT is
for connection of a display to enable passen-
gers in the rear seats to watch the D D or
ideo CD.
WARNING
NEVER install the display in a location that en-
ables the driver to watch the D D or ideo CD
while driving.
Precautions
En 5
English
Section
01
All manuals and user guides at all-guides.com

About this unit
This product complies with the EMC Directives
(89/336/EEC, 92/31/EEC) and CE Marking Di-
rective (93/68/EEC).
!The tuner frequencies on this unit are allo-
cated for use in Western Europe, Asia, the
Middle East, Africa and Oceania. Use in
other areas may result in improper recep-
tion. The RDS function operates only in
areas with FM stations broadcasting RDS
signals.

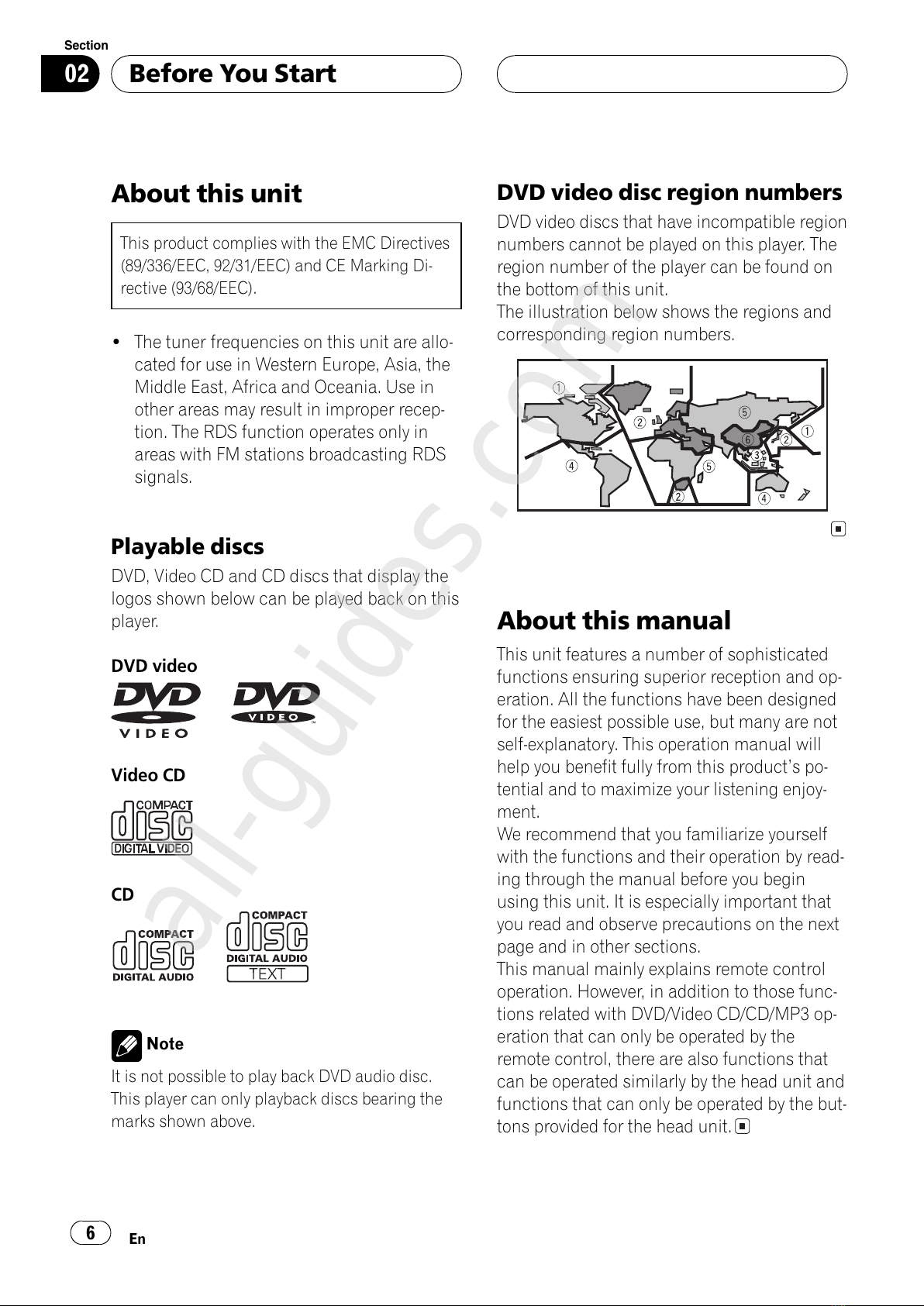

Playable discs
D D, ideo CD and CD discs that display the
logos shown below can be played back on this
player.
DVD video
Video CD
CD
Note
It is not possible to play back D D audio disc.
This player can only playback discs bearing the
marks shown above.
DVD video disc region numbers
D D video discs that have incompatible region
numbers cannot be played on this player. The
region number of the player can be found on
the bottom of this unit.
The illustration below shows the regions and
corresponding region numbers.
About this manual
This unit features a number of sophisticated
functions ensuring superior reception and op-
eration. All the functions have been designed
for the easiest possible use, but many are not
self-explanatory. This operation manual will
help you benefit fully from this productspo-
tential and to maximize your listening enjoy-
ment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin
using this unit. It is especially important that
you read and observe precautions on the next
page and in other sections.
This manual mainly explains remote control
operation. However, in addition to those func-
tions related with D D/ ideo CD/CD/MP3 op-
eration that can only be operated by the
remote control, there are also functions that
can be operated similarly by the head unit and
functions that can only be operated by the but-
tons provided for the head unit.
Before You Start
En
6
Section
02
All manuals and user guides at all-guides.com
all-guides.com

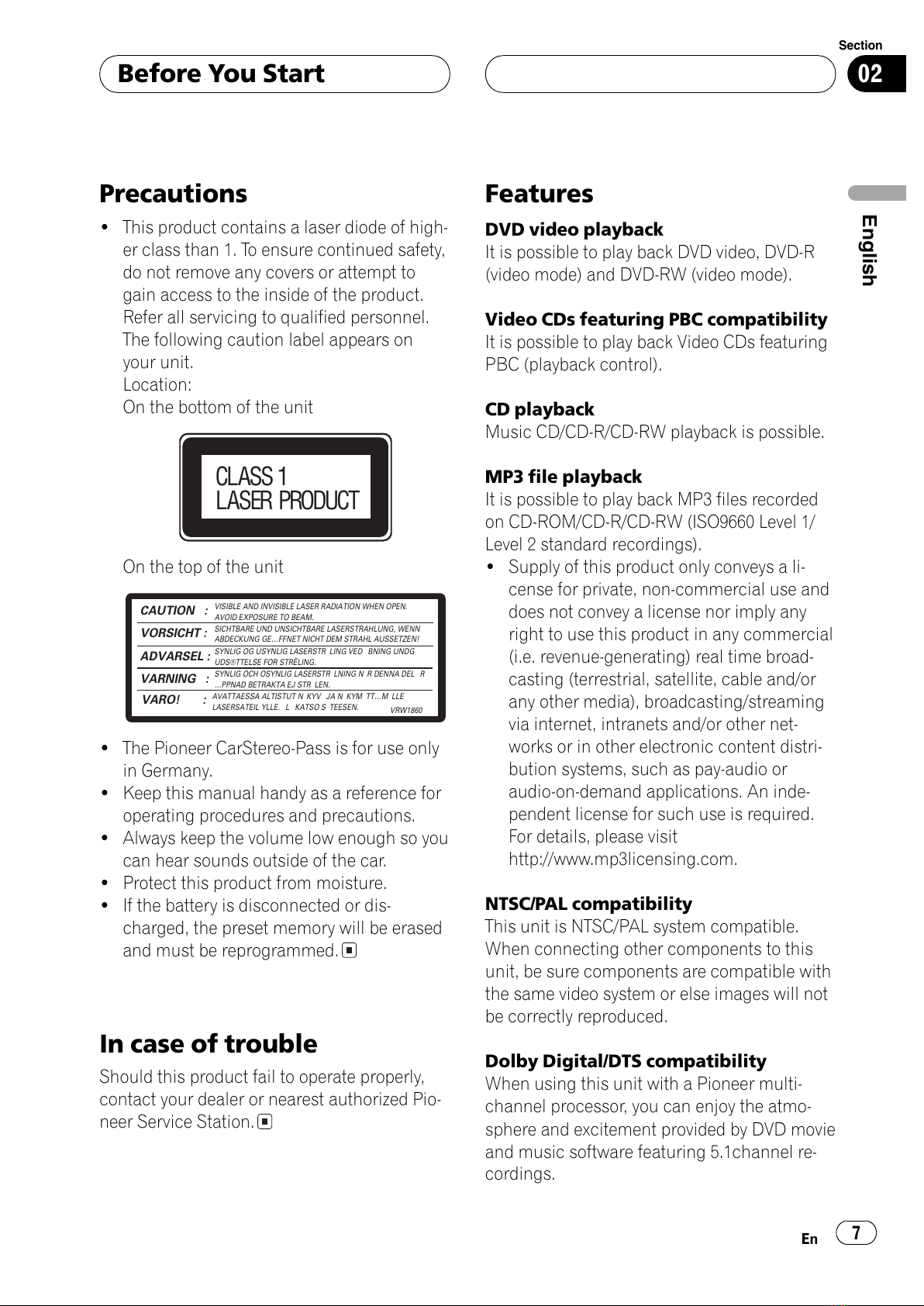

Precautions
!This product contains a laser diode of high-
er class than 1. To ensure continued safety,
do not remove any covers or attempt to
gain access to the inside of the product.
Refer all servicing to qualified personnel.
The following caution label appears on
your unit.
Location:
On the bottom of the unit
CLASS 1
LASER PRODUCT
On the top of the unit
CAUTION :
VORSICHT :
ADVARSEL :
VARNING :
VARO! :
VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN
ABDECKUNG GE…FFNET NICHT DEM STRAHL AUSSETZEN!
SYNLIG OG USYNLIG LASERSTR LING VED BNING UNDG
UDS®TTELSE FOR STRËLING.
SYNLIG OCH OSYNLIG LASERSTR LNING N R DENNA DEL R
…PPNAD BETRAKTA EJ STR LEN.
AVATTAESSA ALTISTUT N KYV JA N KYM TT…M LLE
LASERSATEIL YLLE. L KATSO S TEESEN. VRW1860
!The Pioneer CarStereo-Pass is for use only
in Germany.
!Keep this manual handy as a reference for
operating procedures and precautions.
!Always keep the volume low enough so you
can hear sounds outside of the car.
!Protect this product from moisture.
!If the battery is disconnected or dis-
charged, the preset memory will be erased
and must be reprogrammed.
In case of trouble
Should this product fail to operate properly,
contact your dealer or nearest authorized Pio-
neer Service Station.
eatures
DVD video playback
It is possible to play back D D video, D D-R
(video mode) and D D-RW (video mode).
Video CDs featuring PBC compatibility
It is possible to play back ideo CDs featuring
PBC (playback control).
CD playback
Music CD/CD-R/CD-RW playback is possible.
MP3 file playback
It is possible to play back MP3 files recorded
on CD-ROM/CD-R/CD-RW (ISO9660 Level 1/
Level 2 standard recordings).
!Supply of this product only conveys a li-
cense for private, non-commercial use and
does not convey a license nor imply any
right to use this product in any commercial
(i.e. revenue-generating) real time broad-
casting (terrestrial, satellite, cable and/or
any other media), broadcasting/streaming
via internet, intranets and/or other net-
works or in other electronic content distri-
bution systems, such as pay-audio or
audio-on-demand applications. An inde-
pendent license for such use is required.
For details, please visit
http://www.mp3licensing.com.
NTSC/PAL compatibility
This unit is NTSC/PAL system compatible.
When connecting other components to this
unit, be sure components are compatible with
the same video system or else images will not
be correctly reproduced.
Dolby Digital/DTS compatibility
When using this unit with a Pioneer multi-
channel processor, you can enjoy the atmo-
sphere and excitement provided by D D movie
and music software featuring 5.1channel re-
cordings.
Before You Start
En 7
English
Section
02
All manuals and user guides at all-guides.com

!Manufactured under license from Dolby La-
boratories. Dolbyand the double-D sym-
bol are trademarks of Dolby Laboratories.
!DTSis a registered trademark of Digital
Theater Systems, Inc.
Multi-aspect
Switching between wide screen, letter box and
panscan display is possible.
Multi-audio
You can switch between multiple audio sys-
tems recorded on a D D as desired.
Multi-subtitle
You can switch between multiple subtitle lan-
guages recorded on a D D as desired.
Multi-angle
You can switch between multiple viewing an-
gles of a scene recorded on a D D as desired.
Note
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual prop-
erty rights owned by Macrovision Corporation
and other rights owners. Use of this copyright
protection technology must be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is
prohibited.
Condition memory
This function memorizes audio language, sub-
title language, angle number, audio output (L,
R) and aspect ratio made during disc playback
for up to 30 discs. Without any special opera-
tions, the final setting details during playback
of a disc are memorized. The next time a disc
is played, the previous settings are automati-
cally applied.
!With some discs, audio language and sub-
title language are automatically specified,
in which case condition memory does not
function.
!When the number of discs exceeds 30, set-
tings for the latest disc replace those for
the least recent disc.
What the marks on DVDs
indicate
The marks below may be found on D D disc
labels and packages. They indicate the type of
images and audio recorded on the disc, and
the functions you can use.
Mark Meaning
2Indicates the number of audio sys-
tems.
2Indicates the number of subtitle lan-
guages.
3Indicates the number of viewing an-
gles.
16 : 9 LB
Indicates the picture size (aspect
ratio: screen width-to-height ratio)
type.
2
ALL
Indicates the number of the region
where playback is possible.
Before You Start
En
8
Section
02
All manuals and user guides at all-guides.com

When an operation is prohibited
When you are watching a D D and attempt to
perform an operation, it may not be performed
by the programming on the disc. When this
happens, this unit indicates the icon on the
screen.
!The icon may not appear in certain dis-
cs.
Use and care of the remote
control
Installing the battery
Slide the tray out on the back of the remote
control and insert the battery with the plus (+)
and minus () poles pointing in the proper di-
rection.
!When using for the first time, pull out the
film protruding from the tray.
WARNING
Keep the battery out of the reach of children.
Should the battery be swallowed, immediately
consult a doctor.
CAUTION
!Use only one CR2025 (3 V) lithium battery.
!Remove the battery if the remote control is not
used for a month or longer.
!Do not recharge, disassemble, heat or dispose
of the battery in fire.
!Do not handle the battery with metallic tools.
!Do not store the battery with metallic materi-
als.
!In the event of battery leakage, wipe the re-
mote control completely clean and install a
new battery.
!When disposing of used batteries, please
comply with governmental regulations or en-
vironmental public institutions rules that
apply in your country/area.
!Always check carefully that you are loading
the battery with its plus (+) and minus ()
poles facing in the proper directions.
Using the remote control
Point the remote control in the direction of the
front panel to operate.
!The remote control may not function prop-
erly in direct sunlight.
Important
!Do not store the remote control in high tem-
peratures or direct sunlight.
!Do not let the remote control fall onto the
floor, where it may become jammed under the
brake or accelerator pedal.
Before You Start
En 9
English
Section
02
All manuals and user guides at all-guides.com

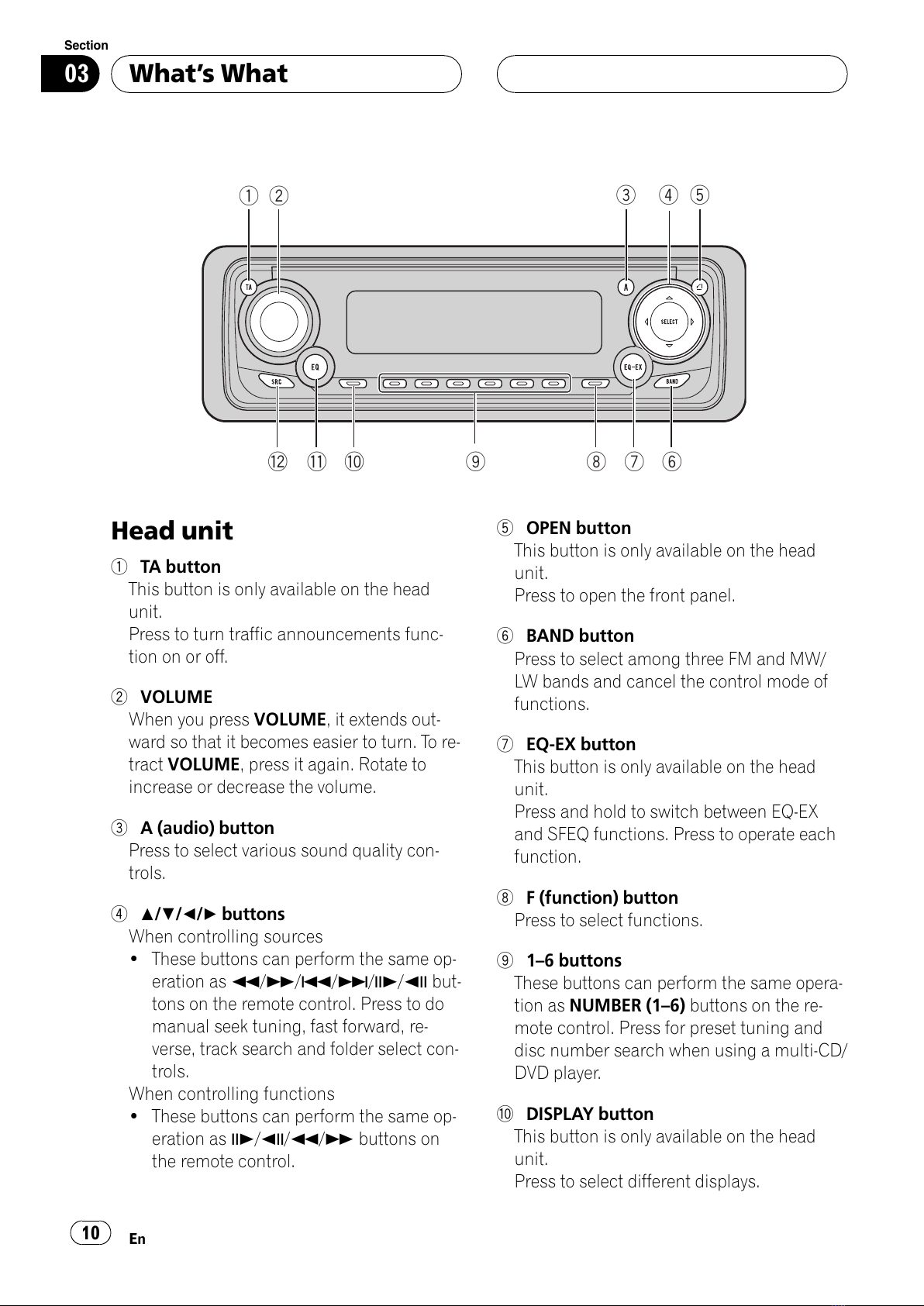

Head unit
1TA button
This button is only available on the head
unit.
Press to turn traffic announcements func-
tion on or off.
2VOLUME
When you press VOLUME, it extends out-
ward so that it becomes easier to turn. To re-
tract VOLUME, press it again. Rotate to
increase or decrease the volume.
3A (audio) button
Press to select various sound quality con-
trols.
4a/b/c/dbuttons
When controlling sources
!These buttons can perform the same op-
eration as m/n/o/p/r/qbut-
tons on the remote control. Press to do
manual seek tuning, fast forward, re-
verse, track search and folder select con-
trols.
When controlling functions
!These buttons can perform the same op-
eration as r/q/m/nbuttons on
the remote control.
5OPEN button
This button is only available on the head
unit.
Press to open the front panel.
6BAND button
Press to select among three FM and MW/
LW bands and cancel the control mode of
functions.
7EQ EX button
This button is only available on the head
unit.
Press and hold to switch between EQ-EX
and SFEQ functions. Press to operate each
function.
8F (function) button
Press to select functions.
916 buttons
These buttons can perform the same opera-
tion as NUMBER (16) buttons on the re-
mote control. Press for preset tuning and
disc number search when using a multi-CD/
D D player.
aDISPLAY button
This button is only available on the head
unit.
Press to select different displays.
4
6
123
9
5
78ac b
Whats What
En
10
Section
03
All manuals and user guides at all-guides.com

bEQ button
This button is only available on the head
unit.
Press to select various equalizer curves.
cSOURCE button
This unit is turned on by selecting a source.
Press to cycle through all of the available
sources.
Remote control
1Remote control selection switch
Switch to change the setting of the remote
control. For details, refer to Setting remote
control code type on page 76.
2VOLUME button
Press to increase or decrease the volume.
3TOP MENU button
Press to return to the top menu during D D
playback.
4MENU button
Press to display the D D menu during D D
playback.
5RETURN button
Press to return to the previous display when
the SET UP MENU is displayed.
6AUDIO button
Press to change the audio language during
D D playback.
1
2
e
f
g
h
i
j
k
l
m
d
c
b
a
9
8
7
6
5
4
3
n
o
Whats What
En 11
English
Section
03
All manuals and user guides at all-guides.com
all-guides.com

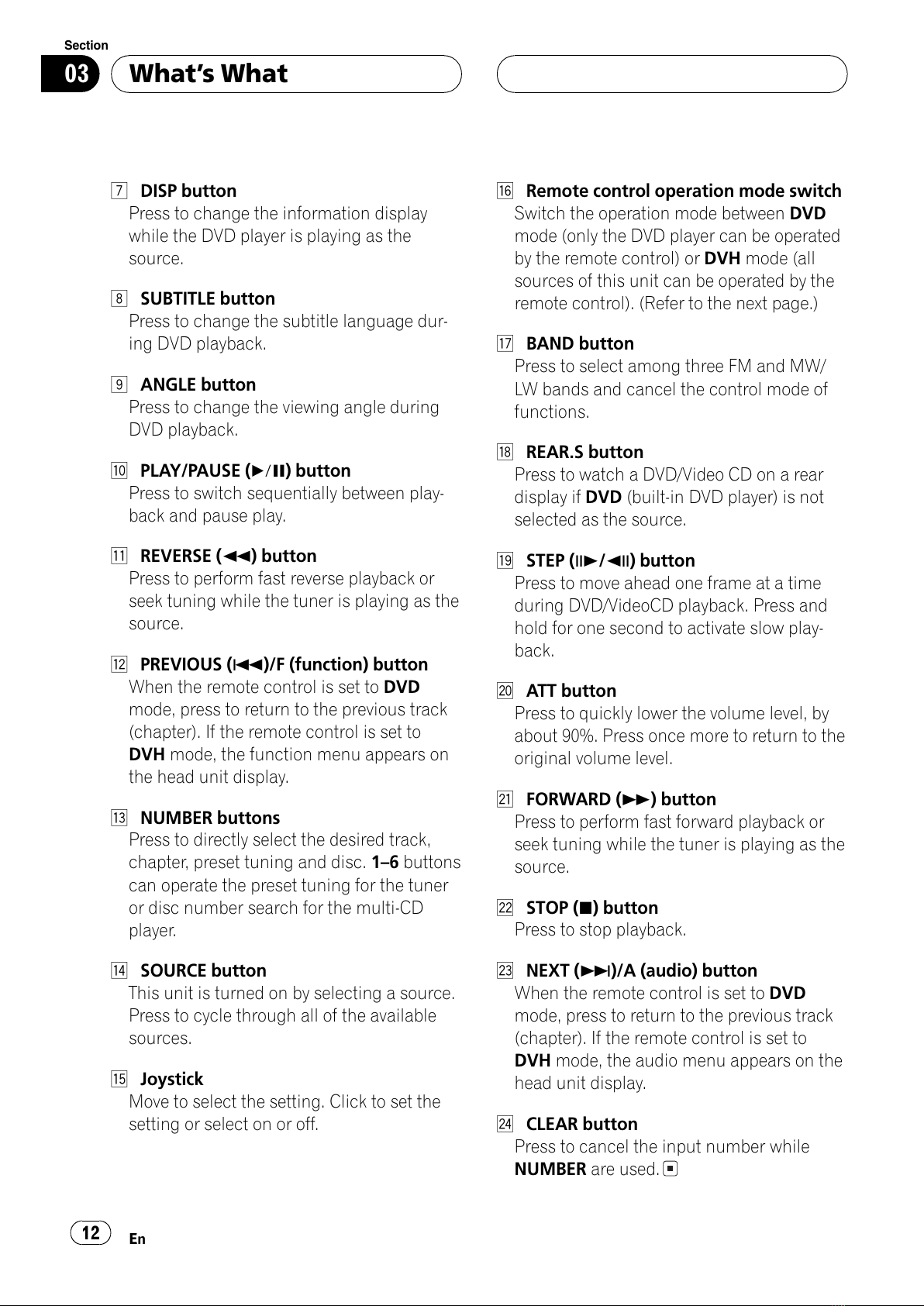

7DISP button
Press to change the information display
while the D D player is playing as the
source.
8SUBTITLE button
Press to change the subtitle language dur-
ing D D playback.
9ANGLE button
Press to change the viewing angle during
D D playback.
aPLAY/PAUSE (f) button
Press to switch sequentially between play-
back and pause play.
bREVERSE (m) button
Press to perform fast reverse playback or
seek tuning while the tuner is playing as the
source.
cPREVIOUS (o)/F (function) button
When the remote control is set to DVD
mode, press to return to the previous track
(chapter). If the remote control is set to
DVH mode, the function menu appears on
the head unit display.
dNUMBER buttons
Press to directly select the desired track,
chapter, preset tuning and disc. 16buttons
can operate the preset tuning for the tuner
or disc number search for the multi-CD
player.
eSOURCE button
This unit is turned on by selecting a source.
Press to cycle through all of the available
sources.
fJoystick
Move to select the setting. Click to set the
setting or select on or off.
gRemote control operation mode switch
Switch the operation mode between DVD
mode (only the D D player can be operated
by the remote control) or DVH mode (all
sources of this unit can be operated by the
remote control). (Refer to the next page.)
hBAND button
Press to select among three FM and MW/
LW bands and cancel the control mode of
functions.
iREAR.S button
Press to watch a D D/ ideo CD on a rear
display if DVD (built-in D D player) is not
selected as the source.
jSTEP (r/q) button
Press to move ahead one frame at a time
during D D/ ideoCD playback. Press and
hold for one second to activate slow play-
back.
kATT button
Press to quickly lower the volume level, by
about 90%. Press once more to return to the
original volume level.
lFORWARD (n) button
Press to perform fast forward playback or
seek tuning while the tuner is playing as the
source.
mSTOP (g) button
Press to stop playback.
nNEXT (p)/A (audio) button
When the remote control is set to DVD
mode, press to return to the previous track
(chapter). If the remote control is set to
DVH mode, the audio menu appears on the
head unit display.
oCLEAR button
Press to cancel the input number while
NUMBER are used.
Whats What
En
12
Section
03
All manuals and user guides at all-guides.com

Switching the remote control
operation mode switch
There are two remote control operation modes
on the remote control. If you want to operate
this unit by remote control, turn the mode
switch to DVH mode. In this case, both the
head units buttons and remote control can
control this unit.
If you want to operate the D D playback on
the rear display, turn the mode switch to DVD
mode. In this case, the remote control can
control the D D playback of the rear display
independently. (If both the front and rear dis-
plays are playing D D as the source at the
same time, operation is the same for the front
and rear displays.)
If the rear display is connected to this unit and
the remote control operation mode is set to
DVD mode, the rear display can playback D D
even though the source which is selected by
the head unit is not D D.
Note
If the remote control operation mode is set to
DVD mode, only the D D player can be operated
by the remote control.
Turning the unit on
%Press SOURCE to turn the unit on.
When you select a source the unit is turned
on.
When the DVD player is
operated from rear seats
%Press REAR.S to turn the DVD playback
on.
Notes
!Even if the source selected with this unit is
not D D, if you switch power to this unit on
with REAR.S, you can watch the D D picture
from this unit on the rear display.
!Regardless of whether this unit is switched on
or off, you can watch the D D video on the
rear display.
Selecting a source
You can select a source you want to listen to. If
AUTO PLAY is turned on, load a disc in this
unit to switch to DVD (refer to Switching the
automatic disc playback on page 79).
%Press SOURCE to select a source.
Press SOURCE repeatedly to switch between
the following sources:
DAB (digital audio broadcasting)TUNER
(tuner)TV (television)DVD (built-in D D
player)S DVD (D D player/multi-D D
player)MULTI CD (multi-CD player)EXT
(external unit 1)EXT (external unit 2)AUX
(AUX)
Notes
!In the following cases, the sound source will
not change:
When a unit corresponding to each source
is not connected to this unit.
When no disc is set in this unit.
When no disc is set in the D D player.
When no magazine is set in the multi-CD
player.
When no magazine is set in the multi-D D
player.
When the AUX (auxiliary input) is set to off
(refer to page 78).
Basic Operations
En 13
English
Section
04
All manuals and user guides at all-guides.com

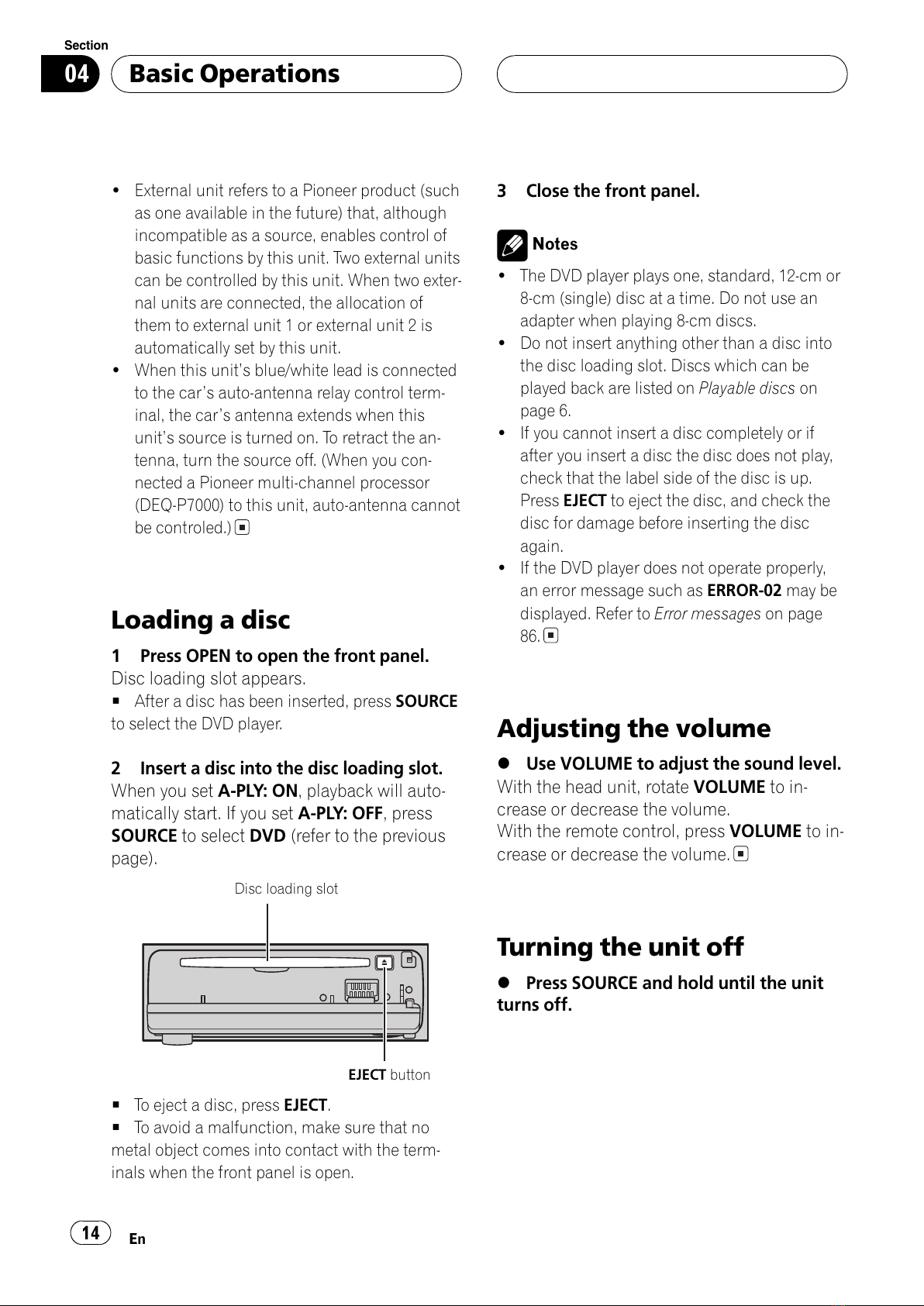

!External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this unit. Two external units
can be controlled by this unit. When two exter-
nal units are connected, the allocation of
them to external unit 1 or external unit 2 is
automatically set by this unit.
!When this units blue/white lead is connected
to the cars auto-antenna relay control term-
inal, the cars antenna extends when this
units source is turned on. To retract the an-
tenna, turn the source off. (When you con-
nected a Pioneer multi-channel processor
(DEQ-P7000) to this unit, auto-antenna cannot
be controled.)
Loading a disc
1 Press OPEN to open the front panel.
Disc loading slot appears.
#After a disc has been inserted, press SOURCE
to select the D D player.
2 Insert a disc into the disc loading slot.
When you set A PLY: ON, playback will auto-
matically start. If you set A PLY: OFF, press
SOURCE to select DVD (refer to the previous
page).
Disc loading slot
EJECT button
#To eject a disc, press EJECT.
#To avoid a malfunction, make sure that no
metal object comes into contact with the term-
inals when the front panel is open.
3 Close the front panel.
Notes
!The D D player plays one, standard, 12-cm or
8-cm (single) disc at a time. Do not use an
adapter when playing 8-cm discs.
!Do not insert anything other than a disc into
the disc loading slot. Discs which can be
played back are listed on Playable discs on
page 6.
!If you cannot insert a disc completely or if
after you insert a disc the disc does not play,
check that the label side of the disc is up.
Press EJECT to eject the disc, and check the
disc for damage before inserting the disc
again.
!If the D D player does not operate properly,
an error message such as ERROR 02 may be
displayed. Refer to Error messages on page
86.
Adjusting the volume
%Use VOLUME to adjust the sound level.
With the head unit, rotate VOLUME to in-
crease or decrease the volume.
With the remote control, press VOLUME to in-
crease or decrease the volume.
Turning the unit off
%Press SOURCE and hold until the unit
turns off.
Basic Operations
En
14
Section
04
All manuals and user guides at all-guides.com

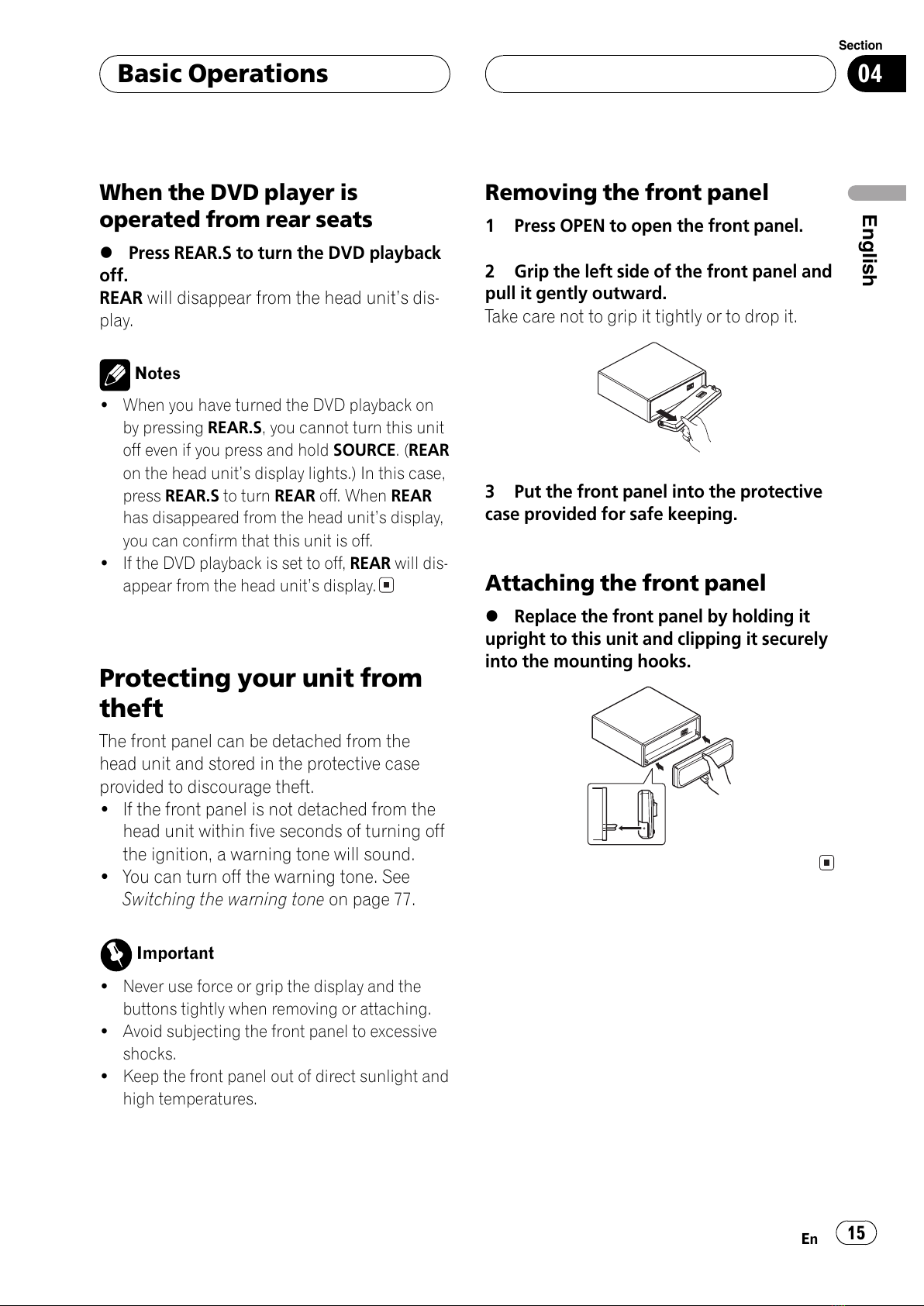

When the DVD player is
operated from rear seats
%Press REAR.S to turn the DVD playback
off.
REAR will disappear from the head units dis-
play.
Notes
!When you have turned the D D playback on
by pressing REAR.S, you cannot turn this unit
off even if you press and hold SOURCE.(REAR
on the head units display lights.) In this case,
press REAR.S to turn REAR off. When REAR
has disappeared from the head units display,
you can confirm that this unit is off.
!If the D D playback is set to off, REAR will dis-
appear from the head units display.
Protecting your unit from
theft
The front panel can be detached from the
head unit and stored in the protective case
provided to discourage theft.
!If the front panel is not detached from the
head unit within five seconds of turning off
the ignition, a warning tone will sound.
!You can turn off the warning tone. See
Switching the warning tone on page 77.
Important
!Never use force or grip the display and the
buttons tightly when removing or attaching.
!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press OPEN to open the front panel.
2 Grip the left side of the front panel and
pull it gently outward.
Take care not to grip it tightly or to drop it.
3 Put the front panel into the protective
case provided for safe keeping.
Attaching the front panel
%Replace the front panel by holding it
upright to this unit and clipping it securely
into the mounting hooks.
Basic Operations
En 15
English
Section
04
All manuals and user guides at all-guides.com

Listening to the radio
1 2 4
3
These are the basic steps necessary to operate
the radio. More advanced tuner operation is
explained starting on the next page.
This units AF (alternative frequencies search)
function can be turned on and off. AF should
be off for normal tuning operation (refer to
page 20).
1Band indicator
Shows which band the radio is tuned to,
MW, LW or FM.
2Frequency indicator
Shows to which frequency the tuner is
tuned.
3Stereo (5) indicator
Shows that the frequency selected is being
broadcast in stereo.
4Preset number indicator
Shows what preset has been selected.
1 Press SOURCE to select the tuner.
Press SOURCE until you see TUNER dis-
played.
2 Press BAND to select a band.
Press BAND until the desired band is dis-
played, F1,F2,F3 for FM or MW/LW.
3 To perform manual tuning, press mor
nwith quick presses.
The frequencies move up or down step by
step.
4 To perform seek tuning, press and hold
mor nfor about one second and re
lease.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by pressing either
mor nwith a quick press.
#If you press and hold mor nyou can skip
broadcasting stations. Seek tuning starts as soon
as you release the buttons.
Note
When the frequency selected is being broadcast
in stereo the stereo (5) indicator will light.
Tuner
En
16
Section
05
All manuals and user guides at all-guides.com
all-guides.com

Introduction of advanced
tuner operation
1
2
1Function display
Shows the function status.
2LOC indicator
Shows when local seek tuning is on.
%Press F to display the function names.
Press Frepeatedly to switch between the fol-
lowing functions:
BSM (best stations memory)REG (regional)
LOCAL (local seek tuning)program type
selection (PTY)TA (traffic announcement
standby)AF (alternative frequencies search)
NEWS (news program interruption)
#To return to the frequency display, press
BAND.
#If MW/LW band is selected, you can only se-
lect BSM or LOCAL.
Note
If you do not operate the function within about 30
seconds, the display is automatically returned to
the frequency display.
Storing and recalling
broadcast frequencies
If you press any of the NUMBER (16) you can
easily store up to six broadcast frequencies for
later recall with the touch of a button.
%When you find a frequency that you
want to store in memory press a NUMBER
(16) and hold until the preset number
stops flashing.
The number you have pressed will flash in the
preset number indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same NUMBER
(16) the radio station frequency is recalled
from memory.
Notes
!Up to 18 FM stations, 6 for each of the three
FM bands, and 6 MW/LW stations can be
stored in memory.
!You can also use qand rto recall radio
station frequencies assigned to NUMBER
(16).
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
1 Press F to select LOCAL.
Press Funtil LOCAL appears in the display.
2 Press rto turn local seek tuning on.
Local seek sensitivity (e.g., LOCAL 2) appears
in the display.
3 Press mor nto set the sensitivity.
There are four levels of sensitivity for FM and
two levels for MW/LW:
FM: LOCAL 1LOCAL 2LOCAL 3
LOCAL 4
MW/LW: LOCAL 1LOCAL 2
The LOCAL 4 setting allows reception of only
the strongest stations, while lower settings let
you receive progressively weaker stations.
Tuner
En 17
English
Section
05
All manuals and user guides at all-guides.com

4 When you want to return to normal
seek tuning, press qto turn local seek
tuning off.
LOCAL:OFF appears in the display.
Storing the strongest
broadcast frequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under NUMBER (16) and once
stored there you can tune in to those frequen-
cies with the touch of a button.
1 Press F to select BSM.
Press Funtil BSM appears in the display.
2 Press rto turn BSM on.
BSM begins to flash. While BSM is flashing
the six strongest broadcast frequencies will be
stored under NUMBER (16) in order of their
signal strength. When finished, BSM stops
flashing.
#To cancel the storage process, press q.
Note
Storing broadcast frequencies with BSM may re-
place broadcast frequencies you have saved
using NUMBER (16).
Tuner
En
18
Section
05
All manuals and user guides at all-guides.com

Introduction of RDS operation
1 42 3
RDS (radio data system) is a system for provid-
ing information along with FM broadcasts.
This inaudible information provides such fea-
tures as program service name, program type,
traffic announcement standby and automatic
tuning, intended to aid radio listeners in find-
ing and tuning in to a desired station.
1TP ( ) indicator
Shows when a TP station is tuned in.
2TEXT indicator
Shows when the radio text is received.
3News ( ) indicator
Shows when the set news program is re-
ceived.
4Program service name
Shows the name of broadcast program.
%Press F to display the function names.
Press Frepeatedly to switch between the fol-
lowing functions:
BSM (best stations memory)REG (regional)
LOCAL (local seek tuning)program type
selection (PTY)TA (traffic announcement
standby)AF (alternative frequencies search)
NEWS (news program interruption)
#To return to the frequency display, press
BAND.
#If MW/LW band is selected, you can only se-
lect BSM or LOCAL.
Notes
!If you do not operate the function within about
30 seconds, the display is automatically re-
turned to the frequency display.
!RDS service may not be provided by all sta-
tions.
!RDS functions like AF and TA are only active
when your radio is tuned to an RDS station.
Switching the RDS display
When you tune in an RDS station its program
service name is displayed. If you want to know
the frequency you can.
%Press DISPLAY on the head unit.
Press DISPLAY on the head unit repeatedly to

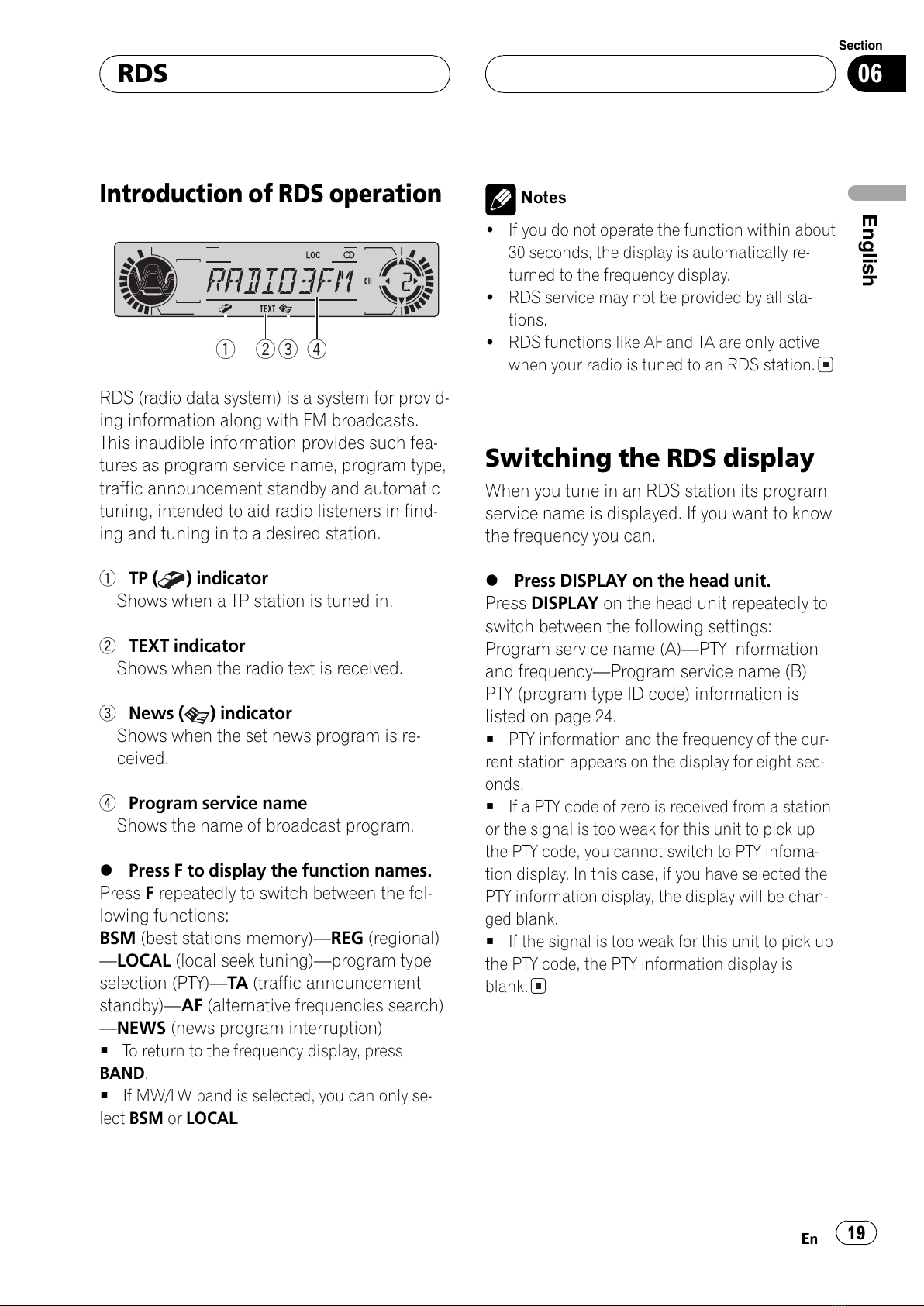

switch between the following settings:
Program service name (A)PTY information
and frequencyProgram service name (B)
PTY (program type ID code) information is
listed on page 24.
#PTY information and the frequency of the cur-
rent station appears on the display for eight sec-
onds.
#If a PTY code of zero is received from a station
or the signal is too weak for this unit to pick up
the PTY code, you cannot switch to PTY infoma-
tion display. In this case, if you have selected the
PTY information display, the display will be chan-
ged blank.
#If the signal is too weak for this unit to pick up
the PTY code, the PTY information display is
blank.
RDS
En 19
English
Section
06
All manuals and user guides at all-guides.com

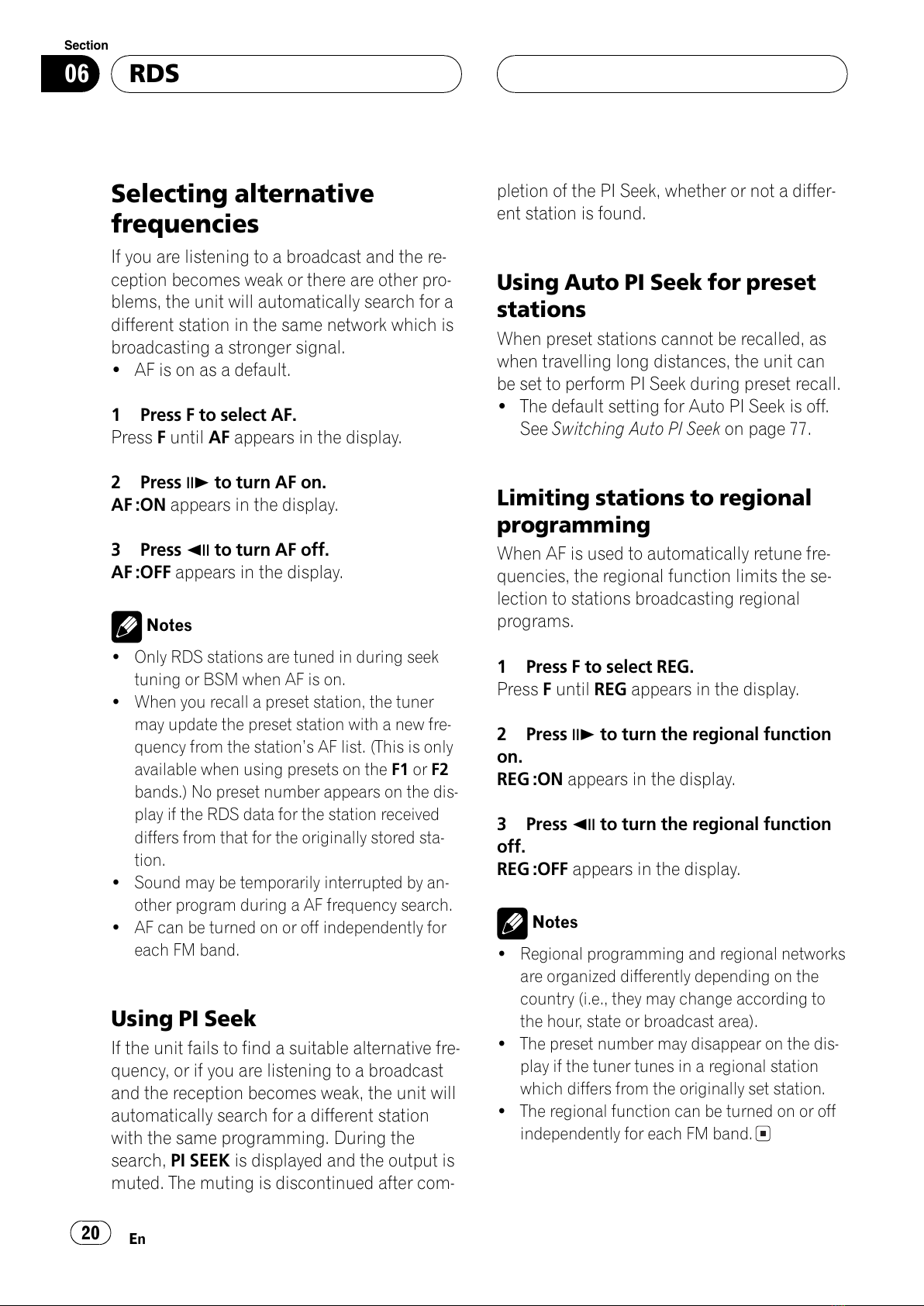

Selecting alternative
frequencies
If you are listening to a broadcast and the re-
ception becomes weak or there are other pro-
blems, the unit will automatically search for a
different station in the same network which is
broadcasting a stronger signal.
!AF is on as a default.
1 Press F to select AF.
Press Funtil AF appears in the display.
2 Press rto turn AF on.
AF :ON appears in the display.
3 Press qto turn AF off.
AF :OFF appears in the display.
Notes
!Only RDS stations are tuned in during seek
tuning or BSM when AF is on.
!When you recall a preset station, the tuner
may update the preset station with a new fre-
quency from the stations AF list. (This is only
available when using presets on the F1 or F2
bands.) No preset number appears on the dis-
play if the RDS data for the station received
differs from that for the originally stored sta-
tion.
!Sound may be temporarily interrupted by an-
other program during a AF frequency search.
!AF can be turned on or off independently for
each FM band.
Using PI Seek
If the unit fails to find a suitable alternative fre-
quency, or if you are listening to a broadcast
and the reception becomes weak, the unit will
automatically search for a different station
with the same programming. During the
search, PI SEEK is displayed and the output is
muted. The muting is discontinued after com-
pletion of the PI Seek, whether or not a differ-
ent station is found.
Using Auto PI Seek for preset
stations
When preset stations cannot be recalled, as
when travelling long distances, the unit can
be set to perform PI Seek during preset recall.
!The default setting for Auto PI Seek is off.
See Switching Auto P Seek on page 77.
Limiting stations to regional
programming
When AF is used to automatically retune fre-
quencies, the regional function limits the se-
lection to stations broadcasting regional
programs.
1 Press F to select REG.
Press Funtil REG appears in the display.
2 Press rto turn the regional function
on.
REG :ON appears in the display.
3 Press qto turn the regional function
off.
REG :OFF appears in the display.
Notes
!Regional programming and regional networks
are organized differently depending on the
country (i.e., they may change according to
the hour, state or broadcast area).
!The preset number may disappear on the dis-
play if the tuner tunes in a regional station
which differs from the originally set station.
!The regional function can be turned on or off
independently for each FM band.
RDS
En
20
Section
06
All manuals and user guides at all-guides.com
