Pioneer KEH-P2035 User manual

Operation Manual
Multi-CD control High power Cassette player with FM/
AM tuner
KEH-P2035
English Español
All manuals and user guides at all-guides.com
all-guides.com

Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how to operate
your model properly. After you have finished reading the instructions, put them away
in a safe place for future reference.
Before You Start
About this manual 3
Precautions 3
Protecting your unit from theft 3
Removing the front panel 3
Attaching the front panel 3
Whats What
Head unit 4
Power ON/OFF
Turning the unit on 6
Selecting a source 6
Turning the unit off 6
Tuner
Listening to the radio 7
Storing and recalling broadcast
frequencies 7
Tuning in strong signals 7
Storing the strongest broadcast
frequencies
Cassette Player
Playing a tape 9
Radio intercept 9
Multi-CD Player
Playing a D 10
hanging the display 10
Repeating play 10

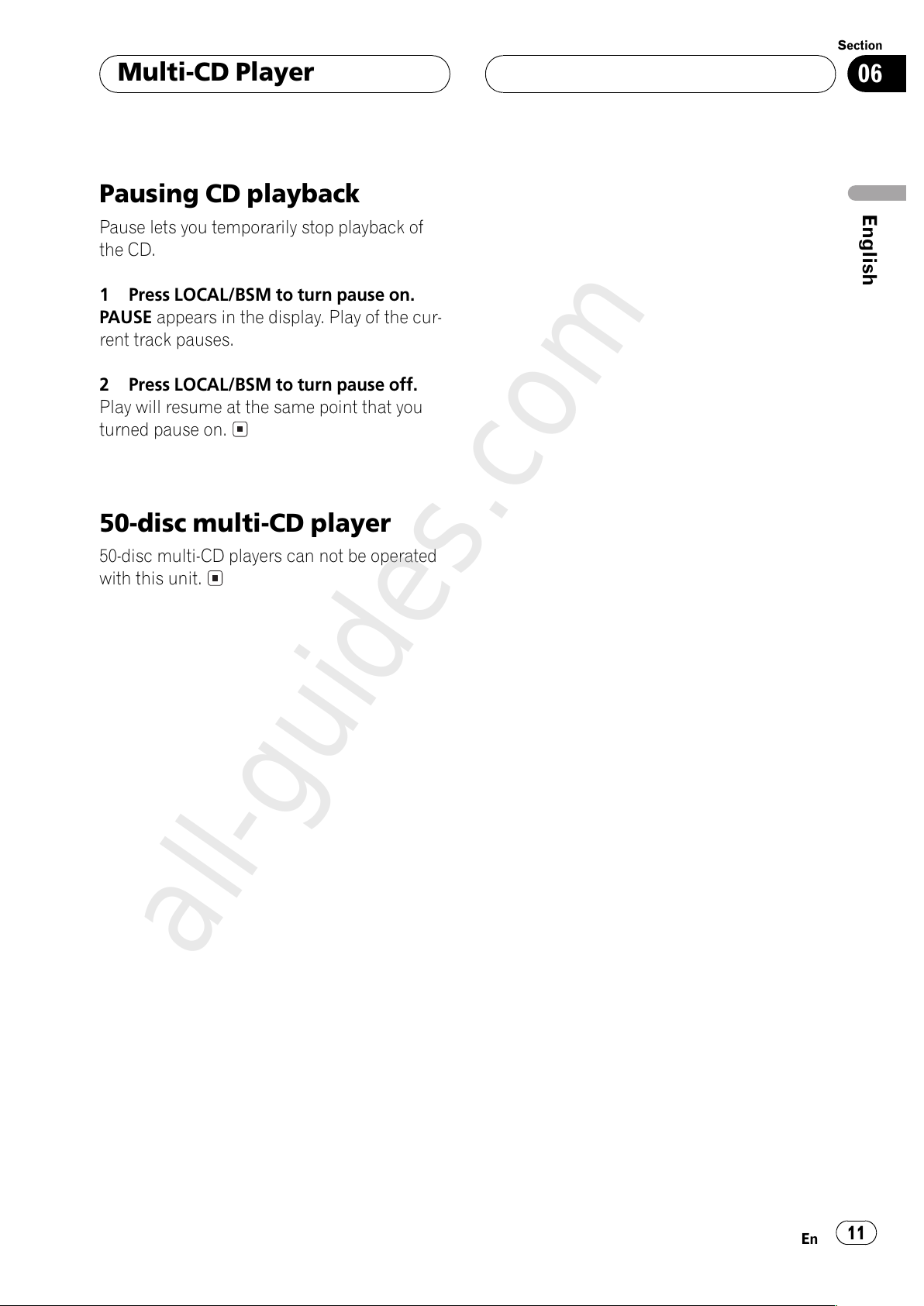

Pausing D playback 11
50-disc multi- D player 11
Audio Adjustments
Introduction of audio adjustments 12
Using balance adjustment 12
Using the BTB (bass treble booster) 12
Adjusting BTB 13
Adjusting loudness 13
Adjusting source levels 13

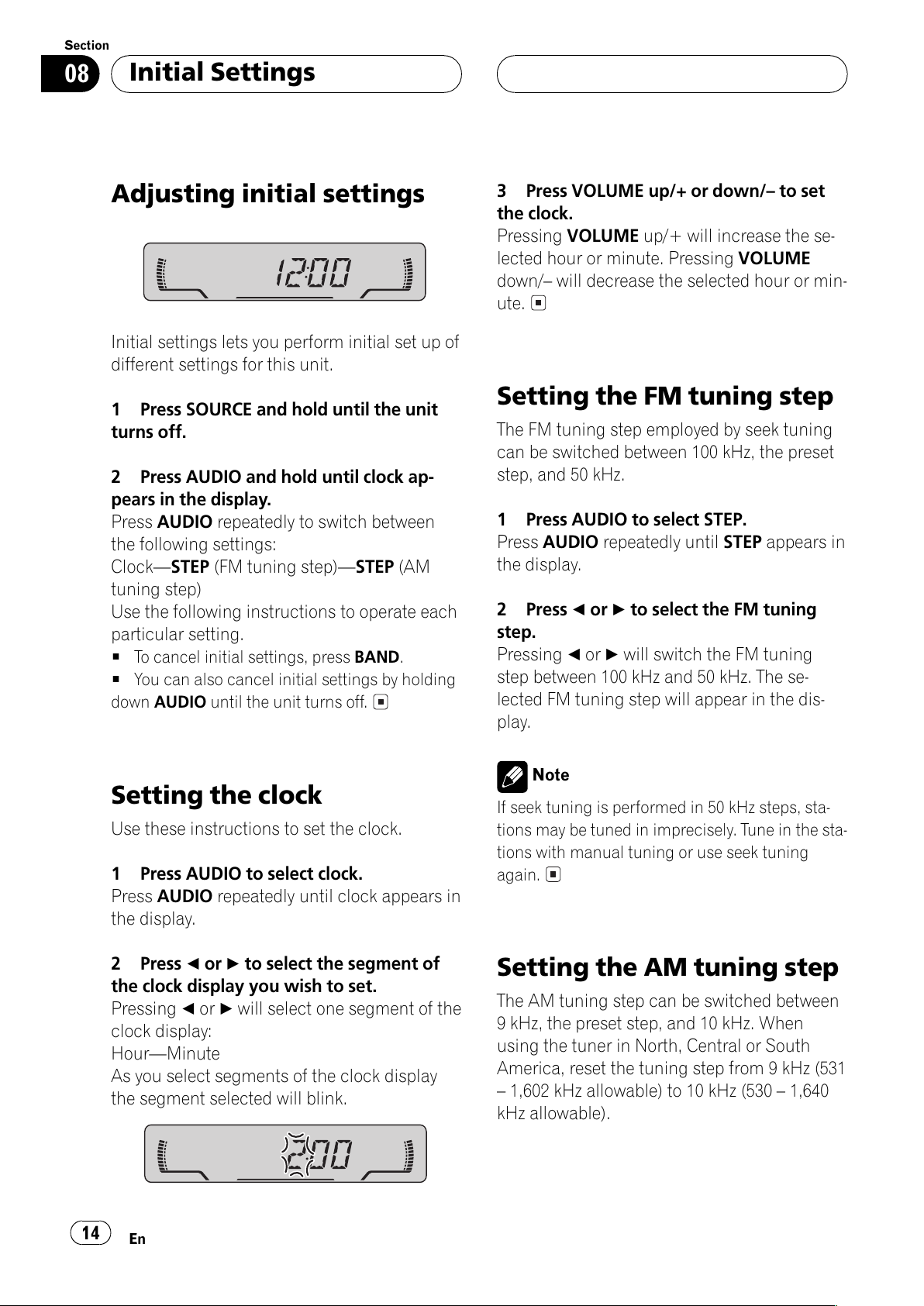

Initial Settings
Adjusting initial settings 14
Setting the clock 14
Setting the FM tuning step 14
Setting the AM tuning step 14
Additional Information
Turning the clock display on or off 16
assette player 16
assette tapes 16
leaning the playback head 16

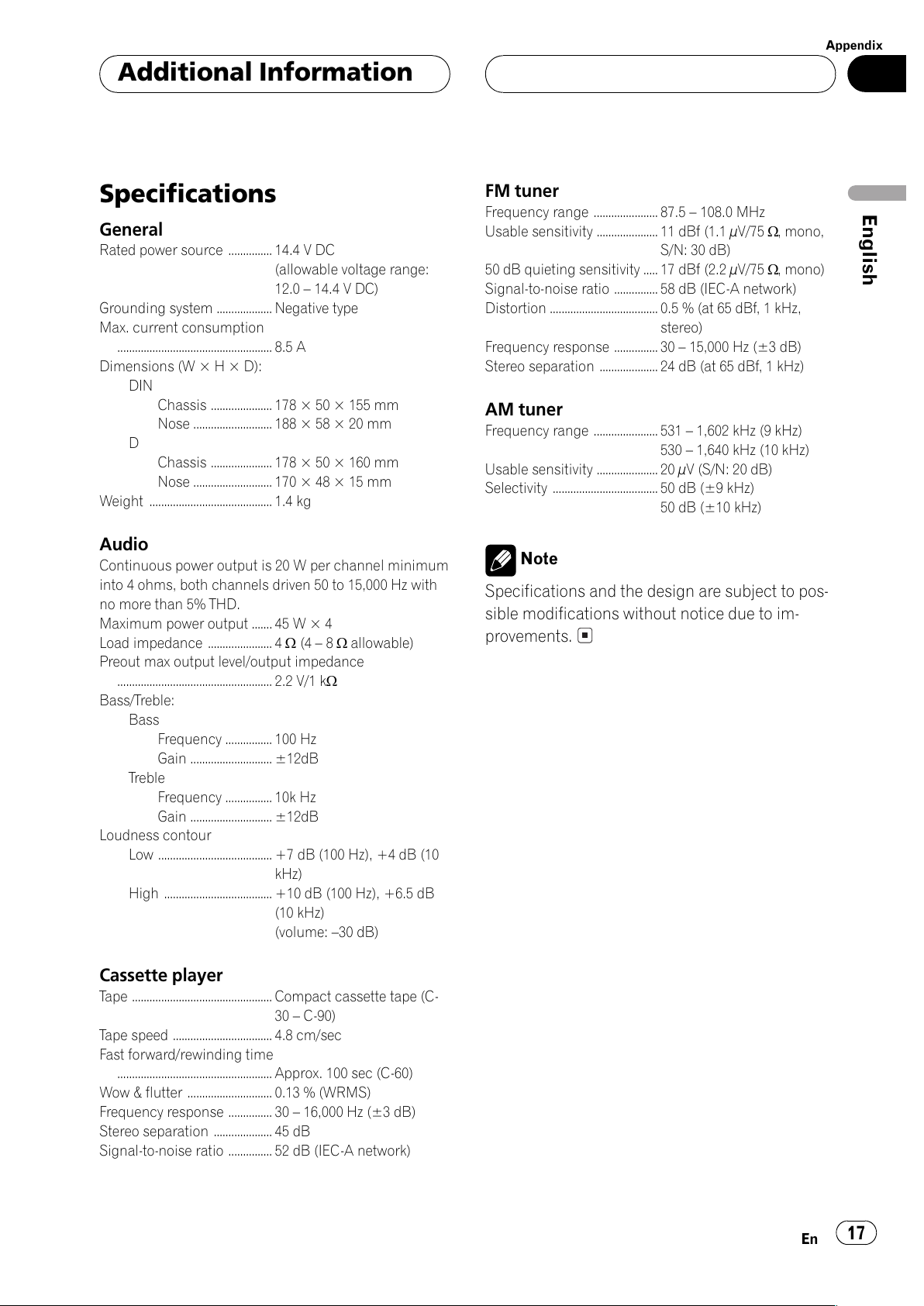

Specifications 17

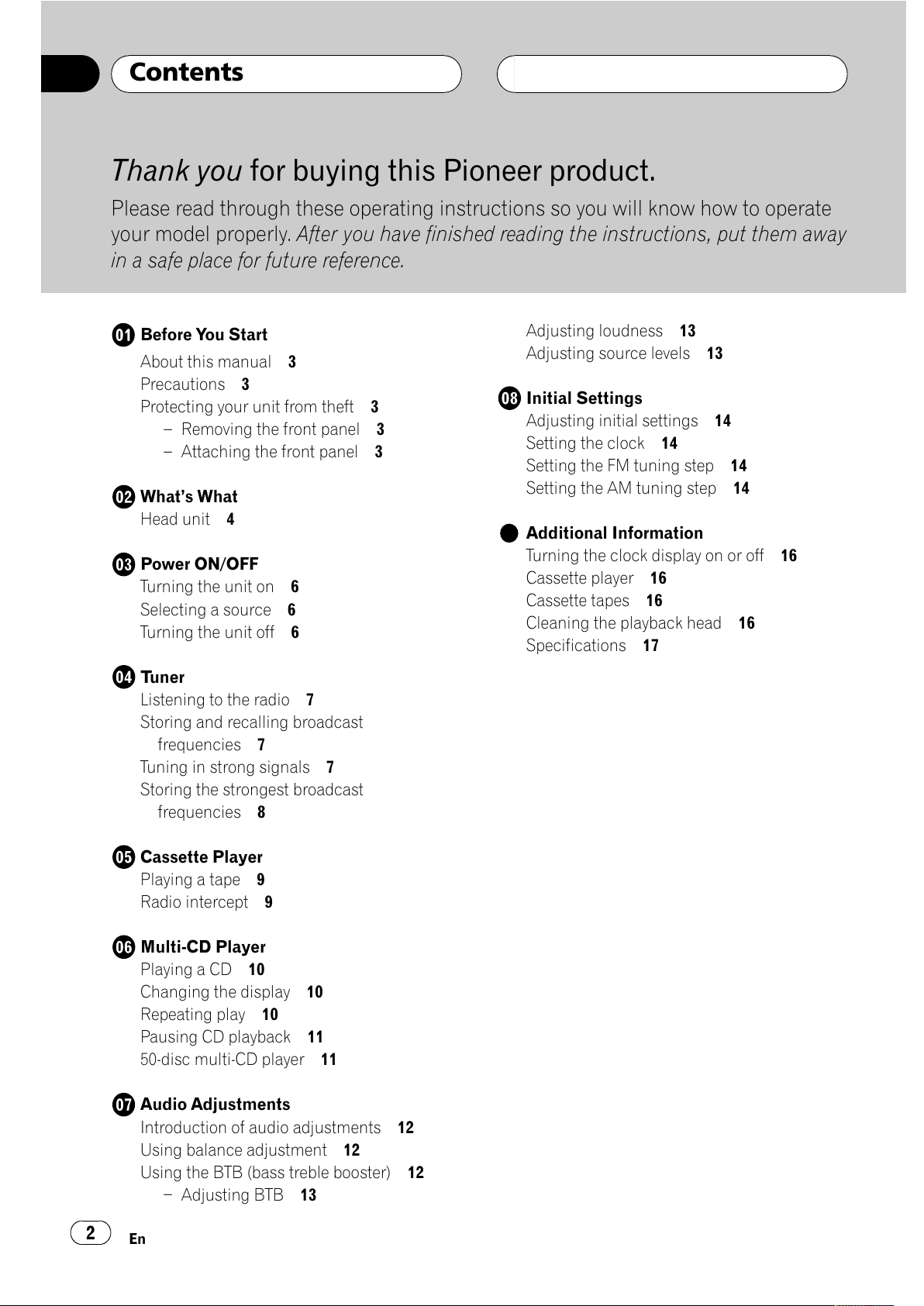

Contents
En
2
All manuals and user guides at all-guides.com

About this manual
This unit features a number of sophisticated
functions ensuring superior reception and op-
eration. All the functions have been designed
for the easiest possible use, but many are not
self-explanatory. This operation manual will
help you benefit fully from this productspo-
tential and to maximize your listening enjoy-
ment.
We recommend that you familiarize yourself
with the functions and their operation by read-
ing through the manual before you begin
using this unit. It is especially important that
you read and observe precautions on this
page and in other sections.
Precautions
!Keep this manual handy as a reference for
operating procedures and precautions.
!Always keep the volume low enough so you
can hear sounds outside of the car.
!Protect this product from moisture.
!If the battery is disconnected or dis-
charged, the preset memory will be erased
and must be reprogrammed.
!If this unit does not operate properly, con-
tact your dealer or nearest authorized Pio-
neer Service Station.
Protecting your unit from
theft
The front panel can be detached from the
head unit and stored in the protective case
provided to discourage theft.
Important
!Never use force or grip the display and the
buttons tightly when removing or attaching.
!Avoid subjecting the front panel to excessive
shocks.
!Keep the front panel out of direct sunlight and
high temperatures.
Removing the front panel
1 Press DETACH to release the front
panel.
Press DETACH and the right side of the panel
is released from the head unit.
2 Grab the front panel and remove.
Grab the right side of the front panel and pull
away to the left. The front panel will be de-
tached from the head unit.
Attaching the front panel
1 Place the front panel flat against the
head unit.
2 Press the front panel into the face of
the head unit until it is firmly seated.
Before You Start
En 3
English
Section
01
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Head unit
1OURCE button
This unit is turned on by selecting a source.
Press to cycle through all of the available
sources.
2DI PLAY button
Press to select different displays.
Also, press to control external unit.
3CLOCK button
Press to change to the clock display.
4TAPE EJECT button
Press to eject a tape from your cassette
player.
5m/nbuttons
Press to fast forward or rewind the tape.
6LOCAL/B M button
Press to turn local function on or off when
tuner is selected as a source.
Press and hold to turn BSM function on or
off when tuner is selected as a source.
Press to turn pause on or off when multi- D
is selected as a source.
Press and hold to turn repeat on or off when
multi- D is selected as a source.
Also, press to control external unit.
7BAND button
Press to select among three FM and one
AM bands and cancel the control mode of
functions.
8BTB button
Press to select various BTB (bass treble
booster) setting.
9AUDIO button
Press to select various sound quality con-
trols.
aDETACH button
Press to remove the front panel from the
head unit.
b16 buttons
Press for preset tuning and disc number
search when using a multi- D player.
Also, press to control external unit.
12
3
456
7
8
9
abcd
e
Whats What
En
4
Section
02
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

cc/dbuttons
Press to do manual seek tuning. Also used
for controlling functions.
dLOUDNE button
Press to turn loudness on or off.
eVOLUME button
Press to increase or decrease the
volume.
Whats What
En 5
English
Section
02
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Turning the unit on
%Press OURCE to turn the unit on.
When you select a source the unit is turned
on.
Selecting a source
You can select a source you want to listen to.
To switch to the cassette player, load a cas-
sette tape in this unit (refer to page 9).
%Press OURCE to select a source.
Press OURCE repeatedly to switch between
the following sources:
TunerCassette playerMulti-CD player
External unit
Notes
!In the following cases, the sound source will
not change:
When a unit corresponding to each source
is not connected to this unit.
When no cassette is set in this unit.
When no magazine is set in the multi- D
player.
!External unit refers to a Pioneer product (such
as one available in the future) that, although
incompatible as a source, enables control of
basic functions by this unit. Only one external
unit can be controlled by this unit.
!When this units blue/white lead is connected
to the cars auto-antenna relay control term-
inal, the cars antenna extends when this
units source is turned on. To retract the an-
tenna, turn the source off.
Turning the unit off
%Press OURCE and hold until the unit
turns off.
Power N/ FF
En
6
Section
03
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com
all-guides.com

Listening to the radio
123
4
1Band indicator
Shows which band the radio is tuned to, AM
or FM.
2Frequency indicator
Shows to which frequency the tuner is
tuned.
3tereo (5) indicator
Shows that the frequency selected is being
broadcast in stereo.
4Preset number indicator
Shows what preset has been selected.
1 Press OURCE to select the tuner.
2 Use VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/, the volume
is lowered.
3 Press BAND to select a band.
Press BAND until the desired band is dis-
played, F1,F2,F3 for FM or AM.
4 To perform manual tuning, press cor
dwith quick presses.
The frequencies move up or down step by
step.
5 To perform seek tuning, press and hold
cor dfor about one second and release.
The tuner will scan the frequencies until a
broadcast strong enough for good reception is
found.
#You can cancel seek tuning by pressing either
cor dwith a quick press.
#If you press and hold cor dyou can skip
broadcasting stations. Seek tuning starts as soon
as you release the buttons.
Note
When the frequency selected is being broadcast
in stereo the stereo (5) indicator will light.
Storing and recalling
broadcast frequencies
If you press any of the preset tuning buttons
16you can easily store up to six broadcast
frequencies for later recall with the touch of a
button.
%When you find a frequency that you
want to store in memory press a preset
tuning button 16 and hold until the preset
number stops flashing.
The number you have pressed will flash in the
preset number indicator and then remain lit.
The selected radio station frequency has been
stored in memory.
The next time you press the same preset tun-
ing button 16the radio station frequency is
recalled from memory.
Note
Up to 18 FM stations, 6 for each of the three FM
bands, and 6 AM stations can be stored in mem-
ory.
Tuning in strong signals
Local seek tuning lets you tune in only those
radio stations with sufficiently strong signals
for good reception.
Tuner
En 7
English
Section
04
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

1 Press LOCAL/B M to turn local seek
tuning on.
LOC appears in the display.
2 When you want to return to normal
seek tuning, press LOCAL/B M to turn local
seek tuning off.
Storing the strongest
broadcast frequencies
BSM (best stations memory) lets you automa-
tically store the six strongest broadcast fre-
quencies under preset tuning buttons 16and
once stored there you can tune in to those fre-
quencies with the touch of a button.
%Press LOCAL/B M and hold until the
B M turns on.
B M begins to flash. While B M is flashing
the six strongest broadcast frequencies will be
stored under preset tuning buttons 16in
order of their signal strength. When finished,
B M stops flashing.
#To cancel the storage process, press
LOCAL/B M.
Note
Storing broadcast frequencies with BSM may re-
place broadcast frequencies you have saved
using 16.
Tuner
En
Section
04
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Playing a tape
1
1Tape direction indicator
Shows the direction of the tape transport.
1 Insert a cassette tape into the cassette
loading slot.
Playback will automatically start.
assette loading slot
#You can eject a cassette tape by pressing
TAPE EJECT.
2 After a cassette tape has been inserted,
press OURCE to select the cassette player.
Press OURCE until cassette player is selected
as the source.
3 Use VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/, the volume
is lowered.
4 To perform fast forward or rewind,
press mor n.
#You can cancel fast forward or rewind by
pressing mor nin the opposite direction
lightly.
5 To change the direction of the tape
transport, press mand nsimulta-
neously.
Note
Do not insert anything other than a cassette tape
into the cassette loading slot.
Radio intercept
Radio intercept allows you to listen to the
radio during tape fast-forwarding/rewinding.
%Press 6 to turn radio intercept on or
off.
Cassette Player
En 9
English
Section
05
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

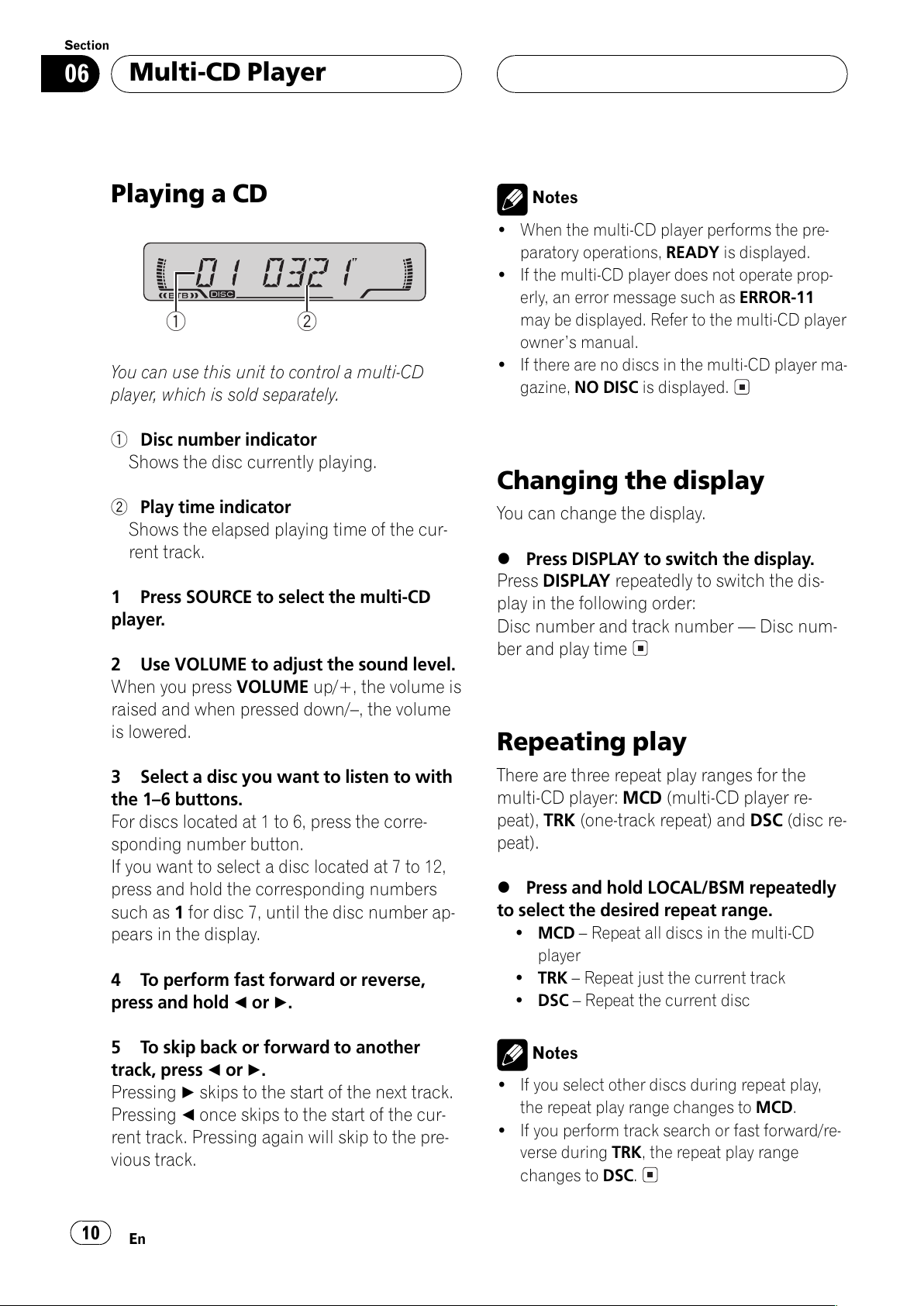

Playing a CD
12
You can use this unit to control a multi-CD
player, which is sold separately.
1Disc number indicator
Shows the disc currently playing.
2Play time indicator
Shows the elapsed playing time of the cur-
rent track.
1 Press OURCE to select the multi-CD
player.
2 Use VOLUME to adjust the sound level.
When you press VOLUME up/+, the volume is
raised and when pressed down/, the volume
is lowered.
3 elect a disc you want to listen to with
the 16 buttons.
For discs located at 1 to 6, press the corre-
sponding number button.
If you want to select a disc located at 7 to 12,
press and hold the corresponding numbers
such as 1for disc 7, until the disc number ap-
pears in the display.
4 To perform fast forward or reverse,
press and hold cor d.
5 To skip back or forward to another
track, press cor d.
Pressing dskips to the start of the next track.
Pressing conce skips to the start of the cur-
rent track. Pressing again will skip to the pre-
vious track.
Notes
!When the multi- D player performs the pre-
paratory operations, READY is displayed.
!If the multi- D player does not operate prop-
erly, an error message such as ERROR-11
may be displayed. Refer to the multi- D player
owners manual.
!If there are no discs in the multi- D player ma-
gazine, NO DI C is displayed.
Changing the display
You can change the display.
%Press DI PLAY to switch the display.
Press DI PLAY repeatedly to switch the dis-
play in the following order:
Disc number and track number Disc num-
ber and play time
Repeating play
There are three repeat play ranges for the
multi- D player: MCD (multi- D player re-
peat), TRK (one-track repeat) and D C (disc re-
peat).
%Press and hold LOCAL/B M repeatedly
to select the desired repeat range.
!MCD Repeat all discs in the multi- D
player
!TRK Repeat just the current track
!D C Repeat the current disc
Notes
!If you select other discs during repeat play,
the repeat play range changes to MCD.
!If you perform track search or fast forward/re-
verse during TRK, the repeat play range
changes to D C.
Multi-CD Player
En
10
Section
06
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Pausing CD playback
Pause lets you temporarily stop playback of
the D.
1 Press LOCAL/B M to turn pause on.
PAU E appears in the display. Play of the cur-
rent track pauses.
2 Press LOCAL/B M to turn pause off.
Play will resume at the same point that you
turned pause on.
50-disc multi-CD player
50-disc multi- D players can not be operated
with this unit.
Multi-CD Player
En 11
English
Section
06
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com
all-guides.com

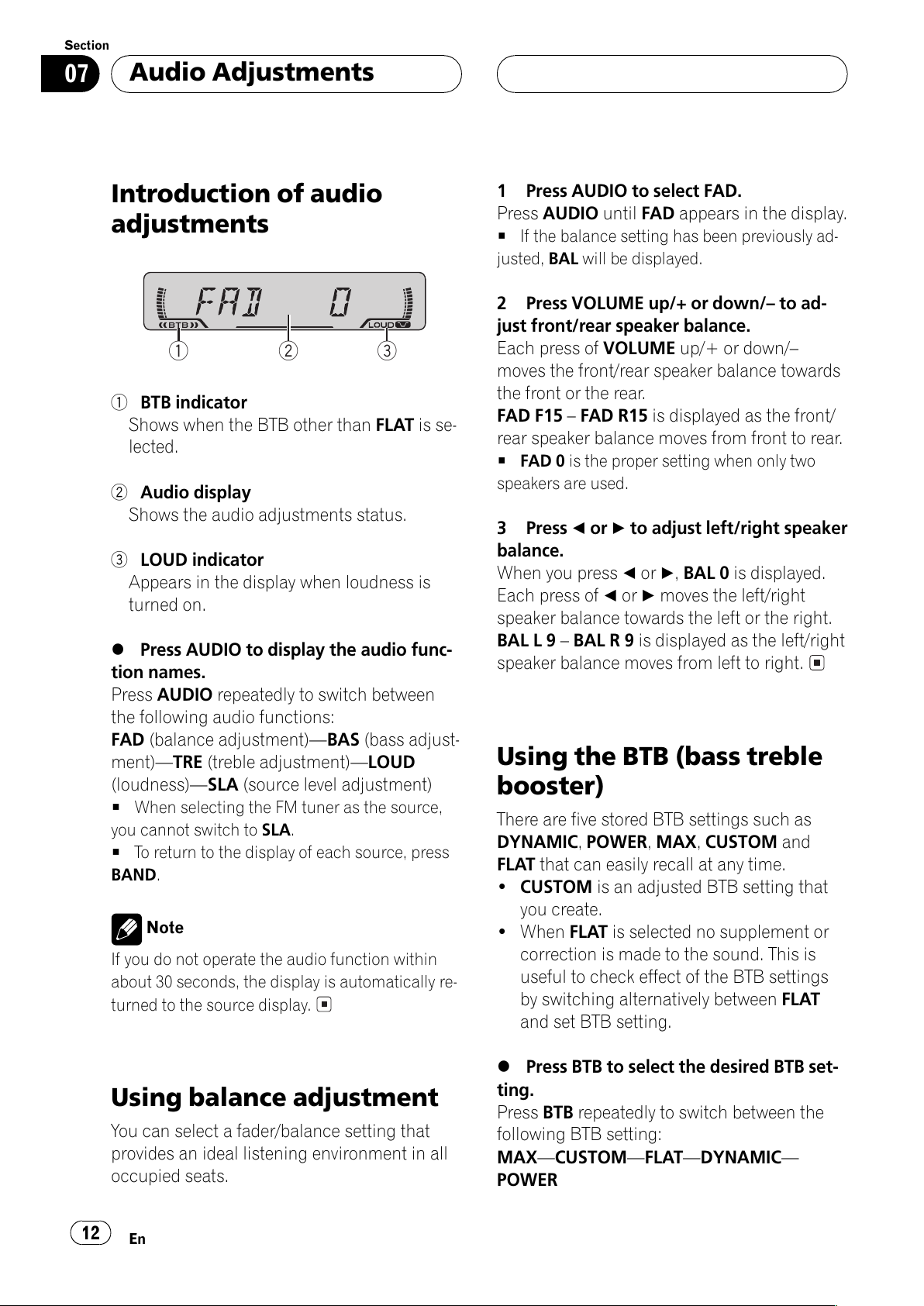

Introduction of audio
adjustments
123
1BTB indicator
Shows when the BTB other than FLAT is se-
lected.
2Audio display
Shows the audio adjustments status.
3LOUD indicator
Appears in the display when loudness is
turned on.
%Press AUDIO to display the audio func-
tion names.
Press AUDIO repeatedly to switch between
the following audio functions:
FAD (balance adjustment)BA (bass adjust-
ment)TRE (treble adjustment)LOUD
(loudness)LA (source level adjustment)
#When selecting the FM tuner as the source,
you cannot switch to LA.
#To return to the display of each source, press
BAND.
Note
If you do not operate the audio function within
about 30 seconds, the display is automatically re-
turned to the source display.
Using balance adjustment
You can select a fader/balance setting that
provides an ideal listening environment in all
occupied seats.
1 Press AUDIO to select FAD.
Press AUDIO until FAD appears in the display.
#If the balance setting has been previously ad-
justed, BAL will be displayed.
2 Press VOLUME up/+ or down/to ad-
just front/rear speaker balance.
Each press of VOLUME up/+ or down/
moves the front/rear speaker balance towards
the front or the rear.
FAD F15 FAD R15 is displayed as the front/
rear speaker balance moves from front to rear.
#FAD 0 is the proper setting when only two
speakers are used.
3 Press cor dto adjust left/right speaker
balance.
When you press cor d,BAL 0 is displayed.
Each press of cor dmoves the left/right
speaker balance towards the left or the right.
BAL L 9 BAL R 9 is displayed as the left/right
speaker balance moves from left to right.
Using the BTB (bass treble
booster)
There are five stored BTB settings such as
DYNAMIC,POWER,MAX,CU TOM and
FLAT that can easily recall at any time.
!CU TOM is an adjusted BTB setting that
you create.
!When FLAT is selected no supplement or
correction is made to the sound. This is
useful to check effect of the BTB settings
by switching alternatively between FLAT
and set BTB setting.
%Press BTB to select the desired BTB set-
ting.
Press BTB repeatedly to switch between the
following BTB setting:
MAXCU TOMFLATDYNAMIC
POWER
Audio Adjustments
En
12
Section
07
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Adjusting BTB
You can adjust the currently selected BTB set-
ting as desired. Adjusted BTB settings are
memorized in CU TOM.
Adjusting bass
You can adjust the bass level.
1 Press AUDIO to select BA .
Press AUDIO until BA appears in the display.
2 Press VOLUME up/+ or down/to ad-
just the bass level.
Each press of VOLUME up/+ or down/in-
creases or decreases the bass level. +6 6is
displayed as the level is increased or de-
creased.
Adjusting treble
You can adjust the treble level.
1 Press AUDIO to select TRE.
Press AUDIO until TRE appears in the display.
2 Press VOLUME up/+ or down/to ad-
just the treble level.
Each press of VOLUME up/+ or down/in-
creases or decreases the treble level. +6 6
is displayed as the level is increased or
decreased.
Adjusting loudness
Loudness compensates for deficiencies in the
low- and high-sound ranges at low volume.
1 Press AUDIO to select LOUD.
Press AUDIO until LOUD appears in the dis-
play.
2 Press VOLUME up/+ to turn loudness
on.
LOUD indicator is displayed.
#To turn loudness off, press VOLUME down/.
3 Press cor dto select a desired level.
Each press of cor dselects level in the fol-
lowing order:
LOW (low)HI (high)
Note
You can also turn loudness on or off by pressing
LOUDNE .
Adjusting source levels
SLA (source level adjustment) lets you adjust
the volume level of each source to prevent ra-
dical changes in volume when switching be-
tween sources.
!Settings are based on the volume level of
the FM tuner, which remains unchanged.
1 Compare the FM tuner volume level
with the level of the source you wish to ad-
just.
2 Press AUDIO to select LA.
Press AUDIO until LA appears in the display.
3 Press VOLUME up/+ or down/to ad-
just the source volume.
Each press of VOLUME up/+ or down/in-
creases or decreases the source volume.
LA +4 LA 4is displayed as the source vo-
lume is increased or decreased.
Notes
!Since the FM tuner volume is the control, it is
not possible to apply source level adjustments
to the FM tuner.
!The AM tuner volume level can also be ad-
justed with source level adjustments.
Audio Adjustments
En 13
English
Section
07
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Adjusting initial settings
Initial settings lets you perform initial set up of
different settings for this unit.
1 Press OURCE and hold until the unit
turns off.
2 Press AUDIO and hold until clock ap-
pears in the display.
Press AUDIO repeatedly to switch between
the following settings:
lockTEP (FM tuning step)TEP (AM
tuning step)
Use the following instructions to operate each
particular setting.
#To cancel initial settings, press BAND.
#You can also cancel initial settings by holding
down AUDIO until the unit turns off.
Setting the clock
Use these instructions to set the clock.
1 Press AUDIO to select clock.
Press AUDIO repeatedly until clock appears in
the display.
2 Press cor dto select the segment of
the clock display you wish to set.
Pressing cor dwill select one segment of the
clock display:
HourMinute
As you select segments of the clock display
the segment selected will blink.
3 Press VOLUME up/+ or down/to set
the clock.
Pressing VOLUME up/+ will increase the se-
lected hour or minute. Pressing VOLUME
down/will decrease the selected hour or min-
ute.
Setting the FM tuning step
The FM tuning step employed by seek tuning
can be switched between 100 kHz, the preset
step, and 50 kHz.
1 Press AUDIO to select TEP.
Press AUDIO repeatedly until TEP appears in
the display.
2 Press cor dto select the FM tuning
step.
Pressing cor dwill switch the FM tuning
step between 100 kHz and 50 kHz. The se-
lected FM tuning step will appear in the dis-
play.
Note
If seek tuning is performed in 50 kHz steps, sta-
tions may be tuned in imprecisely. Tune in the sta-
tions with manual tuning or use seek tuning
again.
Setting the AM tuning step
The AM tuning step can be switched between
9 kHz, the preset step, and 10 kHz. When
using the tuner in North, entral or South
America, reset the tuning step from 9 kHz (531
1,602 kHz allowable) to 10 kHz (530 1,640
kHz allowable).
Initial Settings
En
14
Section
0
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

1 Press AUDIO to select TEP.
Press AUDIO repeatedly until TEP appears in
the display.
2 Press cor dto select the AM tuning
step.
Pressing cor dwill switch the AM tuning
step between 9 kHz and 10 kHz. The selected
AM tuning step will appear in the display.
Initial Settings
En 15
English
Section
0
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Turning the clock display
on or off
You can turn the clock display on or off.
%Press CLOCK to turn the clock display
on or off.
Each press of CLOCK turns the clock display
on or off.
#The clock display disappears temporarily
when you perform other operations, but the clock
display appears again after 25 seconds.
Cassette player
!A loose or warped label on a cassette tape
may interfere with the eject mechanism of
the unit or cause the cassette to become
jammed in the unit. Avoid using such
tapes or remove such labels from the cas-
sette before attempting use.
!Be sure to eject tape when the vehicles
ignition is turned off. Leaving the tape in
the unit can deform the pinch roller caus-
ing wow and flutter during tape
playback.
Cassette tapes
!Loose tapes should be rewound with the
aid of a pencil and unevenly wound tapes
rewound with the use of the fast forward
function.
!A loose, torn or warped label on a cassette
tape can jam the cassette player. Do not
use cassette tapes with loose, torn or
warped labels.
!assette tapes longer than -90 (90-minute
tapes) can cause the tape to jam in the cas-
sette player. Do not use tapes longer than
-90.
!assette tapes exposed to high tempera-
tures may warp and jam the cassette
player. Keep cassettes out of direct sunlight
or places where there are high tempera-
tures.
!Store unused tapes in a tape case where
there is no danger of them becoming
loose, dirty or dusty.
Cleaning the playback head
If the head becomes dirty, the sound quality
will get bad and there will be sound dropouts
and other problems. If you have any of these
problems the head may need cleaning.
Additional Information
En
16
Appendix
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com
all-guides.com

Specifications
General
Rated power source ............... 14.4 V D
(allowable voltage range:
12.0 14.4 V D )
Grounding system ................... Negative type
Max. current consumption
..................................................... 8.5 A
Dimensions (W × H × D):
DIN
hassis ..................... 178 × 50 × 155 mm
Nose ........................... 188 × 58 × 20 mm
D
hassis ..................... 178 × 50 × 160 mm
Nose ........................... 170 × 48 × 15 mm
Weight .......................................... 1.4 kg
Audio
ontinuous power output is 20 W per channel minimum
into 4 ohms, both channels driven 50 to 15,000 Hz with
no more than 5% THD.
Maximum power output ....... 45 W × 4
Load impedance ...................... 4 W(4 8Wallowable)
Preout max output level/output impedance
..................................................... 2.2 V/1 kW
Bass/Treble:
Bass
Frequency ................ 100 Hz
Gain ............................ ±12dB
Treble
Frequency ................ 10k Hz
Gain ............................ ±12dB
Loudness contour
Low ....................................... +7 dB (100 Hz), +4 dB (10
kHz)
High ..................................... +10 dB (100 Hz), +6.5 dB
(10 kHz)
(volume: 30 dB)
Cassette player
Tape ................................................ ompact cassette tape ( -
30 -90)
Tape speed .................................. 4.8 cm/sec
Fast forward/rewinding time
..................................................... Approx. 100 sec ( -60)
Wow & flutter ............................. 0.13 % (WRMS)
Frequency response ............... 30 16,000 Hz (±3 dB)
Stereo separation .................... 45 dB
Signal-to-noise ratio ............... 52 dB (IE -A network)
FM tuner
Frequency range ...................... 87.5 108.0 MHz
Usable sensitivity ..................... 11 dBf (1.1 µV/75 W, mono,
S/N: 30 dB)
50 dB quieting sensitivity ..... 17 dBf (2.2 µV/75 W, mono)
Signal-to-noise ratio ............... 58 dB (IE -A network)
Distortion ..................................... 0.5 % (at 65 dBf, 1 kHz,
stereo)
Frequency response ............... 30 15,000 Hz (±3 dB)
Stereo separation .................... 24 dB (at 65 dBf, 1 kHz)
AM tuner
Frequency range ...................... 531 1,602 kHz (9 kHz)
530 1,640 kHz (10 kHz)
Usable sensitivity ..................... 20 µV (S/N: 20 dB)
Selectivity .................................... 50 dB (±9 kHz)
50 dB (±10 kHz)
Note
Specifications and the design are subject to pos-
sible modifications without notice due to im-
provements.
Additional Information
En 17
English
Appendix
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Gracias por haber comprado este producto Pioneer.
Sírvase leer con detención estas instrucciones sobre la operación de modo que
aprenda el modo de operar correctamente su modelo. Una vez que haya leído las in-
strucciones, cons rvelas en un lugar seguro para consultarlas en el futuro.
Antes de empezar
Acerca de este manual 19
Precauciones 19
Protección del producto contra robo 19
Extracción del panel delantero 19
olocación del panel delantero 19
Qué es cada cosa
Unidad principal 20
Encendido y Apagado
Encendido del sistema 22
Selección de una fuente 22
Apagado del sistema 22
Sintonizador
Audición de radio 23
Almacenaje y llamada de frecuencias 23
Sintonización de señales fuertes 24
Almacenaje de las frecuencias de radio más
fuertes 24
Lector de cassette
Reproducción de una cinta 25
Intercepción de radio 25
Lector de Multi-CD
Reproducción de un D 26
ambio de la visualización 26
Repetición de reproducción 26
Pausa de la reproducción de un D 27
Lector de Multi- D de 50 discos 27
Ajustes de audio
Introducción a los ajustes de audio 2
Uso del ajuste del balance 2
Uso de la función BTB (intensificación de
graves y agudos) 2
Ajuste de BTB 29
Ajuste de la sonoridad 29
Ajuste de los niveles de la fuente 29
Ajustes iniciales
onfiguración de los ajustes iniciales 31
Ajuste del reloj 31
Ajuste del paso de sintonización de FM 31
Ajuste del paso de sintonización de AM 32
Informaciones adicionales
Activación y desactivación de la visualización
del reloj 33
Lector de cassette 33
assettes 33
Limpieza de la cabeza de reproducción 33
Especificaciones 34
Contenido
Es
1
All manuals and user guides at all-guides.com

Acerca de este manual
Este producto viene con diversas funciones
sofisticadas que aseguran una recepción y op-
eración superior. Todas las funciones han sido
proyectadas para facilitar su uso al máximo,
pero muchas funciones requieren explicación.
El propósito de este manual de instrucciones
es ayudarle a beneficiarse completamente del
potencial del producto y maximizar su disfrute
de audición.
Se recomienda familiarizarse con las fun-
ciones y operaciones leyendo con detención el
manual antes de usar el producto. Es especial-
mente importante leer y observar las precau-
ciones en esta página y en otras secciones.
Precauciones
!Mantenga este manual a mano como una
referencia para los procedimientos de oper-
ación y precaución.
!Siempre mantenga el volumen suficiente-
mente bajo de modo que pueda escuchar
los sonidos fuera del coche.
!Proteja este producto de la humedad.
!Si se desconecta o se descarga la batería,
la memoria preajustada se borrará y se
debe reprogramarla.
!Si este producto no funciona apropiada-
mente, póngase en contacto con su reven-
dedor o centro de servicios autorizado de
PIONEER más cercano.
Protección del producto
contra robo
El panel delantero se puede extraer de la uni-
dad principal y se almacenar en su caja pro-
tectora proveída como una medida antirrobo.
Importante
!Nunca presione ni agarre la pantalla y los bo-
tones con fuerza excesiva al extraer o colocar
el panel delantero.
!Evite sujetar el panel delantero a impactos ex-
cesivos.
!Mantenga el panel delantero fuera del al-
cance de los rayos de luz del sol o alta temper-
aturas.
Extracción del panel delantero
1 Presione DETACH para soltar el panel
delantero.
Presione DETACH y el lado derecho del panel
se suelta de la unidad principal.
2 Agarre el panel delantero y extráigalo.
Agarre el lado derecho del panel delantero y
tire de él hacia la izquierda. El panel delantero
sale de la unidad principal.
Colocación del panel delantero
1 Coloque el panel delantero de modo
plano contra la unidad principal.
2 Presione el panel delantero hacia la
cara de la unidad principal hasta que se
asiente firmemente.
Antes de empezar
Es 19
Sección
Español
01
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com

Unidad principal
1Botón OURCE
Este sistema se activa seleccionando una
fuente. Presione para pasar por todas las
fuentes disponibles.
2Botón DI PLAY
Presione para seleccionar las diferentes vi-
sualizaciones.
Presione también para controlar la unidad
externa.
3Botón CLOCK
Presione para cambiar a la visualización de
reloj.
4Botón TAPE EJECT
Presione para expulsar una cinta del lector
de cassette.
5Botones m/n
Presione para el avance rápido o retroceso.
6Botón LOCAL/B M
Presione para activar o desactivar la función
local cuando se selecciona el sintonizador
como la fuente.
Presione y mantenga presionado para acti-
var o desactivar la función BSM cuando se
selecciona el sintonizador como la fuente.
Presione para activar o desactivar la pausa
cuando se selecciona el lector de Multi- D
como la fuente.
Presione y mantenga presionado para acti-
var o desactivar la reproducción repetida
cuando se selecciona el lector de Multi- D
como la fuente.
Presione también para controlar la unidad
externa.
7Botón BAND
Presione para seleccionar entre tres bandas
FM y una banda AM, y cancelar el modo de
control de funciones.
8Botón BTB
Presione para seleccionar los diversos
ajustes de BTB (intensificación de graves y
agudos).
12
3
456
7
8
9
abcd
e
Qué es cada cosa
Es
20
Sección
02
HHHHHHHHHHHHHH
All manuals and user guides at all-guides.com
