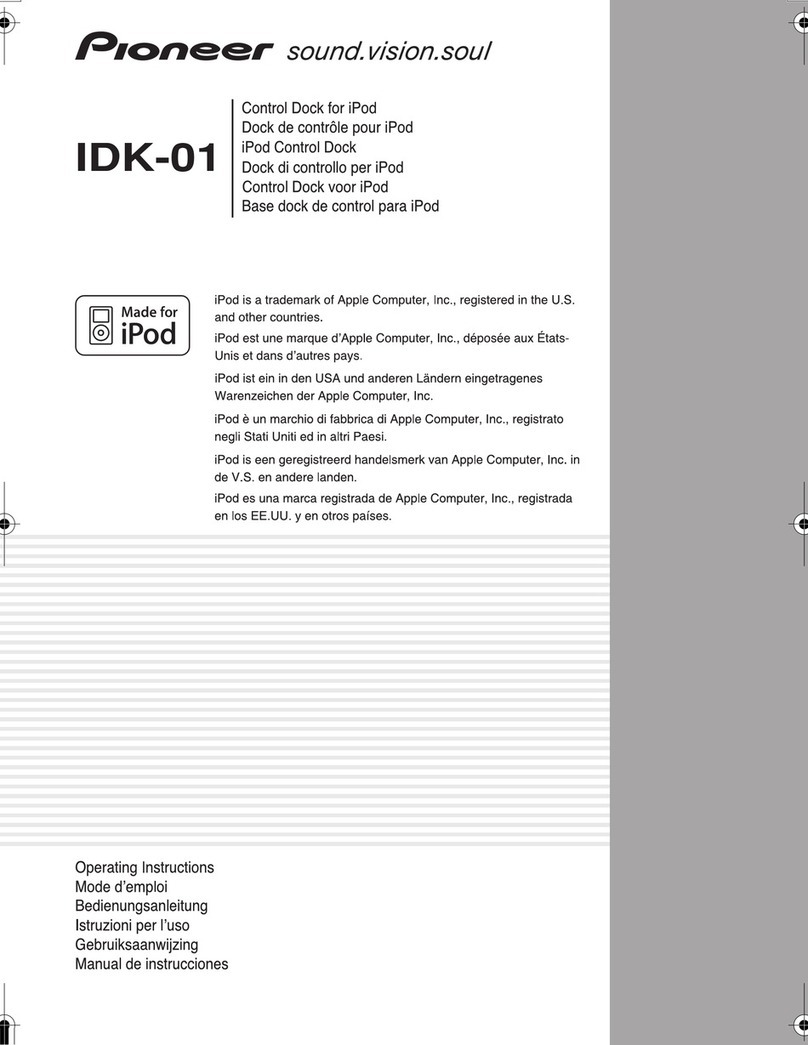

Pioneer IDK-01 - Universal iPod Dock User manual

IDK-01
IDK-01.book Page 1 Tuesday, August 1, 2006 5:06 PM

The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient
magnitude to constitute a risk of electric
shock to persons.
CAUTION:
TO PREVENT THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
IMPORTANT
D3-4-2-1-1_En-A
WARNING
This equipment is not waterproof. To prevent a fire
or shock hazard, do not place any container filed
with liquid near this equipment (such as a vase or
flower pot) or expose it to dripping, splashing, rain
or moisture.
D3-4-2-1-3_A_En
WARNING
To prevent a fire hazard, do not place any naked
flame sources (such as a lighted candle) on the
equipment.
D3-4-2-1-7a_A_En
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used
electronic products in accordance with legislation that requires proper treatment, recovery and recycling.
Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to
designated collection facilities or to a retailer (if you purchase a similar new one).
For countries not mentioned above, please contact your local authorities for the correct method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential
negative effects on the environment and human health.
K058_En
This product complies with the EMC Directives
(89/336/EEC, amended by 92/31/EEC and
93/68/EEC). D3-4-2-1-9b_En
AC adapter caution
• Make sure to grasp the body of the AC adapter when removing it from the power outlet. If you pull the power cord,
it may become damaged which could lead to fire and/or electrocution.
• Do not attempt to plug in or remove the AC adapter with wet hands. This may result in electrocution.
• Insert the prongs of the AC adapter all the way into the power outlet. If the connection is incomplete, heat may be
generated which could lead to fire. Furthermore, contact with the connected prongs of the adapter may result in
electrocution.
• Do not insert the AC adapter into a power outlet where the connection remains loose despite inserting the prongs
all the way into the outlet. Heat may be generated which could lead to fire. Consult with the retailer or an electrician
regarding replacement of the power outlet.
For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.
IDK-01.book Page 2 Friday, August 4, 2006 11:49 AM

3
En
EnglishFrançaisDeutsch
Nederlands
Italiano Español
Thank you for buying this Pioneer product.
Please read through these operating instructions so that you will know how to operate your model
properly. After you have finished reading the instructions, put them in a safe place for future
reference.
Contents
01 Before you start
Checking what’s in the box . . . . . . . . . . . . . . . 4
Inserting the battery . . . . . . . . . . . . . . . . . . . . 4
Cleaning the unit. . . . . . . . . . . . . . . . . . . . . . . 4
Range of the remote control unit. . . . . . . . . . . 5
Regarding interference with this unit . . . . . . . 5
Attaching the iPod type adapter . . . . . . . . . . . 5
Fitting the AC adapter plug . . . . . . . . . . . . . . . 6
02 Controls and displays
Top and front panel . . . . . . . . . . . . . . . . . . . . . 7
Rear panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
03 Connecting up
Connecting the system to your AV
receiver or TV . . . . . . . . . . . . . . . . . . . . . . . . . . 8
04 Getting started
iPod playback features. . . . . . . . . . . . . . . . . . . 9
Using the on-screen display. . . . . . . . . . . . . . 10
05 Additional information
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . 11
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 11
Discover the benefits of registering your product online at www.pioneer.co.uk
(www.pioneer-eur.com)
IDK-01.book Page 3 Friday, August 4, 2006 11:49 AM

Before you start01
4
En
Chapter 1
Before you start
Checking what’s in the box
Please check that you've received the following
supplied accessories:
• Remote control
•Lithium battery (CR2025)
• iPod type adapter x6
• AC adapter
• Plug adapters (for AC adapter) x2
• Audio cable (2 m) red/white
• Video cable (2 m) yellow
•SRcable(2m)
• These operating instructions
• Warranty card
Inserting the battery
Reseat the lithium battery (CR2025) in the
remote control as shown right. When you
notice a decrease in the operating range,
replace the battery in the same manner.
1 Push the release tab to the right to
open the battery casing.
2 Pull out the battery casing.
3 Remove the battery from the casing.
If you're doing this for the first time, remove the
protective seal from the battery supplied with
the system before re-inserting it.
4 Place a new battery in the casing.
Make sure the side of the battery is facing up
when you place it in the space provided.
Caution
When using lithium batteries, please observe
the following:
• Dispose of used battery cells immediately
after replacement. Keep away from
children.
• If swallowed, please contact a doctor
immediately.
• Lithium batteries may present a fire or
chemical burn hazard if misused. Do not
disassemble, heat above 100°C or
incinerate.
• Remove the battery if the unit isn’t going to
be used for a month or more.
• When disposing of used batteries, please
comply with governmental regulations or
environmental public instruction’s rules
that apply in your country/area.
• There is danger of explosion if the battery is
incorrectly replaced. Make sure to replace
only with the same type recommended by
the manufacturer.
• Do not use or store batteries in direct
sunlight or other excessively hot place,
such as inside a car or near a heater. This
can cause batteries to leak, overheat,
explode or catch fire. It can also reduce the
life or performance of batteries.
Cleaning the unit
• Use a polishing cloth or dry cloth to wipe
off dust and dirt.
• When the surface is dirty, wipe with a soft
cloth dipped in some neutral cleanser diluted
five or six times with water, and wrung out
well, and then wipe again with a dry cloth. Do
not use furniture wax or cleansers.
• Never use thinners, benzine, insecticide
sprays or other chemicals on or near this
unit, since these will corrode the surface.
1
2
4
3
IDK-01.book Page 4 Friday, August 4, 2006 11:49 AM

Before you start 01
5
En
English FrançaisDeutsch
Nederlands
Italiano Español
Range of the remote control unit
The remote control has a range of about 7
meters. It may not work properly if:
• There are obstacles between the remote
control and this unit’s remote sensor.
• Direct sunlight or fluorescent light is
shining onto the remote sensor.
• This system is located near a device that is
emitting infrared rays.
• This unit is operated simultaneously with
another infrared remote control unit.
Regarding interference with this
unit
There may be cases where using a cellular
phone near this unit will result in noise or
interference. If you experience this problem,
distance your cellular phone and this unit.
Attaching the iPod type adapter
For your iPod to sit properly in the dock
connector port, you will have to match the iPod
type adapter with your model of iPod. Each
iPod type adapter has a model marking as
shown below.
After selecting the iPod type adapter that
corresponds with your iPod unit, insert it into
the iPod type adapter pocket as shown.
• It is also possible to connect an iPod type
adapter from an original iPod dock.
• When using fifth generation iPod models
with this system, please use the iPod type
adapter supplied with your iPod unit.
• When using a third generation iPod model
with this system, please use an ‘Apple iPod
Universal Dock adapter 3-pack for iPod
with Dock Connector’ available for
purchase from Apple Computer Inc.
Pla
y
list Shuffle
Re
p
eat
Pla
y
list
Enter
Menu
OSD
On/Off
30 30
7 m
iPod model
marking
Model mark Corresponding iPod type
iPod 20GB Fourth generation 20 GB iPod
iPod 40GB Fourth generation 40 GB iPod
mini iPod mini
Color 20GB
30GB
20 GB / 30 GB iPod <color
display>
Color 40GB
60GB
40 GB / 60 GB iPod <color
display>
nano iPod nano
IDK-01.book Page 5 Friday, August 4, 2006 11:49 AM

Before you start01
6
En
Fitting the AC adapter plug
U.K. model only
Make sure the AC adapter is fitted with the
appropriate plug for your region. Switch the
removable AC adapter plug as shown below.
PUSH
PUSH
PUSH
CAUTION
RISK OF ELECTRIC SHOCK
DRY LOCATIONUSE ONLY
CAUTION
RISK OF ELECTRIC SHOCK
DRY LOCATIONUSE ONLY
CAUTION
RISK OF ELECTRIC SHOCK
DRY LOCATIONUSE ONLY

IDK-01.book Page 6 Friday, August 4, 2006 11:49 AM

Controls and displays 02
7
En
English FrançaisDeutsch
Nederlands
Italiano Español
Chapter 2
Controls and displays
Top and front panel
1 iPod connector port
Insert your iPod dock connector port to
connect and recharge your iPod unit.
2 iPod type adapter pocket
Holds the iPod type adapter that matches your
iPod unit.
3 Power indicator
Lights when your iPod is connected to the dock
connector port.
4 Remote sensor
See Range of the remote control unit on page 5
for more on this.
Rear panel
1 CONTROL IN terminal
Connect this to a Pioneer AV receiver (or
similar component) CONTROL OUT terminal
using the supplied SR cable. This allows you to
use the receiver's remote to control this unit.
Check your Pioneer receiver's operating
instructions for more on this.1
2 S-VIDEO output terminal
Connect a TV or AV amplifier with an S-VIDEO
input terminal when viewing the iPod video
playback.
• No video is output to the VIDEO terminal if
you make this connection.
• The on-screen display for use in control of
this system is not available when the S-
Video connection is made.
3 VIDEO output terminal
Connect a standard (composite) video cable to
your TV/AV receiver to view the on-screen
display or for iPod video playback.
4 AUDIO output terminal
Use to connect a stereo RCA/phono terminal
cable to your AV receiver /power amplifier for
two-channel audio.
5 AC adapter DC IN 12 V terminal
Use to connect the AC adapter to an AC power
outlet.
1 2
3 4
Note
1 If you have connected an SR cable to this terminal, you must point the remote control supplied with this unit at the remote
sensor of the connected receiver or amplifier.
IN
S - VIDEO
DC IN 12 V
VIDEO R AUDIO L CONTROL
OUTPUT
1234 5
IDK-01.book Page 7 Friday, August 4, 2006 11:49 AM

Connecting up03
8
En
Chapter 3
Connecting up
Connecting the system to your AV receiver or TV
Optional
connection
to yourTV
Control Dock
foriPod
AC adapter
(supplied)
AC power
outlet
Audio cable
(supplied)
Video cable
(supplied)
SR cable (supplied)
TV
Receiveroramplifier
• A video connection is
necessary if you want to
see iPod video playback
orthe OSD of this unit.
• An S-Video cable can
also be used in
connection. However,
the on-screen display is
not available when the
S-Video connection is
made.
• Plug in the AC adapteronly
aftercompleting all connections.
• Do not use any adapterwith
this unit otherthan the one
supplied.
Most Pioneerreceivers have a CONTROL OUT terminal which can be used to link this
component, allowing you to use the receiver's remote to control this unit. Check your
Pioneerreceiver's operating instructions formore on this. (If you have connected an SR
cable to this terminal, you must point the remote control supplied with this unit at the
remote sensorof the connected receiveroramplifier.)
IN
S -VIDEO
DC IN 12V
VIDEO R AUDIO L CONTROL
OUTPUT
VIDEO IN
L
CONTROL OUT
R
AUDIO IN
VIDEO IN
IDK-01.book Page 8 Friday, August 4, 2006 11:49 AM

Getting started 04
9
En
English FrançaisDeutsch
Nederlands
Italiano Español
Chapter 4
Getting started
iPod playback features
Once you have connected everything, you’re
ready to starting watching videos and listening
to music. Follow the steps below for an intro-
duction to your iPod dock.
1 Place your iPod into the dock connector
port.
Make sure you have fitted the connector port
with the iPod type connector that matches your
iPod model (see Attaching the iPod type adapter
on page 5 to do this).
2 Select the proper input on your AV
receiver (or power amplifier).
To use the on-screen display or to watch video,
you must also switch on your TV or monitor.
3 Start playback.
Check the table in Basic remote controls below
for an explanation of the playback features
available with this system.1
• Since the volume of the iPod cannot be
controlled using this unit, please adjust the
volume using the AV receiver or power
amplifier to which you have connected.
Basic remote controls
The following table shows the basic playback
controls for your iPod:
Important
• This system is compatible with the audio of
an iPod mini, iPod Photo, iPod nano and
iPod Video (third or later generation) and
the video of an iPod Photo and iPod Video.
Note
1 You can also use your iPod main unit controls for playback. Please refer to the manual supplied with the iPod for more on this.
Pla
y
list Shuffle
Re
p
eatPla
y
list
Enter
Menu
OSD
On/Off
Button What it does
Switches on/off this unit’s on-screen
display (this appears on the video com-
ponent to which you’re connected).
Returns to the previous menu.
Selects menu items/levels.
Starts/pauses playback.
Press and hold during playback to start
scanning.
Press to skip to the previous/next song.
Starts playback of the previous/next
playlist.
Press repeatedly to switch between
shuffle play options.
Press repeatedly to switch between
repeat play options.
Use these buttons to move the cursor
(on-screen).
OSD
On/Off
Menu
Enter
Pla
y
list Pla
y
list
Shuffle
Re
p
eat
IDK-01.book Page 9 Friday, August 4, 2006 11:49 AM

Getting started04
10
En
• With iPod nano, this system cannot display
the slideshow due to the specifications of
iPod nano.
The following software versions have been tested :
• Depending on your model of iPod, some
features may not be available.
• With a third generation iPod (depending on
the specification), when using the remote
control, only the following buttons can be
used to control the iPod if no operation
screen is being displayed:
• Video output with this system is
compatible with the PAL TV format.
• Pioneer is not responsible for any data loss
occuring when using your iPod together
with this unit.
Using the on-screen display
For ease of use, this system makes use of a
graphical on-screen display (OSD).
All the screens are navigated in basically the
same way, using the cursor buttons (, ) to
change the highlighted item and pressing
ENTER to select it. See Basic remote controls
above for the other controls available.
• Make sure the iPod dock is connected to a
video component, then press ‘OSD On/Off’.
The OSD will appear on screen.1If you want to
play video content from your iPod, or use any of
the iPod main unit playback controls, you must
press
OSD On/Off again to switch the OSD off
before using your iPod.
Main menu screen
Playlist menu
2
Playback screen
Model Software version
iPod Video 1.0 or higher
iPod nano 1.0 or higher
iPod Photo 1.2 or higher
iPod mini 1.4 or higher
Fourth
Generation iPod
3.02 or higher
Third
Generation iPod
2.3 or higher
OSD
On/Off
Note
1 • A screen saver appears after 3 minutes of inactivity. Press any button to return to the OSD menu.
• Playback stops when OSD On/Off is pressed.
• The on-screen display for use in control of this system is not available when the S-Video connection is made. To display the
on-screen display, use the provided video cable for the video connection.
2 Note that non-roman characters in playlists will be displayed as .
MAIN MENU
>Playlists
Artists
Albums
Songs
Podcasts
Genres
Composers
Audiobooks
SHUFFLE:ALBUMS RPT:ALL
(1/8)
Shuffle play setting
Repeat play setting
Proceed to next screen
Playlists
>The Planets
Mars
Venus
Mercury
Jupiter
Saturn
Uranus
Neptune
SHUFFLE:ALBUMS RPT:ALL
(1/8)
Now Playing
(1/12)
Tic Tac Toe
Nth Degree
Best Hits Vol. 2
00:28 -03:48 04:16
SHUFFLE:ALBUMS RPT:ALL
Elapsed playback time / remaining
p
la
y
back time / total time
Song name
Artist name
Album name
IDK-01.book Page 10 Friday, August 4, 2006 11:49 AM

Additional information 05
11
En
English FrançaisDeutsch
Nederlands
Italiano Español
Chapter 5
Additional information
Troubleshooting
Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is
something wrong with this component, check the points below. Sometimes the trouble may lie in
another component. Investigate the other components and electrical appliances being used. If the
trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer
authorized service center or your dealer to carry out repair work.
Specifications
• Power section and miscellaneous
AC adapter:
Power requirements . . . AC 100-240 V, 50/60 Hz
Rated input. . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 A
Rated output . . . . . . . . . . . . . . . . . . . . 12 V/1.0 A
Power requirements (using the supplied adapter)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DC 12 V
Dimensions. . . . . 99 mm (W) x 33 mm (H) x 74 mm (D)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200 g
Power consumption (On-screen display off and
iPod not connected) . . . . . . . . . . . . . . . . . . . . 2 W
• Accessories
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Lithium battery (CR2025) . . . . . . . . . . . . . . . . . . 1
iPod type adapter . . . . . . . . . . . . . . . . . . . . . . . . 6
AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Plug adapters (for AC adapter) . . . . . . . . . . . . . . 2
Audio cable (2 m) red/white . . . . . . . . . . . . . . . . 1
Video cable (2 m) yellow . . . . . . . . . . . . . . . . . . . 1
SR cable (2 m) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
These operating instructions . . . . . . . . . . . . . . 1
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Note
• Specifications and design subject to
possible modification without notice, due
to improvements.
Problem Remedy
No sound/no picture. • Make sure your iPod is working properly.
• Make sure the iPod is seated correctly in the iPod connector dock.
• Make sure you have properly connected the AV outputs from the dock
to your external components. Also check that the correct input is
selected on your receiver and/or monitor.
• If you have connected the S-video output, nothing is output from the
standard (composite) video output.
• The OSD is not displayed.
• The OSD On/Off button of the
remote control is defeated.
The on-screen display for use in control of this system is not available
when the S-Video connection is made. To display the on-screen display,
use the provided video cable for the video connection.
Operation doesn’t seem possible
after connecting the SR cable from
this unit to an external component.
• For operation, you must point the remote control supplied with this
unit at the remote sensor of the connected receiver or amplifier.
• Make sure you are using the SR cable supplied with this system.
Published by Pioneer Corporation.
Copyright ©2006 Pioneer Corporation.
All rights reserved.
Published by Pioneer Corporation.
Copyright ©2006 Pioneer Corporation.
All rights reserved.
IDK-01.book Page 11 Friday, August 4, 2006 11:49 AM

Información adicional05
14
Sp <5707-00000-005-1><06E00001>
K002_A_En
PIONEER CORPORATION
4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC.
P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]
PIONEER ELECTRONICS OF CANADA, INC.
300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]
PIONEER EUROPE NV
Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]
PIONEER ELECTRONICS ASIACENTRE PTE. LTD.
253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]
PIONEER ELECTRONICS AUSTRALIA PTY. LTD.
178-184 Boundary Road, Braeside, Victoria 3195, Australia,TEL: [phone]
PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.
Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]
Printed in China Imprimé en Chine
IDK-01_05_add_info.fm Page 14 Monday, August 7, 2006 5:54 PM
