Pioneer Elite Kuro PRO-FPJ1 User manual

Technologies for
ouTsTanding Performance
Industry’s highest native contrast ratio (30,000:1) ›
1920 x 1080p high-denition resolution ›
Three 0.7-inch 1080p D-ILA imagers provide deep, accurate ›
black levels
2x motorized zoom/focus lens (1.4:1 to 2.8:1) for sharp accurate high- ›
resolution images
Optical engine with precise light processing reproduces deep ›
black levels
Extensive adjustment and calibration features. 4 Color Multi-point ›
graphical gamma adjustment and individual adjustment of primary
RGB colors
Superb gray-scale performance provides a smooth and accurate ›
picture in darker scenes
HDMI ›® 1.3 with Deep Color
Gennum VXP™ video processor for high-quality pictures and images ›
convenience feaTures
3 picture modes for optimal viewing ›
Standard Mode: For general television programs –
Dynamic Mode: For sports and gaming –
Movie Mode –
Vertical stretch mode eliminates distracting black bars (for 2.35:1 ›
format)
Wide lens shift function (vertical: 80%+/-, horizontal: 34% +/-) for ›
exible installation and set up
Video input signals: 480i/p (60Hz), 720p (60Hz), 1080i (60Hz), ›
1080p (24/60Hz)
IR and RS-232C Control ›
2 Operation Modes: Normal Mode (Whisper Quiet 24dB) and Bright ›
Mode
Self-illuminating remote control ›
Detailed image adjustment menu ›
Front air intake and exhaust vents allow for a variety of exible ›
installation options
Lamp replacement panel on unit’s side for easy access ›
Projection size: 60 to 200 inches ›
PRO-FPJ1
High-Definition Elite®
1080p LCoS Front Projector
Designed specifically for the home cinema, this new Elite KURO 1080p front
screen projector embodies the very essence of KURO. Deep, dark black levels
and peak performance come together seamlessly to deliver that unmistakable
cinematic experience that keeps you on the edge of your seat.

PIONEER, ELITE, and the Pioneer and Elite logos are registered trademarks of Pioneer Corporation.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing, LLC.
“D-ILA” is a registered trademark of Victor Company of Japan, Limited.
VXP™, VISUAL EXCELLENCE PROCESSING™ and VXP logo are trademarks or registered trademarks of Gennum
Corporation.
Specifications and design subject to modification without notice.
© 2008 Pioneer Electronics (USA) Inc.
PRO-FPJ1
High-Definition Elite®
1080p LCoS Front Projector
inPuTs & ouTPuTs
HDMI Digital Inputs x 2 ›
HD Component Video Input x 1 ›
RS-232C (D-sub 9-pin) x 1 ›
S-Video Input x 1 ›
Component Video Input x 1 ›
dimensions
W x H x D: 17-15/16 x 6-13/16 x 16-1/2 inches (without feet) ›
Weight: 25 lbs. 8 oz. ›
Specications and design subject to modication without notice.

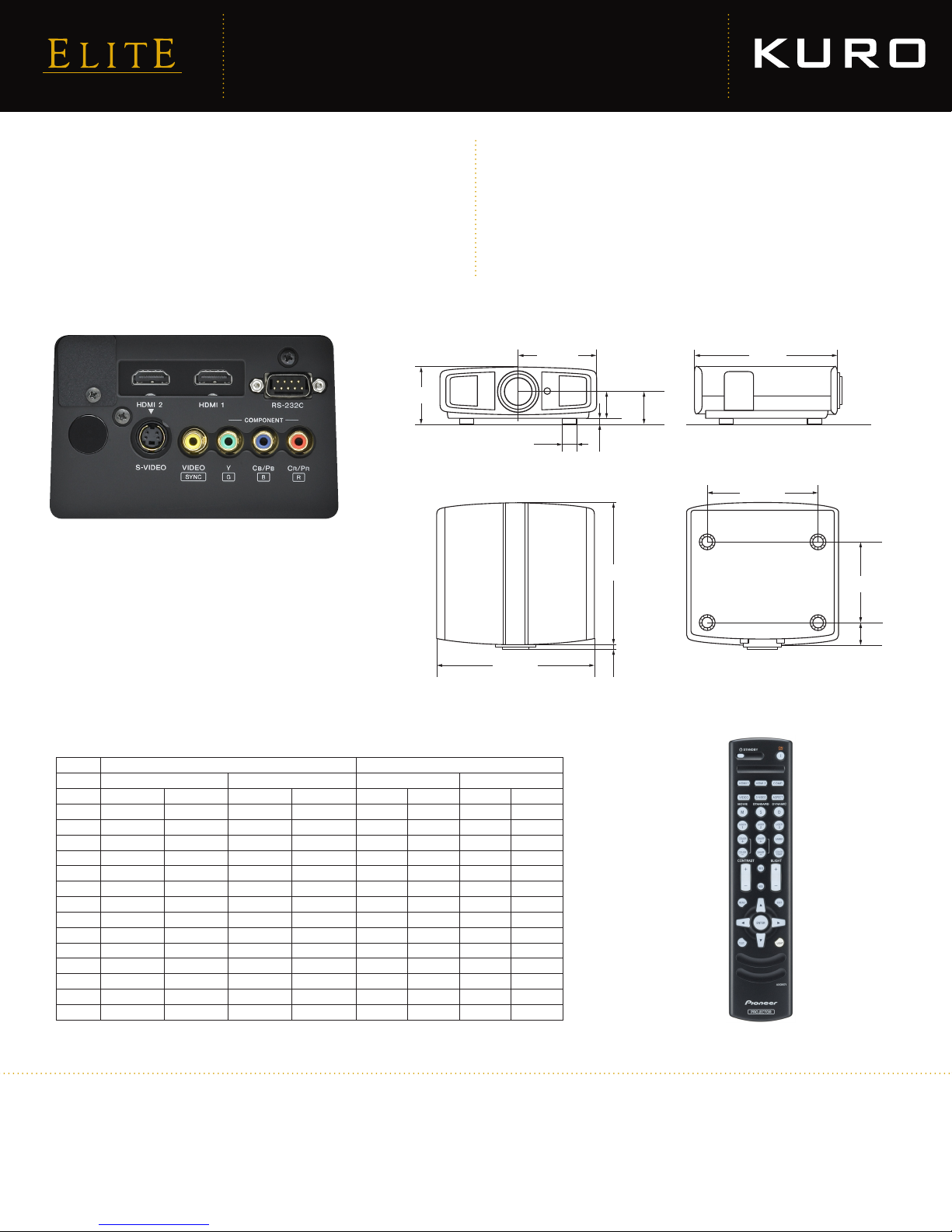

Rear Terminals
Projection Distance Chart
Display size (1 6:9) Projection distance
Inch W H Wide Telephoto
60 1 328 mm 52-5/1 6" 747 mm 29-7/1 6" 1 .78 m 5' 1 0" 3.63 m 11' 1 1 "
70 1 549 mm 61" 872 mm 34-5/1 6" 2.09 m 6' 1 1 " 4.24 m 13 ' 1 1 "
80 1 77 1 mm 69-3/4" 996 mm 39-3/1 6" 2.4 m 7' 1 1 " 4.86 m 15 ' 1 2"
90 1 992 mm 78-7/1 6" 1 1 2 1 mm 44-1 /8" 2.71 m 8' 1 1 " 5.47 m 17 ' 1 2"
1 00 22 1 4 mm 87-3/1 6" 1 245 mm 49" 3.01 m 9' 1 1 " 6.08 m 20'
110 2435 mm 95-7/8" 1 370 mm 53-1 5/1 6" 3.32 m 1 0' 1 1 " 6.7 m 22' 1 "
1 20 2656 mm 1 04-9/1 6" 1 494 mm 58-1 3/1 6" 3.63 m 11' 11" 7.31 m 24' 1 "
1 30 2878 mm 1 1 3-5/1 6" 1 61 9 mm 63-3/4" 3.93 m 1 2' 1 1 " 7.93 m 26' 1 "
1 40 3099 mm 1 22" 1 743 mm 68-5/8" 4.24 m 1 3' 1 1 " 8.54 m 28' 1 "
1 50 3320 mm 130-11/16" 1 868 mm 73-9/1 6" 4.55 m 1 4' 1 2" 9.1 6 m 30' 2"
1 60 3542 mm 1 39-7/1 6" 1 992 mm 78-7/1 6" 4.86 m 1 5' 1 2" 9.77 m 32' 2"
1 70 3763 mm 1 48-1 /8" 2 1 1 7 mm 83-3/8" 5.1 6 m 1 6' 1 2" 1 0.38 m 34' 2"
1 80 3984 mm 1 56-7/8" 2241 mm 88-1 /4" 5.47 m 1 7' 1 2" 11 m 36' 2"
1 90 4206 mm 1 65-9/1 6" 2366 mm 93-1 /8" 5.78 m 1 9' 1 1 .6 1 m 38' 2"
200 4427 mm 1 74-5/1 6" 2490 mm 98-1 /1 6" 6.08 m 20' 1 2.23 m 40' 3"
External Dimensions
%#$
$ 
'$
$
 !$
 
#&
$!$
&#$ $ 
% & 
!$ !%&
N4`]\b NAWRS:STb
NB]^
N0]bb][
Remote Control
