AV RECEIVERS REFERENCE GUIDE
Audio Technologies
• Phase Control
• Auto Phase Control Plus
• MCACC Auto Room Tuning
• Standing Wave Control
• PQLS with HDMI (Bit-stream/Multi Surround/2ch Audio)
• Jitter Reduction
• Advanced Sound Retriever
• Auto Sound Retriever
• Auto Sound Retriever for ARC
• Sound Retriever Link
• Sound Retriever AIR
• Auto Level Control
• Hi-bit24 Audio Signal Processing
Video Technologies
• Precise Conversion for 24p (1080/24p Upscaling)
• Stream Smoother
• Stream Smoother Link
• Advanced Video Adjust
• Highly-Precise I/P Conversion
• Digital Video Converter
• Triple HD Video Noise Reduction
• Deep Colour
• x.v.Colour
Audio Formats & Licenses
• DTS-HD Master Audio/Dolby TrueHD
• Dolby TrueHD Loudness Management
• Playable PC Audio Files
Sophisticated Surround System
• Various Speaker Settings
• Wide Surround
• Dolby Pro Logic IIz
• Virtual Speakers
• Virtual Depth
• Front Stage Surround Advance
Connectivity
• HDMI™ (3D, ARC)
• Made for iPod, iPhone, and iPad
• Digital Audio from iPod/iPhone/iPad via USB
• Video Playback from iPod/iPhone/iPad
• Front USB Input
Network Features
• AirPlay Wireless Audio
• DLNA Certified™ (1.5)
• Compatible with Windows 7
• Copyright Protection Content Playback
• High-Quality Audio Streaming
• Internet Radio (vTuner)
Advanced Control
• iControlAV2012 Ready
• Sound Explorer
• Pioneer ControlApp Ready
• Bluetooth Ready
• Air Jam Ready
• AVNavigator/AVNavigator for iPad Ready
• Wireless LAN Converter Ready
• Multi-Zone
• Control with HDMI
• Standby Pass-Through without CEC
• HDMI Standby Input Switching
• Auto Power Down
For General Area
* New features in blue
2012 Pioneer AV Receivers
Applicable models displayed in icons:
VSX-1122-K
VSX-922-K
VSX-827-K (Oceania only)
VSX-822-K
VSX-522-K
VSX-322-K
1122
522
322
822
827
922
Available models differ by region

2
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
Phase Control
When amplifying multi-channel audio signals,
receivers use a Low Pass Filter (LPF) to process
low-frequency signals for subwoofer output. This
causes “phase lag” — a delay of approximately
5 msec — of the low-frequency signals compared to the main
channel signals. As a result, the delayed bass makes the sound
lack synchronization. Pioneer’s Phase Control technology
effectively eliminates phase lag and significantly improves the
multi-channel sound without any extra operation.
Auto Phase Control Plus
During Blu-ray Disc/CD playback, Auto Phase
Control Plus makes real-time analysis of the phase
difference between the LFE (low frequency effect)
and the main signals, and automatically
compensates the gap. Elimination of phase lag
enhances strong bass and clear high-frequency
sound — especially effective for audio content such as live
performance and music video clips.
* Effectiveness depends on content
MCACC Auto Room Tuning
Create the optimum acoustic environment with
Pioneer’s MCACC (Multi-Channel Acoustic
Calibration System), developed with the
expertise of professional recording studios. The
system — complete with custom microphone — automatically
compensates for differences in speaker size, level and distance,
and equalizes response.
Advanced MCACC
The Advanced MCACC uses a 3D calibration
method with even more precise measurements
by including the time axis. The AV receivers
also feature a speaker polarity check for
detecting misconnected cables, and a reverb measurement
display for showing before/after calibration results. The
measured data can be saved on your PC via the
AVNavigator. The system automatically measures crossover
frequency — much easier than the previous manual setting.
Standing Wave Control
Acoustic standing waves occur when the sound waves from
your speaker resonate with those reflected off the walls.
Depending on the speaker placement, your listening position or
the shape of the room, standing waves have a negative effect
on the overall sound, especially in certain lower frequencies.
Standing Wave Control effectively decreases resonance and
prevents inaccurate EQ-setting calibration.
The "Phase Control" Compensates for the Delay of Low-Frequency Sound
Speakers
AV Receiver
PHASE CONTROL
Source
Effect of Phase Control Plus (data comparison)
Original disc playback
Delay setting: 0 msec
Superior sound provided by compensating the lag in the subwoofer channel on the disc.
Playback with Phase Control Plus
Delay setting: 9 msec
Calibration
After Calibration
Speaker distance, sound pressure level, and
frequency response are all equalized.
Before Calibration
Speaker distance, sound pressure level, and
frequency response are all uneven.
The sound field is automatically
measured using the supplied mic.
Speaker sizes and number of
speakers are automatically detected.
SET-UP
MIC
SET-UP
MIC
Acoustic Calibration by MCACC
= Standing Waves
Standing Wave in a Typical Listening Room
Before Calibration After Calibration
Reverb
Time (msec) Time (msec)
Reverb
MCACC Reverberation Characteristics
1122 922
827 822 522
1122 922
1122 922
1122 922 827 822 522 322

3
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
PQLS with HDMI
As shown on right, jitter causes clock timing
error and distorts the D/A conversion timing.
This is one of the biggest factors for sound
degradation during digital transmission, such as
decreased sound localization, and happens even
with HDMI connection.
On the Blu-ray Disc player, the audio clock goes
through algebraic transformation based on the
video pixel clock, then transferred. On the AV
receiver, the audio reference clock is regenerated
using PLL in the algebraic value which came with
the video pixel clock. So the audio reference
clock is influenced by both the HDMI receiving
chip’s PLL performance and the video pixel clock,
and can not avoid being regenerated with some
jitter.
Pioneer’s Precision Quartz Lock System (PQLS)
was developed as a solution to this problem. PQLS processes
D/A conversion using the high-precision crystal oscillator clock
instead of the audio clock regenerated in the HDMI receiving
chip, and is free from jitter created during HDMI transmission.
The data from the Blu-ray Disc player is temporarily buffered in
the AV receiver’s memory, then sequentially reproduced in
sync with the high-precision crystal oscillator clock to prevent
flaw. Additionally, the Blu-ray Disc player’s data transmission
clock is controlled by signals from the AV receiver to prevent
overflow or underflow in the buffer.
Three types of PQLS are available depending on the connected
Blu-ray Disc player.
- PQLS 2ch Audio: For CD playback (LPCM).
- PQLS Multi-Surround: For CD/DVD/BD sources, when the
Blu-ray Disc player output is set to LPCM.
- PQLS Bit-stream: For CD/DVD/BD sources, all the time.
For PQLS to be effective, Control with HDMI needs to be on,
and — only for PQLS Multi-Surround — HDMI audio output
needs to be set to PCM.
1122 922
AUDIO DATA
AUDIO CLOCK
Servo
Circuit HDMI
IN/OUT HDMI
IN/OUT
AV decoder
DAC
Data
Transfer
Blu-ray Disc Player
AV Receiver
PLL
Audio signal with jitter Audio signal with jitter
AUDIO DATA
AUDIO CLOCK
CONTROL DATA
Servo
Circuit HDMI
IN/OUT HDMI
IN/OUT
AV decoder
DAC
Control Data
Transfer
Clocking
Crystal
DATA
MEMORY
Data
Transfer
Blu-ray Disc Player
AV Receiver
Audio signal with jitter Jitterless signal via PQLS
Jitterless Transmission (PQLS)
Conventional HDMI Transmission
Precise
Example: Speech Wave
Original
D/A conversion by jitterless clock => same as original
D/A conversion by clock with jitter => different from original
Jitter effects on D/A conversion prevents accurate signal conversion
Level
Level
Imprecise
Level
Sound Degradation from Jitter
Blu-ray Disc Players
BDP-LX91
BDP-LX71
BDP-LX52
BDP-LX53/BDP-330
BDP-LX54/BDP-430
BDP-LX55/BDP-440
AV Receiver
VSX-1122
VSX-922
2ch
2ch
Multi
Bit-stream
PQLS Backward Compatibility

4
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control

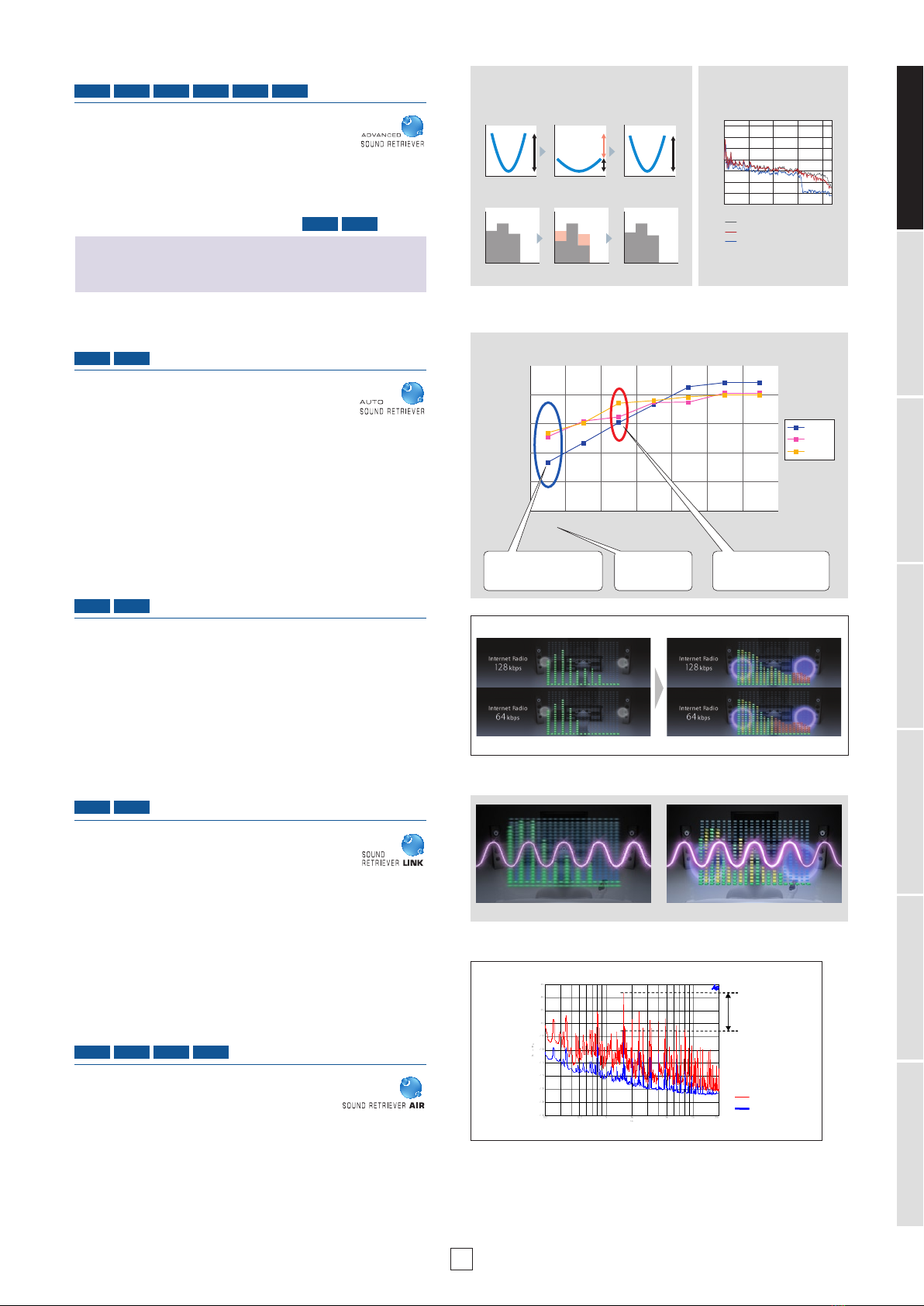

Advanced Sound Retriever
Pioneer’s AV receivers feature the Advanced
Sound Retriever, which restores the output of
compressed audio — such as WMA, MPEG-4 AAC,
and MP3 — to the level of CD sound. The Advanced Sound
Retriever creates new signals to restore the minor details left
out during the compression process.
Multi-Channel Advanced Sound Retriever
Advanced Sound Retriever for multi-surround sound is
compatible with DVD soundtracks featuring Dolby Digital or
DTS.
Auto Sound Retriever
Since the Advanced Sound Retriever is designed
with an algorithm optimized to process 128 kbps
signal, it did not work well with 8-15 kHz high
frequencies in 64 kbps signal, which is the bit rate for quite a few
internet stations. The newly developed Auto Sound Retriever
automatically determines the audio signal’s bit rate, and
interpolates the data lost during compression. It is especially
effective for improving the sound quality of low bit-rate content
— an ideal feature when switching between internet radio
stations with different bit-rates.
Auto Sound Retriever for ARC
With digital broadcast, although images are displayed in high-
definition, the audio quality is not as high since they are
compressed with various bit rates. By applying Pioneer’s Auto
Sound Retriever feature to TV broadcast signals, it adjusts the
effects according to the bit rate transferred via HDMI’s ARC
(Audio Return Channel), letting you enjoy digital TV broadcast in
high-definition sound via Pioneer AV receiver.
Sound Retriever Link
Through HDMI connection, Sound Retriever Link
detects the original audio file information such as
source type, codec, and bit rate played on a
compatible Pioneer Blu-ray Disc player, and automatically
switches to the most suitable Sound Retriever. So there is no
need to switch on/off according to the source. Advanced Sound
Retriever is selected for Blu-ray Disc and DVD sources, and Auto
Sound Retriever is selected for other sources.
* Advanced Sound Retriever is selected for all sources when connected with
a non-compatible Blu-ray Disc player.
Sound Retriever AIR
When streaming music via Bluetooth, the sound
quality often suffers due to the compression
process. Pioneer’s Sound Retriever AIR is the
world’s first technology for improving the quality of Bluetooth
transmitted sound. It restores the music cadence lost through
compression, and also reduces the noise generated by
Bluetooth transmission for a better S/N ratio.
* Bluetooth connection by AS-BT100 or AS-BT200 adapter required
Time
Sound density Sound density Sound density
Sound pressure Sound pressure Sound pressure
Restoration of lost music cadence
Restoration of lost music cadence
CD sound
CD sound
Compressed
sound
Compressed
sound
Restored
sound
Restored
sound
Sound Retriever ON
Sound Retriever ON
FrequencyMiddleLow High FrequencyMiddleLow High FrequencyMiddleLow High
Time Time
Advanced Sound Retriever
Restoration Image
Advanced Sound Retriever ON
Advanced Sound Retriever OFF
Original Sound
Hz0 5k 10k 15k 20k
-140
dBrA
-120
-100
-80
-60
-40
-20
+0
Advanced Sound Retriever
Compensation Effect
MP3
64
5
10
15
20
25
96 128 160
Bit rate (kbps)
Upper frequency (khz)
192 256 320
WMA
AAC
Current Sound Retriever
unable to play 8-15 kHz
range for MP3's 64 kbps
Upper limit for
playback differs
by frequency
Current Sound Retriever
optimized for
128 kbps bit rate
Playback Upper Limit Frequency by Bit Rate
Auto Sound Retriever
Compressed Sound Restored Sound
Sound Retriever AIR OFF Sound Retriever AIR ON
-80
-100
db
-120
1k 20k
14.5dB
: OFF
: ON
Hz
Improvement for S/N Ratio
1122 922
1122 922
1122 922
1122 922
1122 922 827 822
1122 922 827 822 522 322

5
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
Auto Level Control
Auto Level Control equalizes volume level
differences between tracks when playing music
from an iPod or other sources.
Multi-Channel Auto Level Control
Multi-channel Auto Level Control supports surround sound
playback, maintaining a consistent level and clear audio.
The function adjusts low and high frequency sounds, dialogs,
surround effects etc. that are difficult to hear in low volume,
to optimal levels — an ideal feature for listening at night
without disturbing others.
Hi-bit24 Audio Signal Processing
This technology works to create undistorted sound,
bringing out the best in the 24-bit DAC. The 24-bit
DAC hardware alone does not reproduce better
sound. Maximum performance is gained by
applying the Hi-bit24 Audio Signal Processing to
expand signal resolution, creating more detailed,
smooth sound, closer to the original analogue
signal. Hi-bit24 also increases the sound pressure for a tactile
listening experience, and the more channels you have, the more
impressive it becomes. It is effective for multi-channel content
on CD/DVD, PC files less than 24-bit and works with any disc
player.
1122
Track 1 Track 2 Track 3
Standardized Playback Volume
Music Hi-Def Movie
Satellite/Cable Radio
Track 1 Track 2 Track 3
Different Volumes
Sound Level Equalization
Auto Level
Control
Auto Level Control for Multi Surround Playback
24-bit resolution
24-bit resolution
16-bit resolution
16-bit resolution
16-bit resolution
input signals
Close up
16-bit sine wave
24-bit DAC +
Hi-bit24
24-bit DAC
Previous
16-bit DAC
DAC + signal
processing
–> closer to
original signal
(in red)
DAC alone
makes no
difference
Previous
16-bit Signals
Red: original analogue signals (ideal)
Black: 16-bit digital signals (actual)
Bit expansion processing required to bring out the real performance from 24-bit DAC.
Effects of Bit Expansion Processing
1122 922
1122 922 827 822 522 322

6
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
Precise Conversion for 24p (1080/24p Upscaling)
The highly acclaimed video processing technology P.C.24p
(Precise Conversion for 24p) used on Pioneer’s flagship Blu-ray
Disc player, is now available on these AV receivers. You can
enjoy real film-quality images at 24 frames-per-second (fps) in
1080p output from DVDs and TV broadcasts, even with entry
class disc players. Also good for viewing HD broadcasts.
Stream Smoother
Stream Smoother is a newly developed video adjustment
feature for watching network content on your home theatre. It
reduces block noise and mosquito noise on low bit rate video
content such as YouTube, offering finer and clearer images.
Stream Smoother Link
Through HDMI connection, Stream Smoother Link detects the
source type playing on a compatible Pioneer Blu-ray Disc player,
and automatically switches Stream Smoother on or off
accordingly. So there is no need for manual switching
depending on the source. Stream Smoother is turned off for
Blu-ray Disc and DVD sources, and turned on for network
content to enrich low bit rate video quality.
* When connected with a non-compatible Blu-ray Disc player, Stream
Smoother is turned on for all sources.
Original
Film
3-2
Pull-Down
•480/60i
•1080/60i
Converted for
DVD/broadcast
Normal
Progressive
•480/60p
•1080/60p
Same number of
frames as original
Normal I/P
conversion
32 3 2
1080/24p
Output
1080/24p
conversion
11 1
1080/24p conversion
1080/24p
STB
DVD
Player
BD
Player
Now available for all sources
1080/24p 1080/24p
Previously, 1080/24p conversion feature only on high-end Blu-ray Disc player
Conversion
Conversion
to Display
to Display
BD
(HD 1080/60i)
DVD
(SD 480/60i)
BD
DVD
TV
Broadcast
1080/24p Conversion
HDMI 1080p Advanced Upscaler
Upscaling of SD video up to 1080p HD output
Stream Smoother OFF Stream Smoother ON
* For illustration purpose only
1122 922
1122 922
1122 922

7
AV RECEIVERS REFERENCE GUIDE
Advanced Video Adjust
Advanced Video Adjust is a new feature which optimizes video
signals according to the connected display type, such as plasma
display panel, LCD, or projector. Additionally, it automatically
adjusts the picture image for the distance of your viewing
position, based on MCACC measurement data.
* Function not available for component/composite analogue connection.
Video optimization only available for HDMI connection.
Highly-Precise I/P Conversion
Merely having a high-grade video processor does not guarantee
a quality picture — a fine-tuned setup makes the difference.
Pioneer engineers have performed rigorous testing to achieve
an optimum image from almost any content. This highly-precise
conversion is effective for HD as well as SD sources.
PureCinema I/P Conversion
For film content, PureCinema I/P Conversion faithfully reproduces
the original material.
Motion Adaptive I/P Conversion
For video content, Motion Adaptive I/P Conversion processes
moving images by eliminating conversion errors or noise
generation, to deliver high-quality pictures.
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
Conventional I/P Conversion Motion Adaptive I/P Conversion
Motion Adaptive I/P Conversion
Optimised Image with Advanced Video Adjust
By Display Type By Distance
Advanced Video Adjust
Through
• PDP Mode 1
Adjusts for optimum image with more detail and less noise
PDP Mode 1
Through
• PDP Mode 2
Adjusts for a more natural image
PDP Mode 2
Through
• LCD Mode
Adjusts LCD's washed out black for optimum image
LCD Mode
Through
• Front Projector Mode
Provides a sharp and vivid image suited for a front projector
Front Projector Mode
* For illustration purpose only
1122 922
1122 922

8
AV RECEIVERS REFERENCE GUIDE
Digital Video Converter
Composite or component input video signals can be converted
for HDMI output to view on a compatible display.
Triple HD Video Noise Reduction
The AV receivers feature three separate noise
reduction circuits for enhanced video
performance.
- Component Frame Noise Reduction (YNR/CNR):
reduces Gaussian noise without blurring the
- Block Noise Reduction: reduces block noise found in flat areas
- Mosquito Noise Reduction: reduces noise along the outline of
images
The Pioneer-exclusive advanced PureCinema I/P Converter also
helps to remove distracting lines during playback.
Deep Colour
Pioneer AV receivers support 36-bit Deep Colour, featuring
smooth gradation steps with more accurate precision of
brightness and colour information, resulting in superbly
detailed, natural colour.
x.v.Colour
Pioneer AV receivers support x.v.Colour,
which almost doubles the range of colours
(known as the “gamut”) that can be accurately captured, and
reproduced on a compatible display, thereby more closely
matching the natural characteristics of the human eye.
*”x.v.Colour” only available for playback of discs recorded with AVCHD devices.
Component
HDMI
Input Output
Composite
Video
* TV audio/video output via AV receiver by HDMI connection
may not be available depending on the source device.
24-bit (8-bit x 3)
256 steps 4096 steps
* For illustration purpose only
36-bit (12-bit x 3)
24-bit 16 million colours
Smoother Images
36-bit 68,719 million colours
36-bit Deep Colour Image
Digital Video Converter with HDMI Output
Block NoiseGaussian Noise
Triple HD Video Noise Reductions
Mosquito Noise
Mosaic-Like ArtifactsGrainy Image Hazy Edge
Clear ImageClear Image Clear Image
1122 922 827
1122 922
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
1122 922 827 822 522 322
1122 922 827 822 522 322

9
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
DTS-HD Master Audio™ and Dolby TrueHD
DTS-HD Master Audio™ and Dolby TrueHD are
the highest quality audio formats available,
provided by the huge capacity Blu-ray Disc to
complement its high-definition videos. These
new-generation audio codecs bring you the
equivalent of the original soundtrack, just as intended by the
creator.
Dolby TrueHD Loudness Management
Loudness Management frees you from annoying volume
fluctuations that often occur when switching channels,
programs, or input sources, by maintaining a consistent
loudness-level. The function turns on/off during content
playback, activating or deactivating post processing within the
decoder. When the function is turned off, audio is delivered in a
lossless mode.
Playable PC Audio Files
With DLNA and AirPlay features, the AV receivers let you stream
audio from compatible devices. You can enjoy up to 192 kHz/24-
bit high-resolution FLAC and WAV audio, as well as MP3/WMA/
AAC compressed music files.
1122 922
High Definition Audio Formats
DTS-HD Master Audio and Dolby TrueHD provide sound that is bit-
for-bit identical to the studio master, delivering sound at extremely
high variable bit rates far exceeding standard DVDs.
Comparison of High Definition Audio Formats
Compressed
Lossless Lossy
Dolby TrueHD Dolby Digital Plus Linear PCM
DTS-HD
Master Audio
DTS-HD
High Resolution Audio
Uncompressed 48 kHz/
16-bit audio format
similar to CD, but with
higher sampling
frequencies and
quantization. No
decoding required.
Uncompressed
Format Extension
MP3*
WAV
WMA
AAC
FLAC
.mp3
.wav
.wma
.m4a
.aac
.3gp
.3g2
.flac
Stream
MPEG-1Audio Layer-3
WAV
WMA2/7/8/9
MPEG-4 AAC LC
MPEG-4 HE AAC
(aacPlus v 1/2)
FLAC
VSX-1122-K/VSX-922-K/VSX-827-K/VSX-822-K
Sampling Frequency
Quantization Bit Rate
Channels
Bit Rate
VBR/CBR
Sampling Frequency
Quantization Bit Rate
Channels
Sampling Frequency
Quantization Bit Rate
Channels
Bit Rate
VBR/CBR
Sampling Frequency
Quantization Bit Rate
Channels
Bit Rate
VBR/CBR
Sampling Frequency
Quantization Bit Rate
Channels
32/44.1/48 kHz
16 bit
2
8-320 kbps
・/・
32/44.1/48/88.2/96/176.4/192 kHz
16 bit/24 bit
2
32/44.1/48 kHz
16 bit
2
5-320 kbps
・/・
32/44.1/48 kHz
16 bit
2
16-320 kbps
・/・
32/44.1/48/88.2/96/176.4/192 kHz
16 bit/24 bit
2
Playback Formats (Network)
* MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson Multimedia
1122 922 827 822
1122 922 827 822 522 322

10
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
Various Speaker Settings
Previous AV receiver models only allowed surround back
speakers for a 7.1-channel layout (Fig. 1).
This year’s lineup provides more options in terms of speaker
placement. Combine front wide speakers (Fig. 2) with Pioneer-
original Wide Surround mode to enjoy more spacious sound in
the front. Or place front height speakers (Fig. 3) and use Dolby
Pro Logic IIz for vertical-spreading sound.
Wide Surround Mode
Pioneer’s Wide Surround Mode creates sound with highly dense
motion feeling around the front and the sides. Wide Surround
Movie provides motion feeling in front, while Wide Surround
Music creates a wide-spreading sound field in the foreground.
Dolby Pro Logic IIz
Dolby Pro Logic IIz realizes more spacious
surround sound by adding front height
channels to the conventional 5.1ch/7.1ch
speaker settings. The enveloping sound with additional depth
and dimension creates a lifelike listening experience. Dolby Pro
Logic IIz does not require special contents, and works with
existing soundtracks.
Speaker Layout Examples
Standard 7.1ch
Fig. 1
Front Wide Speakers + Wide Surround Mode
Fig. 2
Front Height Speakers + Dolby Pro Logic IIz
Fig. 3
1122 922
1122 922
1122 922 827 822 522

11
AV RECEIVERS REFERENCE GUIDE
Virtual Speakers
Pioneer’s Virtual Speakers feature lets you enjoy
full surround sound without placing extra
speakers. By turning on Virtual Height, Virtual
Surround Back, and Virtual Wide modes, you can
experience virtual 11.1-channel sound from a
5.1-channel speaker setting. The sound field can
be adjusted with intuitive control on your iPod touch/iPhone/
iPad or Android using the iContolAV2012 application.
Virtual Height
If you want to experience vertically falling sound but can not place
front height speakers, there’s a perfect solution. Pioneer’s Virtual
Height mode (Fig. 4) creates a height sound image without front
height speakers, letting you enjoy enveloping virtual 7.1-channel
sound from 5.1-channel speaker settings.
Virtual Surround Back
Want to be thrilled by surrounding sound from behind, but don’t
have the space for surround back speakers? Then try Virtual
Surround Back mode (Fig. 5). It simulates 7.1-channel surround
sound, giving the impression that you have surround back
speakers when listening to a 5.1-channel source.
Virtual Wide
Virtual Wide mode (Fig. 6) is a useful solution for creating the
effects of front wide speakers, letting you enjoy surround sound in
a rich sound field — all without placing extra speakers.
Virtual Depth
Virtual Depth is a Pioneer-exclusive feature for
creating a sound field behind the screen — a
perfect match for 3D video content, for a lively
synergy of sound and vision.
Front Stage Surround Advance
With Front Stage Surround Advance, you can enjoy surround
sound coming from only the front speakers and the subwoofer.
Since wall reflections are not used, the setup is less dependent
on the room environment, allowing front alignment of the
speakers. Front Stage Surround Advance creates an excellent
sound image and natural sound.
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
Fig. 4
Fig. 5
Fig. 6
Virtual Depth Mode
Virtual Wide Mode
Virtual Surround Back Mode
Virtual Height Mode
1122 922
1122 922
1122 922 827 822 522 322

12
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
HDMI™ (3D, ARC)
Pioneer’s AV receivers feature 3D technology. You
can enjoy the latest 3D Blu-ray Discs and
broadcasts by combining the AV receivers with a
3D compatible Blu-ray Disc player, game console,
or tuner (STB) and display via HDMI connection.
The Audio Return Channel (ARC) feature allows a
TV with built-in tuner to send audio data
“upstream” to the AV receiver via HDMI — so there’s no need
for a separate audio cable. Enjoy full-digital transfer of high-
definition audio as well as up to 1080p video signals by HDMI
connection.
Made for iPod, iPhone, and iPad
The latest AV receivers are certified “Made for iPod®, iPhone®, and
iPad®” products*, letting you enjoy music from your
iPod/iPhone/iPad. The included cable allows direct USB connection
to the front panel, providing battery charge for your devices. The
AV receivers are also compatible with video playback from
iPod/iPhone/iPad.
* VSX-522-K not compatible with iPad
** Available features depend on iPod/iPhone/iPad model
For details on iPod compatibility, visit
http://pioneer.jp/homeav/support/ios/ao
Digital Audio from iPod/iPhone/iPad via USB
Enjoy iPod music via digital connection. The audio signals are directly
transferred to the AV receiver’s high-performance DAC, offering
superior sound compared to analogue connections. What’s more,
you can operate your iPod with the AV receiver’s remote control.
Functions such as the equalizer cannot be controlled using the pre-main amplifier
or receiver, so we recommend you to turn off the equalizer before connecting.
iPod is for legal or rightholder-authorised copying only. Don’t steal music.
Video Playback from iPod/iPhone/iPad
The units can play video content from iPod/iPhone/iPad, and you
can even watch YouTube video enlarged on your TV screen. In
addition to simple ‘plug and play’ connection using dedicated
cables, you can display the album artwork in colour on your TV.
The new Cover List feature lets you visually choose an album from
thumbnail images. Song titles can be shown in 7 languages. Your
iPad also gets charged while connected.
Front USB Input
The front panel USB input terminal allows
straightforward connection to a USB memory
stick. This plug and play connectivity will enable
you to easily play music files or watch JPEG
pictures.
Not ARC Compatible
With ARC, only one HDMI cable required
Optical
Digital
Cable
HDMI
Cable
Optical Output HDMI Input
Optical Input HDMI Output
ARC Compatible
(Both TV and AV Receiver)
HDMI
Cable
HDMI Input
HDMI Output
ARC (Audio Return Channel)
Analogue Audio (previous)
Digital Audio
Connection Comparison
New Pioneer AV Receiver
Video from iPod
iPod/iPhone/iPad
Various video content
(ex. YouTube)
USBVIDEO
iPod/iPhone/iPad Video Playback
1122 922 827 822 522
1122 922 827 822 522
1122 922 827 822 522
1122 922 827 822
1122 922 827 822 522 322

13
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
AirPlay Wireless Audio
AirPlay — Enthusiasts have complete access,
control and playback of their entire iTunes music
library wirelessly through their AV receiver. Users
can quickly and easily enjoy all their music with
song information and album art simultaneously
displayed on a connected monitor/TV.
* For details on iPod compatibility, visit
http://pioneer.jp/homeav/support/ios/ao
DLNA Certified™ (1.5)
This AV receivers are DLNA certified (1.5),
enabled to work not only as a Digital Media
Player (2-Box Pull System) for playing DMS
audio files, but also as a Digital Media Renderer (3-Box System)
to be remotely controlled by a device such as a smartphone or
PC. For example, you can play music content* from a PC in
another room, from a separate device in your living room. As a
DMR (2-Box Push System), the AV receiver can also play received
audio data when the user controls the DMS.
* Playback of DRM protected commercial content requiring DTCP-IP link
protection is not supported.
iPhone/iPad
PC Router
Wireless LAN
Adapter (optional)
Stream
Wireless LAN
Wired LAN
or
Wireless LAN
Wired LAN
or
AirPlay Connection Examples
Remote Control
Windows 7 OS PC
Windows Media player
Digital Media Server (DMS):
Stores and distributes content to DMP/DMR
Example: PC
Digital Media Player (DMP):
Finds and plays content on DMS
Example: TV, stereo/home theatre, game console
Digital Media Controller (DMC):
Finds content on DMS for playback on DMR
Example: Internet tablet, Wi-Fi digital camera, PDA
Digital Media Renderer (DMR):
Plays content received from DMC, which finds content on DMS
Example: TV, AV receiver, remote speakers
Controller Renderer
Server
DMC
1. DMS Library Info
3. Stream
2. Play
DMC application
required
Smartphone
DLNA 3-Box SystemDLNA 2-Box Pull System
Home Network
Home Network
Player &
Controller
Server
2. Stream
1. File Search
DMP
DMR
DMS
DLNA 2-Box Push System
Home Network Renderer
Stream DMR
DMS
DMS
Server & Controller
Windows 7 OS PC
1122 922 827 822
1122 922 827 822

14
AV RECEIVERS REFERENCE GUIDE
Compatible with Windows 7
The AV receivers are compatible with
Windows 7, letting you easily stream
music, video, or photos from compatible
PCs on your home network.
Copyright Protection Content Playback
The AV receivers function as a WMDRM10-ND (Microsoft
Windows Media DRM for networked devices), letting you
stream protected digital media on your home network.
High-Quality Audio Streaming
The AV receivers can stream high-quality audio formats with
96 or even 192 kHz sampling frequencies such as FLAC or WAV.
Of course, MP3, WMA, and MPEG4-AAC audio can also be
enjoyed on your home network.
Internet Radio (vTuner)
The AV receivers come with the vTuner for
listening to a multitude of radio programs from
around the world on the internet. LAN connection
allows radio access without having to use your
PC. You can easily browse stations using the
remote control. Various categories are available
on the vTuner database, offering limitless entertainment. You
can even add broadcast stations unavailable on the vTuner list.
Access the Pioneer internet radio site from your PC*, and
register the desired stations to your favorites list. Then, you
can easily tune in to the radio stations from the AV receiver.
* Access code required
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
1122 922 827 822
1122 922 827 822
1122 922 827 822
1122 922 827 822

15
AV RECEIVERS REFERENCE GUIDE
iControlAV2012 App for iPod touch, iPhone, iPad, and
Android
iControlAV2012 is an iPod touch/iPhone/iPad/
Android application developed by Pioneer, freely
downloadable from the App Store or Google
Play. On a simple and intuitive interface, the
application allows you to use your device as a
remote for controlling the AV receiver’s
functions such as volume, input, mode, balance, level control
for woofer and centre speakers, PQLS, Phase Control, virtual
speakers, and Auto Sound Retriever, as well as basic functions
of Pioneer’s latest Blu-ray Disc players. Album information and
AV receiver’s input/output status can also be displayed. Enjoy
smooth control on your device’s screen, with support for 8
languages (same setting as your device). This latest version
provides enhanced features, and you can draw EQ curves with
your finger. On iPad, all the basic controls are shown on one
screen, and you can load and view MCACC measurement data
from the AV receiver. iControlAV2012 is compatible with both
vertical and horizontal display on iPad.
* AV receiver needs to be connected to a wired LAN in a wireless LAN
network.
Sound Explorer
Sound Explorer is the latest addition to the iControlAV2012
menu, letting you easily adjust various sound parameters with
intuitive and pleasing operation. It comes in three operation
modes. With Fixed Position mode, all icons are neatly
positioned in rows. The playful Drop Icon mode displays
continuously falling icons. All List mode shows the description
and status for each setting, with a link to YouTube video clip
explaining the feature.
* Adjustable sound parameters differ by model.
iControlAV2012 for iPad
Sound Explorer
Balance
Sound Explorer Drop Icon Mode
Sound Explorer Fixed Position Mode
Control
Finger EQ
Sound Explorer Settings
MCACCC
1122 922
1122 922
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control

16
AV RECEIVERS REFERENCE GUIDE
Ready for Pioneer ControlApp
The application, available for free download, lets
you use your iPod touch/iPhone/Android as a
remote control for operating the AV receiver’s
basic functions, as well as browse and play songs
from your music library.
* AV receiver needs to be connected to a home LAN network in a wireless
environment.
For more information, visit
http://pioneer.jp/product/soft/iapp_controlapp/en.html (iPod touch/iPhone)
http://pioneer.jp/product/soft/aapp_controlapp/en.html (Android)
Bluetooth® Ready
By using the AS-BT200 optional Bluetooth adapter, you can enjoy
wireless transmission of audio content from compatible devices
such as iPod/iPod touch/iPhone/iPad (with iOS 3.0 or later),
mobile phone, or personal computer.
Air Jam Ready
Discover new songs on your friend’s iPod touch/
iPhone/iPad or Android smartphones. Through
Bluetooth connection*, Air Jam application lets you
stream music from up to four devices**. Air Jam also
transmits metadata such as song title, artist, and
album name to the “Entry Log”. From this playback
history, you can easily purchase songs on the iTunes Store or watch
related videos on YouTube.
* AS-BT200 optional adapter required
** iOS: This application is developed and checked for operation under iOS 4.2
conditions, yet the iOS version for application development and operational
check are subject to change. The number of connectable devices or
compatibility may differ when other software versions are installed. Noise and
interruption may be caused when the iPod touch/iPhone/iPad is connected to
other Bluetooth devices. For the latest information, please refer to Air Jam
download page on the App Store.
For more information, visit
http://pioneer.jp/product/soft/iapp_airjam/en.html (iOS)
Android: This application is developed and checked for operation for the
following Android devices — Samsung GALAXY (OS 2.2), GALAXY SII (OS 2.3).
For more information, visit
http://pioneer.jp/product/soft/aapp_airjam/en.html (Android)
AS-BT200 Optional Bluetooth Adapter
– A2DP (Advanced Audio Distribution Profile)
– AVRCP (Audio Video Remote Control Profile)
– Registers up to 8 devices
Up to
4 devices*
Bluetooth Adapter
Transmits music data from portable devices
Bluetooth
featured
products
iPhone/
iPod touch/
iPad
PCCell phone
*Number of connectable devices depend on condition
Air Jam with AS-BT200
Air Jam App
Top Menu
Select Song
Entry Log
iPhone/iPod touch/iPad
Android Smartphone/Tablet
Air Jam
Control Menu List Operation Screen
1122 922 827 822
827 822
1122 922 827 822
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control

17
AV RECEIVERS REFERENCE GUIDE
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
AVNavigator
Pioneer’s AVNavigator is a user-friendly support feature for the
AV receiver’s wiring and operation. Using the supplied CD-
ROM, you can easily set up the AV receiver straight out of the
box. An interactive HTML manual, Wiring Navi, and MCACC
application is included in the AVNavigator. It also helps the user
with software updates.
Wiring Navi
Start the Wiring Navi on your PC from the CD-ROM. By answering
questions about your equipment and terminals, the actual
connection image will be displayed. Plug in your equipment and
speakers accordingly, including the network connection with your
PC, then transmit the setup information to the AV receiver from
your PC. The Wiring Navi is compatible with iPad, and can be
downloaded free of charge from the App Store.
Interactive Manual
The interactive HTML manual can be browsed on your PC, and
clicking on a keyword will send a command to the AV receiver. It
also works the other way – key operation on the remote control
or the main unit will display the corresponding manual page on
your PC.
Software Updates
With AVNavigator, you can check the main unit’s software
updates with one click. If an update is required, AVNavigator
will guide the procedure. You can also look
for updates on the AVNavigator’s software.
Operation Guide
After setup, you can check how to use the AV receiver with the
Operation Guide. This new feature gives a quick tutorial on
basic operations using illustrations and animations, allowing
you to start right off without referring to the user manual.
AVNavigator for iPad
AVNavigator for iPad is a free application that
helps you with the AV receiver’s wiring and set-
up using your iPad, available on the App Store. It
includes the Wiring Navi, Instruction Manual, and
MCACC App which lets you browse and save
MCACC measurement data as well as Full Band
Phase Control results in 2D or 3D graphics.
For more information, visit http://pioneer.jp/product/soft/iapp_avnavi/en.html
AVNavigator (Images subject to change)
Wiring Navi
Interactive Manual
AVNavigator for iPad
Menu Wiring Navi
Operation Guide
MCACC Measurement Data Instruction Manual
1122 922
1122 922

18
AV RECEIVERS REFERENCE GUIDE
Wireless LAN Converter Ready
With the optional AS-WL300 wireless LAN converter, you can
enjoy wireless LAN connection for the AV receiver. The AS-
WL300 works with power supply from the AV receiver’s
dedicated USB terminal, so no AC adapter is required.
Multi-Zone (ZONE 2)
With Pioneer’s Multi-Zone, you can play music and movies from
different sources in two zones at the same time.
Control with HDMI
HDMI connection with compatible products allows the
following linked operations:
• Volume adjustment/mute of AV receiver via TV
• Automatic input change when TV channel is switched or
playback starts on a player
• Linked power on/off with TV
* For details on compatible TV and components, see
http://pioneer.jp/homeav/support/hdmi_cec/
Standby Pass-Through without CEC
With standby pass-through, the AV receiver can pass audio
and video signals via HDMI even during standby. This feature is
useful when you want to access HDMI-connected components
without turning on the AV receiver.
* Control with HDMI needs to be turned off
HDMI Standby Input Switching
The function switches input source when the primary signal is
cut off, and switches back to the primary input when the
primary signal reappears.
Auto Power Down
The AV receiver will automatically turn off after being left
uncontrolled for a certain time set by the user.
Audio Technologies Video Technologies Audio Formats & Licenses
Sophisticated Surround System
Connectivity Network Features Advanced Control
Standby Pass-Through
C
SWL R
SL SR
Front
Left
L
Left
Centre
Subwoofer ZONE 2
Front
Right
R
Right
Surround
Left
Surround
Right
Simultaneous playback of
separate sources
Multi-Zone (ZONE2)
AS-WL300
1122 922
1122 922
1122 922
1122 922
1122 922 827 822
1122 922 827 822 522 322

VSX-1122-K/DLPWXE (Oceania/Asia)
VSX-922-K/DLXE (Asia)
VSX-922-K/PWXE (Oceania)
VSX-922-K/FXE (Taiwan)
VSX-827-K/PWXE (Oceania)
VSX-822-K/FLXE (General Area)
VSX-522-K/PWXE (Oceania)
VSX-522-K/FLXE (General Area)
VSX-322-K/DLPWXE (General Area)
Product Sheet

AMPLIFICATION
Channels: 7›
Amplification Type: Direct Energy›
160 W/ch (6 ohms 1kHz 10 % 1ch Driven Maximum Power›
Output)
135 W/ch (6 ohms 1 kHz 1 % 1ch Driven)
›
75 W/ch (20 Hz – 20 kHz, THD 0.09 % @ 8 ohms FTC)›
AUDIO FEATURES
Dolby›®TrueHD/Dolby Pro Logic IIz/Dolby Digital Plus
DTS-HD
›®Master Audio/DTS-ES/DTS Neo:6
Digital Core Engine with Texas Instruments Aureus™ DSP
›
Hi-bit24 Audio Signal Processing›
192 kHz/24-bit DAC›
HDMI Audio Return Channel›
Pioneer Advanced MCACC Room Calibration›
3D Time Axis Measurement•
Polarity Check•
Automatic Crossover Detection•
Reverb Before and After Calibration Results (OSD or•
AVNavigator)
Standing Wave Control
•
Pioneer Sound Enhancements›
Phase Control•
Auto Phase Control Plus• /Phase Control Plus
PQLS Bit-stream/Multi-Surround/2ch
•
Advanced Sound Retriever (Multi-ch)•
Sound Retriever Link•
Auto Sound Retriever/Auto Sound Retriever for ARC•
Sound Retriever AIR•
Auto Level Control (Multi-ch)•
Advanced Surround (• 15+1 Modes)
Wide Surround Movie & Music
•
Front Stage Surround Advance (Wide/Focus)•
Virtual Speakers (Wide/Height/Surround Back)•
Virtual Depth•
VIDEO FEATURES
HDMI 7 in/1 out›
3D Ready (Blu-ray Disc›®, Broadcast, and Games)
Deep Colour (36-bit), x.v. Colour
›
1080p/24fps Scaler›
1080p Upscaling›
Video Conversion to HDMI›
Triple HD Noise Reduction›
Advanced Video Adjust›
Stream Smoother›
Stream Smoother Link›
HOME NETWORK FEATURES
AirPlay Wireless Audio›
DLNA Certified›®(1.5)
Compatible with Windows 7
›
Music File Playback via LAN/USB (WAV, MP3, WMA, AAC, FLAC)›
192 kHz/24-Bit Audio playback (WAV, FLAC)•
Internet Radio with vTuner›
ZONE 2 Analogue Audio Out and Volume Control›
ZONE›2 Composite Video Out with OSD
CONVENIENCE FEATURES
Digital Audio from iPod/iPhone/iPad via Front USB Terminal›
Charges iPod/iPhone/iPad, USB & Video Cable Supplied›
iControlAV2012 Remote Control App Ready (under›
development, to be released in spring 2012)
AV receiver and Blu-ray Disc player control from
•
smartphone
Sound Explorer
•
Air Jam App* Ready (iOS/Android) (optional AS-BT200 adapter›
required)
Share music and create playlists via
• Bluetooth
connection
Wireless LAN Converter Ready (optional AS-WL300 required)›
Firmware Update via Internet or USB›
AVNavigator for easy wiring and setup with PC or iPad›
Graphic User Interface (GUI) with Album Artwork (HDMI only)›
Auto Power Down›
Power Save for HDMI Standby Through›
AM/FM Tuner 63 Presets›
Sleep Timer›
Learning Remote Control (Luminous)›
* Available for free download from App Store/Google Play
7.2-Channel AV Receiver Featuring Compatibility with AirPlay, Compatibility
with iPod, iPhone, iPad, HDMI™with 3D and ARC, and 1080p Video ProcessingVSX-1122-K
