Pioneer VSX-1325-K User manual

ORDER NO.
PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
2010
2010 Printed in Japan
VSX-1325-K
RRV4071
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-1325-K
VSX-1125-K
VSX-1120-K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
This service manual should be used together with the following manual(s).
For SPECIFICATIONS and PANEL FACILITIES, refer to the operating instructions.
Model Type Power Requirement Remarks
VSX-1325-K CUXJ AC 120 V
VSX-1125-K CUXJ AC 120 V
VSX-1120-K UXJCB AC 120 V
Model No. Order No. Remarks
VSX-LX53/SYXJ5 RRV4133
K-ZZZ JUNE
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

2VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4
SAFETY INFORMATION
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement parts must
be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que les pièces
de remplacement doivent avoir la même désignation.
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely,
you should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product may contain a chemical known to the State of California to cause cancer, or birth defects or other reproductive
harm.
Health & Safety Code Section 25249.6 - Proposition 65
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.

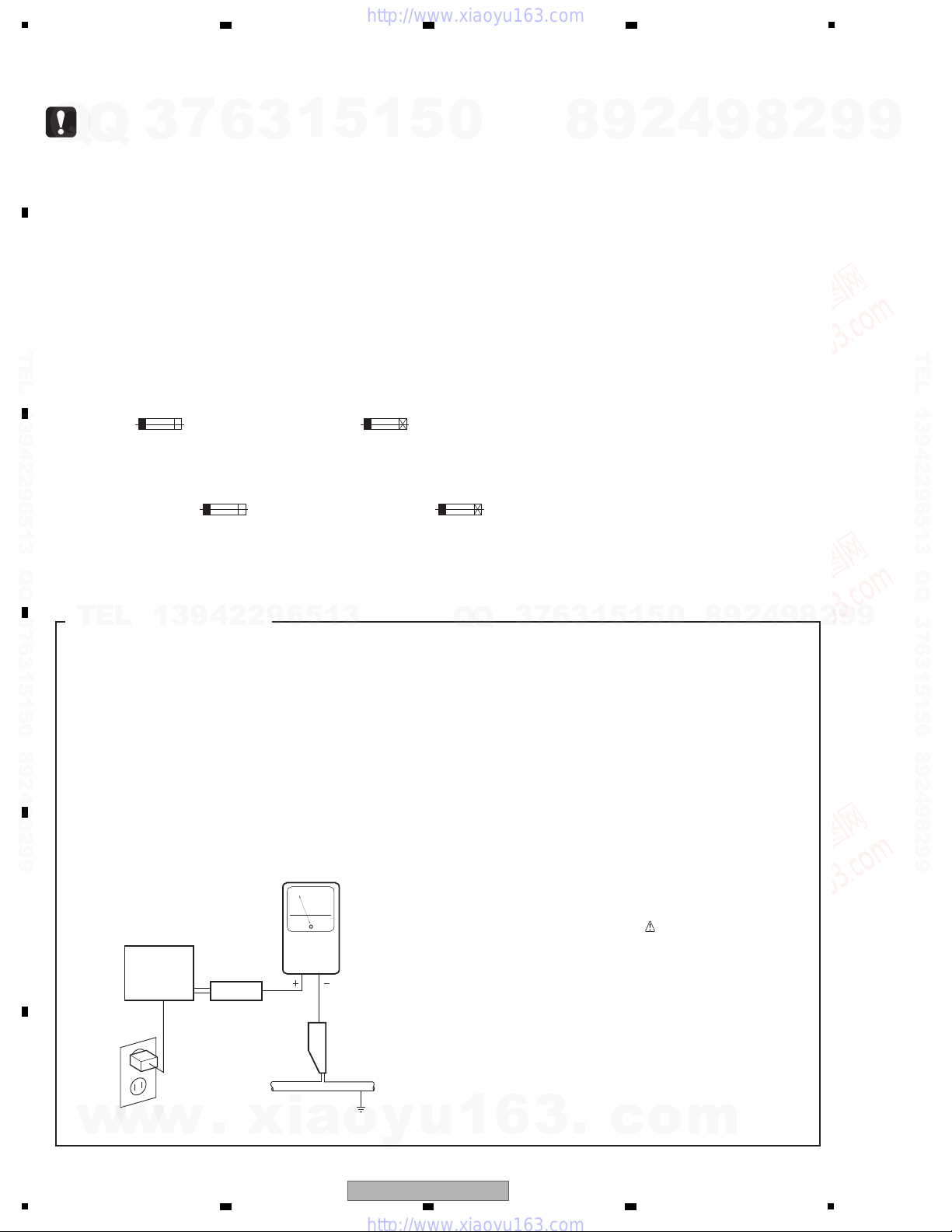

LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Tes t al l
exposed metal
surfaces
AC Leakage Test
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

3
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
1. CONTRAST OF MISCELLANEOUS PARTS
CONTRAST TABLE
VSX-LX53/SYXJ5, VSX-1325-K/CUXJ, VSX-1125-K/CUXJ and VSX-1120-K/UXJCB are constructed the same
except for the following:
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
56 1
4 7 3
R 5 0
1R 0
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10
1
47 x 10
3
R50
1R0
561
473
RN1/4PC F562 x 10
1
5621 5 26 1
Mark No. Symbol and Description VSX-LX53/
SYXJ5
VSX-1325-K/
CUXJ
VSX-1125-K/
CUXJ
VSX-1120-K/
UXJCB Remarks
PCB ASSEMBLIES
NSP 1..AMP ASSY AWM8192 AWM8186 AWM8228 AWM8228
P81-5 2..POWER AMP ASSY AWX9660 AWX9573 AWX9724 AWX9724
NSP 1..LOCAL POWER ASSY AWM8195 AWM8187 AWM8195 AWM8195
P81-12 2..XM REGULATOR ASSY AWX9667 AWX9582 AWX9667 AWX9667
NSP 1..COMPLEX ASSY AWM8197 AWM8218 AWM8229 AWM8203
P85-5 2..DISPLAY ASSY AWX9669 AWX9723 AWX9725 AWX9675
P83-2 2..PRIMARY ASSY AWX9676 AWX9591 AWX9591 AWX9591
NSP 1..AUDIO COMPOSITE ASSY AWR7087 AWR7084 AWR7089 AWR7089
P83-3 2..COMPOSITE ASSY AWX9568 AWX9568 AWX9651 AWX9651
P83-7 2..AUDIO ASSY AWX9644 AWX9567 AWX9646 AWX9646
P83-9 1..DAC LOW ASSY AWX9657 AWX9566 AWX9566 AWX9566
P83-10 1..DIGITAL MAIN ASSY AWX9719 AWX9718 AWX9626 AWX9626
NSP P79-1 1..BLUETOOTH AD ASSY AXF7022 Not used Not used Not used
P79-7 2..BLUETOOTH ASSY AWM8111 Not used Not used Not used
PACKING SECTION
NSP P79-1 Bluetooth AD ASSY AXF7022 Not used Not used Not used
NSP P79-2 Top Case BTA AAK8468 Not used Not used Not used
NSP P79-3 Bottom Case BTA AAK8469 Not used Not used Not used
NSP P79-4 BT Label (6L) AAL7444 Not used Not used Not used
P79-5 Nonwoven Sheet BTA AHG7142 Not used Not used Not used
NSP P79-6 Polyethylene Bag 55 x 80 AHG7153 Not used Not used Not used
>P79-8 Power Cord XDG3061 ADG7111 ADG7111 ADG7111
P79-14 Packing Case AHD8672 AHD8670 AHD8671 AHD8693
P79-16 Quick Start Guide (En, Fr, Gr) ARH7098 Not used Not used Not used
P79-17 Quick Start Guide (It, Sp) ARH7099 Not used Not used Not used
P79-18 Quick Start Guide (Du, Ru) ARH7100 Not used Not used Not used
P79-20 Operating Instrutions (CD-ROM) ARU7002 Not used Not used Not used
NSP P79-21 Warranty Card EU ARY7128 Not used Not used Not used
P79-22 Remote Control Unit AXD7592 AXD7591 AXD7591 AXD7591
Operating Instrutions (En) Not used Not used Not used ARB7451
Operating Instrutions (En) Not used ARB7440 ARB7440 Not used
Operating Instrutions (Frca) Not used ARC7971 ARC7971 Not used
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

4VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4
Notes : *1, *2 For XM REGULATOR ASSY.
For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “2. SCHEMATIC DIAGRAM”.
EXTERIOR SECTION
>P81-16 Power Transformer ATS7435 ATS7434 ATS7434 ATS7434
>P81-17 Fuse (FU6 : T800 mA) AEK7072 Not used Not used Not used
>P81-17 Fuse (FU6 : 1.25 A) Not used REK1143 REK1143 REK1143
>P81-18 Fuse (FU7 : T800 mA) AEK7072 Not used Not used Not used
>P81-18 Fuse (FU7 : 1.25 A) Not used REK1143 REK1143 REK1143
>P81-19 Fuse (FU10 : T1.25 A) AEK7074 Not used Not used Not used
>P81-19 Fuse (FU10 : 1.6 A) Not used REK1144 REK1144 REK1144
>P81-20 Fuse (FU8 : T1.6 A) AEK7075 Not used Not used Not used
>P81-20 Fuse (FU8 : 1.6 A) Not used REK1144 REK1144 REK1144
>P81-21 Fuse (FU9 : T1.6 A) AEK7075 Not used Not used Not used
>P81-21 Fuse (FU9 : 1.6 A) Not used REK1144 REK1144 REK1144
P81-37 Insulator ASSY DXA1904 Not used Not used Not used
P81-37 Insulator Not used AMR7198 AMR7198 PNW2766
P81-39 Screw 3 x 10 (FE) ABA1193 ABA1193 BBZ30P080FCC BBZ30P080FCC
NSP Transistor Holder Not used ANG7543 Not used Not used *1
>Fuse (FU11 : 1.6 A) Not used REK1144 Not used Not used *2
REAR SECTION
P83-11 FM/AM TUNER Unit AXX7265 AXX7267 AXX7267 AXX7267
>P83-12 Fuse (FU1 : T5 A) AEK1061 Not used Not used Not used
>P83-12 Fuse (FU1 : 10 A) Not used REK1154 REK1154 REK1154
>P83-13 Fuse (FU4 : 4 A) REK1104 Not used Not used Not used
>P83-13 Fuse (FU4 : 2 A) Not used REK1139 REK1139 REK1139
P83-18 Rear Panel ANC8586 ANC8584 ANC8585 ANC8594
P83-25 Shield Case AMR7557 Not used Not used Not used
FRONT SECTION
P85-13 IB Lens V5SEL AAK8430 Not used Not used Not used
P85-14 Power Ring AAK8471 AAK8476 AAK8476 AAK8476
P85-15 Input Cover AAK8528 AAK8528 AAK8528 AAK8543
P85-18 Front Panel ANB7544 ANB7543 AMB8023 AMB8028
P85-19 Standby BTN ASSY AXG7400 XXG3413 XXG3413 XXG3413
P85-20 P Base ASSY AXG7403 AXG7415 AXG7427 AXG7431
P85-21 Center Lens V6S H AAK8505 XAK3648 XAK3648 XAK3648
P85-22 Panel Base AMB8010 AMB8004 AMB8004 AMB8004
P85-29 Pioneer Badge VAM1158 VAM1158 VAM1158 YAM1005
Mark No. Symbol and Description VSX-LX53/
SYXJ5
VSX-1325-K/
CUXJ
VSX-1125-K/
CUXJ
VSX-1120-K/
UXJCB Remarks
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

5
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
CONTRAST OF PCB ASSEMBLIES
A
F AUDIO ASSY
AWX9644, AWX9567 and AWX9646 are constructed the same except for the following:
B
F COMPOSITE ASSY
AWX9568 and AWX9651 are different in part number, they consist of the same components.
Mark Symbol and Description AWX9644 AWX9567 AWX9646 Remarks
IC3931 LC72725KM Not used Not used
Q2971 IMX25 IMX25 Not used
L3931 Chip Solid Inductor QTL1013 Not used Not used
X3931 Crystal Resonator ASS7004 Not used Not used
JA2952 2P Pin Jack Not used Not used AKB7233
JA2951 Pin Jack(4P) XKB3017 XKB3017 Not used
R3003, R3004 RS1/10SR101J RS1/10SR121J RS1/10SR121J
R3931, R3932 RS1/10SR220J Not used Not used
R2709, R2710 RS1/10SR331J RS1/10SR562J RS1/10SR562J
R3933 RS1/10SR473J Not used Not used
R2707, R2708 RS1/10SR562J RS1/10SR331J RS1/10SR331J
R3031 RS1/8SQ475J Not used Not used
R3032 RS1/8SQ562J RS1/8SQ822J RS1/8SQ822J
R2907, R2908 RS1/10SR0R0J RS1/10SR0R0J Not used
R2971-R2976 RS1/10SR102J RS1/10SR102J Not used
R2901, R2902 RS1/10SR104J RS1/10SR104J Not used
R2868 RS1/10SR222J RS1/10SR222J Not used
R2867 RS1/10SR562J RS1/10SR562J Not used
C2501-C2504, C2521-C2524 CCSRCH101J50 Not used Not used
C2541-C2544, C2561, C2562 CCSRCH101J50 Not used Not used
C2581-C2584, C2601-C2604 CCSRCH101J50 Not used Not used
C2621, C2622, C2641-C2644 CCSRCH101J50 Not used Not used
C3113, C3114, C3163, C3164 CCSRCH101J50 Not used Not used
C3213, C3214, C3263, C3264 CCSRCH101J50 Not used Not used
C3283, C3284, C3932 CCSRCH101J50 Not used Not used
C2563-C2564, C2623, C2624 CCSRCH220J50 Not used Not used
C3937, C3938 CCSRCH270J50 Not used Not used
C3111, C3112, C3161, C3162 CCSRCH331J50 Not used Not used
C3211, C3212, C3261, C3262 CCSRCH331J50 Not used Not used
C3281, C3282 CCSRCH331J50 Not used Not used
C2864, C2866 CKSRYB104K50 CKSRYB104K50 Not used
C2903, C2904 CEAT100M50 CEAT100M50 Not used
C2951, C2952, C2971, C2972 CCSRCH471J50 Not used Not used
C2983 CKSRYB103K50 CKSRYB103K50 Not used
C3933 CCSRCH561J50 Not used Not used
C3935 CEAT100M50 Not used Not used
C3931 CEAT221M16 Not used Not used
C3941 CKSRYB103K50 Not used Not used
C3942, C3934 CKSRYB104K16 Not used Not used
C3936 CKSRYB472K50 Not used Not used
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

6VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4
C
F DAC LOW ASSY
AWX9657 and AWX9566 are constructed the same except for the following:
E
F DIGITAL MAIN ASSY
AWX9719 and AWX9718 are constructed the same except for the following:
Mark Symbol and Description AWX9657 AWX9566 Remarks
D2130 Not used 1SS302
JA2101 Socket Not used BKP1127
R2135 Not used RS1/10SR0R0J
R2140, R2141 Not used RS1/10SR474J
R2142, R2143 Not used RS1/10SR331J
R2130-R2134, R2144, R2145 RS1/10SR0R0J Not used
R2189 RS1/8SQ475J RS1/8SQ225J
C2124, C2126 Not used CKSRYB103K50
C2127, C2128 Not used CEAK220M50
Mark Symbol and Description AWX9719 AWX9718 Remarks
IC1809 Not used TC74VHC157FK
IC1801 Not used AAT4614AIGU-2
IC1806 Not used TC74VHC125FK
IC1808 Not used TC74LCX157FK
IC1816 Not used NJM2872BF33
IC1803 Not used BU9450KV
D602, D604 Not used 1SS352
D1801, D1802 Not used HZU5R6(B2)
L1801, L1802, L1806, L1808 Not used QTL1013
L1811 Chip Solid Inductor Not used QTL1013
JA1801 4p Socket Not used AKP7201
X1801 Crystal Not used ASS7095
R1823, R1828 Not used RS1/10SR101J
R1814 Not used RS1/10SR104J
R1818 Not used RS1/16SS0R0J
R739, R1806, R1807, R1819 Not used RS1/16SS101J
R1820, R1824-R1827, R1829 Not used RS1/16SS101J
R1843, R1863, R1864, R1866 Not used RS1/16SS101J
R1867, R1869-R1874, R1901 Not used RS1/16SS101J
R1902 Not used RS1/16SS101J
R1808, R1809, R1812, R1905 Not used RS1/16SS102J
R1906 Not used RS1/16SS102J
R1801 Not used RS1/16SS103J
R1817, R1821, R1822, R1831 Not used RS1/16SS104J
R1832, R1834, R1835 Not used RS1/16SS104J
R1813 Not used RS1/16SS105J
R1868, R1892 Not used RS1/16SS151J
R1846, R1847, R1865 Not used RS1/16SS470J
R1830 Not used RS1/16SS473J
R1891 Not used RS1/16SS680J
R1805 RS1/10SR0R0J Not used
R724, R725, R1856, R1857 RS1/16SS0R0J Not used
R1859, R1860, R1907, R1909 RS1/16SS0R0J Not used
R1910 RS1/16SS0R0J Not used
R738 RS1/16SS101J Not used
R9865 RS1/16SS120J RS1/16SS0R0J
R919, R921, R923, R926 RS1/16SS220J RS1/16SS0R0J
R928, R930 RS1/16SS220J RS1/16SS0R0J
R1833 Not used RAB4CQ470J
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

7
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
E
F DIGITAL MAIN ASSY
AWX9719 and AWX9626 are constructed the same except for the following:
C9815 CCSRCH100D50 CCSRCH102J50
C1410 CCSSCH100D50 CCSSCH101J50
C1217, C1361, C9842 CCSSCH100D50 Not used
C941, C987, C1705, C9020 CKSSYB104K16 CKSSYB104K10
C1802, C1812 Not used CCSSCH101J50
C1826, C1833, C1835 Not used CCSSCH471J50
C1810, C1811 Not used CCSSCH8R0D50
C1807 Not used CEVLW101M10
C1803 Not used CEVW101M16
C1854 Not used CKSQYB225K10
C1804 Not used CKSRYB104K16
C1801 Not used CKSRYB105K10
C1805, C1806, C1808, C1809 Not used CKSSYB104K10
C1813-C1815, C1819, C1820 Not used CKSSYB104K10
C1825, C1832, C1834, C1852 Not used CKSSYB104K10
C1853 Not used CKSSYB104K10
C985 Chip Px Capacitor VCH1234 CEVW221M4
Mark Symbol and Description AWX9719 AWX9718 Remarks
Mark Symbol and Description AWX9719 AWX9626 Remarks
IC1607 TC7SH32FUS1 Not used
IC1606 AAT4614AIGU-2 Not used
IC1603 SII9134CTU-K Not used
IC9009 ICS87002BM-05 IDT6V60008DCG
Q1604 UMB1N Not used
Q1602 LTC114YUB Not used
D1602 UDZS5R1(B) Not used
L1602, L1608, L1624, L1625 ATL7010 Not used
L1626 Chip Beads ATL7010 Not used
L1613-L1616 Coil ATH7064 Not used
L1621 Inductor CTF1473 Not used
JA1602 Hdmi Connector AKP7254 Not used
R739 Not used RS1/16SS101J
R1679, R1680 RS1/16SS0R0J Not used
R1627, R1635, R1639, R1641 RS1/16SS100J Not used
R1644 RS1/16SS100J Not used
R738 RS1/16SS101J Not used
R1647 RS1/16SS102J Not used
R1632 RS1/16SS103J Not used
R9865 RS1/16SS120J RS1/16SS0R0J
R1677 RS1/16SS180J Not used
R919, R921, R923, R926 RS1/16SS220J RS1/16SS0R0J
R928, R930 RS1/16SS220J RS1/16SS0R0J
R1659 RS1/16SS243J Not used
R1657, R1663 RS1/16SS272J Not used
R1610 RS1/16SS330J Not used
R1624 RS1/16SS470J Not used
R1649 RS1/16SS471J Not used
R1653, R1655, R1678 RS1/16SS472J Not used
R1670 RS1/16SS473J Not used
R1651 RS1/16SS6800F Not used
C9815 CCSRCH100D50 CCSRCH102J50
C1410 CCSSCH100D50 CCSSCH101J50
C1217, C1361, C9842 CCSSCH100D50 Not used
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

8VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4

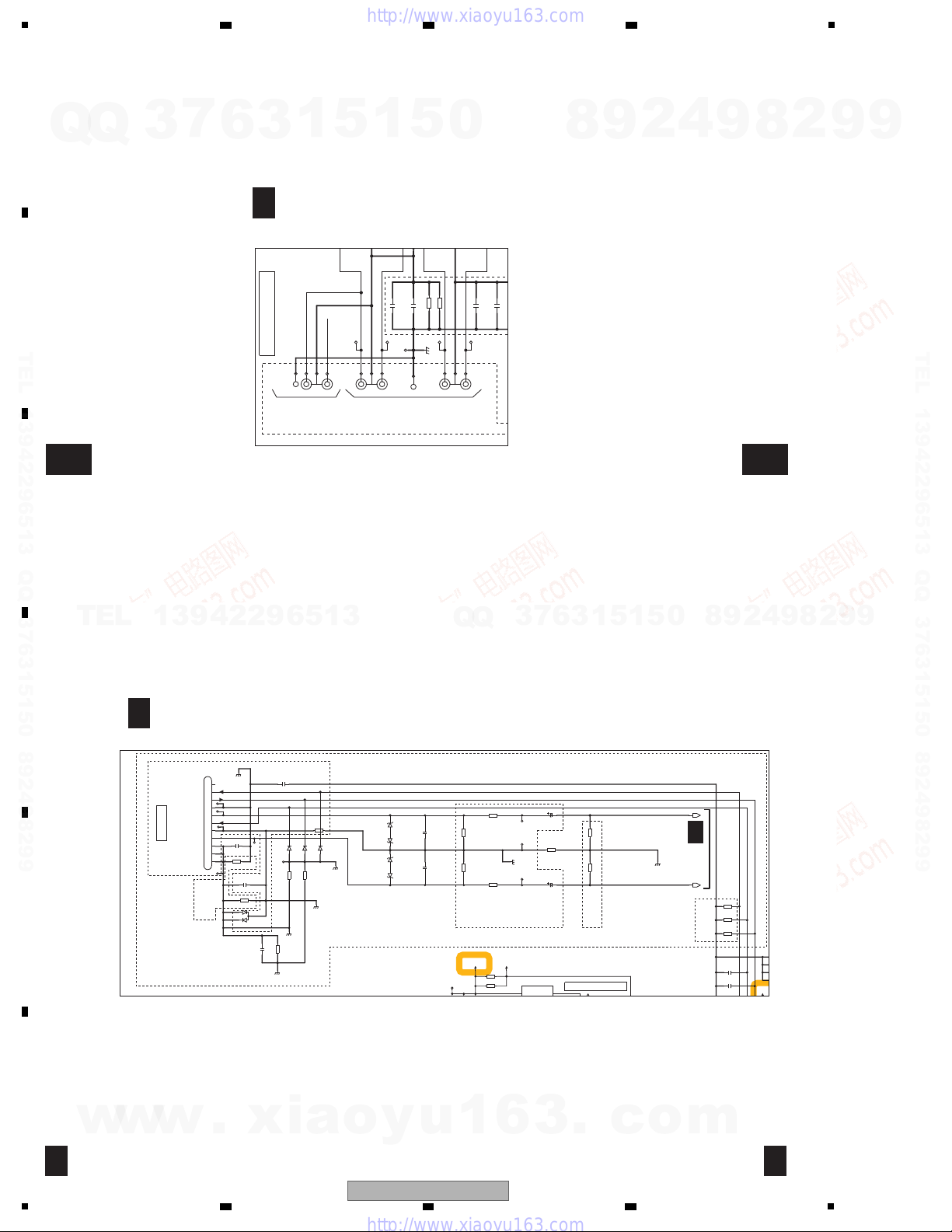

The mounting positions of the additional parts are described in the circuit diagram and PCB diagram of the parent manual.
H
F POWER AMP ASSY
AWX9660 and AWX9573 are constructed the same except for the following:
C1619, C1625, C1629, C1638 CCSSCH101J50 Not used
C1649, C1714 CCSSCH101J50 Not used
C1602, C1663, C1671, C1699 CCSSCH102J50 Not used
C1709, C1715 CCSSCH102J50 Not used
C1717 CCSSCH331J50 Not used
C1621, C1623, C1627, C1639 CCSSCH471J50 Not used
C1645, C1658, C1660, C1708 CCSSCH471J50 Not used
C1713 CCSSCH471J50 Not used
C1665 CEVLW101M10 Not used
C1606, C1656, C1710, C1711 CKSQYB106K6R3 Not used
C1689, C1695 CKSRYB105K10 Not used
C1647 CKSSYB103K16 Not used
C1631, C1635, C1642, C1659 CKSSYB104K10 Not used
C1661, C1716, C1721 CKSSYB104K10 Not used
C941, C987, C1705, C9020 CKSSYB104K16 CKSSYB104K10
C1707 CKSSYB104K16 Not used
C1618, C1620, C1622, C1624 CKSSYB105K6R3 Not used
C1626, C1643, C1657, C1712 CKSSYB105K6R3 Not used
C1675, C1677, C1679, C1681 VCG1066 Not used
C1685, C1688, C1691, C1693
Chip Capacitor
VCG1066 Not used
C985 Chip Px Capacitor VCH1234 CEVW221M4
Mark Symbol and Description AWX9719 AWX9626 Remarks
Mark Symbol and Description AWX9660 AWX9573 Remarks
JA5800-JA5802 Speaker Terminal 6p AKE7108 AKE7107
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

9
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
H
F POWER AMP ASSY
AWX9660 and AWX9724 are constructed the same except for the following:
The mounting positions of the additional parts are described in the circuit diagram and PCB diagram of the parent manual.
J
F DISPLAY ASSY
AWX9669, AWX9723, AWX9725 and AWX9675 are constructed the same except for the following:
The mounting positions of the additional parts are described in the circuit diagram and PCB diagram of the parent manual.
Mark Symbol and Description AWX9660 AWX9724 Remarks
Q5952, Q5954, Q5956 LSA1576UB(QR) Not used
Q5951, Q5953, Q5955 LTC124EUB Not used
Q5865 RT3T22M Not used
D5931 MC2848-11 Not used
D5935 1SS357 Not used
L5933 Chip Solid Inductor QTL1013 Not used
L5951 Chip Solid Inductor ATL7002 Not used
JA5800-JA5802 Speaker Terminal 6p AKE7108 AKE7107
JA5807 Jack AKN-209 Not used
JA5811 Jack VKB1243 Not used
R5931 Not used RS1/10SR0R0J
R5947, R5960-R5962 RS1/10SR0R0J Not used
R5964-R5966 RS1/10SR0R0J Not used
R5951, R5952 RS1/10SR103J Not used
R5939 RS1/10SR104J Not used
R5953-R5955, R5963 RS1/10SR120J Not used
R5956-R5959 RS1/10SR472J Not used
R5933 RS1/10SR622J Not used
C5955 CKSRYB102K50 Not used
C5932, C5953, C5954 CKSRYB103K50 Not used
C5951 CKSRYB104K16 Not used
C5934 CKSRYB153K50 Not used
C5957 CKSRYB472K50 Not used
Mark Symbol and Description AWX9669 AWX9723 AWX9725 AWX9675 Remarks
Q3207, Q3208, Q3210-Q3213 LTC124EUB Not used Not used Not used
D3204, D3206, D3208, D3210 SLR343BC4T SLR-343VC SLR-343VC SLR-343VC
D3212, D3214 SLR343BC4T Not used Not used Not used
D3216 SLR343WBCT SLR343BC4T SLR343BC4T SLR343BC4T
R3020 RS1/10SR473J Not used Not used Not used
R3021 Not used RS1/10SR473J RS1/10SR473J RS1/10SR473J
R3022 RS1/10SR473J RS1/10SR223J RS1/10SR333J RS1/10SR393J
R3023 Not used RS1/10SR333J RS1/10SR223J RS1/10SR103J
R3079, R3211-R3214 Not used RS1/10SR0R0J RS1/10SR0R0J RS1/10SR0R0J
R3241-R3244 RS1/10SR151J RS1/10SR681J RS1/10SR681J RS1/10SR681J
R3245, R3246 RS1/10SR151J Not used Not used Not used
R3247 RS1/10SR561J RS1/10SR151J RS1/10SR151J RS1/10SR151J
R3356 RS1/10SR101J Not used Not used Not used
C3041, C3043, C3343 CCSRCH100D50 Not used Not used Not used
C3218, C3219 CCSRCH470J50 Not used Not used Not used
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

10 VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4
K
F PRIMARY ASSY
AWX9676 and AWX9591 are constructed the same except for the following:
M
F XM REGULATOR ASSY
AWX9667 and AWX9582 are constructed the same except for the following:
Mark Symbol and Description AWX9676 AWX9591 Remarks
L1 Line Filter ATF7049 ATF7048
VA1 Varistor TND10V-511KB00AAA0 Not used
CN82 Connector Not used B2P3-VH
CN81 Connector(vh) B3P5-VH Not used
KN52 Screw Plate ANG7591 Not used
R4 RS1/10SR821J RS1/10SR182J
R14 RS1/10SR1001F RS1/10SR0R0J
R57 RS1/4SA155J Not used
R59 RS1/8SQ365J RS1/8SQ475J
R72 RS1/10SR123J RS1/10SR392J
R73 RS1/10SR513J RS1/10SR473J
C74, C75 CCSRCH220J50 CCSRCH101J50
C72 Film Capacitor ACE7013 Not used
Mark Symbol and Description AWX9667 AWX9582 Remarks
IC4301 Not used NJM7805FA
Q4301 Not used 2SD1763A
Q4302 Not used LSC4081UB
D4301 Not used D3SBA20
D4302 Not used PTZ9R1
H4301, H4302 Fuse Clip Not used AKR1004
R4302 Not used RS1/10SR102J
R4303 Not used RS1/10SR221J
R4304 Not used RS1/10SR100J
C4314, C4315 Not used CCSRCH102J50
C4306 Not used CEAT101M25
C4308 Not used CEAT101M50
C4301 Not used CFTLA104J50
C4307 Not used CKSRYB103K50
C4305 Not used CKSRYB104K25
C4309 Not used CKSRYB104K50
C4303 Not used CEAT332M25-F
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

11
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

12 VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4
2. SCHEMATIC DIAGRAM
2.1 AUDIO ASSY
2.2 DAC LOW ASSY
A-a 1/3 F A-a 1/3 F
GNDCH
2
R
3 1
W
*JA2951
AKB7218-A
5
R
6 4
W
7
ZONE OUT
ZONE 2
OUT
ZONE 3
OUT
C2982
NM
C2981
0.01u/50
*C2983
0.01u/50
C2984
NM
R2957 NM R2958 NM
JACK
AWX9646- /J Only
*JA2952
NM
3 2 1 4
ZONE 2
OUT
AUDIO ASSY (1/3)
(AWX9646)
A1/3 F
C1/2 F C1/2 F
A_SIRIUS_R
A_SIRIUS_L
C2125
NM
C2122
0.1u/16
C2130
0.01u/50
C2251
0.01u/50
C2252
0.01u/50
C2129
0.01u/50
D2137
NM
D2139
NM
D2138
NM
D2122
NM
D2121
NM
D2124
NM
D2123
NM
GNDCH
GNDD
GNDSI3
GNDSI2
GNDSI1
GNDSIA
NM REGULATOR 3.3V
NBVOUT
R
2
R
2
R2051
0
R2052
0
R2121
0
R2137
0
R2136
0
*R2144
0
*R2134
0
*R2145
0
R
2
*R2133
0
R
2
R2148
NM
*R2131
0
*R2132
0
*R2130
0
V+3R3_D V+3R3_DF
V+3R3
_
A_SIRIUS_R
A_SIRIUS_L
SITX
SIRX
SIXRST
AWX9657- /J AWX9659- /J ONLY
AWX9657- /J AWX9659- /J ONLY
22u/50
*C2128
22u/50
*C2127
*R2140
470k
*R2142
330
*R2143
330
*R2141
470k
AWX9566- /J AWX9658- /J ONLY
*C2126
0.01u/50
YB
*C2124
0.01u/50
YB
*D2130
1SS302
GNDSID
BKP1127-A
*JA2101
SIRIUS
(NC) 1
SIRIUS_RST 2
SIRIUS_TX 3
GND 4
SIRIUS_R 5
SIRIUS_RX 6
GNDA 7
SIRIUS_L 8
GNDCH RT1
GNDCH RT2
GNDCH RT3
*R2135
0
AWX9566- /J
AWX9658- /J
ONLY
AWX9657- /J AWX9659- /J ONLY
C
2/2
DAC LOW ASSY (1/2)
(AWX9566)
C1/2 F
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

13
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
2.3 PRIMARY ASSY
2.4 DIGITAL MAIN ASSY(2/10)
KFKF
C74
100p/50 CH
C73
XCG3010-A
C75
100p/50 CH
D72
1SS352
D71
1SS352
*JV87
*JV88
JV77
Q71
2SD2704K
ASR7034-A
RY71
1 2
3
4
R73 47k
R72
3.9k
R74
1M
R71
NM
MUF1/4W
LIVE
B2P3-VH
*CN82
1
N
2
L
MAIN TRANS
PRIMARY ASSY
(AWX9591)
KF
E2/10 F E2/10 F
NM
1000p/50 1000p/50
NM
1000
p
/50
NM
1000p/50
1000p/50
FANCTLL5
FANCTLH5
ICELR5/NECK6
FANERR
XVDDERR ICE LR(NECK6)
9
FAN_H(NC)
10
FAN_L(NC)
11
FANERR(NC)
12
GND_XM
14
V+5_XM
15
V+5_XM
16
GND_USB
17
GND_USB
18
V+5_USB
19
GND_XM
13
V+5_USB
20
C690
C694 C693 C691
GNDD
GNDD
C
H04
V+5_USB
V+5_XM
C749
C752
C750
C751
D603
1SS352
D605
1SS352
D606
1SS352
D607
HZU5R6(B2)
Q608
LSC4081UB(QR)
R653
2.2k
R784
10k
R794
10k
R795
100k R797
2.2k
C758
1000p/50
LSA1576UB(QR)
Q607
V+5R6_EV
GNDD
AC INLET Side
1SS352
*D602
1SS352
*D604
XM MODEL ONLY
XM MODEL ONLY
DIGITAL MAIN ASSY (2/10)
(AWX9718)
E2/10 F
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

14 VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4
2.5 DIGITAL MAIN ASSY(6/10)
E6/10 F
!
XHDSPDIF
MSPDIF
DIRMCKI DIRMCKO DIRDATO
XHARC
DIRPOW
XNET
XEMSPDIF
DIRBCK
DIRLRCK
*C1823
330p/50
SCH
*C1822
0.1u/16
SYB
C1824
47p/50
CH
C1827
470p/50
C1828
0.1u/10
C1816
10u/6.3
C1818
10u/6.3
C1821
1u/10
L1805
QTL1013-A
L1804
QTL1013-A
L1803
QTL1013-A
GNDD
GNDD
GNDD
GNDD
IC1805
TC74VHCT125AFK
(3/4)
10
98
14
7
IC1805
TC74VHCT125AFK
(2/4)
4
56
14
7
IC1805
TC74VHCT125AFK
(4/4)
13
12 11
14
7
IC1805
TC74VHCT125AFK
(1/4)
1
23
14
7
IC1802
R1172H501D
CE
1
GND2
2
NC
3
VIN
4
5
VOUT
IC1804
TC7WHU04FU
5
3
4
8
IC1804
(2/3)
2
6
4
8
IC1804
(3/3)
7
1
4
8
R1851 100k
R1855 100k
R1853 100k
R1838
100
R1854 100k
R1837
100
R1842
100k
R1845
100
R1844
NM
R1850 100k
R1848 100k
R1849 100k
R1840
47k
R1839
100
R1852 100k
R1841
2.2k
V+5_D
V+5_D
V+5R6_EV
V+5_D1 V+5_D
NETSPDIF
HDSPDIF/DSDSL
ARCSPDIF
DAC/ADC
CONT_GA
*R1940
NM
R1941
100
EMSPDIF
R1942
100
The mark found on some component
parts should be replaced with same
parts (safety regulation authorized)
of identical designation.
FL/FR
HDMI PCM DATA
SBL/SBR
SL/SR
C/SW
BDTI
CDTI
HFDT
SDTI
SPDIF SELECTOR
2/10, 5/10,
7/10, 8/10, 10/10
!
!
XMTX
XMPOW
XXMRST
XMRX
XMDT4
XMRATE
XMMUTE
XMLINK
XXMERR/RDSSCK
XMIRQ/RDSSI
RYAC
100u/10
*C1807
100u/16
*C1803
*C1812 100p/50
CH
*C1826 SCH470p/50
*C1805
SYB
0.1u/10
*C1806
SYB
0.1u/10
*C1808
YB
0.1u/10
*C1810
SCH
8p/50
*C1804 YB
0.1u/16
*C1802 100p/50
*C1811
SCH
8p/50
*C1825 SYB0.1u/10
*C1815
SYB
0.1u/10
*C1813
SYB
0.1u/10
*C1820
SYB0.1u/10
*C1819
SYB0.1u/10
*C1809
SYB
0.1u/10
*C1814 SYB
0.1u/10
*C1801
YB
1u/10
*D1802 HZU5R6(B2)-TRB
*D1801 HZU5R6(B2)-TRB
*L1801
QTL1013-A
*L1802
QTL1013-A
*L1806
QTL1013-A
*IC1806 (3/4)
TC74VHC125FTS1
10
98
14
7
*IC1806 (4/4)
TC74VHC125FTS1
13
12 11
14
7
*IC1806 (2/4)
TC74VHC125FTS1
4
56
14
7
*IC1806 (1/4)
TC74VHC125FTS1
1
23
14
7
*IC1801
AAT4614AIGU-2-TRB
OUT
1
GND
2
FAULT
3
ON
4 5
SET
6
IN
*IC1803
BU9450KV
LSDP
1
VSS1
2
SC_TX_OUT
3
VDD1
4
SC_RX_IN
5
I2C_SCL
6
I2C_SDA
7
VDD2
8
ANT_REV
9
VSS2
10
RESET# 11
SLAVE_SEL
12
I2S_RATE
13
LINKACTIVE
14
COMM_TX_EN
15
VSS3
16
VDD3
17
COMM_TXRX_P1
18
COMM_TXRX_M
19
VDD4
20
VSS4
21
COMM_TXRXM
22
COMM_TXRX_P2
23
VSS5
24
VSS6
25
OSC_OUT
26
N.C.
27
OSC_IN
28
SC_RATE
29
TEST
30
VSS7
31
HSDP_DATA
32
VDD6
33
HSDP_CLK
34 DT4_MODE 35
HSDP_EN#
36
I2S_DATA
37
VSS8 38
I2S_SCLK
39
VDD7
40
I2S_LRCLK
41
VSS9
42
I2S_OCLK
43
MUTE
44
SAII_CLK
45
VDD8
46
SAII_DATA
47
SAII_REQ
48
*JA1801
AKP7201-A
1
2
3
4
RT1
RT2
RT3
*R1833
47
2
1
4
36
5
8
7
*R1829 100
R1802
NM
*R1819
100
*R1824 100
*R1820
100
*R1805 NM
(1608)
*R1828 100(1608)
*R1835 100k
R1804 NM
*R1822 100k
*R1831 100k
*R1806
100
*R1832 100k
*R1847 47
*R1809
1k
*R1808
1k
R1803
NM
*R1846 47
*R1823 100(1608)
*R1827 100
*R1825 100
*R1834 100k
R1815 NM
(1608)
*R1821 100k
R1816 NM
*R1807
100
*R1812
1k
*R1826 100
*R1814 100k(1608)
*R1843 100
*R1817 100k
*R1818
0
*R1813
1M
R1836 NM
R1810
NM
R1811
NM
*R1801 10k
V+5_XM
V+5_XM2
V+3R3_XM1
V+3R3_XM2
V+5_XM1
*X1801
45.1584M
ASS7095-A-T
1
1
2
2
4
433
CONT_EMMA
*IC1816
NJM2872BF33
VIN
1
GND
2
CONTROL
3
NB
4
5
VOUT
V+5R6_DDD
*C1852
0.1u/10
*C1853
0.1u/10 *C1854
2.2u/10
CONT_EV
*C1855 10p/50 DUMMY
XM/DT BLOCK
EXCEPT
XM MODEL
XM MODEL ONLY
( )
XXM
DIRBCK
DIRLRCK
DIRDATI
1/10 - 5/10, 7/10 - 9/10
E
E
2/10-5/10,7/10,8/10,10/10
E
1/10
E
E
5/10
E
1/1
7/1
E
7/10,8/10
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

15
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
E6/10 F
HDSPDIF/DSDSL
BDTI/DSDSR
CDTI/DSDLFE
FDTI/DSDFL
D1BCK
D1MCLK
XZ2XM XZ2DAC
USBSW
USB
Z2NET
D1LRCK
HDI2S
HDMCLK
NMCK
SDTI/DSDC
MSPDIF
DIRMCKI DIRMCKO DIRDATO
EMMCLK
XDSDSW
SDTI/DSDFR
CDTI/DSDSL
DSDSW
NBCK
HDBCK
EMBCK
HFDT/DSDFL HDLRCK/DSDFR
NFDAT
EMADAT
NLRCK
EMLRCK
HDI2S
ZMCLK
ZBCK
ZLRCK
ZFADA
DIRBCK
DIRLRCK
NM
C1845
C1836 0.1u/10 SYB
C1837 470p/50 SCH
C1847 470p/50
SCH
C1846 0.1u/10
SYB
C1850
NM
C1831 NM SCH
C1830 NM SYB
C1842 NM
SYB
C1843 NM
SCH
C1839 470p/50 SCH
C1838 0.1u/10 SYB
C1848 0.1u/10 SYB
C1849 470p/50 SCH
L1810
NM
L1807
NM
L1812
QTL1013-A
L1814
QTL1013-A
L1815
QTL1013-A
L1813
QTL1013-A
IC1813
NM
4
2
5
3
1
IC1807
NM
4
2
5
3
1
IC1815
TC74VHC125FK
(1/4)
4
56
14
7
IC1815
(2/4)
10
98
14
7
IC1815
(3/4)
13
12 11
14
7
IC1815
(3/4)
1
23
14
7
TC74VHC157FK
IC1811
SELECTOR
SELECT
1
1A
2
1B
3
MCK
1Y
4
5
2A
6
2B
BCK
7
2Y
8
GND
FD
9
3Y
10
3B
11
3A
LRCK
12
4Y
13
4B
14
4A
15
XST
16
VCC
TC74VHC157FK
IC1810
SELECTOR
SELECT
1
1A
2
1B
3
MCK
1Y
4
5
2A
6
2B
BCK
7
2Y
8
GND
FD
9
3Y
10
3B
11
3A
LRCK
12
4Y
13
4B
14
4A
15
XST
16
VCC
TC74LCX157FK
IC1814
SELECTOR
SEL
1
1A
2
1B
3
MCK
1Y
4
5
2A
6
2B
BCK
7
2Y
8
GND
FD
9
3Y
10
3B
11
3A
LRCK
12
4Y
13
4B
14
4A
15
ST
16
VCC
R1851 100k
R1894 150
*R1907 NM
R1876 100
R1880 150
R1916 100k
R1875 100
R1855 100k
R1911 100k
R1925
100
R1879 100
R1896 150
*R1856
NM
R1853 100k
R1854 100k
*R1857
NM
R1927
100
R1862
NM
R1858
NM
R1938 NM
R1924
100
R1878 0
R1890
0
R1913 NM
R1917 100k
R1914 100k
R1935 47
R1932 1k
R1934 470
R1933 100
R1928 22
R1923 47
R1922 100
R1921 100
R1920 47
100
R1918 100
*R1909
NM
*R1910
NM
*R1860
NM
*R1859
NM
R1931 100
R1881 100
R1898 47
R1886 10
R1882 100
R1899 470
R1885 100
R1897 1k
R1900 47
R1884 100
R1883 10
R1930 22
R1895 1k
R1877 150
R1861
0
R1937 22
R1893 470
R1915 100k
R1850 100k
R1929 22
R1848 100k
R1912 100k
R1939 NM
R1888
NM
R1849 100k
R1936 22
R1852 100k
R1904
NM
R1926
100
V+3R3_D7
V+3R3_D6
V+3R3_D
V+3R3_D3
V+3R3_D9
V+3R3_D4
V+3R3_D10
DIRMCLK
NET_AUDIO
DC
DSP
HDSPDIF/DSDSL
NETSPDIF
R1943
NM
R1944
NM
R1945
NM
R1946
NM
R1947
NM
R1948
NM
R1949
NM
R1950
NM
C1817
NM
C1851
NM
FL/FR
SL
SR
HDMI PCM DATA
HSPDIF
HDMI DSD DATA
SBL/SBR
SL/SR
C/SW
CSDTI
HDLRCK
SW
FL
BDTI
BDTI
CDTI
HFDT
SDTI
HFDT
FR
CDTI
A XM or DIR
B USB
MASTER CLOCK GATE
DSD, PCM
SELECTOR
A/D GATE
A XM or DIR or USB
B HDMI
A ZXM or ZUSB
B ZNET
DIRBCK
DIRLRCK
EXCEPT
XM MODEL
DIRDATI
XXM
*R1874
*R1871
*R1873
*R1872
100u/16
*C1844
*C1832 SYB0.1u/10
*C1833 SCH470p/50
*L1808
QTL1013-A
TC74LCX157FK
*IC1808
SELECTOR
SEL
1
1A
2
1B
3
MCK
1Y
4
5
2A
6
2B
MCK
7
2Y
8
GND
FD
9
3Y
10
3B
11
3A
FD
12
4Y
13
4B
14
4A
15
ST
16
VCC
*R1867 100
*R1864 100
*R1892 150
*R1866 100
*R1863 100
*R1868 150
*R1865 47
*R1891 68
V+3R3_D1
*R1830 47k
A XM
B AD
A XM
B DIR
A XM
B DIR
XM MODEL
ONLY
MID-H&CU
ONLY
*C1835 470p/50 SCH
*C1834 0.1u/10 SYB *L1811
QTL1013-A
TC74VHC157FK
*IC1809
SELECTOR
SELECT
1
1A
2
1B
3
MCK
1Y
4
5
2A
6
2B
BCK
7
2Y
8
GND
FD
9
3Y
10
3B
11
3A
LRCK
12
4Y
13
4B
14
4A
15
XST
16
VCC
*R1901 100
100 *R1906 1k
*R1902 100
*R1870 100
*R1905 1k
100
100
100
*R1869 100
V+3R3_D2
A ZXM
B ZUSB
EXCEPT
XM MODEL
0
DIGITAL MAIN ASSY (6/10)
(AWX9718)
E6/10 F
E
1/10,3/10,
7/10,8/10
E
7/10
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

16 VSX-1325-K
12 3 4
A
B
C
D
E
F
12 3 4
2.6 XM REGULATOR ASSY
MF
!
!
CN4301
B2B-EH
EXT_AC2 1
EXT_AC1 2
3300u/25
*C4303
1
C4302
NM
C4304
NM
C4316
NM
*C4301
0.1u/50
CH
C4317
NM
*D4301
D3SBA20(B)
1
2
4
3
*H4301
AKR1004-A
1
*H4302
AKR1004-A
1
*JV4301
*R4302 1k
R4301
NM
MUF
VEF1040-A
JH4301
JP4103_1
PF04GG0S25_1
1
V+12_RY
2
V-12_RY
3
V+12_TRG
4
GND_TRG
R4308
NM
R4307
NM (2125)
XM
1. RESISTORS
Unit: k-k , M-M or unless
otherwise noted.
Rated Power: 1/10W unless
otherwise noted.
Toleranee: (J)5% unless
otherwise noted.
MUF : RD1/4MUF
2125 : RS1/8SQ
2. CAPACITORS
Unit: p-pF or u-uF unless
otherwise noted.
Ratings: Capacity(F)/Voltage(V)
unless otherwise noted.
CH : CCSRCH
NO MARKED : CEAT or CKSRYB
3. NM : NO MOUNT
TO TRANS
TO REGULATOR ASSY
FU11
AWX9582 ONLY
NOTE
CAUTION - FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE WITH SAME TYPE AND RATINGS OF FUSE.
awx9582 awx9667
C4301 0.1u/50 NM
C4303 3300u/25 NM
C4305 0.1u/25 NM
C4306 100u/25 NM
C4307 0.01u/50 NM
C4308 100u/50 NM
C4309 0.1u/50 NM
C4314 1000p/50 NM
C4315 1000p/50 NM
R4302 1k NM
R4303 220 NM
R4304 10 NM
IC4301 NJM7805FA NM
D4301 D3SBA20(B) NM
D4302 PTZ9R1(B) NM
D4303 NM NM
H4301 AKR1004-A NM
H4302 AKR1004-A NM
JV4301 NM
Q4301 2SD1763A(DE) NM
Q4302 LSC4081UB(QR) NM
XM REGULATOR ASSY
(AWX9582)
MF
JP4103
N
MAIN TRANS
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

17
VSX-1325-K
56 7 8
56 7 8
A
B
C
D
E
F
MF
!
!
3300u/25
*C4303
100u/25
*C4306
100u/50
*C4308
*C4315
1000p/50
CH
C4304
NM
*C4314
1000p/50
CH
*C4307
0.01u/50
C4313
NM
C4312
NM
C4311
NM
C4310
NM
*C4305
0.1u/25
*C4309
0.1u/50
1
*D4303
NM
*D4302
PTZ9R1(B)
GNDXM
NJM7805FA
*IC4301
1OUT 2GND 3IN
*Q4302
LSC4081UB(QR)
*Q4301
2SD1763A(DE)
*R4304
10
*R4302 1k
*R4303
220
V+5_XM
VEF1040-A
JH4301 VEF1040-A JH4302 VEF1040-A JH4303 NM JH4304
JP4303
PF08GG0S10
1EXT_AC1
2EXT_AC2
3V+5_XM
4GND_XM
5V+12_TRG
6GND_TRG
7V-12_RY
8V+12_RY
R4309
NM (2125)
TO USB REGULATOR ASSY
JP4303_1
L
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL [phone] QQ 376315150 892498299 TEL [phone] QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
