Pioneer SH-DT510 User manual

1
Operating instructions
Digital High Definition Tuner
SH-DT510

2
Safety First
VENTILATION CAUTION
When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
radiation (at least 8 cm at top, 5 cm at rear, and 5
cm at each side).
WARNING
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the
product, and to protect it from overheating. To
prevent fire hazard, the openings should never be
blocked or covered with items (such as newspapers,
table-cloths, curtains) or by operating the
equipment on thick carpet or a bed.
D3-4-2-1-7b_A_En

3
STANDBY/ON Button
STANDBY: When set to the STANDBY position, the
main power flow is cut and the unit is no longer
fully operational. A minute flow of power feeds
the unit to maintain operation readiness.
STANDBY Indicator
The red indicator is lit when the unit is in the
standby mode.
WARNING
This product equipped with a three-wire grounding
(earthed) plug - a plug that has a third (grounding)
pin. This plug only fits a grounding-type power
outlet. If you are unable to insert the plug into an
outlet, contact a licensed electrician to replace the
outlet with a properly grounded one. Do not
defeat the safety purpose of the grounding plug.
D3-4-2-1-6_A_En
CAUTION
The STANDBY/ON switch on this unit will not
completely shut off all power from the AC outlet.
Since the power cord serves as the main disconnect
device for the unit, you will need to unplug it from
the AC outlet to shut down all power. Therefore,
make sure the unit has been installed so that the
power cord can be easily unplugged from the AC
outlet in case of an accident. To avoid fire hazard,
the power cord should also be unplugged from the
AC outlet when left unused for a long period of time
(for example, when on vacation).
D3-4-2-2-2a_A_En

4
TABLE OF CONTENTS
Safety First .............................................................................. 2
Chapter 1: Introduction ......................................................... 6
Summary of Features ........................................................................................ 6
Getting Started ................................................................................................... 7
Menu Tree .......................................................................................................... 8
Chapter 2: Installation ........................................................... 9
Introduction ......................................................................................9
Package Contents ............................................................................. 9
Description of Equipment ...............................................................9
Remote Control Unit (RCU) ................................................................................ 9
Functions Of RCU Buttons ............................................................................. 10
Front Panel ........................................................................................................... 11
Rear Panel ............................................................................................................ 11
Physical Installation ............................................................................................ 12
Sample Configurations ....................................................................................... 13
HDMI Connection ........................................................................................... 13
High Definition TV(Y/Pb/Pr) Connection ..................................................... 13
S-Video Connection ........................................................................................ 14
Composite Video Connection ......................................................................... 14
Antenna Loop Connection .............................................................................. 15
Digital Audio Connection ............................................................................... 15
Chapter 3: Channel Setting ................................................. 16
Introduction ....................................................................................16
INSTALLATION ............................................................................17
QUICK SCAN ..................................................................................................... 17
AUTO SCAN ........................................................................................................ 18
MANUAL SCAN ................................................................................................. 19
CLEAR ALL DATA ............................................................................................ 19

5
General Setting ............................................................................... 20
TIME SETUP ...................................................................................................... 20
AUDIO SETUP .................................................................................................... 20
i - PLATE SETUP ............................................................................................... 21
SOFTWARE ........................................................................................................ 22
CURRENT VERSION .................................................................................... 22
INSTALL NEW S/W ...................................................................................... 22
Chapter 4: Using the Tuner ................................................. 23
Introduction .................................................................................... 23
Switching the Tuner On and Off .................................................. 23
Using the Menus and Remote Control Unit (RCU) .................... 23
Selecting Favorite Channels ............................................................................... 24
Favorite Channel List ......................................................................................... 24
PARENTAL GUIDANCE ................................................................................... 25
CHANGE PASSWORD ...................................................................................... 25
i-PLATE (INFORMATION PLATE) ............................................................... 26
TELETEXT / Closed Caption ........................................................................... 27
SLEEP .................................................................................................................. 28
Appendix A: Interference with The HDTV Tuner ............. 29
Appendix B: Troubleshooting .............................................. 30
Appendix C: DTV CHANNEL TABLE .............................. 32
Appendix D: Specifications .................................................. 34
Glossary ................................................................................. 36

6
Chapter 1: Introduction
Digital High Definition Tuner's Functions
The SH-DT510 digital High Definition tuner opens up a new world of free-to-
air terrestrial programming. This tuner can receive channels from
VHF/UHF band TV station's digital signals. All the major terrestrial free-to-air
digital station numbers currently available in your area are listed in the on-
screen menu. To access the high quality digital programs, simply select
the channel number on your remote control.
The SH-DT510 tuner is MPEG 2 / DVB-T (digital video broadcast-terrestrial)
compliant, delivering crisp video images and excellent sound. It supports a
broad signal range from 51-858 MHz, and can be easily programmed for all
the channels within the VHF/UHF frequency spectrum.
Summary of Features
The SH-DT510 supports digital functions that are MPEG 2-DVB compliant.
Just follow the friendly On-Screen Display (OSD) to guide you through all
the steps necessary to configure your tuner ; then begin enjoying all the
video and audio channels with crisp picture quality and the crystal clear
sound.
The key features of the receiver are described below:
Front Panel
The Front Panel of the tuner includes an LED display with important
channel information. For more information on the Front Panel refer to
Chapter 2
Remote Control Unit ( RCU )
The Remote Control Unit (RCU) provides access to a full range of the
system features. In addition to providing access to terrestrial programs with
the channel and volume controls, it can also be used to access all the
system menus.
In particular, the RCU has to be used to configure the transmission
parameter settings, select the channels you want to include in the program
list, as well as access many other configuration options. For more
information on using the RCU, refer to Chapter 2 and to the various system
operations described in Chapter 3.

7
System Menus
All the tuner's features can be accessed through the system menus. These
menus can be accessed with simple point and click actions, using the
navigation and select buttons on the RCU. The menus include items such as
Transmission Parameter Configuration, Channel List, Audio Options, and
Parental Lock. For more information on using the menu system, refer to the
simple "Menu Tree" described later in this chapter, or refer to the more
detailed menu descriptions in Chapters 3 and 4.
Parental Lock
Channels which are not suitable for viewing by children can be protected by
using the parental lock feature. (Password is initially set to "0000".)
Getting Started
This section provides a brief introduction to the SH-DT510 tuner. If a
service provider or professional system installer has already installed your
digital High Definition tuner and antenna, then this section should provide all
the
information you need to start using the tuner. For more information on basic
operations, refer to Chapter 3.
Before connecting any devices to the tuner, refer to the
"Safety First" page.

8
Menu Tree
Note:
You need to enter a " Password " to access some of the functionality in the menu.
Password is initially set to "0000". For more information, please refer Chapter 4
"CHANGE PASSWORD".

9
Chapter 2: Installation
Introduction
If your service provider or system installer has already set up the antenna and
connected the tuner, then you can start the operations specified in Chapter 4.
However, if you are setting up the system by yourself, please read through this
section and be sure you follow all of the precautions listed under "Safety First".
Package Contents
Unpack the tuner and check that all of the items listed below are included.
•SH-DT510 Digital High Definition tuner
•Remote Control Unit (with 2 AAA batteries)
•Audio Cable
•Video Cable
•Y/Pb/Pr cable
•Power Cable
•Operating instructions
Description of Equipment
The SH-DT510 digital High Definition tuner is designed to receive Free-To-Air
digital programming from VHF/UHF terrestrial TV channels.Please see the following
description:
Remote Control Unit (RCU)
The RCU provides easy access to all of the tuner's functions, including selecting
channels and using the menus. It uses infrared signals and must be operated at a
distance of three to four meters from the receiver. When using the RCU, be sure that
there is a direct line of sight to the tuner.
The batteries for the RCU are packaged separately. Before
you start using the tuner, please install these batteries with
+/- terminals aligned as per the picture below.
Note:
•To avoid damaging the RCU through battery leakage,
discard any depleted or old batteries.
•When disposing of used batteries, please comply
with governmental regulations or environmental public
instruction's rules that apply in your country/area.
1
2

10

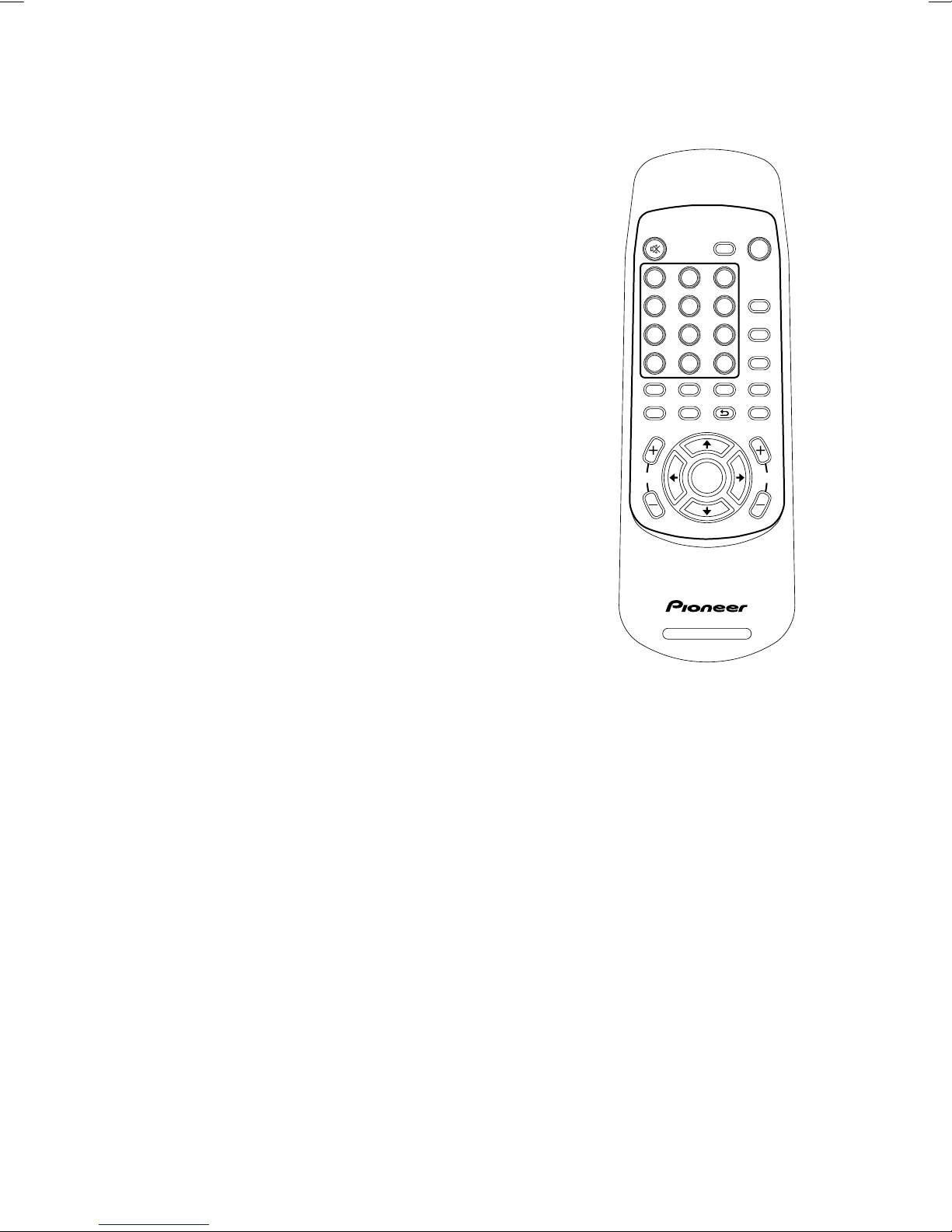

Functions Of RCU Buttons
The buttons on the remote control are described as follows:
•STANDBY/ON: Switches the tuner between ON and
STANDBY modes.
•Numeric Buttons: For entering channel number or
password.
•INFO: Displays i-Plate providing information about the
current channel.
•MENU: Activates the On-Screen Menu.
•FAV.: Selects the Favorite channel list.
•Direction buttons: Move through menus or submenus.
•ENTER: Displays channel list or enters highlighted menu
feature.
•CH+/CH-: Selects viewing channel one up or down in
program list.
•VOL+/VOL-: Raises or lowers audio volume.
•A.RATIO: Adjusts the picture height/width ratio between
16:9 and 4:3.
- 16:9(Wide Screen Display) : to display 16:9 program on 16:9
TV screen to display 4:3 program on 4:3 TV screen.
- 4:3(16:9 Letterbox): to display 16:9 program on 4:3 TV screen
in letterbox.
- 4:3(16:9 Crop) : to display 16:9 program cropped on 4:3 TV
screen.
•V.FORMAT: Toggle between "PAL (625i)", "1080i-
50(1125i)", "720P-50(750P)", and "576P-50(625P)" video format through Y/
Pb/Pr video format connector to optimise resolution.
Note:
PAL, 625i and 720x576i are identical,
1080i-50, 1125i and 1920x1080i are identical,
720P-50, 750P and 1280x720p are identical,
576P-50, 625P and 720x576p are identical.
•MUTE: Audio mute toggle.
•TTX: For Teletext Emulation and DVB Subtitle.
•RETURN: Exits main menu or one level up from submenus, and exits from the
EPG and information screens.
•LIST: Displays the complete channel /program list.
•AUDIO: Show the multiple table to move /buttons for selecting language
•Colour buttons: 4 colour buttons are prepared to be used for TELETEXT operations.
Use for fast access a group or block of Teletext pages.
•SLEEP: Sets the sleep timer.

STANDBY
/ ON
SLEEP
V. FORMAT
321
654
987
0
AUDIO
INFO
A.RATIO
TELETEXT
RETURN
VOLCH
ENTER
DIGITAL TUNER
TTX
MENU LISTFAV.
MUTE
