Pitaka MagEZ User manual

MagEZ Charging Stand for Tablets
User Manual

Package Contents
Features
Compatibility
Specs
Quick Guide
LED Indicators
Warranty
Exclusions & Limitations
Important
FAQ
Customer Service
Legal
FCC Warning

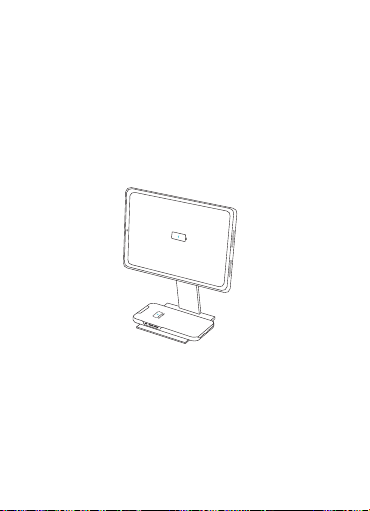

Thank you for purchasing the MagEZ Charging Stand
for Tablets, a magnetic charging stand for iPad with a
Qi charging base.
Contents
Welcome & Intro
2
3
5
5
6
14
15
16
17
19
21
21
22
1

Package Contents
1. MagEZ Charging Stand for Tablets * 1
2. Type-C - C Charging Cable * 1
3. Allen Wrench * 1
①
2
②
③

Features
A magnetic charging stand for iPad with a built-in
wireless charging base for Qi-enabled smartphones
and earbuds.
20W max charging speed for iPad and max 15W for
Qi-enabled devices.
Attach a tablet to use as a second screen or desktop
computer.
Rotates between portrait and landscape positions.
Tilts forward 32.5 degrees and backward 5 degrees.
Ergonomic eye-level design for the best viewing
angle.
Made from premium zinc and aluminum alloy, and
aerospace-grade aramid fiber.
Reusable gel pads stick firmly to tables, glass, etc.
LED lights indicate charging status.
3

A 45W PD fast charger is highly recommended for
rated input.
When using a PD20W or higher power adapter, the
product will intelligently allocate the output power
according to the different charger power, as follows:
When using a PD20W power adapter, and charging
at charging base and iPad charging pad simultane-
ously, the product will intelligently allocate 5W for
charging base and 12W for iPad charging pad; when
the product detects that the iPad is fully charged, it
will intelligently adjust the power allocation and
increase the charging base power to 7.5W or 10W.
4
Power Adapter
Powe
Charging at Either One Simultaneous Charging
20W
Charging Base
10W
15W
15W
15W
Charging Base
5W
7.5W
10W
15W
12W
18W
20W
20W
iPad Charging
Pad
iPad Charging
Pad
15W
18W
20W
20W
30W
36W
45W+

5
Specs
Items
Material
Type-C Input
Type-C Input
Magnetic Charging Pad Output
Wireless Output
Wireless Output distance
Other Function
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Adjustable View
Specifications
Aluminum Alloy+Zinc Alloy+Aramid Fiber
Support 20W or higher charger (45W PD
fast charger is highly recommended)
Foreign Object Detection, Temperature Protection,
Overcurrent Protection andShort Circuit Protection
DC 9V/3A, 12V/3A, 15V/3A
DC 5V/3A, 9V/2.22A, 12V/1.67A
5W/7.5W/10W/15W
14°F to 86°F (-10 to 30℃)
-4°F to 140°F(-20 to 60℃)
45 to 85%RH
30 to 90%RH
Tilts forward 32.5° & backward -5°
≤ 8mm
Compatibility
The magnetic charging stand is compatible with
iPad Pro 2021/2022 and iPad mini 6 using the
MagEZ Case Pro from PITAKA;
The charging base is suitable for all Qi-enabled devices.

6
Items
Color
Product Weight
Product Size
Specifications
665g/23.5oz
133.97 x 123.97 x 245.17mm/5.3 x 4.9 x 9.7in
Black, Gun-Grey

Quick Guide
1. MagEZ Charging Stand Assembling.
MagEZ磁吸充电支架组装。
7
使用随附的内六角扳手固定螺栓。
b. Secure the bolts with the Allen wrench included.
将立柱带螺孔一端插入底座。
a. Slot the mount to the base.

8
2. MagEZ Charging Stand Placement & Fixation
MagEZ磁吸充电支架放置&固定。
使用随附的Type-C转C充电线连接磁吸充电支架和您的充电器 (强烈推
荐45W PD快速充电器)。
a. Connect the MagEZ Charging Stand and your USB-C
power adapter (45W PDfast charger is highly recomm-
ended)with the Type-C - C Charging Cable included.

9
清洁并擦干您想放置MagEZ磁吸充电支架的工作台面，并在放置前撕下
底座黏胶的保护膜。
b. Clean and dry your work surface where you would like
to place your MagEZ Charging Stand and peel off the
base's protective film before placement.

10
3. Charging.
充电。
接通电源。
a. Connect to power.

11
只需将装备MagEZ Case Pro保护壳的iPad mini 6吸附到磁
性充电面板上，即可获得高达20W的无线充电体验。
b. Simply attach your iPad equipped with our
MagEZ Case Pro on the magnetic charging pad for
up to 20W wireless-like charging experience.

12
将支持Qi无线标准的设备放在充电底座上，即可实现高达
15W的无线充电 (iPhone 7.5W/Android最高15W/耳塞5W)。
c. Place a Qi-enabled device, smartphone or earbuds,
for example, on the charging base for up to 15W wir-
eless charging (iPhone 7.5W/Android up to 15W/ear-
buds 5W).
*The mentioned MagEZ Case Pro is not included in this package.
*上述MagEZ Case Pro不包含在此包装内。

13
扫码查看操作视频
*Scan QR code for video instruction.

LED Indicators
Red and white lights flash alternately for 3s,
then go off
White light stays on
No lights
Red light flashes every 0.5s
Red light stays on
Red light stays on
Red light flashes every second
LED Indicator Activity
14
Operating Status
Overcurrent/ Short Circuit
Protection
Overvoltage/Low-voltage
Protection
Stand has power
The charging base is
charging a device
The charging base standby
Overheating Protection
Foreign Object Detection

Warranty
At PITAKA, we are always striving to provide our
customers with the best quality products. The PITAKA
MagEZ Charging Stand for Tablets is guaranteed for 6
months from the date of purchase. The MagEZ
Charging Stand for Tablets is warranted to be free of
defects in materials and function under normal use. A
defect is defined as an imperfection or flaw during
the manufacturing process. The warranty is
non-transferable and covers the original end-user
purchaser. PITAKA will only authorize the warranty
claim if the products were purchased from an official
store or an authorized dealer. For full details
regarding warranty terms and exclusions, please visit:
https://www.ipitaka.com/pages/shipping-warranty
15

Exclusions & Limitations
Except for the limited warranty expressly set forth or to
the extent restricted or prohibited by applicable law,
PITAKA expressly disclaims any other warranties
express or implied, including any warranty of quality,
merchantability, or fitness for a particular purpose, and
you specifically agree that PITAKA shall not be liable
for any special, incidental, indirect, punitive, or
consequential damages of any type on any PITAKA
product. In addition to and without limiting the
generality of the foregoing disclaimers, the limited
warranty does not, under any circumstances, cover the
replacement or cost of any electronic device or
personal property inside or outside of the PITAKA
product.
16

Please use a safety-certified 20W or higher PD
fast charger to power this product. A 45W PD fast
charger is highly recommended.
Please do not place any foreign object between
the wireless charging base and the smartphone,
so as not to affect the charging performance.
Do not use or store this product in wet
environments, and it's forbidden to place this
product in a high temperature environment.
It's best to place it in an environment with a
temperature of 25±5℃and a humidity of
65±20%RH for long-term storage.
All the electrical parameters must not exceed the
parameters specified in this specification.
Do not disassemble the product under any
circumstances, let alone disassemble the built-in
electronic components, otherwise, it may cause
an internal short circuit, which may cause fire and
other problems.
Important
17

Do not drop, impact or bend the product, or hit
the product with sharp parts.
Under any circumstances, it's forbidden to burn
this product or throw it into the fire. Very
dangerous!
I- It's forbidden to immerse the product in any
liquid, such as fresh water, sea water, beverages,
gasoline, etc.
Disposal of the product in ordinary garbage
disposals is prohibited.
Damaged products are prohibited from using.
The product may get damaged due to impact
and other reasons during transportation. If any
abnormality is found, the product should not be
used, and should be kept away from fire sources,
under the scorching sun and other high-tem-
perature occasions to avoid accidents.
18

Q: Why does the wireless charging base
overheat or charge slowly while charging a
smartphone?
A: 1. Adjust the position of your phone and make
sure it's put within the specific area;
2.Check if the ambient temperature exceeds
82.4°F/28℃;
Q: Wireless charging is not working.
A: 1. Check if the charging cable is OK, and if it's
too thin or too long;
2.Check if the charger is OK;
3.Check if the charger power meets the
requirements;
4.Adjust the position of your phone and make
sure it's put within the specific area;
FAQ
19
