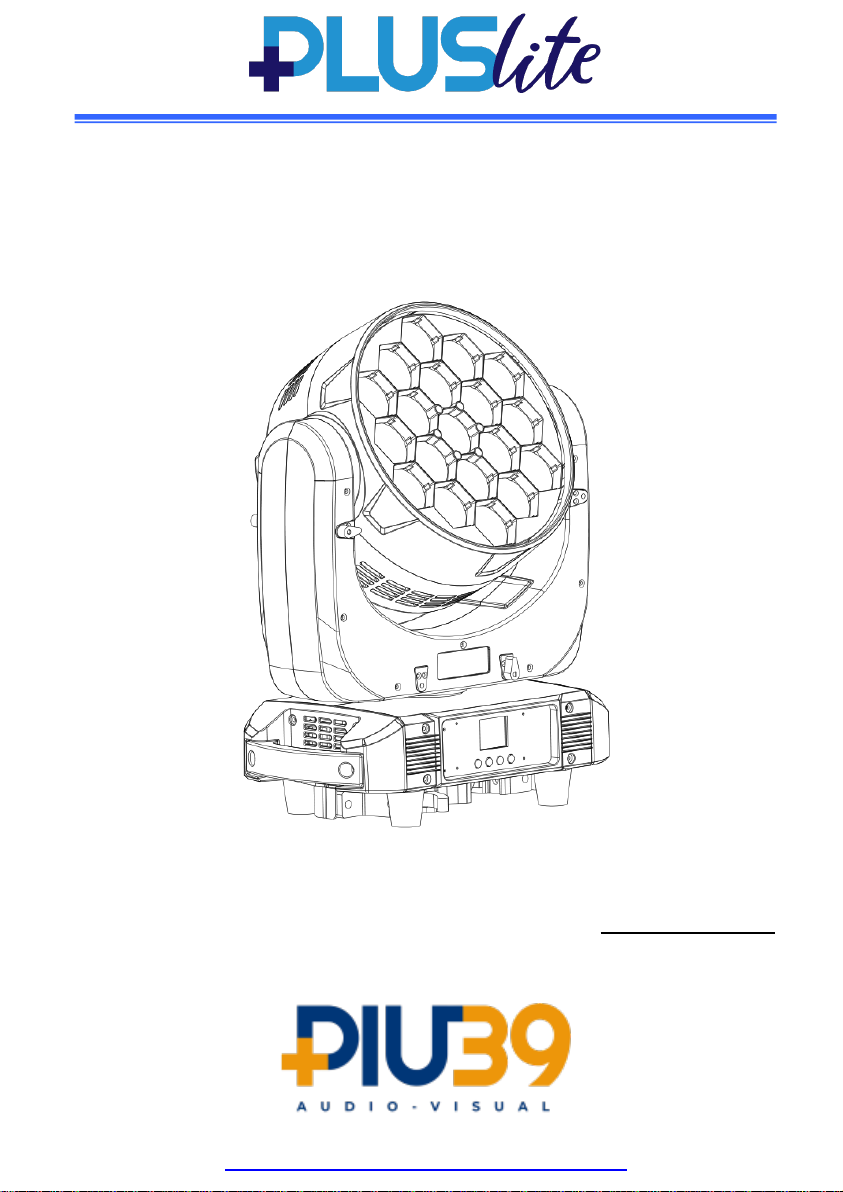

PIU39 PLUSLITE PIXEL PL1940 User manual

Moving Head LED Zoom RGBW 19x40w
User manual
PIXEL-PL1940
https://www.piu39av.com/pluslite-lighting/

2
TABLE OF CONTENTS
1. S af ety I nst r uctions ......................................................................................1 - 2
2. Technical Specifications ......................................................................................... 5
3. How To Control The Unit ........................................................................................ 6
4. DMX Channel List.........................................................................................16
5. Shape.........................................................................................................................18
6
.Trouble shooting .................................................................................................... 19
7
. Fixture Cleaning .................................................................................................... 20
statement
The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also can not be responsible for any malfunction & problem owing to
ignore the manual.
1. S af ety I nst r uctions
Please keep this User Guide for future consultation. If you sell the unit to another
user, be sure that they also receive this instruction booklet.

3
 Unpack and check carefully there is no transportation damage before using
the unit.
 Before operating, ensure that the voltage and frequency of power
supply match the power requirements of the unit.
 It’s important to ground the yellow/green conductor to earth in order
to avoid electric shock.
 The unit is for indoor use only. Use only in a dry location.
 The unit must be installed in a location with adequate ventilation, at
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.
 Disconnect main power before replacement or servicing.
 Make sure there are no flammable materials close to the unit while operating as
it is fire hazard.
 Use safety cable when fixes this unit. DO NOT handle the unit by taking its head
only, but always by taking its base.
 Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this Unit surface temperature may reach up to 85℃.
DO NOT touch the housing bare-hand during its operation. Turn off the power
and allow about 15 minutes for the unit to cool down before replacing or serving.
 the event of serious operating problem, stop using the unit immediately.Never
try to repair the unit by yourself. Repairs carried out by unskilled people can
lead to damage or malfunction. Please contact the nearest authorized
technical assistance center. Always use the same type spare parts.
 DO NOT touch any wire during operation as high voltage might be causing
electric shock.
Warning:
 To prevent or reduce the risk of electrical shock or fire, do not expose the unit to
rain or moisture.

4
 DO NOT open the unit within five minutes after switching off.
 The housing, the lenses, or the ultraviolet filter must be replaced
if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing
or attempt any repairs yourself. In the unlikely event your unit may require
service, please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that
the unit is firmly fixed to avoid vibration and slipping while operating.
And make sure that the structure to which you are attaching the unit is secure
and is able to support a weight of 10 times of the unit’s weight. Also always use a
safety cable that can hold 12 times of the weight of the unit when installing the
fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people.
2. Technical Specifications
Light Sources: 19*40W 4IN1 RGBW LED
Beam Angle:3°- 45°
Power Consumption: 750w
Power Voltage: AC 100-260V, 50/60Hz
Net Weight:16.5 kgs
Gross Weight: 18.5 Kgs
Control
DMX Channel:21/23/35/78/92/97/99 Channels

5
Control Modes: DMX512/mater-Slave/Auto Run/Music
Pan/Tilt
Pan : 540°/ 360° ,Tilt : 270°
Pan/Tilt Resolution: 8/16 bit
Construction
Display:180° reversible LCD Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: Power Con in/out
Protection Rating: IP20
Features
LED single control,can display arrows,numbers,letters and patterns
High-efficiency optical system ,wonderful flower effect plus zoom
Fan work speed auto adjustable with head temperature
Led temperature protection & Fan run speed automatic based on the head
temperature.

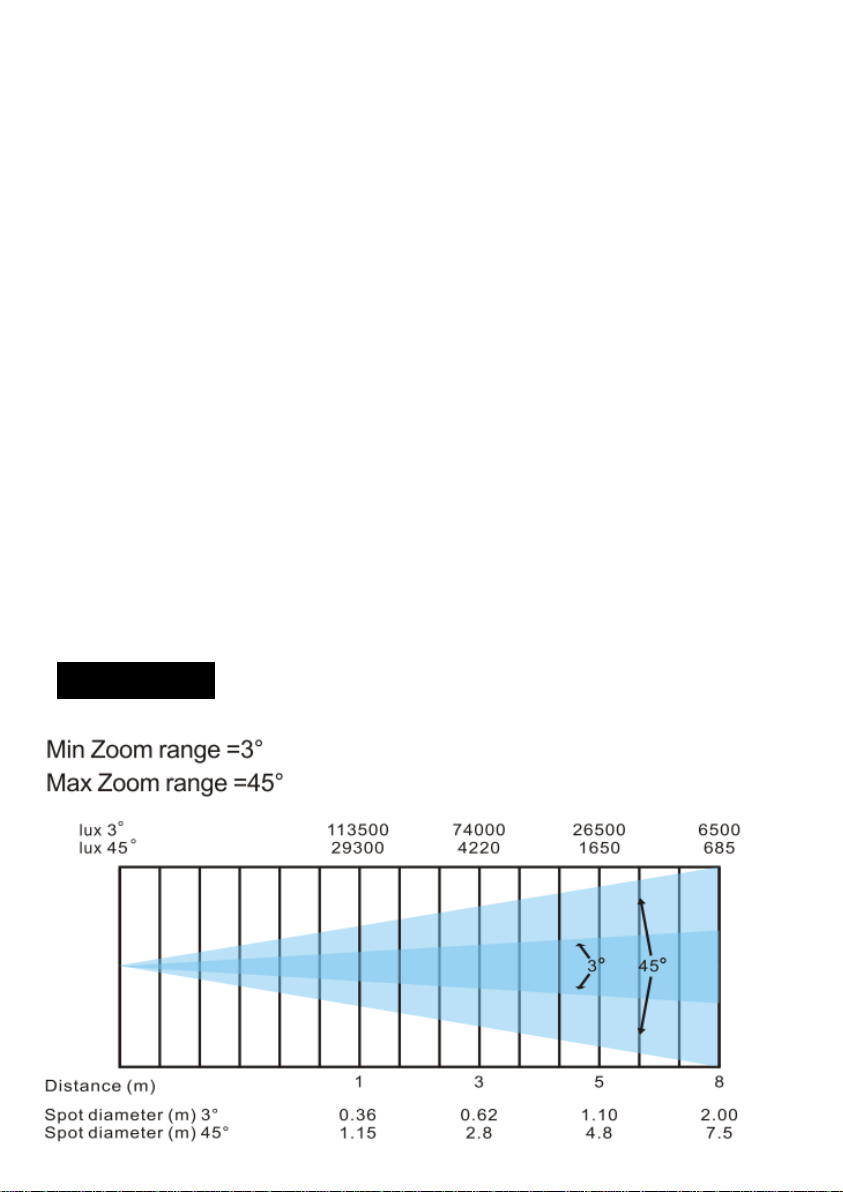

3.Lux Date

6
4. How To Control The Unit

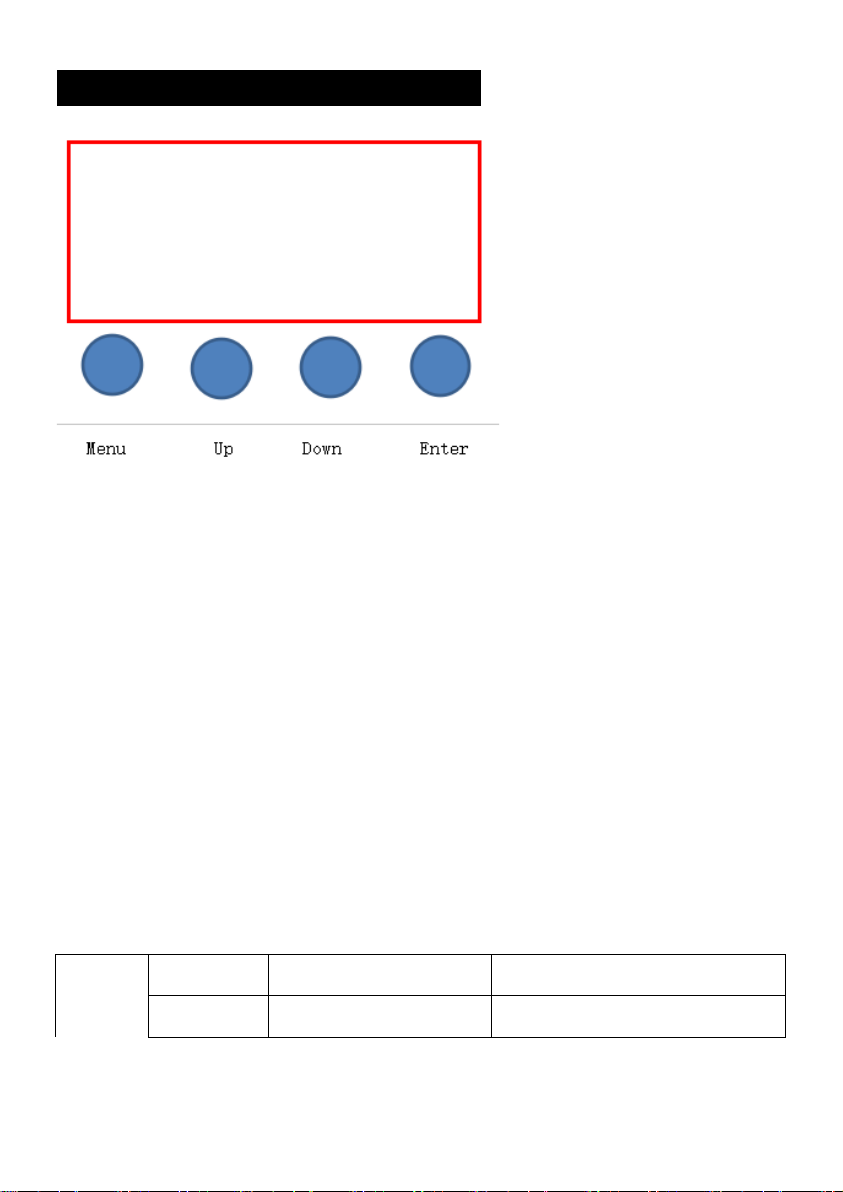

Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
uP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code
1 Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter
into
2 Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
3 Press "ENTER"keys to save and Exit,Press the"MENU"Keys does not
save and Exit
4
Menu
Pan Degree
1)
540 °, 2)360°
X
-axis running angle selection
Mic Sense
001
- 100
Sound
sensitivity adjustment

7
Language
English
Chinese
Reset
Yes
No
Default
Yes
No
Adjust
Pass Word
：up+down+up+down
Pan
0 - 255
Tilt
0 - 255
Focus
0 - 255
Red 0 - 255
Green 0 - 255
Blue 0 - 255
White
0 - 255
Address
Setting from
001 - 512
Reverse
Forward or
reversed
setting
Pan
1.Yes
2.No
Tilt
1.Yes
2.No
Display
1.Yes
2.No
Information
1.CH Value
Each channel show CH value
2.Temp ____℃
Show the temperature of led
board
Information
3.Soft V1.
1
Sh
ow the version number
21 channels
23 channels

8
Channel
35 channels
78 channels
92 channels
97 channels
99channels
Mode
DMX 512
AUTO
SOUND
Manual
Master
Pan
：0--255
Manual Control
Tilt:0
--255
Focus:0
--255
Rota:0-255
Red
：0--255
Alone
Greed
：0--255
Blue
：0--255
White
：0--255
Strobe
：0-255
5.DMX Channel List
Model 1 - CH21
Channel Display Function Value
CH-1 Red Red dimming 0 --- 255
CH-2 Red adjustment Red adjustment 0 --- 255

9
CH-3 Green Green dimming 0 --- 255
CH-4 Green adjustment Green adjustment 0 --- 255
CH-5 Blue Blue dimming 0 --- 255
CH-6 Blue adjustment Blue dimming 0 --- 255
CH-7 White White dimming 0 --- 255
CH-8 White adjustment White adjustment 0 --- 255
CH-9
Color temperature
No 0--15
R100%,G UP,B0% 16--35
R DOWM,G100%,B0% 36--55
R0%,G100%,B UP 56--75
R0%,G DOWM,B100% 76--95
R UP,G0%,B100% 96--115
R100%,G0%,B DOWM 116--135
R100%,G UP,B UP 136--155
R DOWM,G DOWM, B 100% 156--175
R100%G100%B100%W100% 176--195

10
CH-9
Color temperature
2800K 196--200
3200K 201--205
3500K 206--210
4000K 211--215
4500K 216--220
5000K 221--225
5500K 226--230
6000K 231--235
6500K 236--240
7000K 241--245
7500K 246--250
8000K 251--255
CH-10 Macro color
No 0--9
Macro color 1 10--19
CH-10
Macro color
Macro color 2 20--29
....(10 numbers 1 macro color) ....
Macro color 24 240--249
Macro color 25 250--255
CH-11 Strobe
Turn on the light 0---3
Synchro strobe speed

11
slow to fast (1HZ-25HZ) 4---203
Random strobe 204--255
CH-12 Dimmer dark to bright linear dimming 0 --- 255
CH-13 Dimmer adjust Dimmer adjustment control 0 --- 255
CH-14 Pan Pan control 0 --- 255
CH-15 Pan adjustment Pan adjustment control 0 --- 255
CH-16 Tilt Tilt control 0 --- 255
CH-17 Tilt adjustment Tilt adjustment control 0 --- 255
CH-18 Dimming Mode
Mode -1 0 --- 49
Mode -2 50 --- 99
Mode -3 100---149
Mode -4 150---255
CH-19 Reset
NO 0-250
Reset within 5s 251---255
CH-20 Zoom Zoom 0-255
CH-21 Lens rotation
0~60° 0-155
Clockwise infinite rotation 156-205
Counterclockwise rotation 206-255
Model 2 - CH23

12
Channel Display Function Value
CH-1 Pan 0-540° 0 --- 255
CH-2 Pan adjustment 16bit adjustment 0 --- 255
CH-3 Tilt 0-205° 0 --- 255
CH-4 Tilt adjustment 16bit adjustment 0 --- 255
CH-5 XY speed Speed from fast to slow 0 --- 255
CH-6 Zoom Angle from small to large 0 --- 255
CH-7
Lens rotation
0~60° 0-155
Clockwise infinite rota
tion from
fast to slow
156-205
Counterclockwise rotation from
slow to fast
206-255
CH-8 Dimmer dark to bright linear dimming 0 --- 255
CH-9 Strobe Turn on the light 0---3
CH-9 Strobe
Synchro strobe speed
From slow to fast (1HZ-25HZ)
4---203
Random strobe 204--255
CH-10 R dimming dark to bright linear dimming 0-255
CH-11 G dimming dark to bright linear dimming 0-255
CH-12 B dimming dark to bright linear dimming 0-255

13
CH-13 W dimming dark to bright linear dimming 0-255
CH-14
Color
temperature
No 0 ---15
R100%,G UP,B0% 16---35
R DOWM,G100%,B0% 36---55
R0%,G100%,B UP 56---75
R0%,G DOWM,B100% 76---95
R UP,G0%,B100% 96---115
R100%,G0%,B DOWM 116---135
R100%,G UP,B UP 136---155
R DOWM,G DOWM, B 100% 156---175
R100%,G100%,B100%,W100% 176---195
2800K 196---200
3200K 201---205
3500K 206---210
4000K 211---215
4500K 216---220
5000K 221---225

14
CH-14
Color
temperature
5500K 226--230
6000K 231--235
6500K 236--240
7000K 241--245
7500K 246--250
8000K 251--255
CH-15
Macro color
No 0--9
Macro color 1 10--19
Macro color 2 20--29
....(10 numbers 1 macro color) ....
Macro color 24 240--249
Macro color 25 250--255
CH-16
Static pattern
No 0--9
Monochrome pattern 1 10--12
Monochrome pattern 2 13--15
.........(3 numbers 1 pattern) .....
Monochrome pattern 67 208--210
Mixed color pattern 1 211--213
Mixed color pattern 2 214--216
....(3 numbers 1 pattern) ....

15
CH-16 Static pattern Mixed color pattern 14 250--252
Mixed color pattern 15 253--255
CH-17
CH-17 Dynamic
pattern
NO 0--9
Monochrome dynamic pattern 1 10--14
Monochrome dynamic pattern 2 15--19
......(5 numbers 1 pattern) .....
Monochrome pattern 30 155--159
Mixed color dynamic pattern 1 160--164
Mixed color dynamic pattern 2 165--169
........(5 numbers 1 pattern) ..........
Mixed color dynamic pattern 13 220--224
Mixed color dynamic pattern 14 225--255
CH-18
Dynamic
pattern speed
Forward, from fast to slow（with
17CH）
0--127
Reverse, from slow to fast(with
17CH)
128--255
CH-19 Back color R dark to bright linear dimming 0-255
CH-20 Back color G dark to bright linear dimming 0-255
CH-21 Back color B dark to bright linear dimming 0-255
CH-22 Back color W dark to bright linear dimming 0-255
NO 0-250

16
CH-23 Reset Reset within 5s 251-255
Model 3 - CH35
Channel Display Function Value
CH-1 Red Red dimming 0 --- 255
CH-2 Red adjustment Red adjustment 0 --- 255
CH-3 Green Green dimming 0 --- 255
CH-4 Green adjustment Green adjustment 0 --- 255
CH-5 Blue Blue dimming 0 --- 255
CH-6 Blue adjustment Blue dimming 0 --- 255
CH-7 White White dimming 0 --- 255
CH-8 White adjustment White adjustment 0 --- 255
CH-9
Color temperature
No 0 ---15
R100%,G UP,B0% 16---35
R DOWM,G100%,B0% 36---55
R0%,G100%,B UP 56---75

17
CH-9
CH-9
Color temperature
Color temperature
R0%,G DOWM,B100% 76---95
R UP,G0%,B100% 96---115
R100%,G0%,B DOWM 116--135
R100%,G UP,B UP 136---155
R DOWM,G DOWM, B 100% 156---175
R100%G100%B100%W100% 176---195
2800K 196---200
3200K 201---205
3500K 206---210
4000K 211---215
4500K 216---220
5000K 221---225
5500K 226--230
6000K 231--235
6500K 236--240
7000K 241--245
7500K 246--250
8000K 251--255

18
CH-10
Macro color
No 0--9
Macro color 1 10--19
Macro color 2 20--29
....(10 numbers 1 macro color) ....
Macro color 24 240--249
Macro color 25 250--255
CH-11 Strobe
Turn on the light 0---3
Synchro strobe speed
From slow to fast (1HZ-25HZ) 4---203
Random strobe 204--255
CH-12 Dimmer dark to bright linear dimming 0 --- 255
CH-13 Dimmer adjust Dimmer adjustment control 0 --- 255
CH-14 Pan Pan control 0 --- 255
CH-15 Pan adjustment Pan adjustment control 0 --- 255
CH-16 Tilt Tilt control 0 --- 255
CH-17 Tilt adjustment Tilt adjustment control 0 --- 255
CH-18
CH-18
Dimming Mode
Dimming Mode
Mode -1 0 --- 49
Mode -2 50 --- 99
Mode -3 100---149

19
Mode -4 150---255
CH-19 Reset NO 0-250
Reset within 5s 251---255
CH-20 Zoom Zoom 0-255
CH-21 Lens rotation
0~60° 0-155
Clockwise infinite rotation 156-205
Counterclockwise rotation 206-255
CH-22 Pattern rotation
NO 0--9
Monochrome dynamic pattern
1
10--14
Monochrome dynamic pattern
2
15--19
......(5 numbers 1 pattern) .....
Monochrome pattern 30 155--159
Mixed color dynamic pattern 1 160--164
Mixed color dynamic pattern 2 165--169
........(5 numbers 1 pattern) ..........
Mixed color dynamic pattern
13
220--224
Mixed color dynamic pattern
14
225--255
CH-23 Pattern effect NO 0--9

20
speed Forward, from fast to slow(with
22CH）
10--132
Reverse, from slow to fast(with
22CH)
133--255
CH-24 Pattern effect fade Pattern effect fade 0-255
CH-25 Pattern Back R Pattern effect R 0-255
CH-26 Pattern Back G Pattern effect G 0-255
CH-27 Pattern Back B Pattern effect B 0-255
CH-28 Pattern Back W Pattern effect W 0-255
CH-29 Pattern dimming Pattern 0-100% dimming 0-255
CH-30 Background
dimming
Background 0-100% dimming 0-255
CH-31 Pattern change Pattern change control 0-255
CH-32 Pattern movement Pattern movement(with 22CH) 0-255
CH-33 Prospects strobe Prospects strobe 0-255
CH-34 Background strobe Background strobe 0-255
CH-35 Background
pattern selection
Background selection 0-255
Model 4 - CH78
Channel Display Function Value
