Pknight SWB FX 720 User manual

SWB FX 720
user manual
Pknight
®
SWB FX 720 Manual Page 1

Pknight
®
SWB FX 720 Manual Page 2
CONTENTS
Introduction 3
Customer Support 3
How To install bracket 3
REMOTE DEVICE MANAGEMENT 4
Control Panel 5
Menu Function 6
Factory Settings 7
DMX Modes 8
·
DMX Mode|4CH 8
·
DMX Mode|16CH 9~13
·
DMX Mode|168CH 14
Technical Features 15

Pknight
®
SWB FX 720 Manual Page 3
Introduction
Customer Support
How To install bracket
scan me to learn to install bracket
Congratulations and thank you for purchasing the SWB
FX 720.The SWB FX 720 is a DMX intelligent, high
powered LED xture.Designed for mobile or permanent
lighting of stages, clubs, dance floors and churches.
please read these operating instructions carefully to
familiarize yourself with the basic operations of this unit.
These instructions contain important safety information
regarding the use and maintenance of this unit. Please
keep this manual with the unit for future reference.
Pknight Products,LLC provides a toll free customer
support,to provide set up help and to answer any
question should you encounter problems during your set
up or initial operation.You may also visit us on the web at
www.pknightpro.com for any comments or suggestions.
E-mail: [email protected]
We will contact you within 24 hours

REMOTE DEVICE MANAGEMENT
NOTE: In order for RDM to work properly, RDM
enabled equipment must be used throughout
the entire system, including DMX data splitters and
wireless systems.
Remote Device Management (RDM) is a protocol that
sits on top of the DMX512 data standard for lighting, and
allows the DMX systems of the fixtures to be modified
and monitored remotely. This protocol is ideal for
instances in which a unit is installed in a location that is
not easily accessible.
With RDM, the DMX512 system becomes bi-directional,
allowing a compatible RDM enabled controller to send
out a signal to devices on the wire, as well as allowing
the fixture to respond (known as a GET command).
The controller can then use its SET command to modify
settings that would typically have to be changed or
viewed directly via the unit’s display screen, including the
DMX Address, DMX Channel Mode, and Temperature
Sensors.
Please be aware that not all RDM devices support all
RDM features, and therefore it is important to check
beforehand to ensure that the equipment that you are
considering includes all of the features that you require.
Pknight
®
SWB FX 720 Manual Page 4

Control Panel
The fixture includes an easy to navigate
system menu control panel display where
all necessary settings and adjustments are
made. (See image above)
MENU :To select the functions
UP :To go forward in the selected functions
DOWN :To go backward in the selected functions
ENTER : Select an option or conrm a selection.
Pknight
®
SWB FX 720 Manual Page 5

Menu Function

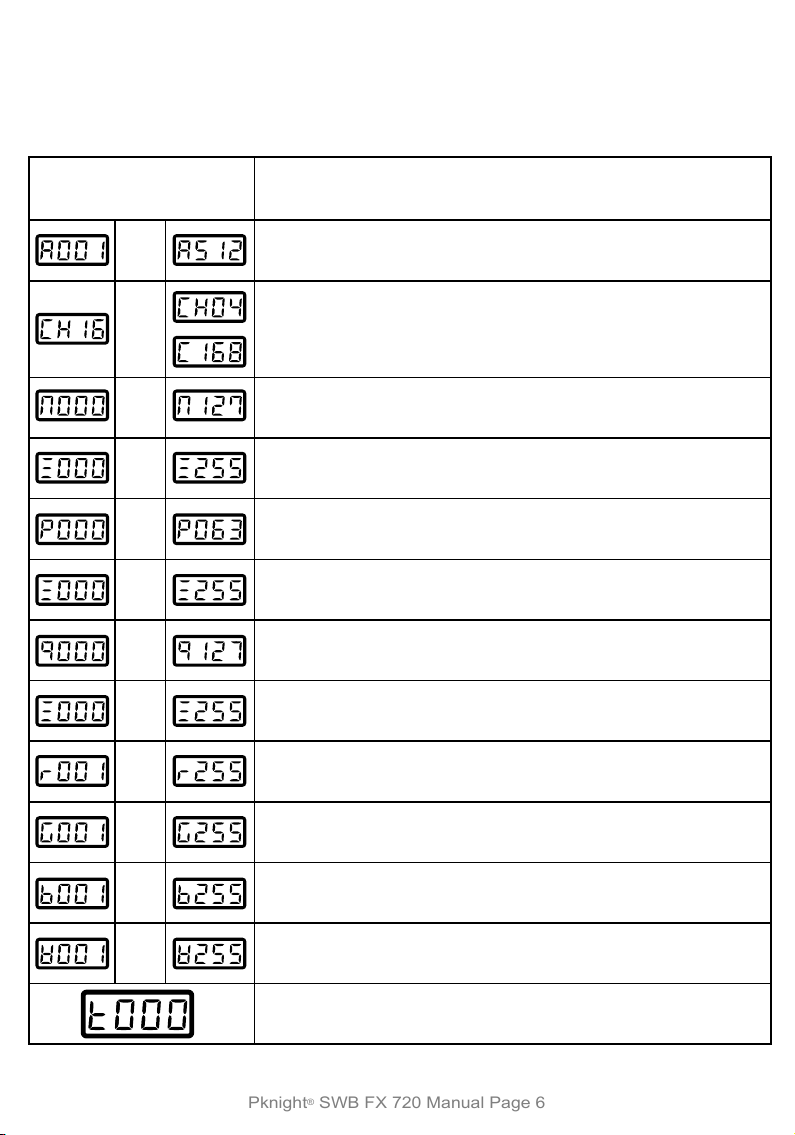

LED DISPLAY FUNCTION
→Select the DMX address by UP or DOWN, and click ENTER to save.
→Three DMX modes(4CH,16CH,168CH),Select the DMX modes by UP
or DOWN,and click ENTER to save.CH16 is default
→127 RGB built-in programs,Select the built-in program by UP or
DOWN,and click ENTER to save.
→Adjust the speed of the RGB built-in program by UP or DOWN, s000
is the slowest, s255 is the fastest
→63 WHITE built-in programs,Select the built-in program by UP or
DOWN,and click ENTER to save.
→Adjust the speed of the WHITE built-in programs by UP or DOWN,
s000 is the slowest, s255 is the fastest
→127 RGBW built-in programs,Select the built-in program by UP or
DOWN,and click ENTER to save.
→Adjust the speed of the RGBW built-in program by UP or DOWN, s000
is the slowest, s255 is the fastest
→Manually set the brightness of the white LED (r000 ~ r255) and press
ENTER to save.
→Manually set the brightness of the white LED (g000 ~ g255) and press
ENTER to save.
→Manually set the brightness of the white LED (b000 ~ b255) and press
ENTER to save.
→Manually set the brightness of the white LED (w000 ~ W255) and
press ENTER to save.
Display temperature, for example, t045 indicates that the current lamp
temperature is 45°C
Pknight
®
SWB FX 720 Manual Page 6

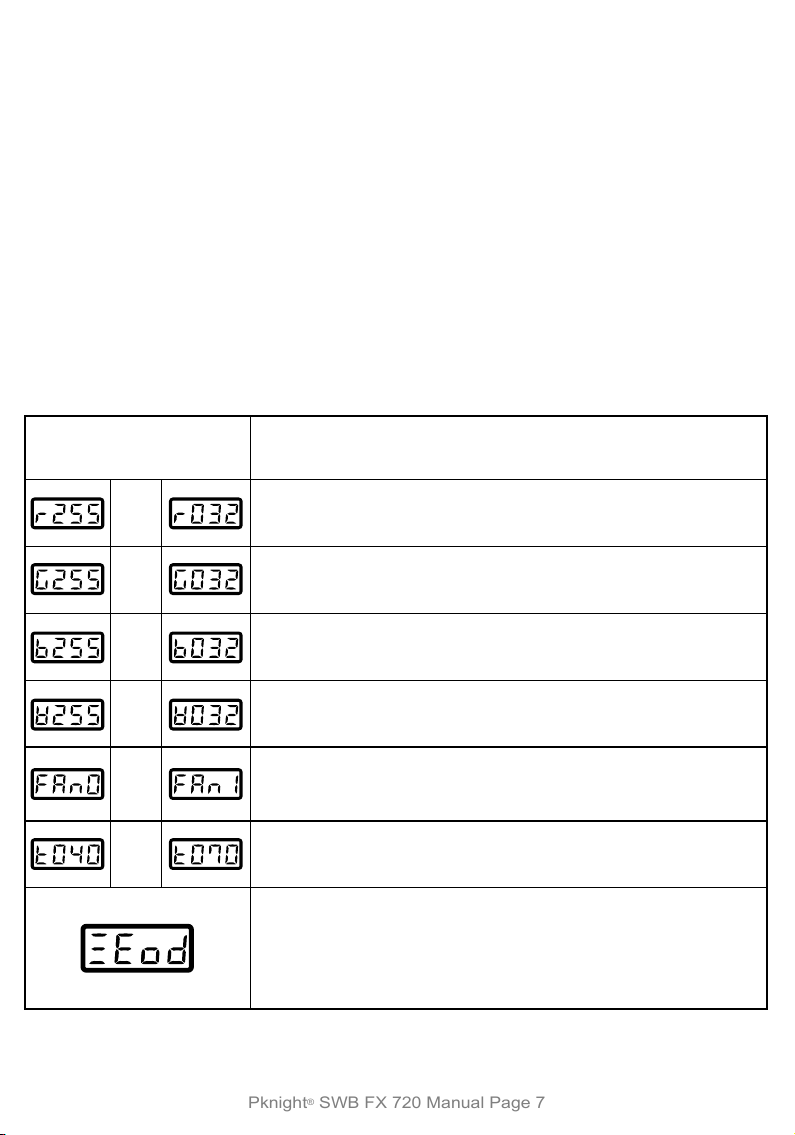

LED DISPLAY FUNCTION
→Manually set the highest current output of the red lamp beads, r32 is
the lowest, r255 is the highest
→Manually set the highest current output of the green lamp beads, r32
is the lowest, r255 is the highest
→Manually set the highest current output of the blue lamp beads, r32 is
the lowest, r255 is the highest
→Manually set the highest current output of the white lamp beads, r32 is
the lowest, r255 is the highest
→
If you set it to fan0, the fan will start immediately after power on,
and if you set it to fan1, the fan will not start until it reaches a certain
protection temperature
→Manually set the protection temperature (40°C~70°C) and press
ENTER to save.
If you want to conrm the modied settings and synchronize the
settings of other identical lights, just press and hold the menu button
for 3 seconds until you exit the factory settings page, note that all
lights that need to be synchronized must be the same and connected
using an xlr signal line
Factory Settings
In case of any address code from A001 to A512, press
the MENU button for 5 seconds to enter the factory
setting. Factory setting mainly includes the functions
of output power, fan setting mode, setting temperature
protection point and sending parameters. If you finish
the setting, just press the MENU button for 3 seconds to
save the setting and exit the setting page.
Pknight
®
SWB FX 720 Manual Page 7

DMX Modes - 4CH|16CH|168CH
DMX Mode|4CH
NO. VALUE NAME FUNCTION
1 000~255 Red Dimmer Outer Red Dimmer, 0% to 100%
2 000~255 Green Dimmer Outer Green Dimmer, 0% to 100%
3 000~255 Blue Dimmer Outer Blue Dimmer, 0% to 100%
4 000~255 White Dimmer Inner White Dimmer, 0% to 100%
Pknight
®
SWB FX 720 Manual Page 8

DMX Mode|4CH
NO. VALUE NAME FUNCTION
1 000~255 Red Dimmer Outer Red Dimmer, 0% to 100%
2 000~255 Green Dimmer Outer Green Dimmer, 0% to 100%
3 000~255 Blue Dimmer Outer Blue Dimmer, 0% to 100%
4 000~255 White Dimmer Inner White Dimmer, 0% to 100%
DMX Mode|16CH
NO. VALUE NAME FUNCTION
1 000~255 Total Dimmer Total Dimmer, 0% to 100%
2 000~255 RGB Strobe Outer Red&Green&Blue Strobe Effects,Slow to Fast
Only works for 3ch,4ch,5ch,6ch
3 000~255 Red Dimmer Outer Red Dimmer, 0% to 100%
4 000~255 Green Dimmer Outer Green Dimmer, 0% to 100%
5 000~255 Blue Dimmer Outer Blue Dimmer, 0% to 100%
6 000~255 RGB Mode*A 127 RGB built-in programs
7 000~255 RGB Speed Adjust the Speed of RGB Mode,Slow to Fast
Only works for 6ch
8 000~255 W Strobe Inner White Strobe Effects,Slow to Fast
9 000~255 White Dimmer Inner White, 0% to 100%
10 000~255 W Mode*B 63 WHITE built-in programs,
11 000~255 W Speed Adjust the Speed of W Mode,Slow to Fast
Only works for 10ch
12 000~255 RGBW Strobe Red&Green&Blue&White Strobe Effects,Slow to Fast
Only works for 13ch
13 000~255 RGBW Mode*C 127 RGBW built-in programs
14 000~255 RGBW Speed Adjust the Speed of RGBW Mode,Slow to Fast
Only works for 13ch
15 000~255 Background
Color*D Add Some Background Color
Only works for 6ch and 13ch
16 000~255 Background Color
Dimmer
Background Color Dimmer, 0% to 100%
Only works for 15ch
RGB Mode*A/W Mode*B/RGBW Mode*C/Background Color*D These parts are described in detail in the table below
Pknight
®
SWB FX 720 Manual Page 9

Pknight
®
SWB FX 720 Manual Page 10
DMX TRAITS*A for CH6 - RGB Mode*A
NO. DMX
VALUE FUNCTION
0 000~001 No function
1 002~003 Effect 1
2 004~005 Effect 2
3 006~007 Effect 3
125 250~251 Effect 125
126 252~253 Effect 126
127 254~255 Effect 127

Pknight
®
SWB FX 720 Manual Page 11
DMX TRAITS*A for CH6 - RGB Mode*A
NO. DMX
VALUE FUNCTION
0 000~001 No function
1 002~003 Effect 1
2 004~005 Effect 2
3 006~007 Effect 3
125 250~251 Effect 125
126 252~253 Effect 126
127 254~255 Effect 127
DMX TRAITS*B for CH10 - W Mode*B
NO. DMX
VALUE FUNCTION
0 000~003 No function
1 004~007 Effect 1
2 008~011 Effect 2
3 012~015 Effect 3
61 244~247 Effect 61
62 248~251 Effect 62
63 252~255 Effect 63

Pknight
®
SWB FX 720 Manual Page 12
DMX TRAITS*A for CH6 - RGBW Mode*C
NO. DMX
VALUE FUNCTION
0 000~001 No function
1 002~003 Effect 1
2 004~005 Effect 2
3 006~007 Effect 3
125 250~251 Effect 125
126 252~253 Effect 126
127 254~255 Effect 127

Pknight
®
SWB FX 720 Manual Page 13
DMX TRAITS*B for CH15 - Background Color*D
NO. DMX VALUE FUNCTION
1 000~009 Color 1
2 010~015 Color 2
3 016~021 Color 3
4 022~027 Color 4
40 238~243 Color 40
41 244~249 Color 41
42 250~255 Color 42
DMX TRAITS*A for CH6 - RGBW Mode*C
NO. DMX
VALUE FUNCTION
0 000~001 No function
1 002~003 Effect 1
2 004~005 Effect 2
3 006~007 Effect 3
125 250~251 Effect 125
126 252~253 Effect 126
127 254~255 Effect 127
NOTE:Not all RGB modes and RGBW modes can be added background color

Pknight
®
SWB FX 720 Manual Page 14
DMX Mode|168CH
NO. VALUE NAME FUNCTION
1 000~255 Red Dimmer Group 1 Red Dimmer, 0% to 100%
2 000~255 Green Dimmer Group 1 Green Dimmer, 0% to 100%
3 000~255 Blue Dimmer Group 1 Blue Dimmer, 0% to 100%
4 000~255 Red Dimmer Group 2 Red Dimmer, 0% to 100%
5 000~255 Green Dimmer Group 2 Green Dimmer, 0% to 100%
6 000~255 Blue Dimmer Group 2 Blue Dimmer, 0% to 100%
142 000~255 Red Dimmer Group 48 Red Dimmer, 0% to 100%
143 000~255 Green Dimmer Group 48 Green Dimmer, 0% to 100%
144 000~255 Blue Dimmer Group 48 Blue Dimmer, 0% to 100%
145 000~255 White Dimmer Group 1 White Dimmer, 0% to 100%
146 000~255 White Dimmer Group 2 White Dimmer, 0% to 100%
147 000~255 White Dimmer Group 3 White Dimmer, 0% to 100%
166 000~255 White Dimmer Group 22 White Dimmer, 0% to 100%
167 000~255 White Dimmer Group 23 White Dimmer, 0% to 100%
168 000~255 White Dimmer Group 24 White Dimmer, 0% to 100%
NOTE:We divided all RGB leds into 48 groups and all white LEDs into 24 groups

Pknight
®
SWB FX 720 Manual Page 15
DMX Mode|168CH
NO. VALUE NAME FUNCTION
1 000~255 Red Dimmer Group 1 Red Dimmer, 0% to 100%
2 000~255 Green Dimmer Group 1 Green Dimmer, 0% to 100%
3 000~255 Blue Dimmer Group 1 Blue Dimmer, 0% to 100%
4 000~255 Red Dimmer Group 2 Red Dimmer, 0% to 100%
5 000~255 Green Dimmer Group 2 Green Dimmer, 0% to 100%
6 000~255 Blue Dimmer Group 2 Blue Dimmer, 0% to 100%
142 000~255 Red Dimmer Group 48 Red Dimmer, 0% to 100%
143 000~255 Green Dimmer Group 48 Green Dimmer, 0% to 100%
144 000~255 Blue Dimmer Group 48 Blue Dimmer, 0% to 100%
145 000~255 White Dimmer Group 1 White Dimmer, 0% to 100%
146 000~255 White Dimmer Group 2 White Dimmer, 0% to 100%
147 000~255 White Dimmer Group 3 White Dimmer, 0% to 100%
166 000~255 White Dimmer Group 22 White Dimmer, 0% to 100%
167 000~255 White Dimmer Group 23 White Dimmer, 0% to 100%
168 000~255 White Dimmer Group 24 White Dimmer, 0% to 100%
Technical Features
Light Source:
• 240 Cool White SMD LEDs and 480 RGB LEDs
• 116 Degree Beam Angle
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White:
5500-7000K
• 50,000 Hour Average LED Life
Features:
• 48 x RGB LED zones
• 24 x Cool White LED zones
• 127 built-in RGB LED Program Macros
• 63 built-in Cool White LED Program Macros
• 127 built-in RGBW LED Program Macros
• Max Strobe Rate 30Hz. Min Strobe Rate: 1Hz.
• Adjustable LED Refresh Rates (900~25kHz)
• Display: LCD display with 4-button menu
Control:
• Control Protocol: DMX
• 3 DMX Modes:4, 16 and 168 channels
• 0-100% Smooth Dimming
• AUTO Mode, Master-Slave Mode,RDM
Connections:
• Data: 3-pin DMX In/Out
• 180 degree mounting bracket system
• Power locking power in/out
Electrical:
• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 150W
• IP class: IP20
Dimensions / Weight:
• Length: 39.4” (1000mm)
• Width: 2.7” (70mm)
• Height: 5.9” (150mm)
• Weight: 6.39 lbs. (2.9kg)

Pknight
®
SWB FX 720 Manual Page 16
