Planet WNRT-625G User manual

802.11n 3G Broadband Router
WNRT-625G
User’s Manual

Copyright
Copyright ©2009 by PLANET Technology Corp. All rights reserved. No part of this publication may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or
computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of PLANET.
PLANET makes no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose.
Any software described in this manual is sold or licensed "as is". Should the programs prove defective
following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire
cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any
defect in the software. Further, this company reserves the right to revise this publication and to make
changes from time to time in the contents hereof without obligation to notify any person of such revision or
changes.
All brand and product names mentioned in this manual are trademarks and/or registered trademarks of
their respective holders.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution:
To assure continued compliance, (example-use only shielded interface cables when connecting to
computer or peripheral devices) any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions:
(1) This device may not cause harmful interference, and (2) this Device must accept any interference
received, including interference that may cause undesired operation.
Federal Communication Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order
to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the
antenna shall not be less than 20 cm (8 inches) during normal operation.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN
PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal
Equipment and the mutual recognition of their conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal
Equipment and Satellite Earth Station Equipment) As of April 8, 2000.

Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However,
special attention must be paid to the dangers of electric shock and static electricity when working with
electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at
to ensure the safe use of the equipment.all times
WEEE regulation
To avoid the potential effects on the environment and human health as a result of the presence of
hazardous substances in electrical and electronic equipment, end users of electrical and
electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do
not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.
Revision
User’s Manual for PLANET 802.11N Wireless Router
Model: WNRT-625G
Rev: 1.0 (April. 2009)

TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION................................................................................................................. 5
1.1 P ACKAGE C ONTENTS ..............................................................................................................5
1.2 F EATURES ...............................................................................................................................5
1.3 S PECIFICATION ........................................................................................................................5
CHAPTER 2 HARDWARE INSTALLATION / NETWORK SETUP.................................................... 7
2.1 O UTLOOK ...............................................................................................................................7
2.2 H ARDWARE I NSTALLATION .....................................................................................................8
2.3 N ETWORK S ETUP ..................................................................................................................11
CHAPTER 3 WEB LOGIN....................................................................................................................... 13
CHAPTER 4 QUICK SETUP................................................................................................................... 15
CHAPTER 5 GENERALSETUP ............................................................................................................. 27
5.1 S YSTEM ................................................................................................................................28
5.2 WAN ....................................................................................................................................30
5.3 LAN.....................................................................................................................................37
5.4 W IRELESS .............................................................................................................................39
5.5 Q O S......................................................................................................................................51
5.6 NAT .....................................................................................................................................54
5.7 F IREWALL .............................................................................................................................63
CHAPTER 6 STATUS .......................................................................................................................... 71
6.1 I NTERNET C ONNECTION ........................................................................................................71
6.2 D EVICE S TATUS ....................................................................................................................72
6.3 S YSTEM L OG ........................................................................................................................72
6.4 S ECURITY L OG ......................................................................................................................73
6.5 A CTIVE DHCP C LIENT .........................................................................................................74
6.6 S TATISTICS ............................................................................................................................74
CHAPTER 7 TOOLS............................................................................................................................ 75
7.1 C ONFIGURATION T OOLS ........................................................................................................75
7.2 F IRMWARE U PGRADE ............................................................................................................76
7.3 R ESET ...................................................................................................................................77
CHAPTER 8 TROUBLESHOOTING................................................................................................ 78

Chapter 1 Introduction
Thank you for purchasing WNRT-625G. This manual guides you on how to install and properly use the
WNRT-625G in order to take full advantage of its features.
1.1 Package Contents
• WNRT-625G x 1
• Stand x 1
• Ethernet Cable x 1
• Power Adapter x 1
• CD-ROM (included user’s manual) x 1
• Quick Installation Guide x 1
Note: If any of the above items are missing, please contact your supplier for support.
1.2 Features
zDual WAN Interfaces: WAN port for cable or wired DSL service + 3G mobile connection
zSupports UMTS/HSDPA Mobile Internet Service
zIEEE 802.11n (Draft 2.0) wireless technology compliant with 802.11b/g standard
zCapable of up to 300Mbps data rate
zSupports Wi-Fi Protected Setup (WPS)
zAdvanced security: 64/128-bit WEP, WPA –TKIP(PSK), WPA2-AES(PSK), 802.1x
zAccess Private LAN Servers from the Public Network
zEquipped with four LAN ports (10/100M) and one WAN port (10/100M), Auto-MDI/MDI-X
supported
zSupports DHCP Server
zSystem status monitoring includes Active DHCP Client, Security Log and Device/Connection
Status
zWeb-based GUI for and Wizard setup for easily configuration
zRemote Management allows configuration and upgrades from a remote site
zSupported Internet types: Dynamic / Static IP / PPPoE / PPTP / L2TP / Telstra Big Pond
zMAC / IP filter access control, URLblocking ; SPI firewall + DoS prevention protection
zSupports UPnP function
1.3 Specification
Standard IEEE 802.11b/g, 802.11n Draft 2.0, IEEE802.3u
Signal Type 11b mode: DSSS
11g mode: OFDM
11n mode: OFDM, MIMO
Modulation 802.11b: DBPSK, DQPSK, CCK
802.11g: BPSK, QPSK, 16QAM, 64QAM
802.11n: BPSK, QPSK, 16QAM, 64QAM
WAN Port 1 x 100Base-TX, Auto-MDI/MDI-X
LAN Port 4 x 100Base-TX, Auto-MDI/MDI-X
Antenna connector 2 x Fixed 3dBi Dipole Antenna
Data Encryption 64 bit / 128 bit WEP, WPA-PSK, WPA, WPA2, 802.1x encryption
Output Power 11b: 18 dBm 11g: 15 dBm
11n: 15dBm

Data Rate IEEE 802.11b: 11/5.5/2/1M
IEEE 802.11g: 54/48/36/24/18/12/9/6
N Data Rate Table (1)
Receiver
Sensitivity
11b CCK 1.0Mbps -94dbm 11b CCK 11.0Mbps -91dbm
11g OFDM 6Mbps -92dbm 11g OFDM 54Mbps -76dbm
11n 20MHz MCS7 : -72dbm 11n 40MH MCS7 : -70dbm
Session 2000
LED Indicators PWR, WLAN, WAN * 1, LAN * 4
Compatible Mobile
network UMTS/HSDPA
Compatible mobile
service provider Please contact with PLANET Technical Support for latest information.
Compatible internet
PC adapter list Please contact with PLANET Technical Support for latest information.
N Data Rate Table (1) HT20 HT40
MCS Index Data rate (Mbps) @ 400ns GI
0 7.2 15.0
1 14.4 30.0
2 21.7 45.0
3 28.9 60.0
4 43.3 90.0
5 57.8 120.0
6 65.0 135.0
7 72.2 150.0

Chapter 2 Hardware Installation / Network Setup
Please follow the below instruction to build the wireless network connection between WNRT-625G and your
computers.
2.1 Outlook
Front Panel
For 3G / 3.5G modem USB Adapter
LED Name Light Status Description
POWER On Router is switched on and correctly powered.
On Wireless WPS function is enabled.
Off Wireless network is switched off.
WLAN
Flashing Wireless LAN activity (transferring or receiving data).
On WAN port is connected.
Off WAN port is not connected.
WAN LNK/ACT
Flashing WAN activity (transferring or receiving data).
On USB modem is connected.
Off USB modem is not connected.
USB LNK/ACT
Flashing USB modem activity (transferring or receiving data).
On LAN port is connected.
Off LAN port is not connected.
LAN 1-4
LNK/ACT
Flashing LAN activity (transferring or receiving data).

Back Panel
Antenna Antenna
Reset / WPS
1-4 (LAN) Power
WAN
Radio ON/OFF
Item Name Description
Antenna Attached 3dBi dipole antenna.
Radio ON/OFF Switch the button to activate or deactivate the wireless functions.
Reset / WPS
Reset the router to factory default settings (clear all settings) or start WPS
function. Press this button and hold for 10 seconds to restore all settings to
factory defaults, and press this button for less than 5 seconds to start WPS
function.
1 - 4 Local Area Network (LAN) ports 1 to 4.
WAN Wide Area Network (WAN / Internet) port.
Power Power connector, connects to power adapter.
2.2 Hardware Installation
1. Locate an optimum location for the WNRT-625G. The best place for your WNRT-625G is usually
at the center of your wireless network, with line of sight to all of your mobile stations.
2. Adjust the antennas of WNRT-625G. Try to adjust them to a position that can best cover your
wireless network. The antenna’s position will enhance the receiving sensitivity.
3. There are two way connecting to Internet, One is via 3G USB port, and another is from WAN
port.
8

3-1. Connect your 3G/3.5G USB modem to the USB port located in front panel of WNRT-625G.
NOTE: Please also check with your local dealer or PLANET Web site for supported 3G/3.5G USB adapter
3-2. Connect ADSL/Cable Modem to WAN port of WNRT-625G via RJ-45 Ethernet cable.
9

4. Connect all of your network devices to LAN port of WNRT-625G. Connect all your computers,
network devices (network-enabled consumer devices other than computers, like game console, or
switch / hub).Connect one of the LAN ports on WNRT-625G to your LAN switch/hub or a computer
with a RJ-45 cable.
5. Plug in power adapter and connect to power source. After power on, WNRT-625G will start to
operate.
6. Please check all LEDs on the front panel. ‘PWR’ LED should be steadily on. WAN and LAN LEDs
should be on if the computer / network device connected to the respective port of the router is powered
on and correctly connected. If PWD LED is not on, or any LED you expected is not on, please recheck
the cabling, or jump to ‘Troubleshooting’ for possible reasons and solution.
Note:
1. ONLY use the power adapter supplied with the WNRT-625G. Otherwise, the product may be
damaged.
2. If you want to reset WNRT-625G to default settings, press and hold the RST(reset) button over
30 seconds and release. And then wait for WNRT-625G restart.
1
0

2.3 Network Setup
After you install your WNRT-625G, the TCP/IP settings should be set to obtain an IP address from a DHCP
server (WNRT-625G) automatically. To verify your IP address, please follow the steps below:
1. Click on Start > Run.
2. In the run box type “cmd” and click OK. (Windows VistaR users type cmd in the Start .Search box.)At the
prompt.
11

3. Type “ipconfig” and press Enter. It will display the IP address, subnet mask, and the default gateway of
adapter.
4. If the address is 0.0.0.0, check your adapter installation, security settings, and the settings on your router.
Some firewall software programs may block a DHCP request on newly installed adapters.
Assign a static IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow
the steps below:
1. - Windows Vista® - Click on Start > Control .Panel > Network .and .Internet
>Network .and .Sharing .Center > Manage Network Connections.
- Windows® XP - Click on Start > Control .Panel > Network Connections.
- Windows® 2000 - From the desktop, right-click My Network Places > Properties.
2. Right-click on the Local Area Connection which represents your network adapter and select Properties.
3. Highlight Internet .Protocol .(TCP/IP) and click Properties.
4. Click Use .the .following .IP .address and enter an IP address that is on the same subnet as your
network or the LAN IP address on your router.
Example: If LAN IP address of WNRT-625G is 192.168.0.1, make your IP address 192.168.0.X where
X is a number between 2 and 99. Make sure that the number you choose is not in use on the network.
Set Default Gateway the same as the LAN IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The Secondary DNS is
not needed or you may enter a DNS server from your ISP.
5. Click OK twice to save your settings.
12

Chapter 3 Web Login
WNRT-625G with an assigned IP address allows you to monitor and configure via web browser (e.g., MS
Internet Explorer or Netscape).

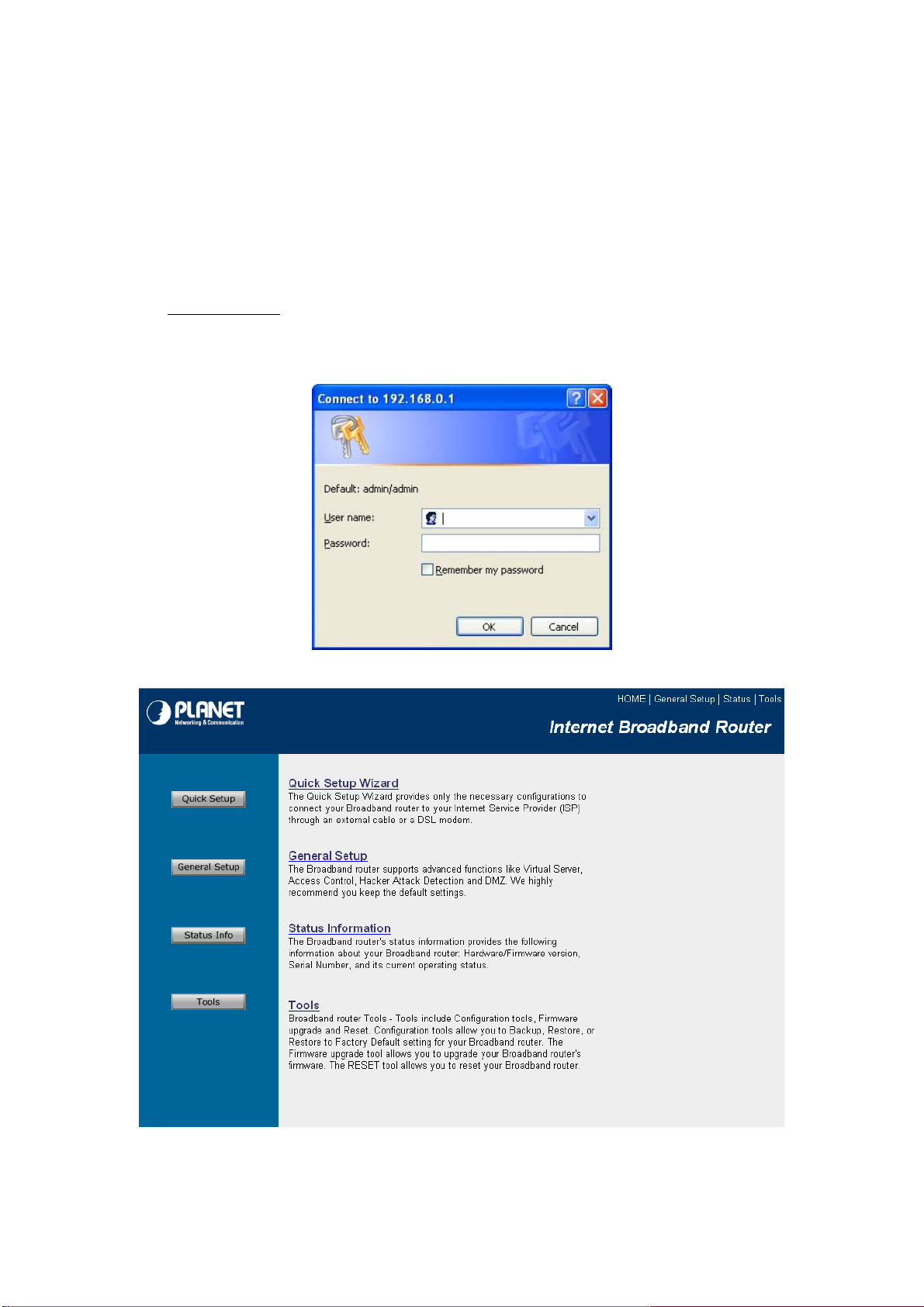

1. Open your web browser.
2. Enter the IP address of your WNRT-625G in the address field (default IP address is
http://192.168.0.1).
3. Please enter your User Name and Password in the dialog box. Default User Name and Password
are both “admin”. Click OK.
4. Then you will see the WNRT-625G HOME screen as below.
The left panel provides four options, Quick Setup, General Setup, Status Information and Tools.
13

Section Description
Quick Setup Select your Internet connection type and then input the configurations needed
to connect to your Internet Service Provider (ISP).
General Setup
This section contains configurations for the Broadband router’s advance
functions such as: Port Forwarding, Virtual Server, Access Control, Hacker
Attack Prevention, DMZ, Special applications and other functions to meet your
LAN requirements. You can also configure the wireless detail settings here.
Status Info This option provides you the system information, Internet Connection, Device
Status, Security Log and DHCP client Log information.
Tools This option contains Configuration tools, Firmware Upgrade and Reset
functions.
14

Chapter 4 Quick Setup
This section describes the basic configuration of the WNRT-625G and allows you to connect to Internet
easily.
4.1 Time Zone
The time information is used for Log entries and Firewall settings. You can keep the default Time
Server address or set a new IP address for your router to synchronize its time. Click “Next” to continue.
Parameter Description
Set Time Zone Select the time zone of the country you are currently in. The router will
set its time based on your selection.
Time Server Address
Remain it as default or, you can manually assign an IP address of the
Time Server. The information of Timer Server can be found in the
following URL link: http://www.eecis.udel.edu/~mills/ntp/servers.html or
http://www.ntp.org.
Enable Daylight Savings
The router can also take Daylight savings into account. To enable this
function, check/tick the “Enable Function” box and select which days this
function will work.
Click “Next” button to proceed to the next step.
1
5

4.2 WAN Type
Before establishing the Internet connection, please be sure to check with your ISP, and obtain all
necessary information from them.
Broadband Description
3G/3.5G With 3G mobile USB adapter providing Internet service. Please refer to
section 4.2.1 for details.
Cable Modem ISP will automatically give you an IP address. Please refer to section
4.2.2 for details.
Fixed-IP Xdsl ISP has given you a fixed IP address already. Please refer to section
4.2.3 for details.
PPPoE xDSL ISP requires you to use a Point-to-Point Protocol over Ethernet (PPPoE)
connection. Please refer to section 4.2.4 for details.
PPTP xDSL ISP requires you to use a Point-to-Point Tunneling Protocol (PPTP)
connection. Please refer to section 4.2.5 for details.
L2TP XDSL
This is not widely used. You need to know the PPTP Server address as
well as your name and password. Please refer to section 4.2.6 for
details.
Telstra Big Pond This option is for Australia only. Please refer to section 4.2.78 for details.
1
6

4.2.1 3G/3.5G
With 3G mobile USB adapter providing Internet service. Some ISP may also require you to fill in
additional information.
Parameters Description
PIN Code Please input Pin Code for your UMTS or HSDPA or EVDO connection, this is optional,
and only required if your service provider asks you to do so. APN
User Name Please input user name assigned by your Internet service provider here. Password
Password Please input password again for confirmation.
Verify Password Please input password again for confirmation.
APN Please input the APN code assigned by your Internet service provider here.
Service Please select your Card type from the drop-down menu.
AT Dial Script Please input Dialed Number for your UMTS or HSDPA connection, the default is *99#.
This field should not be altered except when required by your service provider.
4.2.2 Cable Modem
With Cable Modem connection, the ISP will automatically give you an IP address. Some ISP may also
require you to fill in additional information such as Host Name and MAC address (see screen below).
Note: The Host Name and MAC address section is optional and you can skip this section if your ISP
does not require these settings for you to connect to the Internet.
1
7

Parameters Description
Host Name Type in the host name provided by your ISP if any; otherwise, just leave it blank.
MAC Address
To connect to Internet, your ISP will require a MAC address from your PC. Type in this
MAC address in this section or use the “Clone MAC Address” button to replace the
WAN port MAC address with the your PC’s.
When the configuration finished, click “OK” to next step or click “Back” to previous step. After press
“OK”, you will see a web screen to prompt you the configurations save successfully. You may press
“Apply” to restart WNRT-625G with new configuration. Please refer to section 4.2.7 for more
information about this screen.
4.2.3 Fixed-IP xDSL
Select Fixed-IP xDSL if you’re ISP has given you a specified IP address. Your ISP should provide all the
information required in this section.
18

Parameters Description
IP address assigned by your
Service Provider The IP address that you’re ISP should provide you.
Subnet Mask Enter the Subnet Mask provided by your ISP (e.g. 255.255.255.0).
DNS Address The IP address of ISP’s DNS (Domain Name Service) Server.
Service Provider Gateway
Address The ISP’s IP address gateway.
Please consult your local ISP about the information above. When the configuration finished please
click “OK” to next step or click “Back” to previous step. After press “OK”, you will see a web screen to
prompt you the configurations save successfully. Please refer to section 4.2.7 for the information of this
screen.
4.2.4 PPPoE xDSL
Select PPPoE if your ISP requires the PPPoE protocol for Internet connectivity. Your ISP should
provide all the information like user name, password required in this section.
Parameters Description
User Name Enter the User Name provided by your ISP for the PPPoE connection.
Password Enter the Password provided by your ISP for the PPPoE connection.
Service Name This is an optional parameter. Leave it blank unless your ISP requires it.
MTU
This is an optional parameter. You can specify the maximum size of transmission
packet to the Internet. The range of the MTU will be from 512 to 1492. You can also
consult you ISP for the optimal MTU as well. Default: 1392.
19

Connection Type
If you select “Continuous”, the router will always connect to the ISP. If the WAN line
breaks down and links again, the router wills auto-reconnect to the ISP.
If you select “Connect On Demand”, the router will auto-connect to the ISP when a
client in LAN want to use the Internet and keep connected until the WAN idle
timeout. The router will close the WAN connection if the time period that no one is
using the Internet exceeds the “Idle Time”.
If you select “Manual”, the router will connect to ISP only when you click “Connect”
manually from the Web user interface. The WAN connection will not disconnected
due to the idle timeout. If the WAN line breaks down and latter links again, the router
will not auto-connect to the ISP. Default: Continuous.
Idle Time
You can specify an idle time threshold (minutes) for the WAN port. This means if no
packets have been sent (no one using the Internet) during this specified period, the
router will automatically disconnect the connection from your ISP.
Note: This “idle timeout” function may not work due to abnormal activities of some
network application software, computer virus or hacker attacks from the Internet. For
example, some software sends network packets to the Internet in the background,
even when you are not using the Internet. So please turn off your computer when
you are not using it. This function also may not work with some ISP. So please make
sure this function can work properly, especially when your ISP charges you by time
used.
When the configuration finished, click “Apply” to next step or click “Cancel” to previous step. After press
“Apply”, you will see a web screen to prompt you the configurations save successfully. Please refer to
section 4.2.7 for the information of this screen.
4.2.5 PPTP xDSL
Select PPTP if your ISP requires the PPTP protocol to connect to the Internet. Your ISP should provide
all the information required in this section.
2
0
