Plant Photonics 23 User manual

User manual for 23 - 32 Led Light
User Manual
for
23 - 32 LED Light - Amethyst DS v1
Ideal for mother plants mini tents
&
indoor herb gardens
Best Led Grow lights on the Market. www.plantphotonics.com. Copyright Plant Photonics 2013. .1

User manual for 23 - 32 Led Light
Thank you for purchasing your Plant Photonics light. It has
been designed and built to provide you with a lifetime of
service. Please read the following instructions to get the best
from your light.
V E R Y I M P O R T A N T !
V E R Y I M P O R T A N T !
Your new Plant Photonics light can produce 2
spectrum’s which are designed for the vegging
and flowering stages of your plants life cycle.
YO M ST SWITCH THE LIGHT OFF
BEFORE CHANGING THE SPECTR M!
Failure to do so may lead to failure of the leds and
will void your warranty!
Best Led Grow lights on the Market. www.plantphotonics.com. Copyright Plant Photonics 2013. .2

User manual for 23 - 32 Led Light

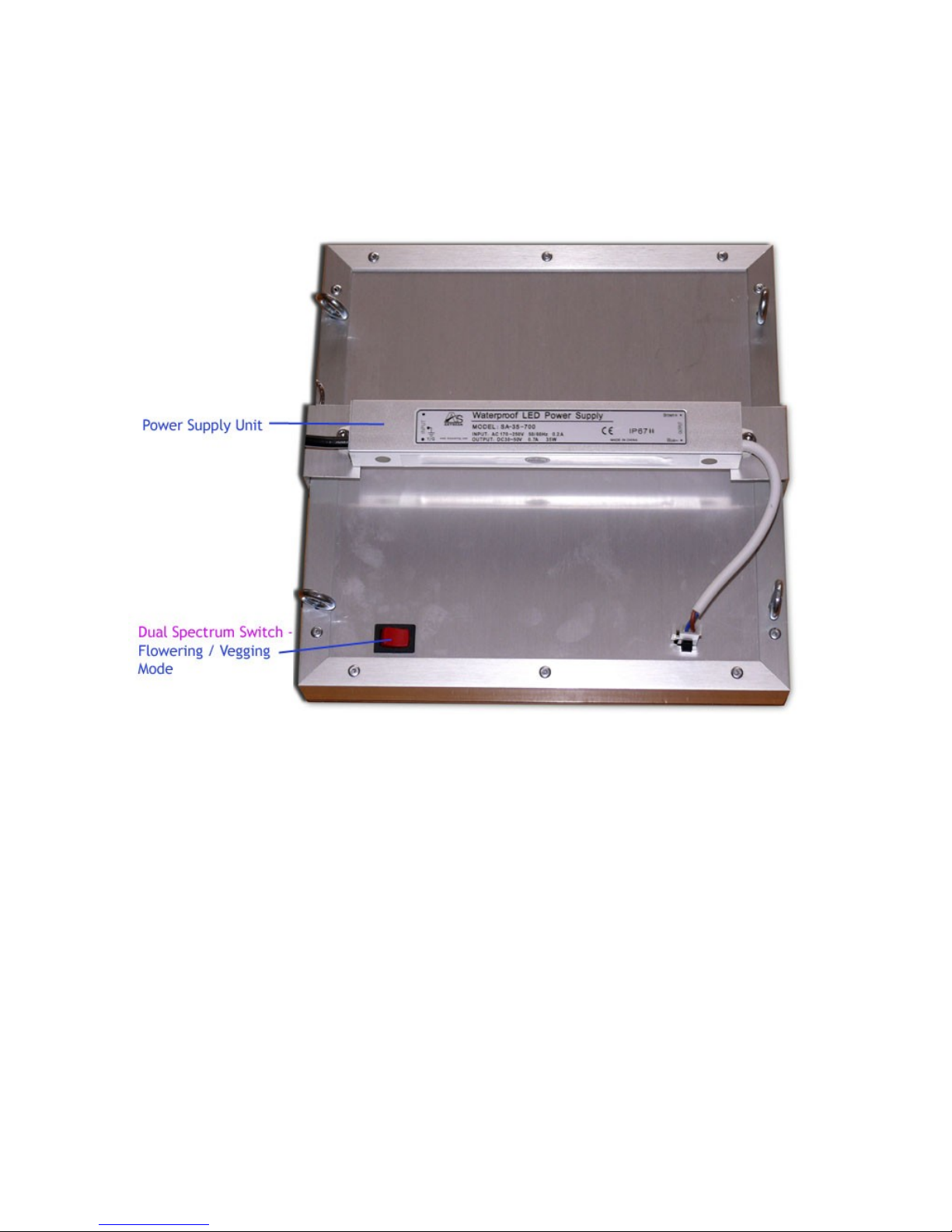

23 - 32 Watt Led Light component's diagram
Best Led Grow lights on the Market. www.plantphotonics.com. Copyright Plant Photonics 2013. .3

User manual for 23 - 32 Led Light
Table of contents
1. Light Maintenance
2. Setting Up Your Light
3. Using Your Light
4. Hint And Tips
1. Light Maintenance
Your light should be kept clean for best performance and quieter operation.
Never use harsh chemicals or solvents to clean your light. Use a soft dry or
SLIGHTLY damp cloth or a small paint brush. Clean the top of the light after
every grow cycle . A layer of dust on the top of the light will cause it to operate at a higher
temperature. Clean the lens with a dry micro fibre cloth. If you have splashed chemicals or
nutrient solution on the lens, use a damp cloth to remove the splash, then gently dry the
lens.
2. Setting Up Your Light
In the box you have 1 led light panel and 1 mains lead with the correct mains
plug for your region on one end and a small white connector on the other.
Carefully plug the mains lead connector into the mains lead socket on the power supply of
the light until the 2 retaining clips snap into position. Please check it is the right way
around and never use force, the connector should go in easily! You will notice

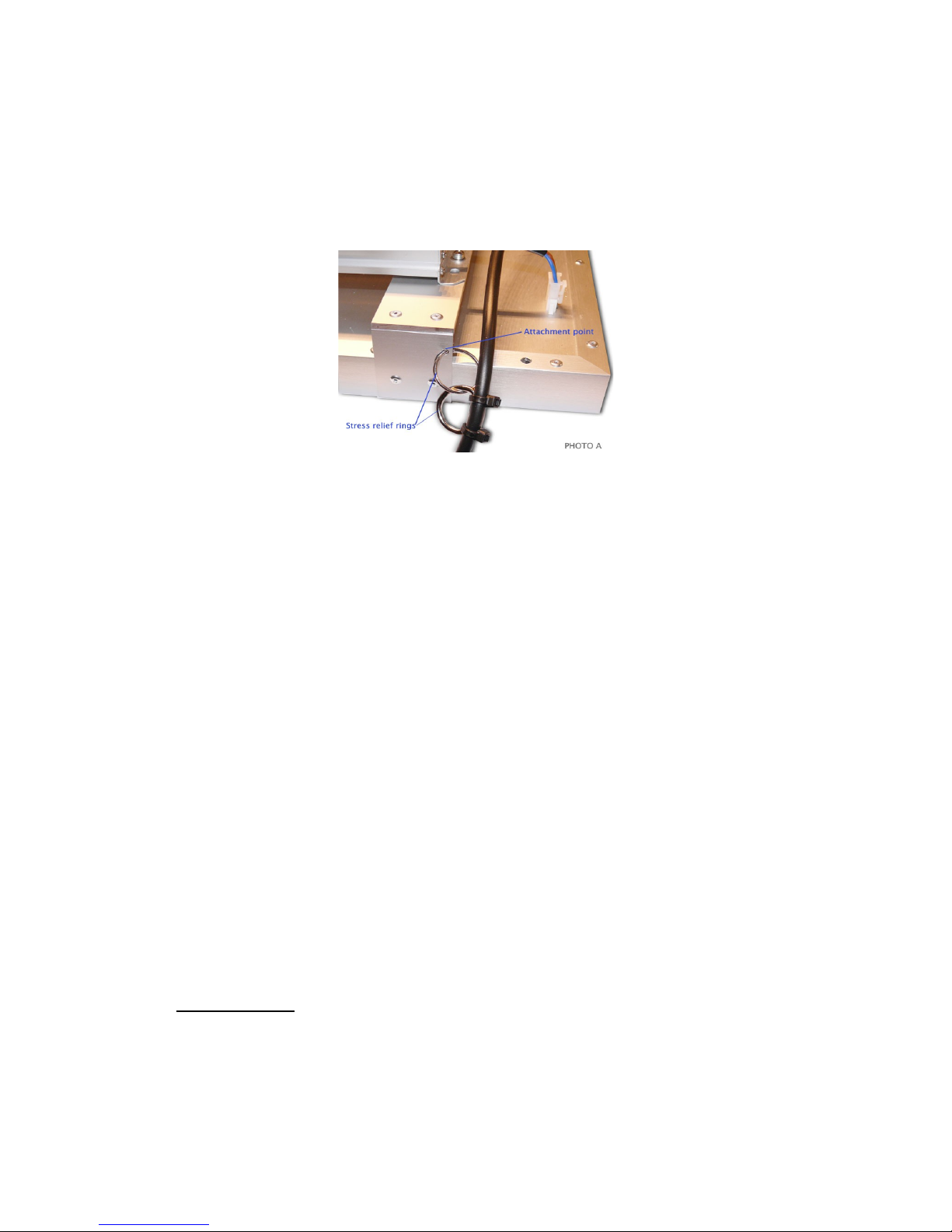

that the mains lead has a D ring and a split ring attached to it. This is the stress
relief which protects against the cord being pulled out of the socket (please see
Best Led Grow lights on the Market. www.plantphotonics.com. Copyright Plant Photonics 2013. .4

User manual for 23 - 32 Led Light
photo A below). Attach the split ring to the attachment point on the light. The
attachment point is a small hole drilled in the upright support for the power
supply.
3. Using Your Light
• Hanging Your Light
Your light should be hung in the centre of the area you want it to cover. The light should
be high enough to give even coverage of the growing area. Normally the light will be
about 20 cm above the top of the plant although you can place it closer for flowering or
further away for small clones and seedlings. Experiment to see what works best for you.
• Selecting the correct Spectrum.
Your light has 2 different modes which are controlled by a switch. YO M ST SWITCH
THE LIGHT OFF BEFORE CHANGING THE SPECTR M! Failure to do so may damage
the leds and will void your warranty!
1) Vegging mode – This provides the correct spectrum for vegging and mother plant
maintenance. The power output in this mode is 23 watts.
Best Led Grow lights on the Market. www.plantphotonics.com. Copyright Plant Photonics 2013. .5

User manual for 23 - 32 Led Light
2) Flowering mode – This provides the correct spectrum for flowering. It can also be
used to provide faster and slightly 'stretchier' growth for mother plants when you
wish to take cuttings . It is recommended that you switch to this mode 1 or 2 weeks
before either switching to shorter light periods for flowering or taking cuttings for
cloning. The power output in this mode is 32 watts.
•Timers and Extension cords
Your light can be used with any type of timer; mechanical or electronic.
I recommend not using more than 560 watts of led lights per timer. If you have more than
this, I recommend using more than 1 timer and setting the timers so they come on at
slightly different times. This is to avoid the possibility of the inrush current blowing a fuse
or circuit breaker. Although the lights draw very little power when they are on, when they
are first switched on they create what is called an 'inrush current'. This is a short period
(about 1/100) of a second where the power supplies draw a large amount of power as they
charge their capacitors and stabilise.
Having said that, I would always recommend buying a decent timer as it will be more
reliable and last longer.
I recommend you do NOT use any extension cords or multi-plugs which have a power on
light or lighted switch. These seem to allow a tiny trickle of power through (possibly via
ground leakage) which is enough to make the leds glow slightly when the light is
switched off! If you see this problem, simply change your extension cord for a plain one
and the leds won't glow!
Best Led Grow lights on the Market. www.plantphotonics.com. Copyright Plant Photonics 2013. .6

User manual for 23 - 32 Led Light
4. Hint and Tips
• Change the spectrum from Vegging to Flowering a week before you cut
the hours. This will cause faster flowering. A good time to do it is when
you change the fertilizer to a flowering one.
• Change back to the vegging spectrum for the last 2 weeks of flowering.
This will give you the highest quality results. It is the same as the way
many growers go back to MH for the last 2 weeks, to increase resin
production and improve taste.
• Use less nutrients/fertilizer than usual. Hydro growers will notice they
will only need to top up about half as often as usual. Usually the plants
will do better with a much lower EC than you needed with normal
lights. This also means plants grown under leds require less flushing.
Best Led Grow lights on the Market. www.plantphotonics.com. Copyright Plant Photonics 2013. .7
