Plantcraft Mowcrtpltapd1 Assembly instructions

Towed Dump Cart

Instruction & Assembly

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

- 2 -

Table of Contents

General Warnings and Rules...............................................................................3

Hazard Signal Word Definition.............................................................................4

Controls and Features Identification....................................................................5

Component & Hardware ..................................................................................6, 7

Assembly Instructions .................................................................................8, 9 10

Operation Instructions ........................................................................................ 11

Maintenance and Storage..................................................................................12

Specification .......................................................................................................13

- 3 -

GENERAL WARNINGS

READ and UNDERSTAND this manual completely before using Towed Dump Cart.

Operator must read and understand all safety and warning information, operating instructions, maintenance

and storage instructions before operating this equipment. Failure to properly operate and maintain the

towed dump cart could result in serious injury to the operator or bystanders.

Operation Warnings

Do not at any time carry passengers sit or stand on the cart.

Do not allow children to play on, stand upon or climb in the cart.

Always inspect the cart before using to assure it is in good working condition.

Replace or repair damaged or worn parts immediately.

Always check and tighten hardware and assembled parts before operation.

Do not exceed equipment maximum load capacity of 181kg.

Avoid large holes and ditches when transporting loads.

Be careful when operating on steep grades (hill) the cart may tip over.

Always operate at reduce speed in rough terrain, along creeks, ditches and on hillsides.

Do not operate close to creeks, ditches and public highways.

To avoid personal injury and/or equipment damage DO NOT EXCEED 10 MPH.

Always use caution when loading and unloading the cart.

Only tow with recommended vehicles (Lawn/Garden Tractors and ATVs).

Always secure and lock dump cart to the vehicle hitch before operating.

.

Crush and Cut Hazards

Always keep hands and feet clear from moving parts while operating the equipment.

Always clear and keep work area clean when operating.

Always wear safety gear, eye protection, gloves and work boots when operating the dump cart.

.

WARNING

The warnings, cautions, and instructions outlined in this instruction manual cannot cover all

possible conditions or situations that may occur. It must be understood by the operator that

common sense and caution are factors which cannot be built into this product and must be supplied

by the operator.

Assembly Is Required

This product requires assembly before use. See “Assembly” section for instructions. Because of the

weight and/or size of the towed dump cart, it is recommended that another adult be present to assist with

the assembly. INSPECT ALL COMPONENTS closely upon receipt to make sure no components are

missing or damaged.

.

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 4 -

Hazard Signal Word Definitions

ABOUT YOUR TOWED DUMP CART

This towed dump cart has a rugged steel construction and is designed to carry a wide range of materials.

The dump cart will easily haul up to 181kg of tools, firewood, animal feed, trash, landscaping materials,

cement or anything else that needs to moved. Low profile cart makes loading and un-loading fast and

convenient. Never exceed the rated load capacity of 181kg when operating the towed dump cart.

Technical specifications on the towed dump cart are provided in the “Specifications” section of this manual.

This is the safety alert symbol. It is used to alert you

to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible

injury or death.

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

DANGER

WARNING indicates a potentially hazardous

situation which, if not avoided, could result in death

or serious injury.

WARNING

CAUTION

indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

CAUTION

CAUTION used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

CAUTION

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 5 -

Read this owner’s manual before operating the equipment. Familiarize yourself with the location and

function of the controls and features. Save this manual for future reference.

1) Utility Cart Box – Do not exceed rated load capacity 181kg.

2) Tyres / Wheel – Do not exceed the recommended rate 25 PSI.

3) Hitch – Pin-type design use only with approve vehicles.

4) Release Pedal – Release the cart bed.

.

Controls and Features Identification

1

3

2

4

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 6 -

CAUTION

Read and follow all instructions for assembly and operation. Failure to properly assemble this

equipment could result in serious injury to the user or bystanders, or cause equipment damage.

TOWED DUMP CART COMPONENT PARTS AND ASSEMBLY

Take all parts out of the shipping crate and inspect components to ensure there are no missing pieces

before starting to assemble the towed dump cart follow steps 1 through 6.

TOOLS REQUIRED

•Pliers

•Screw Driver

•10mm & 14mm Wrench

•Wooden hammer

Component Parts

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 7 -

Ref#

Description

Qty

1 R Pin 4

3 Hitch Pin 1

4 Hex Nut M8 10

5 Lock Washer Ø8 10

6 Hex Bolt M8x20 2

7 Latch Spring 1

8 Hex Bolt M6x90 1

9 Nylon Lock Nut M6 1

11 Spacer 2

15 Flat Washer Ø16 4

20 Screw M8x16 8

21 Screw M6x16 4

22 Lock Washer Ø6 8

23 Hex Nut M6 8

24 Screw M6x20 4

Component Parts

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 8 -

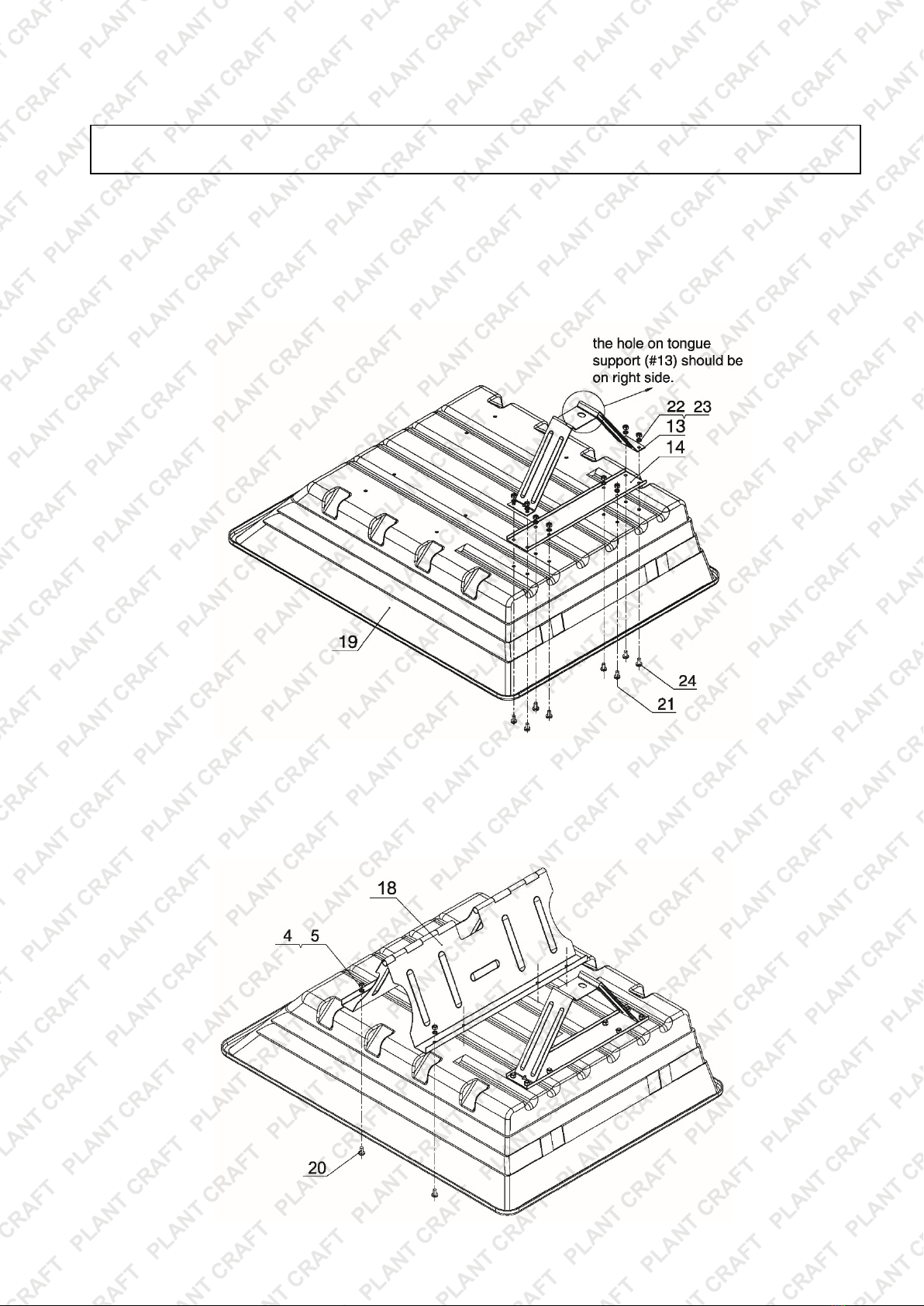

STEP 1: Attach Tongue Support

1. Attach the tongue support (#13) and latch stand plate (#14) to the poly tray (#19) using eight sets

of M6x16 screws (#21), M6x20 screws (#24), Ø6 lock washers (#22) and M6 hex nuts (#23). NOTE:

THE HOLE ON TONGUE SUPPORT (#13) SHOULD BE ON RIGHT SIDE.

STEP 2: Attach the Wheel Axle Support

1. Attach the wheel axle supports (#18) to the back of poly tray using eight sets of M8x16 screws

(#20), Ø8 lock washers (#4) and M8 hex nuts (#5).

Assembly Instructions

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 9 -

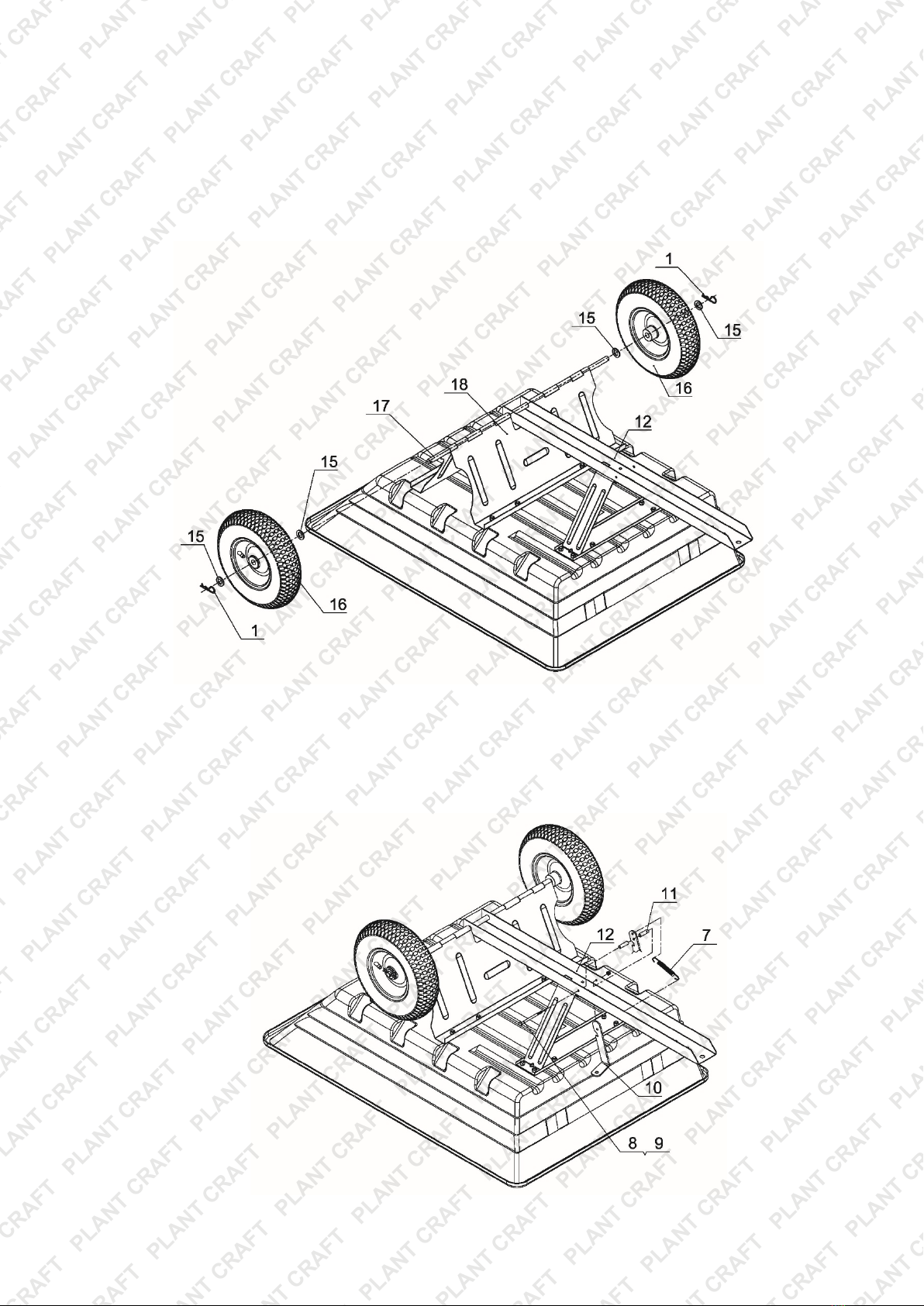

STEP 3: Attach the Wheels

1. Center the hitch tongue assembly (#12) in the wheel axle support (#18). Insert the wheel axle (#17)

through the hole and slide it through both the wheel axle support (#18) and the hitch tongue

assembly (#12).

2. Put an Ø16 flat washer (#15) on the axle; slide the wheel (#16) over the wheel axle (#17), followed

by the second Ø16 flat washer (#15) and secure with Ø3 R pin (#1).

STEP 4: Attach Release Pedal

1. Insert the release pedal (#10) into the hitch tongue (#12) and secure using M6x90 hex bolt (#8)

and M6 hex lock nut (#9). Put the two spacers (#11) on each side of the of the release pedal.

2. Attach the latch spring (#7) hook on the bottom hole on the release pedal (#10) and hitch tongue

(#12).

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 10 -

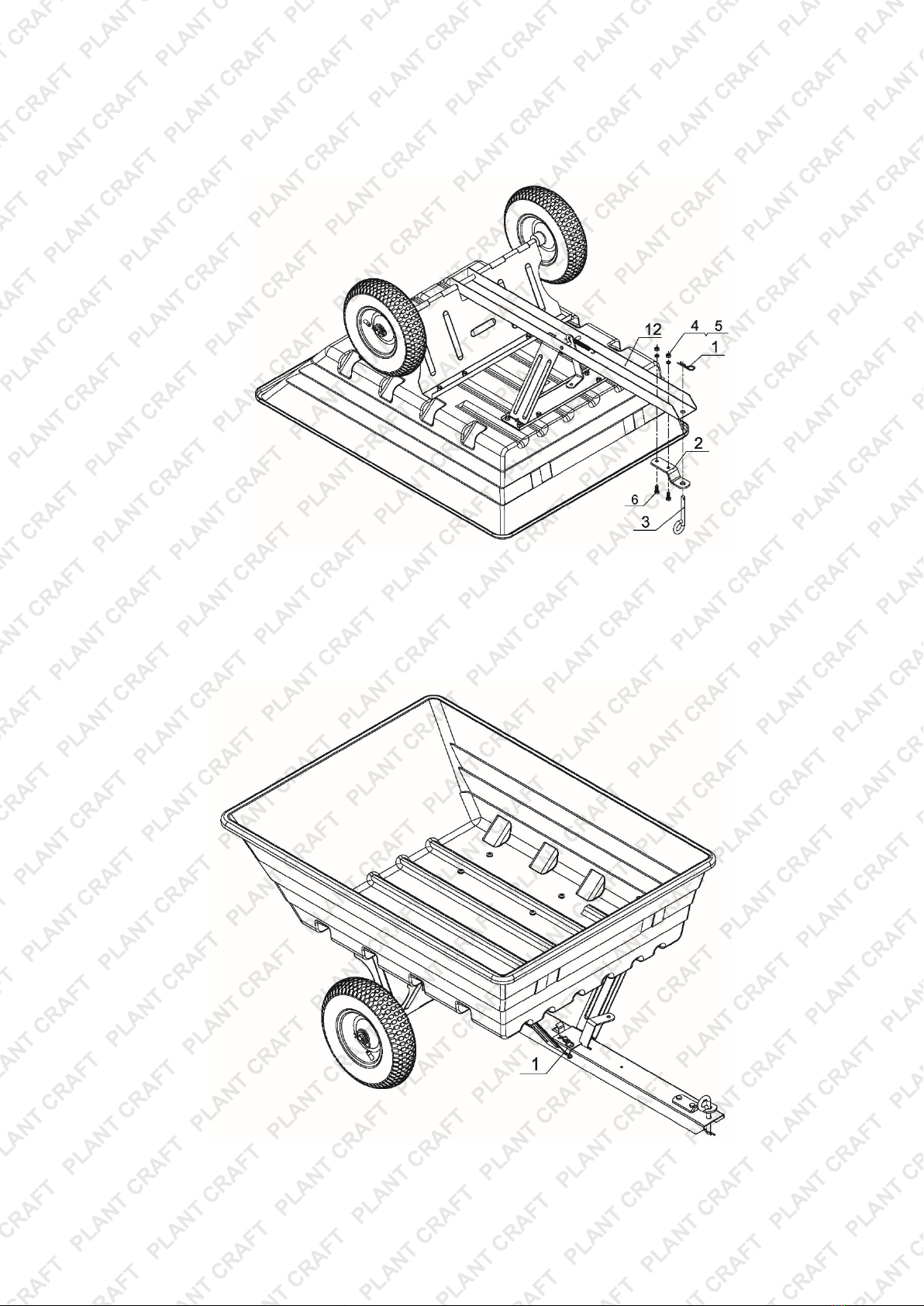

STEP 5: Attach Hitch Pin Bracket

1. Attach the hitch pin bracket (#2) to the hitch tongue (#12) using two sets of M8x20 hex bolts (#6),

Ø8 lock washers (#4) and M8 hex nuts (#5), then secure with hitch pin (#3) and Ø3 R Pin (#1)

STEP 6: Attach R Pin

1. Insert the Ø3 R Pin (#1) into the safety pin on the hitch tongue.

2. Pull out the Ø3 R Pin (#1) before emptying the bed, then press the release pedal.

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 11 -

WARNING

Before using the towed dump cart, review the instructions below and safety information. Failure

to follow these instructions may result in property damage or injury to the operator or bystanders.

USING YOUR TOWED DUMP CART

1. DO NOT exceed rated capacity of 181kg.

2. ALWAYS secure and lock the towed cart to the vehicle hitch before operating.

3. ON LY use approved vehicles when towing the dump cart (Lawn/Garden Tractors and ATVs)

4. NEVER tow the towed dump cart with box raised.

5. DO NOT over fill the towed dump cart. Over flow loads can cause the cart and towing vehicle to lose

traction and skid out of control.

6. ONLY fill the dump cart to a comfortable dumping load. Extremely heavy loads will be difficult to

operate and dump.

7. ALWAYS use the dump cart for its intended purpose.

8. ALWAYS make sure that the tow vehicle and the combined weight of the operator MUST BE greater

than the load of the cart weight for proper control.

9. DO NOT use cart on public highways or roads.

10. NEVER exceed 10mph when towing the dump cart.

11. DO NOT make sharp turns that may cause the Lawn/Garden Tractor or ATV tyres to rub against the

towed dump cart.

12. ALWAYS slow down before turning.

13. ALWAYS use caution when backing the towed cart. To avoid the cart from “jack-knifing” always back

up in a straight line.

Operation Instructions

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 12 -

WARNING

Improper maintenance and storage of the towed dump cart may void your warranty.

MAINTENANCE

•After each use clean material out of the cart box.

•Rinse/dry inside and outside of the dump cart after each use.

•Before operating make sure the tyres have the RECOMMENDED TYRE PRESSURE 25 PSI.

•Regularly grease the axle and the wheel bearing area or when needed.

•Periodically check all fasteners for tightness.

•Annually clean and lightly lubricate parts.

•Use a glossy enamel spray paint to touch up scratched or worn painted metal surfaces.

•Never exceed load capacity rating of 181kg it will damage the towed dump cart.

IMPORTANT:

If a part needs replacement, only use parts that meet the manufacturer’s specifications. Replacement

parts that do not meet specifications may result in a safety hazard or poor operation.

STORAGE

•Never allow material to remain in the towed dump cart for extended periods of time.

•Before storing make sure the cart is clean and dry for years of trouble free service.

•Store indoors or protected area during severe weather and winter months.

•When storing outside always keep the tongue a little higher than the back of the cart to allow the

moister to easily run out the back and will not accumulate in the box.

Maintenance and Storage

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

- 13 -

Load Capacity .............................................................................................. 181kg

Outside Box Dimensions................................................... 110cm x 84cm x 27cm

Overall Dimensions........................................................... 150cm x 85cm x 66cm

Axle Dimensions.............................................................................. 1.5cm x 78cm

Wheel Size ........................................................................................................13”

Wheel Type............................................................................................Pneumatic

Hitch Type................................................................................................ Pin Style

Tyre Pressure (PSI)............................................................................................25

Unit Weight..................................................................................................... 20kg

Specifications

PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT PLANT CRAFT

Some experts believe that the incorrect or prolonged use of almost any

product may cause serious injury or death. To help reduce your risk of

serious injury or death, refer to the information below. For more information,

see www.datastreamserver.com/safety

Consult all documentation, packaging and

product labelling before use. Note that

some products feature documentation

available online. It is recommended to

print and retain the documentation.

Before each use, check the product for

loose/broken/damaged/missing parts,

wear or leaks (if applicable). Never use a

product with

loose/broken/damaged/missing parts,

wear or leaks.

Products must be inspected and serviced

(if applicable) by a qualified technician

every 6 months. This is based on average

residential use by persons of average size

and strength, and on a property of

average metropolitan size. Use beyond

these recommendations may require more

frequent inspections/servicing.

Ensure that all users of the product have

completed a suitable industry recognised

training course before being allowed

access to the product.

The product has been supplied by a general merchandise

retailer that may not be familiar with your specific

application or description of application. Be sure to attain

third-party approval from a qualified specialist for your

application before use, regardless of any assurances from

the retailer or its representatives.

This product is not intended for use where fail-safe

operation is required. As with any product (for example,

automobile, computer, toaster), there is the possibility of

technical issues that may require the repair or replacement

of parts, or the product itself. If the possibility of such

failure and the associated time it may take to rectify could

in any way inconvenience the user, business or employee,

or financially affect the user, business or employee, then

the product is not suitable for your requirements. This

product is not intended for use where incorrect operation or

a failure of any kind, including but not limited to, a condition

requiring product return, replacement, parts replacement or

service by a technician may cause financial loss, loss of

employee time or an inconvenience requiring

compensation.

If this product has been purchased in error when

considering the information presented here, contact the

retailer directly for details of their returns policy, if required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical,

including photocopying, scanning or recording, or any information storage and retrieval system, without

express permission or consent from the publisher.

PLANTCRAFT MOWCRTPLTAPD1 Assembly instructions

Popular Outdoor Cart manuals by other brands
