Plantron TD 5304D User manual

2
Preface
Preface
Preface
Preface
Thank you for choosing our product, for a better understanding of the product, we
recommend you read the instruction and safety information before use.
◆Notice ：
This user manual is an operation guide only. it has no implied or stated warranty, or
guaranty of the product described herein. The copy right and all right reserved to the
company. Please do not reprint and spread without authority. Please note the latest
bulletin of the company for the updated version.
◆Remark:
Please keep in temperature bet ween 0 ℃and 40 ℃, Keep away from harsh environment
like humid.
Keep out of direct sunlight and devices generating heat
Do not install it in Harsh environment including humid, dust and smoke
Keep horizontal mounting
Keep installing in stable location, prevent it from falling
Do not place other devices onto it
Install in Well-ventilated locations. Do not block the vents.
Only operated in the rated input and output range
Do not dismantle the product as your wish,
◆Product Operating Environment.
To display and manage multiple audio and video like 64 channels CIF DVR spontaneously
the basic configuration of the server should be as follows:
CPU ：Intel Core i3 550 ；memory ：4G ；Graphics ：Discrete graphics:512M,HDD,client
tailed ；
This product works with Windows XP/WIN7/VISTA. For best viewing, resolution should
be 1024 × 768 ，DirectX should be at least ver. 8.1 or newer .

3
Contents
Contents
Contents
Contents
1 System startup ............................................................................................................... 4
1 .1 System startup ..................................................................................................... 4
2 Setup Wizard .................................................................................................................. 4
2 .1 Wizard interface .................................................................................................. 4
2 .2 Administrator Login Interface .............................................................................. 5
2 .3 Basic S etup ........................................................................................................... 6
2 .4 Network setup ..................................................................................................... 7
2 .5 Network testing ................................................................................................... 7
2 .6 DDNS & Port Setup .............................................................................................. 8
2 .7 Record Mode & Record Setup ............................................................................. 9
2 .8 HDD Setup ......................................................................................................... 10
2 .9 Use of Taskbar ................................................................................................. 10
3 User login ..................................................................................................................... 13
3 .1 BASIC .................................................................................................................. 14
3 .2 Advance ............................................................................................................. 22
3 .3 Search ................................................................................................................ 36
3 .4 HDD .................................................................................................................... 38
3 .5 SYSTEM INFORMATION ...................................................................................... 38
3 .6 Device Maintenance .......................................................................................... 41
3 .7 LOGOUT ............................................................................................................. 44
4 Remote control ............................................................................................................ 45

4
1
1
1
1 System
System
System
System startup
startup
startup
startup
1
1
1
1 .1
.1
.1
.1 System
System
System
System startup
startup
startup
startup
Power on/off
Connect the power plug to the power port on the back of the DVR. The system will
automatically run a status check, and will start after few seconds. You will see a wizard
interface after the system loading.
2
2
2
2 Setup
Setup
Setup
Setup Wizard
Wizard
Wizard
Wizard
Setup Wizard is a quick-set to enter the whole CMS. You can finish the DVR basic
settings according to your requirements. This setup wizard contains all the basic settings,
like time setup, network setup, HDD format reminder, etc. The DVR will achieve basic
functions after the setup wizard has finished. If personalized settings are desired, please
login to the main menu and setup to complete this function.
2
2
2
2 .1
.1
.1
.1 Wizard
Wizard
Wizard
Wizard interface
interface
interface
interface
Wizard interface is shown below. We recommend the initial user finish the guide step by
step for the basic settings. Place a check mark ' √ ' in the box in the lower left corner and
then click 'Next' to perform the basic settings.

5
2
2
2
2 .2
.2
.2
.2 Administrator
Administrator
Administrator
Administrator Login
Login
Login
Login Interface
Interface
Interface
Interface
Here we recommend you setup a password for administrator and then click "Next" for
more settings; if you click "Cancel ” , you will enter directly into the "Main Menu"; if you
click "Prev.", the system goes to the previous page.
Note: By default, the administrator user name is: admin. There is no password, but for
better security, we strongly recommend that you setup a password here.

6
2
2
2
2 .3
.3
.3
.3 Basic
Basic
Basic
Basic S
S
S
S etup
etup
etup
etup
Date/Time, date format, time format, time zone, camera system, language, should be
setup according to the user ’ s needs, as below:
Date/Time Setup: Click calendar and choose the date; Click time, a digital keyboard will
appear, and then set to local time.
Date Format: Three format types: MM/DD/YYYY , DD/MM/YYYY , and YYYY/MM/DD.
Time Format: 24-hour/ 12-hour.
Time Zone: Click the down arrow, time zone options will be displayed, please select your
time zone.
Note: Once the DVR connects with the internet, it will automatically adjust the time to
the time zone you have chosen. Please make sure the time zone you chosen is the
desired local time zone.
Camera System: PAL/NTSC optional.
Language: Choose your local language or the language you want.

7
2
2
2
2 .4
.4
.4
.4 Network
Network
Network
Network setup
setup
setup
setup
There are 2 kinds of network setup: obtain an IP automatically or static IP, select the
type according to your network requirements, as displayed below:
2
2
2
2 .5
.5
.5
.5 Network
Network
Network
Network testing
testing
testing
testing
The system will test your network setup automatically. If a network connection is
abnormal, please return to the previous page to correct the settings and then click
“ Next ” . If no testing is required, just click “ Skip ” to go to the next page, as displayed
below:

8
2
2
2
2 .6
.6
.6
.6 DDNS
DDNS
DDNS
DDNS &
&
&
& Port
Port
Port
Port Setup
Setup
Setup
Setup
DDNS: Enable/Disable, please enable the DDNS to use a domain name server.
Server: Choose your domain name server: 3322, dyndns, no-ip, changip or dnsexit.
Host Name: Enter the host name you registered on the domain name server.
User Name: Enter the user name you registered on the domain name server.
Password: Enter the password you registered on the domain name server.
As displayed below:
Port Setup
Media Port: one private communication port that between DVR and PC, default: 9000. If
this port was occupied by other server port, please change to an idle port.
Web Port: Http port, default: 80, if change the web port, like to: 8088, when need to
access through browser, need to add the web port after the IP address.
E.g.: http://ip address:8088
Note: port range: 1-65535, some local ISP ’ s may block port “ 80 ” . We recommend you
change to something such as eg. 86 See display below:

9
2
2
2
2 .7
.7
.7
.7 Record
Record
Record
Record Mode
Mode
Mode
Mode &
&
&
& Record
Record
Record
Record Setup
Setup
Setup
Setup
Setup recording and audio for each channel; please tick the mark ' √ ' to enable recording
and audio.
There are two record modes: Always/Schedule.
For ease, setup one channel and then copy to the others, as shown below:

10
2
2
2
2 .8
.8
.8
.8 HDD
HDD
HDD
HDD Setup
Setup
Setup
Setup
HDD Information: You can check the HDD capacity and HDD quantity in the HDD setup.
HDD Format: tick ' √ ' under format, and then click “ Format ” .
Note: The newly installed HDD must be formatted through our DVR before usage.
Overwrite: There are three options to choose from; “ by days ” , “ by capacity ” and
“ never ” .Please selects desired method.
After the setup of disk, save and confirm interface will be shown on screen and click
“ Save to log out.
After the completion of setup wizard, DVR can be worked properly. If personalized
settings are needed, you can login to the menu to setup. As shown below:
2
2
2
2 .9
.9
.9
.9 Use
Use
Use
Use of
of
of
of Taskbar
Taskbar
Taskbar
Taskbar (For
(For
(For
(For Mouse
Mouse
Mouse
Mouse operation
operation
operation
operation only)
only)
only)
only)
1. By mouse operation, multi system options can be obtained.
2. Open task bar: right click any place on the screen, and open the task bar.
Choose an option below:
1) START: Enter into the menu interface.
2) Zoom of single channel: click and pop-up tick to show the
channel to be zoomed.
3) Zoom of quad: click and pop-upchoose any four channels to be zoomed.

11
4)
Recovery of 8 channels: click to recover to 8 channels.
5)
settings of color: O pen color setup interface( A s shown below).
Choose the channel to be setup and BRI, CON, HUE, SAT can be adjusted from "1-63";
Click "default" to recover to default settings; Click "apply" to save the settings.
6)
PIP ：Drag mouse to partially enlarge.
7)

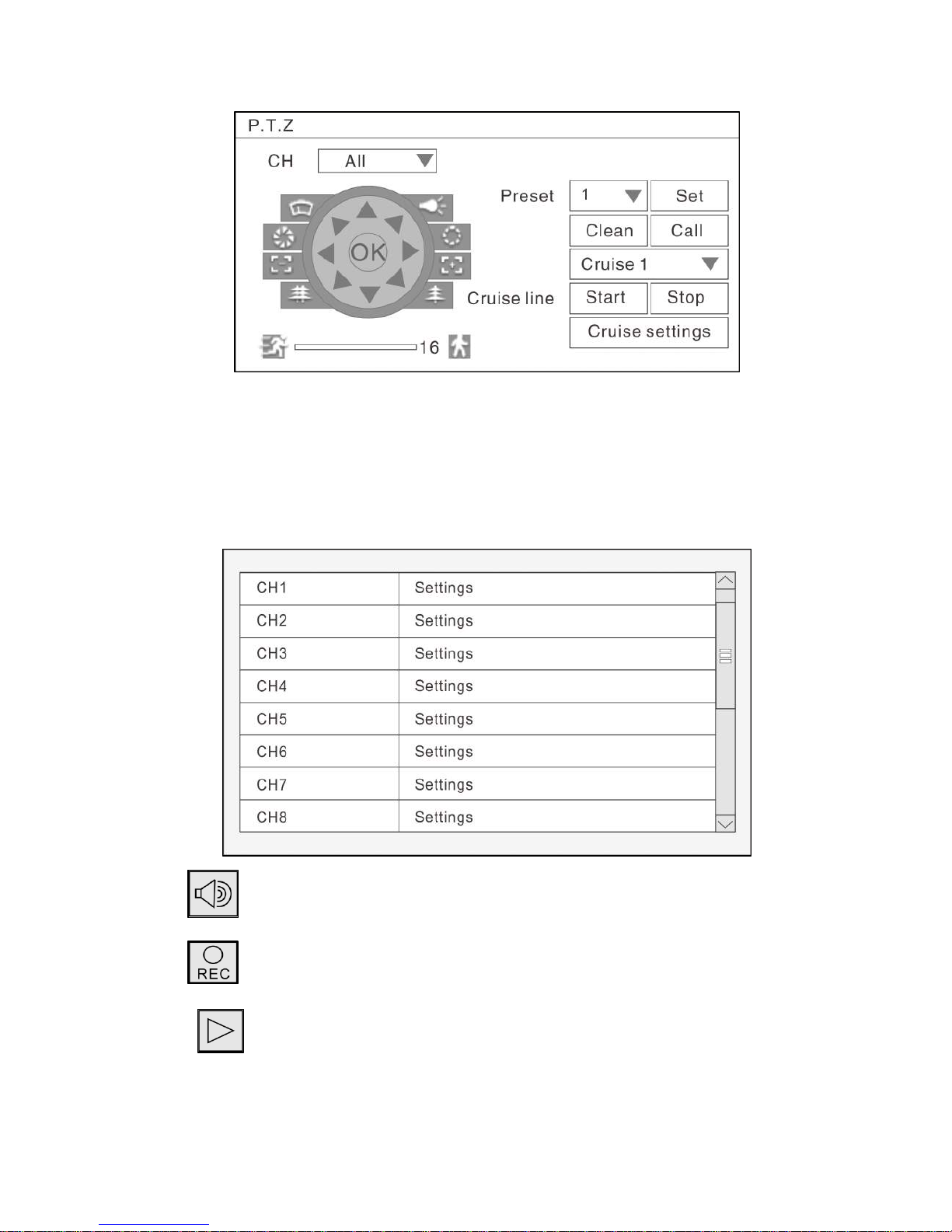

setup of PTZ: Open the control interface of PTZ(As shown below).

12
○
1
Choose of relevant channel, "all" refer to all channels, control of the PTZ of
relevant channel.
○
2 User can control the PTZ up, up left, down, right down, left, left down, right, right
up or stop turning; turning speed(ranging from "1-39"), zoom, focus, and iris of PTZ can
be adjusted. Select the code of preset point.
○
3 Setup of preset point: choose the channel to set the preset point.
○
4
Cruise line, click cruise setup to add or delete cruise.
8) Volume adjusts: open volume adjust control bar.
9) Manual record settings: open/close manual record.
10) Video query: open video query interface, and view the video.
11) Right click any position on the screen, and shut off the task bar.
Operating system

13
3
3
3
3 User
User
User
User login
login
login
login
Click “ START
START
START
START ” to enter the login interface, insert the Device ID, the default Device ID is
“ 0 ” . The initial user name is: admin with no password, but if you setup a password
during the setup wizard, you now need to input your password here.
Operation of menu
Enter the menu: the icon will be highlighted when the cursor moves onto the icon, click
to enter.

14

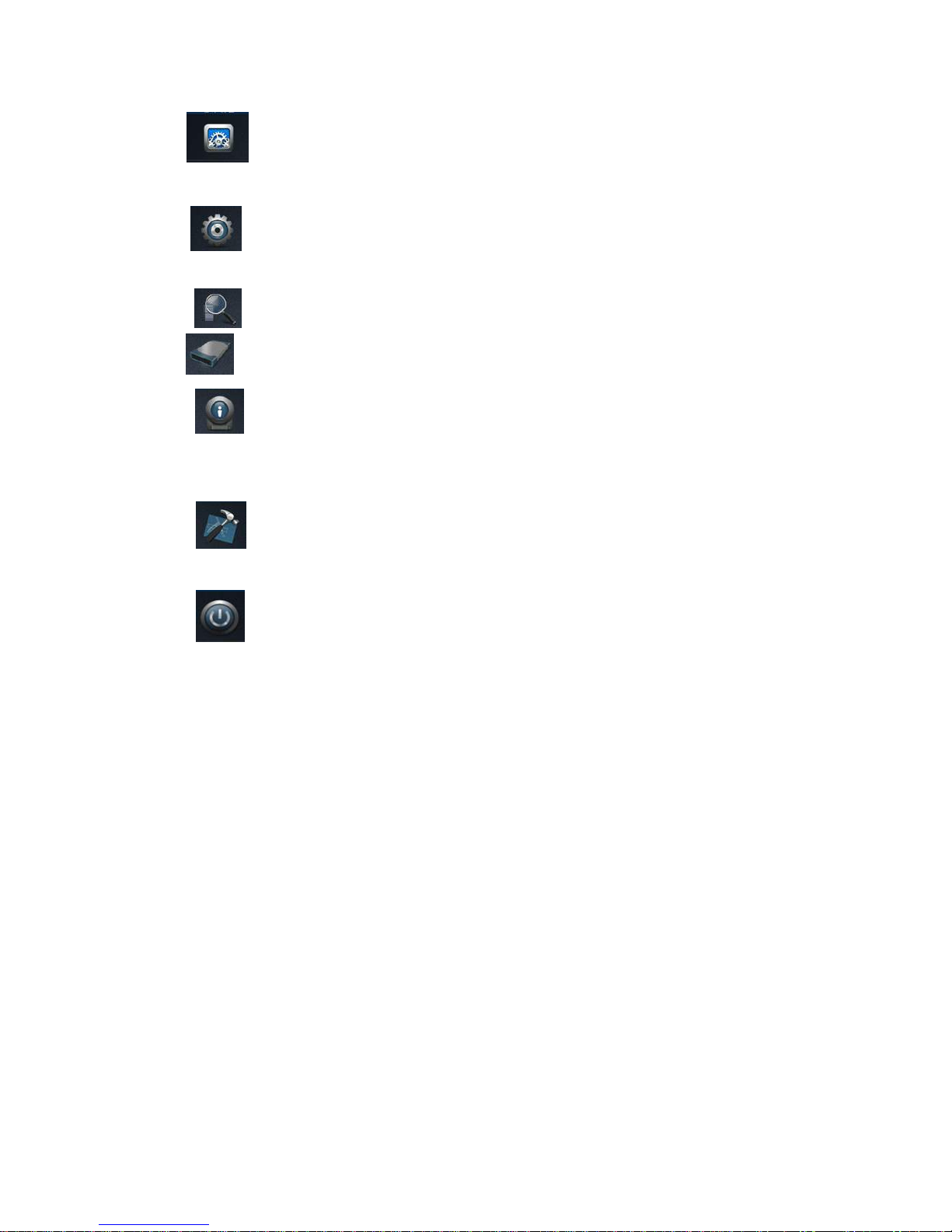

1) BASIC: Open the basic menu, and 5 functions show in interface: system setup,
time/date setup, record setup, display setup and user configuration
2) ADVANCE: Open the advance menu, you can: setup the alarm, network
settings, Internet application settings, and PTZ configuration.
3) SEARCH: Search the video recorded.
4) DISK: Display the HDD state and format the HDD.
5) INFORMATION: Display of the current configuration parameter, you can check:
system information, network information, user information and video settings
information.
6) MAINTENANCE: Firmware can be upgraded; the frequency and schedule of
upgrading can be setup.
7) LOGOUT: Locks the front panel button, and user name and password need to
be input while re-login.
3
3
3
3 .1
.1
.1
.1 BASIC
BASIC
BASIC
BASIC
After enter the menu, move the cursor to “ BASIC ” , and the icon will be highlighted, click
to enter.
3
3
3
3 .1.1
.1.1
.1.1
.1.1 System
System
System
System setup
setup
setup
setup
Setup of device name, device ID, video format, VGA resolution, language, logout time
and startup wizard.
1) Device name: It is for the change of the device name, click the input box and
keyboard will be pop-up, and click the keyboard to edit the device name.
2) Device ID: It is for the change of device ID, click the input box and keyboard will be
pop-up, and click the keyboard to edit the device name.
3) Select “ PAL ” or “ NTSC ” from the drop-down box.
4) VGA resolution: Adjust according to the VGA used. Select “ 1024 × 768 ” or
“ 1280 × 1024 ” from the drop-down box.

15
5) Language: Select the language from the drop-down box.
6) Logout time: Select “ 30 seconds ” , “ 1 minute ” , “ 3 minutes ” , “ 5 minutes ” , “ 10 minutes ”
or “ Never ” .
7) Startup wizard: Select “ Off ” or “ On ” from the drop-down box.
Note: After setup is completed, click “ Apply ” to save the setup, and click “ Default ” to
recover to default settings, and click “ Exit ” to the return.
3.1.2
3.1.2
3.1.2
3.1.2 Date/time
Date/time
Date/time
Date/time
1.
1.
1.
1. Date/Time
Date/Time
Date/Time
Date/Time setup:
setup:
setup:
setup:
1) Date/time: Click the calendar beside the date setup box, and select the date; Click the
time setup box and click to input.
2) Date format: Select “ MM/DD/YYYY ” 、“ YYYY-MM-DD ” 、“ DD/MM/YYYY ” from the
drop-down box.
3) Time format: Select “ 24-Hour ” or “ 12-Hour ” from the drop-down box.
4) Time zone: Select from the time zone from the drop-down box.
5) Synchronization: Network proof function. Mark while connecting to the web and
select the proof sever from the drop-down box.
6) Time sever: Select the proof sever among multi sever address from the drop-down
box.
Note: After setting is completed, click “ Apply ” to finish setting, and click “ Default ” to
recover to default settings, and click “ Exit ” to the return.

16
2.
2.
2.
2. DST
DST
DST
DST setup
setup
setup
setup
1) Enable: Mark enables the use of the DST setup.
2) Mode: Select “ Week ” or “ Date ” from the box.
3) Offset: time period ahead or delayed, Select “ One hour ” or “ Two hours ” from the
box.
4) Start time: It can be set according to the DST
Note: Click “ Apply ” to save the new setting. Click “ Default ” , to cancel the new setting.
Click “ Exit ” to go back to the previous menu.

17
3
3
3
3 .1.3
.1.3
.1.3
.1.3 Display
Display
Display
Display
1) CH: Order of the DVR channel
2) CH Name: Click to modify the CH name.
3) Mask: Click “ setting ” and select one CH. Drag the mouse to locate the mark area. 4
Mask areas are Maximum. Double click to cancel the mark. Click “ Apply ” to save.
Click “ Default ” to cannel.
4) Color: Click “ Setting “ and select one CH. Brightness Contrast Hue Saturation can be
modified. Click “ Apply ” to save.

18
5) Overlay: Click “ Setting “ and select one CH. Select “ Time overlay “ and “ Name overlay ” .
Click “ Default ” to cancel.
Copy CH: Copy one CH setting to another CH.

19
3
3
3
3 .1.4
.1.4
.1.4
.1.4 Record
Record
Record
Record
1.
1.
1.
1. Basic
Basic
Basic
Basic setting
setting
setting
setting
1) CH: Order of the DVR channel
2) Enable: click to enable the basic setting
3) Audio: click to enable audio recording
4) Mode: Click “ Always ” or “ Time recording ” to make the DVR record when start up or
recording according to the set schedule.
5) Copy CH: Copy one CH setting to another CH.
2.
2.
2.
2. Bit
Bit
Bit
Bit rate
rate
rate
rate

20
1) CH: Order of the DVR channel
2) Resolution: Click “ CIF ”” HD1 ” “ D1 ” to set the recording resolution.
3) Frame rate: “ 1-25 ” fps is for option.
4) Quality: ” Best ”” Better ”” Good ””” Normal ” for option
5) Copy CH: Copy one CH setting to another CH.
3.
3.
3.
3. Schedule
Schedule
Schedule
Schedule
1) CH: Order of the DVR channel
2) Set the mode of recording. ” Manual ” ” Normal ” ” Alarm ”
3) Double click the recording schedule; the “ schedule ” window will pop up. You can set
the recording schedule here.
Copy CH: Copy one CH setting to another CH.
