Plott Cubit User manual

1
Welcome To Cubit
Step by Step Guide

2

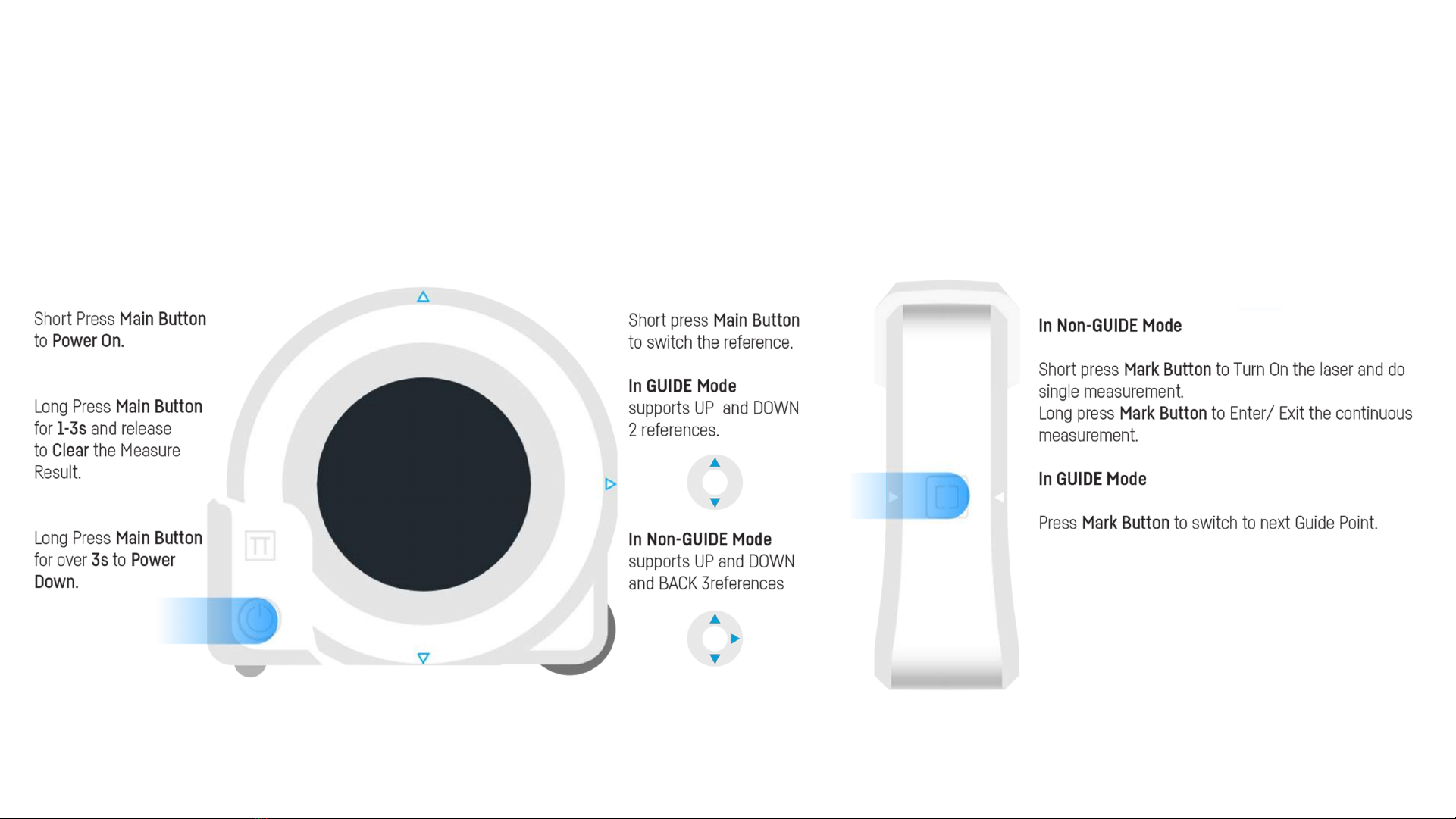

Functions
Step by Step Guide

3

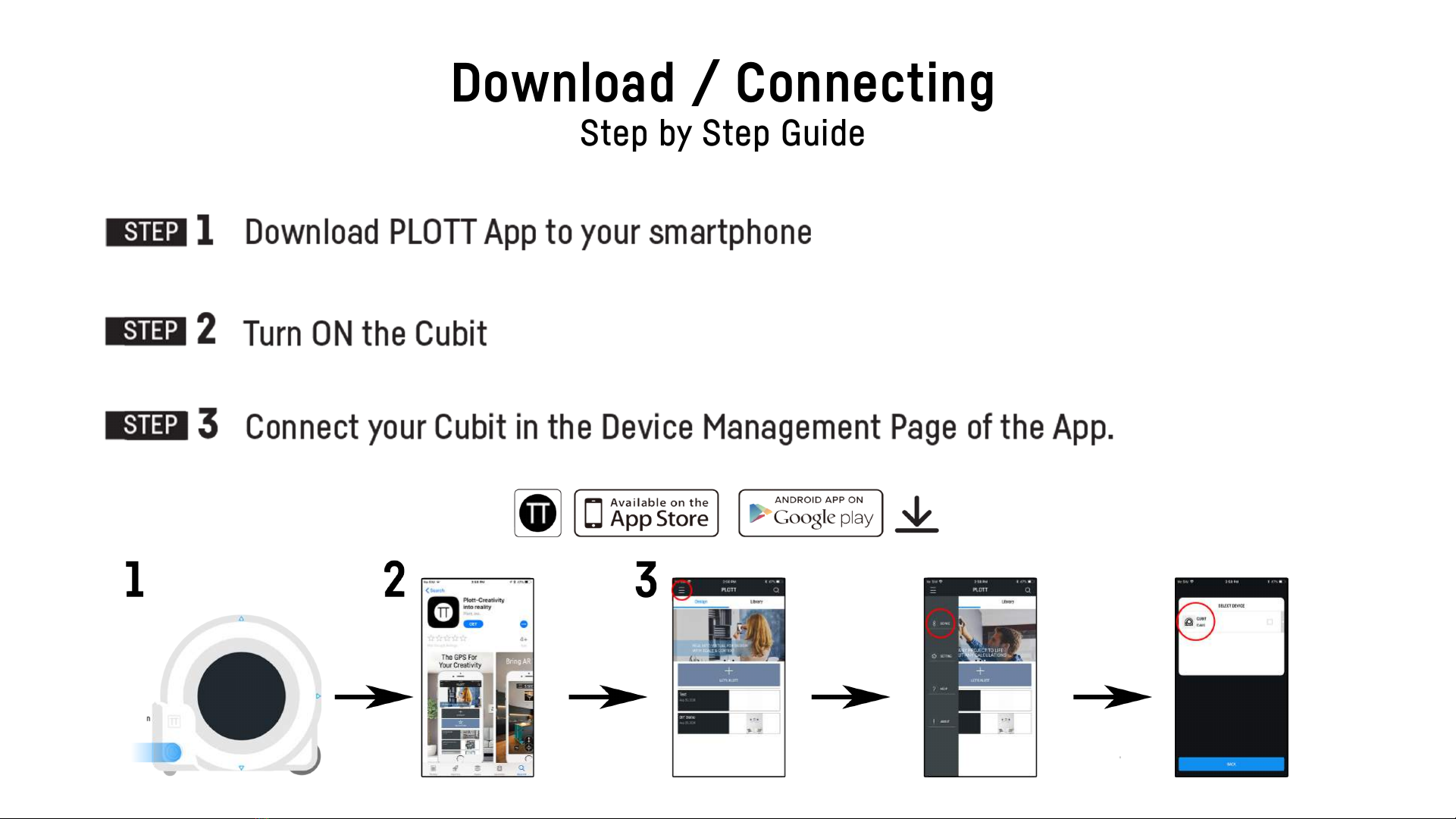

Download / Connecting
Step by Step Guide

4

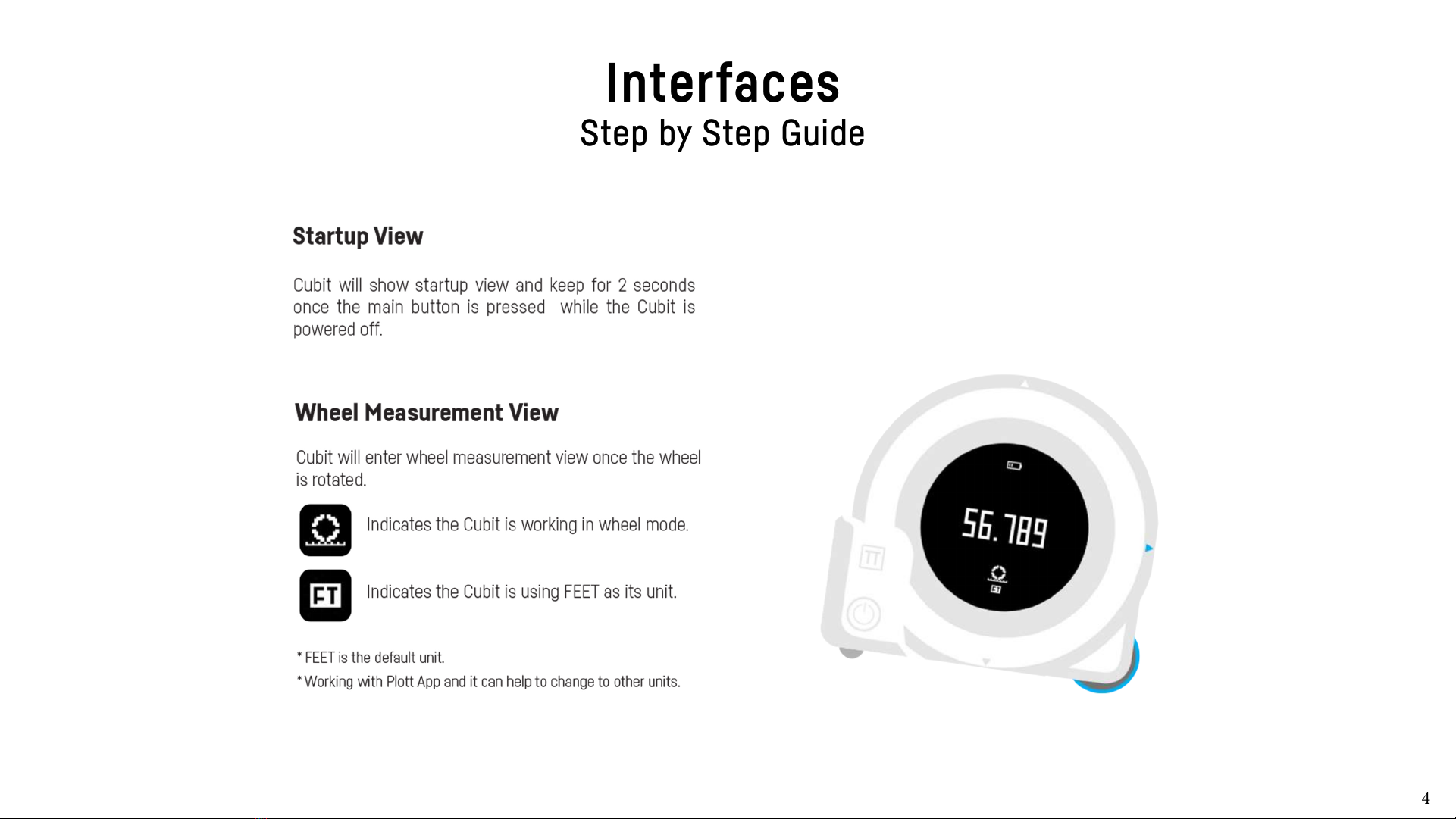

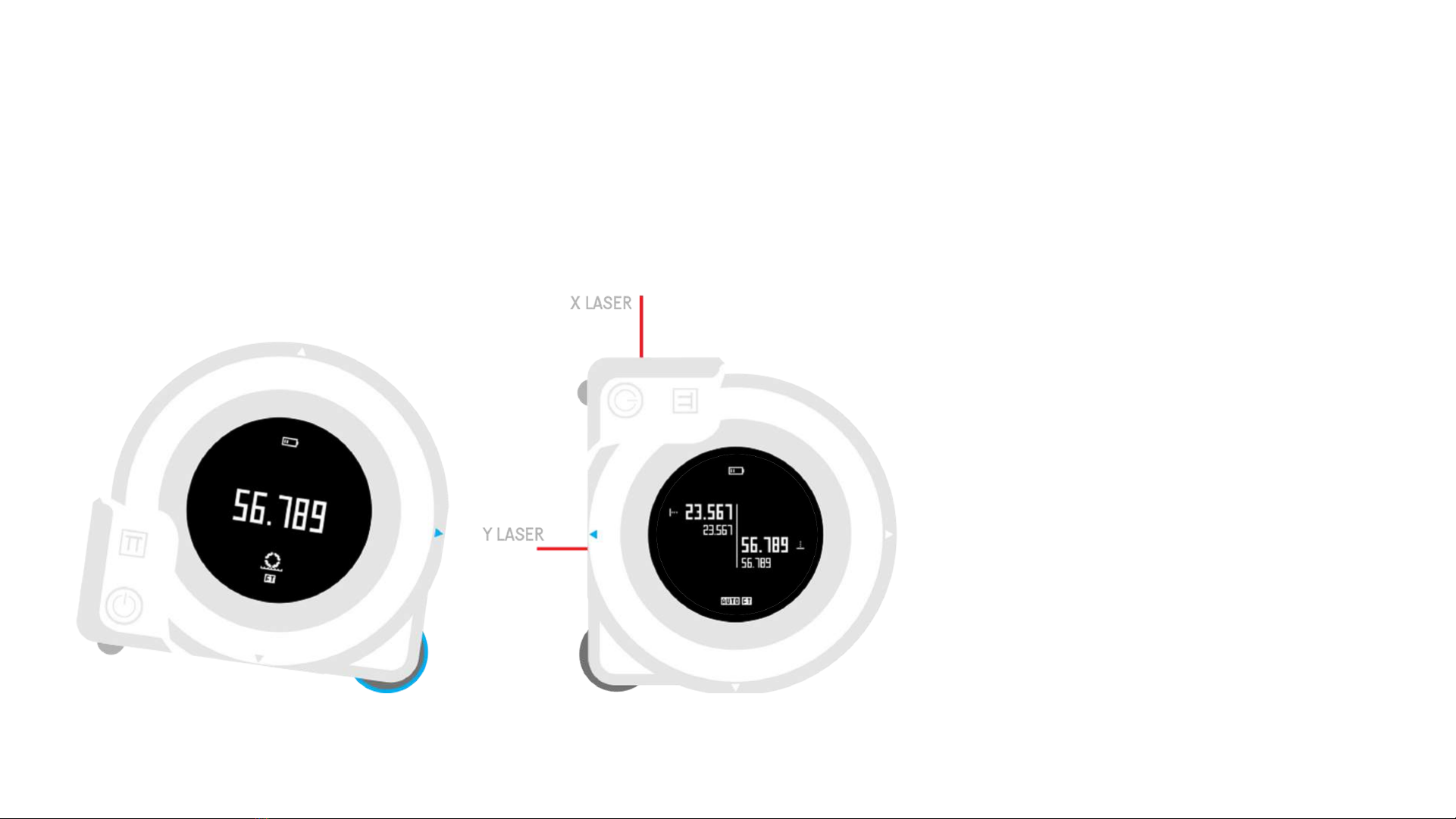

Interfaces
Step by Step Guide

5
Interfaces
Step by Step Guide

6
Interfaces
Step by Step Guide

7
App Usage “Getting Started”
Step by Step Guide
1. Open The App 2. Select “Let’s Plott” 3. Enter Folder Name

8
App Usage “Getting Started”
Step by Step Guide
4. Select Tool For Project 5. Enter Project Name 6. Enter A Background
First time through will have full tutorial

9
App Usage “Using Cubit to Measure Background”
Step by Step Guide
1. Select “Take Photo” 2. Take a Photo of Wall
1.Select Photo. You can take a photo
or import from photo Library.
2.Take a Straight on photo of your wall

10
3. Crop Photo 4. Select Dimension to edit
3. Crop Photo so its only your
wall
4. Select measurement to edit
dimensions if needed. First time
through will guide you through
whole process.
App Usage “Using Cubit to Measure Background”
Step by Step Guide

11
5. Roll Cubit or use the Lasers to measure
5. Roll Cubit along a measurement
or hit top button to record a laser
measurement.
• Hold power button for 3 seconds to clear
measurement
• Long press top button to enter continous
measurement.
App Usage “Using Cubit to Measure Background”
Step by Step Guide

12
6. Enter Measurement 7. Select Cubit
6. You can now manually enter in a measurement
using the key pad or connect to a bluetooth
device to record measurement.
7. Select Cubit Icon then select Cubit Picture to
input the current Horizontal measurement
displayed on Cubit.
8. Select the check mark when you are done
editing.
9. Repeat steps for other dimension.
Background will be present on edit screen
App Usage “Using Cubit to Measure Background”
Step by Step Guide

13
“Measuring in AR”
Step by Step Guide
1. Select AR 2. Select Reference Plane
Follow on screen instructions
AR has a 2% inaccuracy for more accurate
estimates use Cubit
1. Point at floor and motion your phone
back and forth to detect reference
points.
2. When the reference box closes select
bullseye to select plane

14
App Usage “AR”
Step by Step Guide

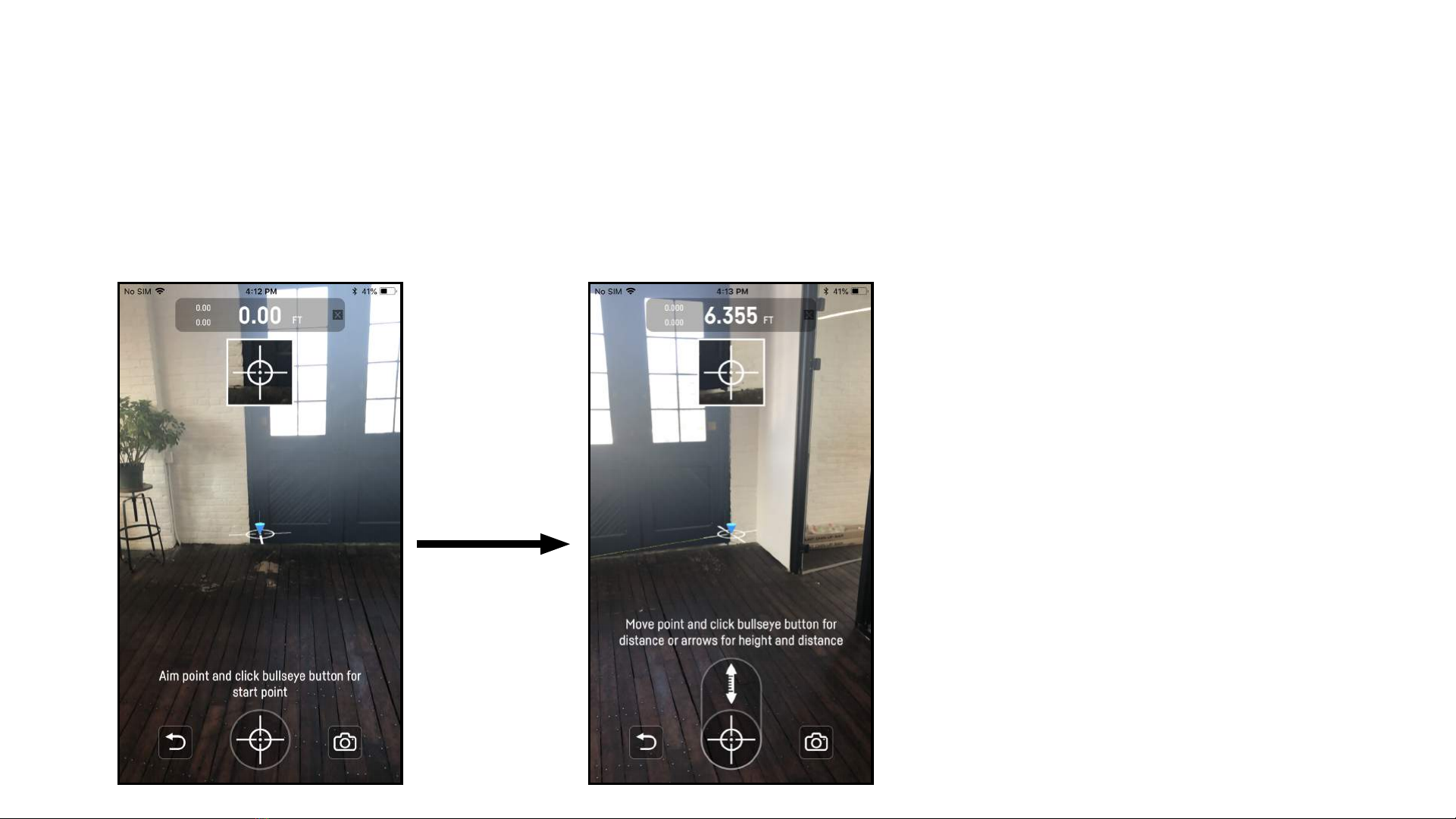

3. Select Start Point 4. Hit Arrows for Height
3. Select starting point by aiming cone
and hitting bullseye
4. Select second point by aiming at
second point and hitting bullseye
for length or Arrows for height
and width measurement

15
App Usage “AR”
Step by Step Guide
5. Aim Center for Height 6. Take Photo and Crop
5. Aim Center of phone at desired height
of measurement and hit Arrows to
record measurement
6. Take Photo of wall and crop image to
fit desired image.

16
App Usage “AR”
Step by Step Guide
7. Select Dimension 8. Enter Measurement
7. Select measurement to edit
dimensions if needed. First time
through will guide you through whole
process.
8. You can now manually enter in
a measurement using the key pad or
connect to a bluetooth device to
record measurement.

17
App Usage “AR”
Step by Step Guide
9. Select Cubit 10. Hit the Check Mark
9. Select Cubit Icon then select
Cubit Picture to input the current
Horizontal measurement displayed on
Cubit.
10. Select the check mark when you are
done editing.
11. Repeat steps for other dimension.
12. Background will be present on main
edit screen

18
App Usage “Importing Objects”
Step by Step Guide
1. Select Objects
First time through will have full tutorial
2. Select Photo 3. Use AR or Photo
To Import Objects
* Same steps as Background

19
App Usage
Step by Step Guide
4. Photograph back
of image
5. Select Hanging Point
by Holding down on point
6. Design
Drag and Drop to Design
