FAirway A310 User manual

Kit Includes:
1 • Sculpted Top Rail (with adjustable stair knuckles and spacers installed).
1 • Bottom Rail (with adjustable stair knuckles installed).
2 • Bottom Rail Brackets (PTP/OTP) Stair with screws.
Balusters
Top rail brackets sold separately.
Before Starting the Installation
Review all local building codes. Wear proper safety equipment.
Step 1
Mount & plumb surface post mount (bolts & shims not included).
Slide sleeve over post mount and check for plumb.
(See Step 1 illustration)
Step 2
With post plumb and sleeved, measure distance from post to post (see Step 2 illustration).
For TOP RAIL - deduct 3-1/4" from measurement.
For BOTTOM RAIL - deduct 2-1/2" from measurement.
NOTE: All measurements apply to stair pitch between 32-38 degrees.
Step 2
2"
2"
TOP
BOTTOM
Top Rail- Deduct 2"
Bottom Rail- Deduct 1 3/4"
Top Rail- Deduct 2"
Bottom Rail- Deduct 1 3/4"
Bottom Stair Run
Top Stair Run
Post Sleeve intersects
Top or Bottom Rails
Mount & Plumb Surface Post Mount
(Mounting Bolts & Shims Not Included)
Step 1
909918
A310 ADJUSTABLE STAIR RAILING
INSTALLATION GUIDE
Review all local building codes before starting the installation.
Wear proper safety equipment.
ALWAYS LAY RAILING ON CLEAN & SOFT SURFACE TO AVOID DAMAGE
Kit Layout
www.FairwayRailing.com
FAIRWAY ARCHITECTURAL RAILING SOLUTIONS ©2017

Step 3
Remove end spacers, mid-spacers, and adjustable stair knuckles from rails.
Cut top and bottom rails to length.
Step 4
Insert adjustable stair knuckles into baluster ends.
Ensure knuckles are facing opposite directions (see Step 4 illustration).
Slide a baluster (with knuckles) into bottom rail. NOTE: Lay rail on a at, non-
abrasive surface or have a helper assist with keeping components in place.
Slide a mid-spacer into bottom rail.
Repeat the process until the bottom rail is full of balusters and mid-spacers.
NOTE: Ensure baluster knuckles are facing the same direction.
Step 5
Slide balusters and mid-spacers ush to one end of rail. Measure open space on
opposite end.
Divide this distance in half to allow for equal spacing.
NOTE: At rail ends, the TOTAL space should be no greater than 8" and no less
than 4", with equal and maximum spacing on both ends.
Mid-spacers may need to be uniformly cut to adjust spacing.
Equally cut both end spacers to t.
Center balusters and mid-spacers on rail. Install end spacers
on rail ends, screws oriented on the rail ends.
Step 6
Repeat steps 4 and 5 for top rail, ensuring baluster spacing
matches bottom rail.
Step 7
Assemble stair brackets (See step 7 illustration).
Brackets mounted to TOP POST - mounting anges are
oriented UP.
Brackets mounted to BOTTOM POST - mounting anges
are oriented DOWN.
Slide brackets on rail section ends.
(Do not install set screws yet).
Place complete railing section between posts.
NOTE: Blocks can be used under bottom rail brackets to
hold section in place. Install self-tapping screws through
brackets into posts. Make nal check of baluster plumb and
install set screws through top rail bracket into rail.
Install post caps and post base trim.
(continued)
Mounting screw
anges oriented up
Mounting screw anges
oriented down
Step 7
Bracket Orientation
Bottom of runTop of run

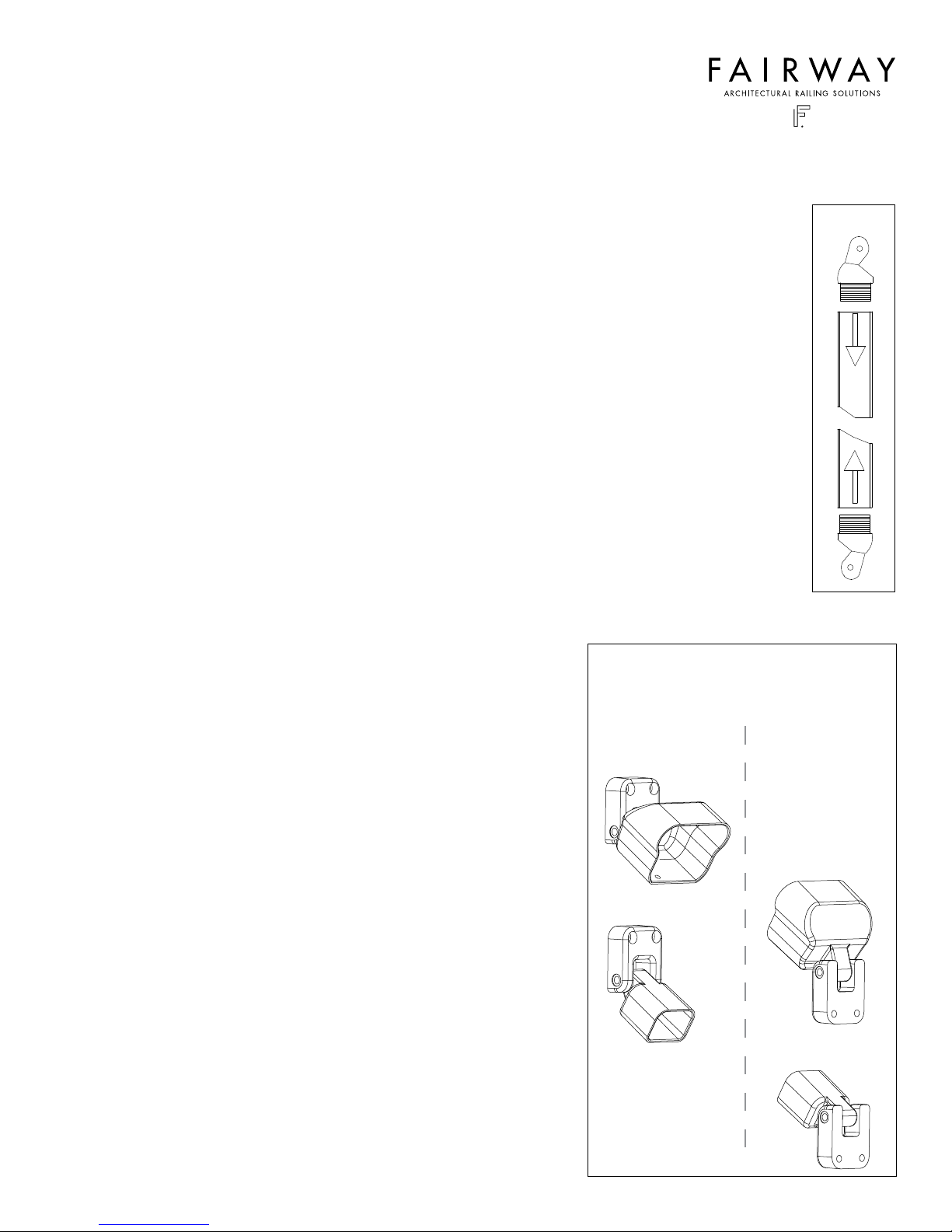

Step 4
A310 ADJUSTABLE STAIR RAILING
INSTALLATION GUIDE
FAIRWAY ARCHITECTURAL RAILING SOLUTIONS ©2017
www.FairwayRailing.com
909918
