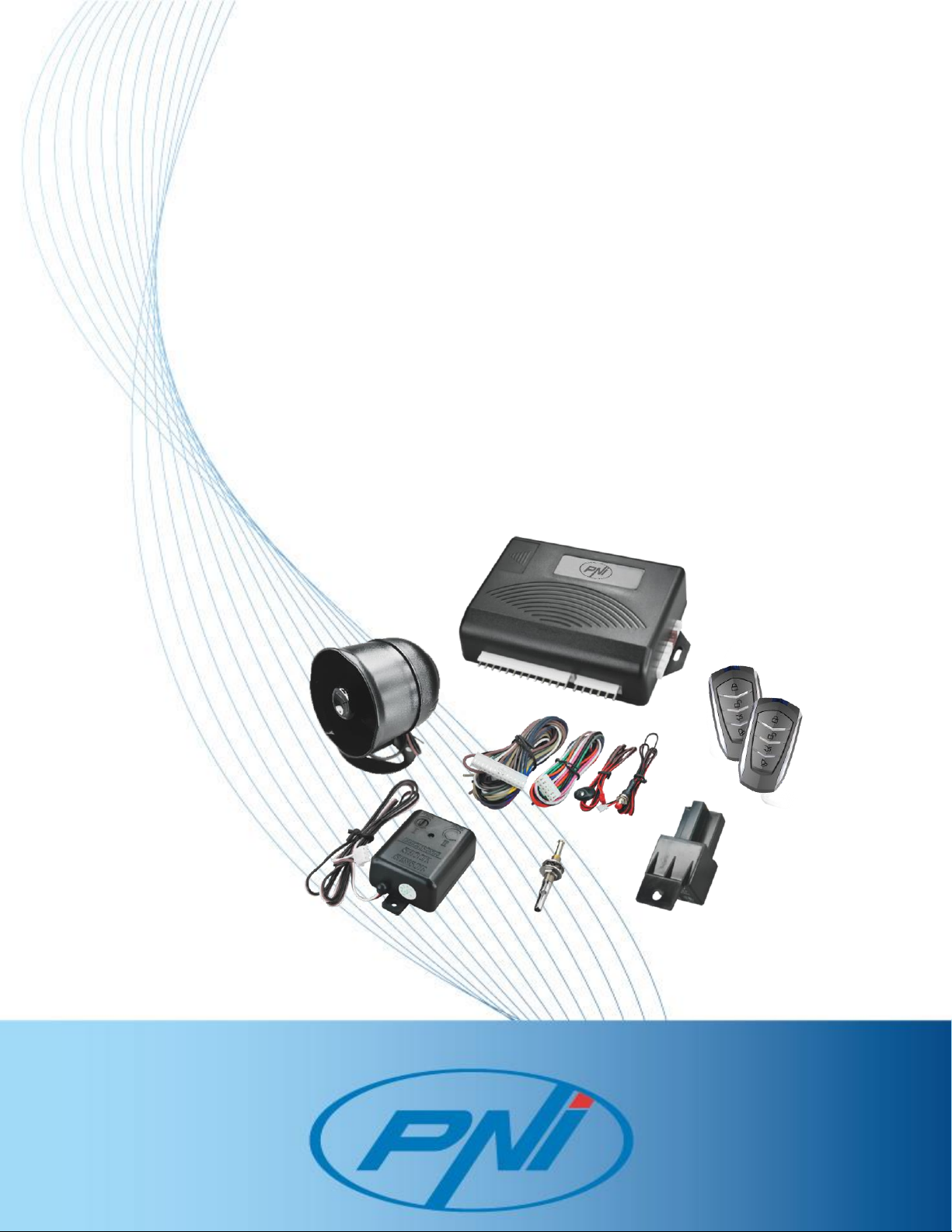

PNI OV288 User manual

1
User manual
Car alarm
PNI OV288

2
FUNCTIONS DESCRIPTION
1. Reinforcement: Turn off the car engine and exit it. Press the button on the remote
control, the signal lights will blink once, the siren will ring once, the doors will automatically lock.
After 5 seconds, the indicator light will blink, the system enters the arming mode
2. Disarm: In armed mode, press the button on the remote control, if the car alarm is
in the voice reinforcement mode, the siren will ring twice, the position lights will blink 3 times, if the
silencing mode is silent, the siren will not sound, the signal lights will Blinking 3 times, the doors will
unlock automatically, the system will go into disarm mode.
3. Silent arming: Press the button briefly on the remote control, the signal lights will
blink once, at the same time the doors will lock automatically, the indicator light will blink indicating
that it has entered the silent arming mode.
4. Unlocking the luggage compartment from the remote control: Press and hold for about 2
seconds the button as long as the alarm is disarmed and the luggage compartment will open
automatically.
5. Automatic Rearm:If no door is opened for 30 seconds, the siren will sound a short beep and
after 15 seconds the position lights will blink and the doors will lock automatically and the system will
enter the arming mode again. To deactivate this function, turn on the engine, press and hold the button
pressed for 1 second, the siren will sound a short beep and the position lights blink twice. To
activate this feature, start the engine, press and hold butonul pressed for 1 second, the siren will
sound 2 short beeps and the position lights will blink once.
6. Reminder for closing the door: If the doors are not closed properly when the car is started,
the signal lights will flash continuously (to activate or deactivate this function, please refer to the
jumper setting table).
7. Automated locking: If your car is equipped with a centralized locking system, the doors will
automatically lock 10 seconds after the engine is switched on, all doors are closed and the brake pedal
is depressed. If the engine is switched on but not all the doors are closed, they will not lock
automatically. The doors will unlock automatically after removing the ignition key. While walking,
you can press the button or to lock / unlock the doors. (to enable or disable this feature, please
refer to the jumper setting table).
8. Locate the car: Press and hold the button for 1 second when the alarm is armed, the siren
will sound for 4 seconds to locate the vehicle. This feature can help you locate your car in a large car
park.

3
9. Emergency Disarm: When the system is armed, if you have lost the remote control or you can
not disarm the system, you can disarm by opening the key in the key, start the engine, then press the
reset button once, so the system will be deactivated .
10. Anti-theft mode: this mode is useful when the car is in the washroom To activate this
function, turn on the engine and then press the reset button for 5 seconds, the LED will remain on to
indicate that the system is in anti-theft mode.
11. Panic alarm: When the system is armed, press the button for 2 seconds, the siren will ring
and the position lights will flash for 20 seconds.
12. Arm / disarm sound / no sound: press the buttons and simultaneously for 2 seconds
while the system is disarmed, the signal lights will blink twice and the siren will sound 2 short beeps
to confirm the soundless arming / disarming selection. Press the buttons again and
simultaneously for 2 seconds while the system is disarmed, to select arm / disarm sound, the signal
lights blink once and the siren will sound 1 short beep.
13. Shock sensor isolation: Press the buttons and simultaneously for 2 seconds while the
system is armed to deactivate the shock sensor, the siren will sound a short beep and the signal lights
will blink once to confirm. Press the buttons and simultaneously for 2 seconds while the
system is armed to reactivate the shock sensor, the siren will sound 2 short beeps and the flashing
lights will blink twice to confirm.
14. Door Lock Timer: Refer to the jumper setting table.
15. Alarm: when an alarm sounds, the siren sounds and the signal lights blink for 45 seconds. If a
door is not closed, the siren will resume the alarm twice, then stop, but the signal lights will blink until
the door is closed or the system will be disarmed.
16. Operation of the LED indicator:
System status
LED operation
Armed
Normal flashing
Alarm
Fast flashing
Disarmed
Bright
Disarmed + engine on
Extinct
Anti-theft mode
Bright
17. Signaling an error in the system or an isolated area (detected during reinforcement)
The area is faulty
Sounds from the siren
Sensor
4 short sounds

4
18. Identification of the area where the alarm is triggered (will reset at start of the engine)
Area
Sounds from the siren
Lights
Car door
3
3
Sensor
4
4
Contact car startup
5
5
19. Programming a Remote:
a) Fit the system control unit and then open a door
b) Turn the unit off for 6 consecutive times and then turn it on. The siren will emit a short session and
the LED will blink.
c) Press the button to save the remote control, the LED will remain on. Press any other button, the
siren will sound a short beep and the LED will turn off to confirm the remote control is stored.
d) The LED will start blinking again to wait for the next remote. Repeat the procedure to save a new
remote.
e) When all remote controls have been memorized, turn off the unit and exit the programming mode.
20. Deleting all the remote controls in the memory: In remote control mode, press the reset
button once, the siren will sound a short beep to confirm that all the remote controls are being deleted
from the memory.
21. Functions settings in jumpers
Jumper
Function
Position ON
Position OFF
S0
Door lock / unlock when turning the engine on / off
Enabled
Disabled
S1
Door alert open
Enabled
Disabled
S2
Closure at double impulse
Enabled
Disabled
S3
Car door lock timer
0.8 sec
5 sec
PRECAUTIONS
Installation of the main unit
We suggest installing the main unit in a safe place under the control panel. After you have
fixed the main unit in the right place, please identify the main wires for connection (ACC, signal
lights, power supply, brake, etc.) if they are correctly connected according to the connection diagram
and then connect these wires to the unit main sensor, shock sensor and indicator light. After you have
tested the function, please install and then set the shock arming 5 seconds after you have closed the
doors to check if the shock sensor is sufficiently sensitive.

5
Installing and setting the shock sensor
We suggest installing the shock sensor near the door or near the panel after installing the main unit to
easily detect any intrusion. Set the shock to 5 seconds after closing the doors to check if the shock
sensor is sufficiently sensitive. To adjust the sensitivity of the shock sensor, use a screwdriver to turn
the shock sensor potentiometer to the appropriate position (if sensitivity is appropriate from the factory
do not try to adjust it if you do not need it). The indicator light from the shock sensor will blink, please
do not touch the shock sensor when adjusting its sensitivity.
Install centralized locking
First, remove the locks, please find a suitable location near the locks to fix the engine well, then fix the
engine hook to the lock hook, make a simple test after installing the engine in the 4 doors after
checking that the central locks work, please assemble all the parts.
Troubleshooting
The remote does not work
Check that the battery is not discharged
Check if the battery pins are in contact
Check if the remote control is humid
Check if the remote control is damaged
The siren does not work
Check that the siren is properly connected to the main unit
Check if the siren is connected to the ground
The siren continues to ring after
the main unit is installed, the
remote control can not cancel
the siren
Check that the wires are properly connected
Check that the main unit's fuse is not burnt
Check if the code between the main unit and the remote is
correct
Central locking does not work
Check if the engines are well installed
Check that the wires and fuse are installed correctly
The siren sounds right after you
set the arm
Check if the shock sensor is in trouble
Check if the shock sensor is too sensitive
Check that the wires are properly connected

6
DIAGRAM OF
CONNECTIONS

7
CONNNECTION DDIAGRAM FOR CENTRALIZED CLOSURE

8
