PO Fung Electronic T20 User manual

ATTENTION
T20 is a multitask FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical
frame, T20 is the ideal and effective solution for the professionals who need to stay in touch with the working team (in
construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and
family.
To help you ward off bodily injury or property loss that may arise from improper operation, please read all the information
carefully before using our products.
RF EXPOSURE
WARNING! It is up to the user to properly operate this radio transmitter to insure safe operation. Please adhere to the
following:
Do not use the radio with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may
result.
Please contact your local dealer for a replacement antenna.
Device operation up to maximum duty cycle 50% and compliance with the public environment RF Exposure.
This EUT is compliance with SAR for general/uncontrolled exposure limits in IC RSS-102 at operating duty factors of up to
50% and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528 and IEC
62209. This equipment should be installed and operated with a minimum distance of 2.5 cm must be maintained when
held-to-face, and body-worn operations are restricted to the approved original accessories (belt clip), a minimum distance of
0 cm.
Cet EUT est conforme au SAR pour les limites d'exposition contrôlées dans IC RSS-102 à des facteurs de service allant jusqu'à
50% et a été testé conformément aux méthodes et procédures de mesure spécifiées dans IEEE 1528 et IEC 62209. Cet
équipement doit être installé et utilisé avec une distance minimale de 2,5 cm doit être maintenu lorsqu'il est tenu face à face,

et les opérations portées sur le corps sont limitées aux accessoires d'origine approuvés (clip de ceinture), une distance
minimale de 0 cm.
■Hand-Held Operation (Held-to-Face)
This device was evaluated for typical hand-held (held-to-face) operations with a 1 inch spacing from the front of the radio.
For hand-held operation, the radio should be held 1 inch from the user's face in order to comply with FCC RF exposure
requirements.
■Body-Worn Operation
This device was evaluated for body-worn operations with the supplied belt-clip accessory. (All necessary accessories are
included in the package; any additional or optional accessories are not required for compliance with the guidelines.) Third
party accessories (unless approved by the manufacturer) should be avoided as these might not comply with FCC RF exposure
guidelines.
For body worn operation, this device has been tested and meets the Industry Canada RF exposure guidelines when used with
Pofung accessories supplied or designated for this product. Use of other accessories may not ensure compliance with
Industry Canada RF exposure guidelines.
Fonctionnement de l’appareil, lorsque porté sur le corps. Cet appareil a été testé et s’est avéré conforme aux normes
d’Industrie Canada et approuvé pour le port sur le corps à l’aide des accessoires Pofung inclus et conçus pour cet appareil.
L’utilisation d'accessoires ne respectant pas les exigences d'exposition RF d’Industrie Canada doit être évitée.
FCC PART15
■FCC PART 15 COMPLIANCE
This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void your authority to
operate the equipment.
Avis de conformité à la FCC : Ce dispositif a été testé et s’avère conforme à l’article 15 des règlements de la Commission
fédérale des communications (FCC). Ce dispositif est soumis aux conditions suivantes: 1) Ce dispositif ne doit pas causer
d’interférences nuisibles et; 2) Il doit pouvoir supporter les parasites qu’il reçoit, incluant les parasites pouvant nuire à son
fonctionnement.
Tout changement ou modification non approuvé expressément par la partie responsable pourrait annuler le droit à
l’utilisateur de faire fonctionner cet équipement.
■IC COMPLIANCE
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes :
(1) L' appareil ne doit pas produire de brouillage;
(2) L' appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d' en compromettre le
fonctionnement.
PRECAUTIONS FOR BATTERIES
■Charging Prohibitions

To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions:
1. Do not charge or replace your battery in a location containing fuels, chemicals, explosive atmospheres and other
flammable or explosive materials.
2. Do not charge your battery that is wet. Please dry it with a soft and clean cloth prior to charge.
3. Do not charge your battery suffering deformation, leakage and overheat.
4. Do not charge your battery with an unauthorized charger.
5. Do not charge your battery in a location where strong radiation is present.
6. Overcharge shall always be prohibited for it may shorten the life of your battery.
■Maintenance Instructions
To help your battery work normally or prolong its life, be sure to observe the following instructions:
1. Accumulated dust on charging connector may affect normal charging. Please use a clean and dry cloth to wipe it on a
regular basis.
2. It is recommended to charge the battery under 5℃~40℃. Violation of the said limit may cause battery life reduction or
even battery leakage.
3. To charge a battery attached to the product, turn it off to ensure a full charge.
4. Do not remove the battery or unplug the power cord during charging to ensure a smooth charging process.
5. Do not dispose of the battery in fire.
6. Do not expose the battery to direct sunlight for a long time nor place it close to other heating sources.
7. Do not squeeze and penetrate the battery, nor remove its housing.
■Transportation Instructions
1. Damaged batteries must not be transported.
2. To avoid short circuit, separate the battery from metal pars or from each other if two or more batteries are transported in
one packaging.

3. The radio must be switched off and secured against switch-on, if the battery is attached.
The content of the shipment must be declared in the shipping documents and by a Battery Shipping Label on the packaging.
Contact your hauler for the local regulations and further information.
■Precautions for Disposal
Once the service life of our products (including but not limited to radios and batteries) has ended，they shall not be disposed
as household garbage. Their recycling and disposal shall satisfy your local regulations.
MAINTENANCE
To be safe and sure:
•Never open your radio’s case.
•Never change or replace anything in your radio except the batteries.
■Care and Safety
Your T20 was designed to fulfill any warranty obligations and to enjoy this product for many years.
As for all the electronically devices, we recommend you to follow this few suggestions:
•Do not attempt to open the unit. Non-expert handling of the unit may damage it and/or annul the warranty.
•When using regulated power supply, take notice of power voltage that must be 5V to avoid damages.
• High temperatures can shorten the life of electronic devices, and warp or melt certain plastics. Do not store the radio in
dusty or dirty areas.
• Keep the Radio dry. Rainwater or damp will corrode electronic circuits.
• If it appears that the Radio diffuses peculiar smell or smoke, please shut off its power immediately and take off the charger
or battery from the Radio.
• Do not transmit without antenna.

• To clean the radio, use a soft cloth dampened with water. Do not use cleaners or solvents because they can harm the body
of the unit and leak inside, causing permanent damage.
• Use a dry, lint-free cloth to clean the battery contacts.
■Hazardous Environments
Do not operate the radio in hazardous environments. Explosion or fire may result. Do not operate the radio near unshielded
electrical blasting caps.
Under certain conditions, radios can interfere with blasting operations and may cause an explosion. Turn your radio OFF to
prevent accidental transmission when in a blasting area or in areas posted: "Turn off two-way radio." Construction crews
often use remote control RF devices to set off explosives.
WARNING! Read this information before using the radio. In August 1996 the Federal Communications Commission (FCC)
of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure
to radio frequency electromagnetic energy emitted by FCC regulated transmitters.
Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The
design of the radio complies with the FCC guidelines and these international standards.
Never allow children to operate the radio without adult supervision and the knowledge of the following guidelines.
Programming software (optional)
Thanks to Programming software CPS-T20-FRS, it is possible to increase the performance of your radio or to reduce its
functionality by disabling some of the default features (CTCSS, DCS, TOT, VOX...)
For further information, please consult the Programming software manual.
Any attempt to change frequencies or output power of the radio invalidates the approval.
PACKAGE CONTENTS

• 1 T20 transceiver • 1 Belt clip
• 1 1500mAh Li-ion rechargeable battery pack • 1 USB cable
• 1 User manual •1 Wrist-strap
Note: The number of the above materials may be depending on the number of packages.
MAIN FEATURES
• FRS transceiver (No license required) • Output power: ≤2W/ ≤0.5W(only 8-14channels)
•22 FRS two-way channels • Channel monitor
• Channel spacing: 12.5 KHz • Channel scan
• Vocal tuning • Battery save
• Battery low alert • TOT (Time out timer)
• 2pin Kenwood accessory jack • Micro USB connector for charging
• 260 Sub-codes (50 CTCSS Codes & 210 DCS codes) • Li-Ion 1500mAh battery pack
• Up to 5 km range*
• Battery Life: up to 18 hours (under typical use conditions)
Note: *Range may vary depending on environmental and/or topographical conditions.

BATTERY RECHAGRE
T20 is equipped for using a 3,7V Li-ion rechargeable battery pack which can be recharged by connecting the USB cable to the
radio and to a USB-charger (5V-1A). It takes 5 hours to fully recharge the radio.
For maximum battery life, we recommend charging the battery pack when the T20 is off and the battery pack is fully
discharged.
The Battery power saving feature enables a reduction in consumption of up to 50%. If it has been set, it automatically
activates when the transceiver does not receive any signal for more than 5 seconds in order to save the battery life.
The Power saving function is activated by default and can be modified only by soft-ware.
Note: Using a different battery charger other than the one specified can cause damage to your device or may even
cause explosions and personal injuries.

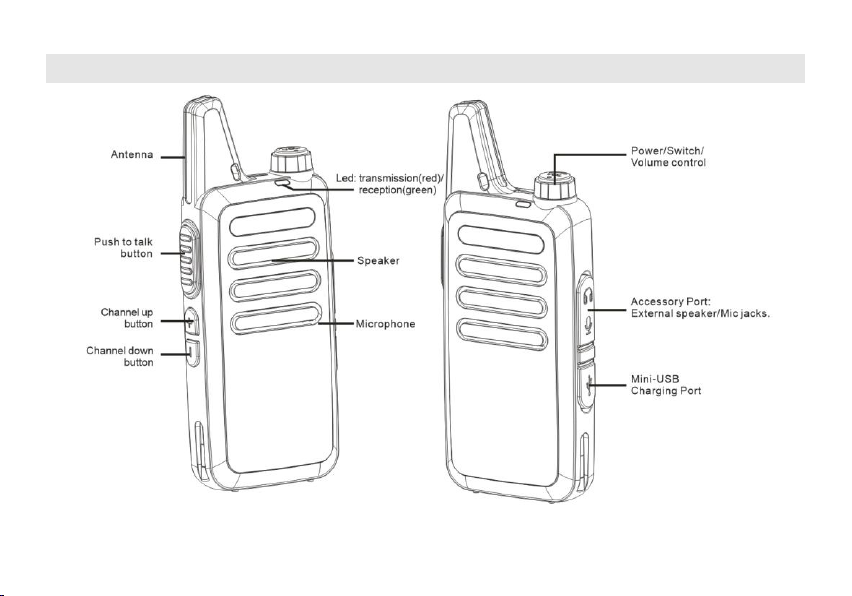

GETTING ACQUAINTED
NOTE: Long press [Channel down] key to enter the monitoring state.

OPERATIONS
Power on/off and volume adjustment
Rotate the Power/Volume knob clockwise to turn the radio on. Rotate the control clockwise /counter-clockwise to adjust the
volume level as you prefer. To turn the radio off, rotate the control counter-clockwise till hearing a mechanical “click”.
Channel selection
In standby mode, directly press the Channel Up (+)/ Down(-) key to step down or down to select the channel. When the
voice prompt function is turned on, the corresponding channel is broadcast by voice.
With T20 turned on, long press the LAMP key to lock or unlock the channel selection function. After the channel selection
function is locked, channel switching will be prohibited, and pressing the Channel Up (+)/ Down(-) keys will cause a prompt
tone to prohibit operation.
Transmission
To communicate, all radios in your group must be set to the same channel. Briefly press the Channel Down (-) to enable the
Monitor feature in order to make sure that the frequency is not busy, and then press the [PTT] key. Release the [PTT] key to
receive. Only one user at a time can talk during radio communications. Therefore, it is important not to transmit when you
are receiving a communication and use the transmission mode sparingly to allow other users to talk. Transmission consumes
a significant amount of energy and should therefore be used sparingly to prolong the battery life. If you are unable to contact
a station that you have no problems in receiving, the station may be using CTCSS tones or DCS codes.
Monitor
The Monitor feature is for excluding (opening) the Squelch, in order to listen to signals that are too weak to keep the Squelch
permanently opened. Hold down the Channel Down (-) to enable such function.

VOX
The VOX feature enables hands free conversations without using PTT: just speak in the direction of the microphone and the
communication will be automatically activated. The VOX sensitivity can be adjusted in 5 different levels (1…5) through the
programming software:
Level 2 is set by default and has the lowest VOX sensitivity, 5 is the lowest one.
With the programming software you can enable/disable the VOX feature and select the sensitivity levels.
CPS programming path: Edit > VOX > VOX Level
Scan
To enable the Scan function, all 22 channels must be programmed. If you turn on the radio on channel 22, the scanning will
automatically start. Whenever any signal is detected, the scanning will stop on a busy channel. If the PTT is pressed, you will
transmit on the latest busy channel. Channel 22 is the priority channel; therefore if you don’t pick up any signal when you
press PTT, the radio will transmit on channel 22.
On the 16th channel, press and hold the PTT + Channel Down (-) to turn on the radio and turn the scanning function on or
off.
Repeat the above operation to turn off the scan function.
Squelch
The Squelch function suppresses noises on free channels and allows receiving even weak signals. T20 has 10 different
Squelch levels that can be set by programming software: 0 means that the Squelch is turned off; from level 1 to level 9 you
will have different levels of noise reduction. The higher is the level, the louder will be the Squelch. By default, the Squelch
level of T20 is set on level 4. Make sure you do not set an excessively high squelch level because in this case you may not be
able to receive weaker signals. On the other hand an excessively low Squelch value could enable the Squelch even when no
signals are present. Squelch must always be adjusted when no signals are present. The Time Out timer is settable from 30
sec to 270 sec. only through the programming software. This feature is disabled by default.

CTCSS/DCS tones
CTCSS and DCS tones are similar to access codes and enable the radio to communicate only with the users that are tuned on
the same channel and have set the same code. For each channel, you can set up to 50 CTCSS tones and 210 DCS codes. The
CTCSS/DCS tones are a sort of “access codes” and enable the radio to communicate only with the other users set on the
same frequency and on the same CTCSS/DCS tone. Undesired signals coming from other stations set on the same
frequency but with different CTCSS/DCS tones won’t be received.
Quick operation radio
Without CPS programming software, you can perform the following quick operations through the combination of PTT +
Channel Down (-):
• On channels 1, press and hold the PTT + Channel Down (-) key to turn on the radio and turn the VOX function on or off.
Accompanied by a voice prompt VOX ON or VOX OFF.
• On the 15th channel, press and hold the PTT + Channel Down (-) to turn on the radio and switch the prompt language
between Chinese and English.
• On the 16th channel, press and hold the PTT + Channel Down (-) to turn on the radio and turn the scanning function on or
off.
ON-LINE SERVICE AND SUPPORT
The Pofung website provides additional information about obtaining service or support for the Pofung line of two-way radios
and accessories. Visit: www.pofungshop.com Mail: [e-mail]
FCC Licensing Information This pofung radio operates on Commercial/ Land Mobile frequencies which require a license from
the Federal Communications Commission (FCC) for business, personal, education and recreational use. To obtain forms, call
the FCC forms hotline at: 1-800-418-3676 or go to http://www.fcc.gov for questions concerning commercial licensing,
contact the FCC at 1-888CALL-FCC (1-888-225-5322).

Appendix A. –Technical Specifications
General Part
Frequency Range FRS
Working temperature -10℃to +40℃
Operation Voltage DC 3.7 V ±10%
Operation Mode Simplex
Dimensions 136mm×56mm×28mm (with Antenna)
Weight 130g (Battery pack included)
Antenna Impedance 50ohm
Duty cycle 5/5/90%
Transmitter Part
RF Output Power 2W (1-7&15-22Channels) /0.5W(8-14Channels)
FM Modulation 11K0F3E@12.5KHz
Adjacent Channel Power 60dB @ 12.5KHz
Transmission current ≤1000mA
Receiver Part
Receive Sensitivity 0.25μV (12dB SINAD)
Adjacent Channel Selectivity ≥[email protected]Hz
Inter Modulation and Rejection ≥[email protected]Hz
Conducted Spurious Emission ≤-57dB@12.5KHz
Rated Audio Power Output 0.75W @8 ohms
Receive current ≤380mA
Rated Audio Distortion ≤5%
NOTE: All specifications may be modified without prior notice or liability.

Appendix B. - FRS Frequency Chart (MHz)
CH.No
CH.Freq.
Power
Output
CH.No
CH.Freq.
Power
Output
1
462.5625
High
12
467.6625
Low
2
462.5875
High
13
467.6875
Low
3
462.6125
High
14
467.7125
Low
4
462.6375
High
15
462.5500
High
5
462.6625
High
16
462.5750
High
6
462.6875
High
17
462.6000
High
7
462.7125
High
18
462.6250
High
8
467.5625
Low
19
462.6500
High
9
467.5875
Low
20
462.6750
High
10
467.6125
Low
21
462.7000
High
11
467.6375
Low
22
462.7250
High

Appendix C. –Trouble shooting guide
Phenomena
Analysis
Solution
You cannot turn on the radio.
The battery may be installed improperly.
Remove and reattach the battery.
The battery power may run out.
Recharge or replace the battery.
The battery may suffer from poor contact caused by
dirty or damaged battery contacts.
Clean the battery contacts or replace the
battery.
During receiving, the voice is
weak or intermittent.
The battery voltage maybe low.
Recharge or replace the battery.
The volume level may be low.
Increase the volume.
The antenna maybe loose or maybe installed
incorrectly.
Turnoff the radio, and then remove and
reattach the antenna.
The speaker maybe blocked.
Clean the surface of the speaker.
You cannot communicate with
other group members.
The frequency or signaling type maybe inconsistent
with that of other members.
Verify that your TX/RX frequency and
signaling type are correct.
You may be too far away from other members.
Move towards other members.
You hear unknown voices or
noise.
You may be interrupted by radios using the same
frequency.
Change the frequency, or adjust the
squelch level.
The radio in analog mode maybe set with no
signaling.
Request your dealer to set signaling for
the current channel to avoid interference
You are unable to hear anyone
because of too much noise and
hiss.
You may be too far away from other members.
Move towards other members.
You may be in an unfavorable position. For example,
your communication may be blocked by high
buildings or blocked in an underground area.
Move to an open and flat area, restart
the radio, and try again.
It may be the result of external disturbance (such as
electromagnetic interference).
Stay away from equipment that may
cause interference.
The radio keeps transmitting.
VOX may be turned on or the headset is not installed
in place
Turn off the VOX function. Check that the
headphones are in place.
NOTE: If the above solutions cannot fix your problems, or you may have some other queries, please contact your dealer
for more technical support.

Disclaimer
The accuracy and completeness of the contents are sought in the process of compilation, but we do not bear any
responsibility for the possible errors or omissions. With the continuous development of technology, we reserve the right to
change the design and specification of the product without notice. No copy, modification, translation and dissemination of
this handbook may be made in any form without the prior written authorization of our department.
PO FUNG ELECTRONIC (HK) INTERNATIOANL GROUP COMPANY
Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong
E-mail: [e-mail] Http://www.pofungshop.com
Print version: T20_FRS _V1.1
