Poindus VariPOS D510 User manual

© Copyright Poindus Systems 2012 P1 / 38
VFD
Manual
Version V2.0 Feb. 2012

© Copyright Poindus Systems 2012 P2 / 38
Copyright 2012
All Rights Reserved
Manual Version 2.0
The information contained in this document is sub ect to change without notice. We make no
warranty of any kind with regard to this material, including, but not limited to, the implied
warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors
contained herein or for incidental or consequential damages in connection with the furnishing,
performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced or translated to another
language without prior written consent of the manufacturer.
General Notice: All the company names used herein are for identification purposes only and may
be trademarks of their respective companies.

© Copyright Poindus Systems 2012 P3 / 38

© Copyright Poindus Systems 2012 P4 / 38

© Copyright Poindus Systems 2012 P5 / 38
INDEX
1. FEATURES .............................................................................................................................................6
2. GENERAL SPECIFICATIONS ...............................................................................................................6
3. COMPONENT DIMENSIONS AND ASSEMBLY...................................................................................7
4. INTERFACE ...........................................................................................................................................8
4.1. RS232 interface Specification ................................................................................................8
4.2. CN1 Pin Define .........................................................................................................................8
5. SOFTWARE STATUS SETTING COMMANDS.....................................................................................9
5.1. Baud Rate Setting Command.................................................................................................9
5.2. Parity Check Setting Command.............................................................................................9
5.3. Data Length Setting Command .............................................................................................9
5.4. International Character Set Setting Command .................................................................10
5.5. Select International Character Set Command...................................................................11
5.6. Select Character Code Table Command.............................................................................11
5.7. Command Type Setting Command .....................................................................................12
5.8. Run Demo Message...............................................................................................................12
5.9. Show Firmware Version........................................................................................................12
5.10. User-Define Character Command Set.................................................................................13
6. COMMAND LIST TABLE.....................................................................................................................14
7. COMMAND DETAILS..........................................................................................................................16
7.1. POS7300 Series Command List ...........................................................................................16
7.2. CD5220 Standard Mode Command List .............................................................................19
7.3. UTC Standard Mode Command List....................................................................................22
7.4. UTC Enhanced Mode Command List...................................................................................22
7.5. AEDEX/EMAX Mode Command List.....................................................................................23
7.6. ADM787/788 Mode Command List......................................................................................23
7.7. DSP800 Mode Command List...............................................................................................24
7.8. EPSON ESC/POS Command List ..........................................................................................25
8. CHARACTER SET................................................................................................................................28
8.1. Character Code 20H-7FH......................................................................................................28
8.2. Character Code 80H-FFH......................................................................................................29
APPENDIX A – COMMAND DETAILS .......................................................................................................36
APPENDIX B – CONTROL CODE SET......................................................................................................38

© Copyright Poindus Systems 2012 P6 / 38
1. FEATURES
1.) Data can be displayed on 20 columns x 2 lines.
2.) Green color and large character are easy to eyes.
3.) The display panel is ad ustable to provide the best view angle.
4.) The VFD Utility setting emulates commands mode, baud rate and international
characters.
5.) Command emulation modes include: POS7300, EPSON ESC/POS, DSP800,
ADM787/ADM788, AEDEX/EMAX, UTC, and CD5220.
6.) Display area can be controlled by window function.
7.) Provides an interface based in RS232, and baud rate from 4800 to 38400 bps.
8.) Reverse characters can be specified using the Epson command set.
9.) Support software designing user-defined characters and downloading setup
parameters to the display. Once in the display new characters are stored in
on-volatile EEPROM.
10.) Power input (12 Vdc).
2. GENERAL SPE IFI ATIONS
NO ITEM Descriptions
1 Display method Vacuum fluorescent display
2 Number of character 40 characters ( 20 columns x 2 lines)
3 Character font 5 x 7 Dot matrix
4 Display color Green
5 Brightness 700 cd/㎡
6 Character type 96 alphanumeric
25 international character set / 1 user define character
7 Character size 9.0 mm x 5. 25 mm
8 Power supply 12 Vdc
9 Power consumption 3 – 6 W
10 MTBF 25000 hours (power on time)
11 Panel dimensions 240 (W) x 94 (H) x 34(D) mm
12 Viewing angle Maximum 60 degrees
13 Rotation angle Maximum 180 degrees
14 Weight 0.5 Kg
15 Operating temperature 5 - 40Ċ
16 Operating Humidity 30% - 80%
17 Storage Temperature -10 - 55Ċ
18 Storage Humidity 10% - 85%

© Copyright Poindus Systems 2012 P7 / 38
3. OMPONENT DIMENSIONS AND ASSEMBLY

© Copyright Poindus Systems 2012 P8 / 38
4. INTERFA E
4.1. RS232 interface Specification
Data transmission Serial
Synchronization Asynchronous
Signal level MARK = -3 to –15 V (logic “1”)
SPACE = +3 to +15 V (logic “0”)
Baud rates 4800,9600,19200,38400 bps
Parity None, even, odd
Bit length 7 or 8 bits
Stop bits 1 bit
Hardware flow control
Support hardware flow control to
indicate
the device input buffer full.
The connection is based on cable
definition (connect to PC’s CTS
and/or DSR pin)
4.2. N1 Pin Define
Type: RJ45/10P/10C Pin

© Copyright Poindus Systems 2012 P9 / 38
5. SOFTWARE STATUS SETTING OMMANDS
When the device is POWER ON, it will read the EEPROM Setting to set the Command Type, Baud
Rate, Parity, Data Length, Demo Mode and International Character. User can re-set the Software
Status Setting Commands as following, and Status Setting will be saving to EEPROM:
5.1. Baud Rate Setting ommand
5.2. Parity heck Setting ommand
5.3. Data Length Setting ommand

© Copyright Poindus Systems 2012 P10 / 38
5.4. International haracter Set Setting ommand

© Copyright Poindus Systems 2012 P11 / 38
5.5. Select International haracter Set ommand
5.6. Select haracter ode Table ommand

© Copyright Poindus Systems 2012 P12 / 38
5.7. ommand Type Setting ommand
5.8. Run Demo Message
5.9. Show Firmware Version

© Copyright Poindus Systems 2012 P13 / 38
5.10. User-Define haracter ommand Set

© Copyright Poindus Systems 2012 P14 / 38

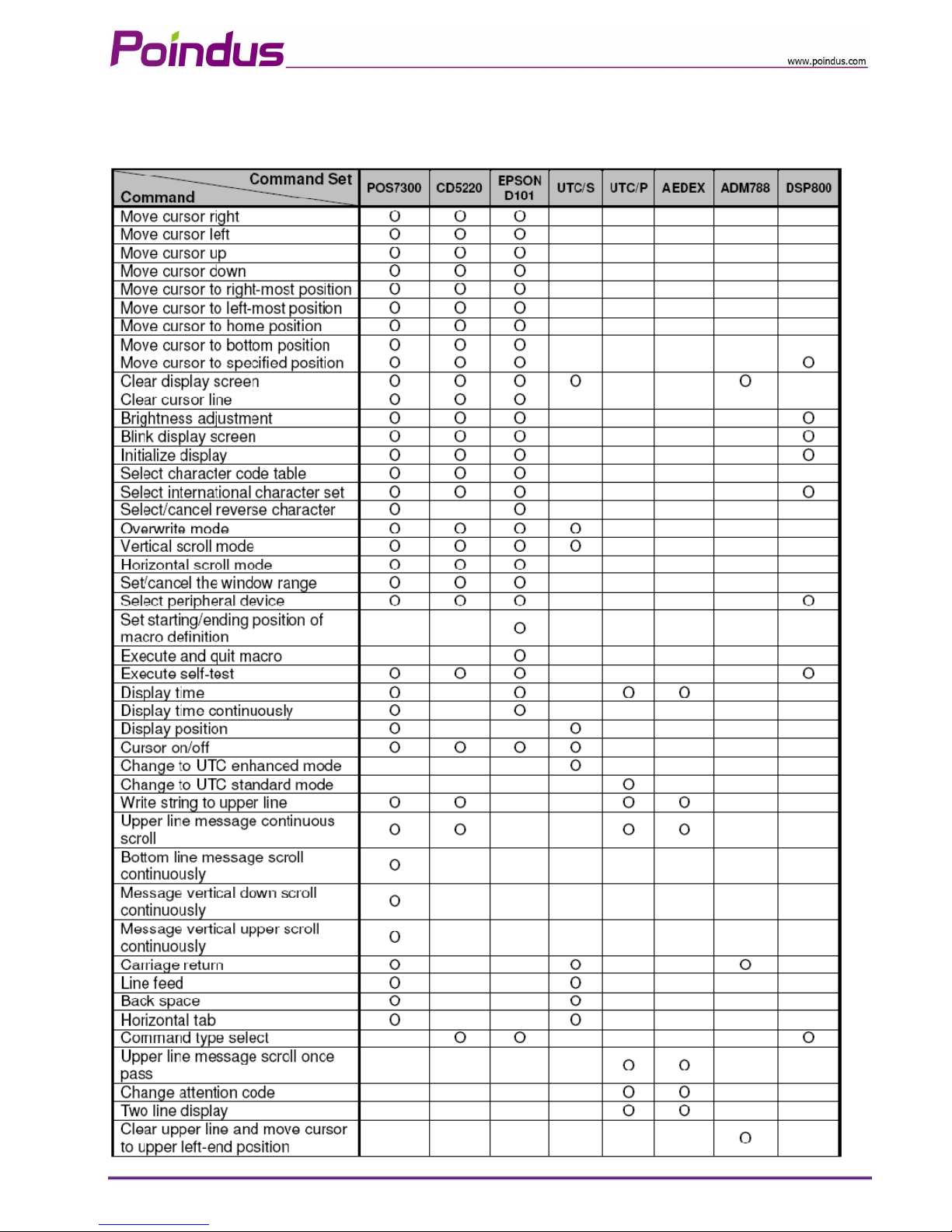

6. OMMAND LIST TABLE

© Copyright Poindus Systems 2012 P15 / 38

© Copyright Poindus Systems 2012 P16 / 38
7. OMMAND DETAILS
7.1. POS7300 Series ommand List

© Copyright Poindus Systems 2012 P17 / 38

© Copyright Poindus Systems 2012 P18 / 38

© Copyright Poindus Systems 2012 P19 / 38
7.2. D5220 Standard Mode ommand List

© Copyright Poindus Systems 2012 P20 / 38
