Polaroid HD-Ready Widescreen LCD TV User manual

Your TV may look different from the one pictured above.
Questions?
Need some help?
This manual should help you
understand your new product.
If you still have questions, call
our help line found on the
insert with this icon:
Or visit
www.polaroid.com/support.
19” HD-READY DVD COMBO DIGITAL LCD

TABLE OF CONTENTS
1Important Information ................................................................ 1
1.1 Cleaning the screen and cabinet...................................................................... 1
1.2 Disposing of your TV at the end of service life... ............................................... 1
1.3-Superior features of your integrated digital television........................................ 1
1.4-Receiving digital broadcasting channels .......................................................... 1
1.5-General instructions for laser devices............................................................... 1
2Features of your new television................................................. 2
2.1-Special Features.............................................................................................. 2
3Important Safety Instructions.................................................... 3
4Start.............................................................................................. 6
4.1-Antenna connection ........................................................................................ 6
4.2-Powering on your device and the initial use ..................................................... 6
4.3-Batteries.......................................................................................................... 6
5Your new television .................................................................... 7
5.1-TV Control Panel ............................................................................................. 7
5.2-External Connections....................................................................................... 7
5.3-Remote Control TV Mode................................................................................ 8
5.4-Remote Control DVD Mode............................................................................. 9
5.5-Remote Control USB Mode........................................................................... 10
6Performing the initial power-on settings................................ 11
6.1-TV controls.................................................................................................... 11
6.2-Turning on the TV and Setting the Channels.................................................. 12
6.3-Performing Digital Tunings............................................................................. 12
6.4-Performing Analog Tunings............................................................................ 16
7Settings of Your New Television ............................................. 19
7.1- Sound Menu Settings................................................................................... 19
7.2-Picture Menu Settings ................................................................................... 19
7.3-Features Menu Settings................................................................................. 21
8Teletext ...................................................................................... 22
9DVD Mode ................................................................................. 24
9.1-Disc formats.................................................................................................. 24
9.2-Technical specifications of DVDs ................................................................... 24
9.3- Using the Internal DVD ................................................................................. 25
9.4-Using a DVD, Video CD or Music CD............................................................. 25
9.5-Additional functions during DVD or CD playing .............................................. 26
9.6-Playing Other Discs ....................................................................................... 27
10 USB Mode .................................................................................. 30
10.1-Displaying the image files............................................................................. 30
10.2-Playing the music files ................................................................................. 30
10.3-Displaying the movie files............................................................................. 30
10.4-Settings menu ............................................................................................. 31
11 External Equipment Connections:........................................... 32
12 Help and tips ............................................................................. 36
13 Technical Specifications Chart................................................ 37

Polaroid. Add a little colour to your life.
Since 1937, people have turned to Polaroid for their photography needs. Today, families
look to Polaroid for consumer electronics that define the digital age: plasma and LCD TVs,
portable and standard DVD players, digital cameras, personal media players, and so much
more. And while our selection has changed, you will still receive the same friendly, helpful
service that made Polaroid an icon.
Congratulations on your new Polaroid TV purchase. To ensure your new TV provides you with
years of enjoyment, please read this guide carefully.
©2008 Polaroid
All rights reserved.
“Polaroid” and “Polaroid and Pixel” are trademarks of Polaroid Corporation. Changes are
periodically made to this document. Changes, technical inaccuracies, and typographic errors
will be corrected in subsequent editions. For service, support and warranty information, visit
www.polaroid.com.
This product contains electrical or electronic materials. The presence of these
materials may, if not disposed of properly, have potential adverse effects on
the environment and human health. Presence of this label on the product
means it should not be disposed of as unsorted waste and must be collected
separately. As a consumer, you are responsible for ensuring that this product
is disposed of properly. To find out how to properly dispose of this product,
please go to www.polaroid.com and click on “Company“ or call the customer
service number for your country listed in the instruction manual.

1 I EN
1Important Information
LCD panels are produced with state-of-the-art technology. However, there may be black or
lit spots on the screen under certain circumstances. That does not mean that the product is
faulty.
1.1 Cleaning the screen and cabinet...
After powering off, wipe the screen and the cabinet clean with a soft and dry cloth. We
recommend that you do not use patented polishes or solvents to clean the screen or cabinet
since they may cause damage.
1.2 Disposing of your TV at the end of service life...
The cold cathode fluorescent lamp found in your LCD screen contains a very small amount of
mercury. Once your TV set has completed its physical life, please dispose of it in accordance
with local government regulations or leave it at a recycling centre.
1.3-Superior features of your integrated digital television
This television can receive and process all analog and digital broadcastings. This television
set has an integrated digital and analog receiver. The digital receiver unit processes the
signals coming from digital transmitters and can convert them into superior sound and image
qualities. TV Guide (valid for digital broadcastings only) informs you about changes in the
program list briefly and provides program lists of all digital broadcastings for a number of
forthcoming days. You can display detailed information about each program by pressing a
single button if this feature is supported by the broadcasting enterprise. This television has a
comprehensive and user friendly menu configuration.
1.4-Receiving digital broadcasting channels
You will need outdoor or indoor (passive or active indoor antennas used together with its own
power cord) antennas to receive digital broadcastings. Contrary to the analog broadcastings,
all digital broadcastings may not have their own transmission frequency. Instead, various
digital broadcasting channels are gathered in regional or national groups called bouquets.
You can find current transmission data from teletexts of various broadcasting enterprises or
from TV guide or from the internet.
1.5-General instructions for laser devices
Your system is a CLASS 1 LASER PRODUCT. This means that the laser has
been designed in a way that the highest emission value will not be exceeded
under any circumstances.
Caution:
In case of using operating devices or methods apart from the ones specified
herein, such situation may cause being exposed to dangerous emissions. The
device emits laser radiation. The unit may only be disassembled and serviced by adequately
trained personnel because of the risk of eye injury. If settings or OTHER PROCESSES that
are not stated herein are performed, such situation may cause being exposed to dangerous
radiation.
CAUTION - CLASS 1M VISIBLE AND INVISIBLE LASER RADIATION WHEN
OPEN. DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copy protection technology
must be authorized by Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.

2 I EN
We would like this product, which has been manufactured in modern facilities in accordance
with total quality principles, to offer you the best performance. Therefore, we would like you to
read this entire manual carefully before you use your product and keep it for future reference.
2.1-Special Features
• HDMIconnection
• HD-Ready
• HDCPfeature
• SCARTconnection
• Audio/VideoRCAinputs
• PCconnection
• PlayingPictures,MusicandFilmsfromUSB
• PlayingDVDs,VCDs,MusicandPictureCDs
• ComponentconnectionthroughVGA
• S-VHSconnectionthroughscart
• Lowenergyconsumption
• Availableforcablebroadcasts
• Automaticswitch-offfeaturethatcanbeprogrammedbetween15and120minutes
• Fasttext
• Toptext(*)
• Digitalteletext
• EPG(ElectronicProgramGuide)feature
• CIslotinput
• Softwareupgradebyairtransmission
• 4DigitalFavoritechannellists
• Automaticnewchannelsearchfeature
• SharpnessfeatureinColourTransitions(CTI)
• Sharpnessfeatureandpictureresolution(LTI)inblack-whitetransitions
• AclearerPicturemadepossiblewithaDigitalCombFilter
• DNRNoisereduction
• Manualfinetuning
• 100AnalogProgrammemory
• 1000DigitalProgrammemory
• Returningtothelastviewedprogrambysinglebutton(SWAP)
• Infraredremotecontrolequippedwithallfunctions
• FeatureofviewingtheNTSCbroadcastviascartinput
• Easyperformanceoftheprocesseswiththeadvancedmenusystem
• PanelLock
• 4:3,16:9,14:9Subtitle,Letterbox,Autopictureformats
• AutomaticbroadcastdetectingsystembymeansofWSSfeature
• Renaming,deleting,skippingandrelocatingtheprograms.
• MHEG1.06support
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
(*):Thesefeaturesareoptionalandtheyarenotavailableonallmodels.
2Features of your new television

3 I EN

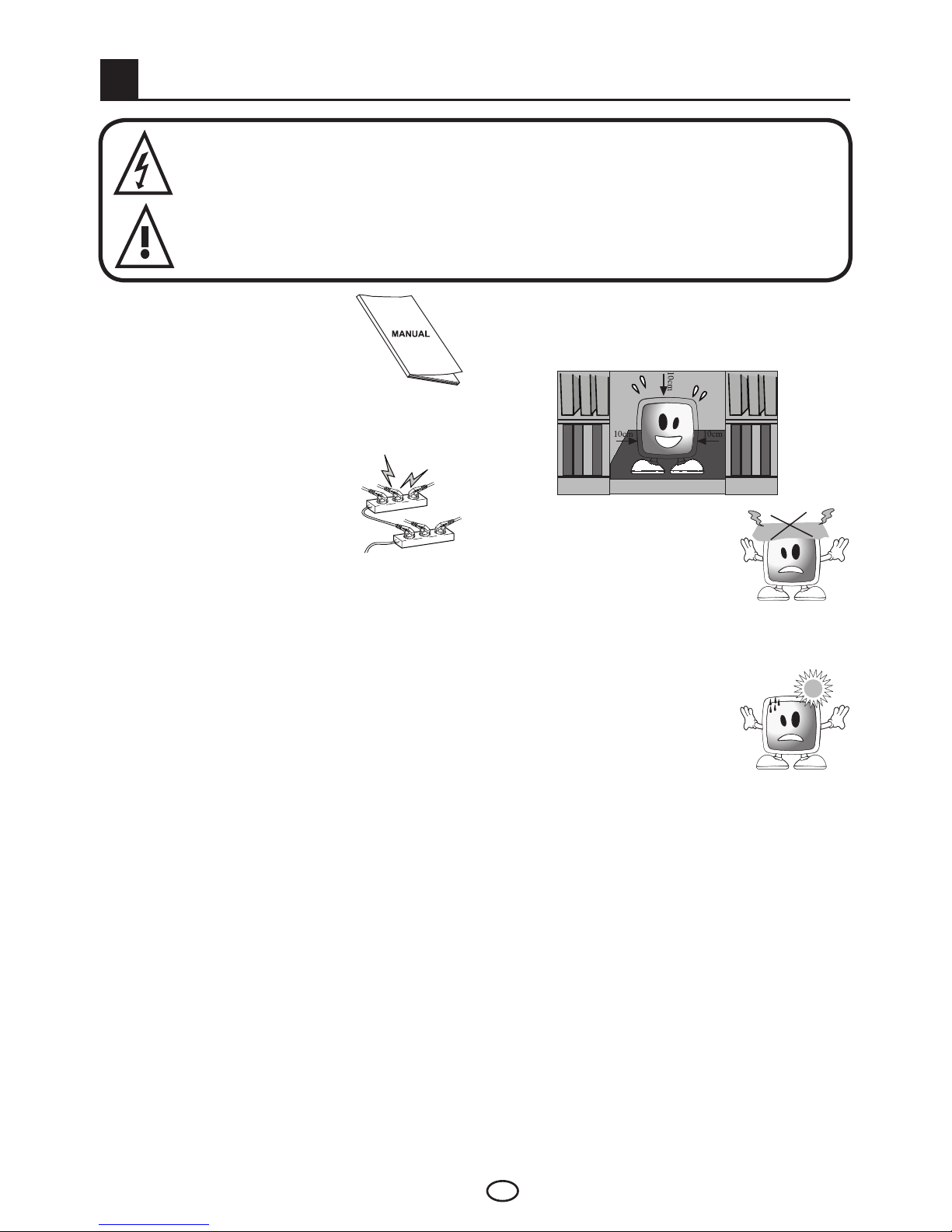

1) Please READ the operating
instructions before using
the device for the first time.
2) Please observe the
instructions contained in
the Operating Instructions.
3) Please consider all warnings.
4) MAKE SURE that all
power connections
(extension cables and the
connections between the
device components) have
been made properly and
in accordance with the manufacturer’s
instructions. Before making or changing
the connections, power off the device
and unplug the mains connection plug.
5) If you have any doubts regarding the
installation, operation or safety of the
device, please REFER to the vendor.
6) BE CAREFUL with glass panels and
covers on the device. The screen glass
may break and cause serious injuries if
something hits it.
7) To ensure adequate ventilation, please
leave a clearance area of at least 10 cm
around the television. This clearance
prevents the TV from overheating and
consequently causing damage.
• Usingthedeviceindustyenvironments
should also be avoided.
• Neverblocktheslotsandopeningsby
placing the TV on a bed, sofa, pillow or
other similar surfaces.
3Important Safety Instructions
This symbol is used to warn the user about the “dangerous voltage” contained
inside the housing of the product that may create a risk of electrical shock.
This symbol is used to remind the user important usage and service instructions
supplied with the device.
• NeverinstalltheTVintoclosedplaces
such as bookcases or cabinets unless
adequate ventilation is provided.
8) DO NOT COVER the
ventilation openings of
the device with items
such as newspapers,
table-clothes, curtains,
etc. Overheating causes damage and
shortens the service life of the device.
9) Your TV may be damaged
if you place it under
direct sunshine or close
to a heater. Please
abstain from using the
product in very hot or
humid locations or in places where the
temperature is likely to decrease below
5°C (41°F). DO NOT PLACE on or near
the device any hot objects or items with
open flame such as candles or any night
lamps. The high temperature can melt
plastic parts and cause a fire.

4 I EN
10)Neveroperate
electrical devices close
to water. Operating
such devices, for
example, near a
bathtub, washbasin, kitchen washbasin,
washing basin, wet basement and
swimming pool can cause fire or electric
shock.
• Donotallowyour
TVtogetwet.Never
pour any liquids
onto the TV. Do not
operate your TV if
any solid or liquid
substance enters into it. This can cause
electric shock and your TV may be
damaged. Have it checked immediately
by qualified personnel.
• Keepopenflame
sources (such as
candles) away from
TV in order to avoid
risk of fire.
11) DO NOT USE
headphones at extremely
high volume levels since
this may cause permanent
loss of hearing.
12) Operate your TV only
in the 220 V 50Hz
voltage range. Use
the AC power cable
supplied with the
product. If your TV is a
grounded (Class I) product, then it must
certainly be connected to a grounded
socket.
• The socket into which you plug in the
AC power cable must be within easy
reach.
• Turn off your device with the ON/OFF
button and then unplug it in order to
disconnect it from mains.
Note: Use the AC power cable supplied
with your product. Do not use
defective sockets. Make sure that
the plug is firmly inserted into the
socket. If the plug remains loose,
then it can cause fire due to arching.
Refer to an electrician to have your
socket replaced.
13) Make sure that the power
cable is not stepped
on and that there is no
bending at the plug
sections, plug heads and
device output point.
14) Use only the add-
ons/accessoriesspecifiedbythe
manufacturer.
15) Use only together with
the carts, bases, tripods,
brackets or stands specified
by the manufacturer or sold
along with the product.
When using a cart, pay
attention that it won’t
overturn while carrying the
cart/devicecombinationand
cause injuries. The device
must be fixed to the floor
or wall as indicated in the installation
instructions in order to avoid any possible
damages. Place your device on a level
surface.
16) Unplug the power cable
during thunderstorms or
when you will not use your
device for a long period of
time.

5 I EN
17) Consult authorised
service personnel for
service requirements.
Neverattemptto
repair the device
yourself. Opening the cabinet can expose
you to dangerous voltages or other
hazardous situations. Service is required
in situations such as damage to the
power cable of the device or its plug,
water spills or substances falling into the
device, the device is subjected to rain or
moisture, it does not operate normally or
it is dropped.
18) Wipe the TV cabinet
clean with a soft and dry
cloth. Wipe dust from the
screen gently with a soft
cloth. Stubborn stains
can be cleaned with a
cloth slightly moistened
withsoapandlukewarmwater.Never
use solvents such as thinner or gasoline
for cleaning. Unplug the AC power cable
from the socket when cleaning the TV.
Otherwise, there is the risk of electric
shock.
19) Do not dispose of the
batteries in fire.
• Donotshortcircuit,
dismantle or overheat
the batteries. There is
the risk of explosion
if the batteries are not replaced
correctly. Replace only with the same
or equivalent type batteries.
20) Disposing of the exhausted
batteries:
Dispose of the exhausted
batteries in accordance with
the local laws and regulations in order to
protect our environment.
21) Do not dispose of your TV
with regular household waste.
Observe local laws and
regulations for disposal.
22) Clean the disc with a
microfiber cleaning cloth
by linear movements from
the center to the edges.
Important Note: Risk of
damaging discs! Never
use solvents such as benzene or
thinner, commercial cleansing agents or
antistatic sprays.
Note 1: This is a Class A product. During
operation, the device can cause radio
interference. In this case the user may have
to remedy this. Please contact your specialist
dealer.
Note 2: Electromagnetic fields can cause
temporary performance degradation. This
can be distinguished as noise in the image.
Note 3: Tighten the screws that are used
toconnectthewallmountkitby1Nm
(10kgfcm) maximum.

6 I EN
2. Insert the power cable plug supplied with
the device into the mains socket.
Note 1: Your TV will switch to the stand-by
mode in five minutes if there is no broadcast
signal from antenna.
3. To power on your television, press
any numerical key or P+ or P- keys
on the remote control.
Note: If you are not going to use
your television for a long time, unplug
its power cable from the socket.
Initial power on and performing
settings
To set up your television, read the sections
on the TV controls and making the channel
settings.
4.3-Batteries
Open the lid of the battery compartment
and make sure that you have placed the
batteries in the correct direction. For this
remote control, UM-4, IEC R03 or AAA 1.5 V
batteries are suitable.
Do not throw your old batteries into the fire,
discard them in a dedicated waste area for
this purpose.
Do not mix used batteries with new ones or
different types of batteries together.
The performance of the remote control will
be reduced at a distance of 8 meters from or
at an angle of 30 degrees beyond the centre
of the TV.
4Start
Remove your television carefully from its
box. You can keep the packaging of your
television to use in future.
Contents of the box
Power cable
Remote control
2 batteries
Note:TheScart,VGA(*)andRCAcablesare
not supplied with the device.
(*)Thesefeaturesareoptionalandmaynot
be available on all models.

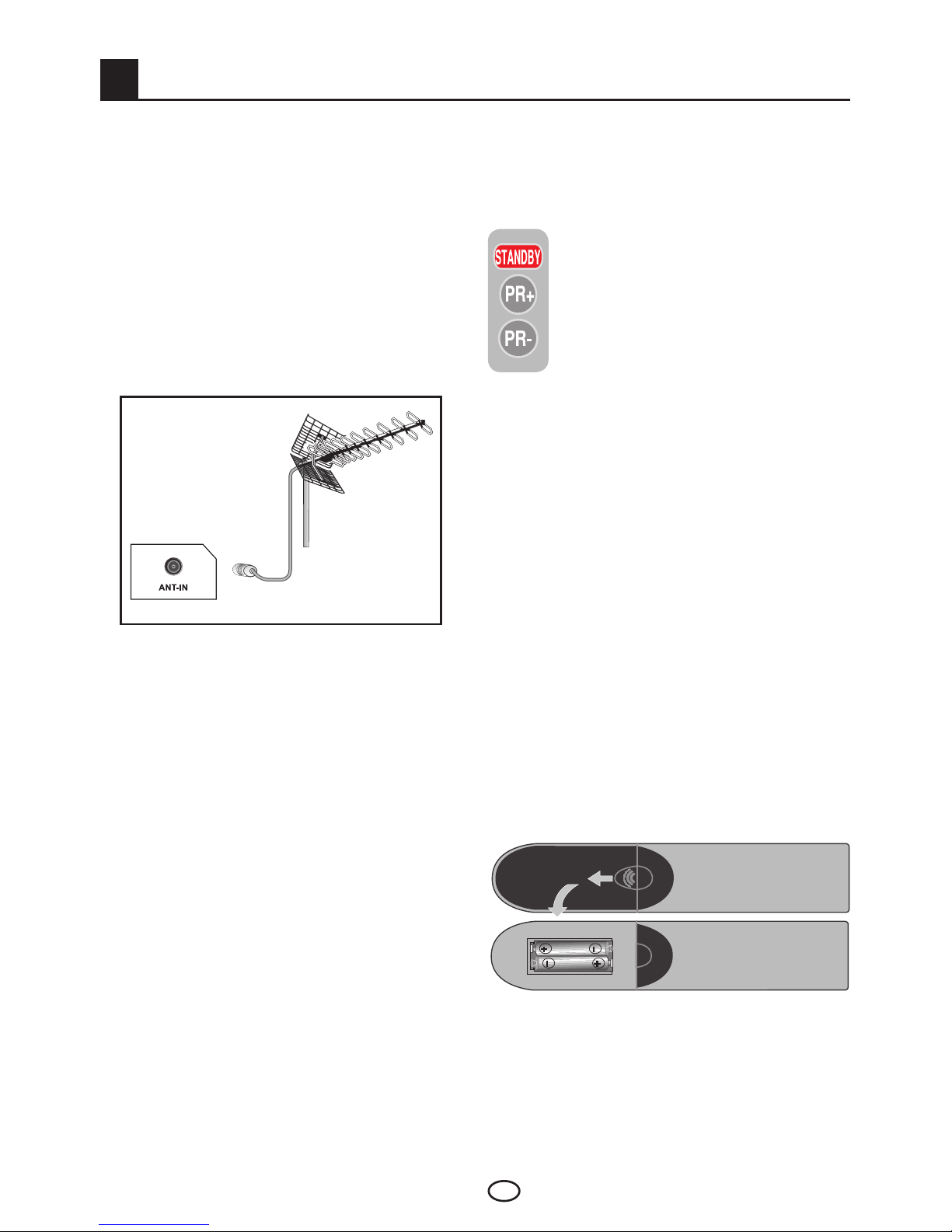

4.1-Antenna connection
If you use a 75 Ohm coaxial cable (round
cable) as an antenna cable, connect the
antenna plug directly to the antenna input
located on the TV.
Motorized vehicles, energy lines and
telecommunication lines affect your antenna.
Therefore, be careful to install your antenna
away from these and metal surface in such
a way that it shall not swing. Do not make
your antenna cable longer than required
and do not coil it. Make sure that it is not
crimped passing through a window or door.
Your antenna and cable might be affected
by natural phenomena such as rain, wind,
smoke and humidity over time. Periodically
check your antenna and equipment.
4.2-Powering on your device
and the initial use
1. Insert the power cable into the proper
power supply input located on the back
panel of the LCD TV.

7 I EN
5Your new television
5.1-TV Control Panel
or
Power/Standbybutton
or
Menu/Sourceselectionbutton
Stand by indicator
Bright light: TV is in Stand-by
Dimmed light: TV is On
No light: Power Cable is not connected
5.2-External Connections
1-USB input
2- DVD input
3- Power input
4- Antenna input
5- Scart input
6-VGA(PC/YPbPrconnectioninput)
7- CI Slot Input
8- HDMI input
9- Video input
10- Audio input R
11- Audio input L
12-PC/Compaudioinput
Note 1: RGB input via Scart offers the best picture quality.
Note 2: Above drawing for external connections is representational. Their order and places
on your TV may be different.
Please see Technical Specifications Table on page 37 for the available external connections
on your television.
or
ProgramUp/Downbutton
or
VolumeUp/Downbutton
or or or or
or or or
