Polimek Smartguard e-6006 User manual

Walk Through Metal Detector

Ｅ－６００６／ＳＥ－１８０６／ＳＥ－３３０６

User Manual

!!!!!!!!!!!!!!!!!!!!!!!!!!

Polimek(Electronics(and(Computer(Industry(Inc.(

Atatürk'Organized'Industrial'Zone'10024'St.'No:'9'Cigli-Izmir'/TURKEY'

Tel:'+90'[232]'328'1645'(pbx)'–'Fax:'+90'[232]'328'1674'Whatsapp:'+90'[532]'498'3402'

www.smartguard.com.tr'–'www.polimek.com.tr'Email:'ekin[email protected]om.tr'

Contents

【NOTES】 ............................................................................................... 1

【PRODUCT SPECIFICATION】 ........................................................... 2

【INSTALLATION ENVIRONMENT】 ................................................. 3

【PERFORMANCE AND FEATURES】 ................................................ 4

【PARTS】 ................................................................................................ 5

【INSTALLATION】 ............................................................................... 6

【CONTROL PANEL】 ........................................................................... 7

【DETECTION ZONES】 ........................................................................ 7

【OPERATION】 ..................................................................................... 8

【PASSWORD MANAGEMENT】.........................................................13

【OPTIONAL FUNCTIONS】................................................................13

【DETECTION ADJUSTMENT】 ........................................................ 14

【FAQ】 .................................................................................................. 15

【TECHNICAL PARAMETERS】 ........................................................ 16

【FACTORY PARAMETERS】 ............................................................ 17

【PACKING LISTING】 ........................................................................ 17

【WARRANTY CARD】 ....................................................................... 18

【

NOTES

】

PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE

OPERATION

：

1. It's available for indoor use, if need to use outdoor, please use canopy to protect it

against rain.

2. Choose the smooth and stable installation place, to avoid false alarm caused by the

waggling.

3. Make sure the position of the left and right detector heads in the panels are correct

before installation.

4. It will have a 1 minute self-inspection after power-on, to achieve the excellent

performance.

5. The passers must abide by the predefined standby time and alarm time (>1 s)when

checking, walking through one by one, do not crowded around the detector to

interfere with infrared induction.

6. Don't knock and crash the detector during security checking to avoid false alarm,

even the damage.

7. Do not disassemble the HV control units except the professional technician to

avoid the artificial accident.

8. Detector can be repaired free with the warranty card attached the goods if under

the warranty.

【

PRODUCT SPECIFICATION

】

Walk through metal detector is a stationary-mounted detection equipment, or

WTMD for short, mainly used to check the metal objects hidden in human body.

When the passers walk through the WTMD, it will alarm and display the alarm zone

at once, if the metal size in human body is more than the predefined metal parameter

of weight, quantity or shape, so that security staff can find the person with prohibited

metal objects in time.

As one of the the highest technical domestic products to meet the needs of users in

various industries.Our WTMD are in strongest ability of induction and detection,

higher sensitivity, stronger anti-interference,

【

INSTALLATION ENVIRONMENT

】

1. Stationary Metallic Items

When installing the WTMD, it should stay away from the stationary or fixed bulk

metal items 2 meters; otherwise it will affect the sensitivity and cause false alarm.

Metal items such as: aluminum alloy / stainless steel doors and windows, with

reinforced wall, etc.

2. Movable Metallic Items

The big metal items can be moved, should stay away from the device about 5 meters

to avoid false alarm. Especially install the detector at factory gate or ground floor,

need to pay attention to the effect of rolling gate, iron security doors, elevators and

cars on the detector.

3. Floor Vibration

The floor should be flat and fixed, to avoid false alarm after installation by the

movement of people walking or moving and shaking of metal objects.

4. Electromagnetic Radiation And Electromagnetic Interference

Because the device uses bilateral transceiver technology, therefore, any

electromagnetic interference sources and electromagnetic radiation source are not

allowed to close the device, the recommended distance is 1~2 meters. The parameters

of the distance are determined by the installation environment, and different

installation environments with different parameters.

The electromagnetic interference sources and electromagnetic radiation sources as

following:

Electrical Control Box, Radio Equipment, Interphone, Electronic Computer And

Peripheral Equipment, Video Monitor, High Power Motor, Power Transformer, Ac

Power Lines, Thyristor Control Circuit (High Power Switching Power Supply,

Inverter Welder), Engine, Motor etc.

5. Side-By-Side Using(more than 2 pieces WTMD)

When installing the WTMD side by side more than 2 pieces, there will be a

certain degree of influence between each WTMD, it is related to the distance and the

frequency between WTMD. The distance between 2 WTMDs can not be less than

50cm. Specific distance parameters according to the actual environment and the

selection of the work frequency to adjust.

6. Can not install the device in windy place. It would cause of false alarm if the

device would slight swing in the wind.

【

PERFORMANCE AND FEATURES

】

Accurate Positioning: 6/18/33 overlapping network detection zone, bilateral transmit

and receive, can be accurately positioned to the detected objects, intuitively display of

the target location.

Micro Processor Technology: the scanning electromagnetic wave generated by the

microcomputer control circuit, the scanning rate can be precisely controlled. All the

parameters can be set through the control panel as needed to ensure the sensitivity

with flexibility, reliability, stability.

Sensitivity Adjustable: each detection zone has 100 sensitivity level (0 ~ 99). Preset

metal size, you can exclude the coins, keys, jewelry, belt buckle etc.

Digital Pulse Technology: Digital Signal Processing(DSP) and filtering system, has

excellent anti-interference ability.

Password Protection: only the correct password can change the sensitivity and other

parameters. Password with five digits, can be set by the user.

Count Statistics: pass count and alarm count.

Harmless to Human Body: harmless to heart pacemaker, pregnant women, magnetic

floppy disk, recording tapes etc.

Power Supply Security: the power supply on the top of the control box, waterproof.

Waterproof Foot Cover: not only can fixed the device, but also waterproof.

Waterproof: using PVC synthetic material, special technology, waterproof, fireproof,

shockproof.

Easy to Install: the system is integrated design, just 20 minutes to complete the

installation or disassemble.

【

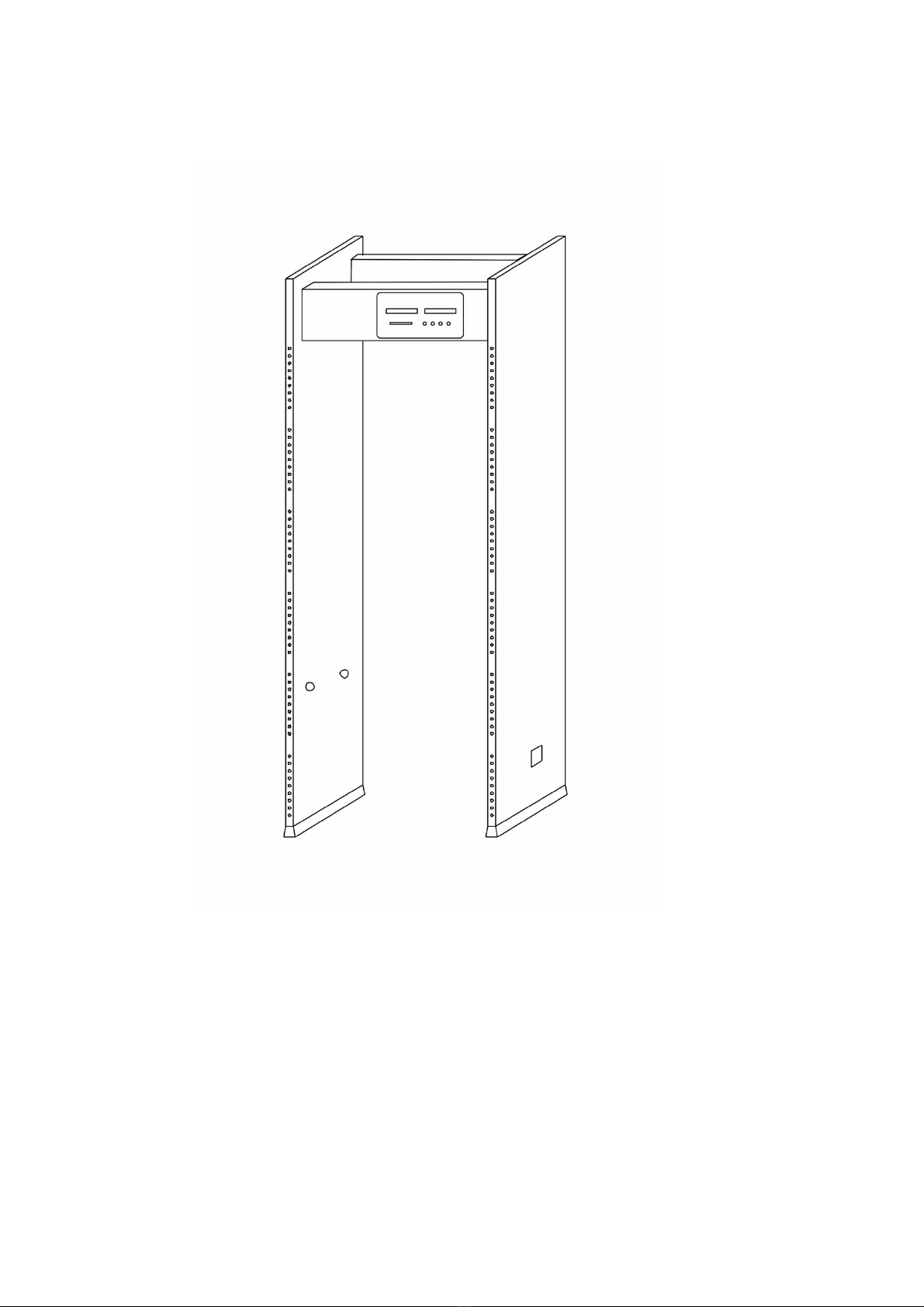

PARTS

】

1, Door Panel 2, Crossbar 3, Integrated Host 4, Alarm zone LED 5, Infrared

Sensors 6, Waterproof Foot Cover 7, Power Line&Signal line Interface

【

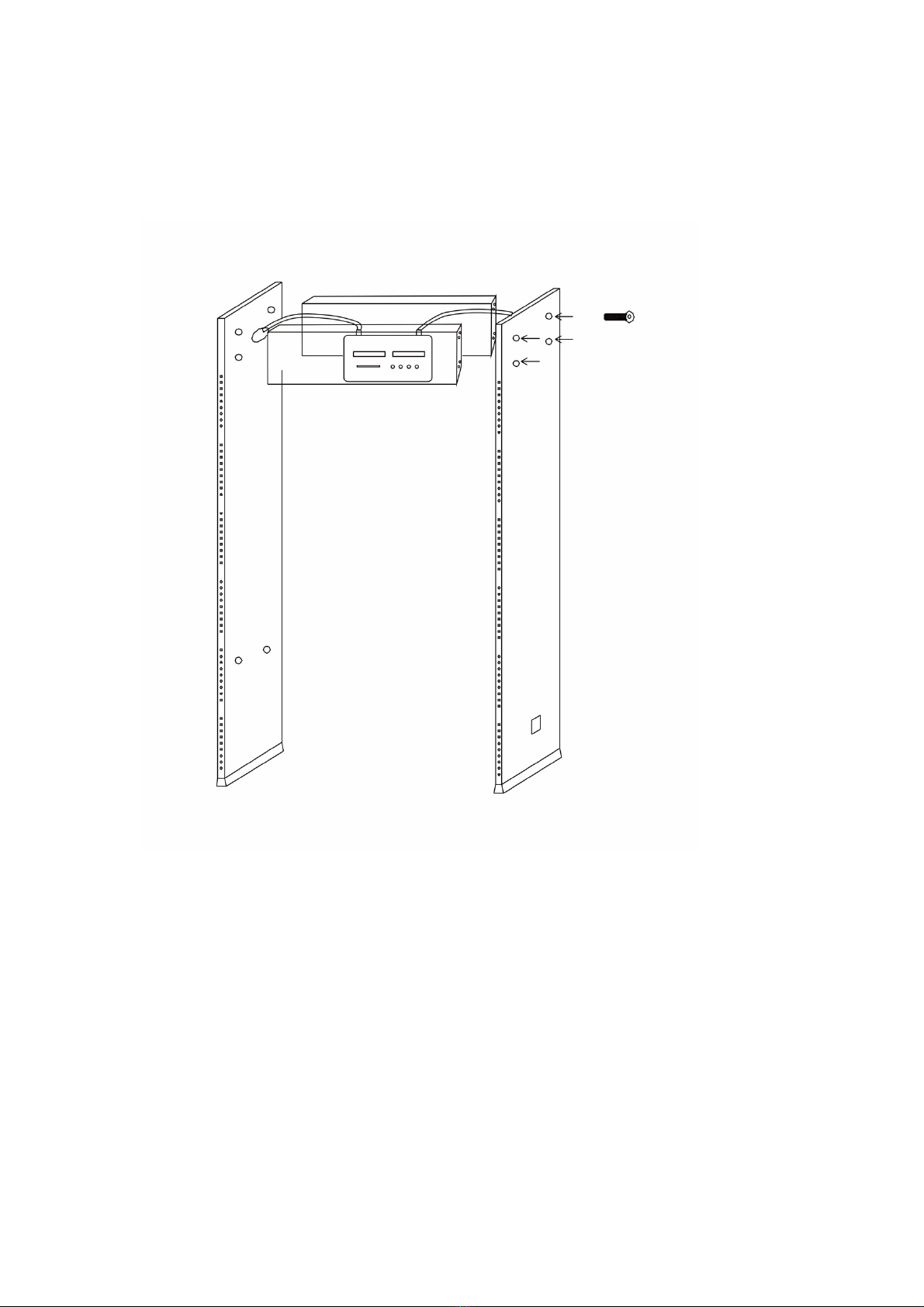

INSTALLATION

】

1.Remove the Integrated Host and the packaging of the door panels.

2.The main chassis display panel up, left and right side of the door as shown in the

figure, then connect the left and right door to the main box respectively with bolts and

nuts locked tightly。

3.Make sure the door probe line on the left and right were tightly inserted into the

corresponding socket on the motherboard, pay attention to tighten, do not loose.

4.Raise the metal probe door to the vertical position and move to the specified

working position.

5.Make the power line in the door side of connected to the power supply into the

working state.

【

CONTROL PANEL

】

1. LED Digital Display: show passer number.

2. The alarm number.

3. Interference Signal Strength Indicator: alarm indicator (red light)

4. “ENTER" Key: confirm the data after setting, and use as plus key when setting

the district sensitivity.

5. “SETUP" Key:

① convert various data, and use as minus key when setting the district sensitivity.

② long press 5s to adjust working frequency, 1~16 bands to choose.

6."SELECT" Key: choose each program, and use as plus key when entering

password .

7. "RESET" Key: zero clearing for number of passer and alarm.

【

DETECTION ZONES

】

A: Control Unit: signal strength indicator, the number of passer and alarm

Standby Indication: indicator in red when alarming.

B: LED bar Alarm

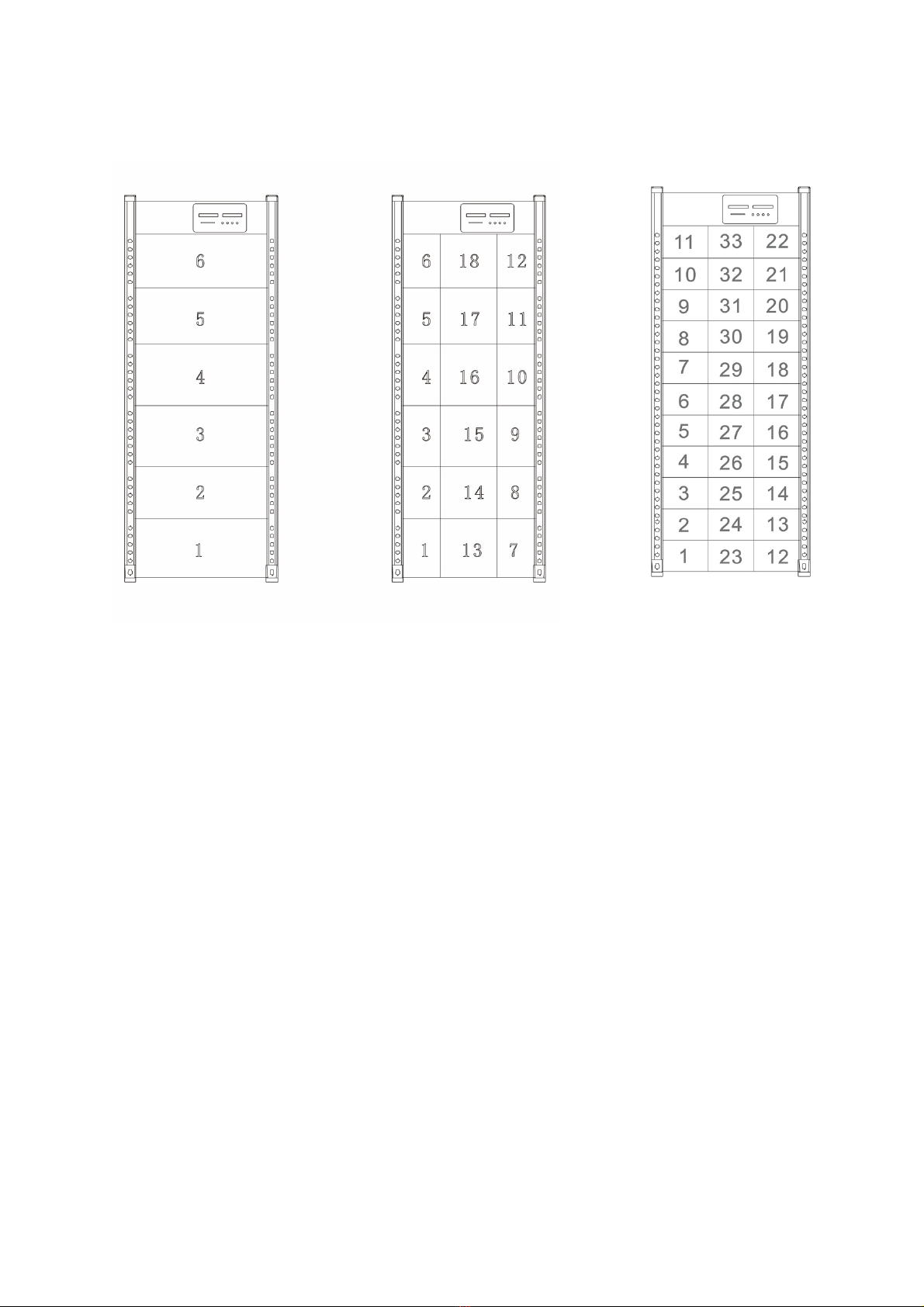

As Figure-1, there are six sets of unique pinpointing LEDs, which represent six

detection zones(from bottom to top 1.2.3.4.5.6).Same way for Figure-2 and Figure-3.

Pinpointing LEDs have 2 states in red bright or not bright. It’s in red alarm when

passers’ body with or exceed stated metal content,if there are multiple targets, then

each target location of the LEDs will be lit with alarm sound at the same time, (Except

for mute).

C: Infrared Sensor(IR)

When the power is turned on, the WTMD starts to work, the infrared sensor can

effectively stop the alarm when nothing pass it to avoid false alarm. The passers could

be exactly counted by IR. Regardless of any cause of the alarm in transit, he has to go

through the WTMD again.

Figure-1 Figure-2 Figure-2

【

OPERATION

】

6 Zone Walk Through Metal Detector

1. Long press “SELECT”3 seconds, entering“P-0”or ”P-1”mode. (“P-0” for

Inspection, “P-1” for Test Flying Object or Test Mode.) Adjust to “P-0” mode and

press “ENTER”to confirm entering P-0 mode.

2. Long press“SETUP” entering“Frenquency Adjustment”,will show “F-xx”.

“xx”means Device Frequency Code. Press “SELECT” can adjust the Frequency. Press

“ENTER” confirm the selection. In order to avoid signal interference, the frequency

code of each adjacent device must be different. (For user convenient operation, we

have particularly simplified the Frequencies to 16 total, which can for unlimited

devices installation!)

3. Press “SELECT”, will show “12345”, which is factory original password. If have

changed the original password, please input the new correct password. (For password

input details please refer to “Password Management”)

4. Press “ENTER” again, will show “00000”, means password correct can go to next

setting. Or if show “E0000”, means password wrong, need input the correct password

then can go to the next setting.

5. One more time press “ENTER”, will show “A-6”, means the device of 6 zones.

6. Press “SETUP”, will show “d-01”, which is alarm duration time. “01”means alarm

duration of 1 second, maximum alarm duration of 3 seconds. Press “SETUP” can

adjust to 01, 02, 03 second.

7. Press “SELECT”, entering Zone-Sensitivity-Level adjustment, will show “1-xxx”,

(“1”means 1st zone, “xxx” means zone sensitivity level.) Press “SETUP” can reduce

the zone sensitivity level, press “ENTER” can increase the zone sensitivity level. The

higher the “xxx”figure, the higher the sensitivity!

e., Adjust to “1-365”, means the 1st zone sensitivity level is 365, the detectable metal

object would be a coin or a smaller metal object.

8. Again, press “SELECT”in turn, will show “2-xxx”~“6-xxx”, same as the 1st zone

sensitivity adjustment, you can adjust each zone sensitivity level respectively.

9. Press“SELECT”, will show “H-xxx”, means device (whole) Sensitivity-Level is

“xxx”.

10. After Zone-Sensitivity-Level finish adjustment, press “SELECT”, will show “AP”,

means entered Application Mode adjustment option. Press “ENTER” to

Application-Adjustment mode and press “SETUP” can adjust the application. Then

press “SELECT” to confirm the selection. The higher the application code figure, the

lower the sensitivity! (For user convenient operation, we have particularly simplified

the Application to 6 total, which could meet all general markets requirements!)

11, Press “SELECT”, enter Volume-Level adjustment, and press “SETUP”

show“yL-H”, means high volume, press “SETUP”again, show “yL-L”means low

volume.

12. Press “SELECT”, will show “Id-xx”, means entered Device “ID”adjustment

option, “xx”means the device ID code. (Press “ENTER”for one time can add “1” in

single digits, press “SETUP”for one time can add “1” in 10-digit. Press

“ENTER””SETUP”for more times will add more respectively!)

13. Press “SELECT”, will show “A6”. Press “ENTER” then come to “Inspection

Mode” and device ready to work.

14. The device will automatically display PASS COUNT & ALARM COUNT, the

number of memories is 99999, press “RESET”can recount.

18 Zone Walk Through Metal Detector

1. Long press “SELECT”3 seconds, entering“P-0”or ”P-1”mode. (“P-0” for

Inspection, “P-1” for Test Flying Object or Test Mode.) Adjust to “P-0” mode and

press “ENTER”to confirm entering P-0 mode.

2. Long press“SETUP” entering“ Frequency Adjustment”,will show “F-xx”.

“xx”means Device Frequency Code. Press “SELECT” can adjust the Frequency. Press

“ENTER” confirm the selection. In order to avoid signal interference, the frequency

code of each adjacent device must be different. (For user convenient operation, we

have particularly simplified the Frequencies to 16 total, which can for unlimited

devices installation!)

3. Press “SELECT”, will show “12345”, which is factory original password. If have

changed the original password, please input the new correct password. (For password

input details please refer to “Password Management”)

4. Press “ENTER” again, will show “00000”, means password correct can go to next

setting. Or if show “E0000”, means password wrong, need input the correct password

then can go to the next setting.

5. One more time press “ENTER”, will show “A-18”, means the device of 18 zones.

6. Press “SETUP”, will show “d-01”, which is alarm duration time. “01”means alarm

duration of 1 second, maximum alarm duration of 3 seconds. Press “SETUP” can

adjust to 01, 02, 03 second.

7. Press “SELECT” entering Zone-Sensitivity-Level adjustment, will show “1L-xxx”.

( “1” means 1st zone, “L”means left side zones, “xxx” means zone sensitivity level.)

Press “SETUP” can reduce the zone sensitivity level, press “ENTER” can increase the

zone sensitivity level. The higher the “xxx”figure, the higher the sensitivity!

Example, adjust to “1L-365”, means the Left side 1st zone sensitivity level is 365, the

detectable metal object would be a coin or a smaller metal object.

Samely, press “SELECT” in turn, will show “2L-xxx”~“6L-xxx”, user can adjust the

left side 6 zone sensitivity level respectively.

8. Then press “SELECT”again, entering right side zone settings. Will show “1R-xxx”,

means right side first zone sensitivity level. Same as the “1L-XXX” zone sensitivity

adjustment, user can adjust the right side 6 zone sensitivity level respectively.

9. Now “Left” & “Right”side Zone-Sensitivity-Level finish adjusting, press

“SELECT” entering whole Sensitivity-Level adjustment, will show “H-xxx”.

10. After all Sensitivity-Level finish adjustment, press “SELECT”, will show “AP”,

means entered Application Mode adjustment option. Press “ENTER” will show

“AP-1”, means “Application 1”, press “SETUP”can adjust the application. Then press

“SELECT” to confirm the selection. The higher the application code figure, the lower

the sensitivity! (!For user convenient operation, we have particularly simplified the

Application to 6 total, which could meet all general markets requirements!)

11. Press “SELECT”, enter Volume-Level adjustment, and press “SETUP”

show“yL-H”, means high volume, press “SETUP”again, show “yL-L”means low

volume.

12. Press “SELECT”, will show “Id-xx”, means entered Device “ID”adjustment

option, “xx”means the device ID code. (Press “ENTER”for one time can add “1” in

single digits, press “SETUP”for one time can add “1” in 10-digit. Press

“ENTER””SETUP”for more times will add more respectively!)

13. Press “SELECT”, will show “A18”. Press “ENTER” then come to “Inspection

Mode” and device ready to work.

14. The device will automatically display PASS COUNT & ALARM COUNT, the

number of memories is 99999, press “RESET”can recount.

33 Zone Walk Through Metal Detector

1. Long press “SELECT”3 seconds, entering“P-0”or ”P-1”mode. (“P-0” for

Inspection, “P-1” for Test Flying Object or Test Mode.) Adjust to “P-0” mode and

press “ENTER”to confirm entering P-0 mode.

2. Long press“SETUP” entering“Frenquency Adjustment”,will show “F-xx”.

“xx”means Device Frequency Code. Press “SELECT” can adjust the Frequency. Press

“ENTER” confirm the selection.In order to avoid signal interference, the frequency

code of each adjacent device must be different. (For user convenient operation, we

have particularly simplified the Frequencies to 16 total, which can for unlimited

devices installation!)

3. Press “SELECT”, will show “12345”, which is factory original password. If have

changed the original password, please input the new correct password. (For password

input details please refer to “Password Management”)

4. Press “ENTER” again, will show “00000”, means password correct can go to next

setting. Or if show “E0000”, means password wrong, need input the correct password

then can go to the next setting.

5. One more time press “ENTER”, will show “A-33”, means the device of 33 zones.

6. Press “SETUP”, will show “d-01”, which is alarm duration time. “01”means alarm

duration of 1 second, maximum alarm duration of 3 seconds. Press “SETUP” can

adjust to 01, 02, 03 second.

7. Press “SELECT” entering Zone-Sensitivity-Level adjustment, will show “1L-xxx”.

(“1” means 1st zone, “L”means left side zones, “xxx” means zone sensitivity level.)

Press “SETUP” can reduce the zone sensitivity level, press “ENTER” can increase the

zone sensitivity level. The higher the “xxx”figure, the higher the sensitivity!

Example, adjust to “1L-365”, means the Left side 1st zone sensitivity level is 365, the

detectable metal object would be a coin or a smaller metal object.

Samely, press “SELECT” in turn, will show “2L-xxx”~“11L-xxx”, user can adjust the

left side 11 zone sensitivity level respectively.

8. Then press “SELECT”again, entering right side zone settings. Will show “1R-xxx”,

means right side first zone sensitivity level. Same as the “1L-XXX”zone sensitivity

level adjustment, user can adjust the right side 11 zone sensitivity level respectively.

9. Now “Left” & “Right”side Zone-Sensitivity-Level finish adjusting, press

“SELECT” entering whole Sensitivity-Level adjustment, will show “H-xxx”, means

Device whole Sensitivity-Level is “xxx”.
