Polivac SL2000 Stingray User manual

POLIVAC SL2000 STINGRAY
ULTRA HIGH SPEED POLISHER
Operations Manual & Trouble Shooting Guide

Version 6/2000 Operating instructions for a SL1600 Dominator
Please find the following correct procedure for the operation of the Polivac SL1600
Dominator or a SL2000 Stingray.
1. Ensure that the power is on, and that extension cords are not used.
2 The handle height must be adjusted to suit individual operators body proportions.
Adjust the ergo handle, to the correct height by placing the foot or hand on the
ratchet lever then positioning the handle. The correct height of the handle is
around the groin region.
3 When the handle is set at the correct height, the arms should grip the handle in a
comfortable, but loose manner (if your arms are bent at the elbows this is an
indication that you are applying too much effort to control the machine) Re-adjust
the handle.
4 Before starting the motor, you must tilt the machine back by gently pressing down
on the handle. Ensure the pad is clearly off the floor, doing this reduces the
starting torque load on the motor.
5 To start the machine, first you must depress the red safety button that is next to
the hand trigger, then grasp either of the red triggers, and the motor will engage
the pad. Do not force the trigger without first releasing the safety button as this
will damage the safety release in the trigger mechanism. Once the machine is on,
the safety button can be released.
6 Once the motor has started, engage the pad on the floor and begin walking
behind the machine.
7 Always work away from the cord and in a straight-line direction (do not try to
swing machine side to side) then complete a U-turn and continue walking straight.
8 Generally, use the left hand for steering and guiding the machine.
9 Always use ultra-high speed Polish on the floor.
10 Walk at a comfortable walking speed.
11 Never use the machine on the same spot for an extended period, as being a high
speed machine the combination of friction and heat could strip or damage the
floor unintentionally.
12 The appliance is not intended for use by young children or infirm persons without
supervision.
13 Young children should be supervised to ensure that they do not play with the
appliance.
14 If supply cord is damaged, it must be replaced by the manufacturer or it’s service
agent or a similarly qualified person to avoid a hazard.
How to Operate an SL1600
Dominator or SL2000 Stingray

Stingray Burnisher - SL2000
Drawings by: LeanSynergicDesign.com.au
Drive & Base Assembly
41
33
35
6
4
3
5
2
60
59
21
10
20
19
22
16
15
11
17
23
36
38
39
40
67
37
57
14
55
56
54
47
48
49
46
39
38
40
25
12
31
43
42
50
45
44 9
8
7
32 53
65
13
12
14
58
1
52
31
30
51
68
69
34
24
13
25
12
70
72
71
6261
27 28 25
13
26
63
64
29
66
61 62 28 64
18
63
35

Stingray Burnisher - SL2000
Drawings by: LeanSynergicDesign.com.au
No Code Description
1 SLB003 Body
2 SLB006 Shaft-Drive Pulley
3 VPV230 Bearing
4 SLB005 Drive Pulley
5 GAS031A Circlip
6 GAS031B Circlip
7 AAG470 Washer 1/2'' x 1'' Zinc Bright
8 GAS054 Washer Spring 1/2'' x 3/16'' x 1/8''
9 SLB034 Bolt-Drive Pulley Shaft
10 SLB018 Vac Chamber
11 SLB015 Shaft-Vac Pulley
12 GAS049 Bolt-Vac System Shaft 5/16'' x 3/4''
13 GAS045 Washer Spring 5/16'' x 1/8'' x 3/32''
14 AAG385 Washer 5/16'' x 7/8'' Zinc Bright 16G
15 VPV184 Fan Boss
16 VPV252 Fan Blades (Pkt. of 12)
17 SLB014 Pulley Vac
18 SLB016 Bearing
19 SLB050 Circlip
20 SLB017 Circlip
21 SLB012 Vac Chamber Gasket 6.4mm x 9mm
22 SLB010 Pulley-Motor
23 SLB019 Drive Belt
24 SLB004 Tension Bracket
25 AAG365 Washer Flat 5/16'' x 3/4'' Zinc
26 SK006 Bolt-Motor MNT/Tension
Drive & Base Assembly - Part List

Stingray Burnisher - SL2000
Drawings by: LeanSynergicDesign.com.au
No Code Description
27 SLB030 Bolt-Tensioner 1/4'' x 2-1/2'' BSW SS ZP
28 AAG236 Washer 1/4'' x 5/8'' Zinc Bright
29 SLB031 1/4'' Nut
30 SLB002 Wheel & Bracket Assy.
31 SLB043 Hex Nut 5/16'' - 18UNC
32 GAS032 Grub Screw
33 SLB027 Base Pad Assembly
34 SLB046 Screw Self Tapper 8AB X 5/8
35 SLB056A Pad Clip
36 MS001 Bolt SS 1/2'' x 3 Z/P 4mm HXHD
37 VPV166 Wheel
38 AAG470 Washer 1/2'' x 1'' Zinc Bright
39 GAS054 Spring Washer 1/2'' x 3/16'' x 1/8''
40 SLB045 Locknut 1/2'' BWNN
41 P/50 Jackaroo 50 cm Pad
42 SLB020 Skirt
43 SLB021 Skirt Support
44 VPV094 Hose Clamp
45 VPV058 Hose Dustbag
46 SLB044 Bolt-Handle Retain 1/2'' x 1.3/4'' Zinc
47 VPV156 Ring
48 VPV051 Dustbag Closure
49 VPV063 Dust Bag
50 SLB001
CMG Motor CMG
51 SLB011 3/16 Keyway
52 SLB055 Lift Handle
Drive & Base Assembly - Part List

Stingray Burnisher - SL2000
Drawings by: LeanSynergicDesign.com.au
No Code Description
53 VPA821 Roller Pin
54 SK016 Ratchet Lever
55 VPA782 Spacer-Torsion Spring
56 SLB028 Torsion Spring
57 AAD061 Bolt
58 SLB033 Set Screw
59 SLB039 Washer Flat
60 SLB038 Locknut
61 AAA584 Set Screw 1/4'' x 1'' Zinc
62 206784 Spacer
63 SLB040 Washer Flat
64 AAF140 Nut Nyloc 1/4'' UNC
65 LAB012 Label
66 LAB002 Motor Label
67 GAS055 Short Nut
68 PPR002 Continental Trim
69 AAA628 Screw Coupling Retain
70 SLB036 Grubscrew
71 AAD041 Bolt
72 SLB035 Rivet ASL 5-6
Drive & Base Assembly - Part List

Rotary Scrubber - Shark / Stingray / Dominator
Drawings by: LeanSynergicDesign.com.au
SK034C Handle
7
10
13
24
22
17
9
23
37
35
18
19
20
16 15
38
30
29
31
27
28
46
44
21
8
34
43
49
33
25
47
6
144
40
53
50
48
3
5
1
41 26
36
39
32
51
42
45
52
12
11
54
2

Rotary Scrubber - Shark / Stingray / Dominator
Drawings by: LeanSynergicDesign.com.au
SK034C Handle - Part List
No Code Description
1 VPV611 Handle Stem
2 SK034A Fork
3 AAJ460 Star Washer
4 VPA231 Tongue Assy
5 VPA821 Roll Pin
6 VPV605 Handle Grips
7 VPV601 Rear cover
8 VPV600 Front Cover
9 AAD039 Bolt
10 AAF140 Nut Nyloc 1/4'' UNC
11 VPA765 Lead Hook
12 AAF140 Nut Nyloc 1/4'' UNC
13 AAD041 Bolt
14 AAF140 Nut Nyloc 1/4'' UNC
15 VPA841 Grommet
16 VPA618 Stem Lead Assy
17 VPV475 Mains Lead Assy (15m)
18 PVS070 Plastic Clamp
19 AAK829 Pop Rivet
20 VPV120 Dust Bag Hook
21 VPV607 Polivac Handle Label
22 ECG157 Lead Protector
23 AAA523 Screw
24 AAA522 Screw
25 VPA631 Cherry Switch
26 AAA525 Screw

Rotary Scrubber - Shark / Stingray / Dominator
Drawings by: LeanSynergicDesign.com.au
No Code Description
27 VPA622 Clamp
28 AAJ451 Star Washer
29 AAG150 Washer
30 AAE271 Nut
31 AAM702 Earth Terminal
32 AAM704 Flag Terminal
33 AAJ002 Star Washer
34 AAE200 Nut HVHD 1/8'' ZP Pressed
35 VVA019 Clamp
36 AAJ451 Star Washer
37 AAK829 Pop Rivet
38 BV8003 Strain Relief
39 BV8004 'O' Ring
40 VPA639 Cap
41 VPA926 Sleeve Insulation
42 AAM601 Terminal Block
43 VPV602 Left Trigger
44 VPV603 Right Trigger
45 AAE200 Nut HVHD 1/8'' ZP Pressed
46 VPV604R Safety Button Right
47 VPV604L Safety Button Left
48 VPA632R Spring Right
49 VPA632L Spring Left
50 VPV606A Spring
51 VPA626 Blue Wire
52 VPA628 Brown Wire
No Code Description
53 ZDR078 Neon Indicator
54 VPV562 Label
SK034C Handle - Part List

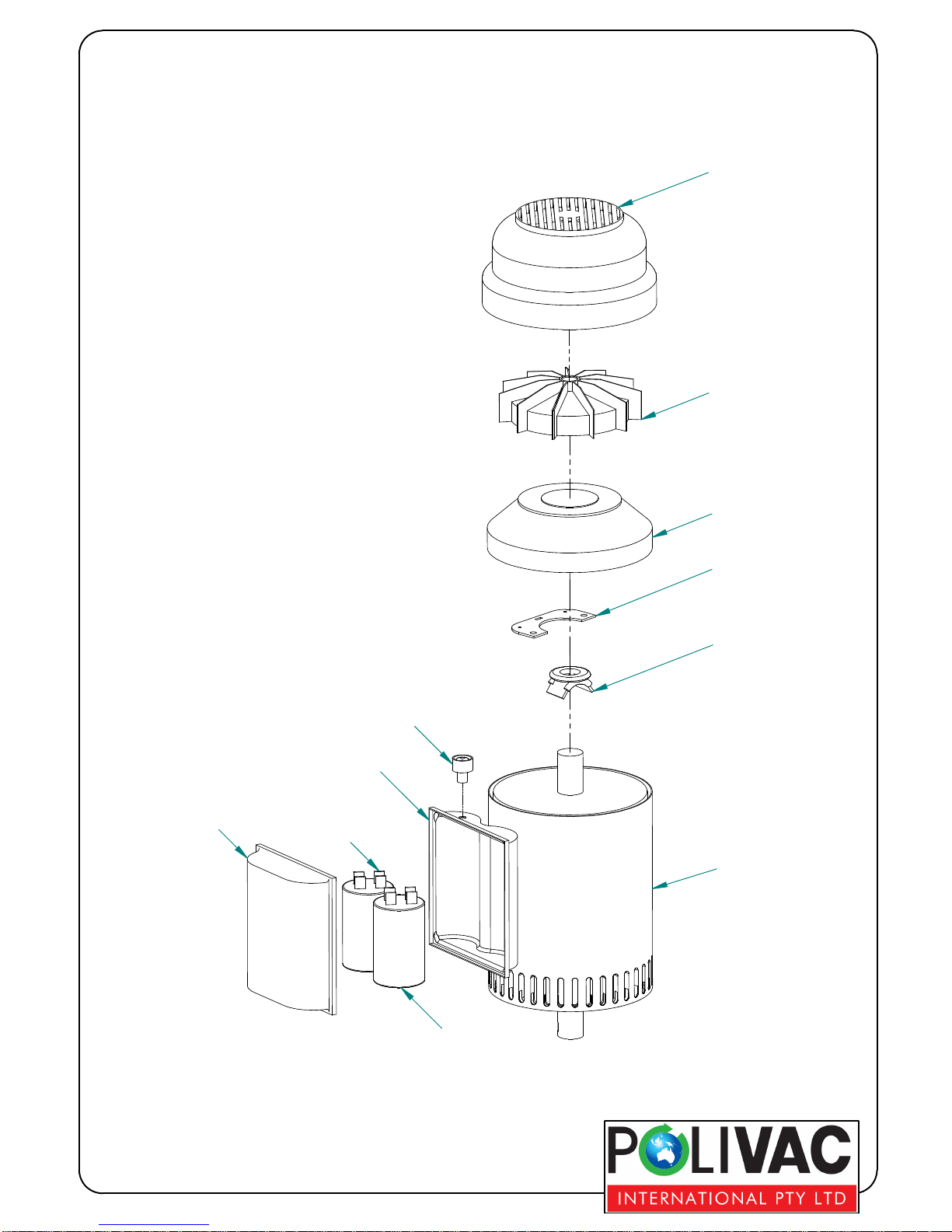

SLB001CMG MOTOR
Drawings by: LeanSynergicDesign.com.au
11
6
5
4
2
3
10 8
1
7
9

SLB001CMG MOTOR
Drawings by: LeanSynergicDesign.com.au
Parts List
No Code Description
1 VPV810CMG Flanged Endshield
2 VPV805CMG Switch Plate
3 VPV806CMG Centrifugal Switch
4 VPV811CMG Non Drive Endshield
5 VPV812CMG Cooling Fan
6 VPV813CMG Cowl
7 VPV817CMG Capacitor Box Base
8 VPV804CMG Start Capacitor
9 VPV824CMG Run Capacitor
10 VPV818CMG Capacitor Box
Lid
11 VPV807CMG Manual Reset
