Polivac GAZDA42 User manual

1

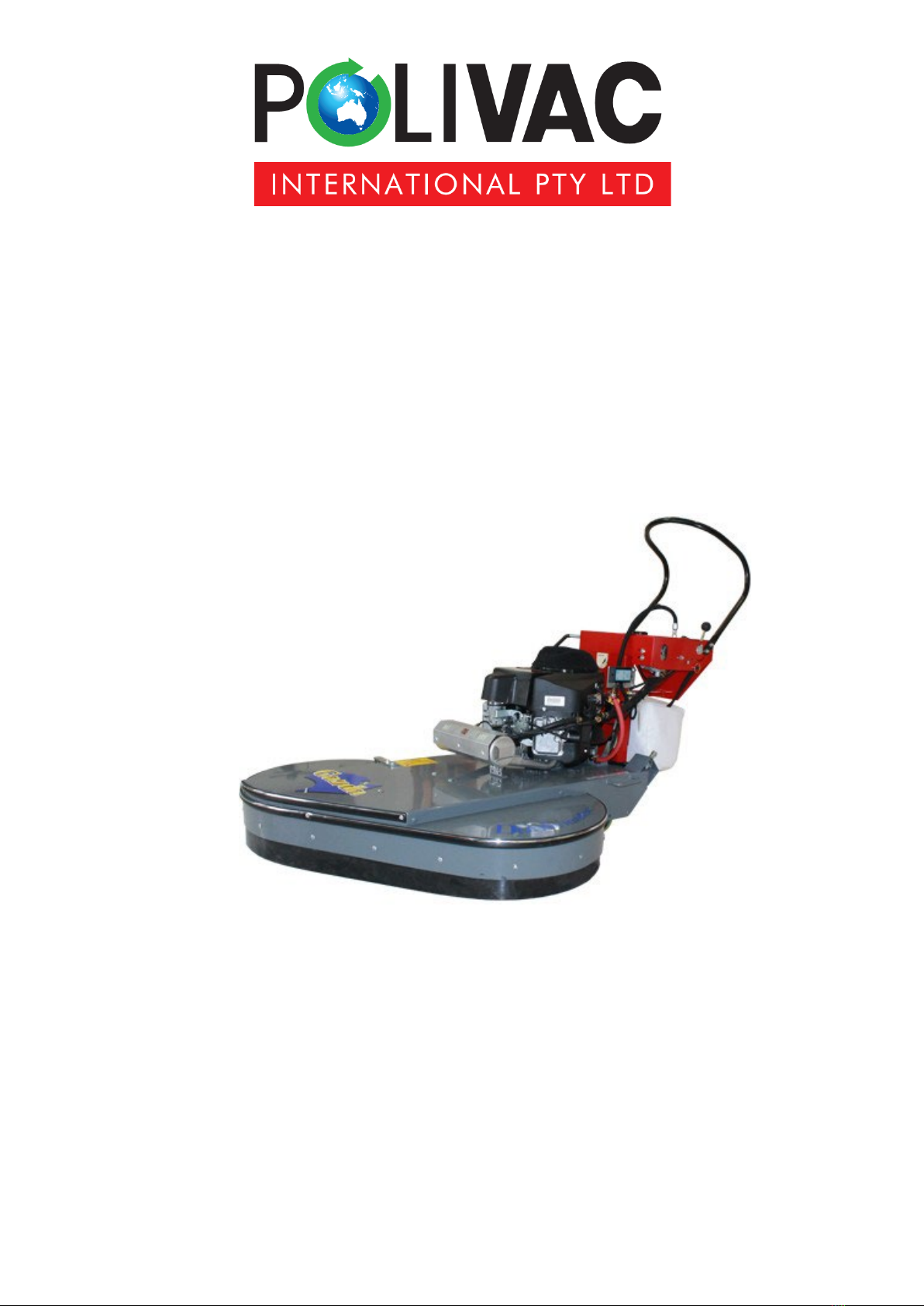

Polivac 42” Gas Buffer
GAZDA42
Operations Manual & Trouble Shooting Guide

2
OWNER’S MANUAL TABLE OF CONTENTS
Introduction ............................................................................... 3
Use & Care.................................................................................3
Safety Precautions .................................................................... 3
Unpacking Instructions .............................................................5
Machine Preparation ................................................................. 4
Starting the Engine ................................................................... 4
Operation of machine...................................................................................... 5
Stopping the Engine ..................................................................5
Maintenance .............................................................................. 5
Do’s & Don’ts .............................................................................6
Parts Diagram ....................................................... 8-26
Warranty Policy .........................................................................27
IMPORTANT
The following details should be recorded here for your records.
•Machine Model:
•Machine Serial Number:
•Motor Type:
•Motor Serial Number:
•Purchase Date:
•Purchase From:
•Invoice Number:

3
INTRODUCTION
Congratulations on your purchase of a Polivac Gazda42/32 machine.
This machine has been designed to produce an optimum result with a minimum of effort and investment.
For you to receive the utmost from your investment and keep your machine serving you for many years to
come, you will need to establish a proper maintenance schedule.
Premature failure of the engine can be quite expensive and is the major reason for machine downtime.
It is essential that the items listed below are constantly addressed.
NB This manual should be read and implemented in conjunction
with the motor manufacturers manual.
1. OVERHEATING is the major cause of engine failure. Keep the cooling air debris filter clean.
Protect your machine and allow any foreign matter to build up on the cooling fins of the engine.
2. LOW AND DIRTY OIL is the next most common cause of the engine failure.
•Change the oil according to the motor manufacturers recommendations and check the
oil level and condition daily before each use.
3. YOUR GAZDA42/32 MACHINE MUST NEVER BE TILTED ON TO THE LEFT HAD SIDE
(VIEWING FROM BEHIND THE UNIT). – Follow sticker on the frame
•This will cause oil to seep into the carburettor and head of the engine, which will cause
excessive smoking and damage to the engine and regulator system.
USE AND CARE
Before using any new equipment, Polivac strongly recommends following safety precautions for all owners
and operators of gas-powered equipment.
SAFETY PRECAUTIONS
1. Polivac recommends the wearing of protective ear-wear as continuous exposure to high noise
levels may cause damage.
2. Do not touch the hot muffler/exhaust.
3. Do not allow any person to come in to contact with the rotating pad and keep other people
away from machine whilst it is in operation.
4. Do not leave machine unattended whilst running.
5. Do not leave machine accessible to untrained persons.
6. Do not operate the machine if the pad is off centre, damaged or missing. Substantial damage
to the floor, the machine or injury to personnel may result.
7. Vibration from machinery may cause numbness or tingling of the fingers in certain people.
Smoking, dampness, diet and heredity may contribute to the symptoms. Wearing warm
clothing gloves, exercising and refraining from smoking can reduce the effects of the machine.
8. The machine should be checked for any loose or damaged parts.
9. If a headache develops whilst machine is in operation it should be stopped and checked for
carbon monoxide emissions by a qualified repair agent.
10. If the smell of gas is evident, stop using the machine and take it outdoors. Have the source of
the leak repaired before continuing operation.
11. Never vent gas inside a building.
12. If your machine develops a high-pitched whistle, stop the engine and check the oil level. (Note
newer model are fitted with an alarm or cut off switch)

4
UNPACKING INSTRUCTIONS
Polivac gas buffers comes packaged in a palletised box designed to protect and secure the machine during
transportation. The machine is supplied with no gas cylinder. Before signing the delivery receipt, inspect the
packaging for damage (Remove box and check machine for damage). If damage is evident, note the damage
on the delivery receipt and contact your supplier.
MACHINE OPERATION
1. Adjust handle upright and tighten the bolt
2. Check the engine oil level and condition.
3. Secure the gas cylinder on a machine (at the back of the machine) and lock the screw bar.
4. Fit and secure gas cylinder hose.
5. Open gas cylinder valve.
STARTING THE ENGINE
1. Tilt the machine back
2. Set the throttle to the OFF position.
3. Press the Rocker/toggle switch to ON position
4. With the gas cylinder valve open, Press the foot switch until the engine begins operation,
which shouldn’t be any longer than 4-5 seconds (in a normal weather condition).
Run the engine at slow throttle position for approximately two minutes to allow efficient warm up. Advance to
full throttle and run machine. Preferably your machine should not be operated at anything less than full throttle
because a lower speed will cut down the incoming fresh air that is required for the cooling of the engine.
5. Drop the head of the machine on the floor and move forward
OPERATION OF GAZDA42/32
With the engine at full throttle & head on the floor machine will move forward.
When buffing, avoid any loose surfaces, electrical points, door trims and any object which may come in a
contact with the pads other than the floor itself.
1) If the machine moves excessively to left or right, then an adjustment need to be done to the knob
located at the right front (when standing behind the machine). Refer to yellow sticker for directions
2) Speed control screw is located at right front (when standing behind the machine). screw in further if
need to speed up and vice versa
3) Rich(red)/ Lean(blue) LED indicators on the emission motor to alternate between red and blue when
machine is working correctly. IF only the red or Blue LED illuminates, machine will stop in about 5
minutes. MUST get the assistance from qualified gas technician in that case.
STOPPING THE ENGINE
1. Tilt the machine back
2. Return the throttle to the OFF position
3. Close the gas cylinder valve
4. Turn the Rocker/Toggle switch to OFF position.
5. Remove the gas line hose from the cylinder.
6. Drop the head of the machine on the floor

5
MAINTENANCE
1. Prior to Use:
•Check the oil level and condition.
•Clean and/or replace engine and carburettor filters.
•Check brush/pad condition.
•Clear engine cooling vanes.
•Check all gas lines and fittings for damage, cuts or leaks.
•Check brushes/pads and drive system for any loose or worn parts.
2. 20 Hours / Weekly:
•Check drive belt for wear or slippage, adjust or replace as necessary.
•Check pulleys for tightness.
•Check handle bolts, wheel bolts and engine mounting bolts for tightness.
•Check throttle cable for wear.
•All point in 1.
3. 25 Hours 1 Bi-weekly:
•Change oil
•All points in 1 & 2.
4. 40 Hours / 1 Monthly:
•Recommended interval for carbon monoxide test.
•All points in 1, 2 & 3.
5. 100 Hrs / 16 Months:
•Change spark plug.
•All points in 1, 2, 3 & 4.
6. 300 Hours / Yearly:
•Return machine to authorised service centre for complete service.
•Valve clearance to be checked.
•All points in 1, 2, 3, 4 & 5.

6
IMPORTANT NOTICE
Polivac would like to direct your attention to the following issues so that correct and safe operation of your
gas-powered floor buffer is achieved. The superior performance of gas buffer has led to an increased demand
for the use of this type of floor maintenance equipment. This highlights the need for responsible
manufacturers, owners and operators to stress the importance of safety. These maintenance points are a
guideline to the upkeep of your machine. A more stringent program may be required depending on the type
and amount of use that your machine will be subject to.
DO’S
•DO check oil level before starting. It is important that the oil is maintained at the correct level for proper
lubrication and cooling of the engine. Consult the motor manufacturers manual for correct capacity
and oil specifications.
•DO check fuel level and hose connection before starting. The entire unit should be visually checked
for any loose or damaged hoses, fittings and connections.
•DO keep the debris filter clean (foam filter on top of motor) and free of any dust or lint. Any obstructions
to the cooling system can cause excessive heating and premature failure of the engine.
•DO change the oil at least every month / 140 Hours. One of the primary functions od the oil is to cool
the motor. When the oil is dirty or not kept to adequate levels it cannot cool the motor efficiently and
can cause premature failure resulting in costly repairs and down time.
•DO check belt tension before starting. Incorrectly adjusted belts will cause slipping and premature
wear. The belt should have approximately movement when depressed.
•DO carry out routine maintenance as specified. This will prevent any unnecessary down time of your
machine.
•DO run the machine at full throttle. Running the machine at a lower speed will cut down the incoming
fresh air that is required for the cooling of the engine.
•DO empty the dust bag after each use
DON’TS
•DO NOT overfill the gas bottle. Overfilling will cause severe damage to the motor and the gas
regulator.
•DO NOT tip the machine over on its left-hand side. If it is tipped on this side the oil in the motor will
run through the carburettor. This will cause the inability of the unit to start or excessive smoking if it
does start.
•DO NOT use starting fluid to assist with hard to start engines. Starting fluids can leave a hot spot on
the piston, which will cause premature failure of the engine.
•DO NOT apply unnecessary pressure up or down on the Buffing machine handle. Machine should
float easily across the floor.
•DO NOT over fill oil. Refer to the motor manufacturers manual for specifications and capacity.
•DO NOT buff any floor that has not been properly swept. Loose debris on the floor can become
hazardous flying missiles.

7
•DO NOT modify the unit in any way without the written permission of the Polivac International Pty.
Ltd. Any unauthorised modifications will void the warranty and Polivac International Pty. Ltd. Will not
be responsible for any damages to the unit or caused by the unit.
•DO NOT replace the pads or make any adjustment whilst the motor is running or the gas is turned
on.

GAZDA 42G GAS BUFFER
Belt Tensioner Assembly
24 25
17
7
21
28
27
23
22
2
19
21
5
3
4
20
9
19
22
126
29
16
15
14
23
16
18
15
14
33
31
30
32 32
31
34
21
11
10
12
13
35
6
8
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
Item
Number Description Part No.
1 Tensioner Cross Member GZ001/5089
2 Shadow BRKT Welded GZ001/5084
3 Shadow Angle Welded GZ001/5080
4 Pulley BRKT Torque GZ001/5083
5 Pulley BRKT Plain Welded GZ001/5086
6 Cradle Tensioner GZ001/5108
7 Tensioner Front GZ001/5106
8 Tensioner Back GZ001/5110
9 Pulley BRKT Torque Lever GZ001/5082
10 Graphite Washer 13x40x3 GZ001/5154
11 1/2 x 2" Bolt UNF GZ006/0725
12 Flat washer 1/2" x 1" AAG470
13 1/2 Nut UNF Conelock GZ006/0729
14 M8x16 Flat Washer GZ006/2366
15 M8 Spring Washer GZ006/2372
16 M8x20 Hex SS GZ006/2222
17 M8x25 Coach Bolt BAT275
18 M8 Nut ZP GZ006/2363
19 Graphite Washer 12x40x3 GZ001/5153
20 Flat washer 7/16 x 7/8" GZ006/0730
21 7/16 Nut UNF Conlock GZ006/0724
22 7/16 x 1 1/2" Bolt UNF GZ006/0720
23 Graphite Washer 16x50x3 GZ001/5155
24 M16 Hex 52 mm Nut GZ001/5105
25 M16 Nyloc GZ006/3283
26 M8x40 Set screw 8.8 GZ006/2226
27 Polyurethane Buffer GZ001/5115
28 Rivet AS 6-4 AAK 829
29 Spring 10x20 GZ010//5149
Belt Tensioner Assembly Part List - Page 1 of 2
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
Belt Tensioner Assembly Part List - Page 2 of 2
Item
Number Description Part No.
30 M16 Spring Washer GZ006/0633
31 M16x36x3 Flat Washer GZ006/3287
32 M16 Nut ZP GZ006/3281
33 M10x25 Coach Bolt GZ006/2564
34 M10x35x6 HD Washer GZ001/5113
35 M10 Nyloc GZ006/2712
Drawings by: LeanSynergicDesign.com.au

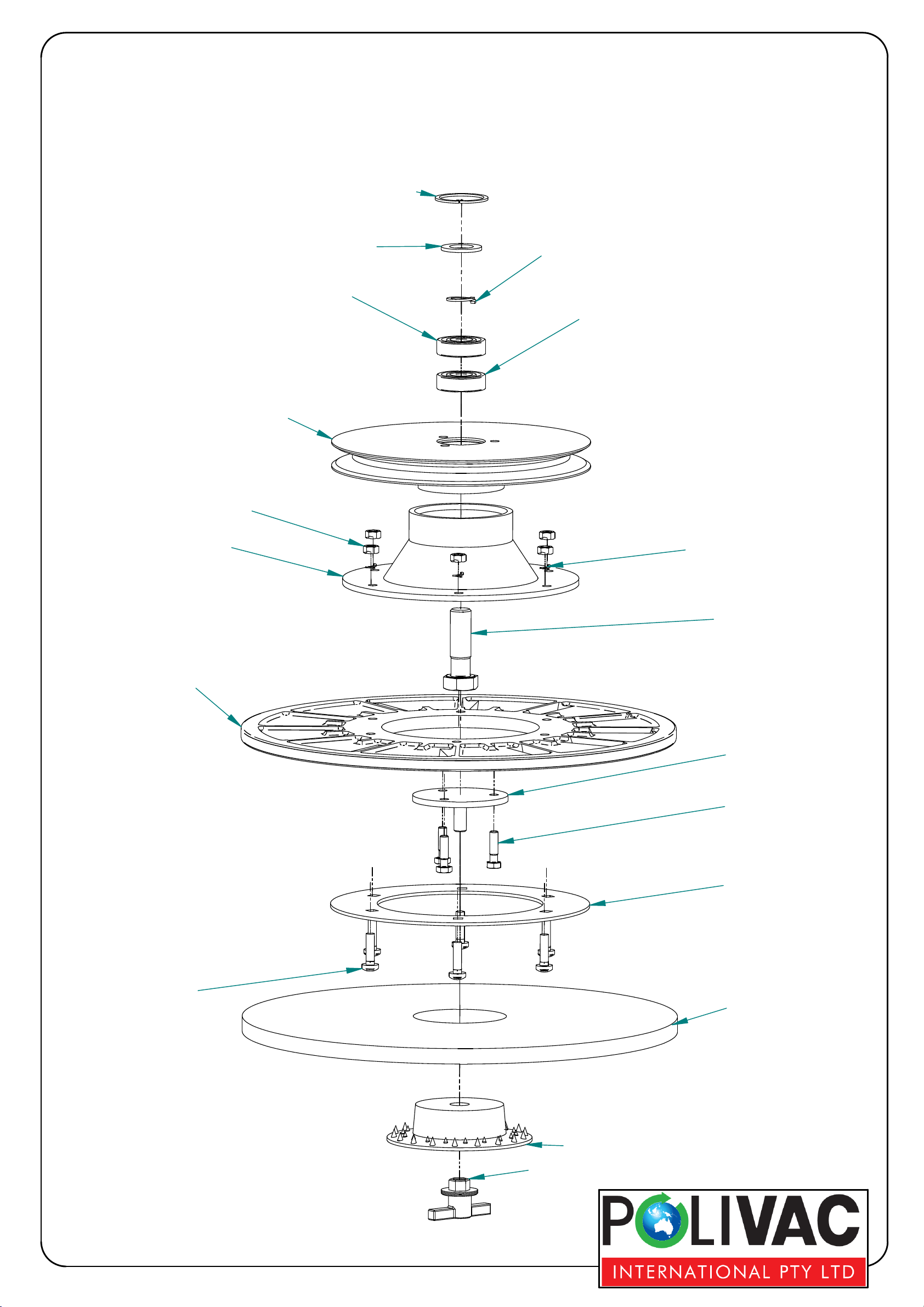

GAZDA 42G GAS BUFFER
4
4
18
16
11
14
9
2
6
10
1
5
8
Brush Pulley Assembly
17
7
12
15
13

GAZDA 42G GAS BUFFER
Item
Number Description Part No.
1 Pulley Brush 22, 32, 42 GZ010/3064
2 Aluminium Clutch GZ010/3073
4 Bearing 6204 DDU VPV230
5 Circlip Internal 47mm Gas031A
6 Pad Holder Retainer GZ010/3071
7 Hand Tee Knob GZ010/3074
8 Plastic Spicked Padlock GZ010/3083
9 Pad 52 CM P50Jackaro
10 Plastic Pad Holder 52 CM GZ010/3075
11 M20x45x3.5 ZP Flat Washer AAG480
12 M20 Spring Washer GZ006/3562
13 M8x25 Set screw 8.8 GZ006/2251
14 Pad Holder Backing Plate GZ010/3076
15 M20x45 ZP Hex GZ006/3431
16 M8x30 Coach Bolt GZ006/2233
17 M8 Spring Washer GZ006/2372
18 M8 Nut ZP GZ006/2363
Brush Pulley Assembly Part List

GAZDA 42G GAS BUFFER
3
Engine Subassembly Parts
4
2
1
5
A
DETAIL A
11
12
13
B
15
DETAIL B
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
Engine Subassembly Parts
CDETAIL C
8
10
9
6
7
14
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
Engine Subassembly Part List
Item
Number Description Part No.
1 Engine KOH23HPA
2 Top Cowl Base Strip GZ001/5101
3 Screen Metal Basket GSS031BS
4 Rivet AS 6-4 AAK 829
5 Engine Dust Filter GSS028BS
6 3/8" M BSPT x 1/2" Hose Tail GSS006/3566
7 1/2" Hose 380mm long PM036
8 1/2" w x 1" Hex SLB034
9 Hose Clamp 13-20 PPR042
10 1/2" x 1 1/2" Flat Washer GSS056
11 1/4" BSPT Lock Nut PPR054
12 1/4" M BSPT x 3/8" Hose Tail
Elbow PPR053
13 3/8" Hose 180mm long PPR039A
14 3/8" BSPT Plug PVS086
15 1/8" M BSPT x 3/8" Hosetail GSS048
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
Fan Plastic Assembly
5
4
6
2
1
3
7
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
Fan Plastic Assembly Part List
Item
Number Description Part Number
1 Motor Pulley 1 1/8" Bore GZ010/5122
2 Fan Plastic GZ010/0856
3 Fan Washer Support 32, 42 GZ010/3047
4 M8x16 Set screw ZP GZ006/2221
5 M8 Spring Washer GZ006/2372
6 Rivet AS 6-4 AAK 829
7 42G Key Crankshaft GAS089
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
20
66
45
28
27
16 13
35
32
33
36
31
15
53
55
65
61
33
30
30
30
32
30
44
14
30
30
30
10
33

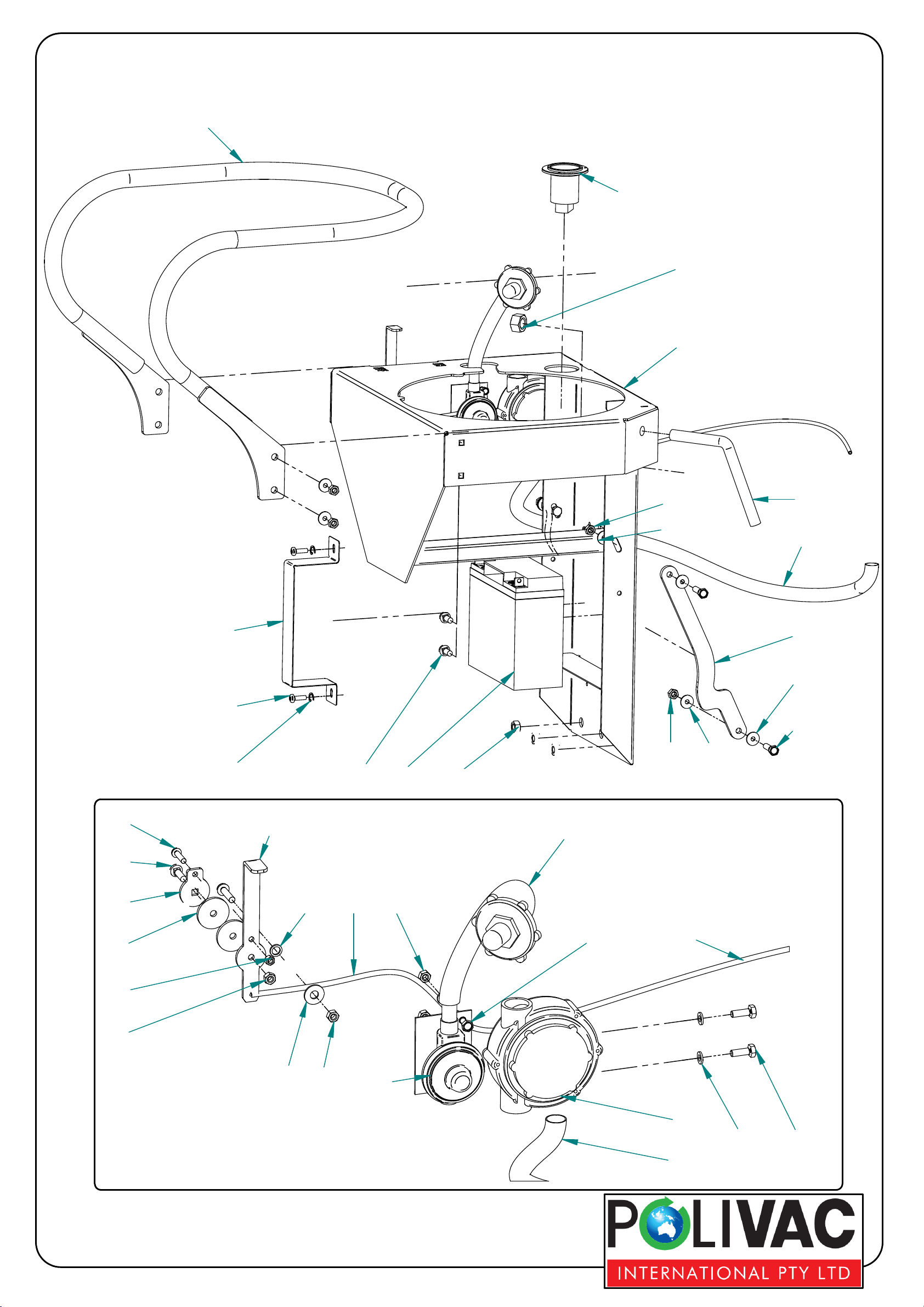

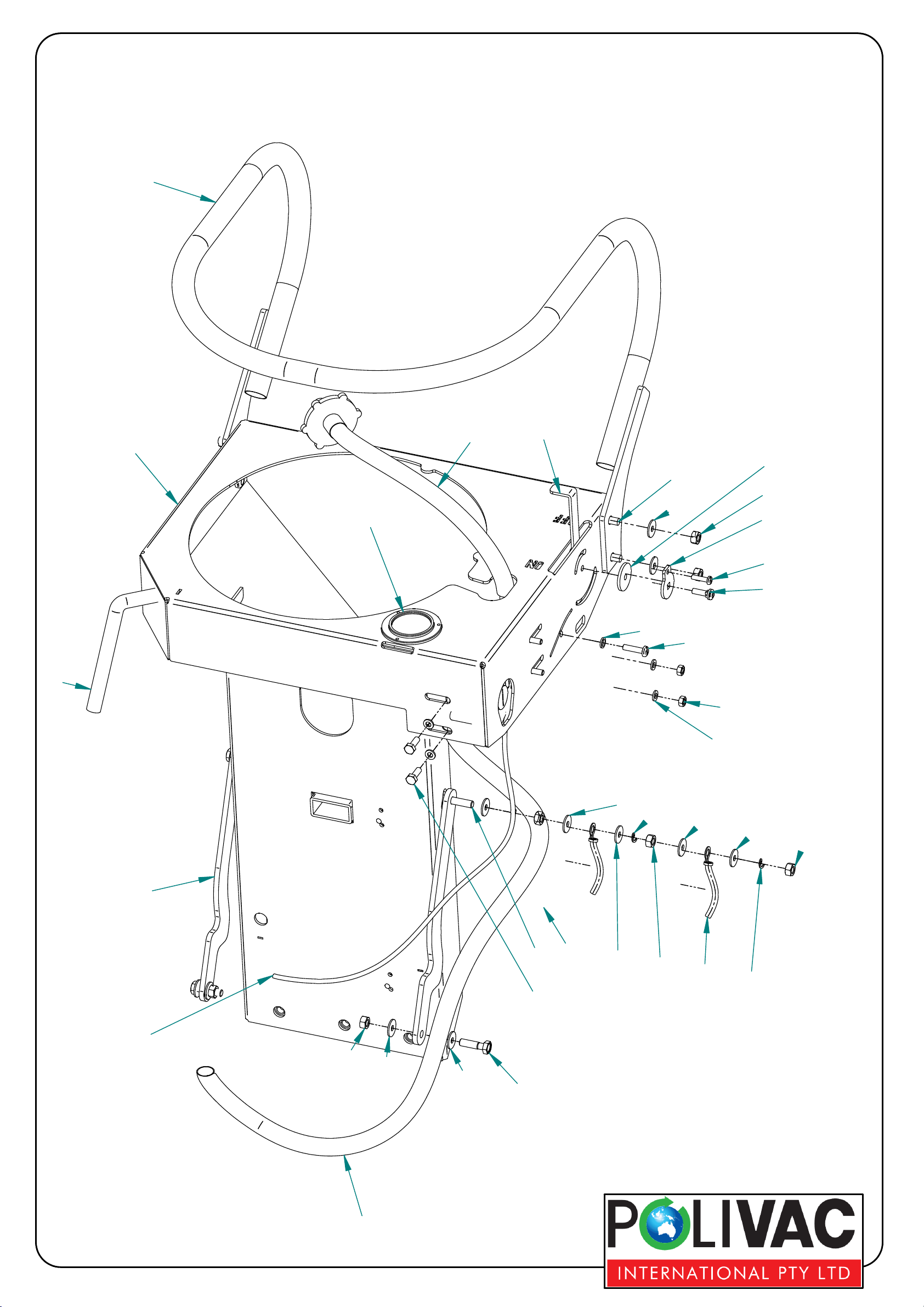

Gas Bottle Holder Assembly
5
7
67
34
19
2
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
17
37
38
18
26
46
Gas Bottle Holder Assembly
5
10
7
30
33
33
30
30
36
2
61
45
44
15
20
27
28
16
39 14
29
14
67
52
14
43
65
34
66
19
Gas Supply Detail 65
66
9
Drawings by: LeanSynergicDesign.com.au

GAZDA 42G GAS BUFFER
Dust Bag
55
64
Drawings by: LeanSynergicDesign.com.au
