Polivac MM1700E User manual

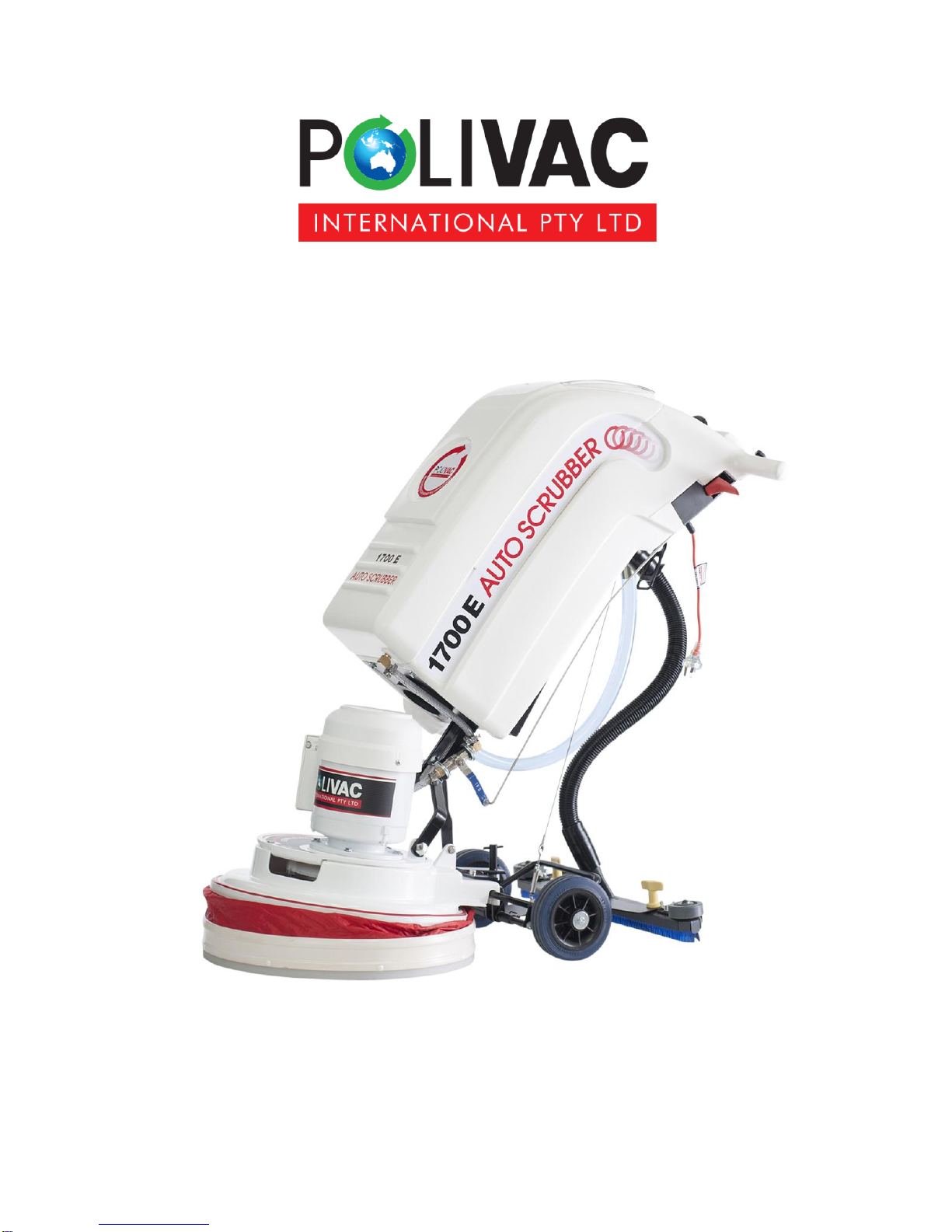

POLIVAC MM1700E AUTO SCRUBBER
Operations Manual & Trouble Shooting Guide

Product Summary
The 1700E auto Scrubber from Polivac International automatically lays a solution on
the floor, scrubs, then collects the dirty solution in one pass, via the vacuum squeegee
at the rear of the machine.
The solution holding component, which is located in the front half of the large
polypropylene tank holds 20 litres of fluid. The recovery component, located in the
rear of the large tank also holds 20 litres of solution picked up from the vacuum
squeegee.
Pads or brushes can be used with the machine, which can be connected using the
quick release system for ease of use. Instructions for attaching this component are
listed in the operating procedure below.
The machine is powered by a 550 watt, 240 volt 4 pole motor, driving a single
reduction helical gear, completely encased in an oil filled gear box.
OPERATING INSTRUCTIONS
1. Ensure that the power is on, and that extension cords are not used. The metal clip
at the machine end of the power cord is to place in the operator’s pocket, rather
than placing the entire cord over the shoulder.
2. Place the brush/pad holder flat on the floor. Move the machine over the brush/pad,
placing the shaft of the motor inside the hub of the brush/pad. Make sure that the
shaft is centred in the middle of the hub.
3. Pull on either of the red triggers, and the shaft will engage the brush/pad and lock
on automatically. To release the brush/pad, tilt the machine back and give a swift
flick of the trigger. The brush/pad will automatically become disengaged.
4. Once the brush/pad is engaged and the machine trigger left on, the 1700E will
move along slowly by itself, via the Poliflow forward propulsion system.
5. To operate the vacuum, move the lever on top of the polypropylene tank to the
left. The squeegee will drop down and the vacuum will automatically start.
6. To release fluid from the solution tank, pull the solution knob on the left of the
tank upwards. This will release a valve and fluid will be deposited onto the floor.
Make sure this is pushed in when you want to decrease or stop the solution being
laid. You are now using the 1700E auto-scrubber.
7. When you are finished the job, ensure the recovery tank is emptied, via the clear
hose situated on the right of the tank. A bucket is best to use for this. Simply
unscrew the top valve and the fluid will pour out. Rinse out the recovery tank with
a hose and repeat the process to ensure machine long life.
8. If you have cleaning solution left in the front tank, simply pull up the solution
knob and position the 1700E over a gutter. Alternatively, the hose to the brush/pad
can be pulled out and the solution be poured into a bucket for next time.
OPERATIONS
Scrubber Auto Polivac MM1700E
MANUAL

1700E AUTO SCRUBBER
GENERAL INSTRUCTIONS
DO’S
Clear the floor of sharp objects to protect the squeegee.
Always work away from the cord.
Turn the T bar at the rear of the machine to the right if you want less
sideways movement to the right.
Walk in a straight line.
Always clean the machine after use and store in a safe dry
environment.
Walk at a comfortable walking speed when using the 1700E.
Use anti-foam in the recovery tank if foaming occurs.
Ensure the skirt is neatly around the machine when stored.
DONT’S
Don't use more than 20m extension leads, and ensure it is rated to
15amps.
Don’t store heavy items on the machine as it distorts the skirt and thus
it will not perform as efficiently.
Don’t run with the 1700E, however you CAN walk backwards.
Don't leave the brush/pad on the machine when storing the 1700E as it
could distort.
Don't overfill the solution tank.
Don't run the machine over the power cord.

131
132
133
134
135
P
VAC LI
INTERNATIONAL PTY LTD
Page1

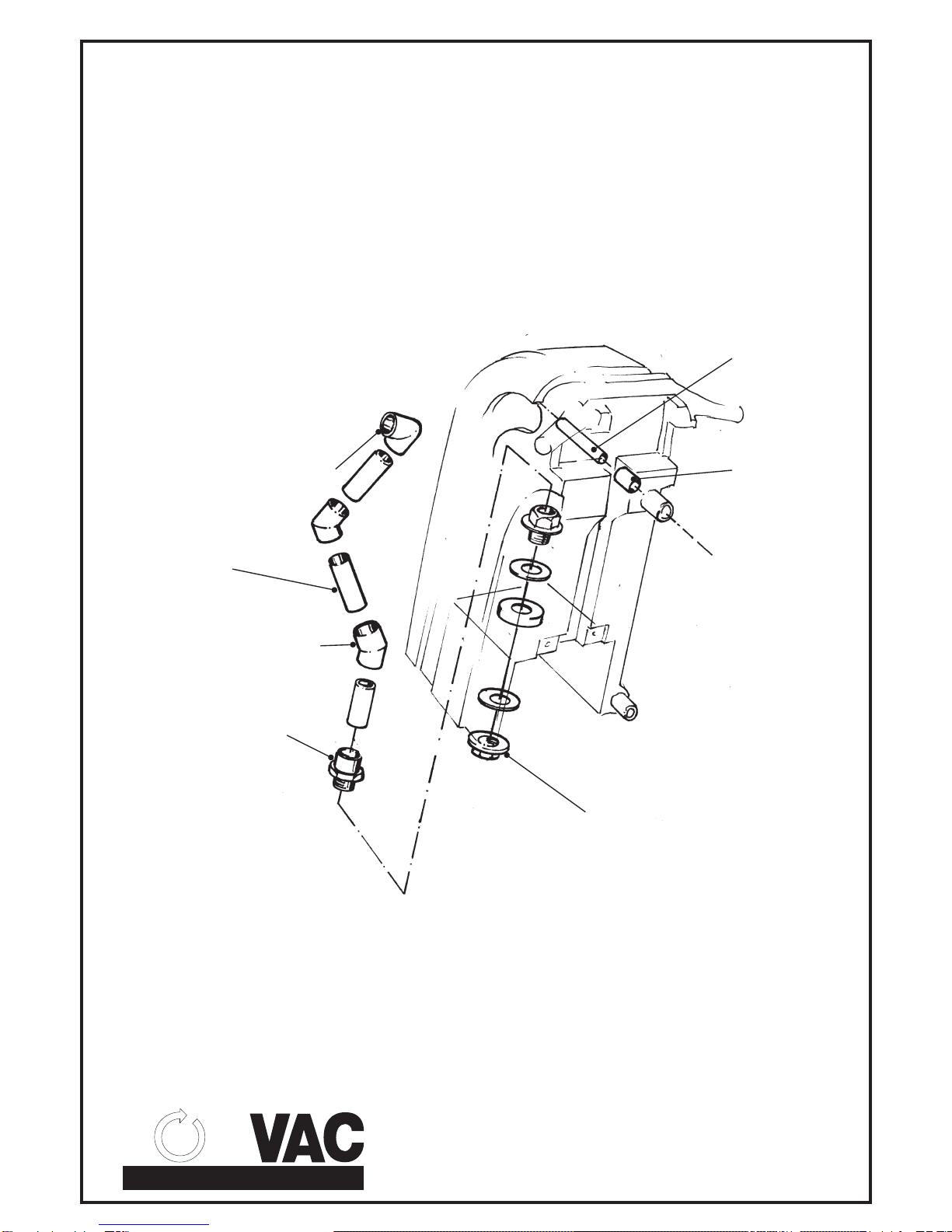

1700E Autoscrubber
PARTS LIST
1700E Autoscrubber
136
137
138
139
140
138
137
136
59
59
141 142 143 144
70a
70b

105b
105a
105c
105d
81
81a
81b
103a
103a
47
1700E Autoscrubber
PARTS LIST
1700E Autoscrubber
P
VAC LI
INTERNATIONAL PTY LTD
115a
119a
Page 2
109

1700E Autoscrubber
PARTS LIST
1700E Autoscrubber
P
VAC LI
INTERNATIONAL PTY LTD
20mm PVC Pipe
PVT014
PVT042 32mm Elbow 45DG
PVS004 32mm PVC Pipe
PVT004 Inlet Elbow 15DG
RT013 White Socket
PVT012 Black Adaptor
Page 3

382350
Squeege
Assy.
1700E Autoscrubber
PARTS LIST
1700E Autoscrubber
P
VAC LI
INTERNATIONAL PTY LTD
Page 4
128
123
124
125
126
127
129
130

1. PVT005 Lid (Solution Tank)
2. PVT001 Solution Tank
3. PVT001A Recovery Tank
4 PVT035 Elbow Fitting
5 PVS060 Hose Quick Clamp
6 PVS067 Solution Hose
7 PVS013 Solution Valve Assembly
8 AAA537 6mm x 12mm Set Screw
9 AAD039 Bolt
10 VPA284 Nut
12 AAD038 1/4 x 1½
14 COM019 Rubber Seal
15 PVT100D Bottom Plate (Vac Cover)
16 PVS065 Spring
17 PVT002 Vac Motor
18 COM019 Seal (Motor Support)
19 VPA906 Spring Tensioner Trigger
20 AAA501 3/16 x 1 / Screw C/S
21 VPV838 Trigger
22 PVT100J Exhaust Cover
23 PVT100A Handle Stem
24 VPA231 Tongue Assembly
25 AAF140 1/4 Nylon Nut
26 VPA767 Fork
27 VPA284 Handle Pin & Nut
28 SLB038 3/16 Nylon Nut
29 AAG236 Flat Washer
30 PVT086 Support Bracket (Handle)
31 AAA604 Bolt (H/T 1/4 x 1) S/S
32 PVT027 Flat Washer
33 SLB038 3/16 Nylon Nut
34 PVS077 Weter Release Hose
35 PVT047 Plug PVT048 Sleeve
36 VPV156 Ring
37 PVS974 Terminal Block (5 Term)
38 PVS041 Wiring Box
39 PVS096 Gland
40 AAM601 Terminal Block
41. PVT200 Hose Clamp
42 388019 Micro Switch (Activate Drive Motor)
43 VPA622 Half Clamp
44 AAJ002 Star Washer
45 AAA354 3mm Nut
46 388019 Micro Switch (Activate Vac Motor)
47 PVT008 Squeegee Lift Cable
48 AAA353 3mm x 25mm Screw
49. PVT006 Lid (Recovery Tank)
50. PVT015 Rubber Seal
51 AAA354 6mm Nylon Nut
52 PVT100K Rod (Squeegee Lift Handle)
53. 364527 Knob (Squeegee Lift Handle)
54. PVT100E Squeegee Lift Handle
55. PVT100A Backing Switch Plate
56. PVT100G Switch Plate
58 PVT100E Washer (Activate Vac Motor)
59 AAG385 Washer
60 PVS095 Hose Cuff
61 PVS121 Extract Hose
62 VVA019 No. 4 Clamp
63 ZDR078 Indicator Light
65 PVT100F Cover Plate
66 387670 Knob (Detergent Lift Handle)
67 PVT017 Rod Solution
68 PVT028 3/16 x 5/8 Self Tap
69 VPV120 Clip (Hose Retainer)
70a VVA019 Cable Clamp No.4
70b BV8003 Ring
71 BV8003 Strain Relief
72 AAA564 Set Screw 1/4 x ¾
73 AAG236 Flat Washer
74 VPA104 Oil Seal
75 VPA114 Bearing
76 VPA116 Shaft
77 AAA501 3/16 x 1”
78 PVS424 Casting
79 VPV239 Insert
"
80 VPV087 Buffer
81 VPA328CMG Drive Motor
81a SK006 Screw 5/16
81b VPV542 Nut 5/16
82 AAD041 Screw
83 VPA836 Rubber Grommet
84 VPA177 Base Plate
85 VPA121 Wavy Washer
86 VPA570 Bearing
87 VPA411 Gear
88 VAA113 Cover Plate
89 VPA122 Washer
90 AAA564 Set Screw 1/4 x ¾
91 PVT045 Nut 5/16
92 PVT044 Cap Head Screw 5/16
93 475480 Knob
94 PVS042 Gcrub Screw
95 PVT044 Cap Head Screw 5/16
96 VFB115 Woodruff Key
97 PVT090 Height Adjustment Wedment
98 PVS078 Drive Hub
99 PVS009 Height Adjustment Rod
100 387116 Pilot Hub
101 PVS087 Height Adjustment Bracket
102 PVS026 Cap/Head Screw 5/16 x 11/4
103 AAA564 Set Screw 5/8 x ¼
103a GAS041 ¼ Spring Washer
103b AAG236 Washer
104 PVS092 Shaft
105a PVS118L Left Spring
105b PVS119R Right Spring
105c PVS119L Left Spring
105d PVS118R Right Spring
106 370711 Thumb Nut
107 VPA820 Spacer (Swivel Tongue & Squeegee)
108 PVS006 Swivel Squeegee
109 PVS052 Skirt Assembly
110 VPV168 Mini Skirt (ref 109 Skirt Assy.)
111 VPV172 Retainer Skirt
112 VPV042 Pickup Ring
113 PVS40B2 Brush
114 PVT009 Turn Buckle
115 SLB038 Nut Nylon
115a PVS039 S/S Nut 3/16
116 VPA829 5/32 Roll Pin
117 PVT038 Flat Washer
118 PVT007 Wheels
119 SLB040 Flat washer
119a GAS041 Spring Washer ¼
120 AAA564 Set Screw 5/8 x ¼
121 PVS006 Swivel Squeegee Tongue
122 PVT011 Axle
Ref pg4 382350 Squeegee Assembly
123 382352 Weldment
124 105550 Channel
125 105551 Retainer
126 105533 Blade
127 393746 Weights
128 370711 Thumb Nut
129 387376 Roller Assy
130 363855 Frame Roller
131 ECG157 Lead Protector
132 PVT016 Plug & Lead
133 300187 Belt Clip
134 PVS070A Plastic Clamp
135 VPV476 Lead
136 VPA459 Brass Barb 5/16
137 PVS059 Brass Reducer Bush
138 PVS054 Washer 11/16 x 1 5/16
139 PVS013 Solution Valve Assy
140 PVS084 Solution Valve Retainer
141 PVT028 Screw
142 PVT018 Hinge
143 AAE232 Dom Nut
144 AAK044 Pop Rivet
(ref 109 Skirt Assy.)
(ref 109 Skirt Assy.)
1700E Autoscrubber PARTS LIST1700E Autoscrubber PARTS LIST
Page 5

1700E/A23 VPA328CMG1700E/A23 VPA328CMG
1 VPV818CMG Capacitor Box Cover
2a VPV804CMG Start Capacitor
2b VPV798CMG Run Capacitor
3 VPV817CMG Capacitor Box Base
4 VPV807CMG Manual Reset
5 VPV813CMG Cowl
6 VPV812CMG Cooling Fan
6a VPV819CMG Clip on cooling fan
7 VPV811CMG Non Drive Endshield
8 VPV826CMG Switch Plate
9 VPV806CMG Centrifugal Switch
10 VPV810CMG Flanged Endshield
12a2b 3 4
1700E/A23 VPA328CMG1700E/A23 VPA328CMG
P
VAC LI
INTERNATIONAL PTY LTD
5
6
6a
7
8
9
10
