Polk Audio SR-H1000 User manual
User’s Guide
The Best
Radio
On Radio
™
.
2SR°H1000 USERS GUIDE INTRODUCTION
Introduction
Before you do another thing, please read this owner’s manual.
Read this owner’s manual in its entirety. Understanding the features
and basic functions of your new Polk Audio Designs™SIRIUS Satellite
Radio SR-H1000 Home Tuner first will help you set up and operate
it more efficiently.
Congratulations on the purchasing your new Polk Audio
Designs™SIRIUS Satellite Radio SR-H1000 Home Tuner.
The Polk Audio Designs SIRIUS Satellite Radio SR-H1000 Tuner lets
you enjoy SIRIUS®Satellite Radio’s digital entertainment in the comfort
of your own home. Use this manual to familiarize yourself with all of
the receiver’s features and capabilities. For the latest information about
this and other SIRIUS products and accessories, visit www.SIRIUS.com.
About Polk Audio®& Polk Audio Designs™
Polk Audio is an award-winning designer and manufacturer of high
performance audio products and the largest audio brand of Directed
Electronics, Inc. (NASDAQ, DEIX). Founded in 1972 by three Johns Hopkins
University graduates, Polk Audio holds over 50 patents for advances in
loudspeaker design and technology. Polk’s products include loudspeakers
and electronic components for home, auto and marine applications,
the world’s first audiophile-grade active IP-addressable loudspeaker,
the first THX™Ultra2™Certified in-ceiling loudspeaker, and I-Sonic®—
the first Entertainment System to include HD Radio®, satellite radio
and a DVD player.
Polk Audio Designs is a category of products such as iPod accessories,
radios and audio systems that offer the best possible sound quality
and value in their respective categories. Polk Audio Designs products
are distributed through existing Polk Audio dealers and/or a wider
network of retailers.
All Polk products are available through authorized specialist consumer
electronics retailers worldwide and at www.polkaudio.com. For more
information and the location of a Polk retailer or distributor in your area,
please visit www.polkaudio.com.
2 Introduction
3 Table Of Contents
4 Warning & Safety Information
4 FCC Warning
4 FCC Compliance
4 Canadian Compliance
5 General Precautions
5 Safety Precautions
7 Copyrights & Trademarks
8 Carton Contents
9 Controls & Features
9 Tuner
11 Remote Control
13 Getting Started
13 Installation & Setup
13 Introduction
13 Installing Your SIRIUS Tuner
13 Installation/Wiring Precautions
14 Cable Interconnections
14 Installing/Positioning
The Antenna
14 Recommended Guidelines
14 Connection Diagram
15 Antenna Placement
16 Testing Antenna Signal Strength
16 Activating Your SIRIUS
Subscription
17 Creating Zones In Your Home
17 The SIRIUS Satellite Radio
Home Connect Tuner
18 Operation
18 Display Screen Information
19 DISP (Display) Button
20 Search Modes (Category,
Channel, Artist, Song Title)
20 Searching Categories
21 Searching Channels
22 Direct Tuning
22 Channel Presets
22 Setting Channel Presets
23 Recalling Channel Presets
23 Jump Button
25 Channel Presets (P. TUNE Mode)
25 Searching For A Channel Preset
26 Preset Tune List Mode
27 Memory (MEMO) &
Song Seek (S-Seek) Functions
27 Storing Artists Names,
Song Titles & Sports Teams
To Memory
27 For Artist names Or Song Titles
33 Deleting A Song Title Stored
In Memory
34 Activating The Song
(S-Seek) Alert
36 Game Alert
36 Instant Replay
39 Progress Bar
42 Menu Options
43 SIRIUS ID
44 Game Alert
45 Initial Game Alert
45 All Scores Updates
46 Settings
46 Jump Settings
46 Setting The Jump Button
To Traffic
47 Setting The Jump Button
To A Channel
47 Display Options
48 Confirm Tone
48 Memory Options
48 Audio Level
49 Parental Control
49 Locking Or Unlocking
A Channel
50 Changing The Lock/
Unlock Code
51 Time-Based Features
51 Clock
51 Daylight Savings Time
52 Alarm
52 Program Alert
53 Auto Shutdown
53 Signal Indicator
54 Factory Default
56 Troubleshooting
56 Technical Support
57 Specifications
57 Optional Accessories
58 Warranty
59 For Your Records
3
TABLE OF CONTENTS
Table of Contents
Warning & Safety
Information
FCC Warning
This equipment may generate or use radio frequency energy. Changes or
modifications to this equipment may cause harmful interference unless
the modifications are expressly approved in this owners guide. The user
could lose the authority to operate this equipment if an unauthorized
change or modification is made.
FCC Compliance
This equipment has been tested and found to comply with Part 15 of the
FCC Rules. These rules are designed to provide reasonable protection
against harmful interference. This equipment may cause harmful interfer-
ence to radio communications if it is not installed and used in accordance
with these instructions. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to
correct the interference by one of more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the other equipment and the receiver.
Connect the other equipment to a different circuit from that to which
the receiver is connected.
Consult the dealer or an experienced radio technician for help.
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
4SR°H1000 USERS GUIDE WARNING & SAFETY INFORMATION
General Precautions
Liquid Crystal Precautions
If the LCD screen on the Polk Audio Designs SIRIUS Satellite Radio
Home Receiver is damaged, do not to touch the liquid crystal fluid.
If any of the following situations happen, take the action indicated:
1. If the liquid crystal fluid comes in contact with your skin,
wipe the skin area with a cloth and then wash the skin thoroughly
with soap and running water.
2. If the liquid crystal fluid gets into your eye, flush the eye
with clean water for at least 15 minutes. Seek medical care.
3. If the liquid crystal fluid is ingested, flush your mouth thoroughly
with water. Drink large quantities of water and induce vomiting.
Seek medical care.
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings.
Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. When
the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly
at plugs, convenience receptacles, and the point where they exit
from the apparatus.
11. Only use the attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
5
WARNING & SAFETY INFORMATION
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power
supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. The apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed on
the apparatus.
Disconnect Device Instructions
Disconnected Device From Mains
The AC power cord provided with the device is used to disconnect
the power from device. Access to the power cord should remain
easily accessible.
6SR°H1000 USERS GUIDE WARNING & SAFETY INFORMATION
Copyrights & Trademarks
© 2007 SIRIUS Satellite Radio Inc. All Rights Reserved.
© 2006, Directed Electronics. All rights reserved.
© 2005-2012 Polk Audio Designs. All Rights Reserved. No part of
this work may be reproduced, modified, distributed or otherwise
used without prior written permission. All trademarks referenced
herein are the property of Polk Audio and SIRIUS Satellite Radio.
“SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS
Satellite Radio Inc. All other trademarks, service marks and logos are
the property of their respective owners. All rights Reserved. Hardware,
subscription and activation fee required. Hardware and subscription
sold separately. Installation required with some equipment.
Portions of the software on this receiver are licensed under the
eCos License. Distribution of eCos requires that the eCos source
code be made available to SIRIUS Satellite Radio customers. The
eCos License and eCos source code are available to the public at:
www.SIRIUS.com/ecoslicense.
SIRIUS Satellite Radio reserves all rights to all receiver software not
covered under the eCos license. This includes all portions of receiver
software that were not distributed to SIRIUS as part of the eCos
operating system.
Hardware, subscription and activation fee required. For full Terms and
Conditions, visit www.SIRIUS.com. Prices and programming are subject
to change. Not available in HI and AK. Equipment and subscription
sold separately. Installation required with some equipment.
Polk Audio is a Directed Electronics company which trades on
nasdaq under the symbol deix. Investor information can be found
at http://investor.directed.com.
Polk Audio Designs is a trademark of Britannia Investment
Corporation used under license by Polk Audio Incorporated.
7
COPYRIGHTS & TRADEMARKS
Carton Contents

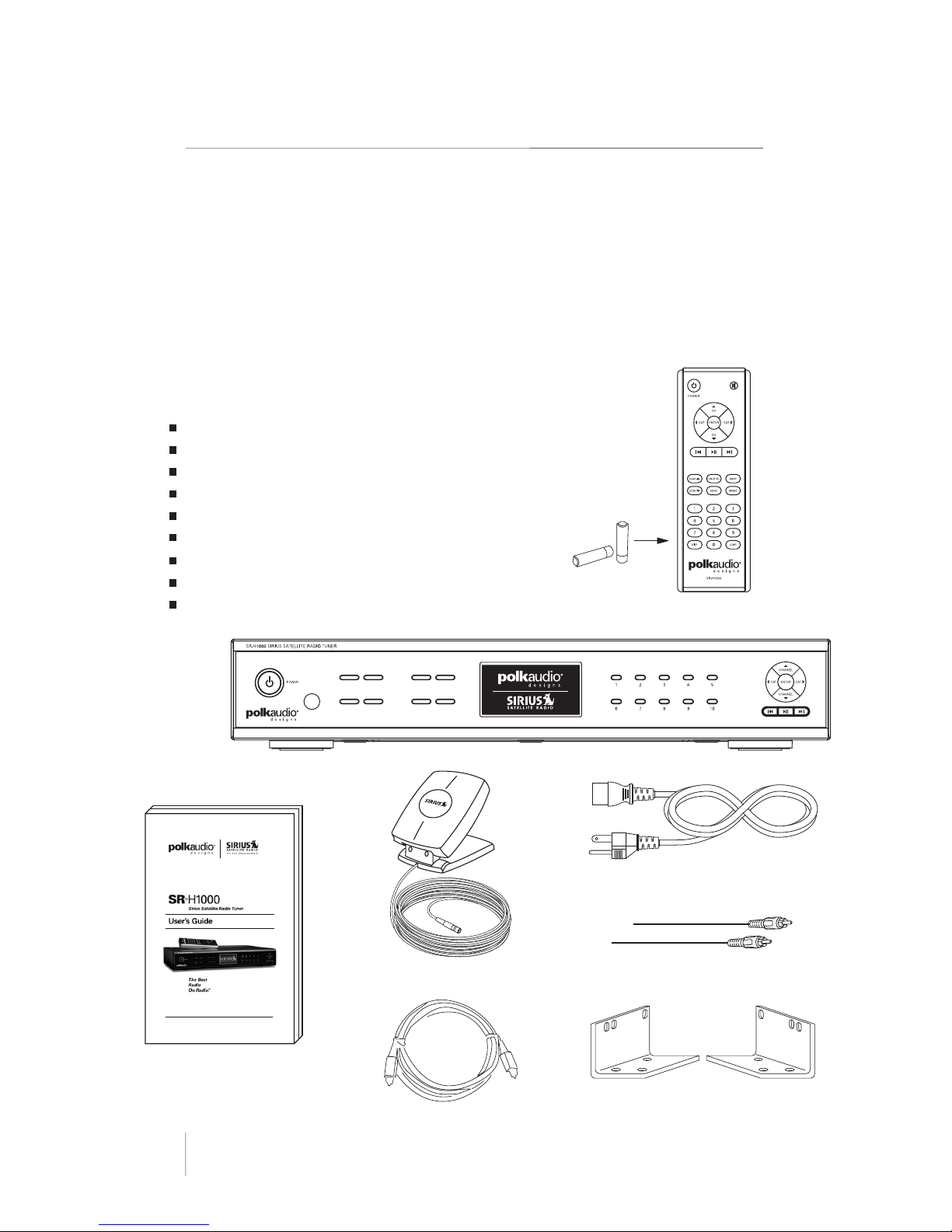

Please unpack your SR-H1000 SIRIUS Satellite Radio Tuner carefully and
make sure that everything shown is present. If anything is missing or
damaged, or if your unit fails to operate, notify your dealer immediately.
We recommend that you retain the original carton and packing materials
in case you need to ship your receiver in the future.
Your SR-H1000 SIRIUS Satellite Radio Tuner Carton
Contains The Following:
SR-H1000 SIRIUS Satellite Radio Home Tuner
AC Power Cord
Window Sill Antenna
Remote Control (Two AAA Batteries Included)
Optical Cable
2-Connector RCA Analog Stereo Audio Cable
Rack Mounts
User’s Guide
Online Registration Information
8SR°H1000 USERS GUIDE CARTON CONTENTS
Home Tuner
User’s Guide
AC Power Cord
Remote Control
Batteries
RCA Audio Cables
Optical Cable
Window Sill Antenna
Rack Mounts
Controls & Features
Tuner
1. POWER Button. Turns the Tuner On and Off/Standby.
2. REMOTE CONTROL RECEIVER. Receives signals from the
wireless remote control.
3. TUNER SELECT Button. Selects the SR-H1000 “embedded”
tuner or any external tuner connected, provided “the external tuner”
is connected and active. (Page 17)
4. MENU Button. Used to access menu options to change the
receiver setup and features.

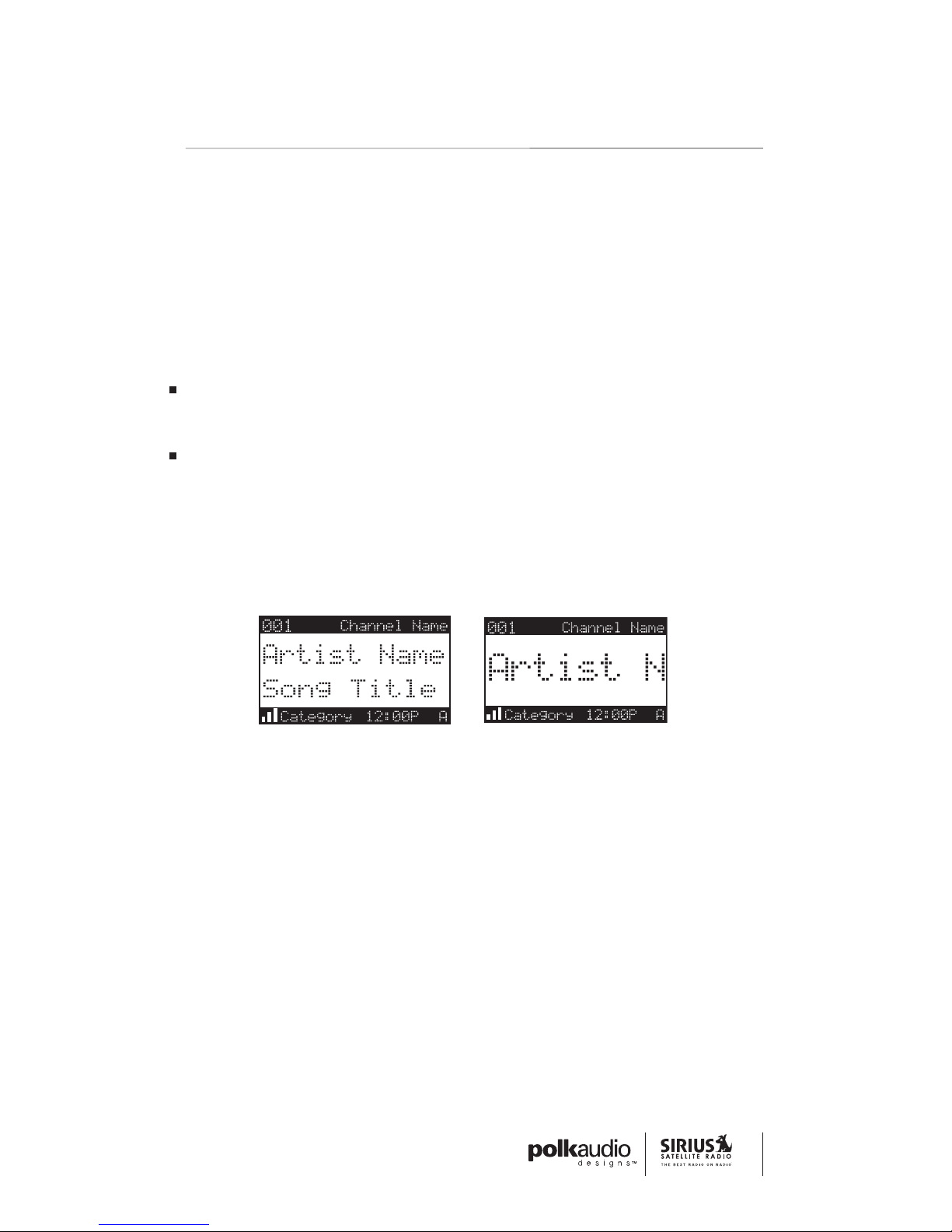

5. DISPLAY (DISP) Button. Changes text size of artist names and
song titles on the display screen. In list mode, it toggles between
channel name, artist name and song title. Pressing and holding
this button enters the channel list mode, or will exit a list mode.
6. JUMP Button. Jumps to a present favorite channel. Pressing
the button again returns back to the original channel.
7. BAND Button. Pressing and releasing this button switches between
the preset banks, A, B, and C, which hold 10 presets each for a
total of 30. Pressing and holding the button enables the Preset Tune
Mode, which allows for viewing and browsing of stored presets.
8. MEMORY (MEMO) Button (S-Seek Function). Pressing and
releasing this button saves artist names and song titles. You can
store up to 30 artist/song title combinations, including favorite
teams and traffic channels. Pressing and holding the MEMO button
will enter the recall mode, displaying the stored artist/song titles.
9
CONTROLS & FEATURES
9. SCAN () Buttons. Pressing this button enables the receiver
to play each Channel/Preset in ascending order for 10 seconds.
Scan terminates when the SCAN, CATEGORY, CHANNEL or ENTER
button is pressed.
10. NUMBER BUTTONS (0-10). Sets and selects preset channels.
11. CHANNEL Buttons (). Navigates through channels and display
screens, and highlights items on the display. Pressing the button
increases or moves up the menus. Pressing the button decreases
or moves down in menus.
12. CATEGORY (CAT) Buttons (). Navigates through the Category
List Screen which displays SIRIUS Channel Categories.
13. ENTER Button. Press to select a Category or Channel or
Menu setting.
14. Display Screen. This area displays tuning and information
about the Receiver.
15. REWIND ( ) Button. Pressing this button rewinds through content
saved to Instant Replay. Pressing and releasing this button rewinds
to the beginning of the song or program. Pressing and holding
rewinds by timed through the saved content.
16. PLAY/PAUSE () Button. Pauses and replays live or time-shifted
content from the currently tuned channel. Pressing and holding
this button displays a list of songs in the saved content.
17. FAST FORWARD () Button. Used to fast forward through
Instant Replay saved content. Pressing and releasing this button
fast-forwards to the beginning of the next song or program.
Pressing and holding this button fast-forwards through time
the saved content.
10 SR°H1000 USERS GUIDE CONTROLS & FEATURES
Controls & Features

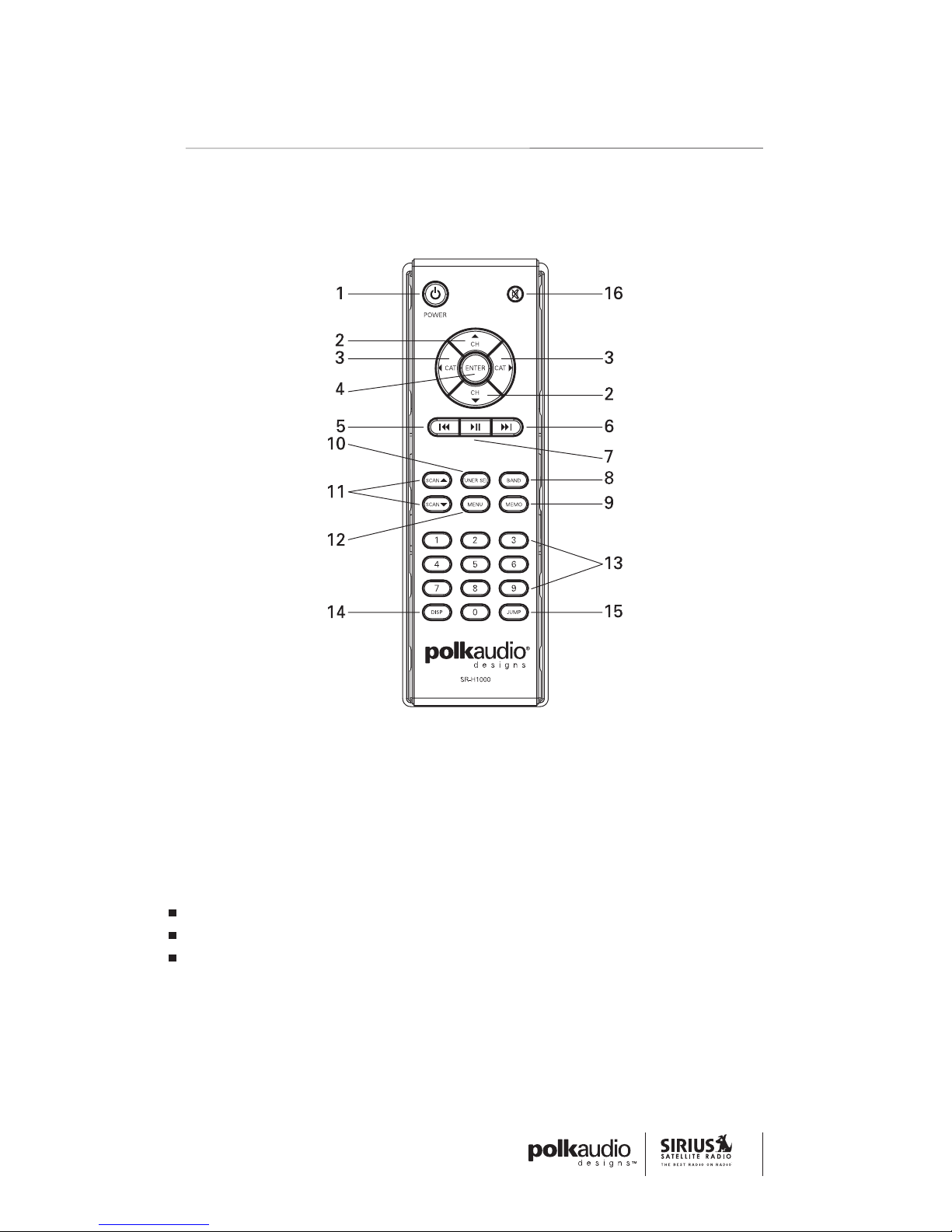

Remote Control
The wireless remote control supplied with the Receiver is capable of
operating most of the features from a remote location. Each button on
the remote control functions in the same way as the button on the
Receiver. For a full description of a keypad button or function, refer to
the sections in this user manual where they are described. For optimal
operation of the remote control, always aim it toward the Remote
Sensor on the front panel of the Receiver.
Installing Batteries in the Remote
Remove the battery cover.
Install the two AAA batteries as indicated.
Replace the battery cover.
1. POWER Button. Turns the Receiver On and Off.
2. CHANNEL () Buttons. Navigates through channels
and display screens.
11
CONTROLS & FEATURES
3. CAT (CATEGORY) () Buttons. Navigates through categories
and display screens.
4. ENTER Button. Selects a Category or Channel or Menu setting.
5. REWIND ( ) Button. Pressing this button rewinds through content
saved to Instant Replay. Pressing and releasing this button rewinds
to the beginning of the song or program. Pressing and holding
rewinds by timed through the saved content.
6. FAST FORWARD () Button. Used to fast forward through
Instant Replay saved content. Pressing and releasing this button
fast-forwards to the beginning of the next song or program.
Pressing and holding this button fast-forwards through time
the saved content.
7. PLAY/PAUSE () Button. Pauses and replays live or time-shifted
content from the currently tuned channel. Pressing and holding
this button displays a list of songs in the saved content.
8. BAND Button. Pressing and releasing this button switches between
the preset banks, A, B, and C, which hold 10 presets each for a
total of 30. Pressing and holding the button enables the Preset Tune
Mode, which allows for viewing and browsing of stored presets.
9. MEMO (MEMORY) Button (S-Seek Function). Pressing and
releasing this button saves artist names and song titles. You can
store up to 30 artist/song title combinations, including favorite
teams and traffic channels. Pressing and holding the MEMO button
will enter the recall mode, displaying the stored artist/song titles.
10. TUNER SELECT Button. Selects items highlighted n a list;
hold-down to jump to the previously received channel. When
not in a menu or list, pressing the SELECT Button selects the
channel entered using the number buttons.
11. SCAN () Buttons. Pressing this button enables the receiver
to play each Channel/Preset in ascending order for 10 seconds.
Scan terminates when the SCAN, CATEGORY or CHANNEL
button is pressed.
12. MENU Button. Used to access menu options to change
the Receiver setup and features.
13. NUMBER Buttons (0-10). Sets and selects preset channels.
14. DISP (DISPLAY) Button. Allows the user to choose one of three
ways of presenting the Artist Name and Song Title information
on the display screen.
15. JUMP Button. Jumps to a preset favorite channel. Pressing
the button again returns back to the original channel.
16. MUTE Button. Mutes the audio of the receiver.
12 SR°H1000 USERS GUIDE CONTROLS & FEATURES
Getting Started
Installation & Setup
Introduction
The SIRIUS Home Satellite Radio Tuner must be connected to the
windowsill antenna (supplied) to process the SIRIUS signal. The Tuner
recognizes and decodes the incoming SIRIUS program information and
provides an audio signal to your stereo receiving equipment or other
audio output equipment.
Installing Your SIRIUS Tuner
You can begin to enjoy SIRIUS Satellite Radio as soon as the Tuner
installation is complete and you have initiated your SIRIUS Satellite
Radio subscription. To set up your Tuner, using the following
installation instructions.
Installation/Wiring Precautions
Make sure the power cable is not connected to an AC wall
outlet until all interconnections have been made and verified.
The power cable should be connected last.
Do not install the Tuner in the locations exposed to direct sunlight
or in areas subject to extreme temperatures.
Incorrect installation may cause damage to the system.
During antenna placement/installation, refer to the Antenna
Placement procedure on page 15.
Cabling Interconnections
Set up your system using the diagram and by following the installation
instructions, or enlist the help of a professional installer.
Installing/Positioning the Antenna
For best reception, the supplied antenna should be placed near a win-
dow; some repositioning may be required to achieve optimum results.
13
GETTING STARTED
Recommended Guidelines
Terrestrial repeaters are located in major cities. In those areas, it may
be possible to locate the windowsill antenna away from a window and
still get satisfactory reception.
You can also place the antenna outside (on a roof structure), provided
it is clear of any overhead obstructions.
Note: Because of the orbiting characteristics of the SIRIUS satellites,
the strength of the SIRIUS signal may change over time. In most cases
however, the signal should be available continuously. If you experience
a loss of signal or audio, reposition the antenna inside your home,
or outside as necessary.
Connection Diagram
14 SR°H1000 USERS GUIDE GETTING STARTED
Antenna Placement
Consult the map for the direction in which to point the antenna. Aim the
portion of the antenna with the logo on it toward the location indicated
by the X on the map. To ensure strong reception in your home, observe
the following antenna placement considerations:
1. BEST Reception can be achieved by placing the antenna outside
on the roof. The antenna is waterproof. This position will afford
the best view of the sky for best reception. When placed in
this location, an antenna extension cable may be required.
2. BETTER Reception can be achieved by placing the antenna outside
a window, or by mounting it to the side of the house. In either
case, try to achieve the best possible clear view of the sky.
3. GOOD Reception can be achieved by placing your antenna in or
near a window, since terrestrial transmitters are used in major
metropolitan areas to boost signal strength. In these cases, the
antenna can be placed inside the home. Try to achieve a clear
unobstructed view of the sky.
Area 1: Aim East, Northeast, or Southeast
Area 2: Aim North or Northeast
Area 3: Aim North or Northwest
Area 4: Aim West, Northwest or Southwest
Area 5: Aim Straight Up
15
GETTING STARTED
4. Turn the Tuner on and listen for audio. If no audio is heard, aim
the antenna in different directions until audio output is heard.
This is the desired antenna aiming position.
5. After determining the optimum antenna aiming position,
turn the Tuner off, disconnect the power adapter from the
wall outlet receptacle, and disconnect the antenna cable.
6. Plan the routing of the antenna cable to the Tuner. Be sure you
avoid any obstructions that could crimp, kink, or twist the cable.
Use protective grommets wherever rough openings are encountered.
Note: Do not cut the antenna cable.
7. If the antenna is mounted outside, route the cable from the antenna
position to the interior of the home, working the cable through the
basement, under a window sill, etc., and make adjustments and
take up slack whenever necessary.
8. Plug the antenna cable into the ANTENNA connector on the back
of the Receiver.
9. Plug the tuner into a 110VAC wall receptacle. The front panel
STANDBY LED will light red.
10. You are now ready to activate and enjoy SIRIUS programming
within your home.
Testing Antenna Signal Strength
The stronger the signal strength, the less likely it is that you will experi-
ence an interruption of the audio. In the menu options of the Tuner
(refer to page 53), there is an antenna aiming display which shows two
bar graphs indicating signal strength. This can be a useful tool for posi-
tioning the antenna in an optimal location for maximum signal reception.
Activating Your SIRIUS Subscription
Before you can listen to the SIRIUS service, you must subscribe
to the SIRIUS Satellite Radio service.
16 SR°H1000 USERS GUIDE GETTING STARTED
1. Make sure that the Tuner is properly connected and that
its antenna is oriented to receive the SIRIUS satellite signal.
2. Press the POWER button to turn the Tuner on. After displaying
the SIRIUS logo, the Tuner will update all the SIRIUS channels.
The display will read “UPDATING CHANNELS” on the top line
and “X% Completed” (0%-20%40%-60%-80%-100%) on the
bottom line until the update completes.
Note: Don’t push any buttons or perform any operations until
updating has been completed.
3. Once updated and the SIRIUS channels are received, the display
will display, “To Activate Call / 1-888-539-SIRIUS” and will place you
in The Preview Channel. Channel 184 is SIRIUS’ preview channel.
You will not be able to tune to any other channels until you activate
your SIRIUS subscription.
4. Press the MENU button to enter the “Menu Options” mode.
The “SIRIUS ID” menu option will now be highlighted.
5. Push the Select button to select “SIRIUS ID.” This will display
your Tuner’s unique 12-digit SIRIUS ID Number (SID). This
SID number should also be available on the SR-H1000 packaging.
Write the number down and have your credit card handy. A space
has been provided at the end of this manual to write your SID.
6. Contact SIRIUS on the Internet at: https://activate.siriusradio.com/
Follow the prompts to activate your subscription, or you can also
call SIRIUS toll-free at: 1-888-539-SIRIUS. You can now enjoy SIRIUS
Satellite Radio’s digital entertainment, and can tune to other channels!
Creating Zones In Your Home—
The SIRIUS Satellite Radio
Home Connect Tuner (Optional Accessory)
The SIRIUSConnect SC-H1 Satellite Radio Tuner is an optional
accessory designed to work with the SR-H1000 and other SIRIUS-ready
receivers. The SC-H1 enables you to set up a zone system to receive
different SIRIUS Satellite Radio programming in different rooms of your
home. To connect and set up a SIRIUSConnect SC-H1 Satellite Radio
Tuner, follow the installation guide provided with the unit, or consult
a professional installer.
17
GETTING STARTED
Operation
Display Screen Information
The display screen of the Polk Audio Design’s SR-H1000 Home Tuner
provides information about the operation of the receiver, such as the cur-
rently tuned channel, song or show being played, artist name, time and
other information. This screen is referred to as the Default display screen
in this manual. Figure 1 identifies the information displayed when listen-
ing to a typical broadcast.
Figure 1
18 SR°H1000 USERS GUIDE OPERATION
DISP (Display) Button
Pressing and releasing the DISP button from the Default display
screen toggles between the artist name/song title and large character
displayed text. The large character format will change the character
size and cause the field to scroll from right to left. This feature is
useful when viewing the display screen from a distance. Note that
the displayed text will scroll only if the length of the artist or title
cannot be viewed in its entirety.
Pressing and holding the DISP button will enter the channel list mode
and display the channel names, and allow you to scroll through the
channels and select another channel if desired. (Figure 4)
If the DISP button is pressed again while in the channel list mode, the
display will list the song titles/show names for each channel. Pressing
the DISP button yet again will display the artist names for each channel.
To exit the channel list mode, press and hold the DISP button.
Figure 2
19
OPERATION
Search Modes (Category, Channel, Artist, Song Title)
The Polk Audio Design’s SIRIUS Home Tuner has four ways to search
for and select music: by category, by channel, by artist, and by song
title. Each search method is discussed in the sections which follow.
Searching Categories
If you want to browse different entertainment categories, push
either Category () button to activate the category search screen.
1. Use the Category buttons () to scroll through the music
and entertainment categories.
2. When the category you want is displayed (for example, Rock),
use the Channel () buttons to browse the available channels
within the category. Pressing the DISP button while in the category
search mode will change between Channel Name, Artist Name,
and Song Title to enable you to preview what is playing on other
channels before making a selection.
3. When the channel you want is highlighted, press the ENTER button.
The channel will be selected and the display will revert to the Default
screen for the selected channel.
4. To exit the category mode without changing to a new channel,
press and hold the DISP button for one second.
Figure 3
20 SR°H1000 USERS GUIDE OPERATION
