poly-planar MA-1000R User manual

14

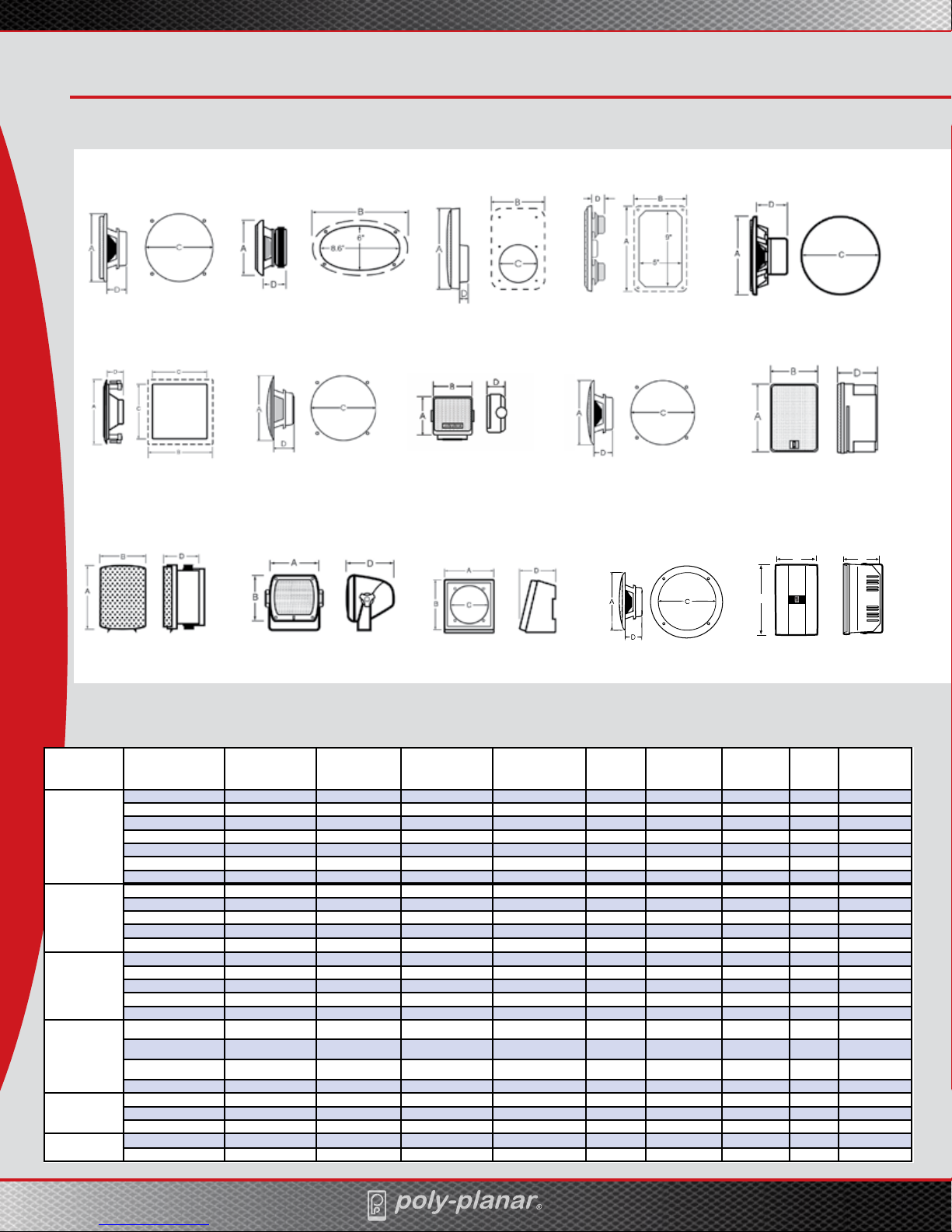

Specifications and Installation Dimensions
A B C D Impedance
(OHMS)
Max RMS
Power per
Speaker (watts)
Max Peak
Power per
Speaker
(watts)
Main
Cone
Size
Conguration
6000 Series /
MS-150
MA-6500 - ROUND 6-1/4” / 158MM — 4-11/16” / 119MM 2-1/2” / 63.5MM 4 80 180 4-1/2” 2 WAY
MA-6600 - ROUND 7-1/2” / 190MM — 5-7/8” / 149 MM 3” / 76MM 4 100 200 6-1/2” 2 WAY
MA-6800 - ROUND 9-1/8” / 231 MM — 7-1/4” / 184MM 88MM 4 100 200 8” 3 WAY
MA-6900 - OVAL 8” / 203MM 10-1/4” / 260MM — 3-1/2” / 88MM 4 100 200 6” X 9” 3 WAY
MA-905 - PANEL 9” / 228MM 6” / 152MM 4-1/2 / 114MM 1” / 25MM 4 100 200 5-1/4” 2 WAY
MA-5500 - PANEL* 10-1/8” / 257MM 6-1/4” / 158MM — 1-1/2” / 38MM 4 60 140 3-1/4 3 WAY
MS-150/ MS-250 12-5/8” / 320MM -— 9” / 228MM 4-1/2” / 114MM 4 150 300 10” SINGLE
Premium Series
Low Magnetic
Field
MA-5104 - ROUND* 5-1/2” / 139MM — 3-7/9” / 98MM 2-1/8” / 53MM 4 35 70 4” 2 WAY
MA-5106 - ROUND* 7” / 177MM -— 5-3/4” / 146MM 2-1/2” / 63MM 4 35 70 5-1/2” 2 WAY
MA-5107 - ROUND* 8-1/2” / 215MM — 7-3/8” / 187MM 3-3/4” / 95MM 4 35 70 7” 2 WAY
MA-5950 - OVAL* 8” / 203MM 10-1/4” 260MM — 3-1/2” / 88MM 4 40 80 6” X 9” 3 WAY
MA-7060 - PANEL 8-3/4” / 222MM 8-3/4” / 222MM 7-3/8” / 187MM 2-1/2” / 63MM 4 70 70 6” 2 WAY
Box Speakers
Low Magnetic
Field
MA-800* 7-1/2” / 190MM 5” / 127MM — 5” / 127MM 4 25 50 3-1/2” 2 WAY
MA-840* 4” / 101MM 4” / 101MM — 4-1/2” / 114MM 4 20 40 3” DUAL CONE
MA-1610* 6-1/2” / 165MM 6-3/8” / 161MM 5” / 127MM 4-1/2” / 114MM 4 35 70 5-1/4” 2 WAY
MA-7500* 7” / 177MM 5” / 127MM — 4-1/4” / 107MM 4 35 50 3-1/2” 2 WAY
MA-9060* 9” / 228MM 6” / 152MM — 5-1/2” / 139MM 4 60 100 5-1/4” 2 WAY
Integral Grill
Low Magnetic
Field & Remote
Control
Speakers
MA-4054/4054RC -
ROUND* 5-1/4” / 133MM — 4-1/8 / 104MM 2” / 50MM 4 20 40 4” 2 WAY
MA-4055/4055RC -
ROUND* 5-7/8 / 149MM — 4-7/8” / 123MM 2-1/8” / 53MM 4 20 40 5” 2 WAY
MA-4056/4056RC -
ROUND* 7-1/8” / 180MM — 6” / 152MM — 4 20 40 6” 2 WAY
MA-4600 - ROUND* 7-1/8” / 180MM — 5-5/8” / 142MM 2” / 50MM 4 20 40 6” DUAL CONE
VHF Extension
MB-21 2-1/2” / 63MM 2-1/2{“ / 63MM — 1-1/4” / 31MM 4 5 10 2-1/2” SINGLE
MB-41 4-1/2” / 114MM 4-1/2” / 114MM — 2” / 50MM 4 5 10 4” SINGLE
MA-1000R 6” / 152MM — 4-5/8” / 117 1-1/2” 38MM 4 5 10 2-1/2” SINGLE
Component
Speakers
MA-3013 3-1/2” / 90MM — 3” / 75MM - 4 40 60 3” 2 WAY
MA-3030 6-1/4” / 160MM 3-7/8” / 98MM — 4-3/4” / 120MM 4 40 60 1” COAXIAL
"
!
$
SPECS & DIMS
6000 Series MA-5950/6900 MA-905 MA-5500 MA-5100 Series
MA-7060 4000 Series VHF Extension MA-1000R Box Speakers
MA-7500 MA-840 MA-1610 MA-3013 MA-3030

15
Specifications and Installation Dimensions
A B C D Impedance
(OHMS)
Max RMS
Power per
Speaker (watts)
Max Peak
Power per
Speaker
(watts)
Main
Cone
Size
Conguration
Stereo/
CD Players
MRD-60 2-3/4” / 69MM 8-1/4” / 209MM — 7-5/8” / 193MM — — — — —
MCD-6 2-1/2” / 63MM 10” / 254MM — 6-7/8”/174MM — — — — —
RD-44 4.4” / 112MM 4.4” / 112MM — — — — — — —
MRD-70 2-3/4” / 69MM 8-1/4” / 209MM 7-5/8” / 193MM — — — — —
Gunwale Mount
Speakers MA-9020 10-1/2” 266MM 6-1/8” / 155MM 5-1/4” / 133MM - 4 60 100 5-1/4” 2 WAY
Covers
WC-3 4” / 101MM 9-1/8” / 231MM — 2” / 50MM — — — — —
WC-70 3-1/2” / 88MM 8-3/8” / 212MM — 7-7/8” / 200MM — — — — —
WC-400 4” / 101MM 9-1/8” / 231MM — 10-1/2” / 266MM — — — — —
WC-700 7” / 178MM 11” / 279MM — 1-1/2” / 38MM — — — — —
Remote MRR-7 2-3/8” / 60MM 2-1/8” / 53MM — 3/4” / 19MM — — — — —
Ampliers
ME-50 5” / 127MM 4”/ 240MM — 1-1/2” / 38MM — — — — —
MZ-100 4-1/8” / 105MM 6-1/8” / 156MM — 1-1/2” / 38MM — — — — —
ME-400 16.185 / 415MM 9.432 / 240MM — 2” / 50MM — — — — —
Subwoofers
MS-55 8-7/8” / 225MM 11-7/8” / 300MM — 4-3/4” / 120MM — — 100 — —
MS-150 12.5” / 318MM — 9” / 230MM 4-1/2” / 115MM — 150 300 9” SINGLE
MS-250 12.5” / 318MM — 9” / 230MM 6” / 152MM — 150 300 9” SINGLE
Titanium Series
Speakers
MA-8506 7” / 178MM — 5.5” / 140MM 2-7/16” / 62MM 4 50 200 6” 3 WAY
MA-8505 6” / 152MM — 4-5/8” / 116.5MM 2-3/8” / 60MM 4 50 200 5” 3 WAY
Poly-Planar WC-700 W a terproof Stereo Housing
B
D
A
AB
C
D
A
B
D
B
A
MRD60
8 1/4
2 3/4
Depth= 7 5/8
SPECS & DIMS
Visit www.polyplanar.com for further information
A
D
B
MRD-60 MCD-6 RD-44 MRD-70 MA-9020
WC-3 WC-70 WC-400 WC-700
MRR-7 ME-50 / MZ-100 / ME-400 MS-55 MS-250
D
B
A
Cutout templates are provided with most units.
