Polycom, Inc. 1-1
1
Polycom® RSS™ 4000
Introduction
Overview
The Polycom® RSS™ 4000 Recording and Streaming Server is a web server
that enables you to easily perform recording, live streaming, stream media
processing and multimedia archiving. Polycom® RSS™ 4000 system
supports the recording of single-point, multipoint, and multipoint video
conferences, including H.239 data contents. It can record and archive up to
1080P and live stream to the network audience at a quality of up to 720P.
The Polycom® RSS™ 4000 provides the following features:
•Supports recording of up to 15 concurrent video conferences, as well as
full video, audio and content recording.
•Supports resolutions of up to 1920 x 1080 (1080p) and 4Mbps of
bandwidth for recording.
•Supports H.264 High Profile for delivering greater definition and higher
clarity video with lower bandwidth than the baseline profile.
•Supports video conference live streaming, using Windows Media, which
can use two different bandwidths.
•Supports the multicast of recorded or live streaming events, with up to
20 simultaneous multicast sessions.
•Uses a Virtual Recording Room (VRR) as a base for recording and
authorizing playback permission. Users can have their own VRR for
recording and playing back.
•Offers various recording methods. Users can start a recording from
endpoints, an MCU or the Web user interface.
•Supports the integration with Polycom HD Series endpoints and
Polycom RMX/MGC conference platform to manually and
automatically perform recording, live streaming and playback.
•Supports the integration with Polycom Video Media Center™ (VMC)
1000 V2.0 for more powerful stream media management.
•Supports integration with Exchange server, and works with other
Polycom video conferencing devices for recording or live streaming
conferences when scheduling conferences through Outlook.
•Offers recorded archives in multiple video formats, so that users can
view content through an endpoint, the Web user interface and
MP4-supported players like an iPhone and an iPod.

Chapter 1 - Polycom® RSS™ 4000 Introduction
1-2 Polycom, Inc.
•Supports the recordings of audio-only and conversion to MP3 files for
downloading and playing.
•Supports the maximum security mode (MSM) for meeting high-security
environment requirements.
•Supports SSL certificate authentication encryption to ensure the data
security of Web communication.

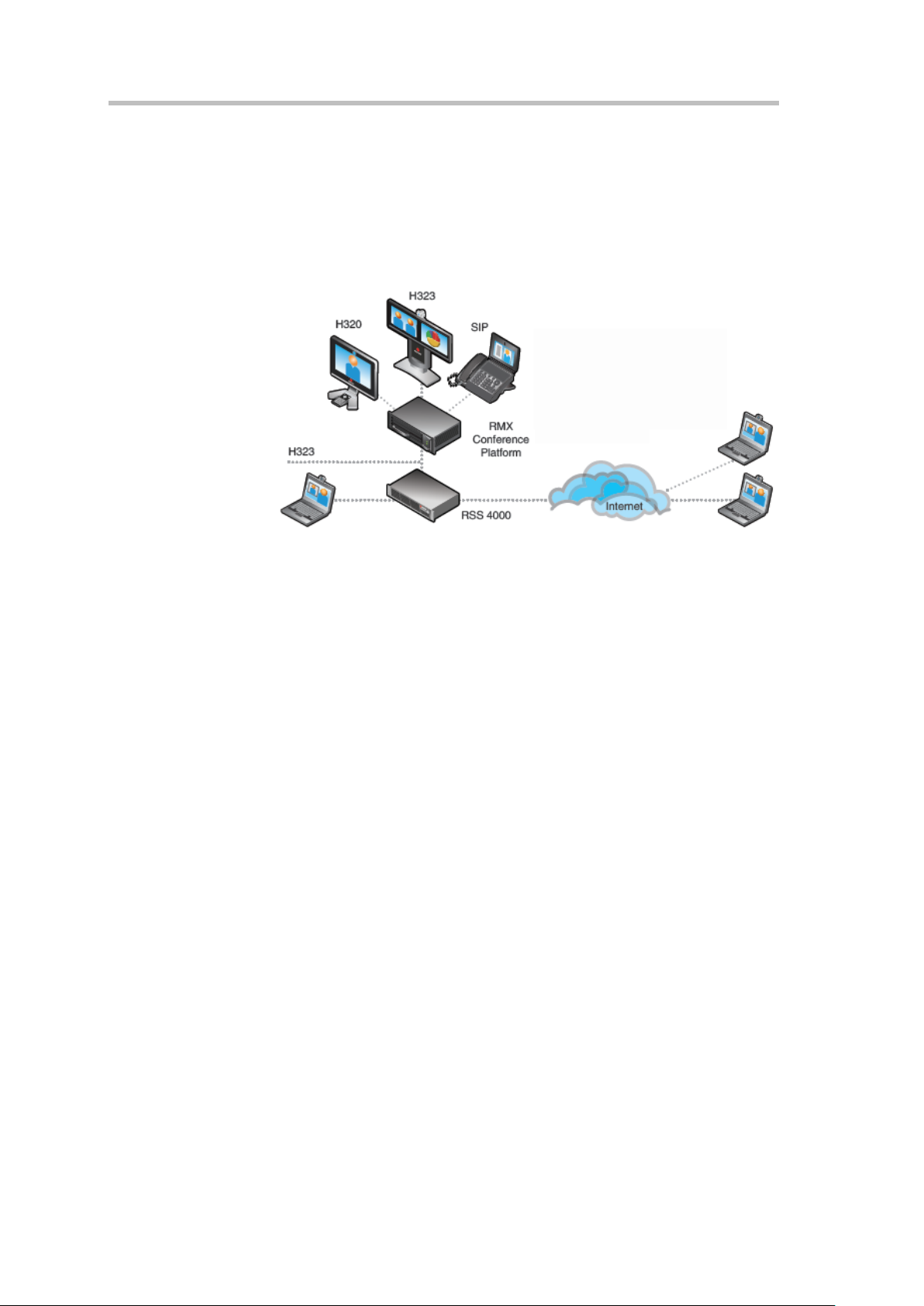

Figure 1-1 Polycom® RSS™ 4000's Application in the Video Conference Network
System Hardware Installation
General Safety Precautions
Follow these rules to ensure general safety:
•Keep the area around the Polycom® RSS™ 4000 unit clean, free of
clutter and well ventilated.
•Decide on a suitable location for the equipment rack that will hold the
Polycom® RSS™ 4000 unit and is near a grounded power outlet.
•Use a regulating uninterruptible power supply (UPS) to protect the
Polycom® RSS™ 4000 unit from power surges and voltage spikes, and
to keep it operating in case of a power failure.
Unpack the Package
To unpack the system package:
1 Check the package to ensure its completion.
2 Open the package and check the items included. The following items
should be included:
―One Polycom® RSS™ 4000 server unit
―Two power cables
―Two RJ-45 network cables

Chapter 1 - Polycom® RSS™ 4000 Introduction
Polycom, Inc. 1-3
―One DB9 serial port cable
―A CD
―A license and a user registration card
3 Take all items out of the package and check if any of them is in poor
condition.
If you find damage, file a claim with the delivery carrier. Polycom is not responsible for
damage sustained during shipment of this product.
Install the System
1 Place the Polycom® RSS™ 4000 unit on a stable flat surface in the
selected location.
2 Insert each power cord connector into the rear of the unit and connect
each to an appropriately rated socket outlet.
The Polycom® RSS™ 4000 unit is supplied with two power cords, BOTH
power cords should be connected to the mains power supply during
normal operation.
3 Connect the LAN cable to LAN1 in the back of the system.
The LAN2 port is used when the system runs in the maximum security
mode. For more information, refer to Maximum Security Mode.
4 Turn on the power switch.
Figure 1-2 Connecting Cables
Plug Acts as Disconnect Device:
The socket outlets to which this apparatus is connected must be installed near
the equipment and must always be readily accessible.
In order to fully isolate the equipment then both power cords should be
disconnected otherwise the system will remain energized.
System Indicators
When the system is running, indicators on the front panel indicate operating
conditions of the system. Refer to the table below for the indicators and their
explanations.

Chapter 1 - Polycom® RSS™ 4000 Introduction
1-4 Polycom, Inc.
Table 1-1 Explanation of System Indicators
Indicator Panel
Identifier Status Explanation
LAN1 Activity
Status
Indicator LAN1 LED
Green light
on
Network port is functioning
normally, with no data being
transmitted
Green light
blinking
Network port is functioning
normally, with data being
transmitted
Off No Network connection
System Status
Indicator STATUS LED
Blue light
on
System is functioning normally,
with no resources being used
(idle)
Blue light
blinking System is functioning normally, with resources being used
Red light on System alert, with no resources
being used (idle)
Red light
blinking System alert, with resources being used
Hard Disk
Status
Indicator
HDD LED
Blue light
on Hard disk is functioning normally
Blue light
blinking System is recording
Red light on Hard disk is functioning
abnormally
Power Status
Indicator Power LED
Green light
on Power is functioning normally
Red light
blinking Power alert
System Initial Configuration
Preparations before Configuration
Obtaining Network Information
Before the initial configuration, get the following information from your
network administrator to configure Polycom® RSS™ 4000 to your local
network:
•IP address, subnet mask, and default gateway IP address to be assigned
to Polycom® RSS™ 4000 LAN ports.
