Polygroup Summer waves rx600 User manual

SUMMER WAVES®

CARTRIDGE FILTER PUMP

FOR ABOVE GROUND SWIMMING POOLS

RX600 / RX1000 / RX1500 models

Should you encounter a problem with your Polygroup® Product, please DO NOT return the product to the place of purchase. All Warranty claims must be made

directly to Polygroup®. Prior to contacting Customer Service, please first review the Troubleshooting Guide in the Installation Manual, or review the FAQ and

instructional videos at support.polygroupstore.com. If you are still unable to correct the problem, please contact Polygroup® Customer Service at (888) 919-0070. Please

have the product type, model number and your purchase receipt ready, so that our Customer Service Representative can assist you in resolving the problem. You may

be asked to return all or part of the product for inspection and/or repair. Do not return any product to Polygroup® without a Return Merchandise Authorization number.

DO NOT RETURN PRODUCT TO STORE

For answers to common questions, setup videos and troubleshooting tips, please visit

support.polygroupstore.com or call Customer Service: (888) 919-0070

To order parts and accessories,

please visit www.polygroupstore.com

READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

OWNER’S MANUAL

DISTRIBUTED BY: Polygroup® LIMITED (MACAO COMMERCIAL OFFSHORE)

Unit J, 10th Floor, Macau Square, Av do Infante D.Henrique, No.43-53A, Macau

Manual #

09C3A40USA13

LIMITED WARRANTY

Polygroup® Limited (Macao Commercial Offshore), (hereinafter “Polygroup®”) warrants to the original purchaser only, the RX type Electric Filter Pump against defects in

material and workmanship for 180 days from the date of purchase. Original Purchaser must retain proof of such purchase in the form of an original store sales

receipt and must produce such upon request by Polygroup® or its designated agents. Warranty claims cannot be processed without a valid proof of purchase.

This Limited Warranty applies only to the original purchaser of the product and is limited solely to the repair or replacement of the product, to be decided in Polygroup®’s

sole discretion. Consequential damages, including claims for loss of water, pool chemicals, damage, or labor are not covered under this Limited Warranty. This Warranty

will be declared invalid should the Purchaser modify or repair the product themselves or by unauthorized persons; use non-Polygroup® parts or accessories with the

product; use the product in contravention of the manufacturer’s Instructions; use improper voltage; abuse the product in any way; or through accident or negligence.

Normal wear-and-tear is not covered under this Warranty, nor are acts of God outside the control of Polygroup®. Polygroup® will not be held responsible for

grasses that may grow through the ground cloth and/or pool liner, as this is not a manufacturing defect.

IN NO EVENT SHALL Polygroup®, THEIR AUTHORIZED AGENTS, RELATED ENTITIES, OR EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER

PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES. Some states or countries, or others jurisdictions, do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitation or exclusion may not apply to you.

TABLE OF CONTENTS

Warnings........................................................................................................................................................

Preliminary Steps & Filter Pump Important Notes

& Filter Pump Power Information & Parts List.........................

Setup Instructions...........................................................................................................................................

Filter Pump Operation & Motor Protection & Filter Cartridge Cleaning and Replacement ............................

Pool Maintenance & Water Care....................................................................................................................

Troubleshooting Guide & Pump Disassembly and Storage...........................................................................

Pump Removal Instructions for Troubleshooting...........................................................................................

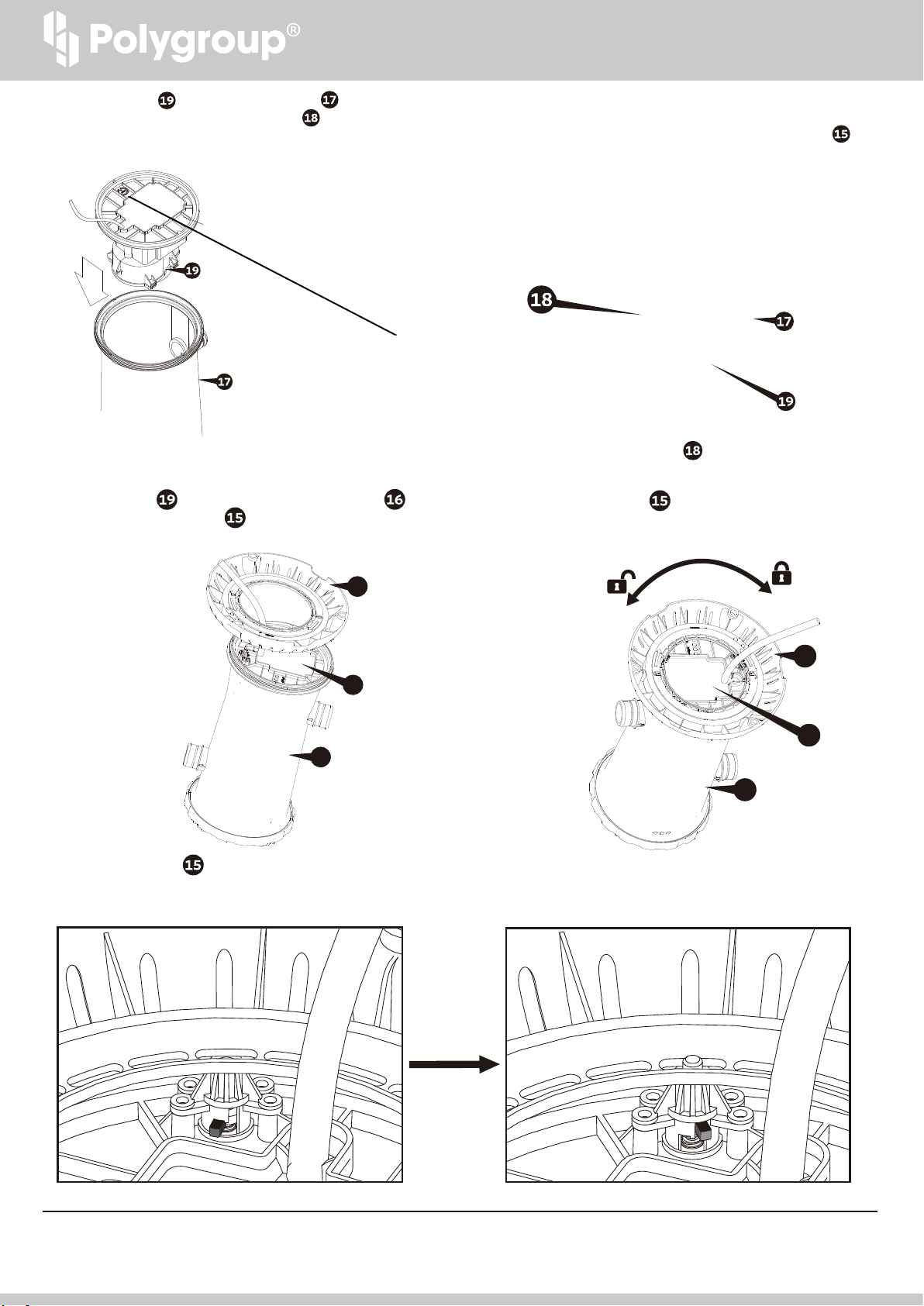

Rotor Inspection and Replacement Instructions & Pump Replacement Instructions.....................................

Replacement Parts Ordering Information.......................................................................................................

ASME Compliant Suction Fitting Information.................................................................................................

3 ~ 6

7 ~ 9

10 ~ 11

12 ~ 13

16 ~ 17

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

IMPORTANT SAFETY INSTRUCTIONS

When installing and using this electrical equipment, basic safety precautions should always be followed, including the following:

READ AND FOLLOW ALL INSTRUCTIONS

Keep for Future Reference. Failure to follow these warnings and instructions can result in serious injury or death to users, especially children.

Safety Care for Children

1. Children, especially children younger than five years, are at high risk of drowning. Drowning occurs silently and quickly and can occur in as little as 2 in. (5 cm) of water.

2. Keep children in your direct sight, stay close, and actively supervise them when they are in or near this pool and when you are filling and emptying this pool.

3. When searching for a missing child, check the pool first, even if the child is thought to be in the house.

4. Locate pumps and filters in such a way that children cannot climb on them and gain access to the pool.

5. WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.

Swimming Pool Barriers

Very Important: Swimming pool barriers, which restrict access to the pool by small children, may be required by law. A barrier is necessary to provide protection against

potential drowning and near drowning. Barriers are not a substitute for constant supervision of children. Check state or local laws and codes before setting up pool.

Swimming Pool Equipment

1. The use of artificial pool lighting is at the discretion of the pool owner. Lighting, when installed, should be in accordance with Article 680 of the

National Electrical Code (NEC) or its latest approved edition and in consultation with a licensed electrical professional.

2. Keep all electrical lines, radios, speakers, and other electrical appliances away from the pool.

3. Do not place pool near or under overhead electrical lines.

4. All electrical components installed in and/or adjacent to an aboveground/onground residential swimming pool shall be installed in accordance with and shall comply

with the requirements of the latest published edition of NFPA 70, National Electrical Code (NEC®) Article 680, Swimming pools, fountains, and similar installations,

and any state or local code.

Filter Pump Awareness

1. WARNING: Risk of Electric Shock. Connect only to a grounding type receptacle. This product is provided with a ground-fault circuit-interrupter. If replacement of

the plug or cord is needed, use only identical replacement parts.

2. WARNING: To reduce the risk of electric shock, replace damaged cord immediately.

3. WARNING: To reduce the risk of electric shock, do not use extension cord to connect unit to electric supply; provide a properly located outlet.

4. CAUTION: To reduce the risk of electric shock, the pool must be installed no closer than 6 feet (1.8m) from any electrical outlet. Do not place portable appliances

closer than 5 feet (1.5m) from the pool.

5. CAUTION: This pump is for use with storable pools only. Do not use with permanently-installed pools. A storable pool is constructed so that it is capable of being

readily disassembled for storage and reassembled to its original integrity. A permanently-installed pool is constructed in or on the ground or in a building such that it

cannot be readily disassembled for storage.

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

WARNING

DO NOT SIT ON

OR LAY OVER

POOL WALL

YOU CAN BE PERMANENTLY

INJURED.

WARNING

AVOID ENTRAPMENT!

STAY AWAY FROM DRAINS & SUCTION

FITTINGS.

YOUR HAIR, BODY & JEWELRY

CAN GET SUCKED INTO DRAIN.

YOU COULD

BE HELD UNDER WATER & DROWN. DO NOT

USE POOL IF DRAIN OR SUCTION OUTLET

COVER IS MISSING OR BROKEN.

DANGER

PREVENT DROWNING!

CLOSELY WATCH CHILDREN WHO

ARE IN OR NEAR THIS POOL. CHILDREN

UNDER 5 ARE AT HIGHEST RISK FOR

DROWNING. EMPTY POOL OR PREVENT

ACCESS WHEN NOT IN USE.

NO DIVING!

SHALLOW WATER

YOU CAN BREAK

YOUR NECK AND BE

PARALYZED.

NOTICE: CUSTOMERS THAT PURCHASE POOLS MAY BE REQUIRED BY LOCAL OR STATE LAW TO INCUR ADDITIONAL

EXPENSES WHEN INSTALLING A POOL, IN ORDER TO COMPLY WITH STATE OR LOCAL LAWS REGARDING FENCING AND OTHER

SAFETY REQUIREMENTS. CUSTOMERS SHOULD CONTACT THEIR LOCAL BUILDING CODE ENFORCEMENT OFFICE FOR

FURTHER DETAILS. POLYGROUP® IS NOT RESPONSIBLE FOR ANY ADDITIONAL EXPENSES THAT YOU MAY INCUR.

1. Entrapment Avoidance: There shall be no protrusions or other obstruction in the swimming area, which may cause entrapment or entanglement of the user. If

a suction outlet cover is missing or broken, do not use the pool. Suction can cause body part entrapment, hair and jewelry entanglement, evisceration, or drowning.

Repair or replace the suction outlet cover before allowing the pool to be used.

2. DANGER! TO AVOID SERIOUS INJURY OR DEATH, CLOSE THE POOL OR SPA TO BATHERS IF ANY SUCTION OUTLET COVER/GRATE IS MISSING,

BROKEN, OR INOPERATIVE.

3. Never play or swim near drains or suction fittings. Your body or hair may be trapped causing permanent injury or drowning.

4. Never enter the pool or spa if a suction fitting or drain cover is loose, broken, or missing.

5. Immediately notify the pool/spa owner or operator if you find a drain cover loose, broken, or missing.

Drowning Risk

1. Keep unsupervised children from accessing the pool by installing fencing or other approved barriers around all sides of pool. State or local laws or codes may require

fencing or other approved barriers. Check state or local laws and codes before setting up pool.

2. Toys, chairs, tables, or similar objects that a young child could climb shall be at least four feet (4’) [121.92 cm] from the pool. The pump filter system shall be positioned

so as to prevent it being used as a means of access to the pool by young children. Do not leave toys inside pool when finished using, since toys and similar items

might attract a child to the pool.

3. Position furniture (for example: tables, chairs) away from pool and so that children cannot climb on it to gain access to the pool.

Electrocution Risk

1. Keep all electrical lines, radios, speakers, and other electrical appliances away from the pool.

2. Do not place pool near or under overhead electrical lines.

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

6. CAUTION: For continued protection against possible electric shock this unit is to be mounted to the base in accordance with the installation instructions.

7. Do not bury cord. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment.

8. The unit is provided with a ground-fault circuit-interrupter (GFCI). To test the GFCI, push the test button. The GFCI should interrupt power. Push the reset button.

Power should be restored. If the GFCI fails to operate in this manner, the GFCI is defective. If the GFCI interrupts power to the pump without the test button being

pushed, a ground current is flowing, indicating the possibility of an electric shock. Do not use this pump. Disconnect the pump and have the problem corrected by

a qualified service representative before using.

9. The Filter Pump is to be assembled by an adult; care should be taken in the unpacking and assembly of the Filter Pump, this pool may contain accessible

potentially hazardous sharp edges or sharp points that are a necessary part of the function of the Filter Pump.

10. If a drain or suction outlet cover is missing or broken, do not use the pool. Suction can cause body part entrapment, hair and jewelry entanglement, evisceration,

or drowning. Repair or replace the drain or suction outlet cover before allowing the pool to be used.. During nighttime pool use, artificial lighting shall be used to

illuminate all safety signs, ladders, steps, deck surfaces and walks.

11. The floor of the pool shall be visible at all times from the outside perimeter of the pool.

12. Post a list of emergency telephone numbers such as the nearest available police, fire, ambulance and/or rescue unit. These numbers are to be kept near the

telephone, which is closest to the pool.

13. Basic lifesaving equipment, including one of the following should be on hand at all times:

• A light, strong, rigid pole (shepherds crook) not less than twelve feet (12’) [366 cm] long.

• A minimum one-fourth inch (1/4”) [6.35 mm] diameter rope as long as one and one half (1-1/2) times the maximum width of the pool or fifty feet (50’) [15.24 meters],

whichever is less, which has been firmly attached to a Coast Guard-approved ring buoy having an outside diameter of approximately fifteen inches (15”) [38.1 cm],

or similarly approved flotation device.

14. Pool shall be located at a minimum distance of 6 ft (1.83 m) from any receptacle, and all 125-volt 15- and 20-ampere receptacles located within 20 ft (6.0 m) of the

pool shall be protected by a ground fault circuit interrupter (GFCI), where distances are by measuring the shortest path the supply cord of an appliance connected

to the receptacle would follow, without piercing a floor, wall, ceiling, doorway with hinged or sliding door, window opening, or other effective permanent barrier, to

the inside wall of the pool.

Circulation Systems

1. Installers shall follow written instructions regarding positioning of all equipment connected to the circulation systems.

2. The installer shall follow written instruction provided for operation of the circulation system components.

3. All circulation system components and pump that require replacement or servicing shall be installed according to the pump’s instruction manual.

4. Circulation equipment shall be installed per manufacturer’s instructions to provide proper mounting and support, to prevent damage from misalignment, settlement,

and vibration, and to minimize the potential for the accumulation of debris and moisture. Please refer to pump’s instruction manual.

Chemicals

For safety sake, ensure the deepest part of the pool is always visible. The user must properly maintain the clarity of the pool water at all times. Check the pH and

chlorine levels periodically and make sure they are within the recommended limits. Additional water treatment chemicals might be needed from time to time. Have

the water sample tested by a local pool supply store to determine if additional chemical is needed. Turn on the pump for the recommended hours daily. If you are

unsure of the time frames please refer to support.polygroupstore.com for the recommended Pump Operation Hours based on pool types and sizes. Clean and

replace filter cartridge frequently. Replace only with genuine Polygroup®/ Summer Wave® Brand filter cartridge. Refer to the Filter Pump manual for

additional water care information.

Entrapment Risk

First Aid

1. Keep a working phone and a list of emergency numbers near the pool.

2. Become certified in cardiopulmonary resuscitation (CPR). In the event of an emergency, immediate use of CPR can make a lifesaving difference.

Special Warning

1. Local building codes may require obtaining a building or electrical permit. Installer shall follow regulations on setback, barriers, devices, and other conditions.

2. Safety signs shall comply with requirements of ANSI-Z535 and use signal wording.

3. DO NOT attempt to assemble this pool in adverse weather conditions, windy conditions, or when the temperature is below 60°F.

4. This is a storable filter pump, which should be disassembled and stored when temperatures are expected to fall below 32°F.

Extra Safety Warning

1. Adult supervision is always required.

2. Parents should learn CPR.

3. Keep all electrical radios, speakers, and other appliances away from the swimming pool.

4. When you touch the filter, pump, or electrical parts, be sure the ground under your feet is “Bone Dry.”

5. All electrical outlets should have a GFCI, and connections should be a minimum of 6 feet (1.83 m) from the outside perimeter of the wall of the pool.

From 6–10 feet (1.83–3.05 m), there should be either a fixed connection (outlet box) or twistlock connection with a GFCI.

6. Connect power cords to a 3-wire grounding-type outlet only.

7. Keep all breakable objects out of the pool area.

8. Alcohol consumption and pool activities do not mix. Never allow anyone to swim, dive, or slide while under the influence of alcohol or drugs.

9. Severe electrical shock could result if you install your pump or filter on a deck. The pump or filter could fall into the water, causing severe shock or electrocution.

10. Do not install on a deck or other surface at, above, or slightly below the top rail of the pool.

11. Do not use the filter pump during severe weather conditions, i.e. electrical storms, tornadoes, etc.

12. Be aware of overhead power lines when vacuuming your pool or using a telescoping pole.

13. Check regularly for signs of wear that could make the pool unsafe.

14. Please contact pool site dealer or manufacturer for additional safety signs if deemed necessary.

15. For pool service, select a certified pool professional.

For additional safety information, see www.APSP.org.

Consumer Awareness Booklets and Information Source

Contact: U.S. Consumer Product Safety Commission at www.CPSC.gov/cpscpub/pubs/pool/pdf, Pub. #362 “Safety Barrier Guidelines for Home Pools.”

1. The Sensible Way to Enjoy Your Aboveground/Onground Swimming Pool

2. Children Aren’t Waterproof

3. Layers of Protection

4. Pool and Spa Emergency Procedures for Infants and Children

5. Be Safety Aware Copies of the above brochures are available free from the APSP. Go to: www.APSP.org.

Safety Education Programs and Materials Educational programs and materials (i.e., seminars, workshops, brochures, videos, instructional guides) are available from

the APSP, other aquatic safety groups, and by private firms. As a means of communicating useful safety information to pool owners/operators, and users, industry

members are permitted to provide such information to owners/operators and to request or require owners/operators to sign a statement that they have received, read,

and will follow the guidelines.

Other sources of safety information:

• www.cdc.gov

• www.cpsc.gov

• www.drowningpreventionalliance.com

• www.nspf.org

• www.safekids.org

ANSI American National Standards Institute

25 West 43rd Street, New York NY 10036

Contact: 212-642-4900

www.ansi.org

APSP Association of Pool & Spa Professionals

(formerly National Spa and Pool Institute)

2111 Eisenhower Avenue, Suite 500

Alexandria VA 22314-4679

Contact: 703-838-0083

www.apsp.org

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

ASME American Society of Mechanical Engineers

Two Park Avenue, New York NY 10016-5990

Contact: 800-843-2763 (U.S. & Canada) 973-882-1170 (outside North America)

www.asme.org

NSPI National Spa and Pool Institute (see APSP)

UL Underwriters Laboratories

333 Pfingsten Road,Northbrook IL 60062-2096

Contact: 877-854-3577 or 847-272-8800

www.ul.com

NSF NSF International

P.O. Box 130140

789 N. Dixboro Road

Ann Arbor MI 48105

Contact: 800-673-6275 or 734-769-8010

www.nsf.org

ASTM ASTM International (formerly American Society of Testing & Materials)

100 Barr Harbor Drive, P.O. BOX C700

West Conshohocken, PA 19428-2959

Contact: 877-909-2786 (USA & Canada) or 610-832-9585 (International)

www.astm.org

NEC National Electrical Code (see NFPA)

NFPA National Fire Protection Association

1 Batterymarch Park, Quincy MA 02169-7471

Contact: 800-344-3555 (U.S. & Canada) or 617-770-3000 (International)

www.nfpa.org

Filtration Systems

Any equipment connected to the circulation systems shall be positioned so as to prevent their being used as a means of access to the pool by young children. (See the

latest published edition of ANSI/ APSP-8 Model Barrier Code for Residential Swimming Pools, Spas, and Hot Tubs.)

Barrier

Barriers are necessary to provide protection against potential drowning and near drowning, and barriers are not a substitute for the constant supervision of

children. (See latest published edition of ANSI/APSP-8 Model Barrier Code for Residential Swimming Pools, Spas, and Hot Tubs.)

Risk of Drowning, Entrapment, and Diving Accidents

Publications are available that describe the risk of drowning, entrapment, and diving accidents. Available publications related to pool safety include the Association

of Pool and Spa Professionals’ (APSP) booklets entitled: The Sensible Way to Enjoy Your Aboveground/ Onground Swimming Pool, Children Aren’t Waterproof, Pool

and Spa Emergency Procedures for Infants and Children, Layers of Protection, and the latest published edition of ANSI/APSP-8 Model Barrier Code for

Residential Swimming Pools, Spas, and Hot Tubs.

Installer Responsibilities

All of these components shall be positioned so as to prevent their being used as a means of access to the pool by young children.

(See Barrier Code for Residential Swimming Pools, Spas, and Hot Tubs.)

SAVE THESE INSTRUCTIONS

1. READ ALL INSTRUCTIONS CAREFULLY and get a thorough understanding of what is required to assemble your RX series Filter Pump.

2. Before you begin to assemble the pool, identify, count, and check all parts needed for assembly.

3. It is recommended that you have some PETROLEUM JELLY on hand for lubricating the gaskets.

1. Installer shall follow written instructions provided for operation of the filter pump systems.

4. The RX Series Filter Pump systems are manufactured by Polygroup® and ETL control number 4000608 and 4006317 - double insulated and grounded - 120

Volts A.C. - 60 Hz. (ALL Units must have a minimum of 105 V.A.C. to start and run properly.)

All electrical components shall be installed in accordance with Article 680 of the National Electrical Code (NEC) “Swimming Pools, Fountains and Similar Installations”

or its latest approved edition.

The T

ype D Filter Cartridge will hold as many as 2 of the 1” diameter chlorine tablets and the Type A/C Filter Cartridge will hold as many

as 6 of the 1”

diameter chlorine tablets. Check your chlorine levels to determine the proper number of chlorine tablets to add. The filter cartridge will automatically dispense chlorine

into the pool as the Filter Pump runs. Y

ou must have the type of Filter Cartridge with a central core mesh divider (See page 9) to use the chlorine dispenser.

FILTER PUMP MODEL

RX-600

RX-1000

RX-1500

WATTAGE

65 watts

105 watts

175 watts

AMPERAGE

1.7amps

1.4amps

3.1amps

FILTER PUMP POWER INFORMATION

FILTER PUMP IMPORTANT NOTES

PRELIMINARY STEPS

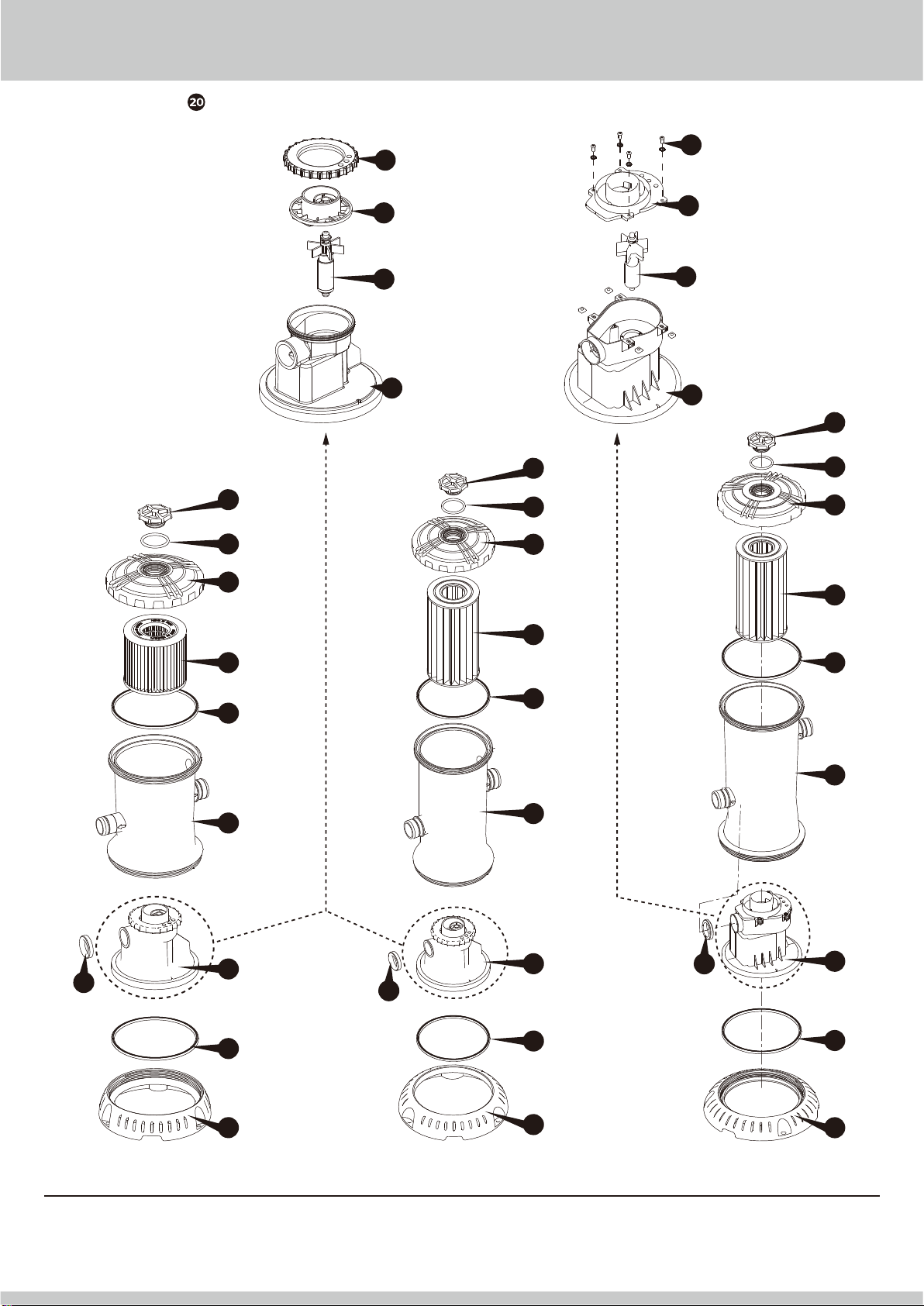

PARTS LIST

ITEMSQTY.

PARTS NAME

Fitting Gasket

Suction Fitting

Suction Fitting Thrust Washer (SF Washer)

Fitting Lock Nut

Suction Fitting Cap (SF/Service Cap)

Return Fitting

Return Fitting Diverter (RF Diverter)

Return Fitting Plug (RF/Service Plug)

Hose

Hose Camp

Filter Pump Assembly (Image Reference Only)

A) RX600

B) RX1000

C) RX1500

Vent Screw

Vent Screw O-Ring

QTY.

1 set

PARTS NAME

Seal Top

Pump Base

Canister Gasket (Motor Seal)

Filter Pump Canister

Rubber Nozzle / Gasket

Pump Motor Assembly

Type D Filter Cartridge (RX600 only)

Type A/C Filter Cartridge (RX1000 & RX1500)

Pump Body (Image Reference Only)

Rotor Assembly

Volute Cover

Volute Cover Lock Nut (RX600 & RX1000)

Volute Cover Bolt and Nut Set (RX1500 only)

GFCI Power Cord Set (Image Reference Only)

O-Ring for Hose Connections

ITEMS

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements. 7

DO NOT use this to dispense powdered chlorine, shock treatment, or any other type of chemicals as damage to the pump, filter cartridge, and pool will occur.

RX600

11A

RX1000

11B

RX1500

11C

RETURN FITTING

SUCTION FITTING

Press

"RESET"

Button

To Start

Pump

Operation

How to use the GFCI plug

*Do not connect

to a timer device

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

RX600 RX1000 RX1500

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

THE FILTER CARTRIDGE WILL HOLD 1" DIAMETER CHLORINE TABLETS.CHECK YOUR CHLORINE LEVELS TO DETERMINE THE PROPER

NUMBER OF TABLETS TO ADD.

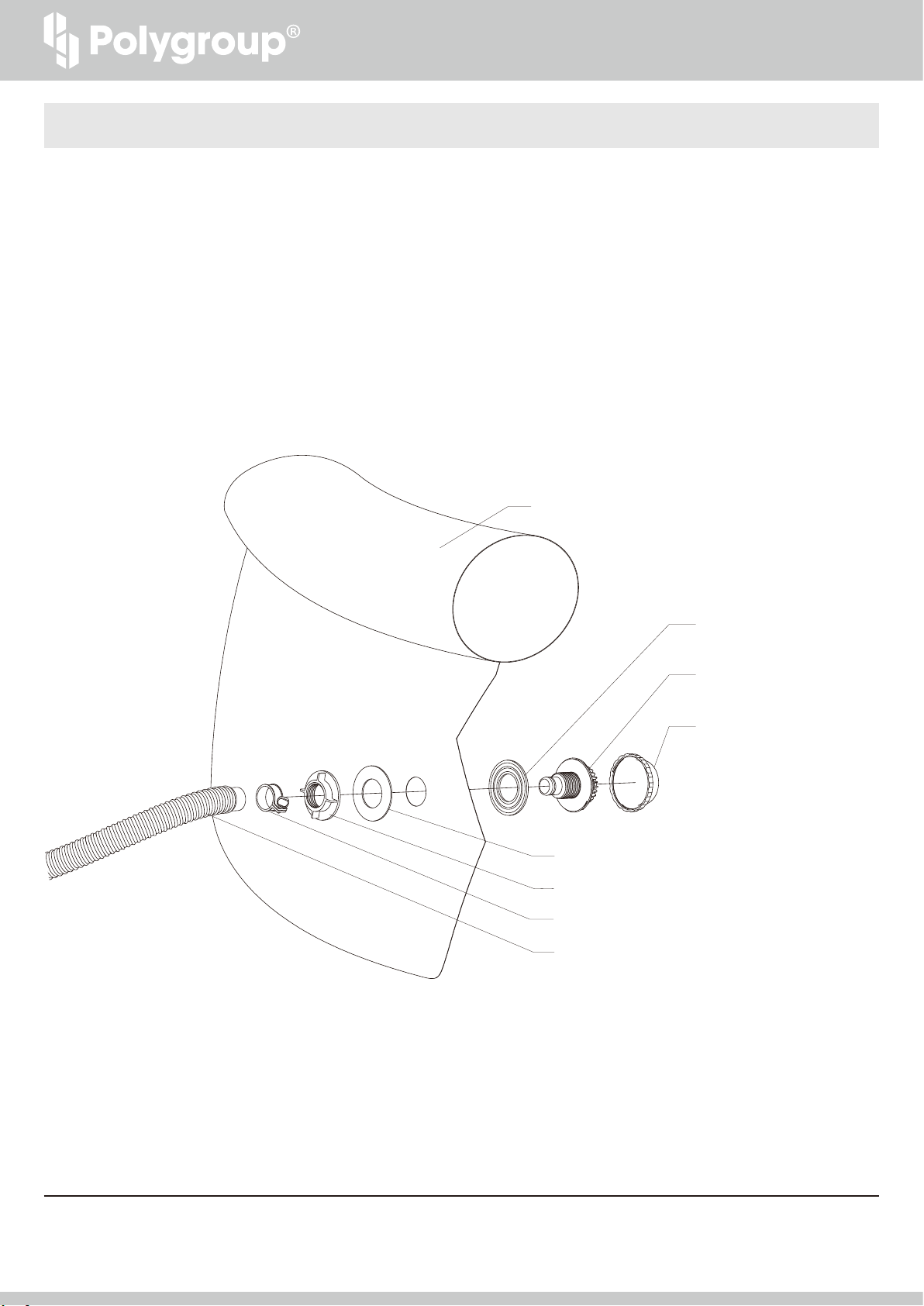

1. Set up the pool by following all the instructions that come with the pool.

Do not fill water until the Filter Pump is properly installed. Locate the

Outlet and Inlet openings on the pool wall.

3. Install the Return Fitting on the inlet opening of the pool.

2. Install the Suction Fitting on the outlet opening of the pool.

SETUP INSTRUCTIONS

from the package.

4. Remove the Filter Pump Assembly 11 , Hoses , a

nd Hose Clamp

WARNING:

CLIMBING HAZARD! PLEASE PREVENT CHILDREN FROM CLIMBING ON THE FILTER CANISTER TO GAIN ACCESS TO THE POOL.

Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts.

Inlet

Outlet

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

Outside Pool Wall

Inside Pool Wall

8. Do not plug in the filter pump at this point. Begin to fill water until the water

level reaches the fill line.

5. Connect the Hose 9 from the Suction Fitting 10 to the Filter Pump

Inlet.

6. Connect the Hose 9 from the pool Return Fitting to the Filter Pump

outlet.

7. Tighten all Hose Clamps 10 to prevent water leakage.

9. Air is now trapped inside the Filter Pump system, which will prevent the

water from flowing smoothly. To VENT the system (release the trapped

air), open the Vent Screw 12 at the top of the pump by turning it

counter-clockwise. The water pressure will force out all the trapped air

inside the Filter Pump system. Tighten the Vent Screw 12 when you see

water flowing out from the Seal Top 14 .

10. Adjust the Return Fitting Diverter 7 to maximize the circulation of the

pool water. It is recommended to point the diverter down and away

from the suction or water intake for optimum pool circulation.

910

360°

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

Inside Pool Wall

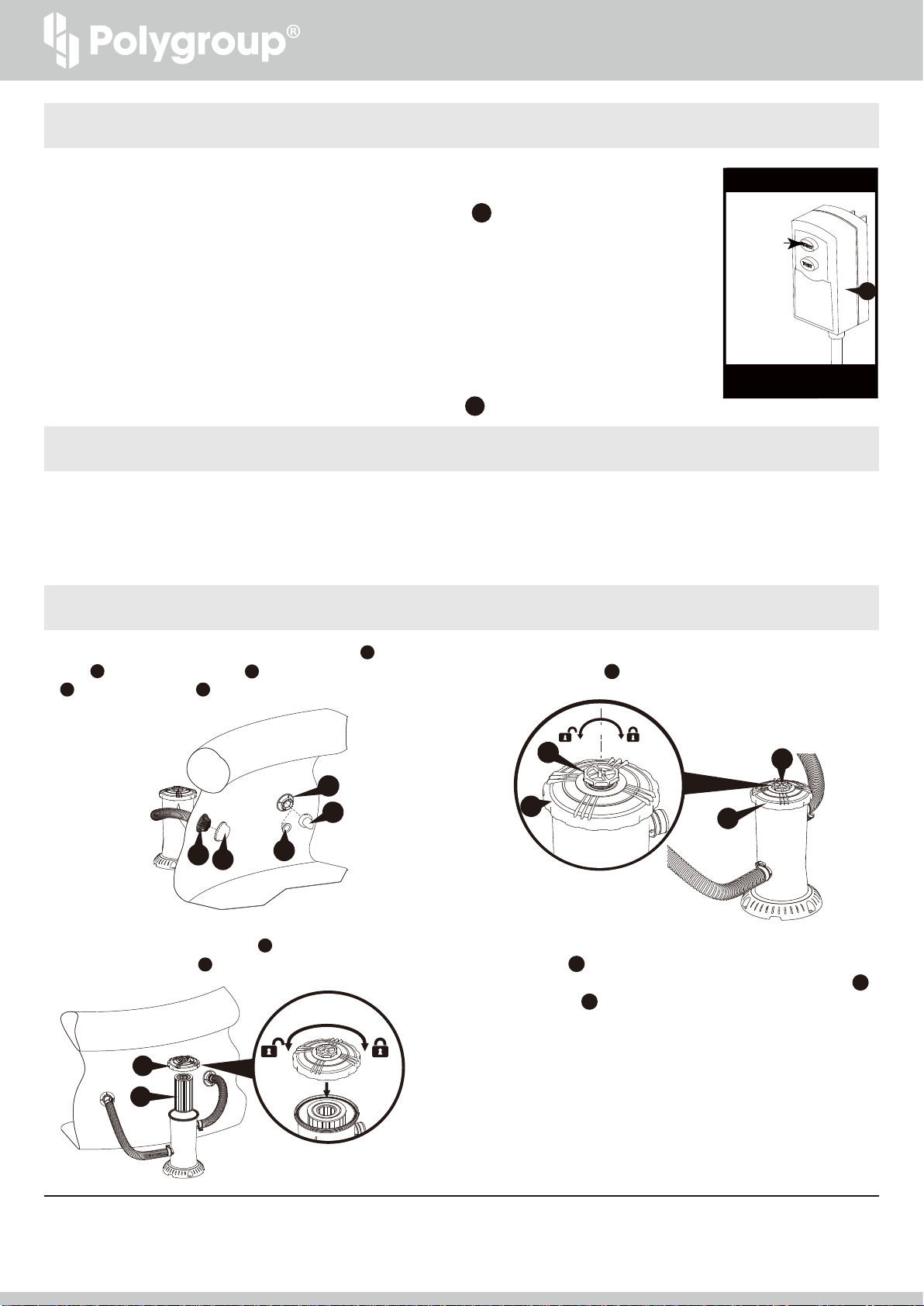

FILTER PUMP OPERATION

IMPORTANT! Your filter pump is protected by a thermal switch. The switch senses the temperature of the filter pump. If it gets too hot, the switch will stop the

pump from running until it cools off. To restart the pump press the reset button on the GFCI when the filter pump has cooled down. This is a safety device to prevent

pump damage and prolong service life. If your pump is automatically turning off, it is because of high pool water temperature and/or low water flow through the pump.

If this happens you need to check the water flow and correct it if needed, as this filter pump uses the water flow for cooling. You may also want to run the pump at night

when the temperature is lower.

PUMP MOTOR PROTECTION

1. Plug the GFCI power cord to a properly grounded receptacle. It is recommended that the outlet is at least 15 feet (4.5m)

IMPORTANT: To start the filter pump, press the RESET button on the GFCI plug .

Check the return fitting on the inside of the pool for correct flow; it should feel like a solid stream of water returning to the pool.

4. Test water and adjust chemicals as needed, read - “POOL WATER CARE”. VERY IMPORTANT– FILTER PUMP

ALONE WILL NOT PREVENT ALGAE FROM GROWING IN POOL WATER; THIS CAN ONLY BE DONE BY

MAINTAINING PROPER CHLORINE AND pH LEVELS AT ALL TIMES!

5. The filter cartridge may need to be cleaned and/or replaced several times at start up until the correct chlorine and pH levels

are attained. We recommend that you keep at least one spare filter cartridge on hand at all times. Filter cartridges may

be purchased at the store you purchased your pool from, or ordered from Polygroup® at polygroupstore.com.

6. To turn off the filter pump, press the test button and unplug the GFCI power cord .

1. Turn off & unplug the Filter Pump. Remove the RF Diverter 7 from the Return

Fitting 6 and plug with the RF Plug 8 . Hand tighten the SF Cap

5 onto the Suction Fitting 2 .

2. To depressurize the Filter Pump system, vent the filter pump by twisting

the Vent Screw 12 counter-clockwise.

3. Use both hands to twist off the Seal Top 14 by turning counter-clockwise.

Remove the Filter Cartridge 20 .

4. After you are finished cleaning the filter cartridge, liberally lubricate the

GASKET 16 with petroleum jelly and re-assemble in reverse order.

Before restarting the filter pump, be sure to remove the RF PLUG 8

and SF CAP 5 .

5. The filter cartridge can be cleansed of coarse dirt and debris b y pressure

washing inside and out with a garden hose, making sure to wash between

all pleats. Fine particles of dirt are more easily removed from the filter

pleats when the cartridge is dry. Therefore, after hosing the cartridge,

allow the filter to dry and CAREFULLY BRUSH, but DO NOT scrub the

pleated surface areas. Cleaning and scrubbing a filter too vigorously will

also wear out the cartridge much faster than if it is simply hosed off

correctly.

FILTER CARTRIDGE CLEANING AND REPLACEMENT

Loose Tight

Press

"RESET"

Button

To Start

Pump

Operation

How to use the GFCI plug

*Do not connect

to a timer device

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

away from the pool.

You can use the return flow as a gauge to determine when the filter needs cleaning or replacement. If you feel a reduction

in flow, clean or replace filter.

Inside Pool Wall

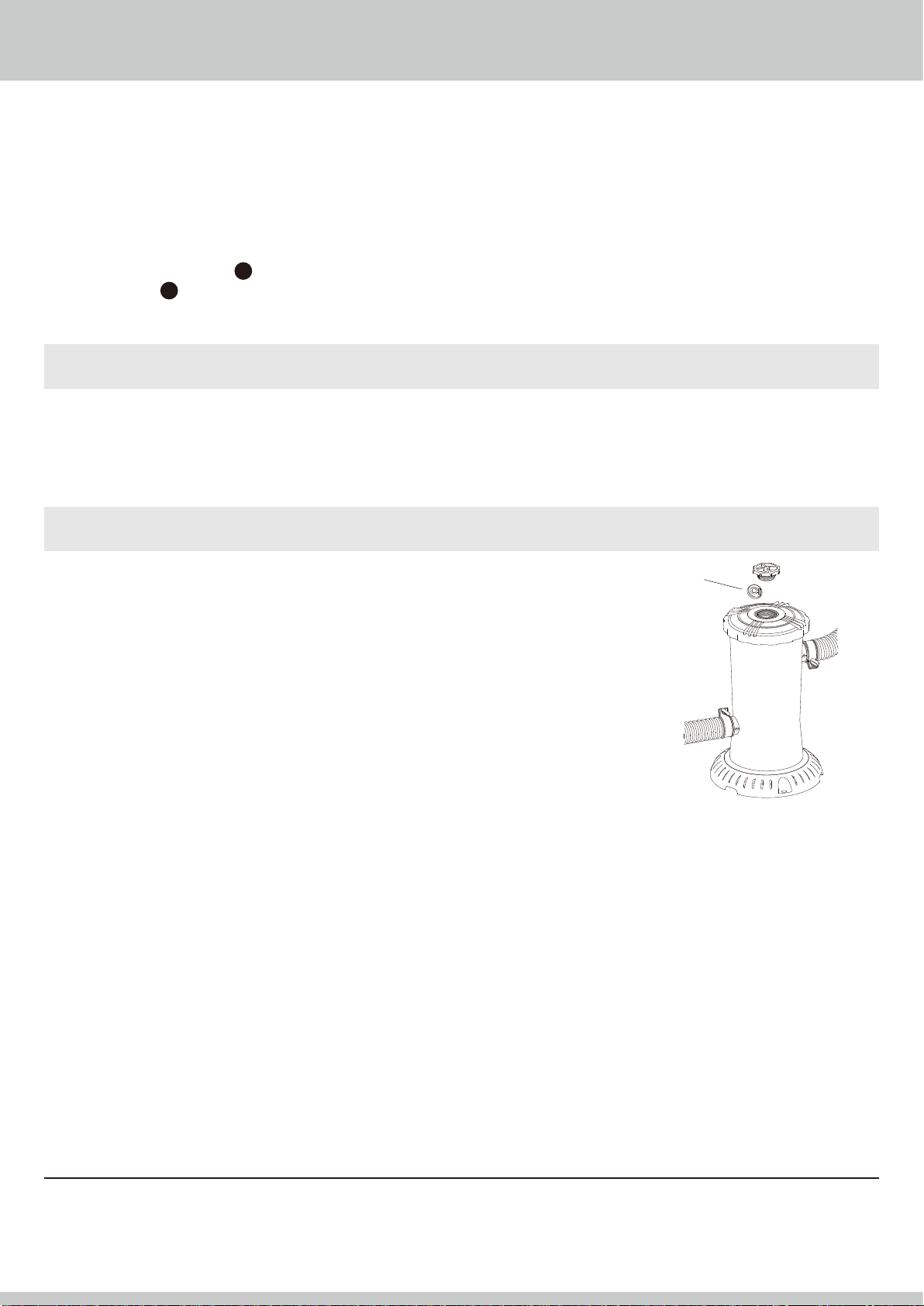

POOL MAINTENANCE

NOTE :

1. Hot weather/heavy use may require pH and chlorine levels to be maintained on the upper side of the scale and superchlorination of the pool every week.

2. Using a pool cover and/or solar cover (available at polygroupstore.com) will assist in maintaining your pH and chlorine levels by reducing the amount of

evaporation from your pool.

CAUTION - Concentrated chlorine levels and low pH levels will damage pool. You must follow the instructions for the pool chemicals you use, as to quantity and

recommended usage. NEVER drop lumps or pellets of chemicals in pool; this may present a hazard to swimmers and/or damage your liner.

1. The following items are required and readily available from your local pool supply store:

• TEST KIT - Used to check chlorine and pH levels.

• 1” CHLORINE TABLETS - Used to disinfect pool water and help control the growth of algae.

• pH CONTROL CHEMICALS - Used to adjust pH levels Up (Soda Ash) or Down (Acid).

• ALGAECIDES - Used to eliminate algae.

• SUPERCHLORINATOR - Used to destroy combined chlorine, ammonia, nitrogen, and organic compounds.

• LEAF NET with handle - Used to remove leaves, trash, insects, etc. from pool. This item can be purchased at

polygroupstore.com.

• CHLORINE DISPENSER (Supplied with Polygroup®’s patented Filter Cartridge U.S. Pat. 7,005,062) - Used to

dispense 1” chlorine tablets ONLY.

2. Use test kit daily to check pH and chlorine levels. Adjust accordingly using the required chemicals.

NOTE : Excessive levels of chlorine or low pH levels will damage pool liner.

3. The pool can be cleaned using a garden hose powered vacuum from Polygroup®. This item can be purchased at polygroupstore.com.

4. Using a foot bath near the pool to wash off your feet prior to entering the pool will assist in keeping the pool clean.

5. Well water often presents special problems with water chemistry. If you must use well water, take a sample to your local pool chemical supplier for analysis before

6. Refer to the retail package box or visit the support pages at support.polygroupstore.com for the capacity of your pool. You will need this information to determine the

7. IMPORTANT - We cannot over-stress the importance of proper and adequate daily chemical treatment. Chlorine and pH levels must be properly maintained at all

times. PUMP AND FILTER ALONE WILL NOT PREVENT ALGAE FROM GROWING IN POOL WATER; THIS CAN ONLY BE DONE BY MAINTAINING PROPER

CHLORINE AND pH LEVELS AT ALL TIMES.

• Maintain pH level between 7.3 and 7.8.

• Maintain chlorine level between 1.0 and 1.6 ppm (parts per million).

• Superchlorinate your pool at least every other week.

POOL WATER CARE

6. Suntan oils, body oils, and algae can form a coating on the filter pleats which may not be thoroughly removed by hosing. Such films of oils and/or algae will rapidly

clog up the filters’ pores, greatly reducing filtration. Therefore, it is imperative to remove such materials from the filter element as soon as possible. To remove oils,

we recommend soaking the cartridge in a solution of 1 pound of tri-sodium phosphate (TSP or any other strong detergent) to 5 gallons of water for up to 12 hours.

Tri-sodium phosphate is available in many supermarkets, hardware stores, or janitorial supply stores. After the oils have been removed, rinse the filter cartridge to

remove any dirt. If algae is a problem, add 1/2 pint of pool chlorine or 1 pint of liquid household bleach to the cleaning solution, 1 hour before removing the filter

cartridge from the solution. Thoroughly rinse the filter cartridge before replacing it in the filter case. Check the pool chemistry to determine the cause of algae growth.

7. Excessive calcium and/or mineral deposits may build up on a filter cartridge and should be handled differently. Contact your local pool supply store to ask about

additional filter cartridge cleaners or treatment for calcium or mineral deposits. Check pool chemistry for high pH or alkalinity; this may cause a calcium or mineral

build-up.

8. A spare “stand-by” Filter Cartridge 20 is an excellent investment. It provides a convenient way to continue filtration of your pool while cleaning or replacing a

dirty Filter Cartridge 20 . Also, a well-maintained, clean cartridge assures you that your filter will always be ready to operate at peak efficiency.

9. Filter cartridges may be purchased at the store you purchased your pool from, or ordered from Polygroup® at polygroupstore.com. Always replace with

genuine Polygroup® SUMMER WAVES® filter cartridges.

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

1. Check and adjust pH and chlorine levels daily using required chemicals. See Section “POOL WATER CARE.”

2. Check filter pump output daily. If flow is reduced, see Symptom 2 in Section “TROUBLE SHOOTING GUIDE.”

3. Check filter pump, hoses, fitting for leaks. If a leak is found, see Symptom 4 in Section “TROUBLE SHOOTING GUIDE.”

4. Run the pump for the recommended number of hours daily. If you are unsure of the time frame please refer to support.polygroupstore.com for the recommended

"Pump Operation Hours" bases on pool types and sizes.

See Section "FILTER PUMP IMPORTANT NOTES" on page 7.

adding ANY chemicals.

amount of chemicals you will need to correct the pool water. NOTE: It is recommended to use a 5 gallon bucket of water to mix and dissolve your chemicals and then

applying directly to the pool water. Follow manufacturer’s label directions on all chemicals.*Most pool supply stores will test your pool water for free and advise you of

what chemicals you need, and the correct amount to use for your pool. You will need to tell them the pool capacity in gallons.

Chlorine Tablets

SYMPTOM

CAUSE SOLUTION

Motor fails to

start or kicks

on and off

A Plug the GFCI into a 3-wire grounded outlet and press the reset button to turn pump on.

B Reset circuit breaker on electrical panel. If problem persists, have an electrician check circuit.

C Check the line voltage, it must be in the range of 105 to 125 AC Volts.

No or slow

water flow

through the

return fitting.

Filter pump is

not cleaning

the pool

properly(Cloudy

water,

green…..etc.)

Water leakage

A Fill the pool to the fill line. The suction fitting must be at least 4” under water.

A Maintain chlorine level between 1.0 to 1.6 ppm.

B Maintain pH level between 7.3 to 7.8.

C Clean or replace the filter cartridge. (See page 12). Spare cartridges make service easier.

A Make sure hose clamps are positioned properly over the hose and o-ring to ensure a proper

D Inspect the filter cartridge for holes or tears. If visibly damaged; replace the filter cartridge.

E Check for obstructions(s) at the filter cartridge, suction fitting or return fitting.

F Have the pool water sample tested by a pool supply store. It may be necessary to add other

chemicals due to varying water quality in different localities.

G Chemicals are required to maintain clean pool water. Clean pool and filter more often.

B Check for obstructions(s) at the filter cartridge, suction fitting or return fitting.

A Unit Not Plugged In

B GFCI Outlet Breaker Tripped

C Low voltage

A Low pool water level

A Chlorine level

B pH level

C Dirty filter cartridge

D Damaged filter

cartridge

E Slow water flow

F Other chemicals

required

G Pool water very dirty

B Inlet/Outlet clogged

C Dirty filter cartridge

A At Suction/Return

B Vent Screw in Seal Top

C Seal Top

D Pump Base

C Clean or replace the filter cartridge. See page 12; A spare cartridge makes service more

convenient.

B Check O-ring 13 for damage. Replace if needed. Tighen the Vent Screw 12 .

C Check Canister Gasket 16 for damage. Replace if needed. Tighten the Seal Top 14 .

D 1) Check the Canister Gasket 16 for damage. Replace if needed. Tighten the Base 15 .

TROUBLESHOOTING GUIDE

POOL PUMP DISASSEMBLY & STORAGE

1. First, turn the pump off and unplug the main power cord of the system.

2. Remove the RF Diverter 7 from the Return Fitting 6 and then plug the Return Fitting 6 with the RF Plug 8 Now, hand tighten the SF Cap 5 onto the

Suction Fitting 2.

3. Slowly unscrew the Vent Screw 12 from the Seal Top 14 allowing the Filter Pump to depressurize.

4. Remove the Seal Top 14 by turning counter-clockwise.

5. Remove the Filter Cartridge 20 and remove any chlorine tablets left inside the core section of the filter.

6. Loosen all four Hose Clamps 10 , remove the Hoses 9 and allow any remaining water to drain out.

7. Clean and dry all filter pump parts including filter cartridges.

8. Liberally lubricate the O-rings 13 at the Seal Top 14 and Gasket 16 on the Canister 17 with petroleum jelly, and then reassemble it, along with the Seal Top 14 ,

Vent Screw 12 onto the Canister 17 . Store all parts carefully in an airtight plastic bag.

9. All items should be stored in a dry environment that remains above 32 degrees Fahrenheit at all times.

WARNING: TURN OFF THE PUMP AND UNPLUG THE POWER CORD BEFORE TROUBLESHOOTING THE FILTER PUMP.

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

seal. Adjust hose clamp, check o-ring and re-tighten.

Check hose for any holes or cracks and replace if needed.

Fittings or Hose

connections

2) The Canister Gasket must sit in the groove in the bottom of the canister before

installing the pump.

3) Check pump alignment. The arrow with the indentation on the pump MUST point to

the matching indentation on the canister.

4) Make sure that the Pump Base is not cross threaded on the Canister.

1. Unplug the Power Filter Pump. Remove the RF Diverter 7 from the Return Fitting 6 , and then plug the Return Fitting 6 with the RF Plug 8 . Hand tighten

the SF Cap 5 onto the Suction Fitting 2 .

2. To depressurize the Filter Pump system, vent the filter pump by twisting the Vent Screw 12 counter-clockwise.

3. Loosen the Hose Clamps 10 at the filter pump inlet and outlet. Detach both Hoses 9 from the filter pump.

4. Turn the filter pump up-side-down. The Base 15 is now locked by a latch pin. To release the lock, push the latch pin down and then turn left. Detach the Base

15 from the Canister 17 by turning counter-clockwise.

5. Remove the Base 15 from the Canister 19 . 6. Remove the Motor Assembly 19 from the Canister 16 . Be careful not

to lose the Rubber Nozzle 18 .

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

PUMP REMOVAL INSTRUCTIONS FOR TROUBLESHOOTING

1. To replace the Rotor Assembly 23 , remove the Volute Cover 24 and pull out the Rotor Assembly 23 from the Pump Body 22 . Inspect the rotor assembly to make

Once the rotor assembly has been checked or if replacing with a new rotor assembly, slowly insert the rotor assembly back down into the pump carefully.

The force of the magnet will pull the rotor assembly into the pump.

Align the Shaft properly and fasten the Volute Cover 24 with the Volute Cover Lock Nut 25 or with the Volute Cover Bolt and Nut Set 26 .

Attach the Rubber Nozzle 18 to the outlet of Motor Assembly. To complete assembly, proceed to "Pump Replacement Instructions" below.

RX1500

RX600/RX1000

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

sure that it has all of its parts and that the center shaft, magnetic axle, or impeller blades are not broken as this will cause the pump to fail. If your rotor assembly is

broken, a complete rotor assembly may be purchased at polygroupstore.com without having to replace the whole pump.

Please see Pool Support - Filtration System Troubleshooting for the SFX Filtration System at support.polygroupstore.com.

PLEASE NOTE: Even if the rotor assembly is in perfect condition if it is not seated properly between the volute cover and the pump it will not function correctly.

Rotor Assembly Parts

Lubricate the Canister Gasket and

Insert it into the groove on the bottom of

the Canister .

Please make sure the cord has been placed through the

Pump Base before replacing Pump . Then

slowly insert the Pump Motor Assembly back into

the Canister .

Step 1.

Cord

Step 2.

ROTOR INSPECTION AND REPLACEMENT INSTRUCTIONS

PUMP REPLACEMENT INSTRUCTIONS

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

5. To lock the Pump Base , apply the latch pin by turning to the right.

Step 3.

BOTTOM VIEW OF PUMP AND CANISTER

Close Up

Make sure that the notch and groove are aligned.

TOP VIEW OF PUMP AND CANISTER

The water outlet on Canister

and the Rubber Nozzle on

the pump should be aligned.

1919

3. Once the Pump is inserted into the Canister , please make sure the arrow with the indentation is pointing to the matching indentation on the

canister and make sure that the Rubber Nozzle is aligned with the water Outlet on the Canister. There is a groove on the pump that needs to be aligned

with the notch on the canister (visible from bottom only). Please make sure that the pump is correctly aligned, if it is not aligned correctly the Pump Base

can still lock in place but may leak.

4. Once the Pump is properly aligned, be sure the Gasket is properly in place. Then slide the Pump Base up to the base of the canister and

carefully tighten the Pump Base onto the threads by turning clockwise. Make sure the pump base is not cross threaded. Cross threading can cause

leaking out of the bottom of the canister.

Step 4.

Step 5.

KEY DESCRIPTION

RX1000 RX1500RX600

Part #

Fitting Gasket

Suction Fitting

Suction Fitting Washer (SF Washer)

Fitting Lock Nut

Suction Fitting Cap (SF Cap)

Return Fitting

Return Fitting Diverter (RF Diverter)

Return Fitting Plug (RF Plug)

Hose

Hose Clamp

Vent Screw

Vent Screw O-Ring

Seal Top

Pump Base

Canister Gasket

Filter Pump Canister

Nozzle

Motor Assembly

Type D Filter Cartridge

Type A/C Filter Cartridge

Rotor Assembly

Volute Cover

Volute Cover Lock Nut (X-600 & X-1000)

Volute Cover Bolt and Nut Set (X-1500 only)

Filter Pump Port / Fitting O-Ring

59” Hose

1-1/4” to 1-1/2” Rubber Fitting Adapter

* THESE ITEMS ARE ONLY INCLUDED WITH THE SEPARATE PURCHASE OF A COMPLETE RX SERIES FILTER CANISTER ASSEMBLY.

P58PF1520K01

P58284283W05

P58PF1510K01

P58PF1840W05

P58PF2820P01

P58PF7780W05

P58PF7790W05

P58PF0620K01

P58150036W01

P58219221W05

P58182201W05

P58182501K01

P58PP1853W05

P58183901W05

P58164800K01

P58PP1840W05

P58185201K01

P58X1500C000-RX

P581041080PR

P58050506001

P58184501K01

P5800400080A

P58037000K01

P584150006W1

P58PF5620P01

REPLACEMENT PARTS ORDERING INFORMATION

OWNER’S MANUAL

Should you encounter any problems, contact Customer Service at (888) 919-0070 from 8 AM to 5 PM Mon. thru Fri.

MST. Extended operating days and hours during peak season requirements.

P58PF1520K01

P58281283W05

P58PF1510K01

P58PF1430W05

P58PF2820P01

P58PF7800W05

P58PF7790W05

P58PF0620K01

P58125036W01

P58220221W05

P58182201W05

P58182501K01

P58PF1007W05

P58100740W05

P58147800K01

P5810030AW05

P58182601K01

P58X600C0000-RX

P581041037PR

P58050137001

P58PF1009K01

P58PF1010K01

P58030001K01

P584150006W1

P58PF5620P01

P58PF1520K01

P58284283W05

P58PF1510K01

P58PF1840W05

P58PF2820P01

P58PF7780W05

P58PF7790W05

P58PF0620K01

P58150036W01

P58219221W05

P58182201W05

P58182501K01

P58PF1007W05

P58PF1013W05

P58147800K01

P58PF1006W05

P58182601K01

P58X1000C000-RX

P581041080PR

P58050505001

P58PF1009K01

P58PF1010K01

P58037000K01

P584150006W1

P58PF5620P01

ASME COMPLIANT SUCTION FITTING INFORMATION

9. The suction outlet PSF-100A or PSF-100B is to be replaced every 5 years.

10. No tool is required for installation.

11. Service and Winterizing Instructions.

CAUTION! DO NOT EXCEED THE MAXIMUM ALLOWABLE FLOW RATE:

1. 45 Gallons per minute (2,700 Gallons per hour).

2. Carefully observe and inspect the suction outlet for damage and tampering before each use of the pool.

3. Missing, broken or cracked suction outlet must be replaced before using the pool.

4. Loose suction fitting should be reattached or replaced before using the pool.

5. Remove and store Suction Outlet assembly if temperatures are expected to fall below 32° F.

1. PSF-100A and PSF-100B Suction Outlets are certified by IAPMO in accordance with the ASME/ANSI A112.19.8b-2009 Suction Fitting for use in Swimming Pools,

Wading Pools, Spas, and Hot Tubs.

2. This is a submerged suction outlet for use with above ground swimming pools.

3. For single drain only. Use only ONE outlet for each pump.

4. Do not locate this suction outlet on sitting areas or on the backrest for such seating area.

5. Install this outlet at location recommended by the pool manufacturer.

6. The maximum allowable flow rate of this suction outlet is 45 gallons per minute (2,700 gallons per hour).

7. Connection Hose:

• Model PSF-100-A is to be connected with 1 1/4” (31.8mm) diameter hose.

• Model PSF-100-B is to be connected with 1 1/2” (38.1mm) diameter hose.

8. The suction outlet is to be mounted at the suction outlet opening as specified by the manufacturer of the above ground pool. The diameter of this opening should be

within the range of 1.77” to 1.85” (45.0mm to 47.0mm). Refer to the following diagram for detailed assembly instructions:

PSF-100A AND PSF-100B SUCTION OUTLET

(FOR ABOVE GROUND POOLS)

Swimming Pool

Water Hose

Hose Clamp

Lock Nut, To Be Tightened By Hand

Rubber Gasket

Water Cap, To Be Installed

Only During Pump Maintenance

Or Filter Change

Suction Fitting, PSF-100A
