PolyVection DAC32 User manual

!
PolyVection
DAC32 User Manual
Page 1
1
A
2345678
1 2 345678
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
13.02.21
1/1
1593K
Philip Voigt
User"
Manual
PolyVection "
DAC32"
Issue 1 - Feb 2021

Content"
"
General Notes"
PolyVection
DAC32 User Manual
Page 2
General Notes ……………………"
Unpacking ……………………….."
Preparation ………………………."
Installation ……………………….."
Setting Up ……………………….."
Operation ……………………….."
Troubleshooting …………………"
Technical Specifications ……….."
Declaration of Conformity ………
2"
3"
4"
5"
6
2"
3"
4"
5
Proper Use
The DAC32 music streamer is designed
for the playback of music and speech
transmitted wirelessly from an external
source. "
Only use DAC32 as described#
in this manual. Any other use will be
deemed as not in accordance with the
instructions and may lead to damage of
property or even persons. "
The manufacturer accepts no liability for
damage caused by improper use. "
DAC32 is intended for private use. "
Safety Notes
The enclosed brochure “Quick Start
Guide and Important Product Infor-
mation” contains general safety notes
which you should always observe to
protect yourself and third parties. Also
be sure to observe any warning notes
contained in this user manual. "
Before operating the product, please
first read the safety notes and this user
manual carefully. Only in this way, can
you ensure that all functions are used in
a safe and reliable manner. "
Keep the enclosed documents in a safe
place and also be sure to pass it on to
any subsequent owner. "

Unpacking"
"
"
"
PolyVection
DAC32 User Manual
Page 3

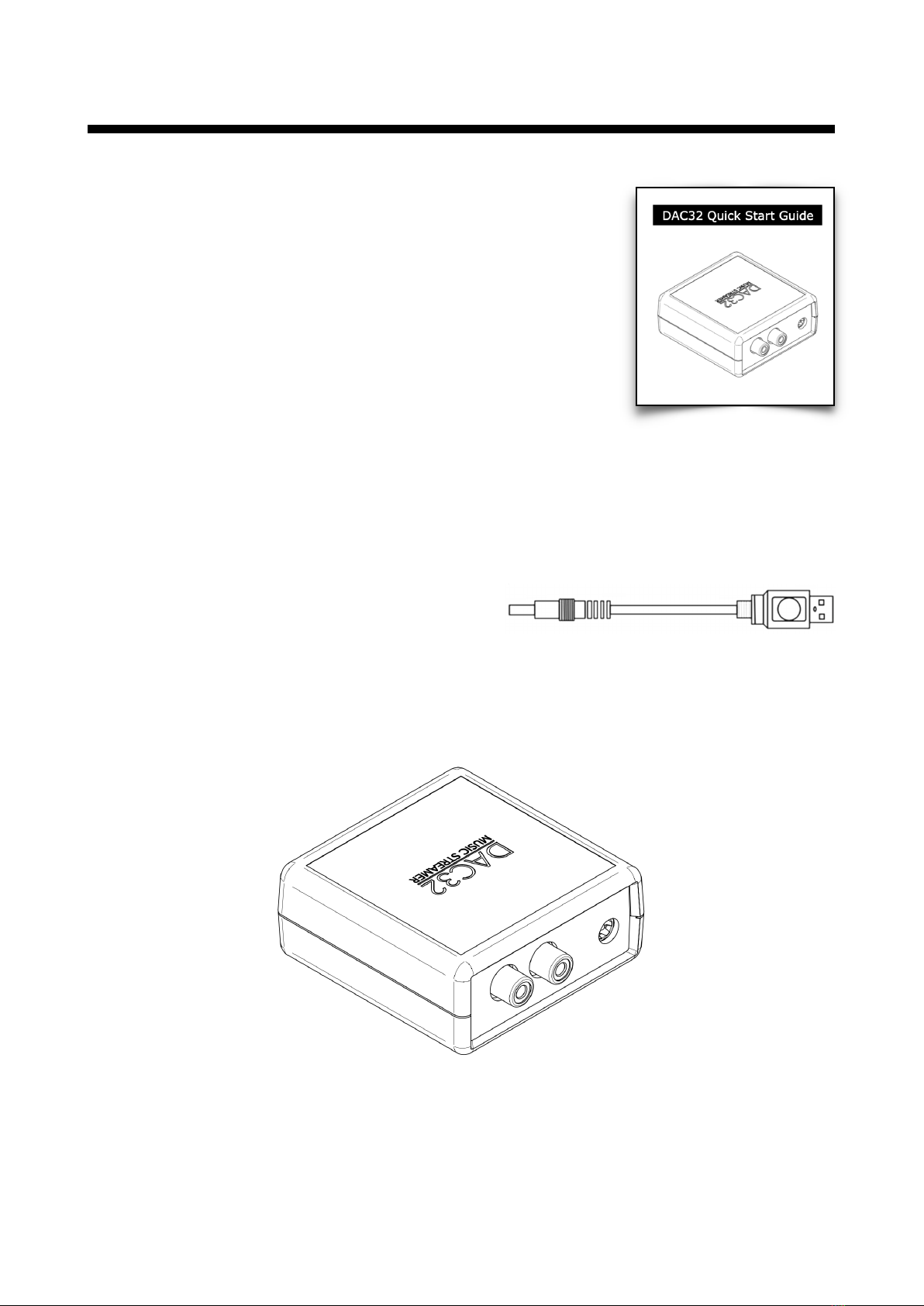

Package contents
1. DAC32 music steamer"
2. USB-A to 2.1 mm DC power cable"
3. Brochure “Quick Start Guide and
Important Product Information”"
•Check that all items have been
delivered and that nothing is
damaged. If you find any dam-
age, do not operate the device;
instead contact us (contact
information on last page). #
•Please keep the packaging for
the duration of the warranty
period.
(1)
(3)
(2)

"
"
"
"
"
"
"
PolyVection
DAC32 User Manual
Page 4

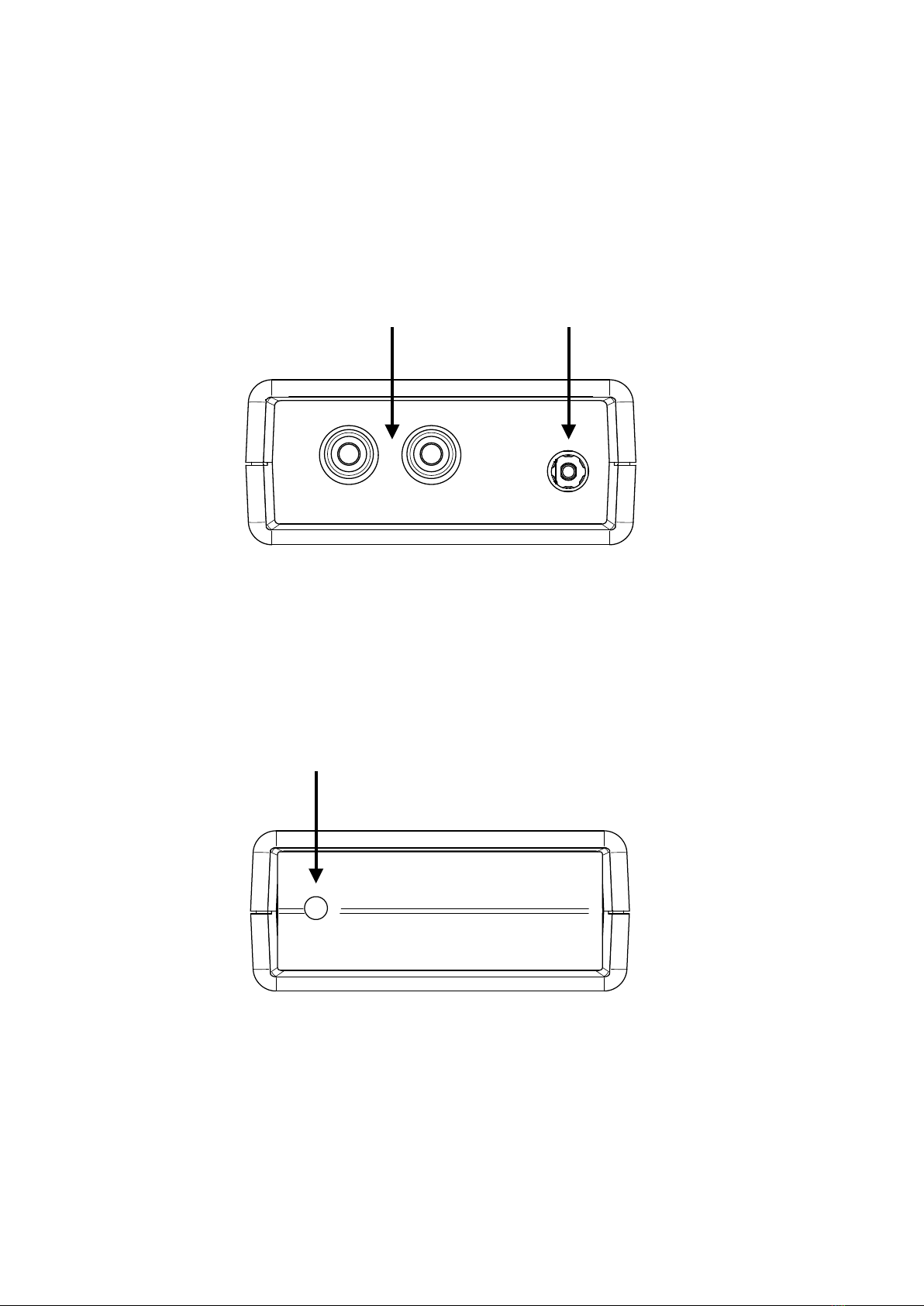

Connections and Status LED
1. Audio output LINE-OUT"
2. 2.1 mm DC input (5 V only)"
3. Status LED"
1
A
2345678
1 2 345678
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
15.02.21
1/1
1593K
Philip Voigt
Backside
1
A
2345678
1 2 345678
B
C
D
E
F
A
B
C
D
E
F
Dept. Technical reference Created by Approved by
Document type Document status
Title DWG No.
Rev. Date of issue Sheet
15.02.21
1/1
1593K
Philip Voigt
Frontside
(3)
(1)
(2)

"
Preparations"
"
Getting Started"
"
PolyVection
DAC32 User Manual
Page 5
To be able to integrate the DAC32 music
streamer in your network and#
to ensure smooth operation, we recom-
mend an up-to-date, high performance
router with a broadband Internet con-
nection. "
Make sure that the Wi-Fi router is active,
has the latest firmware and is able to
access the Internet. "
To the extent possible, the router should
be positioned in the middle of your
home in order to ensure an adequate
Wi-Fi signal throughout your home. "
Please refer to the Quick Start Guide
physically supplied with your DAC32
and also available at: "
https://polyvection.com/product/dac32/
downloads/dac32-qsg"

Operation"
"
"
PolyVection
DAC32 User Manual
Page 6
Slimserver Squeezelite
DAC32 implements Squeezelite and
therefore acts as a player endpoint for
the slimserver multiroom platform."
No further action is required. Once
connected to your network it is dis-
coverable as a slimserver player."
AirPlay compatibility
The open source community software
that DAC32 runs on supports streaming
music from your iDevice. "
This functionality is enabled by default
and can immediately be used without
further configurations."
Bluetooth compatibility
By default DAC32 listens for incoming
bluetooth connections. It is freely
discoverable and you can easily connect
to it from any phone, tablet or computer."
Device naming
You can change the DAC32 device
name. Navigate to it’s embedded web
server by using its IP address and then
click on SYSTEM. You can assign a new
name there."
Firmware updates
The firmware running on DAC32 can
easily be updates. Please watch the
downloads section of the DAC32
product website for any new release."
For installing it open the embedded
Webserver in your browser and then
navigate to UPDATES. Follow the
instructions shown there."

Troubleshooting"
The following advice should help you to solve problems. If this does not work, please
contact us.#
"
Problem
Possible cause & solution
The LED does not illuminate
Make sure your power supply is properly
connected and supplies 5 V DC.
Setup Fails
Restart your router and your smartphone
or tablet. Set up the device near your
router and switch any repeaters offfor the
duration of the setup process. If your
router provides guest access, do not use it
to connect your DAC32.
Music playback skips or is interrupted
Check your WiFi connection and signal
strength. Try moving your DAC32 closer to
your WiFi access point.
PolyVection
DAC32 User Manual
Page 7

Technical Data"
Power Input Connector
2.1/5.5 mm barrel connector
Power Input
5 V DC @ 500 mA
Analogue Output Connector
2x gold plated RCA
Analogue Output
up to 2.1 V RMS
THD+N
better than 0.005 %
WLAN
b/g/n 2.4 GHz
Bluetooth
5.0
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4 (automatic
resampling to 96 kHz), 192 kHz (automatic
resampling to 96 kHz) @ 16 or 24 bit
Packaging Contains
DAC32, USB-A to 2.1 mm power cable,
Quick Start Guide, leaflet
Dimensions
72 x 67 x 28 mm
Weight
110 g
PolyVection
DAC32 User Manual
Page 8

Declaration of Conformity"
PolyVection UG hereby declares that this product complies with the
requirements of the directives 2014/30/EU, 2014/35/EU and 2014/53/EU
to the extent they are installed and used in accordance with the
instructions of the manufacturer. The full text of the EU declaration of
conformity is available at the following Internet address: "
https://polyvection.com/product/dac32/downloads/dac32-doc"
Please contact us directly with any questions, suggestions, or complaints: "
PolyVection UG (haftungsbeschränkt)#
Haus 99 Raum 210 / 211#
Ruhlsdorfer Str. 95#
14532 Stahnsdorf#
Germany"
[email protected]"
No responsibility is assumed for the correctness of this information. Technical changes,
typographical errors and other errors reserved. "
