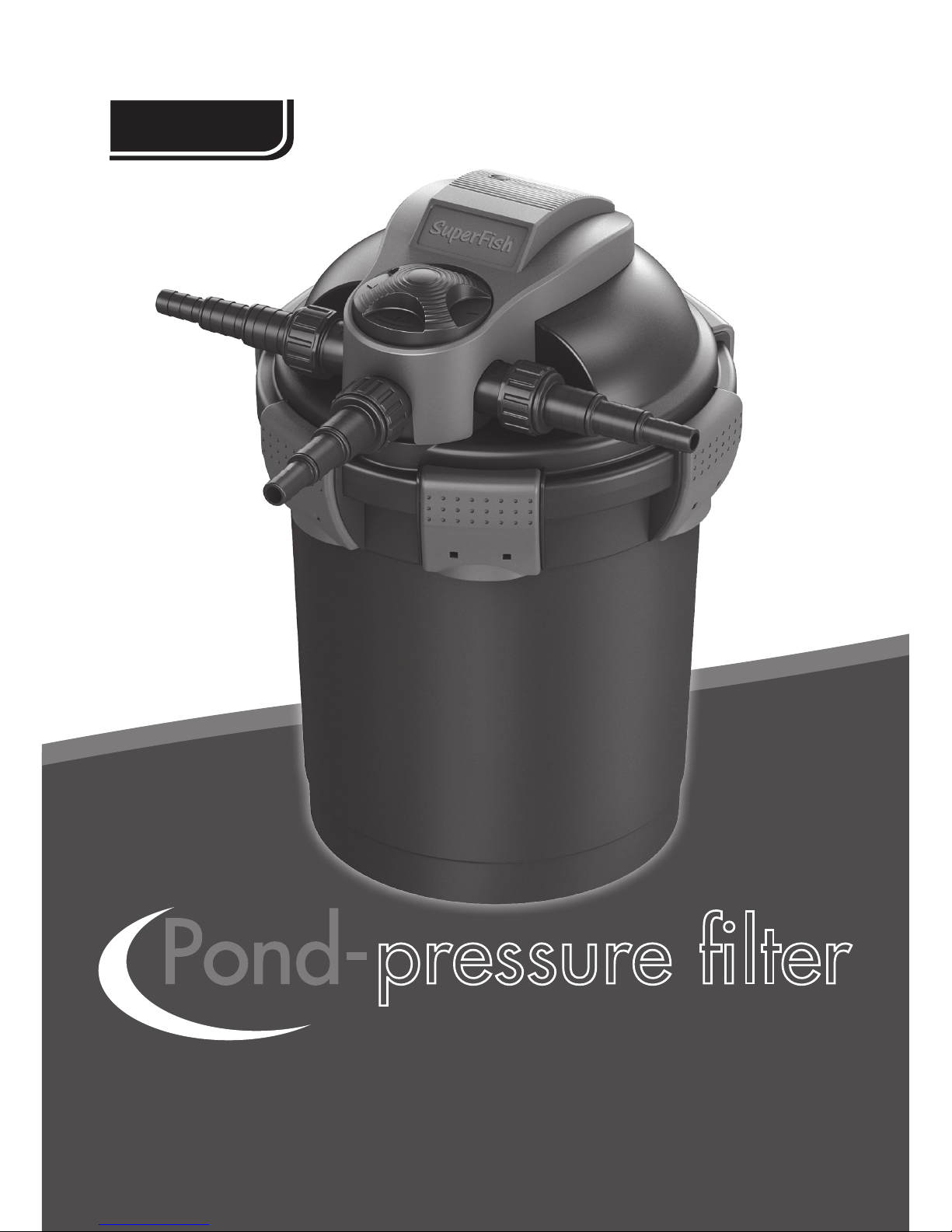

Pond 6.000 User manual

Manual
4.000 / 6.000 / 10.000
A unique 3-step pond pressure filter
pressure filter

2
Placed and connected
Placed and connected
Quick cleaning
Full
cleaning
Full
cleaning
Full
cleaning
Replacing the UVC lamp

3
Pond pressure lter 4.000 / 6.000 / 10.000 GB
Biological pond pressure lter with integrated UV-C.
The UV-C ensures the removal of algae growth and the destruction of bacteria. The biological filter media inside the filter catch dirt and are the ideal growing medium for
beneficial bacteria that will develop an optimal bio-culture in the filter within a few weeks.
Safety;
1. Read manual carefully before usage.
2. Suitable for outdoor use.
3. Ensure voltage shown on the label match to the mains supply voltage.
4. Only connect plug to mains supply which is protected with an earth leakage circuit breaker.
5. Disconnect Filter from mains supply before any maintenance on pond.
6. When connecting the plug of the unit, make sure the lead end is pointing downward and t it in a socket with cover. Never place plug on wet area (see g. H).
7. This lter is intended for the cleaning of garden ponds, only use with pond water, do not use chemicals, foodstu, easily ammable or explosive substances.
8. The UVC lamp installed in the unit is intended to kill algae and bacteria in the pond water. UV radiation is harmful for the eyes and skin, disconnect lter and UV
from mains before any maintenance to the unit, repairs should only be done by authorised dealers.
9. The lter can be placed anywhere around the pond, however the maximum water head is 2 meter to avoid damage to the unit due to high pressure and leakage.
10. The maximum pump capacity on the packaging should be respected to avoid damage to the unit due to high pressure and leakage.
11. To avoid overheating, switch o the lamp when no water is owing past it.
12. In the winter season, when the system is not used, the Pond Clear unit should be removed to avoid the risk of freezing.
13. The cable of the Top Clear unit must not be replaced. If the cable is damaged, the entire electrical part should be scrapped and replaced.
14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Special care should
be taken with the use of electrical equipment by or near children.
Installation:
1. Choose the most suitable place. The lter should be installed close to the pond and it should be easily accessible for maintenance see packaging for installation
samples.
2. Connect the pond pump to the lter inlet, using a pond hose and hose clamps. If the hose diameter is more than 12mm, the hose coupling should rst be sawn
o to the right size. In that case, unscrew the hose socket from the lter before starting the sawing (see g. A-c). This is to avoid damaging the lter.
3. Connect hose to the outlet of the lter following the same procedure to adjust the size of the hose connector like the inlet.
4. Switch the pump on rst, then the UVC clarifying unit.
5. Switching on: Connect power plug to the socket.
6. Do not operate the unit without water owing through.
7. The unit switches on automatically when power connection is established.
8. Transparent control window on the top shows whether or not the UVC lamp is lit blue.(Fig. B-c)
9. Check all connections for leaks.
10. After a new installation, the unit only reaches its full biological cleaning eect after a few weeks.
11. The full eect on bacteria is only reached as from a water temperature of + 10 °C.
12. Switching o: Disconnect the power plug.
Maintenance:
1. Quick cleaning; weekly or when pond is very dirty daily the Top Clear needs a quick clean, this is an easy job using the backwash system.
2. Connect a piece of hose to the tri-stepped outlet on the lter head, (Fig. C-a). Turn the knob (Fig. C-b), run the pump the backward water ow will clean the
lter. The water from the hose can be used to water your garden.
3. Full cleaning; yearly the Top Clear needs a total cleaning. Switch o the pump, unplug to switch o the UVC clarifying unit.
Loosen all the nuts of the hose connectors, and remove the hose connectors.
Open the UVC lamp cover .(Fig. D-a)
Slide the red switch lock. (Fig. D-b)
According to the signs inside the lter, turn the UVC clarifying unit counter-clockwise against the stop, then pull it out.(Fig. D-c)
Loosen the screw (Fig. E-d).
Screw o the union nut, pull o the quartz glass including the O ring by a slight rotary movement (Fig. E-e).
Clean the quartz glass outer face with a moist cloth carefully and check for damage.
Open the clips.(Fig. F-f). Separate the lid from the main housing. (Fig. F-g)
Take out the sponge and rinse with clean water.
Take out the clapboard (Model 10.000 & 15.000 only)
Pour out the bio-balls on the bottom and rinse them with clean water.
Remove the seal of the main housing, and check for damage.
Mount it back on the upper of the main housing after cleaning or replacement.

4
4. Replace the UV Lamp;
Remove the UVC lamp. (Fig. E/G)
Replace the UVC lamp. Only use original UV lamps available at your dealer.
Guarantee conditions:
This product carries a 24 month warranty as from the date of purchase, covering manufacturing faults. The lamp and the quartz glass are not covered by the
warranty. Warranty claims will only be considered if the product is returned complete with all parts and lamp and accompanied by a receipt proving the purchase.
Warranty claims resulting from installation or operation errors will not be honoured. Defects as a result of poor maintenance do not come under the warranty either.
Warranty repairs must only be carried out by the supplier. The supplier cannot be held liable for any consequential damage caused by failure, poor maintenance or
misuse of the Top Clear.
Technical data:
Voltage 220-240 V
Model Pond Size Max. ow rate UV-C Hose diameter
4.000 4.000 ltr 2.000 L/h 7W 12/20/25 mm
6.000 6.000 ltr 3.000 L/h 9W 25/32/40 mm
10.000 10.000 ltr 5.000 L/h 11W 25/32/40 mm
Tip :
A 2-way tap can be used for pond pumps with a larger capacity or using the pump to both power lter and waterfall
Recycle information:
The symbol of the barred bin printed on the product means that it must be collected separately from other rubbish when it will not be anymore in use. The user, at the
end of the life of the product, will have to bring it to a proper rubbish collection centre for electric and electrical devices. Alternatively he can return the used product
to the seller at the moment he buys a new unit, but only in proportion 1 to 1, a dierentiated refuse collection is environmentally friendly and it helps the recycling of
the materials, any other collection procedure is unlawful and will be subject to the law in force.
