Pondlink System Feeder User manual

English Deutsch Svensk Dansk
System Feeder
IMPORTANT: Please read this instruction manual carefully before
using this product. Keep the manual safe for future reference.
Manual version - 26/02/2019
for Pondlink WIFI lter
User Manual
Français Nederlands

2
Pondlink System Feeder to use with
Pondlink WIFI lter
Pondlink system pond fish feeder with digital display, suitable for medium
and large ponds.
A Pondlink WIFI lter is required to use this feeder
(or another external timer).
Pondlink system feeder integrates completely with the Pondlink WIFI Filters
and can easily be programmed by the Pondlink mobile App.
You just plug the cable into socket B on the Pondlink WIFI filter – low voltage
adapter included.
The food is fed at a 120-degree angle with adjustable distance and amount of
time the food is dispensed for.
The feeder is constructed to use pellets from 3-10 mm – We do not
recommend the use of sticks, flakes or other shapes of food.
The feeder is weatherproof and can be mounted anywhere on the side of the
pond.
Pondlink system feeder is specially designed with a strong motor and extra
bottom ventilation over the impeller to prevent the food from clogging.
Mounting fixtures are included, which makes it easy to place and secure the
feeder at the edge of your pond, where it is easy to hide compared to other
feeders.
Pondlink system feeder is ideal for koi ponds, where large quantities of
pellets are fed, and fish feed frequently throughout the day in order to
maintain their growth. It is also ideal for feeding fish while you are on
holiday.
We recommend that you check our website for the most up-to-date
manuals and information: www.pondlink.com

English
3
Safety instructions
Do not immerse the feeder in water.
For safety reasons, this device should not be used by children and young
people under the age of 16, as well as by persons who cannot understand the
potential danger posed by this device. Persons who have not fully understood
the following instructions may not use the equipment.
Avoid direct sunlight.
Maintenance
Normally maintenance is not required. But depending on the type of food you
use, the feeding operation might create some dust. If necessary, you can use a
dry cloth to remove the dust. The feeder is easy to dismount. If you would like
to clean the food container with water, you need to remove it from the lower
body first. Make sure everything is dry before you reassemble, as water will
damage the motor and electronics.
Before winter, empty, clean and store the filter in a well ventilated and frost
free location.

4
Depending on the size of your pond, you can set the feeder motor for
3 different speeds.
As a reference, a handful of normal 6 mm koi pellets have the following
approximate spacing:
Low (60%): 1 m.
Medium (80%): 2 m.
High (100%): 3 m.
1. Make sure your workspace is dry
as water will damage electronics.
2. Open the over by removing the
3 screws.
5. Connect the power for a short period to see distance.
6. Test with your preferred food and repeat step 1-6 to find
the best setting.
To adjust for your preferred food
The timing and amount of food varies on the basis of the type, pellet size,
and weight of the food.
Distance
3. Set the switch at low (60%),
medium (80%) or high (100%) as
preferred.
4. Connect the feeder to socket B on
the Pondlink WIFI filter.

English
5
Amount of food
How to set the timer
1. Your Pondlink WIFI Filter must be set up and running according to the manual.
2. Start the Pondlink App on Your mobile phone. Please allow some seconds
between inputs for the App to update database.
7. When finished press <
3. Select Your Pondlink
filter and then Socket
B, where the feeder is
connected.
4. Select Timer mode
and press “Submit”. If
old timers are present
press “reset” and “Yes”.
5. Press “+” to add new
timer and “Submit”
6. Select days and press
“<” - then set Start/Stop
times.
Make sure that only
seconds are set
(last number(s) to the
right) not to overfeed.
Press “+” to add
additional timers.
The amount of food is controlled by the running time in seconds (from start to stop).
1. Set the timers first start/stop time 2 min. ahead (follow timer instruction below).
2. Hold a plastic bag in front of the outlet and check the amount of food after
the feeding.
3. Adjust the running (start/stop) time for your preferred amount of food by
repeating step 1-2. Start with 5 seconds!

6
This product is guaranteed against defects in material and workmanship for
two years from the date of purchase, under normal usage.
The warranty does not apply for improper use, negligence, lack of maintenan-
ce or accidental damage to the product. If the product fails due to a manufactu-
ring fault within this period it will be either repaired or replaced free of charge.
Liability is limited to replacement of the faulty product only. No other costs
will be reimbursed. This guarantee is not transferable and does not affect your
statutory rights.
The manufacturer or supplier shall not be responsible or held liable for any da-
mages caused by defective components or materials of this product, or for the
loss incurred by interruption of service, or any consequential/incidental damages
and expenses arising from the production, sale use or misuse of this product or
any other consequential loss.
Any warranty claim must be accompanied by a valid, dated proof of purchase.
Pondteam International AB, its distributors and dealers shall not be held liable
for any loss of fish, plants or any other livestock as a result of any failure or a
defect of this product.
The installation and use of your product outside of our recommendations as
printed in this manual may also void the warranty.
Technical data
Capacity: 6 L
Feeding per day: 1-6
Dimensions: 37x31x40 cm
Warranty

English
7

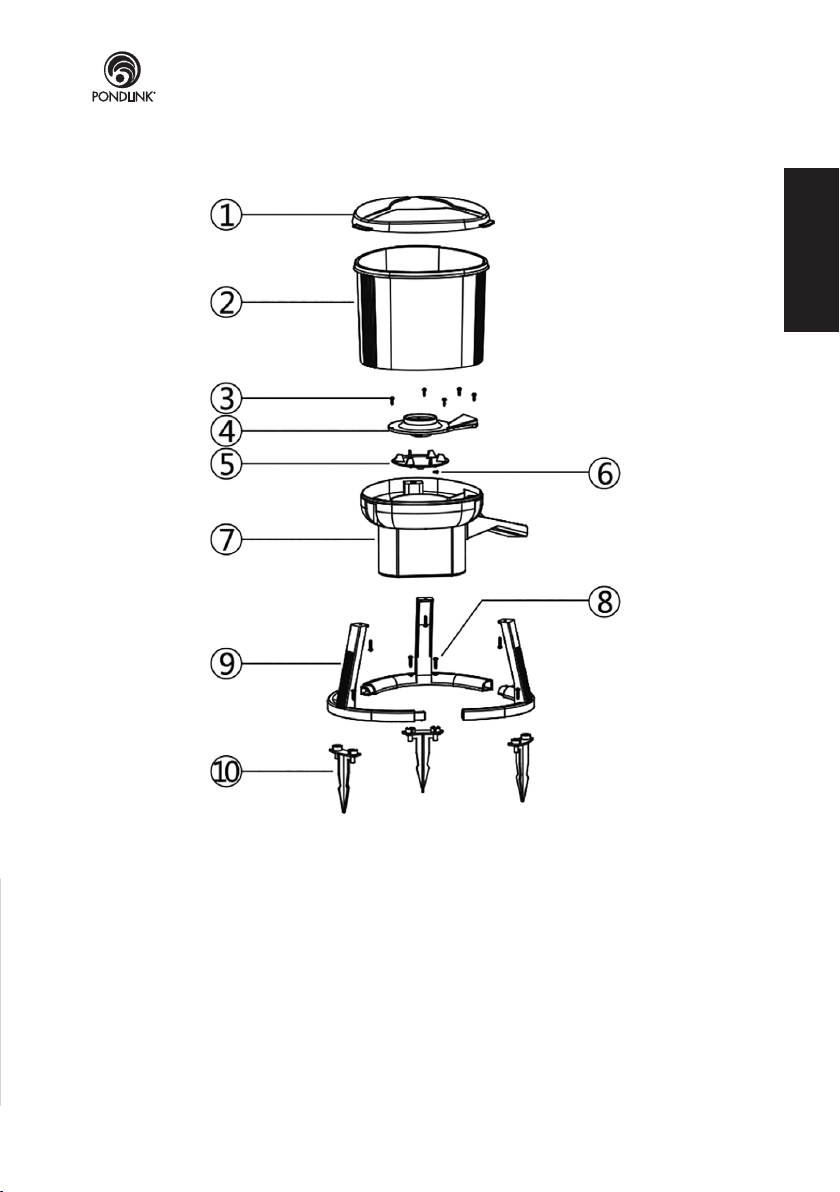

1. Container cover
2. Food container
3. Screws for impeller cover
4. Impeller cover
5. Impeller
6. Screw for impeller
7. Lower body
8. Screws for footing
9. Footing
10. Mounting fixtures
Part list

System Feeder
for Pondlink WIFI lter
User Manual
8
www.pondlink.com
Pondteam International AB
Mossvagen 17 - 23237 Arlov - Sweden
www.pondteam.com
Copyright Pondteam International AB - 26/02/2019
Pondlink®and Pondteam®are registered trademarks.Other trademarks used in this manual, on
our website or in our catalogues are the property of their respective owners. We reserve the right
to change specifications of products, App’s and recommendations without notice.
Pondlink®filters are protected internationally by registered design and patents – further patents pending.
Waste management
A defect product must Not be thrown in the normal municipal waste, but
must be delivered at one of the home municipality's recycling stations.

Deutsch
LESEN SIE DIESE BETRIEBSANLEITUNG SORGFÄLTIG DURCH,
BEVOR SIE DEN FEEDER VERWENDEN.
Betriebsanleitung Version - 26/02/2019
System Feeder
Betriebsanleitung
die mit Pondlink WIFI-Filtern kompatibel ist

2
Pondlink System Feeder die mit Pondlink
WIFI-Filtern kompatibel ist
Pondlink System Fischfutterautomat, geeignet für mittelgroße und große
Teiche.
Die Pondlink Futteranlage ist vollständig mit den Pondlink WIFI-
Filtern kompatibel und kann ganz einfach über die Pondlink Mobil-App
programmiert werden.
Das Gerät kann so programmiert werden, dass es in festgelegten Abständen
während des Tages Fischfutter in den Teich abgibt.
Das Futter wird in einem 120 Grad-Winkel ausgegeben, wobei die zeitlichen
Abstände und die Dauer der Fütterung eingestellt werden können.
Der Fischfutterautomat ist für Pellets der Größen 3-10 mm ausgelegt. Wir raten
vom Einsatz von Sticks, Flocken oder anders geformtem Futter ab.
Pondlink System Fischfutterautomat wurde speziell mit einem leistungsstarken
Motor und zusätzlicher Lüftung über dem Laufrad entwickelt, um zu
verhindern, dass das Futter die Leitung verstopft.
Es sind auch Befestigungspflöcke enthalten, damit Sie den
Fischfutterautomaten einfach und sicher am Rand Ihres Teichs anbringen und
ihn besser als andere Fischfutterautomaten verstecken können.
Pondlink System-Fischfutterautomat ist ideal für Koi-Teiche geeignet, bei der
größere Mengen Pellets verfüttert und die Fische mehrmals täglich gefüttert
werden, um deren Wachstum zu unterstützen. Er ist auch hervorragend für die
Fütterung geeignet, wenn der Besitzer in Urlaub ist.
Wir empfehlen Ihnen, auf unserer Webseite nach den neusten Handbüchern
und Informationen zu suchen: www.pondlink.com
Es wird ein Pondlink WIFI-Filter benötigt, um diese Futteranlage
zu verwenden (oder eine andere externe Zeitschaltuhr).
