PondoMax Eco
1500 / 2500 / 5000 / 8000 / 11000 / 14000 / 17000

-EN -
7
-EN -
Translation of the original Operating Instructions
Information about these operating instructions
You made a good choice with the purchase of this product PondoMax Eco 1500 / 2500 / 5000 / 8000 / 11000 / 14000 /
17000.
Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.
Ensure that all work on and with this unit is only carried out in accordance with these instructions.
Adhere to the safety information for the correct and safe use of the unit.
Keep these instructions in a safe place! Please also hand over the instructions when passing the unit on to a new
owner.
Symbols used in these instructions
GB
The symbols used in this operating manual have the following meanings:
Risk of injury to persons due to dangerous electrical voltage
This symbol indicates an imminen
t danger, which can lead to death or severe injuries if the appropriate
measures are not taken.
Risk of personal injury caused by a general source of danger
This symbol indicates an imminent danger
, which can lead to death or severe injuries if the appropriate
measures are not taken.
Important information for trouble
-free operation.
A Reference to a figure, e.g. Fig. A.
→Reference to another section.
Intended use
PondoMax Eco 1500 / 2500 / 5000 / 8000 / 11000 / 14000 / 17000, referred to in the following as "unit", may only be
used as specified in the following:
•For pumping normal pond water for water features and fountains.
•Operation under observance of the technical data.
The following restrictions apply to the unit:
•Do not use in swimming ponds.
•Never use the unit to convey fluids other than water.
•Never run the unit without water.
•Do not use for commercial or industrial purposes.
•Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.
•Do not connect to the domestic water supply.

-EN -
8
Safety information
Hazards to persons and assets may emanate from this unit if it is used in an improper manner or not in accordance
with its intended use, or if the safety instructions are ignored.
This unit can be used by children aged 8 and above and by persons
with reduced physical, sensory or mental capabilities or lack of expe-
rience and knowledge if they are supervised or have been instructed
on how to use the unit in a safe way and they understand the haz-
ards involved.
Do not allow children to play with the unit.
Only allow children to carry out cleaning and user maintenance under
supervision.
Hazards encountered by the combination of water and electricity
•The combination of water and electricity can lead to death or severe injury from electrocution, if the unit is incorrectly
connected or misused.
•Prior to reaching into the water, always switch off the mains voltage to all units used in the water.
Correct electrical installation
•Electrical installations must meet the national regulations and may only be carried out by a qualified electrician.
•A person is regarded as a qualified electrician if, due to his/her vocational education, knowledge and experience, he
or she is capable of and authorised to judge and carry out the work commissioned to him/her. This also includes the
recognition of possible hazards and the adherence to the pertinent regional and national standards, rules and regula-
tions.
•For your own safety, please consult a qualified electrician.
•The device may only be connected if the electrical data of the device and the power supply coincide. The device data
is to be found on the device type plate, on the packaging or in this manual.
•Ensure that the unit is fused for a rated fault current of max. 30 mA by means of a fault current protection device.
•Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
•Protect the plug connections from moisture.
•Only plug the unit into a correctly fitted socket.
Safe operation
•Never operate the unit if either the electrical cables or the housing are defective!
•Do not carry or pull the unit by its electrical cable.
•Route cables/hoses such that they are protected from damage and do not present a tripping hazard.
•Only open the unit housing or its attendant components, when this is explicitly required in the operating instructions.
•Only carry out work on the unit that is described in this manual. If problems cannot be overcome, please contact an
authorised customer service point or, when in doubt, the manufacturer.
•Only use original spare parts and accessories for the unit.
•Never carry out technical modifications to the unit.
•Only operate the unit if no persons are in the water.
•Keep the socket and power plug dry.
•The impeller unit in the pump contains a magnet with a strong magnetic field that may affect the operation of pace-
makers or implantable cardioverter defibrillators (ICDs). Always keep magnets at least 0.2 m away from implanted
devices.

-EN -
9
Installation
How to proceed:
A
Cut the stepped hose adapters such that the connection opening coincides with the hose diameter. This helps to avoid
pressure loss.
At the filter pump, push or turn the hose onto the stepped hose connection, secure with hose clips and screw onto the
filter pump connection thread.
Installation
Place the unit in the pond horizontally on firm, sludge-free ground and ensure that it is completely covered with water
at a maximum of 4 m below the surface of the water.
Commissioning/start-up
Attention! Dangerous electrical voltage.
Possible consequences: Death or severe injury.
Protective measures:
•Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water:
Isolate the units and installations (switch off and disconnect from the power supply) before reaching into
the water.
•Isolate the unit before starting any work.
•Secure the unit to prevent unintentional switching on.
Sensitive electrical components.
Possible consequences: The device will be destroyed.
Protective measure: Do not connect the unit to a dimmable power supply.
Switching on: Connect the unit to the mains. The unit switches on as soon as the power connection is established.
Switching off: Disconnect the unit from the mains.
Remedy of faults
S
Malfunction
Cause
Remedy
Pump does not start
No mains voltage
Check mains voltage
Clean/check supply lines
Pump does not deliver
Filter housing clogged
Clean strainer casings
Reduce hose length to the necessary mini-
mum, do not use unnecessary connection parts
Insufficient delivered quantity
Filter housing clogged
Excessive loss in the supply hoses
Clean strainer casings
Reduce hose length to the necessary mini-
mum, do not use unnecessary connection parts
Pump switches off after a short running time
Excessively soiled water
Water temperature too high
Clean pump
Note maximum water temperature of +35 °C

-EN -
10
Maintenance and cleaning
Attention! Dangerous electrical voltage.
Possible consequences: Death or severe injury.
Protective measures:
•Electrical units and installations with a rated voltage of U > 12 V AC or U >30 V DC located in the water:
Isolate the units and installations (switch off and disconnect from the power supply) before reaching into
the water.
•Isolate the unit before starting any work.
•Secure the unit to prevent unintentional switching on.
Cleaning the unit
Note!
Recommendation on regular cleaning:
•Clean the pump as required but at least twice a year.
•Do not use aggressive cleaning agents or chemical solutions as they could attack the housing or impair the function
of the unit.
•Recommended cleaning agent for removing stubborn limescale deposits:
– Vinegar- and chlorine-free household cleaning agent.
•After cleaning, thoroughly rinse all parts in clean water.
Cleaning the pump
Open strainer casing and remove pump (B). Unscrew pump lid and remove impeller. Clean all components using clean
water and a brush.
After cleaning the pump, reassemble in the reverse order. Insert pump in the strainer casing. Regarding the 1500-2500
series of the PondoMax, ensure correct seating of the rubber buffers used for the bearing of the pump. Route connec-
tion cable such that it cannot be pinched. Refit strainer lid and close.
Storage/Over-wintering
Remove the unit at temperatures below zero degrees centigrade. Thoroughly clean and check the unit for damage.
Store the unit immersed in water or filled with water in a frost
-free place. Do not flood the power plug!
Wear parts
The impeller unit is a wearing part and does not fall under the warranty.
Repair
A damaged unit cannot be repaired and must be put out of operation. Dispose of the unit in accordance with the regu-
lations.
Disposal
Note
Do not dispose of this unit with domestic waste.
•Render the unit unusable beforehand by cutting the cables and dispose of the unit via the return system provided
for this purpose.
Guarantee conditions
PfG grants a 3 year guarantee from the date of sale on proven material and manufacturing faults. Prerequisite for our
guarantee is the presentation of the purchase receipt. Our guarantee will become null and void if the unit is misused,
electrically or mechanically damaged by inappropriate use and improper repair by non-authorised workshops. Repairs
are reserved for workshops authorised by PfG or by PfG itself. In the case of warranty claims, please return the defec-
tive unit or part freight paid to PfG together with a description of the fault and the purchase receipt. PfG reserves the
right to invoice repair costs. PfG is not liable for transport damage. Any damage must be claimed against the carrier.
Further claims of whatever type, especially consequential damage, are excluded. This guarantee does not affect the
final customer’s claims against the dealer.

87
DE
Typ
Gewicht
Bemessungsspan-
nung
Leistungsaufname
Förderleistung
Wassersäule
Anschluss Pumpenein-
gang
Anschluss Pumpenausgang
Kabellänge
Wassertemperatur
EN
Type
Weight
Rated voltage
Power consump-
tion
Max. flow rate
Max. head
height
Connection to the pump in-
let
Connection to the pump out-
let
Cable length
Water temperature
FR
Type
Poids
Tension de mesure
Puissance absor-
bée
Capacité de refoule-
ment
Colonne
d'eau
Raccordement arrivée de
pompe
Raccordement sortie de
pompe
Longueur de câble
Température de
l’eau
NL
Type
Gewicht
Dimensionerings-
spanning
Vermogensop-
name
Pompcapaciteit
Waterkolom
Aansluiting pompinlaat
Aansluiting pompuitlaat
Kabellengte
Watertemperatuur
ES
Tipo
Peso
Tensión asignada
Consumo de po-
tencia
Capacidad de eleva-
ción
Columna de
agua
Conexión entrada de la
bomba
Conexión salida de la
bomba
Longitud del cable
Temperatura del
agua
PT
Tipo
Peso
Voltagem conside-
rada
Potência absor-
vida
Débito
Coluna de
água
Ligação à boca de entrada
da bomba
Ligação à boca de saída da
bomba
Comprimento do
cabo
Temperatura da
água
IT
Tipo
Peso
Tensione di taratura
Potenza assorbita
Portata
Colonna d'ac-
qua
Collegamento ingresso
della pompa
Collegamento uscita della
pompa
Lunghezza cavo
Temperatura
dell'acqua
DA
Type
Vægt
Nominel spænding
Effektforbrug
Transportkapacitet
Vandsøjle
Tilslutning pumpeindgang
Tilslutning pumpeudgang
Ledningslængde
Vandtemperaturen
NO
Type
Vekt
Merkespenning
Effektopptak
Kapasitet
Vannsøyle
Tilkobling pumpeinngang
Tilkobling pumpeutgang
Kabellengde
Vanntemperatur
SV
Typ
Vikt
övre märkspänning
Effekt
Matningsprestanda
Vattenpelare
Anslutning pumpingång
Anslutning pumputgång
Kabellängd
Vattentemperatur
FI
Tyyppi
Paino
mitoitusjännite
Ottoteho
Syöttöteho
Vesipylväs
Liitäntä Pumpun sisään-
meno
Liitäntä Pumpun ulostulo
Kaapelin pituus
Veden lämpötila
HU
Típus
Súly
mért feszültség
Teljesítményfel-
vétel
Szállítási tel-
jesítmény
Vízoszlop
Szivattyúbemenet csatla-
kozás
Szivattyúkimenet csatla-
kozás
Kábelhossz
Vízhőmérséklet
PL
Typ
Ciężar
napięcie zna-
mionowe
Pobór mocy
Wydajność pompo-
wania
Słup wody
Przyłącze wlot pompy
Przyłącze wylot pompy
Długość kabla
Temperatura wody
CS
Typ
Hmotnost
domezovací napětí
Příkon
Dopravní výkon
Vodní sloupec
Přípojka – vstup čerpadla
Přípojka – výstup čerpadla
Délka kabelu
Teplota vody
SK
Typ
Hmotnost’
dimenzačné napä-
tie
Príkon
Dopravný výkon
Vodný stĺpec
Pripojenie vstupu čerpadla
Pripojenie výstupu čerpadla
Dĺžka kábla
Teplota vody
SL
Tip
Teža
dimenzionirana
napetost
Poraba moči
Črplana zmogljivost
Vodni steber
Priključek vhoda črpalke
Priključek izhoda črpalke
Dolžina kabla
Temperatura vode
HR
Tip
Masa
gornji nazivni napon
Potrošnja energije
Protočni kapacitet
Vodeni stup
Priključak - ulaz pumpe
Priključak – izlaz pumpe
Duljina kabela
Temperatura vode
RO
Tip
Masă
tensiunea măsurată
Putere consumată
Debit de pompare
Coloană de
apă
Racordarea intrării pompei
Racordarea ieşirii pompei
Lungime cablu
Temperatura apei
BG
Тип
Тегло
номинално
напрежение
Потребявана мощ-
ност
Дебит
Воден стълб
Свързване на входа на
помпата
Свързване на изхода на
помпата
Дължина на
кабелите
Температурата
на водата
UK
Тип
Вага
розрахункова
напруга
Споживання еле-
ктроенергії
Продуктивність
Водяний
стовп
Під’єднання Вхід насосу
Під’єднання Вихід насосу
Довжина кабелю
Температура
води
RU
Тип
Вес
расчетное
напряжение
Потребление
мощности
Производитель-
ность
Водяной
столб
Подключение Вход
насоса
Подключение Выход
насоса
Длина кабеля
Температура
воды
PondoMax Eco
1500
1.9 kg
AC 220-240 V,
50 Hz
25 W
≤ 1500 l/h
≤ 1.9 m
25 mm G1 ’’
10 m +4 … +35 ºC
2500
2.2 kg
40 W
≤ 2500 l/h
≤ 2.2 m
5000
3.4 kg
60 W
≤ 5000 l/h
≤ 2.6 m
G1 ½ ’’ G1 ½ ’’
8000
4.4 kg
70 W
≤ 8000 l/h
≤ 2.8 m
11000
95 W
≤ 10000 l/h
≤ 3.0 m
14000
5.4 kg
140 W
≤ 13400 l/h
≤ 3.2 m
17000
180 W
≤ 17000 l/h
≤ 3.5 m

88

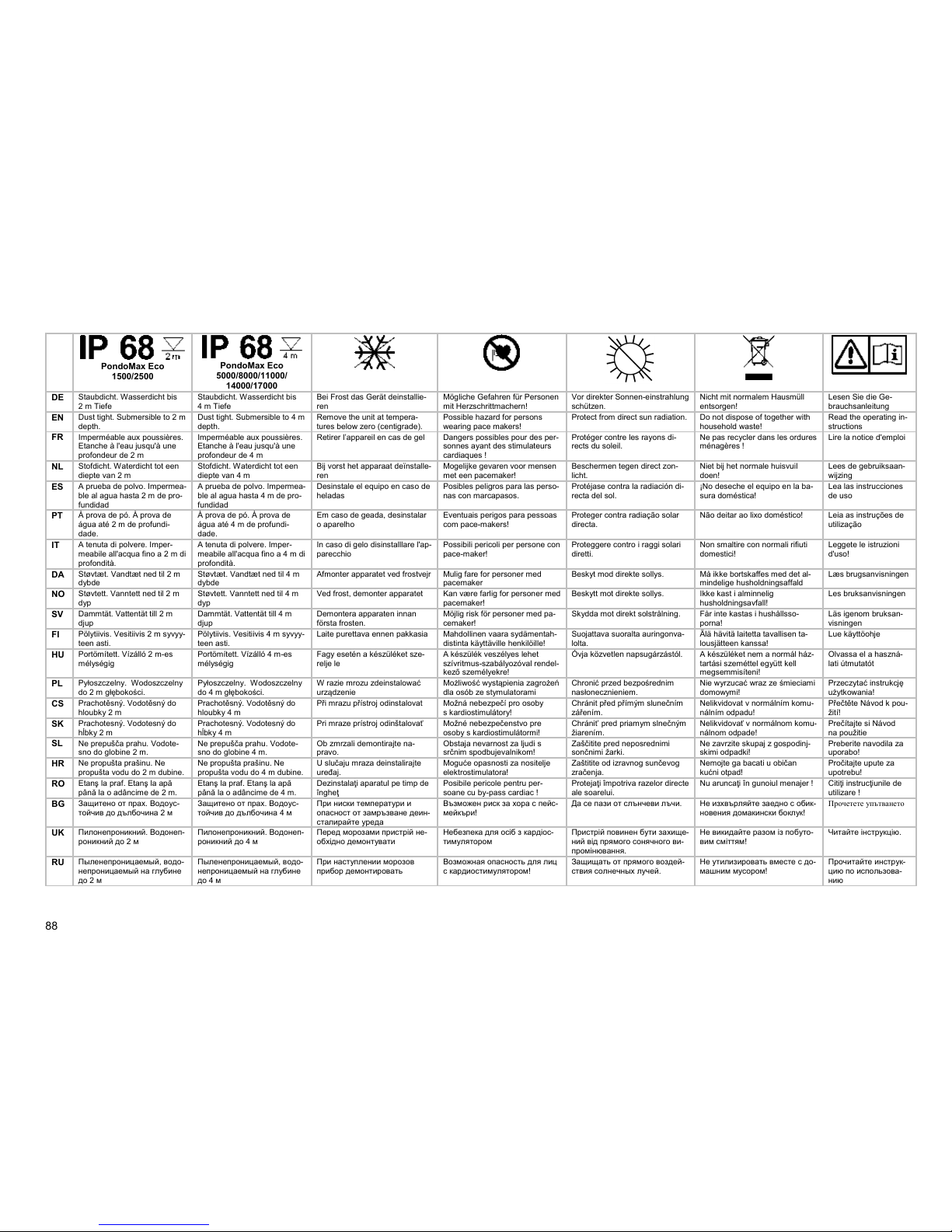

PondoMax Eco
1500/2500
PondoMax Eco
5000/8000/11000/
14000/17000
DE
Staubdicht. Wasserdicht bis
2 m Tiefe
Staubdicht. Wasserdicht bis
4 m Tiefe
Bei Frost das Gerät deinstallie-
ren
Mögliche Gefahren für Personen
mit Herzschrittmachern!
Vor direkter Sonnen-einstrahlung
schützen.
Nicht mit normalem Hausmüll
entsorgen!
Lesen Sie die Ge-
brauchsanleitung
EN
Dust tight. Submersible to 2 m
depth.
Dust tight. Submersible to 4 m
depth.
Remove the unit at tempera-
tures below zero (centigrade).
Possible hazard for persons
wearing pace makers!
Protect from direct sun radiation.
Do not dispose of together with
household waste!
Read the operating in-
structions
FR
Imperméable aux poussières.
Etanche à l'eau jusqu'à une
profondeur de 2 m
Imperméable aux poussières.
Etanche à l'eau jusqu'à une
profondeur de 4 m
Retirer l’appareil en cas de gel
Dangers possibles pour des per-
sonnes ayant des stimulateurs
cardiaques !
Protéger contre les rayons di-
rects du soleil.
Ne pas recycler dans les ordures
ménagères !
Lire la notice d'emploi
NL
Stofdicht. Waterdicht tot een
diepte van 2 m
Stofdicht. Waterdicht tot een
diepte van 4 m
Bij vorst het apparaat deïnstalle-
ren
Mogelijke gevaren voor mensen
met een pacemaker!
Beschermen tegen direct zon-
licht.
Niet bij het normale huisvuil
doen!
Lees de gebruiksaan-
wijzing
ES
A prueba de polvo. Impermea-
ble al agua hasta 2 m de pro-
fundidad
A prueba de polvo. Impermea-
ble al agua hasta 4 m de pro-
fundidad
Desinstale el equipo en caso de
heladas
Posibles peligros para las perso-
nas con marcapasos.
Protéjase contra la radiación di-
recta del sol.
¡No deseche el equipo en la ba-
sura doméstica!
Lea las instrucciones
de uso
PT
À prova de pó. À prova de
água até 2 m de profundi-
dade.
À prova de pó. À prova de
água até 4 m de profundi-
dade.
Em caso de geada, desinstalar
o aparelho
Eventuais perigos para pessoas
com pace-makers!
Proteger contra radiação solar
directa.
Não deitar ao lixo doméstico!
Leia as instruções de
utilização
IT
A tenuta di polvere. Imper-
meabile all'acqua fino a 2 m di
profondità.
A tenuta di polvere. Imper-
meabile all'acqua fino a 4 m di
profondità.
In caso di gelo disinstalllare l'ap-
parecchio
Possibili pericoli per persone con
pace-maker!
Proteggere contro i raggi solari
diretti.
Non smaltire con normali rifiuti
domestici!
Leggete le istruzioni
d'uso!
DA
Støvtæt. Vandtæt ned til 2 m
dybde
Støvtæt. Vandtæt ned til 4 m
dybde
Afmonter apparatet ved frostvejr
Mulig fare for personer med
pacemaker
Beskyt mod direkte sollys.
Må ikke bortskaffes med det al-
mindelige husholdningsaffald
Læs brugsanvisningen
NO
Støvtett. Vanntett ned til 2 m
dyp
Støvtett. Vanntett ned til 4 m
dyp
Ved frost, demonter apparatet
Kan være farlig for personer med
pacemaker!
Beskytt mot direkte sollys.
Ikke kast i alminnelig
husholdningsavfall!
Les bruksanvisningen
SV
Dammtät. Vattentät till 2 m
djup
Dammtät. Vattentät till 4 m
djup
Demontera apparaten innan
första frosten.
Möjlig risk för personer med pa-
cemaker!
Skydda mot direkt solstrålning.
Får inte kastas i hushållsso-
porna!
Läs igenom bruksan-
visningen
FI
Pölytiivis. Vesitiivis 2 m syvyy-
teen asti.
Pölytiivis. Vesitiivis 4 m syvyy-
teen asti.
Laite purettava ennen pakkasia
Mahdollinen vaara sydämentah-
distinta käyttäville henkilöille!
Suojattava suoralta auringonva-
lolta.
Älä hävitä laitetta tavallisen ta-
lousjätteen kanssa!
Lue käyttöohje
HU
Portömített. Vízálló 2 m-es
mélységig
Portömített. Vízálló 4 m-es
mélységig
Fagy esetén a készüléket sze-
relje le
A készülék veszélyes lehet
szívritmus-szabályozóval rendel-
kező személyekre!
Óvja közvetlen napsugárzástól.
A készüléket nem a normál ház-
tartási szeméttel együtt kell
megsemmisíteni!
Olvassa el a haszná-
lati útmutatót
PL
Pyłoszczelny. Wodoszczelny
do 2 m głębokości.
Pyłoszczelny. Wodoszczelny
do 4 m głębokości.
W razie mrozu zdeinstalować
urządzenie
Możliwość wystąpienia zagrożeń
dla osób ze stymulatorami
Chronić przed bezpośrednim
nasłonecznieniem.
Nie wyrzucać wraz ze śmieciami
domowymi!
Przeczytać instrukcję
użytkowania!
CS
Prachotěsný. Vodotěsný do
hloubky 2 m
Prachotěsný. Vodotěsný do
hloubky 4 m
Při mrazu přístroj odinstalovat
Možná nebezpečí pro osoby
s kardiostimulátory!
Chránit před přímým slunečním
zářením.
Nelikvidovat v normálním komu-
nálním odpadu!
Přečtěte Návod k pou-
žití!
SK
Prachotesný. Vodotesný do
hĺbky 2 m
Prachotesný. Vodotesný do
hĺbky 4 m
Pri mraze prístroj odinštalovať
Možné nebezpečenstvo pre
osoby s kardiostimulátormi!
Chránit’ pred priamym slnečným
žiarením.
Nelikvidovať v normálnom komu-
nálnom odpade!
Prečítajte si Návod
na použitie
SL
Ne prepušča prahu. Vodote-
sno do globine 2 m.
Ne prepušča prahu. Vodote-
sno do globine 4 m.
Ob zmrzali demontirajte na-
pravo.
Obstaja nevarnost za ljudi s
srčnim spodbujevalnikom!
Zaščitite pred neposrednimi
sončnimi žarki.
Ne zavrzite skupaj z gospodinj-
skimi odpadki!
Preberite navodila za
uporabo!
HR
Ne propušta prašinu. Ne
propušta vodu do 2 m dubine.
Ne propušta prašinu. Ne
propušta vodu do 4 m dubine.
U slučaju mraza deinstalirajte
uređaj.
Moguće opasnosti za nositelje
elektrostimulatora!
Zaštitite od izravnog sunčevog
zračenja.
Nemojte ga bacati u običan
kućni otpad!
Pročitajte upute za
upotrebu!
RO
Etanş la praf. Etanş la apă
până la o adâncime de 2 m.
Etanş la praf. Etanş la apă
până la o adâncime de 4 m.
Dezinstalaţi aparatul pe timp de
îngheţ
Posibile pericole pentru per-
soane cu by-pass cardiac !
Protejaţi împotriva razelor directe
ale soarelui.
Nu aruncaţi în gunoiul menajer !
Citiţi instrucţiunile de
utilizare !
BG
Защитено от прах. Водоус-
тойчив до дълбочина 2 м
Защитено от прах. Водоус-
тойчив до дълбочина 4 м
При ниски температури и
опасност от замръзване деин-
сталирайте уреда
Възможен риск за хора с пейс-
мейкъри!
Да се пази от слънчеви лъчи.
Не изхвърляйте заедно с обик-
новения домакински боклук!
Прочетете упътването
UK
Пилонепроникний. Водонеп-
роникний до 2 м
Пилонепроникний. Водонеп-
роникний до 4 м
Перед морозами пристрій не-
обхідно демонтувати
Небезпека для осіб з кардіос-
тимулятором
Пристрій повинен бути захище-
ний від прямого сонячного ви-
промінювання.
Не викидайте разом із побуто-
вим сміттям!
Читайте інструкцію.
RU
Пыленепроницаемый, водо-
непроницаемый на глубине
до 2 м
Пыленепроницаемый, водо-
непроницаемый на глубине
до 4 м
При наступлении морозов
прибор демонтировать
Возможная опасность для лиц
с кардиостимулятором!
Защищать от прямого воздей-
ствия солнечных лучей.
Не утилизировать вместе с до-
машним мусором!
Прочитайте инструк-
цию по использова-
нию

89

90
PMX0005
